  1. Accessibility & WebCT Joe Wheaton, Ph.D.

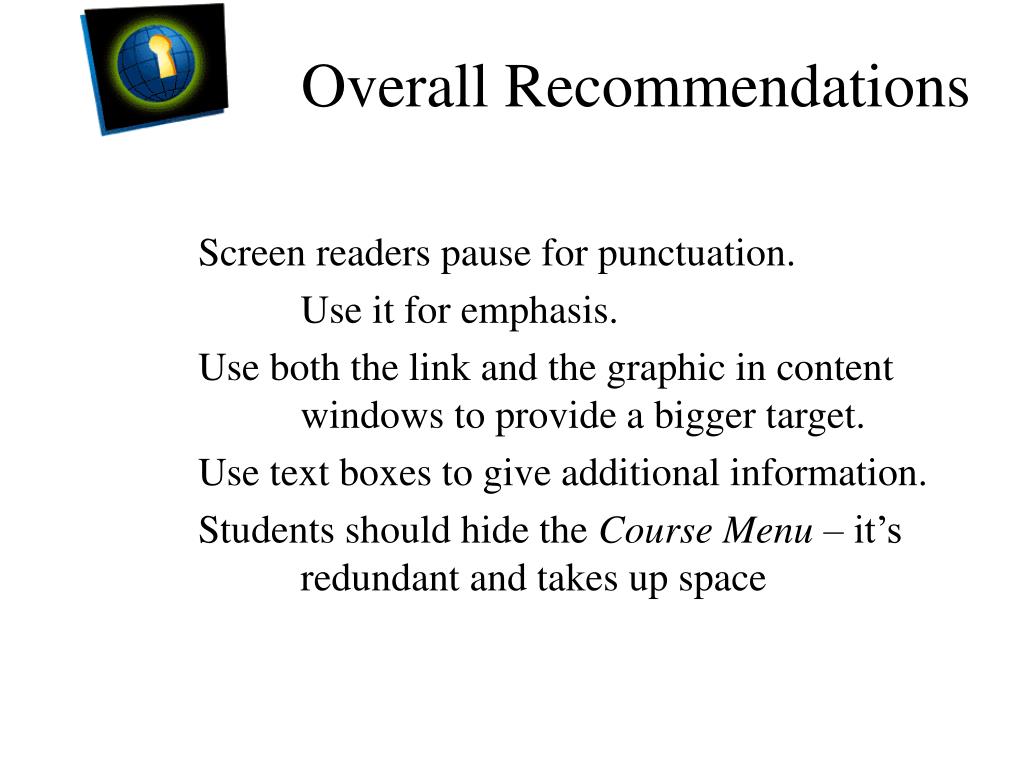

  2. Overall Recommendations • Screen readers pause for punctuation. • Use it for emphasis. • Use both the link and the graphic in content windows to provide a bigger target. • Use text boxes to give additional information. • Students should hide the Course Menu – it’s redundant and takes up space

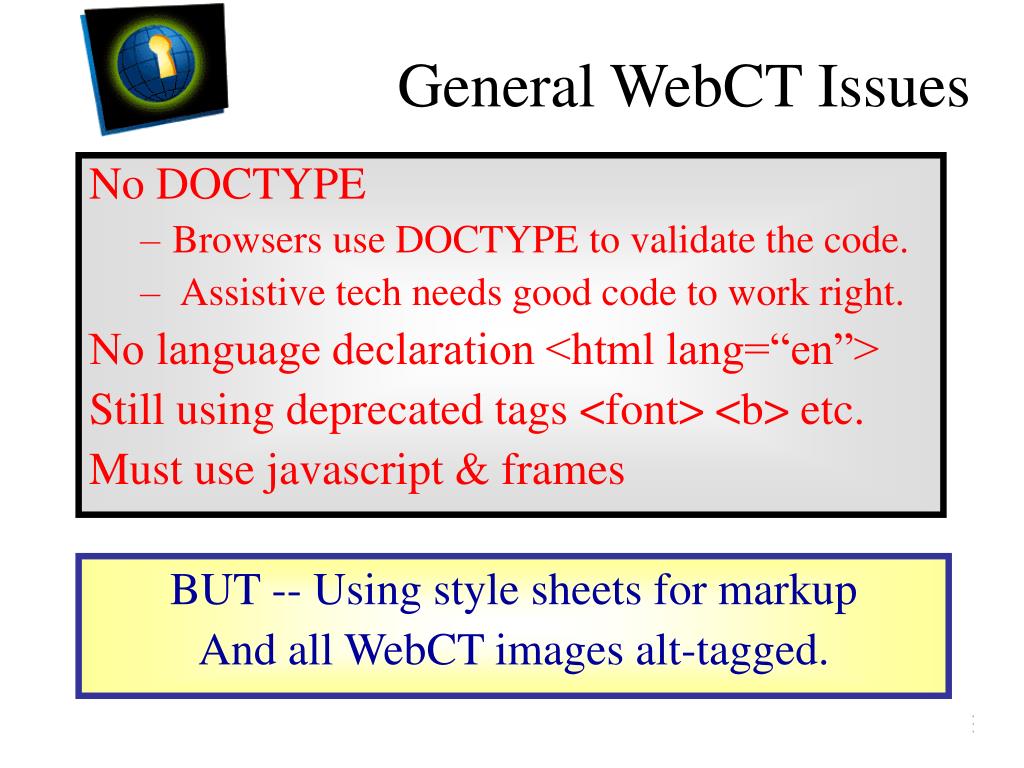

  3. General WebCT Issues • No DOCTYPE • Browsers use DOCTYPE to validate the code. • Assistive tech needs good code to work right. • No language declaration <html lang=“en”> • Still using deprecated tags <font> <b> etc. • Must use javascript & frames • BUT -- Using style sheets for markup • And all WebCT images alt-tagged.

  4. <label for="webct1">Username:</label> <input size="15" required name="WebCT_ID" id="webct1"tabindex="1"> <label for="webct2">Password:</label> <input type="password" size="15" required name="Password" id="webct2" tabindex="2"> I <input type="submit" name="submit" value="Login" tabindex="3"> Login Screen • Cursor defaults to Username box. • Form fields identified correctly (WAI 10.2) • Form fields marked up correctly using explicit tags: <label for> and <id>

  5. The WebCT logo could be linked to Courses My WebCT • Table is used for layout, which is OK, but JAWS reads the whole page, starting with the logo. • Adding a link to skip to main content (WAI 13.6) would speed reading.

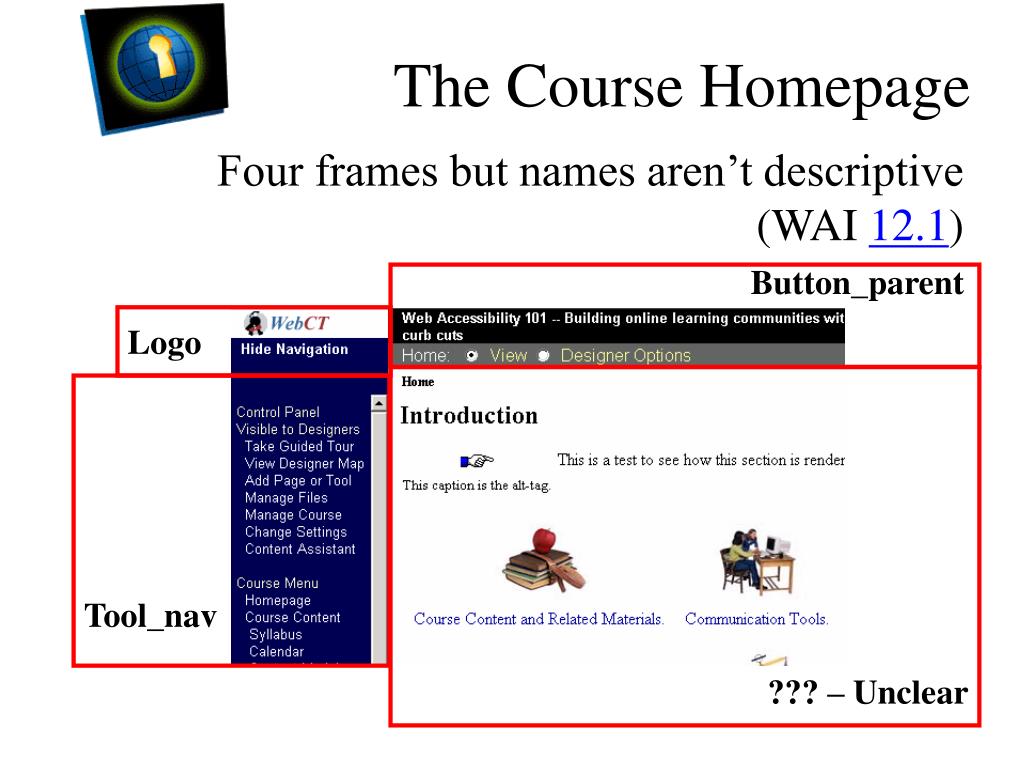

  6. Button_parent Logo Tool_nav ??? – Unclear The Course Homepage • Four frames but names aren’t descriptive (WAI 12.1)

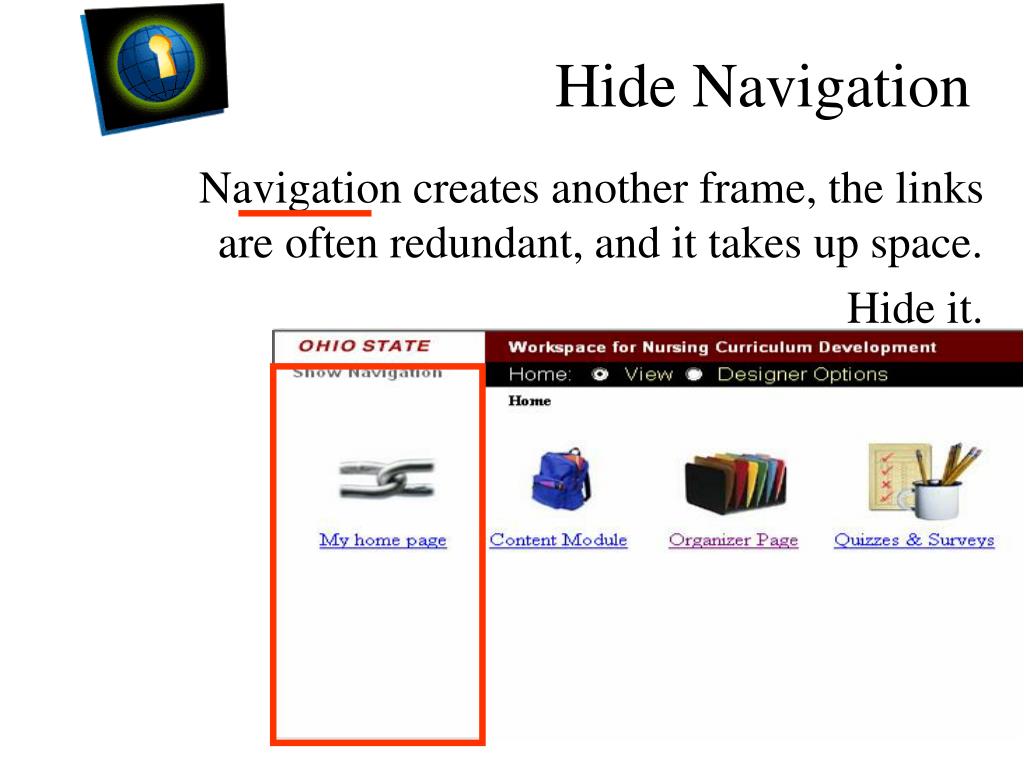

  7. Hide Navigation • Navigation creates another frame, the links are often redundant, and it takes up space. • Hide it.

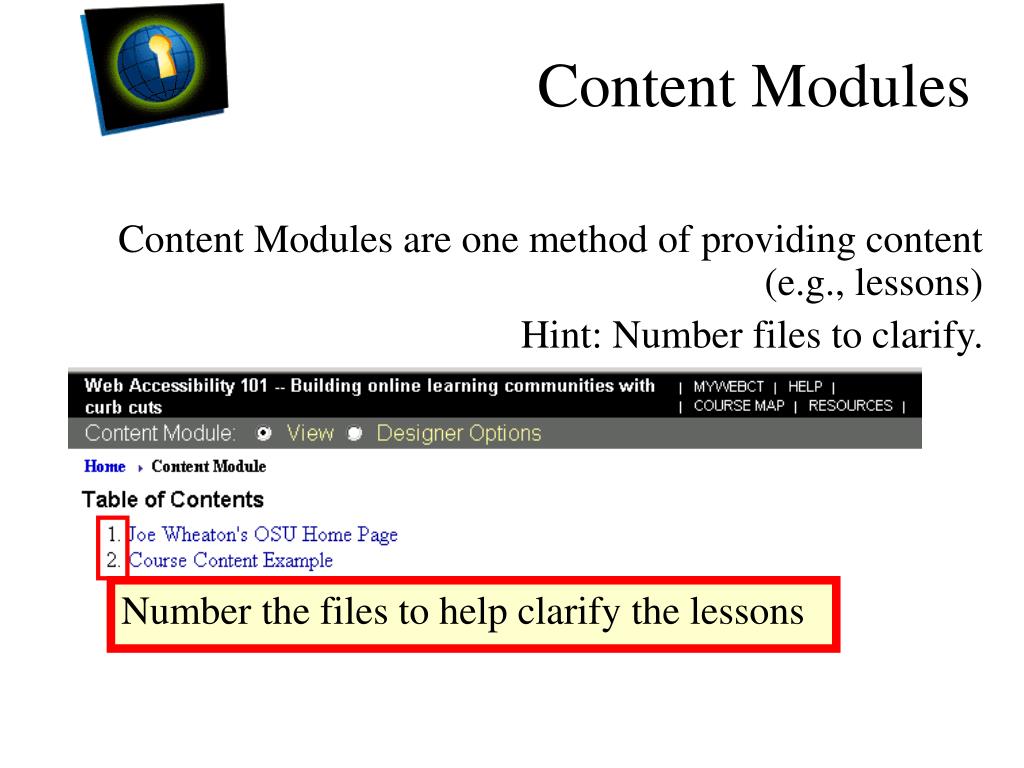

  8. Number the files to help clarify the lessons Content Modules • Content Modules are one method of providing content (e.g., lessons) • Hint: Number files to clarify.

  9. Disadvantage of Content Modules • They open in a new browser window (OK, if you tell people) but they also add another frame (for the “Action Menu”). There are now 7 frames.

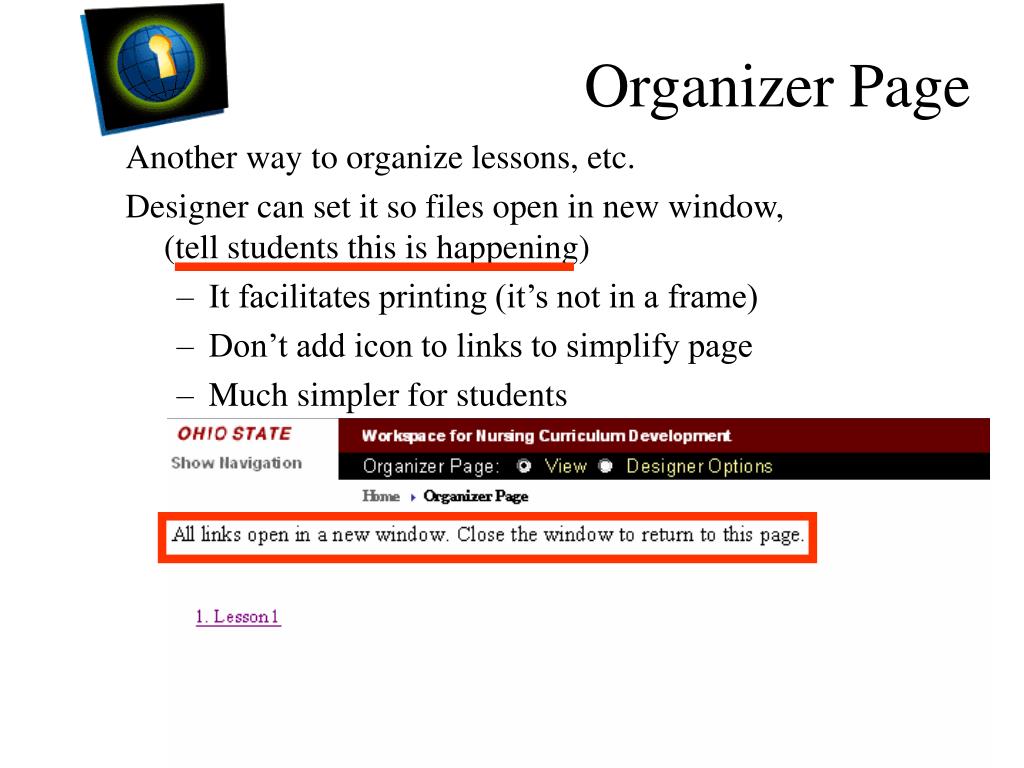

  10. Organizer Page • Another way to organize lessons, etc. • Designer can set it so files open in new window, (tell students this is happening) • It facilitates printing (it’s not in a frame) • Don’t add icon to links to simplify page • Much simpler for students

  11. Chat and Whiteboard X • Chat doesn’t default to text entry box. • Don’t know when new messages arrive. They don’t read automatically. • Whiteboard is a visual medium. • Forget ‘em

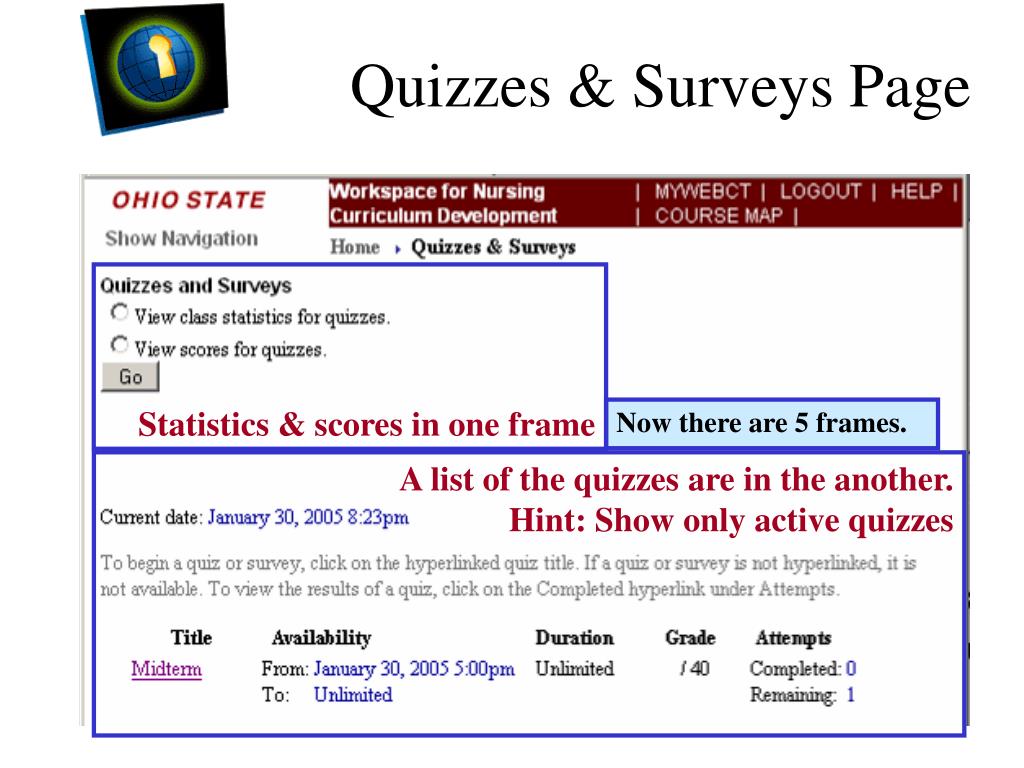

  12. Quizzes & Surveys Page • Opens in new frame (now there are 5 frames). • Viewing grade and class scores is in frame 4. • Listing of quizzes is in frame 5. • List of quiz links is in a table . • Allow only active quizzes to show on list to avoid confusion. • Must allow pop-ups to view quizzes. Statistics & scores in one frame Now there are 5 frames. A list of the quizzes are in the another.Hint: Show only active quizzes

  13. Quizzes & Surveys • Questions and answers in different frames and the answers (radio buttons) are not associated with the question through a <fieldset>. • The question should also be the <legend> so it will be repeated with each answer. Thus, these multiple choice answers cannot be associated with the question. These radio buttons have explicit labels, but are not part of a <fieldset> and the question is not the <legend> so it is not associated with the buttons

  14. Quiz Summary:They are VERY Confusing • The quiz opens in a new browser. • Students can’t begin quiz till it fully loads. • Page reloads again when answers submitted. • Students need extra time or untimed quizzes to make up for the screen reader slowness. • Answers not associated with questions. • Hint: Try delivering the questions one at a time with option to revisit to reduce loading time.

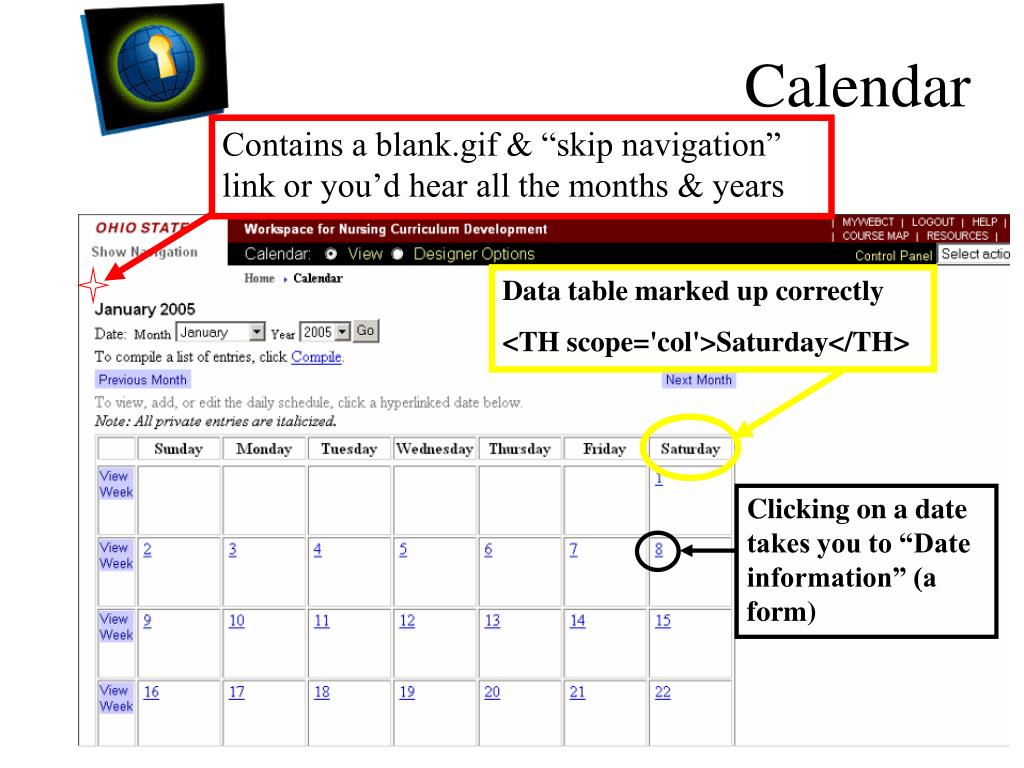

  15. Contains a blank.gif & “skip navigation” link or you’d hear all the months & years Data table marked up correctly <TH scope='col'>Saturday</TH> Clicking on a date takes you to “Date information” (a form) Calendar • Contains a blank.gif & skip navigation link or you’d hear all the months and years. • It’s a data table marked up correctly with header cells at the top of the columns and a “scope=col” attribute. • Click on a date take you to the information for that date.

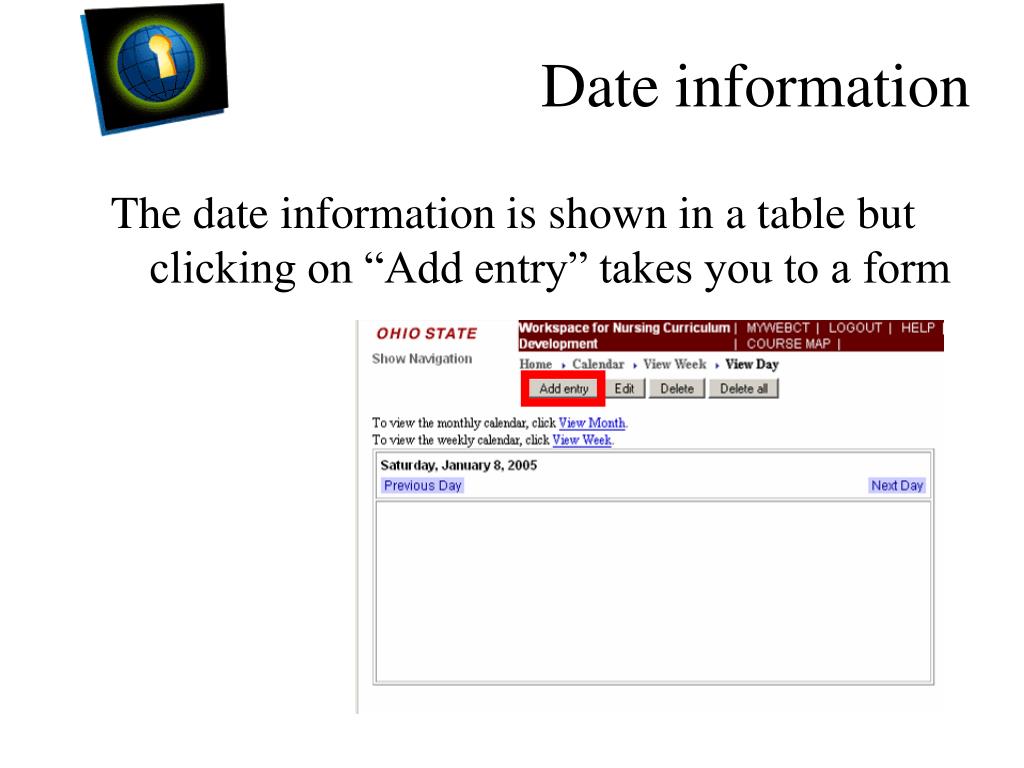

  16. Date information • The date information is shown in a table but clicking on “Add entry” takes you to a form

  17. Calendar Data Entry Form • No “skip navigation” link this time, but form marked up correctly

  18. Contains a blank.gif & “skip navigation” link Compose creates a new message Tables correctly marked up using <TH scope=“col”> The Main Mail Page • The mail image has a good alt-tag. • Compose mail message button goes to mail input. • Current mailboxes and the number of messages in each is in a table. • The columns are correctly marked up using the <TH> element. • Links go to mailboxes with mail itself

  19. But you need to be in forms mode to enter names, and this was confusing. Starting a new message puts you in “Send To:” (Note: Discussions are the same as mail except they go to the whole class so there is not “Send to” box.) Mail and Discussions • Starting new message opens new window with a table. User needs to get into forms mode to find the “Send to” box,” which provides the names of the members of the class. • Must then click on individual names using Ctrl-Enter. Must have pop-ups allowed. • Discussions are the same as mail, except they go to the whole class so there is no “Send to.” Form cells marked up correctly

  20. Contains a blank.gif & “skip navigation” link A Typical Mailbox • There is a skip navigation link.

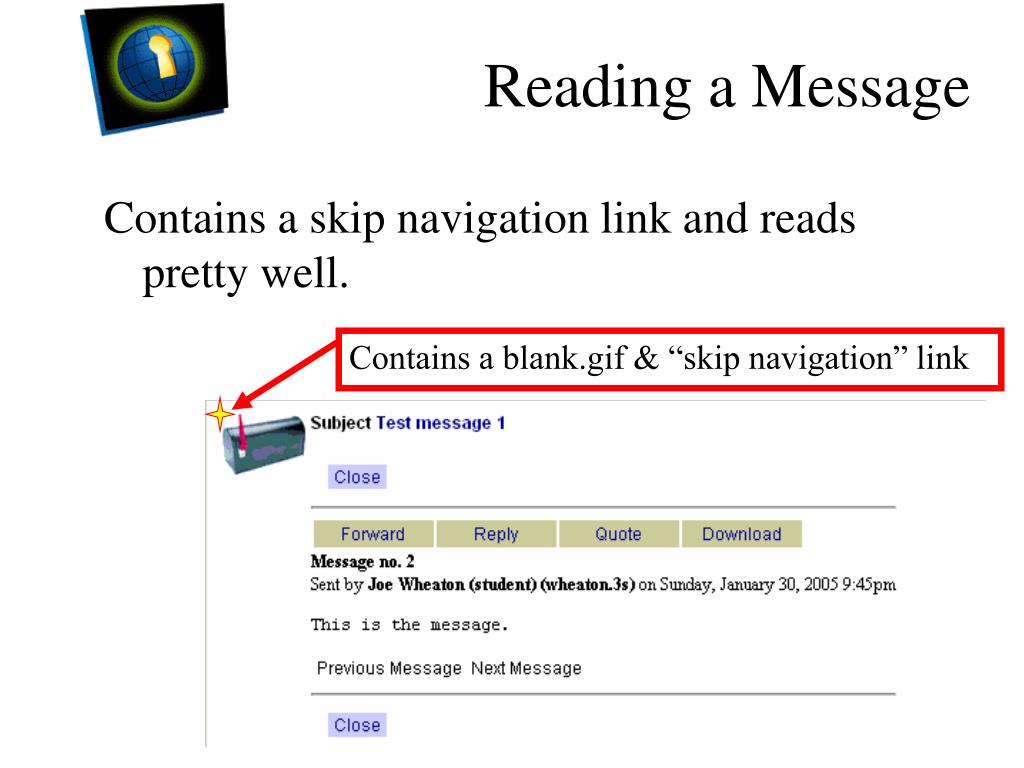

  21. Contains a blank.gif & “skip navigation” link Reading a Message • Contains a skip navigation link and reads pretty well.

  22. Give Students More Information • Provide information (e.g., text boxes, site map) • Use highly descriptive titles or explanations • Open pages in new browser window, when possible, but tell people it will happen • CREATE ACCESSIBLE CONTENT! Use

  23. Summary: A long way to go • Some featuresunusable (Chat and probably quizzes) • Others getting better (alt-tags, skip nav links)

  24. Some Resources • Section 508: • http://www.section508.gov/ • WAI: • http://www.w3.org/TR/WAI-WEBCONTENT/ • Ohio State University Web Accessibility Center: • http://www.wac.ohio-state.edu/
