Glaciated Landforms

By the end of today's lessons you will be able to recognize Arêtes and explain the formation of glacial troughs and hanging valleys. Key Words; Glaciated trough Truncated spur Hanging valley. Glaciated Landforms. What’s this?. Aretes. Formation of an arête.

debbie
Download Presentation

Glaciated Landforms

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

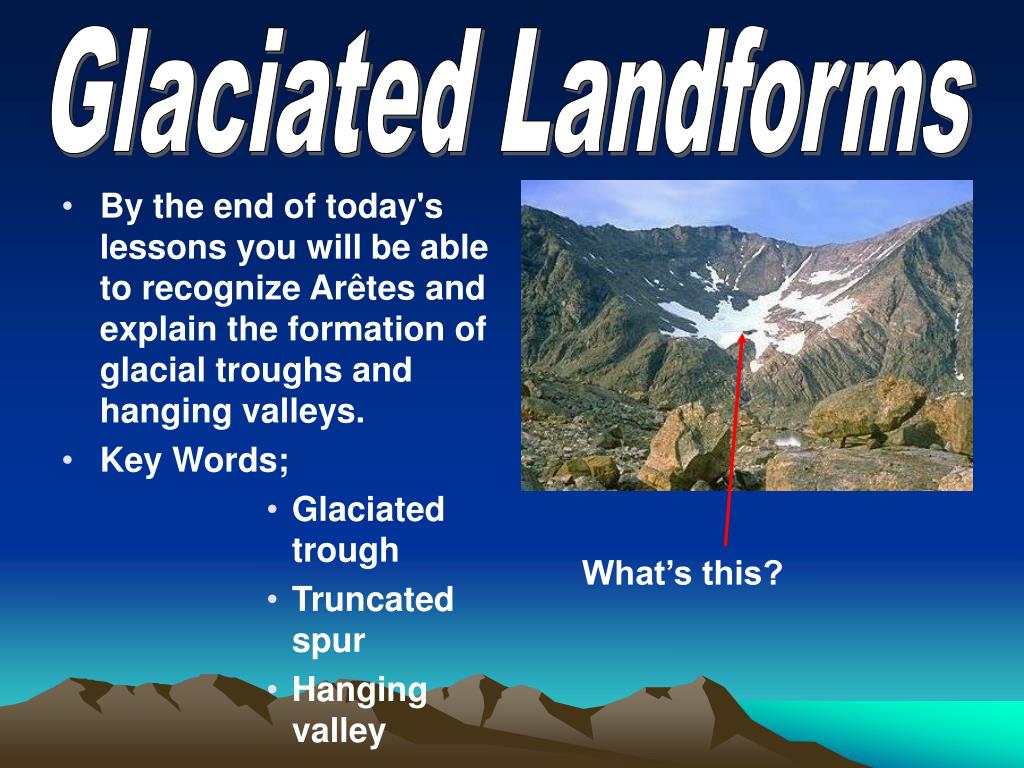

  1. By the end of today's lessons you will be able to recognize Arêtes and explain the formation of glacial troughs and hanging valleys. Key Words; Glaciated trough Truncated spur Hanging valley Glaciated Landforms What’s this?

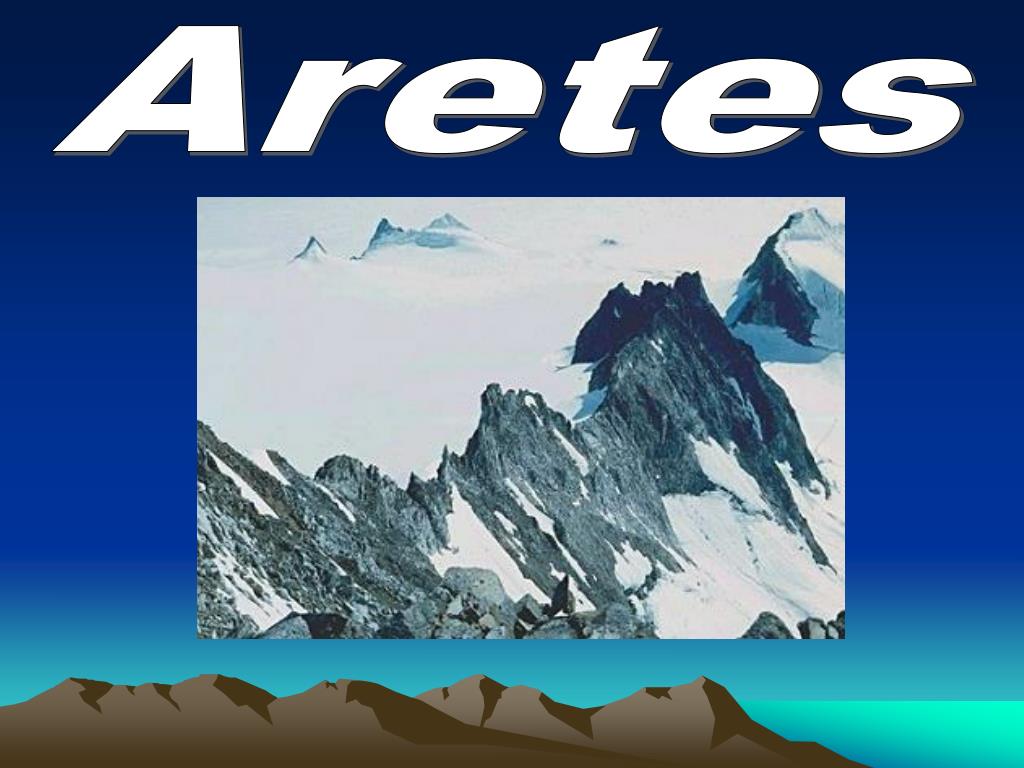

  2. Aretes

  3. Formation of an arête Arêtes are ‘knife-edged’ ridges formed between two corries.

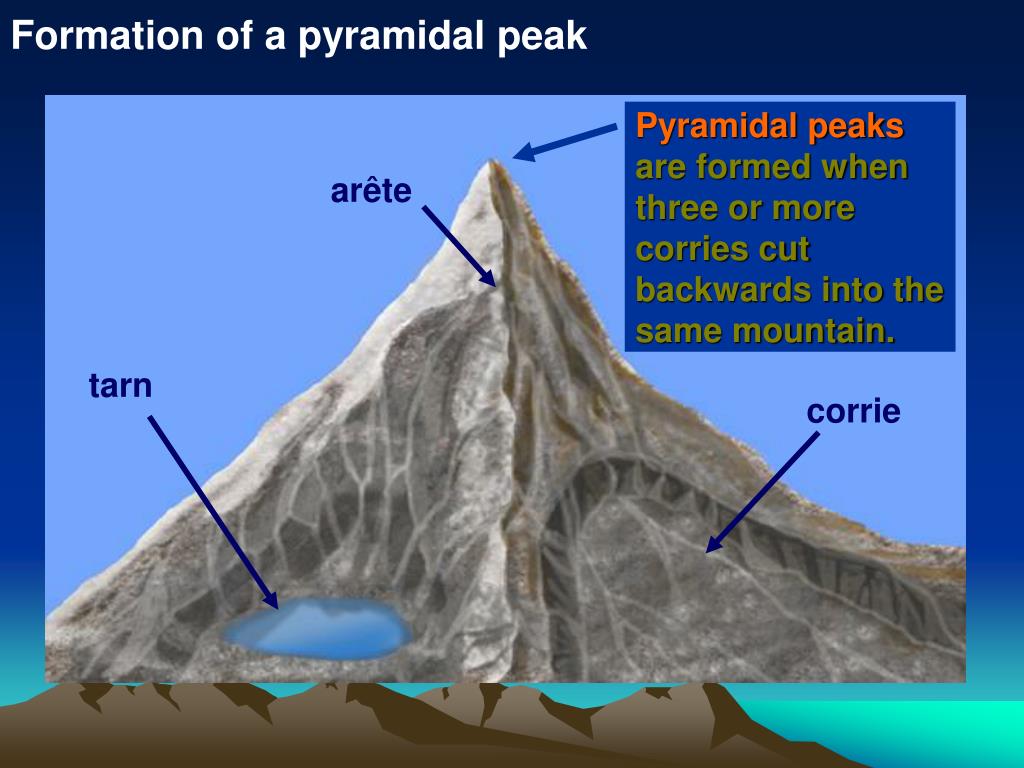

  4. Formation of a pyramidal peak Pyramidal peaks are formed when three or more corries cut backwards into the same mountain. arête tarn corrie

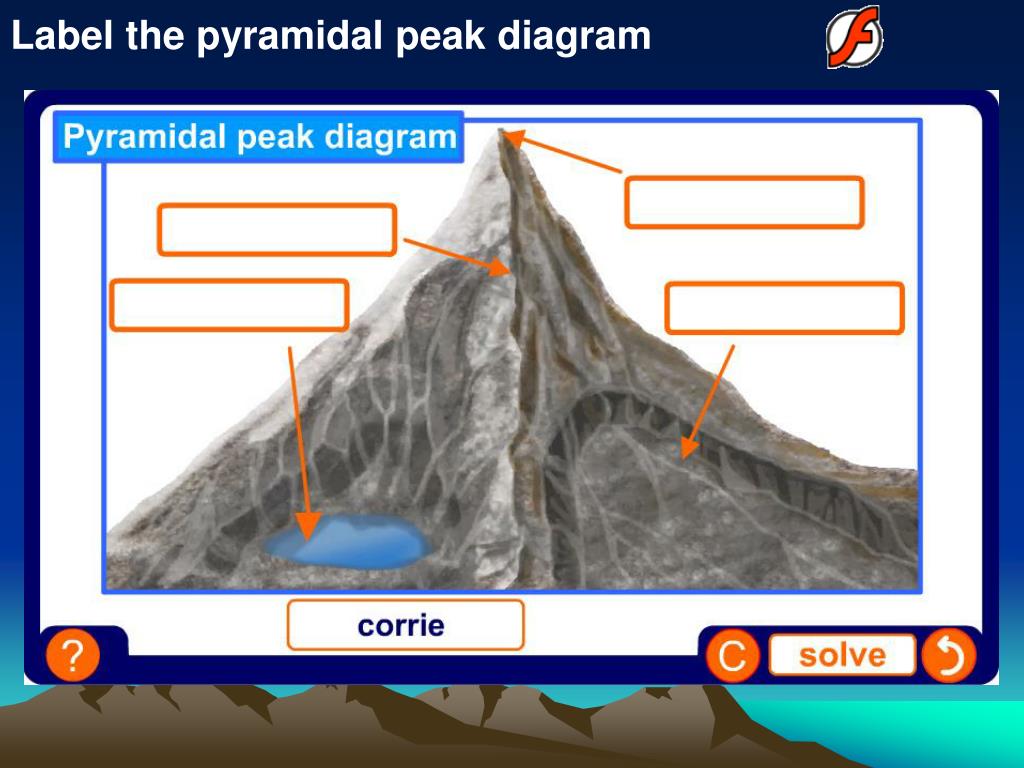

  5. Label the pyramidal peak diagram

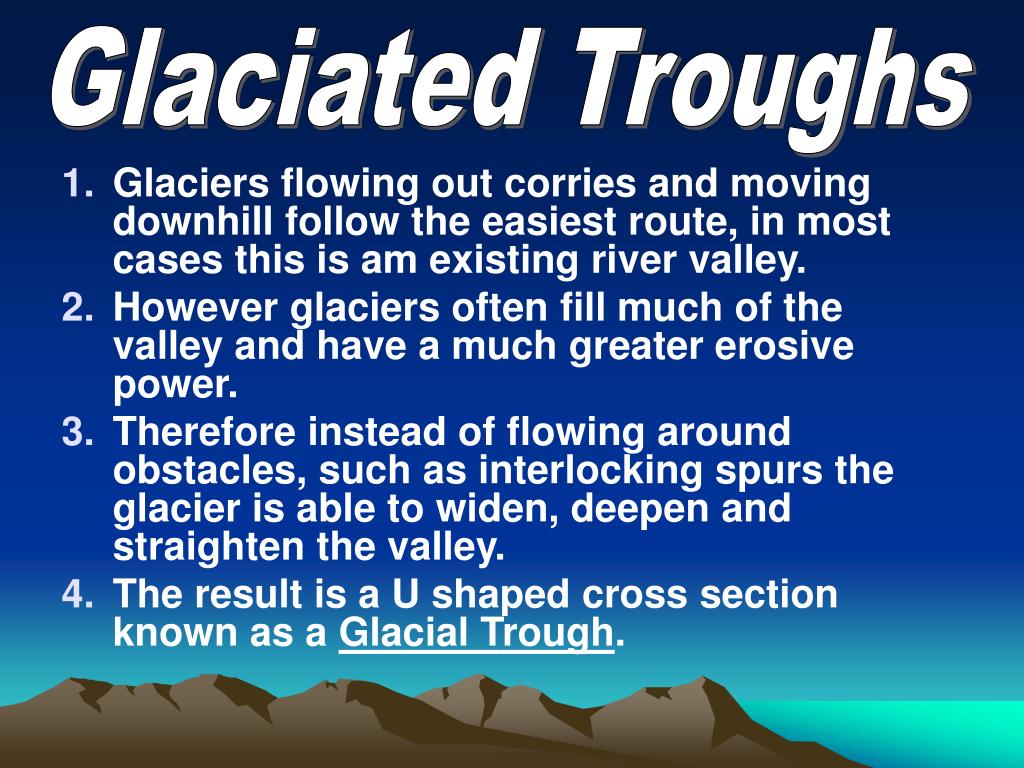

  6. Glaciated Troughs • Glaciers flowing out corries and moving downhill follow the easiest route, in most cases this is am existing river valley. • However glaciers often fill much of the valley and have a much greater erosive power. • Therefore instead of flowing around obstacles, such as interlocking spurs the glacier is able to widen, deepen and straighten the valley. • The result is a U shaped cross section known as a Glacial Trough.

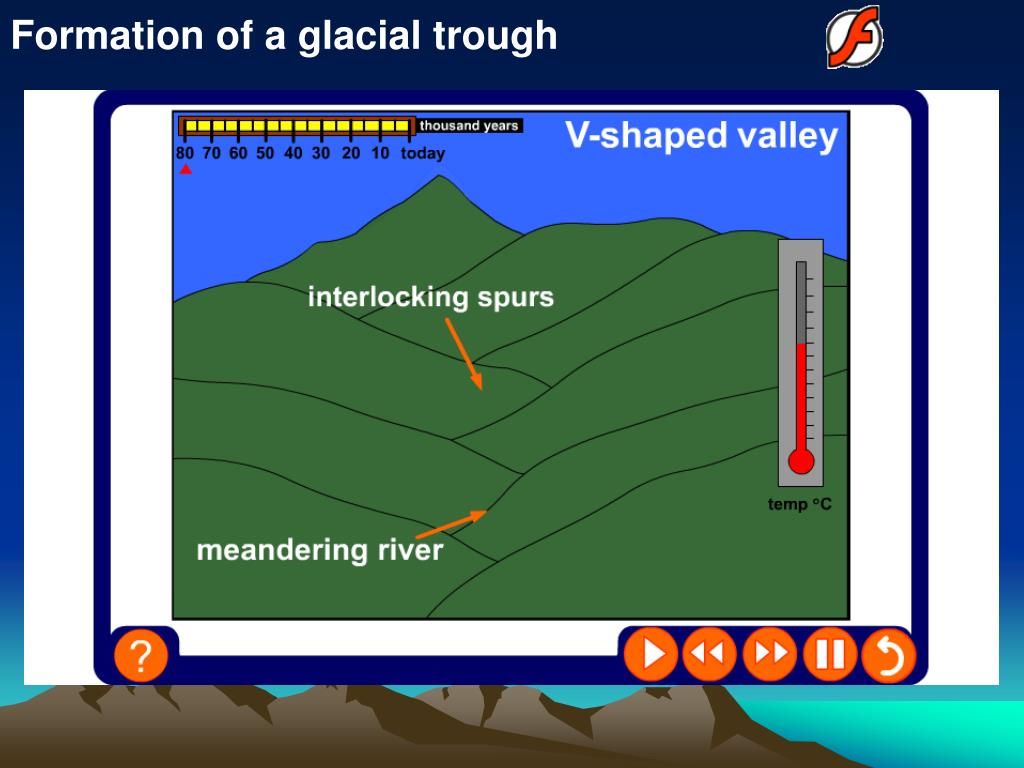

  7. Formation of a glacial trough

  8. Characteristics of a glacial trough What are the characteristics of a glacial trough? steep valley sides misfit stream hanging valley The river that flows through the valley after the ice age is described as a misfitstream. Between truncated spurs are hanging valleys which have not been eroded as deeply as the main valley. Interlocking spurs are truncated as the glacier cuts straight through the landscape. wide and flat valley floor truncated spurs

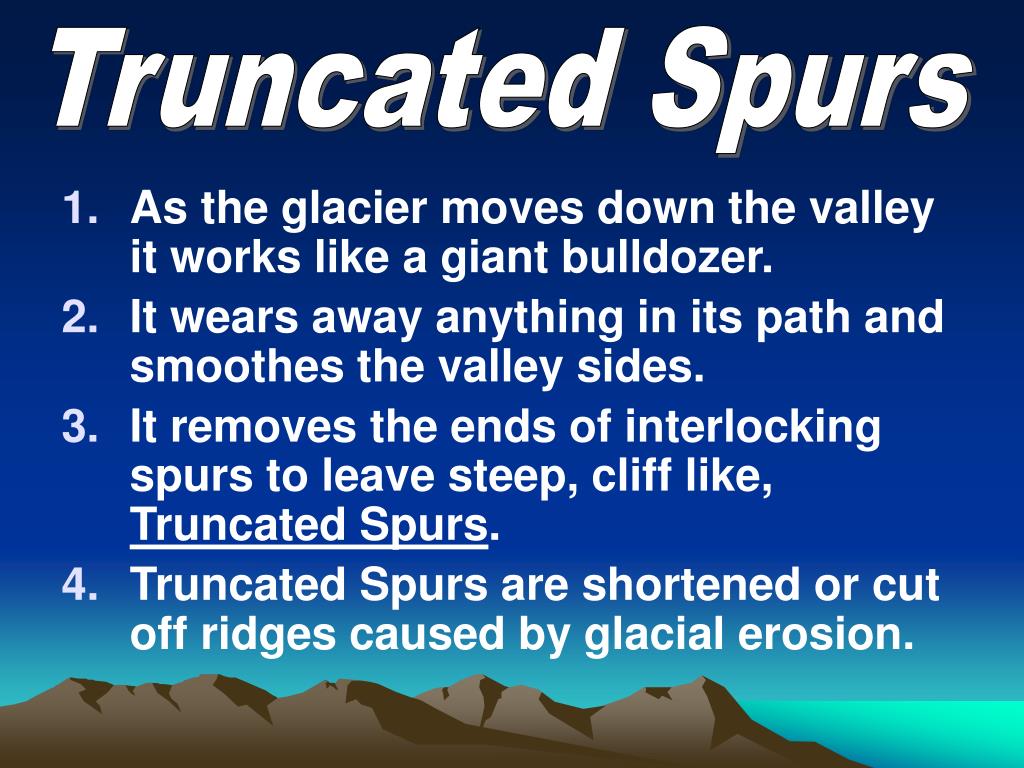

  9. Truncated Spurs • As the glacier moves down the valley it works like a giant bulldozer. • It wears away anything in its path and smoothes the valley sides. • It removes the ends of interlocking spurs to leave steep, cliff like, Truncated Spurs. • Truncated Spurs are shortened or cut off ridges caused by glacial erosion.

  10. Hanging valleys are formed as a result of erosion in the main and tributary valleys. The floor of the tributary valleys is eroded at a slower rate than that of the main valley. When the ice melts the tributary valley is left hanging above the main valley. The stream in the hanging valley will now fall as a waterfall into the main valley. Hanging Valleys Hanging Valley

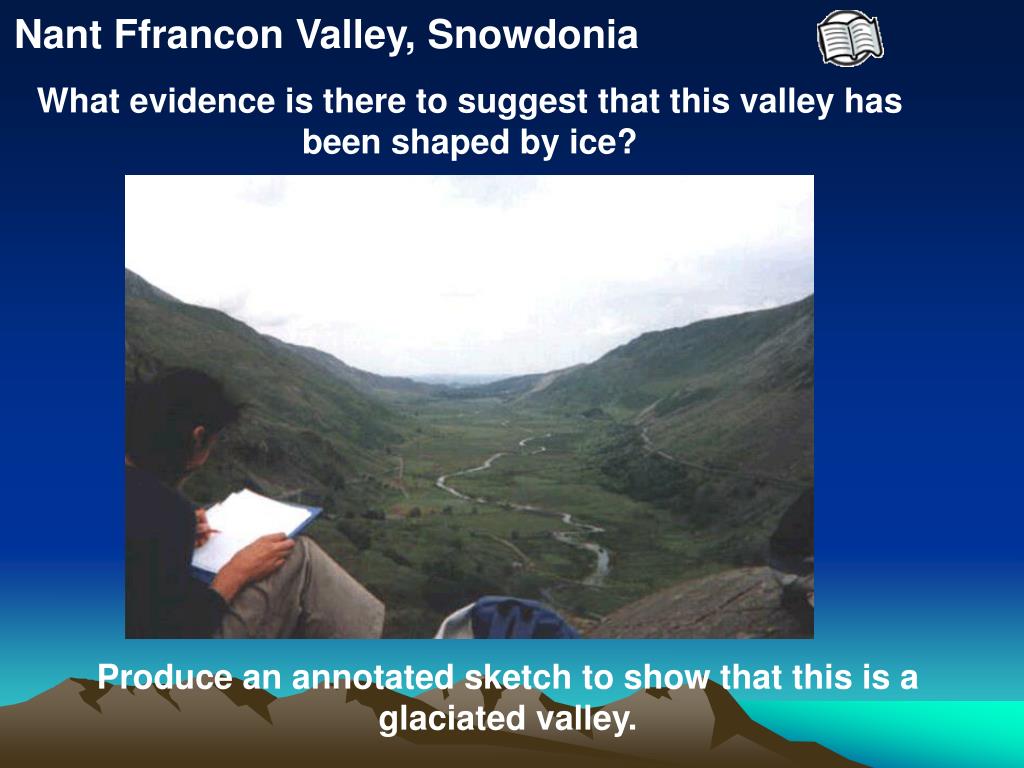

  11. Nant Ffrancon Valley, Snowdonia What evidence is there to suggest that this valley has been shaped by ice? Produce an annotated sketch to show that this is a glaciated valley.

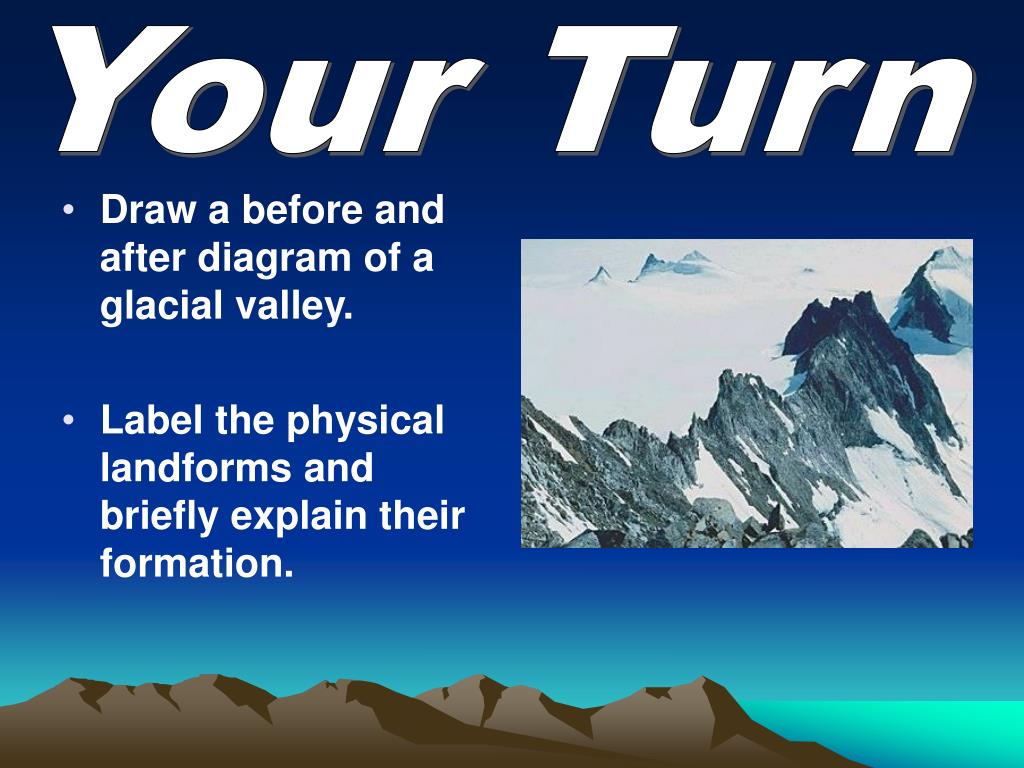

  12. Draw a before and after diagram of a glacial valley. Label the physical landforms and briefly explain their formation. Your Turn
