Structures, Oscillations, Waves and Solitons in Multi-component Self-gravitating Systems

Kinwah Wu (MSSL, University College London)

Ziri Younsi (P&A, University College London)

Curtis Saxton (MSSL, University College London)

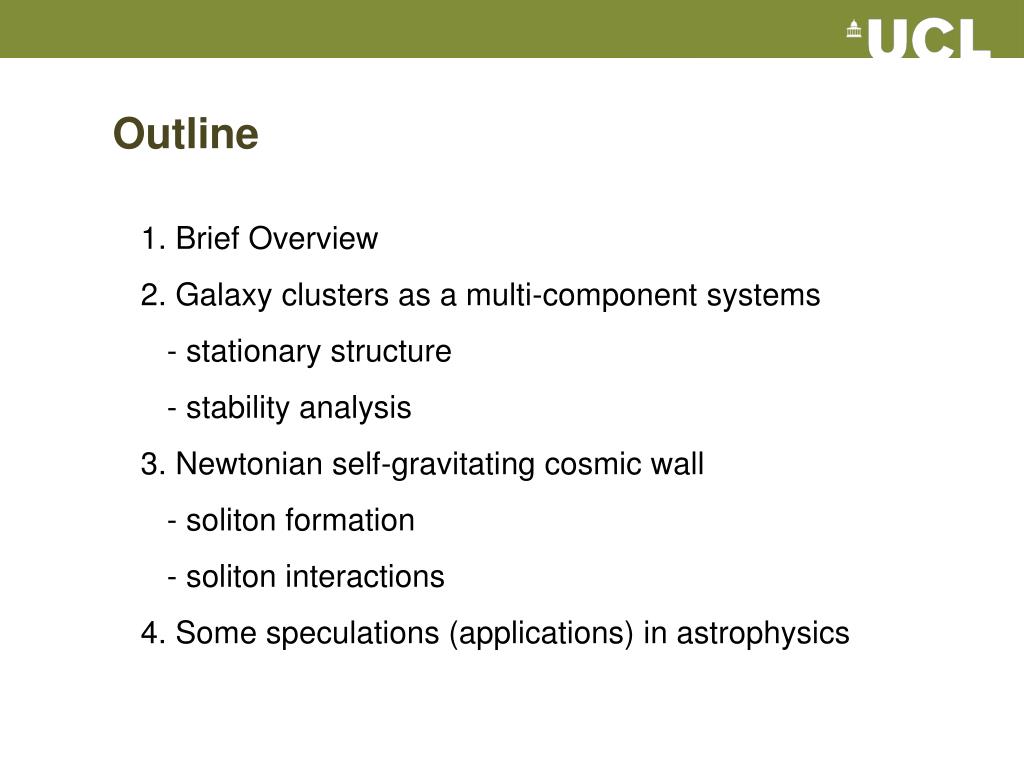

1. Brief Overview

2. Galaxy clusters as a multi-component systems

- stationary structure

- stability analysis

3. Newtonian self-gravitating cosmic wall

- soliton formation

- soliton interactions

4. Some speculations (applications) in astrophysics

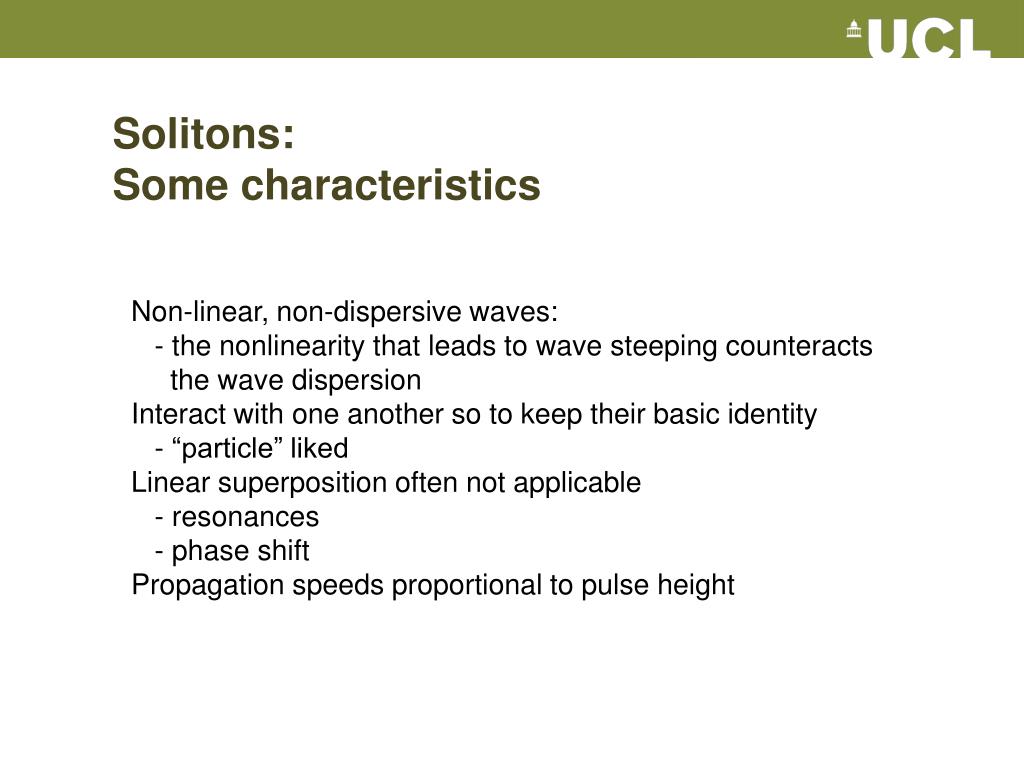

Solitons: Some characteristics

Non-linear, non-dispersive waves:

- the nonlinearity that leads to wave steeping counteracts

the wave dispersion

Interact with one another so to keep their basic identity

- “particle” liked

Linear superposition often not applicable

- resonances

- phase shift

Propagation speeds proportional to pulse height

Solitons are common

  • It is a general class of waves, as much as linear waves and shocks.

  • - Many mathematics to deal with the solitonary waves were developed

  • only very recently.

Multi-component self-gravitating systems

  • the universe

  • superclusters

  • galaxy clusters, groups

  • galaxies

  • young star clusters

  • giant molecular clouds

  • ……

Dark Matter

Baryons - hot gas

galaxies and stars

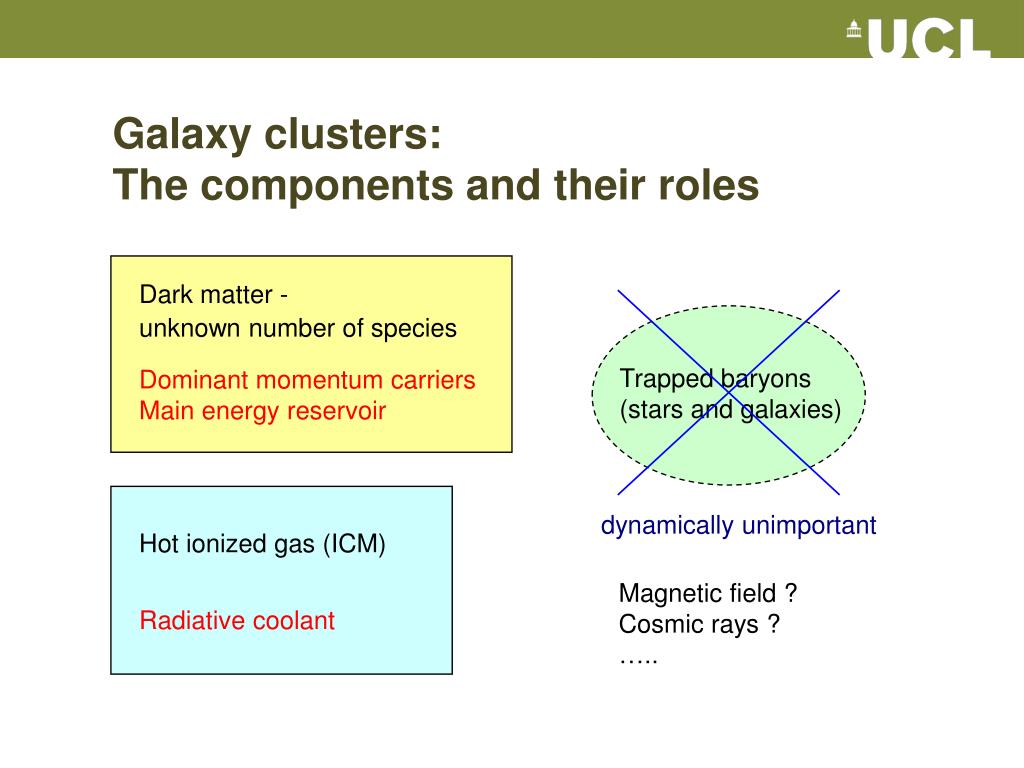

Galaxy clusters: The components and their roles

Dark matter -

unknown number of species

Trapped baryons

(stars and galaxies)

Dominant momentum carriers

Main energy reservoir

dynamically unimportant

Hot ionized gas (ICM)

Magnetic field ?

Cosmic rays ?


Radiative coolant

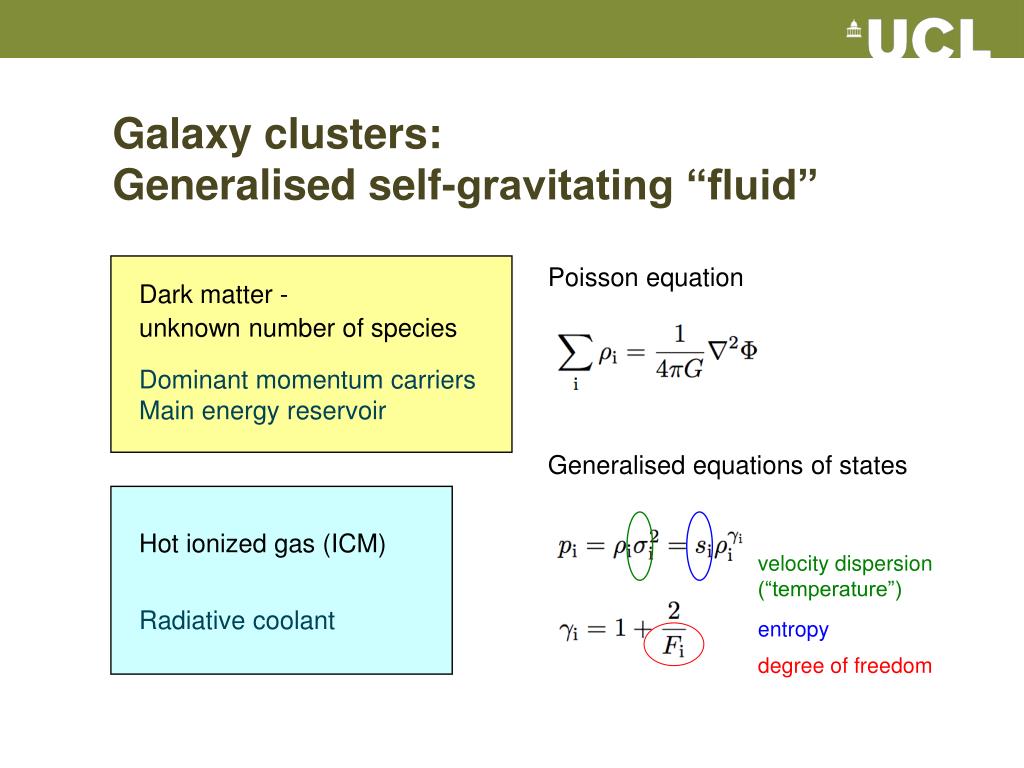

Galaxy clusters: Generalised self-gravitating “fluid”

Poisson equation

Dark matter -

unknown number of species

Dominant momentum carriers

Main energy reservoir

Generalised equations of states

Hot ionized gas (ICM)

velocity dispersion


Radiative coolant


degree of freedom

Galaxy clusters: Multi-component formulation

Mass continuity equation

Momentum conservation equation

gravitational force

Entropy equation (energy conservation equation)

energy injection

radiative loss

stationary situations:

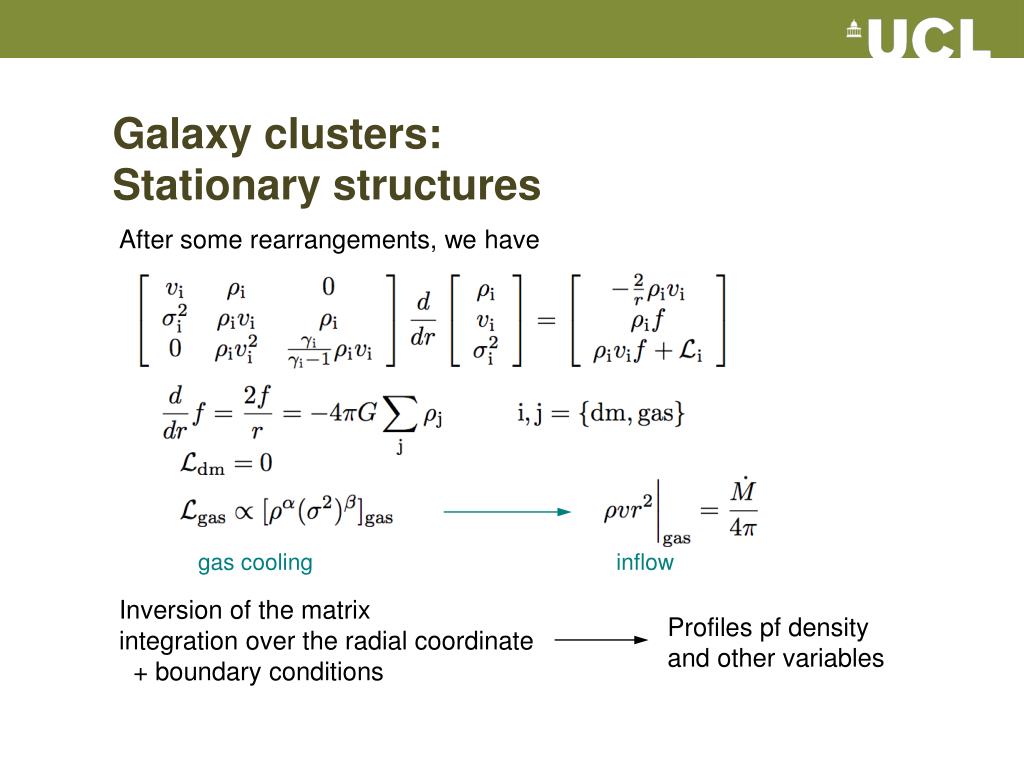

Galaxy clusters: Stationary structures

After some rearrangements, we have

gas cooling


Inversion of the matrix

integration over the radial coordinate

+ boundary conditions

Profiles pf density and other variables

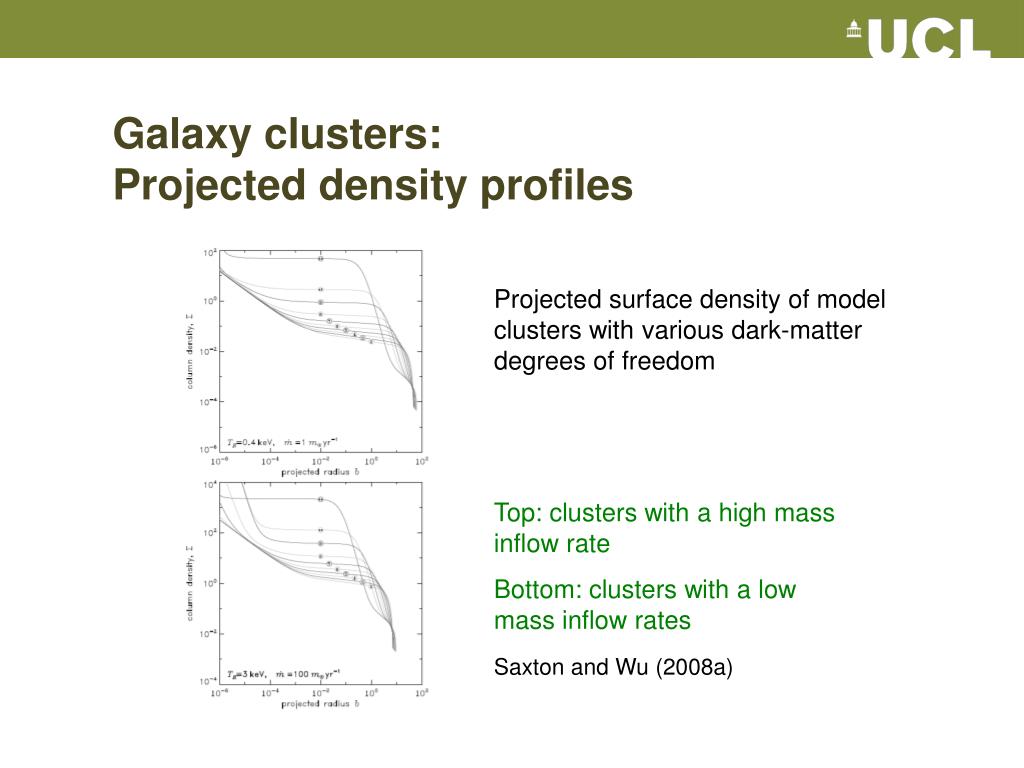

Galaxy clusters:Projected density profiles

Projected surface density of model clusters with various dark-matter degrees of freedom

Top: clusters with a high mass inflow rate

Bottom: clusters with a low mass inflow rates

Saxton and Wu (2008a)

Galaxy clusters:Density and temperature profiles

Saxton and Wu (2008a)

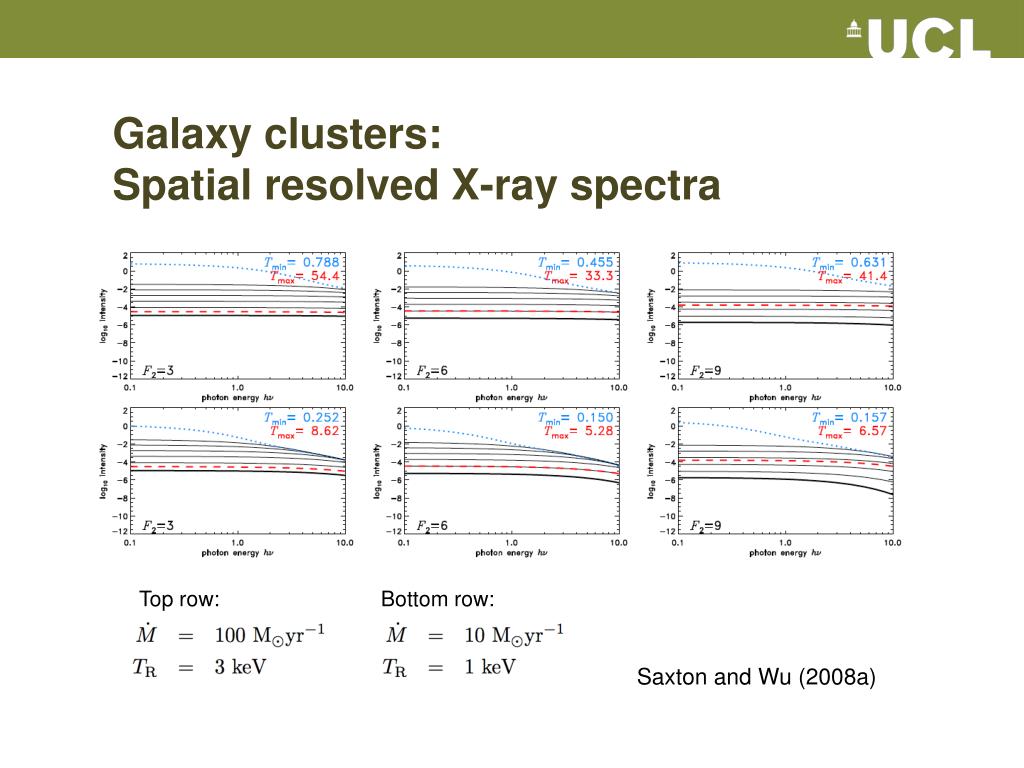

Galaxy clusters:Spatial resolved X-ray spectra

Top row:

Bottom row:

Saxton and Wu (2008a)

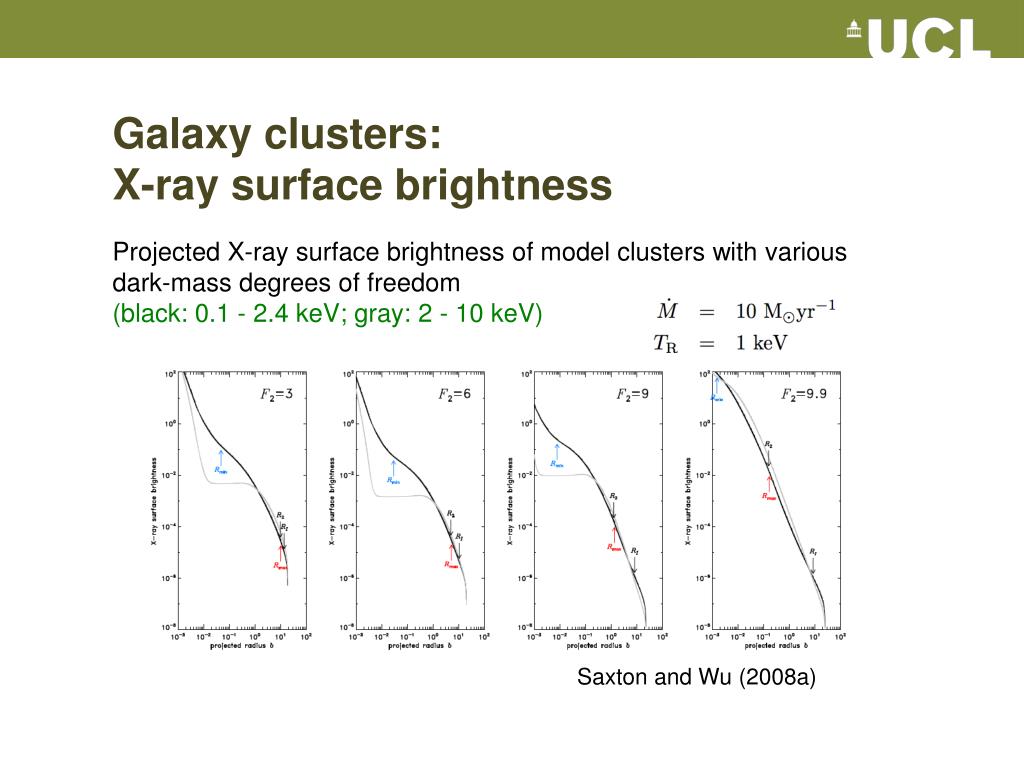

Galaxy clusters:X-ray surface brightness

Projected X-ray surface brightness of model clusters with various dark-mass degrees of freedom

(black: 0.1 - 2.4 keV; gray: 2 - 10 keV)

Saxton and Wu (2008a)

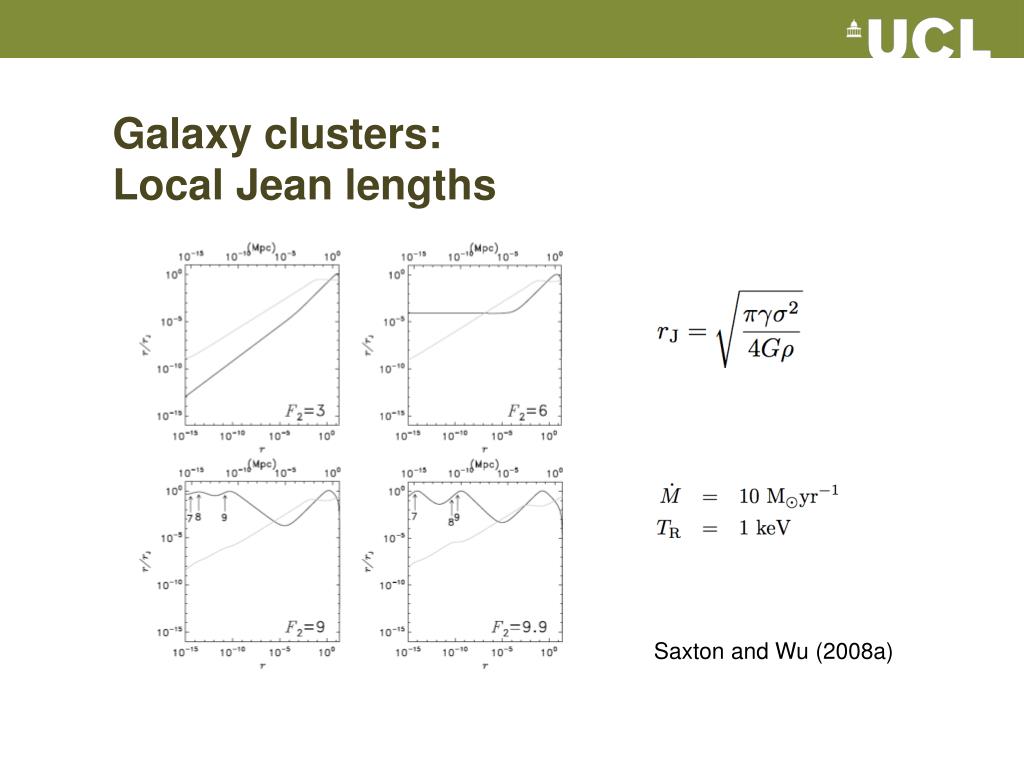

Galaxy clusters:Local Jean lengths

Saxton and Wu (2008a)

Galaxy clusters:Dark matter degrees of freedom

Constraints set by by the allowed mass of the “massive object” at the centre of the cluster

Saxton and Wu (2008a)

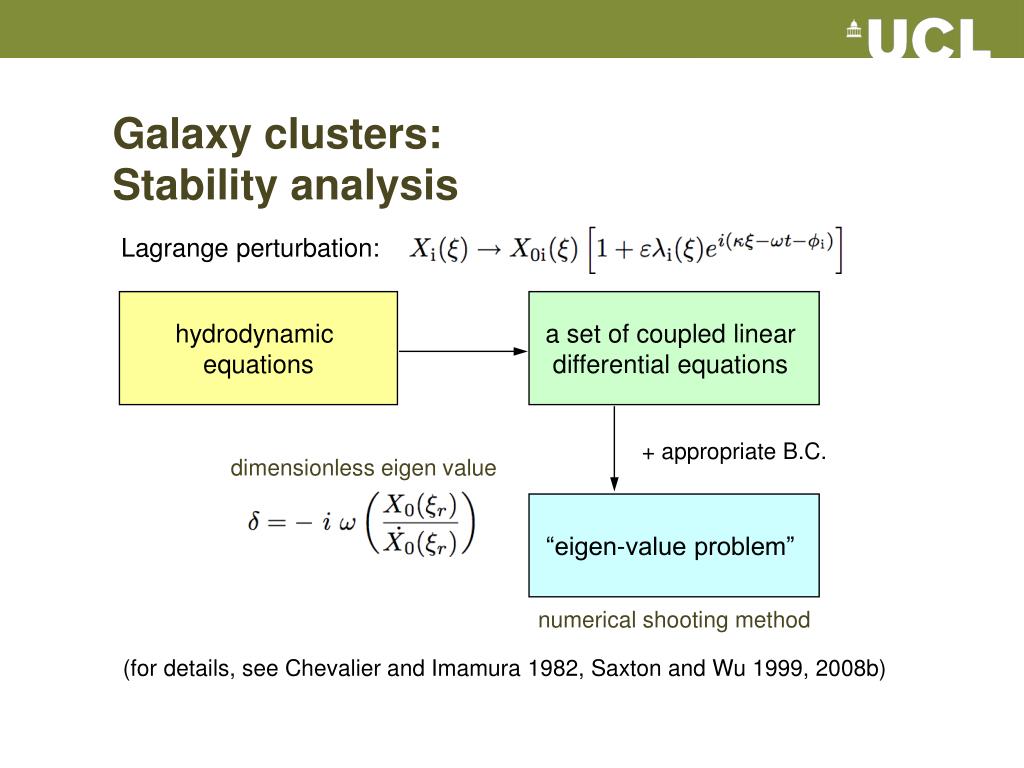

Galaxy clusters:Stability analysis

Lagrange perturbation:



a set of coupled linear

differential equations

+ appropriate B.C.

dimensionless eigen value

“eigen-value problem”

numerical shooting method

(for details, see Chevalier and Imamura 1982, Saxton and Wu 1999, 2008b)

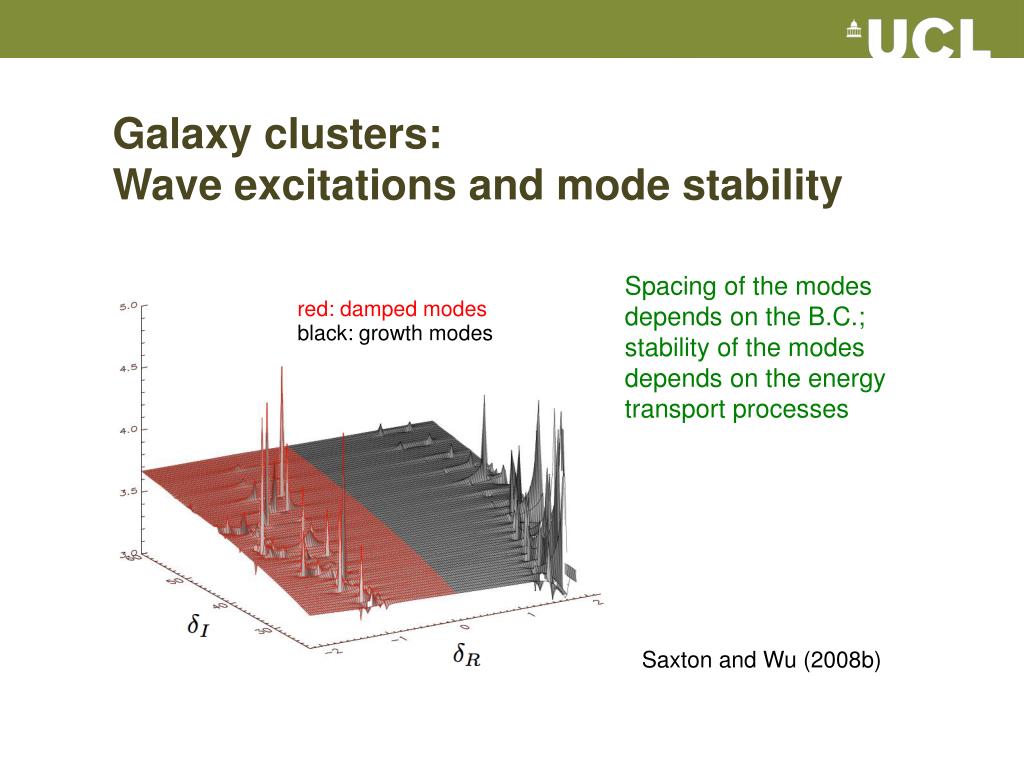

Galaxy clusters: Wave excitations and mode stability

Spacing of the modes depends on the B.C.; stability of the modes depends on the energy transport processes

red: damped modes

black: growth modes

Saxton and Wu (2008b)

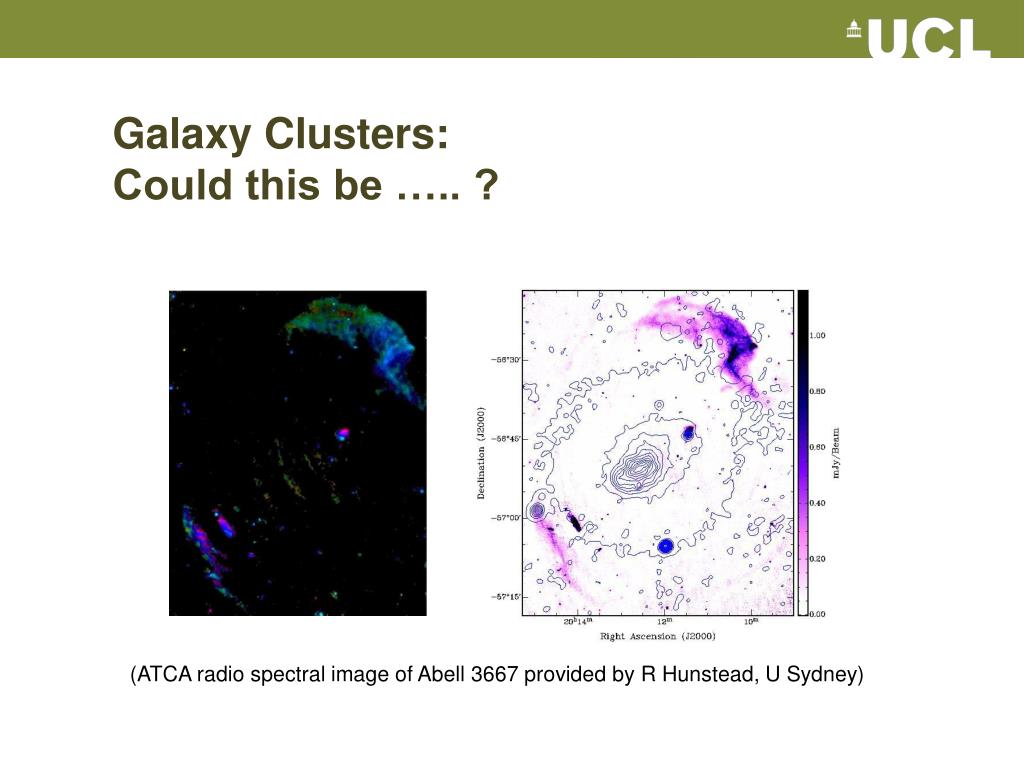

Galaxy Clusters: Could this be ….. ?

(ATCA radio spectral image of Abell 3667 provided by R Hunstead, U Sydney)

Galaxy clusters:Gas tsunami

cooler cluster interior

smaller sound speeds

hotter outer cluster rim

larger sound speeds

  • subsonic waves propagating from outside becoming supersonic

  • waves in gas piled up when propagating inward (tsunami)

  • stationary dark matter providing the background potential, i.e.

  • self-excited tsunami

Fujita et al. (2004, 2005)

Galaxy clusters:Cluster quakes and tsunami

  • - close proximity between clusters

  • excitation of dark-matter oscillations, i.e. cluster quakes

  • higher-order modes generally grow faster

  • oscillations occurring in a wide range of scales

  • dark-matter coupled gravitationally with in gas

  • dark matter oscillations forcing gas to oscillate

  • cooler gas (due to radiative loss) implies lower sound speeds in the

  • cluster cores

  • waves piled up when propagating inward, i.e. cluster tsunami

  • mode cascades

  • inducing turbulences and hence heating of the cluster throughout

Saxton and Wu (2008b)

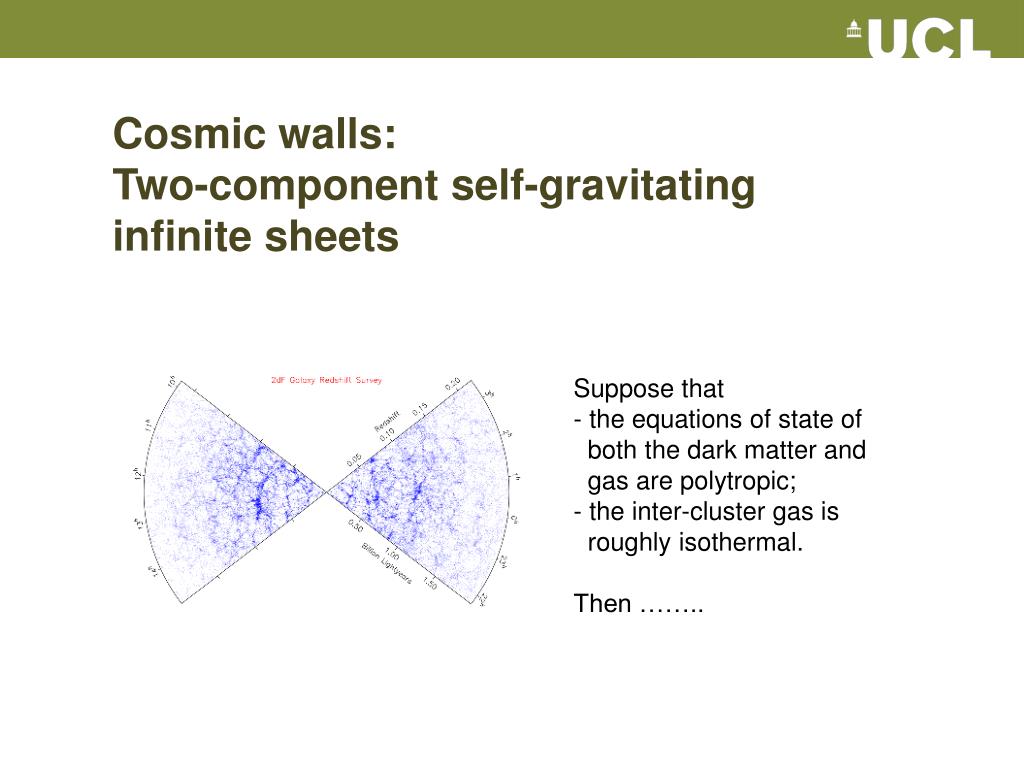

Cosmic walls:Two-component self-gravitating infinite sheets

Suppose that

- the equations of state of

both the dark matter and

gas are polytropic;

- the inter-cluster gas is

roughly isothermal.

Then ……..

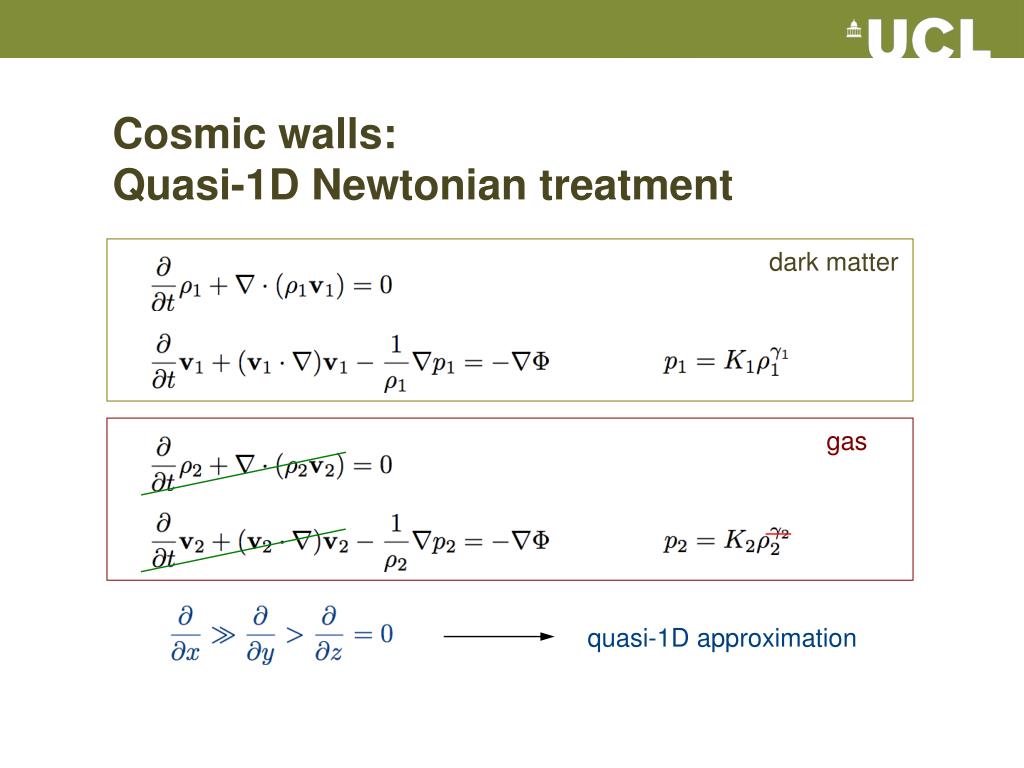

Cosmic walls:Quasi-1D Newtonian treatment

dark matter


quasi-1D approximation

Cosmic walls:Non-linear perturbative expansion

a constant yet to

be determined

Consider two new variables:

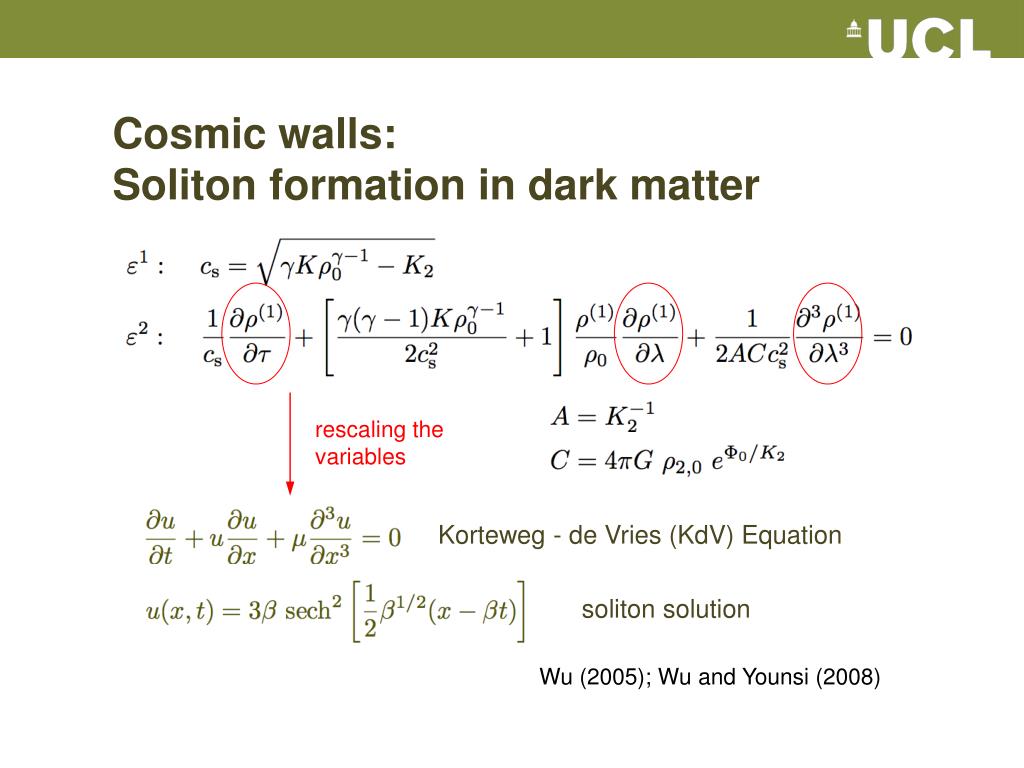

Cosmic walls:Soliton formation in dark matter

rescaling the


Korteweg - de Vries (KdV) Equation

soliton solution

Wu (2005); Wu and Younsi (2008)

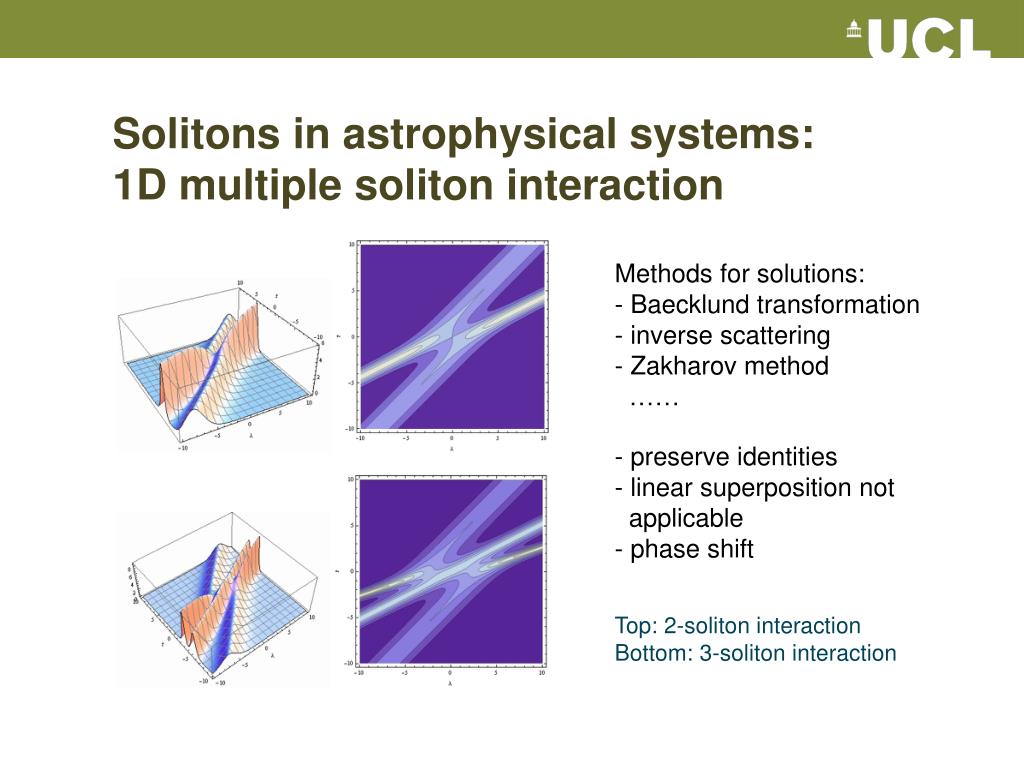

Solitons in astrophysical systems: 1D multiple soliton interaction

  • Methods for solutions:

  • Baecklund transformation

  • inverse scattering

  • Zakharov method

  • ……

  • preserve identities

  • linear superposition not

  • applicable

  • phase shift

Top: 2-soliton interaction

Bottom: 3-soliton interaction

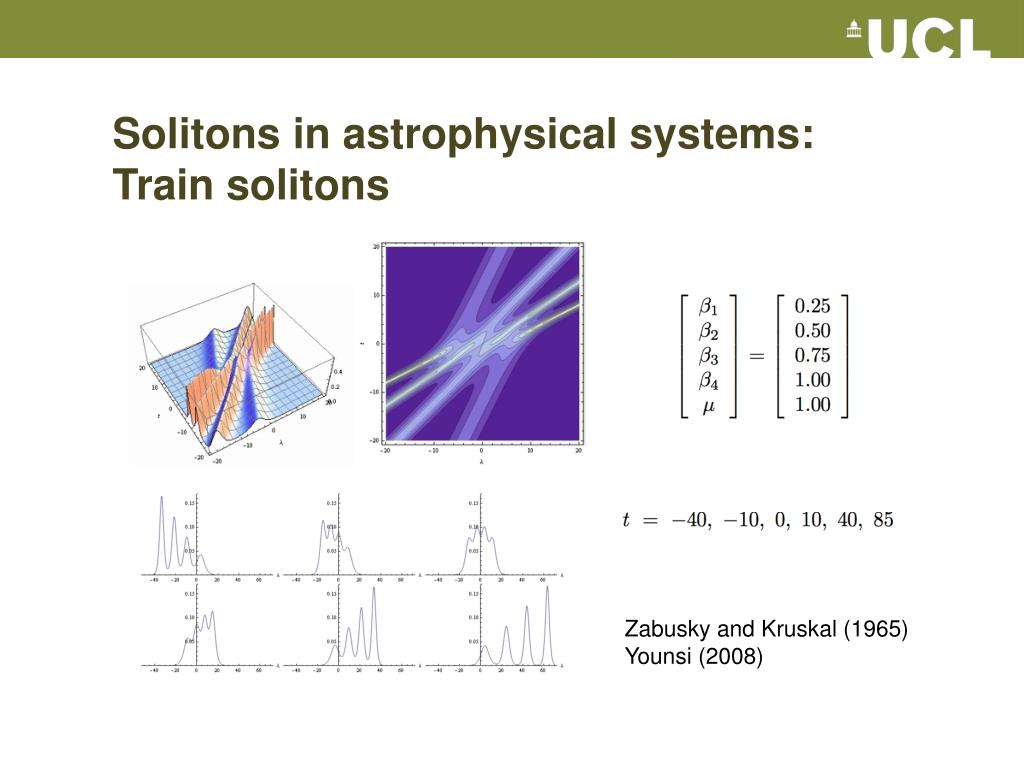

Solitons in astrophysical systems: Train solitons

Zabusky and Kruskal (1965)

Younsi (2008)

Solitons in astrophysical systems:Higher dimension solition equations

Relaxing the quasi-1D approximation

2D/3D treatment

Kadomstev-Petviashvili (KP) Equation

Cylindrical and spherical KP Equation

n = 1 for cylindrical; and n = 2 for spherical

Non-linear Schroedinger Equations

Solitons in astrophysical systems:Higher dimension solitions

Single rational soliton obtained by Zakharov-Manakov method:

Younsi and Wu (2008)

Solitons in astrophysical systems:Propagation of solitons in 3D

Younsi and Wu (2008)

Solitons in astrophysical systems:Resonance in 2D soliton collisions

evolving two spherical

rational solitons to

collide and resonate

At resonance, the amplitude can be twice the sum of the amplitudes of the two incoming solitons.

Younsi and Wu (2008)

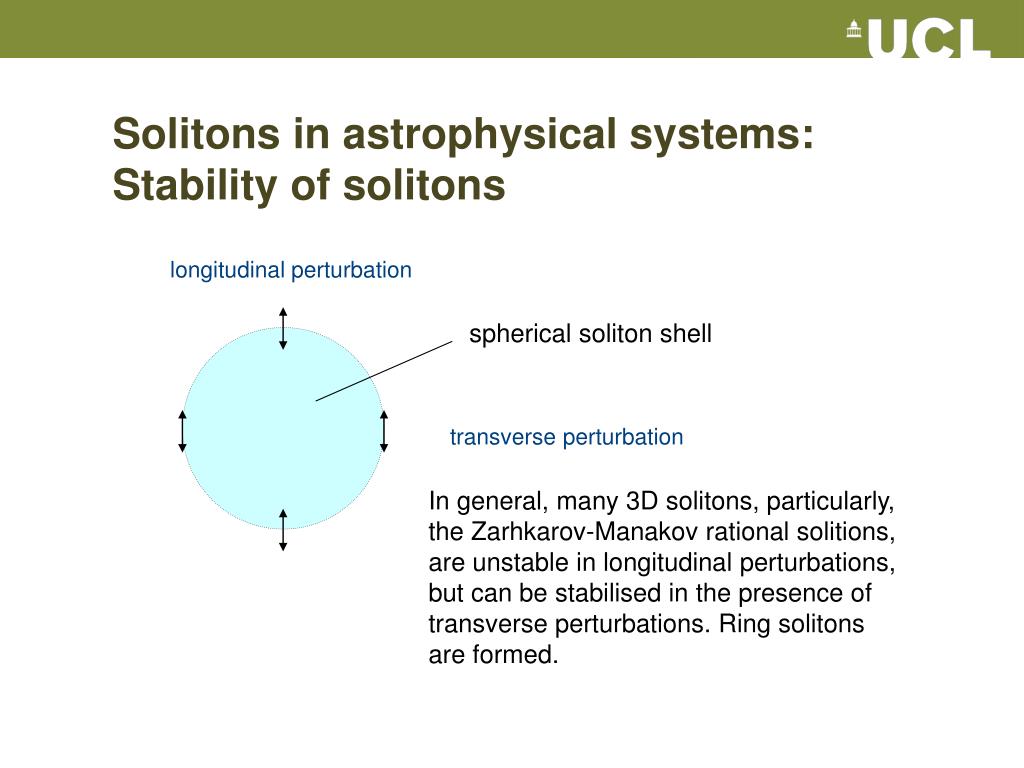

Solitons in astrophysical systems:Stability of solitons

longitudinal perturbation

spherical soliton shell

transverse perturbation

In general, many 3D solitons, particularly, the Zarhkarov-Manakov rational solitions, are unstable in longitudinal perturbations, but can be stabilised in the presence of transverse perturbations. Ring solitons are formed.

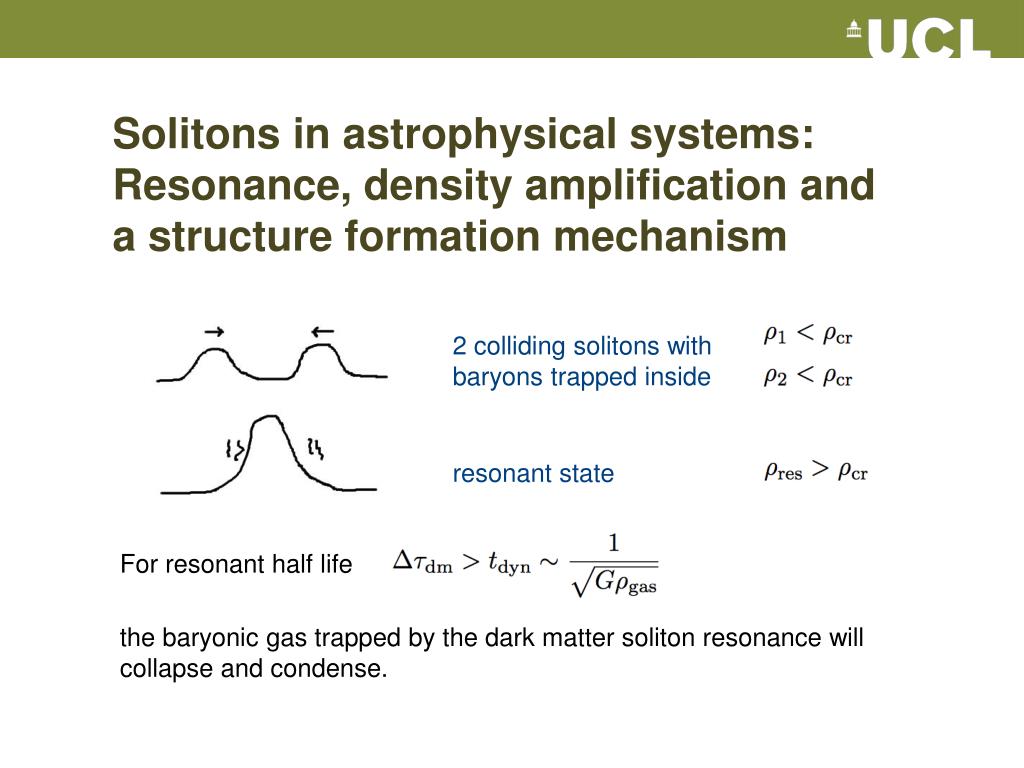

Solitons in astrophysical systems:Resonance, density amplification and a structure formation mechanism

2 colliding solitons with baryons trapped inside

resonant state

For resonant half life

the baryonic gas trapped by the dark matter soliton resonance will

collapse and condense.


Collison and resonant interaction of two small-amplitude solitons on a beach in Oregon in USA (from Dauxois and Peyrard 2006).
