Example client program

Example Client Program

Reference

Comer & Stevens, Chapter 7

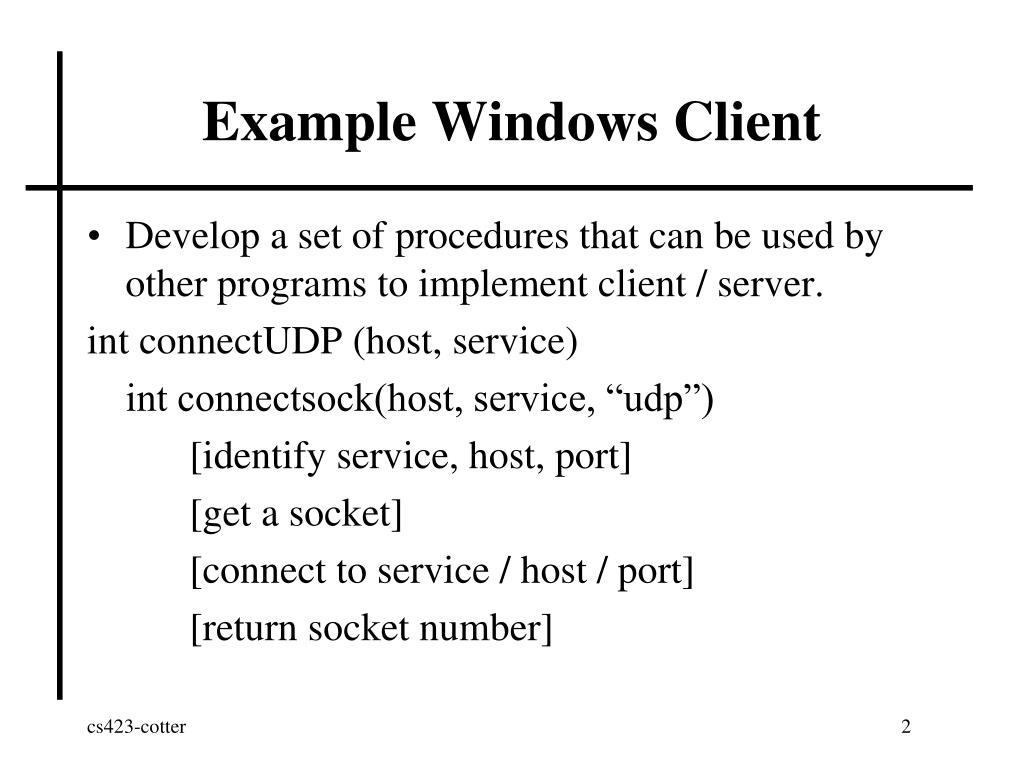

Example windows client

Example Windows Client

  • Develop a set of procedures that can be used by other programs to implement client / server.

    int connectUDP (host, service)

    int connectsock(host, service, “udp”)

    [identify service, host, port]

    [get a socket]

    [connect to service / host / port]

    [return socket number]

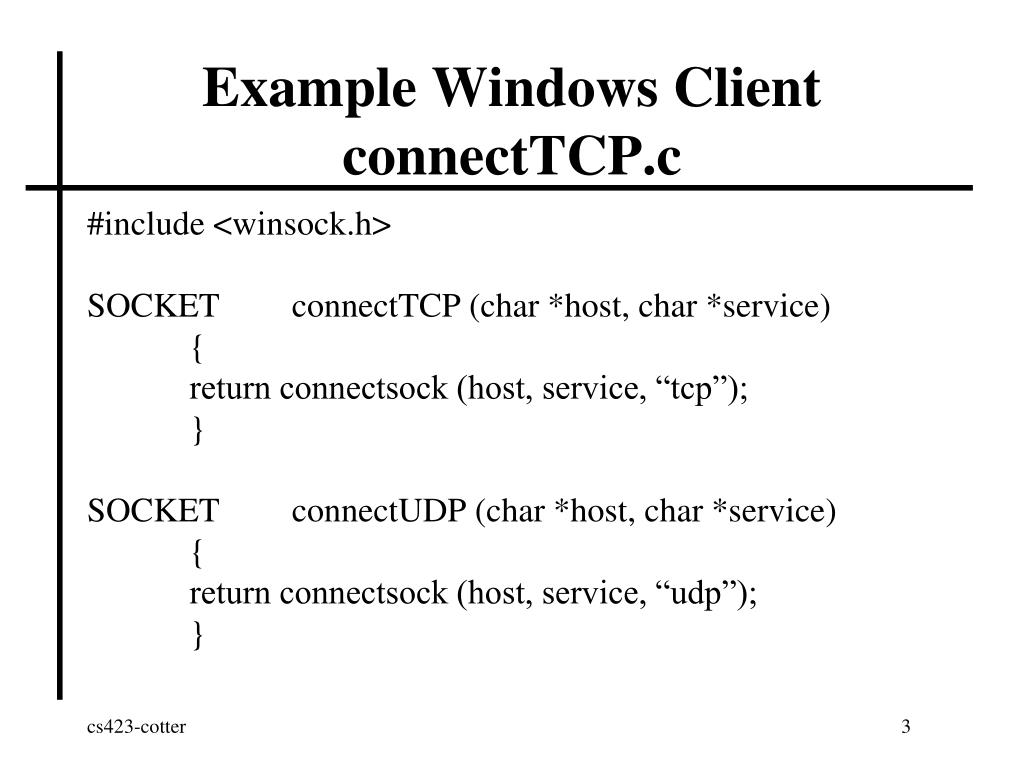

Example windows client connecttcp c

Example Windows ClientconnectTCP.c

#include <winsock.h>

SOCKET connectTCP (char *host, char *service)

{

return connectsock (host, service, “tcp”);

}

SOCKET connectUDP (char *host, char *service)

{

return connectsock (host, service, “udp”);

}


Example windows client connectsock c

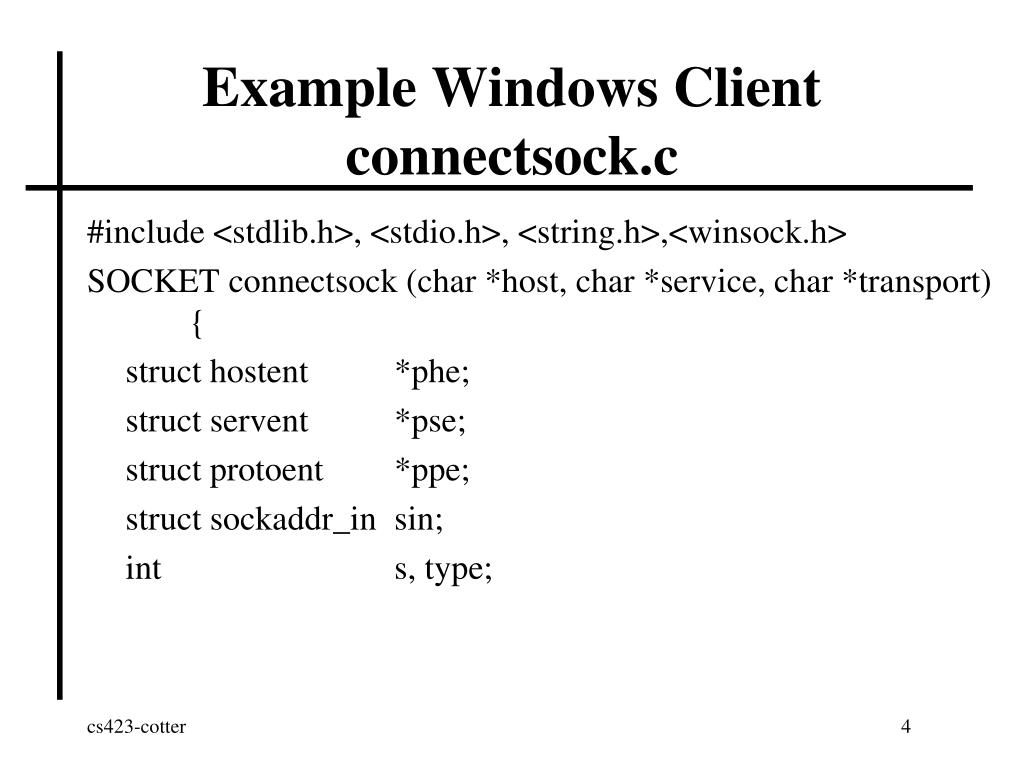

Example Windows Clientconnectsock.c

#include <stdlib.h>, <stdio.h>, <string.h>,<winsock.h>

SOCKET connectsock (char *host, char *service, char *transport){

struct hostent*phe;

struct servent*pse;

struct protoent*ppe;

struct sockaddr_in sin;

int s, type;


Example windows client connectsock c1

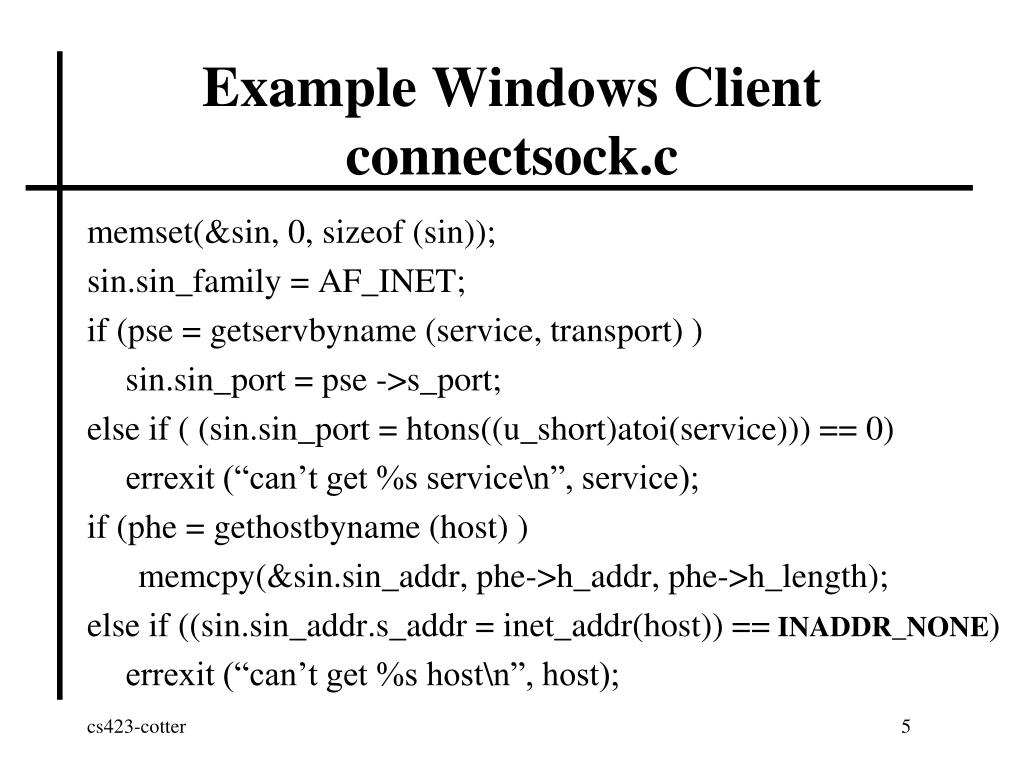

Example Windows Clientconnectsock.c

memset(&sin, 0, sizeof (sin));

sin.sin_family = AF_INET;

if (pse = getservbyname (service, transport) )

sin.sin_port = pse ->s_port;

else if ( (sin.sin_port = htons((u_short)atoi(service))) == 0)

errexit (“can’t get %s service\n”, service);

if (phe = gethostbyname (host) )

memcpy(&sin.sin_addr, phe->h_addr, phe->h_length);

else if ((sin.sin_addr.s_addr = inet_addr(host)) == INADDR_NONE)

errexit (“can’t get %s host\n”, host);

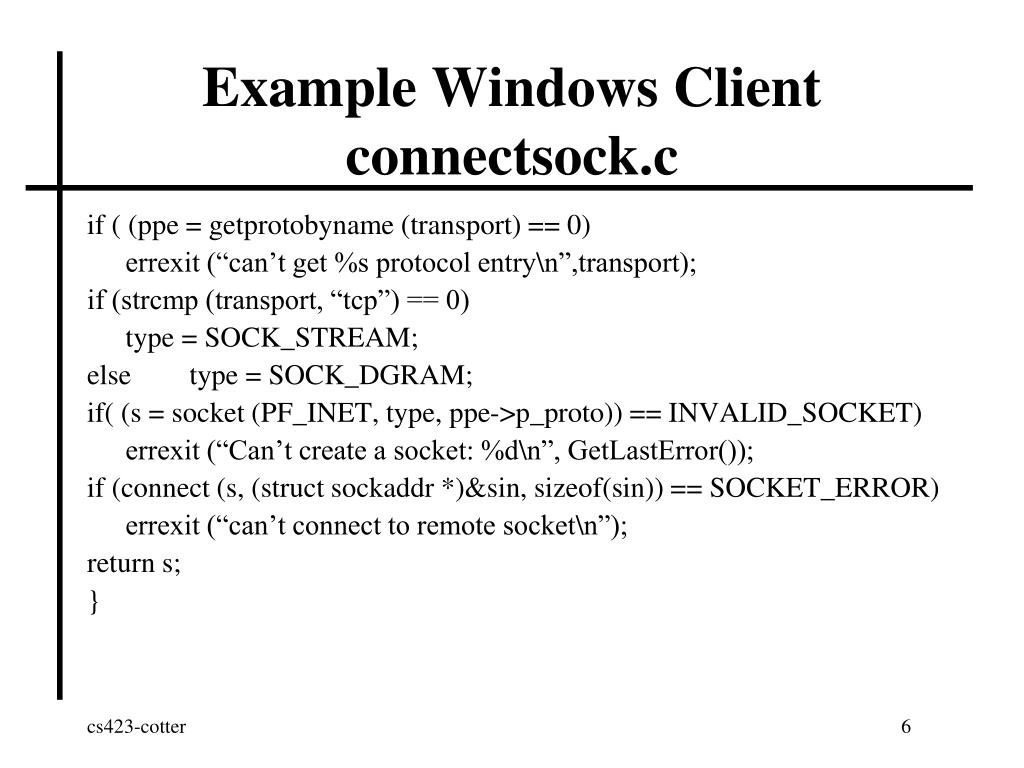

Example windows client connectsock c2

Example Windows Clientconnectsock.c

if ( (ppe = getprotobyname (transport) == 0)

errexit (“can’t get %s protocol entry\n”,transport);

if (strcmp (transport, “tcp”) == 0)

type = SOCK_STREAM;

else type = SOCK_DGRAM;

if( (s = socket (PF_INET, type, ppe->p_proto)) == INVALID_SOCKET)

errexit (“Can’t create a socket: %d\n”, GetLastError());

if (connect (s, (struct sockaddr *)&sin, sizeof(sin)) == SOCKET_ERROR)

errexit (“can’t connect to remote socket\n”);

return s;

}

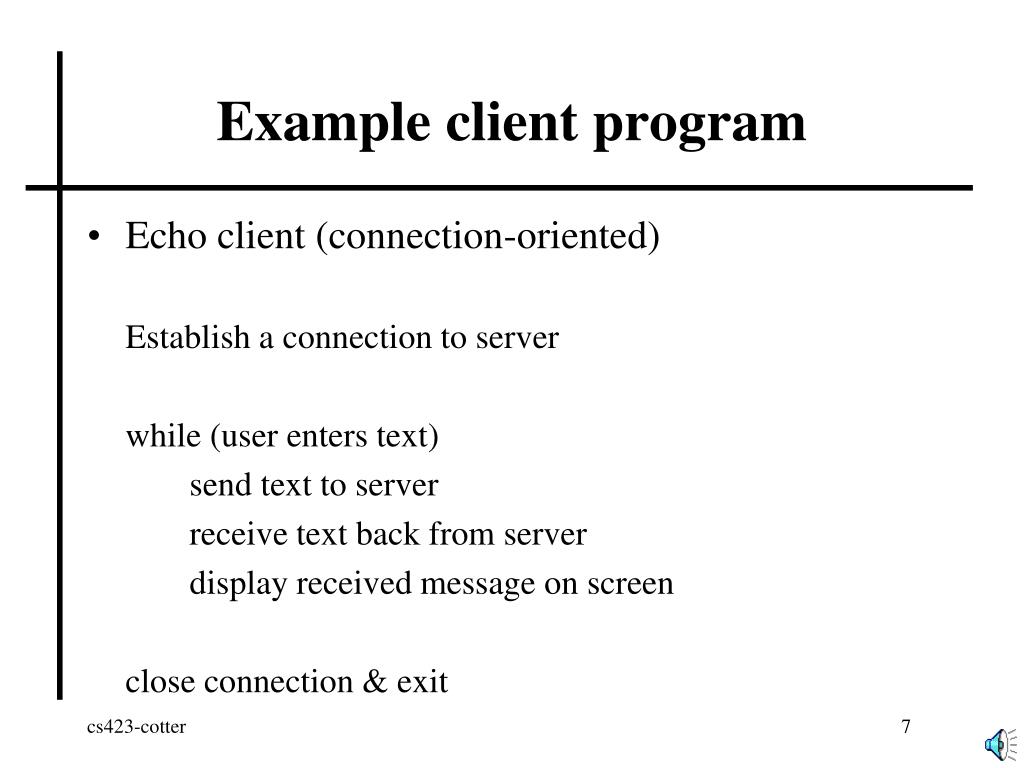

Example client program1

Example client program

  • Echo client (connection-oriented)

    Establish a connection to server

    while (user enters text)

    send text to server

    receive text back from server

    display received message on screen

    close connection & exit


Tcpecho

tcpecho ( )

#include <stdlib.h>,<stdio.h>,<string.h>,<winsock.h>

voidTCPecho(const char *, const char *);

voiderrexit(const char *, ...);

SOCKETconnectTCP(const char *, const char *);

#defineLINELEN 128

#defineWSVERSMAKEWORD(2, 0)

void main(int argc, char *argv[]) {

char*host = "localhost";/* host to use if none supplied */

char*service = "echo";/* default service name */

:

WSADATAwsadata;

if (WSAStartup(WSVERS, &wsadata) != 0)

errexit("WSAStartup failed\n");

TCPecho(host, service);

WSACleanup();

exit(0);

}

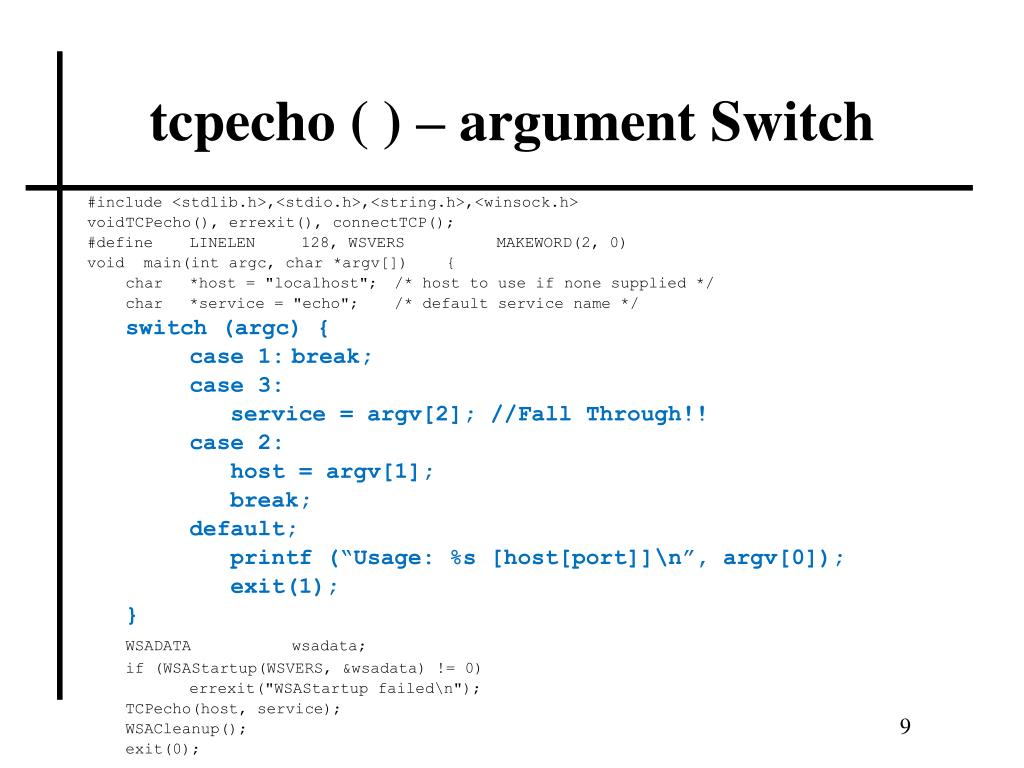

Tcpecho argument switch

tcpecho ( ) – argument Switch

#include <stdlib.h>,<stdio.h>,<string.h>,<winsock.h>

voidTCPecho(), errexit(), connectTCP();

#defineLINELEN 128, WSVERSMAKEWORD(2, 0)

void main(int argc, char *argv[]) {

char*host = "localhost";/* host to use if none supplied */

char*service = "echo";/* default service name */

switch (argc) {

case 1:break;

case 3:

service = argv[2]; //Fall Through!!

case 2:

host = argv[1];

break;

default;

printf (“Usage: %s [host[port]]\n”, argv[0]);

exit(1);

}

WSADATAwsadata;

if (WSAStartup(WSVERS, &wsadata) != 0)

errexit("WSAStartup failed\n");

TCPecho(host, service);

WSACleanup();

exit(0);


Tcpecho cont

tcpecho (cont)

void TCPecho(const char *host, const char *service) {

charbuf[LINELEN+1];/* buffer for one line of text */

SOCKETs;/* socket descriptor */

intcc, outchars, inchars;/* characters counts */

s = connectTCP(host, service);

while (fgets(buf, sizeof(buf), stdin)) {

buf[LINELEN] = '\0'; /* ensure line null-termination */

outchars = strlen(buf);

(void) send(s, buf, outchars, 0);

for (inchars = 0; inchars < outchars; inchars += cc) {

cc = recv(s, &buf[inchars], outchars-inchars, 0);

if (cc == SOCKET_ERROR)

errexit("socket recv failed: %d\n", GetLastError());

}fputs(buf, stdout);

}closesocket(s);

}


Udpecho cpp

UDPecho.cpp

#include <stdlib.h>, <stdio.h>, <string.h>, <winsock.h>

voidUDPecho(const char *, const char *);

voiderrexit(const char *, ...);

SOCKETconnectUDP(const char *, const char *);

#defineLINELEN128

#defineWSVERSMAKEWORD(2, 0)

void main(int argc, char *argv[])

{

char*host = "localhost", *service = "echo";

WSADATAwsadata;

if (WSAStartup(WSVERS, &wsadata))

errexit("WSAStartup failed\n");

UDPecho(host, service);

WSACleanup();

exit(0);

}


Udpecho cpp1

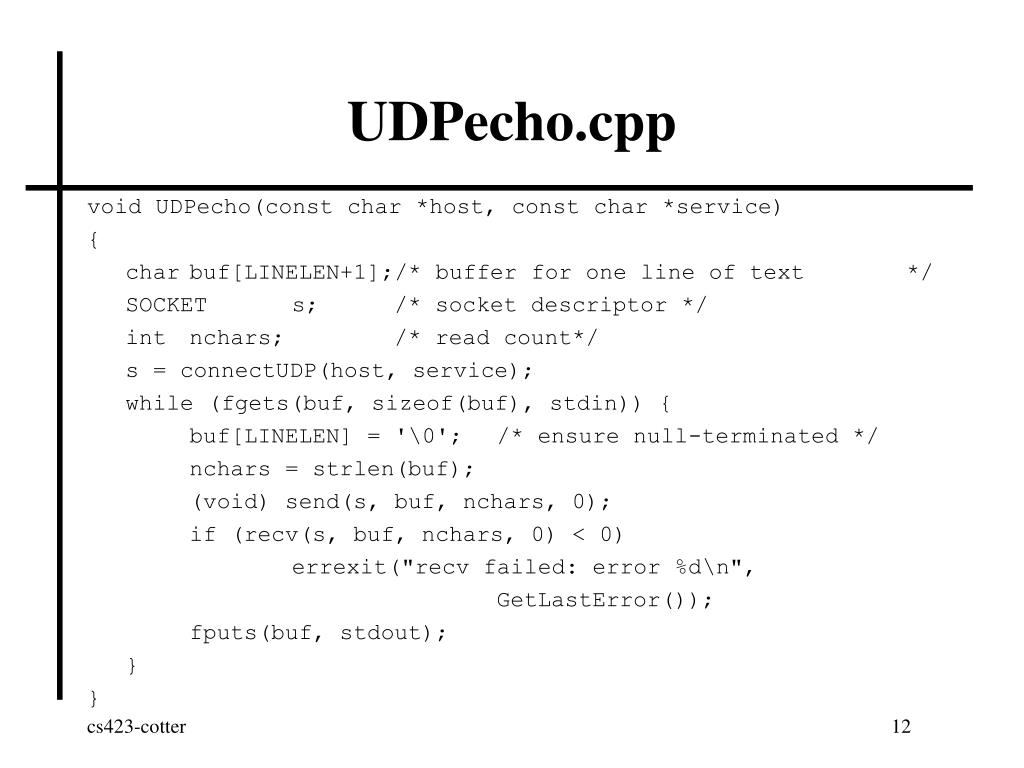

UDPecho.cpp

void UDPecho(const char *host, const char *service)

{

charbuf[LINELEN+1];/* buffer for one line of text*/

SOCKETs;/* socket descriptor */

intnchars;/* read count*/

s = connectUDP(host, service);

while (fgets(buf, sizeof(buf), stdin)) {

buf[LINELEN] = '\0';/* ensure null-terminated */

nchars = strlen(buf);

(void) send(s, buf, nchars, 0);

if (recv(s, buf, nchars, 0) < 0)

errexit("recv failed: error %d\n",

GetLastError());

fputs(buf, stdout);

}

}


Udpecho cnls cpp

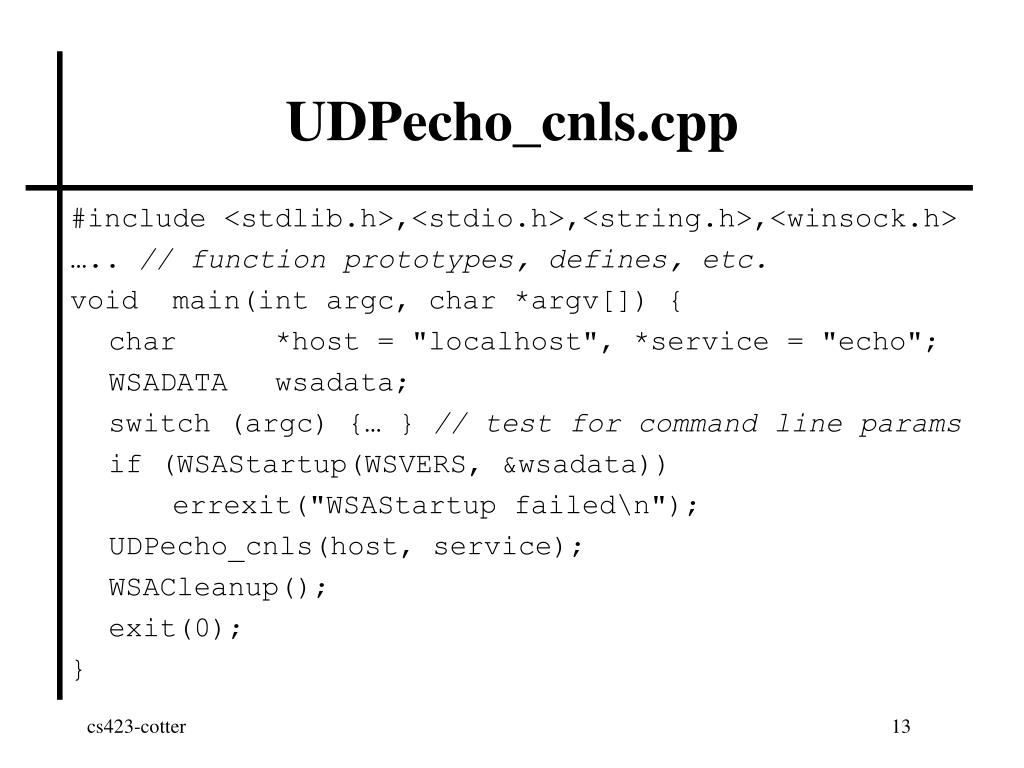

UDPecho_cnls.cpp

#include <stdlib.h>,<stdio.h>,<string.h>,<winsock.h>

….. // function prototypes, defines, etc.

void main(int argc, char *argv[]) {

char*host = "localhost", *service = "echo";

WSADATAwsadata;

switch (argc) {… } // test for command line params

if (WSAStartup(WSVERS, &wsadata))

errexit("WSAStartup failed\n");

UDPecho_cnls(host, service);

WSACleanup();

exit(0);

}


Udpecho cnls cpp cont

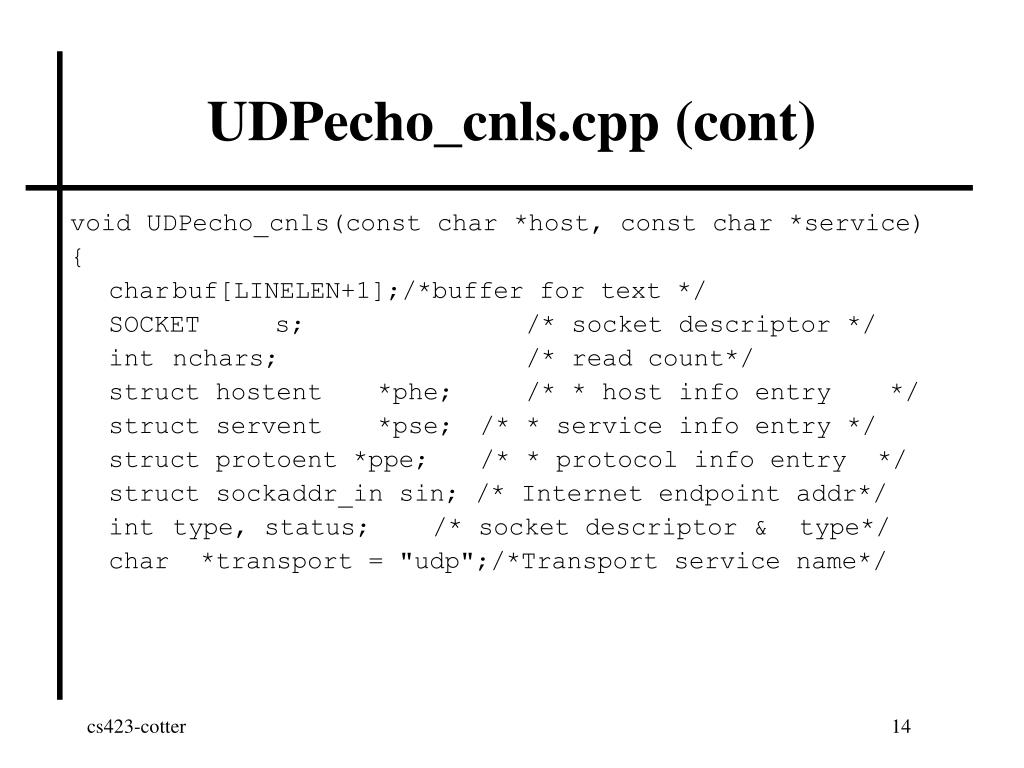

UDPecho_cnls.cpp (cont)

void UDPecho_cnls(const char *host, const char *service)

{

charbuf[LINELEN+1];/*buffer for text */

SOCKETs; /* socket descriptor */

intnchars; /* read count*/

struct hostent*phe; /* * host info entry*/

struct servent*pse;/* * service info entry */

struct protoent *ppe;/* * protocol info entry */

struct sockaddr_in sin; /* Internet endpoint addr*/

inttype, status; /* socket descriptor & type*/

char *transport = "udp";/*Transport service name*/


Udpecho cnls cpp cont1

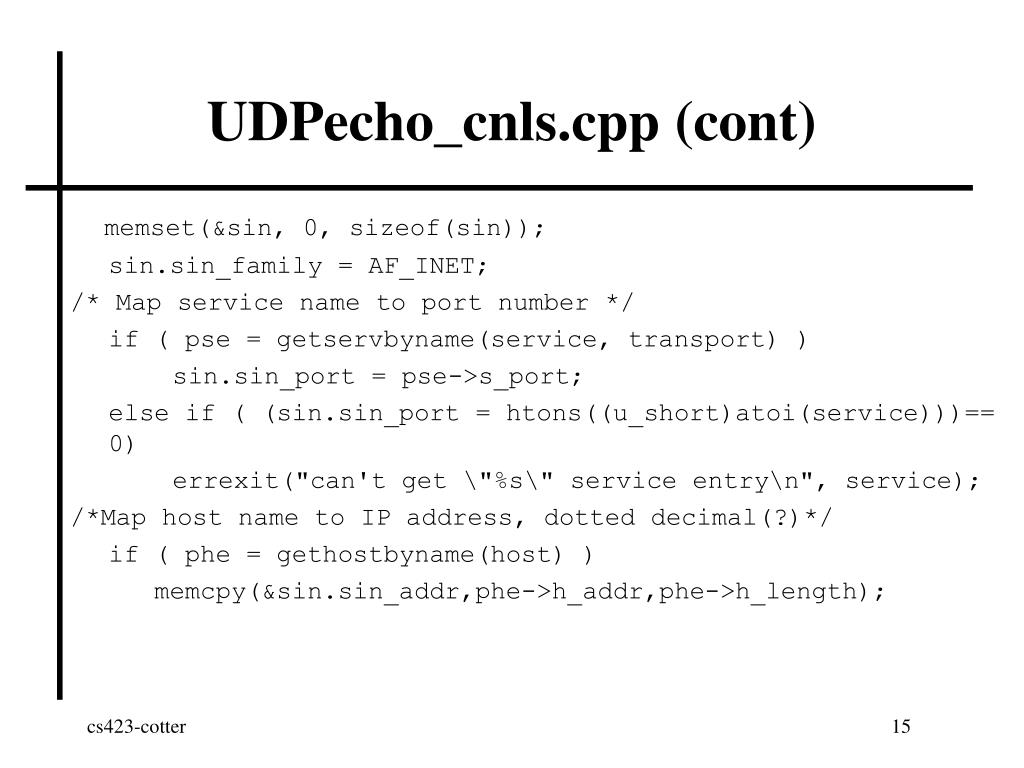

UDPecho_cnls.cpp (cont)

memset(&sin, 0, sizeof(sin));

sin.sin_family = AF_INET;

/* Map service name to port number */

if ( pse = getservbyname(service, transport) )

sin.sin_port = pse->s_port;

else if ( (sin.sin_port = htons((u_short)atoi(service)))== 0)

errexit("can't get \"%s\" service entry\n", service);

/*Map host name to IP address, dotted decimal(?)*/

if ( phe = gethostbyname(host) )

memcpy(&sin.sin_addr,phe->h_addr,phe->h_length);


Udpecho cnls cpp cont2

UDPecho_cnls.cpp (cont)

else if( (sin.sin_addr.s_addr = inet_addr(host)) == INADDR_NONE)

errexit("can't get \"%s\" host entry\n", host);

printf("Server at %s\n",inet_ntoa(sin.sin_addr));

/* Map protocol name to protocol number */

if ( (ppe = getprotobyname(transport)) == 0)

errexit("Can't get \"%s\" entry\n", transport);

/* Use protocol to choose a socket type */

if (strcmp(transport, "udp") == 0)

type = SOCK_DGRAM;

else

type = SOCK_STREAM;

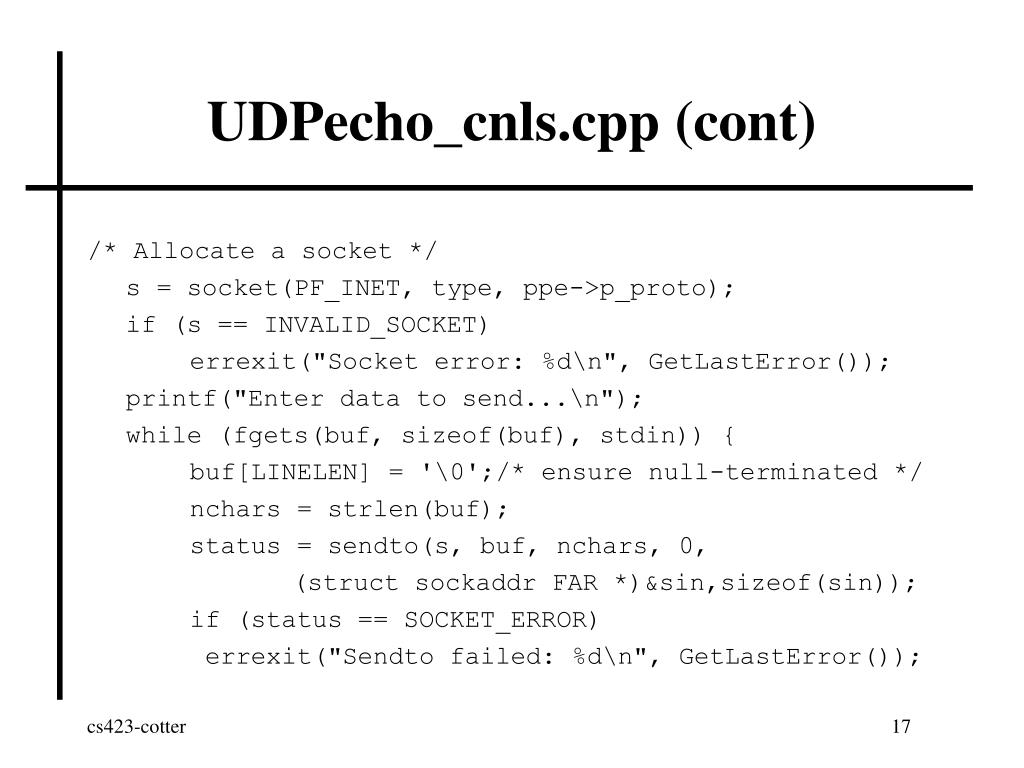

Udpecho cnls cpp cont3

UDPecho_cnls.cpp (cont)

/* Allocate a socket */

s = socket(PF_INET, type, ppe->p_proto);

if (s == INVALID_SOCKET)

errexit("Socket error: %d\n", GetLastError());

printf("Enter data to send...\n");

while (fgets(buf, sizeof(buf), stdin)) {

buf[LINELEN] = '\0';/* ensure null-terminated */

nchars = strlen(buf);

status = sendto(s, buf, nchars, 0,

(struct sockaddr FAR *)&sin,sizeof(sin));

if (status == SOCKET_ERROR)

errexit("Sendto failed: %d\n", GetLastError());


Udpecho cnls cpp cont4

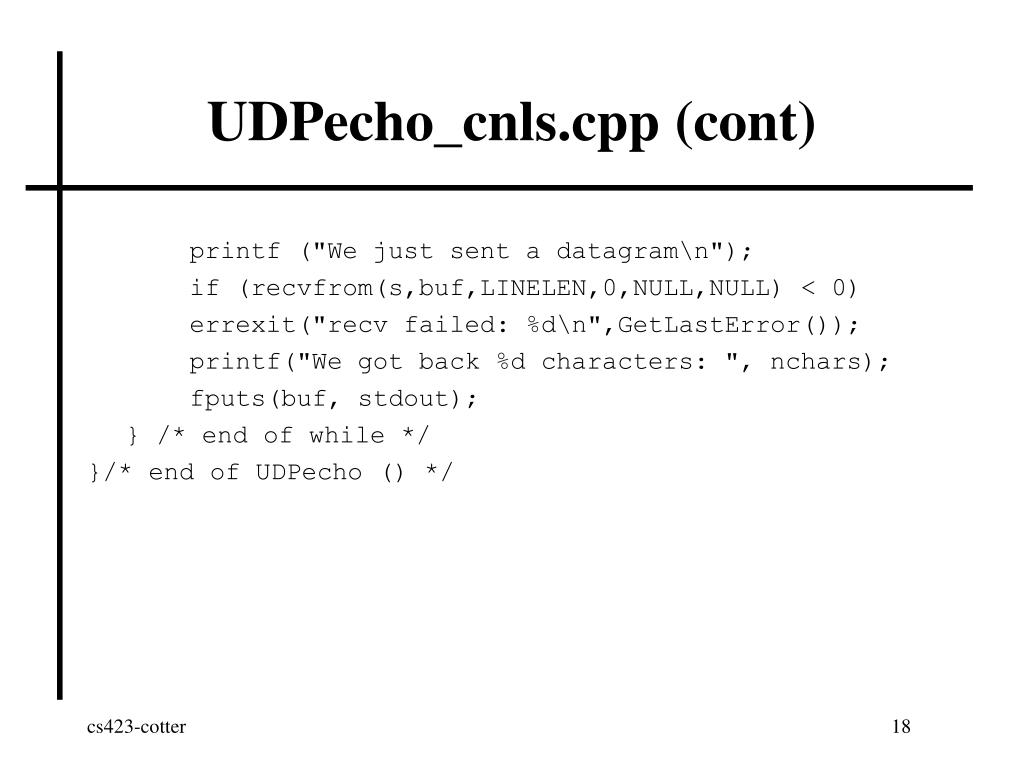

UDPecho_cnls.cpp (cont)

printf ("We just sent a datagram\n");

if (recvfrom(s,buf,LINELEN,0,NULL,NULL) < 0)

errexit("recv failed: %d\n",GetLastError());

printf("We got back %d characters: ", nchars);

fputs(buf, stdout);

} /* end of while */

}/* end of UDPecho () */

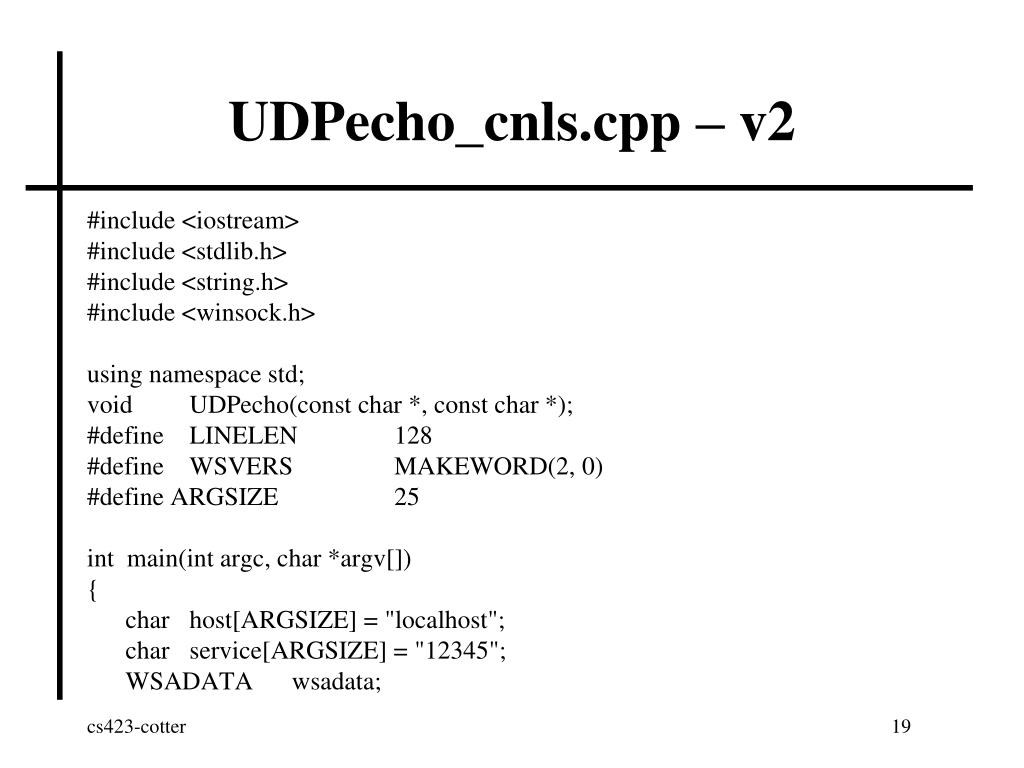

Udpecho cnls cpp v2

UDPecho_cnls.cpp – v2

#include <iostream>

#include <stdlib.h>

#include <string.h>

#include <winsock.h>

using namespace std;

voidUDPecho(const char *, const char *);

#defineLINELEN128

#defineWSVERSMAKEWORD(2, 0)

#define ARGSIZE 25

int main(int argc, char *argv[])

{

charhost[ARGSIZE] = "localhost";

charservice[ARGSIZE] = "12345";

WSADATAwsadata;


Udpecho cnls cpp v21

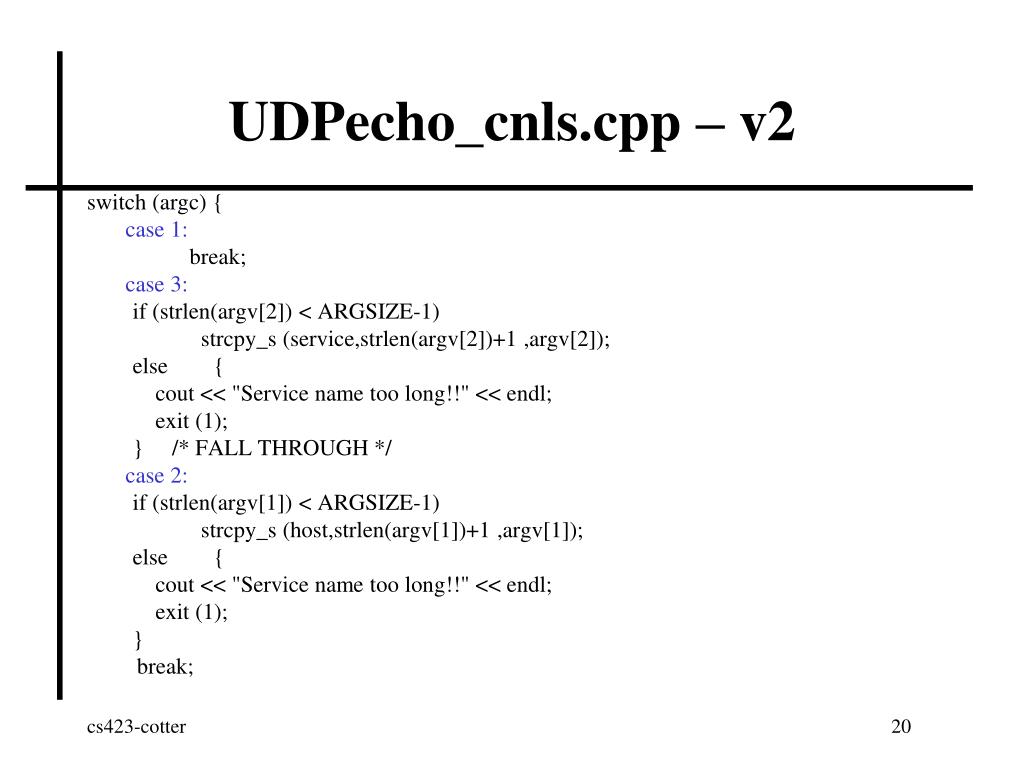

UDPecho_cnls.cpp – v2

switch (argc) {

case 1:

break;

case 3:

if (strlen(argv[2]) < ARGSIZE-1)

strcpy_s (service,strlen(argv[2])+1 ,argv[2]);

else {

cout << "Service name too long!!" << endl;

exit (1);

} /* FALL THROUGH */

case 2:

if (strlen(argv[1]) < ARGSIZE-1)

strcpy_s (host,strlen(argv[1])+1 ,argv[1]);

else {

cout << "Service name too long!!" << endl;

exit (1);

}

break;


Udpecho cnls cpp v22

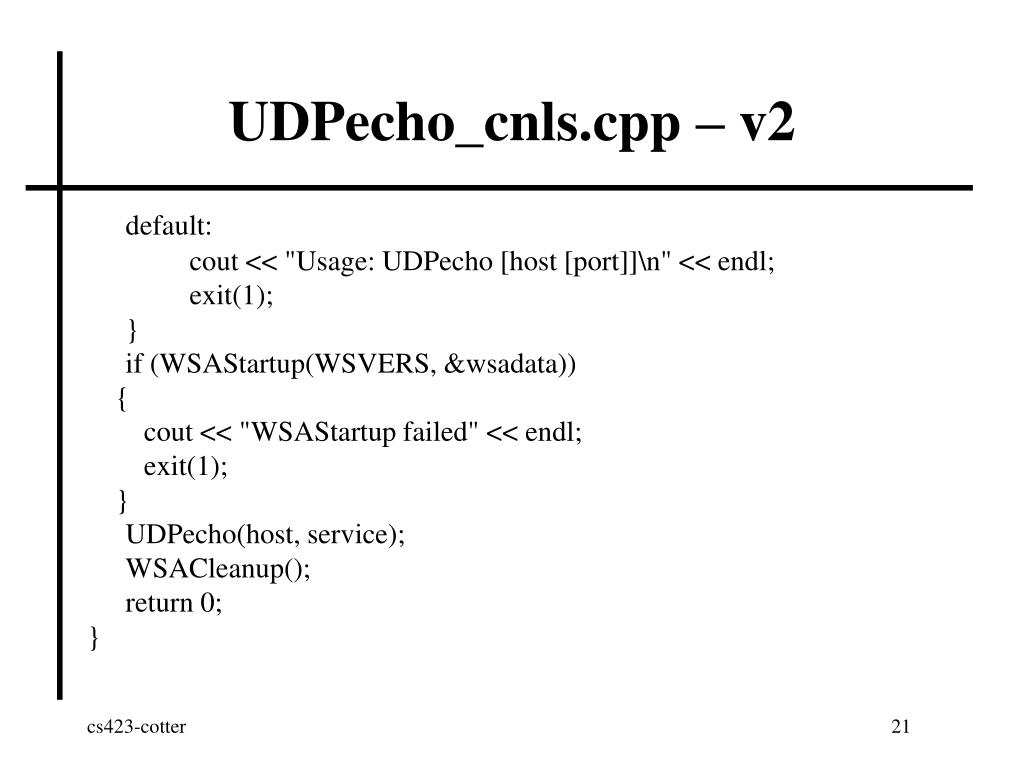

UDPecho_cnls.cpp – v2

default:

cout << "Usage: UDPecho [host [port]]\n" << endl;

exit(1);

}

if (WSAStartup(WSVERS, &wsadata))

{

cout << "WSAStartup failed" << endl;

exit(1);

}

UDPecho(host, service);

WSACleanup();

return 0;

}


Udpecho cnls cpp v23

UDPecho_cnls.cpp – v2

void UDPecho(const char *host, const char *service)

{

charbuf[LINELEN+1];/* buffer for one line of text */

SOCKETs;/* socket descriptor */

intnchars;/* read count*/

struct hostent*phe;/* pointer to host information entry*/

struct servent*pse;/* pointer to service information entry */

struct protoent *ppe;/* pointer to protocol information entry */

struct sockaddr_in sin; /* an Internet endpoint address */

inttype, status; /* socket descriptor and socket type */

char *transport = "udp"; /* transport service name for port*/

memset(&sin, 0, sizeof(sin));

sin.sin_family = AF_INET;

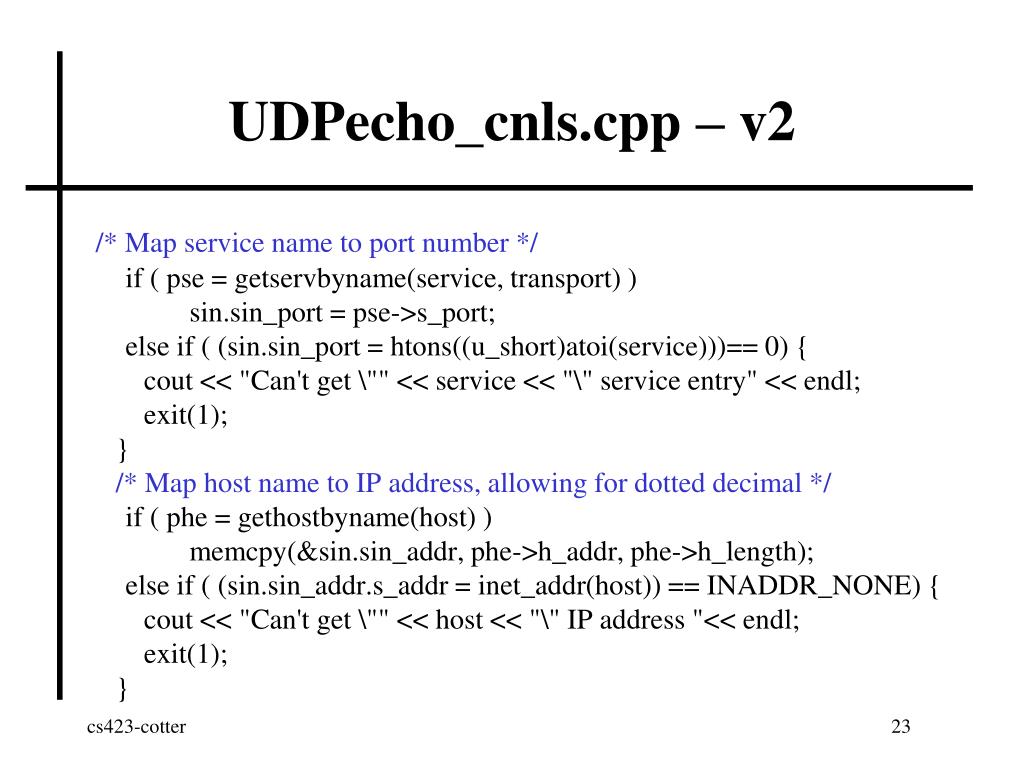

Udpecho cnls cpp v24

UDPecho_cnls.cpp – v2

/* Map service name to port number */

if ( pse = getservbyname(service, transport) )

sin.sin_port = pse->s_port;

else if ( (sin.sin_port = htons((u_short)atoi(service)))== 0) {

cout << "Can't get \"" << service << "\" service entry" << endl;

exit(1);

}

/* Map host name to IP address, allowing for dotted decimal */

if ( phe = gethostbyname(host) )

memcpy(&sin.sin_addr, phe->h_addr, phe->h_length);

else if ( (sin.sin_addr.s_addr = inet_addr(host)) == INADDR_NONE) {

cout << "Can't get \"" << host << "\" IP address "<< endl;

exit(1);

}


Udpecho cnls cpp v25

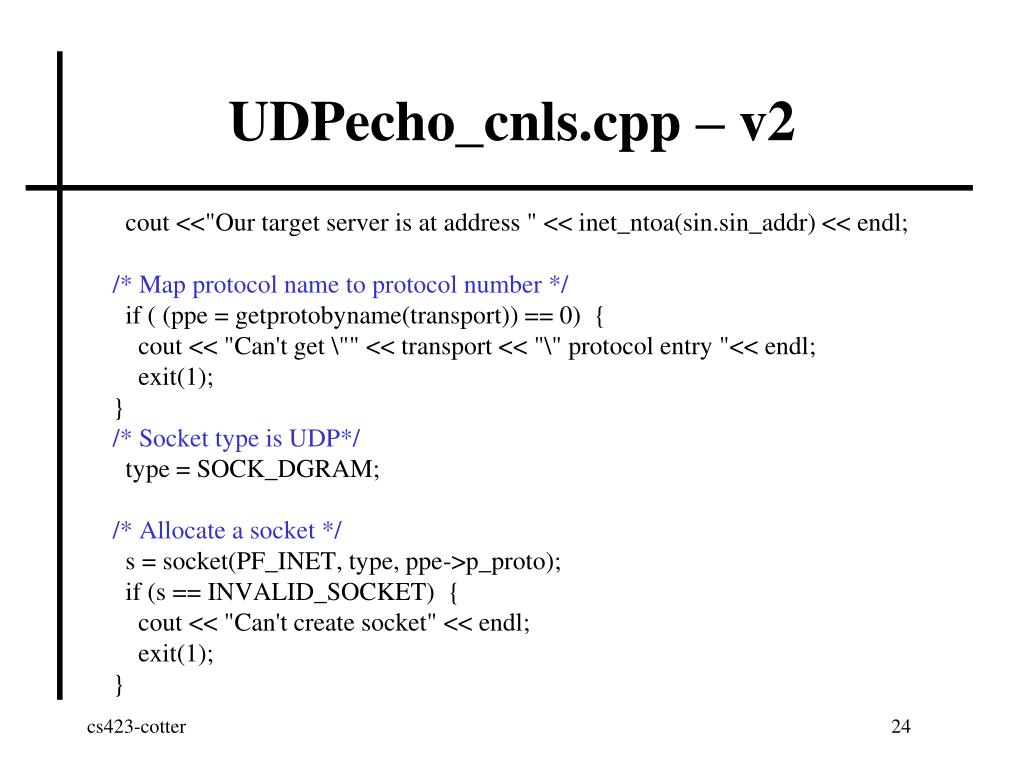

UDPecho_cnls.cpp – v2

cout <<"Our target server is at address " << inet_ntoa(sin.sin_addr) << endl;

/* Map protocol name to protocol number */

if ( (ppe = getprotobyname(transport)) == 0) {

cout << "Can't get \"" << transport << "\" protocol entry "<< endl;

exit(1);

}

/* Socket type is UDP*/

type = SOCK_DGRAM;

/* Allocate a socket */

s = socket(PF_INET, type, ppe->p_proto);

if (s == INVALID_SOCKET) {

cout << "Can't create socket" << endl;

exit(1);

}


Udpecho cnls cpp v26

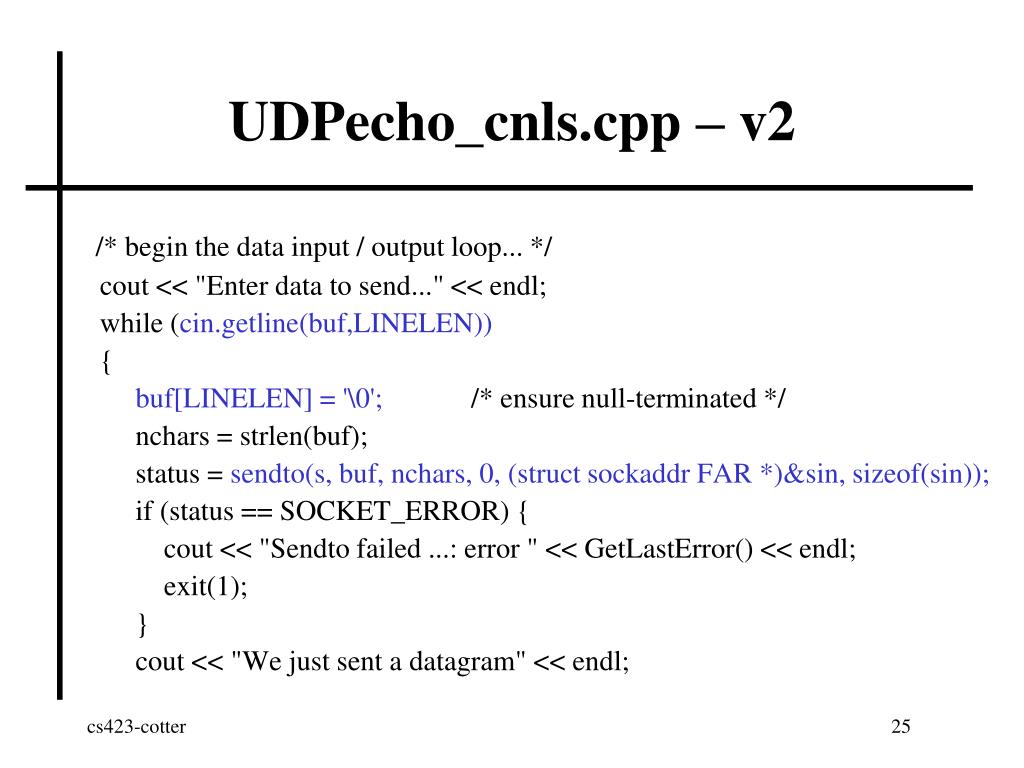

UDPecho_cnls.cpp – v2

/* begin the data input / output loop... */

cout << "Enter data to send..." << endl;

while (cin.getline(buf,LINELEN))

{

buf[LINELEN] = '\0';/* ensure null-terminated */

nchars = strlen(buf);

status = sendto(s, buf, nchars, 0, (struct sockaddr FAR *)&sin, sizeof(sin));

if (status == SOCKET_ERROR) {

cout << "Sendto failed ...: error " << GetLastError() << endl;

exit(1);

}

cout << "We just sent a datagram" << endl;


Udpecho cnls cpp v27

UDPecho_cnls.cpp – v2

if (recvfrom(s, buf, LINELEN, 0, NULL, NULL) < 0) {

cout << "recv failed: error" << GetLastError() << endl;

exit(1);

}

if (strncmp(buf, "_quit", 5) == 0) {

cout << "Goodbye......" << endl;

break;

}

cout << "We got back the following " << nchars << " characters: " << endl;

cout << buf << endl;

} /* end of while */

}/* end of UDPecho () */


Sample output

Sample Output

C: \udpecho_cnls\Debug>udpecho_cnls lab222c

Our target server is at address 134.193.2.253

Enter data to send...

This is my data

We just sent a datagram

We got back the following 16 characters: This is my data

This is another message

We just sent a datagram

We got back the following 24 characters: This is another message

^Z

C: \udpecho_cnls\Debug>


  • Login
