Timing RPCs in FOPI. A.Schüttauf GSI. Outline. FOPI Upgrade Reminder FOPI RPC Designs New Electronics Timing and Efficiency Summary & Outlook. TOF-Barrel Layout. FOPI-Reminder. Central Au-Au collision at 1.45 AGeV has ~60- particles in the acceptance of the proposed RPC barrel

deanna
Download Presentation

Timing RPCs in FOPI

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Timing RPCs in FOPI A.Schüttauf GSI 11-13.02.2004 GSI Darmstadt

  2. Outline • FOPI Upgrade Reminder • FOPI RPC Designs • New Electronics • Timing and Efficiency • Summary & Outlook 11-13.02.2004 GSI Darmstadt

  3. TOF-Barrel Layout FOPI-Reminder Central Au-Au collision at 1.45 AGeV has ~60- particles in the acceptance of the proposed RPC barrel This needs a granularity of 700 cells (2500 strips) FOPI TOF: Size ~5 m2 Channels ~5000 t<100 ps <0.5 cm 11-13.02.2004 GSI Darmstadt

  4. Anode 3 mm pitch Capacitor Block 1.1 mm glass 0.3 mm gap RPC side view RPC top view Cathode FOPI-Segmented-Anode-RPCs 11-13.02.2004 GSI Darmstadt

  5. RPC-Super-Module 1 Super module (SM) 5 RPCs 16 strips/RPC 11-13.02.2004 GSI Darmstadt

  6. TAC ASIC # 1 ch. t <10 ps GSI M.Ciobanu GSI-ELEX R.Schulze.R.Hardel K.Koch,E.Badura FEE  Preamp+Disc. Size: 9.5  11 cm2 #Ch: 16 ch Input: Analog 50  Charge sensitive Gain ~ 200 T/Q ~ 2 Power: 0.46 W/ch Output: p-ecl TAQUILA Size: 9.5  25 cm2 #T ch.: 16 TACs #A ch.: 16 ADCs On board Z.S.. Daisy chain 30 TQ 1 GTB-SAM3 New Electronics 11-13.02.2004 GSI Darmstadt

  7. Stable over clocking cycle TAC ~ 12 ps FEE ~ 18 ps Variations ~20 ps TAC < 2 ps FEE < 3 ps Clock  15 ps Intrinsic Electronic Resolution Pulser run 11-13.02.2004 GSI Darmstadt

  8. DaL 11a 90 cm 4 gaps 14 strips DaS 6a 20 cm 6 gaps 12 strips Setup 1 Beam: Protons at 1.0 and 2.0 AGeV Rate: 20-100 Hz/cm2 Gas:C2F4H2/isobutane/SF6 85/5/10 11-13.02.2004 GSI Darmstadt

  9. 1 Hz/cm2. 90 cm counter 20 cm counter Darkrate • Takes 3 day under high voltage. • Does not scale with border length • but with the area. • Low value < 1 Hz/cm2. 11-13.02.2004 GSI Darmstadt

  10. ~3 % Reflections Counter reflections are below 3 % Reflection at the Lemo MEC1 adapter will disappear with new interface. 11-13.02.2004 GSI Darmstadt

  11. t < 80 ps Tail < 2% RPC 1 with 4 gaps and 14 strips 11-13.02.2004 GSI Darmstadt

  12. t < 75 ps Tail < 3% RPC 2 with 6 gaps and 12 strips 11-13.02.2004 GSI Darmstadt

  13. Super Module RPC2 11a CDC RPC1 13a RPC Mini Scint+Pmp Setup 2 U+Au 900 AMeV 2 RPC + Mini 13a : 90cm 6 gaps 14 strips 11a: 90cm 4gaps 12 strips Mini: 45 cm2 4gaps RPC 11-13.02.2004 GSI Darmstadt

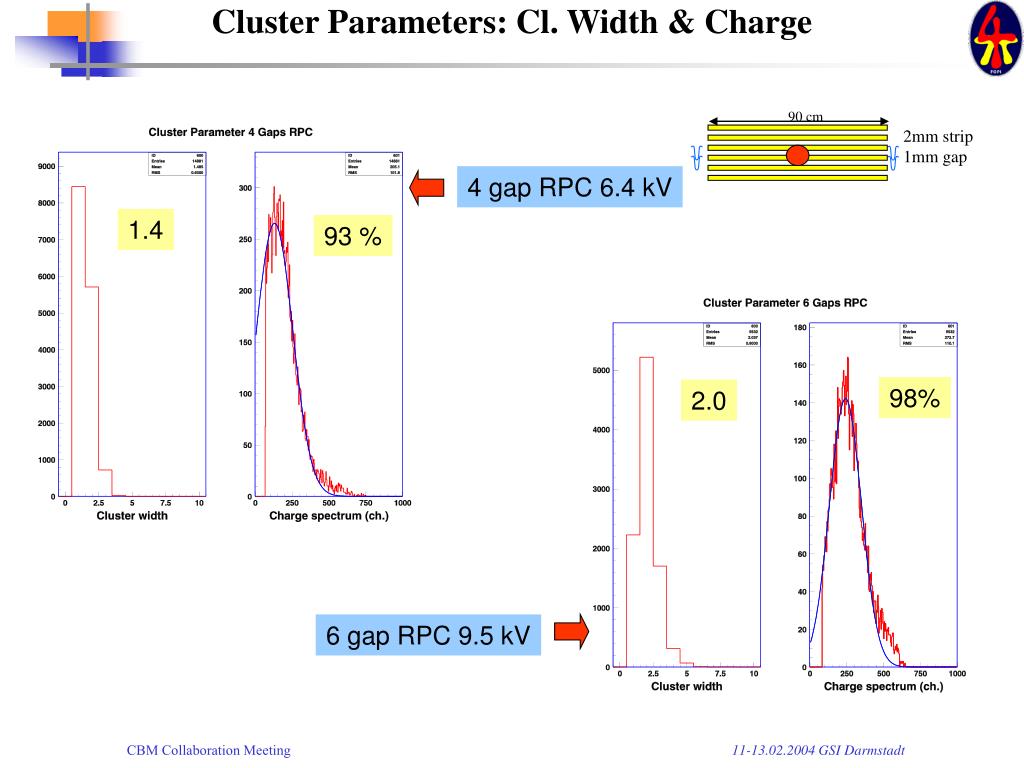

  14. 90 cm 2mm strip 1mm gap Cluster Parameters: Cl. Width & Charge 4 gap RPC 6.4 kV 1.4 93 % 98% 2.0 6 gap RPC 9.5 kV 11-13.02.2004 GSI Darmstadt

  15. 90 cm 2mm strip 1mm gap Clean Mixed One timing arrive second  102 Both timings arrive first  101 Both timings arrive second 202 One timing arrive second  201 Hit Hit Classification vs~15 cm/ns 0.5 mV <Up<30 mV 2 1 1 2 2 1 11-13.02.2004 GSI Darmstadt

  16. Matched Hit Performance : Primary Signal t< 75 ps  > 95 % Using fast pions for determining the time resolution. t < 75 ps Tail < 3 % 11-13.02.2004 GSI Darmstadt

  17. Matched Hit Performance: Multihit One signal of first hit mixed Clean second hit t< 105 ps  > 85 % t< 95-100 ps  > 94 % 11-13.02.2004 GSI Darmstadt

  18. Momentum vs Velocity for RPC U+Au 900 AMeV P-V Plot Momentum vs Velocity for FOPI barrel t<250 ps t<100 ps 11-13.02.2004 GSI Darmstadt

  19. Conclusion & Outlook • FOPI Conclusions • We successfully tested our electronics • t<12ps for the TAC • t<30ps for the system • The RPC-design changes improved our • reflection probability from 50% to 5 %. • The darkrate within the counters is below • 1 Hz/cm2. • The in beam tests showed a single hit • resolution of t < 75 ps at an  > 95 %. • The double hit performance showed a • deterioration of the time resolution by 25- • 30 ps at maximum. • Nevertheless such a counter can do • the job in FOPI. • FOPI Outlook • Needs one more iteration of FEE and • TAQUILA to make it user friendly. • Change individual lemo cables to common • cables. • Maybe built a 8 gap RPC : Thresh./Mean. • Build a full super-module with 5 RPCs and • run for statistics. • BUILT IT ! • CBM Outlook • Test rate capability of strip anode RPCs. • Start higher integration for analog an digital • electronics. • Test new anode designs. 11-13.02.2004 GSI Darmstadt

  20. People IPNE, Bucharest M.Petrovici V.Simion HD-University E.Cordier N.Herrmann A.Mangiarotti GSI-KPI : M.Ciobanu K.Hildenbrand M.Marquardt A.Schüttauf A.Weinert GSI-DVEE E.Badura R.Hardel K.Koch R.Schulze 11-13.02.2004 GSI Darmstadt

  21. Efficiency for Protons Mini-Position Full -counter HTYP =101 HTYP >101 11-13.02.2004 GSI Darmstadt
