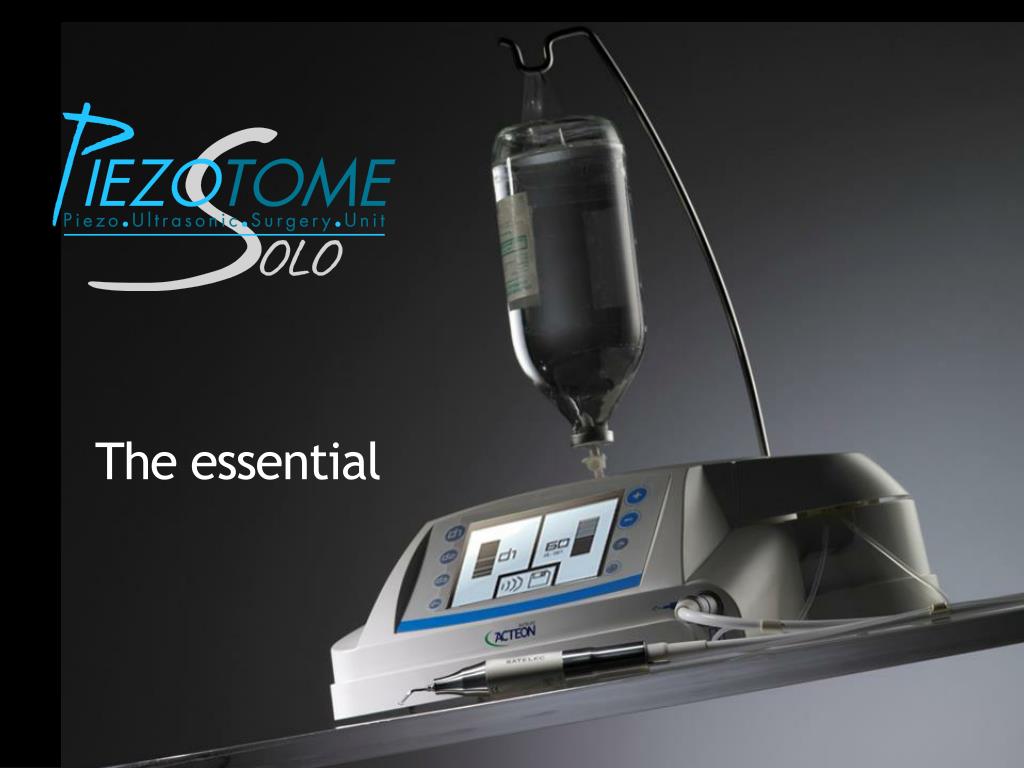

  1. The essential

  2. Soloconcept

  3. Solo concept • Dedicated to ultrasonic pre-implant surgery • Only essential features and easy to use • Objectives: • Optimized price • Volume increase, democratization • New markets perspectives • Wide target: • General practitioners, • Periodontists, • Implantologists, …

  4. A wide range

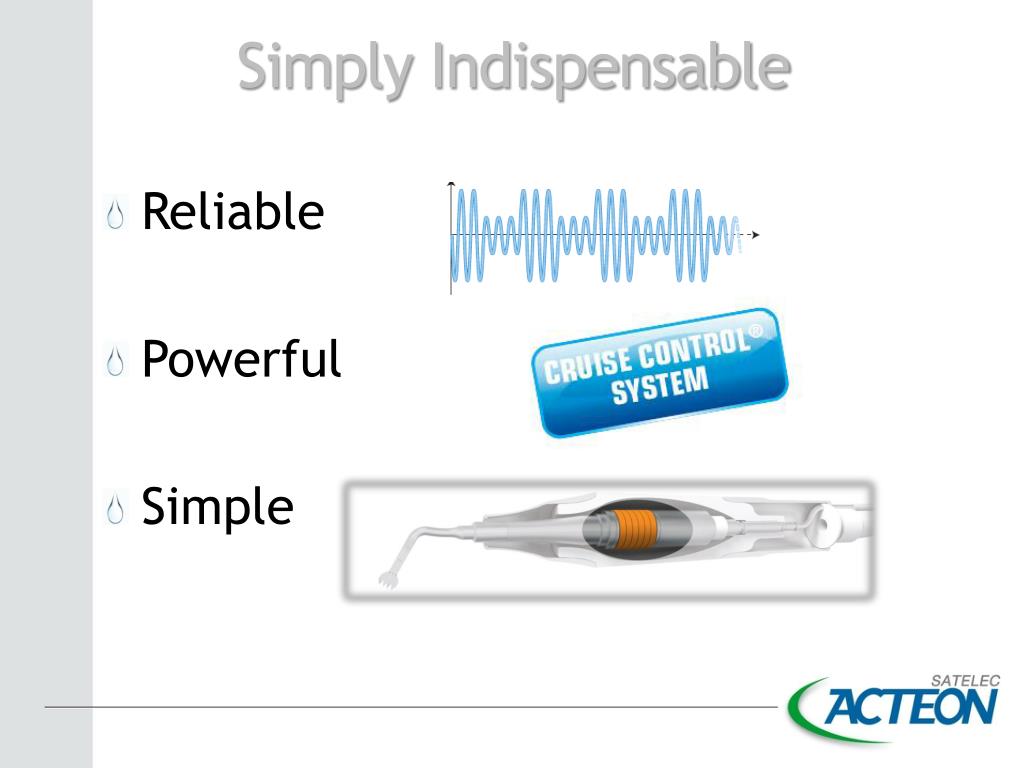

  5. Simply Indispensable • Reliable • Powerful • Simple

  6. A complete offering • Piezotome Solo unit • UltrasonicHandpiececan be used with all surgical generation II tips • Multifunction footswitch • « Essential » kit with its dynamometric wrench

  7. Essential kit, 5 in 1 • The 6 fundamental Satelec® tips:

  8. BS1 Slim tip • Osteotomy: For the in-depth cutting • Piezocision: Surgical orthodontics • 9 mm saw intended for the cutting of very dense cortical bones

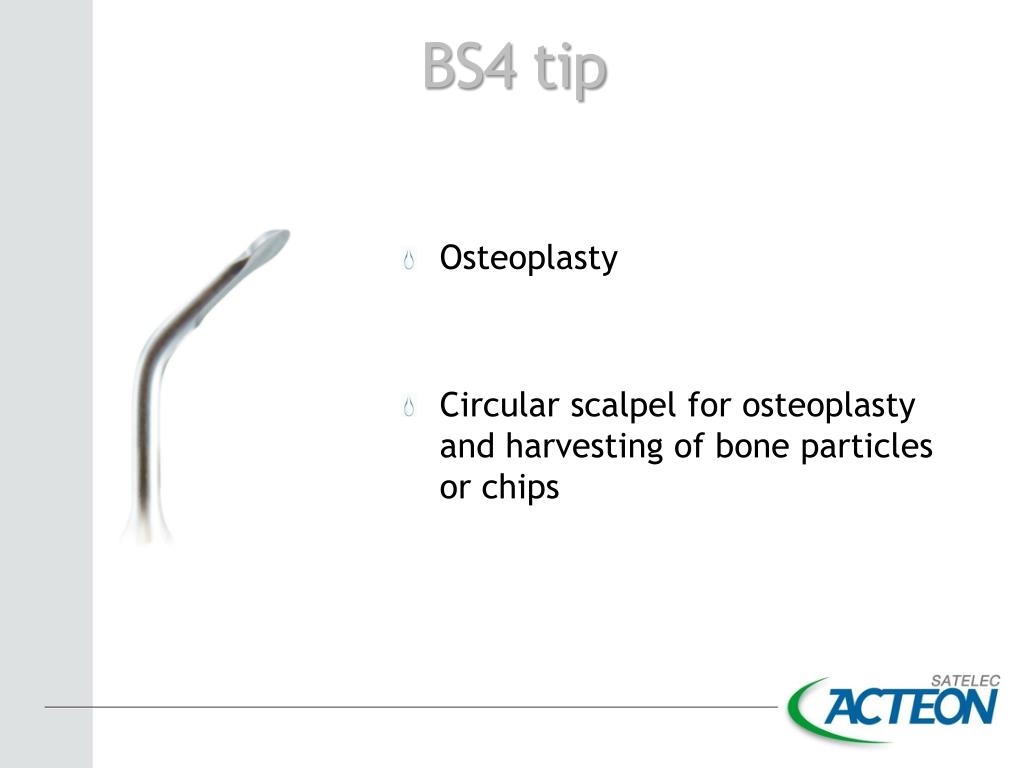

  9. BS4 tip • Osteoplasty • Circular scalpel for osteoplasty and harvesting of bone particles or chips

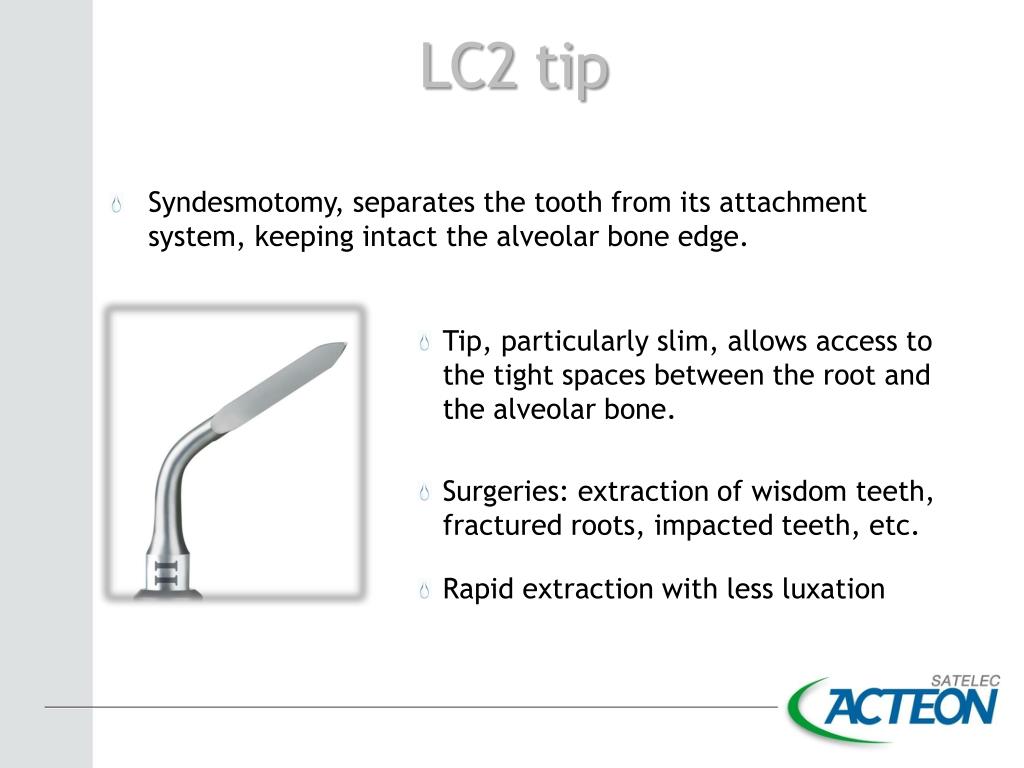

  10. LC2 tip • Syndesmotomy, separates the tooth from its attachment system, keeping intact the alveolar bone edge. • Tip, particularly slim, allows access to the tight spaces between the root and the alveolar bone. • Surgeries: extraction of wisdom teeth, fractured roots, impacted teeth, etc. • Rapid extraction with less luxation

  11. SL1, SL2 and SL3 tips • Lateral sinus lift • A thin cut performed without effort, limiting any risk of sinus membrane perforation or antral artery damage. The elevation is performed by keeping a permanent contact between the membrane and the bone lining. • SL1 : Diamond-coated tip for vestibular bone window cut and for attenuation of sharp angles • SL2 : Diamond-coated ball tip for smoothing the vestibular bone window and precise osteoplasty • SL3 : Plateau tip served for Schneiderian membrane elevation on the window’s edges

  12. Ergonomics

  13. Designed for simplicity • Intuitive Visual control of the power  Size of the buttons + screen bar graph • Easy and accurate • Irrigation settings from • 0 to 120 ml/min Modes (D1 to D4) are based on the bone density: D1 is the most powerful mode • Fast and practical • Purge and memorization

  14. Handpiece • Proven Piezotome 2 handpiece components • Safe Piloted by Cruise Control® System  Autoclavable - nozzle can be detached • Efficient 6 ceramics • Powerful  Up to 60 Watts output power

  15. Multifunction footswitch • Convenient  Large  Arch • Functional  Modes can be changed • Easy to use ON/OFF activation of the ultrasonics

  16. Pump • « The Piezotome produced the smallest increase in intra-osseous temperature. » Dr. Harder, IJOMI 2009 • Silent pump • Accurate flow rate • Easy insertion of the irrigation line

  17. ClinicalCases

  18. Unlimited clinical opportunities • The Piezotome Solo handpiece can be used with all Piezotome 2 / Implant Center 2 surgical tips

  19. Osteotomy/Osteoplasty • 1 – Bone deficiency • 2 – Ramus or chin bone harvest (donor site) • 3 – Bone block is screwed onto the recipient site • 4 – Bone graft remodeling BS II Kit Ref. F 87 509

  20. Lateral Sinus Lift • 1 – Vestibular bone window cut • 2 – Schneiderian membrane elevation • 3 – The bone filling material is introduced into the bony window • 4 – Implants are inserted after the healing period SL II Kit Ref. F 87 519

  21. Sinus Lift by the crestal approach • 1 – Pilot drilling in very dense cortical bone (TKW1), fracturing the sinus floor (TKW2) • 2 – Perform a receptacle preparation of 2mm depth. (depending of the residual crest) – TKW4 • 3 – Sinus membrane elevation – TKW5 • 4 & 5 – Widen the access canal to the sinus membrane – TKW3 & 4 • 6 – Implant placement Intralift II Kit Ref. F 87 536

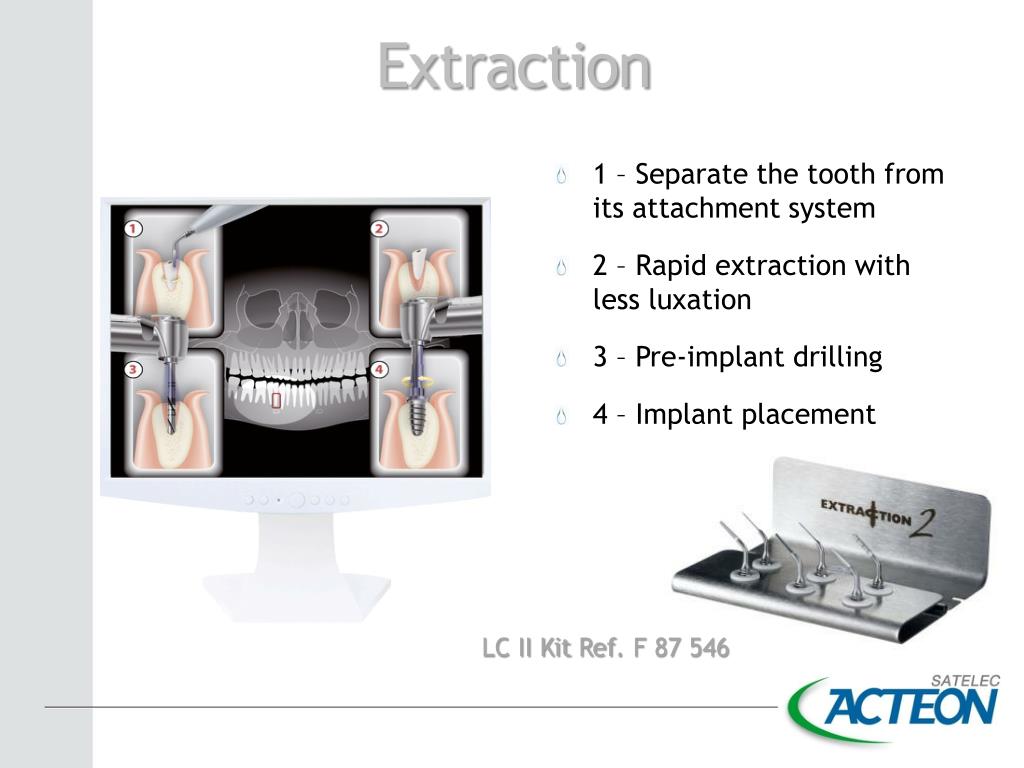

  22. Extraction • 1 –Separate the tooth from its attachment system • 2 – Rapid extraction with less luxation • 3 – Pre-implant drilling • 4 – Implant placement LC II Kit Ref. F 87 546

  23. Crown lengthening • 1 – Substantial osseous reshaping • 2 – Osteoplasty in oral and palatal zones • 3 – Osteoplasty in interproximal zones • 4 – Osteoectomy of the tooth-supporting bone (restoration of the biologic width) CE II Kit Ref. F 87 554

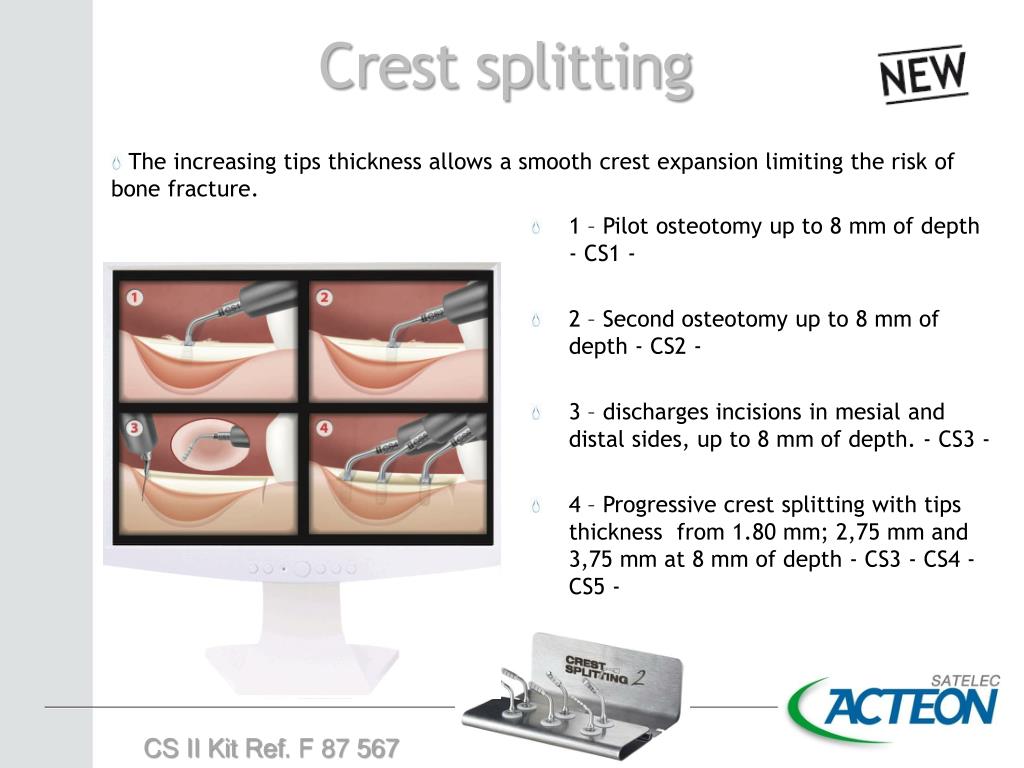

  24. Crest splitting The increasing tips thickness allows a smooth crest expansion limiting the risk of bone fracture. • 1 – Pilot osteotomy up to 8 mm of depth - CS1 - • 2 – Second osteotomy up to 8 mm of depth - CS2 - • 3 – discharges incisions in mesial and distal sides, up to 8 mm of depth. - CS3 - • 4 – Progressive crest splitting with tips thickness from 1.80 mm; 2,75 mm and 3,75 mm at 8 mm of depth - CS3 - CS4 - CS5 - CS II Kit Ref. F 87 567

  25. Competition

  26. Main competitors • EMS : Piezon Master Surgery • MECTRON : Piezosurgery 2 et 3 • NSK : Variosurg 1 et 2

  27. Main competitors

  28. «The new Piezotome Solo of SATELEC is simply indispensable … »
