Logic Values

Logic Values. 0:logic 0 / false 1:logic 1 / true X:unknown logic value Z:high-impedance. Strength levels. Data Types. Nets Connects between hardware elements Must be continuously driven by Continuous assignment (assign) Module or gate instantiation (output ports)

deanna-vega
Download Presentation

Logic Values

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Logic Values • 0:logic 0 / false • 1:logic 1 / true • X:unknown logic value • Z:high-impedance

  2. Strength levels

  3. Data Types • Nets • Connects between hardware elements • Must be continuously driven by • Continuous assignment (assign) • Module or gate instantiation (output ports) • Default initial value for a wire is “Z” (and for a trireg is “x”) • Registers • Represent data storage elements • Retain value until another value is placed on to them • Similar to “variables” in other high level language • Different to edge-triggered flip-flop in real ciucuits • Do not need clock • Default initial value for a reg is “X”

  4. Examples reg a; // a scalar register wand w; // a scalar net of type “wire and” reg [3:0] v; // a 4-bit vector register from msb to lsb reg [7:0] m, n; // two 8-bit registers tri [15:0] busa; // a 16-bit tri-state bus wire [0:31] w1, w2; // Two 32-bit wires with msb being the 0 bit, not recommended

  5. Net Types • The most common and important net types • wire and tri • for standard interconnection wires • wire: single driver e.g. output of “and” gate • tri: multiple driver e.g. multiplexer • supply1 and supply0  “x” • strong1 and supply1  “supply1”

  6. Net Types • Other wire types • wand, wor, triand, and trior • for multiple drivers that are wired-anded and wired-ored • tri0 and tri1 • pull down and pull up • trireg • for net with capacitive storage • If all drivers at z, previous value is retained • Two states: • Driven state: at least one driver drives 0, 1, x • Capacitive state: • all driver have high impedance “z” • Strength: small, medium, large; default is medium

  7. An example for wire, tri0, tri1 • module tritest(); • wire w1, w2, w3, w4; • tri0 t01, t02, t03, t04; • tri1 t11, t12, t13, t14; • assign w1 = 0; • assign t01 = 0; • assign t11 = 0; • assign w2 = 1'bz; • assign t02 = 1'bz; • assign t12 = 1'bz; • assign w3 = 1; • assign t03 = 1; • assign t13 = 1; • Initial • begin • #1;$display(w1, w2, w3, w4); • $display(t01, t02, t03, t04); • $display(t11, t12, t13, t14); • end • endmodule Results: 0 z 1 z 0 0 1 0 0 1 1 1

  8. Register Types • reg • any size, unsigned • Integer • integet a,b; // declaration • 32-bit signed (2’s complement) • Time • 64-bit unsigned, behaves like a 64-bit reg • $display(“At %t, value=%d”,$time,val_now) • real • real c,d; //declaration • 64-bit real number • Defaults to an initial value of 0

  9. Numbers & Negative Numbers • Constant numbers are integer or real constants. Integer constants are written as “width ‘radix value” • The radix indicates the type of number • Decimal(d or D) • Hex (h or H) • Octal (o or O) • Binary (b or B) • A number may be sized or unsized

  10. Number Specification (continue) • Sized numbers • <size>’<base_format><number> • <size> is in decimal and specifies the number of bits • ‘<base_format> is: ‘d ‘D ‘h ‘H ‘b ‘B ‘o ‘O • The <number> digits are 0-f, uppercase may be used • Examples: • 4’b1111 • 12’habc • 16’d255

  11. Number Specification • Unsized numbers – The <size> is not specified (default is simulator/compiler specific, >= 32 bits) • Numbers without a base are decimal by default • Examples • 100 // Decimal 100, 32 bits by default • ’h3a // Binary 111010, 32 bits by default • 1’bx // Binary X, 32 bits by default • ’bz // High-Z (impedance), 32 bits by default

  12. Operators

  13. Example assign A1 = (3+2) %2; // A1 = 1 assign A2 = 4 >> 1; assign A4 = 1 << 2; // A2 = 2 A4 = 4 assign Ax = (1= =1'bx); //Ax=x assign Bx = (1'bx!=1'bz); //Bx=x assign D0 = (1= =0); //D0=False assign D1 = (1= =1); //D1=True assign E0 = (1= = =1'bx); //E0=False assign E1 = (4'b01xz = = = 4'b01xz);; //E1=True assign F1 = (4'bxxxx = = = 4'bxxxx); //F1= True assign x = a ? b : c //if (a) then x = b else x = c

  14. Concatenation operator // A=1’b1; B=2’b00, C=2’b10; D=3’b110; Y={B, C} //Result Y is 4’b0010 Y={A, B, C, D, 3’b001} //Result Y is 11’b10010110001 Y={A, B[0], C[1]} // Result Y is 3’b101

  15. Replication operator • Reg A; • Reg [1:0] B, C; • Reg [2:0] D; • A=1’b1; B=2’b00, C=2’b10; D=3’b110; • Y={4{A}} // Result Y is 4’b1111 • Y={4{A}, 2{B}} // Result Y is 8’b11110000 • Y ={4{A}, 2{B}, C} //Result Y is 8’b1111000010

  16. Example – Multiplexer_1 • // Verilog code for Multiplexer implementation using assign// File name: mux1.v // by Harsha Perla for http://electrosofts.com// harsha@electrosofts.com// Available at http://electrosofts.com/verilogmodule mux1( select, d, q );input [1:0] select;input [3:0] d;output q;wire q;wire[1:0] select;wire[3:0] d;assign q = d[select];endmodule

  17. Example – Multiplexer_2 // Verilog code for Multiplexer implementation using always block. // by Harsha Perla for http://electrosofts.com // harsha@electrosofts.com // Available at http://electrosofts.com/verilog module mux2( select, d, q ); input[1:0] select; input[3:0] d; output q; regq; wire[1:0] select; wire[3:0] d; always @(d or select) q = d[select]; endmodule

  18. Example – Multiplexer_3 module mux4_1 (out, in0, in1, in2, in3, sel) ; output out ; input in0,in1,in2,in3 ; input [1:0] sel ; assign out = (sel == 2'b00) ? in0 : (sel == 2'b01) ? in1 : (sel == 2'b10) ? in2 : (sel == 2'b11) ? in3 : 1'bx ; endmodule

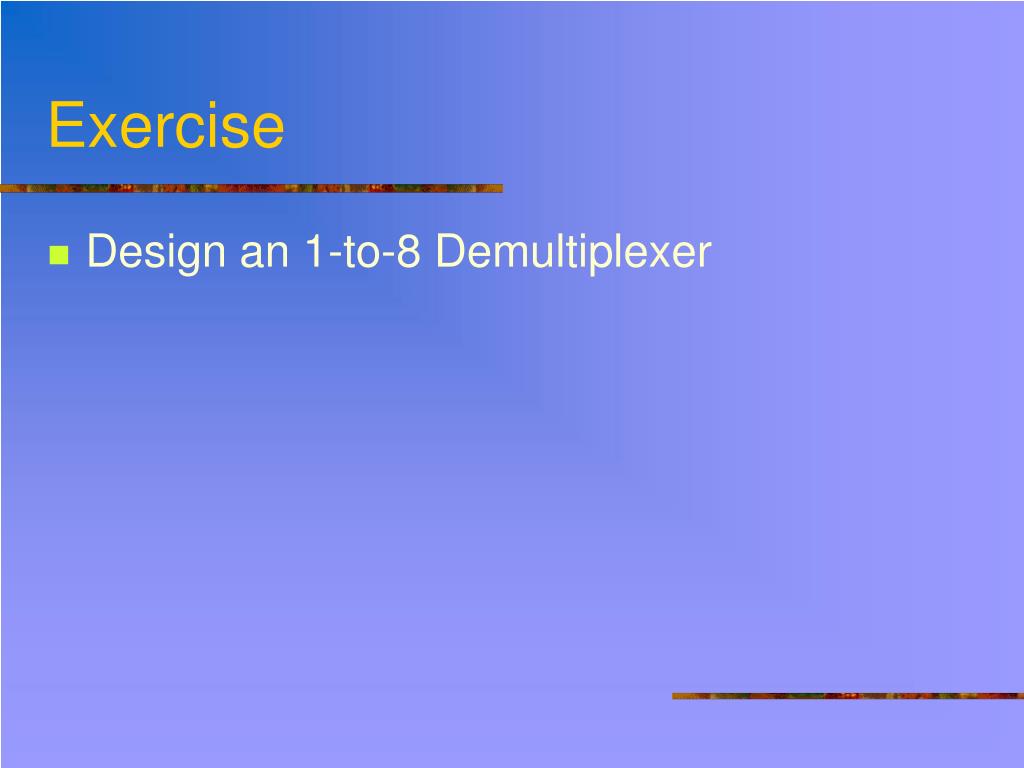

  19. Exercise • Design an 1-to-8 Demultiplexer
