Clogging in bottlenecks: from inert particles to active matter

http://www.unav.es/centro/gralunarlab

People involved:

  • Luis Miguel Ferrer (Veterinary Faculty, Zaragoza)
  • Alvaro Janda (Engineering School, Edinburgh)
  • Geoffroy Lumay (GRASP, Liège)
  • Celia Lozano (University of Navarra)
  • Diego Maza (University of Navarra)
  • Angel Garcimartín (University of Navarra)

Iker Zuriguel [email protected]

Dpto. Física y Mat. Aplicada

Universidad de Navarra

31080 Pamplona, Spain.

[email protected]

http://www.unav.es/centro/gralunarlab

2nd IMA Conference on Dense Granular Flows

Cambridge, 1-4 July, 2013.

clogging in bottlenecks
Clogging in bottlenecks

Traffic

Grains (Picture from K. To, PRL 2001)

Traffic

Panic flow

Embolization with microparticles

[email protected]

http://www.unav.es/centro/gralunarlab

2nd IMA Conference on Dense Granular Flows

Cambridge, 1-4 July, 2013.

clogging in silos

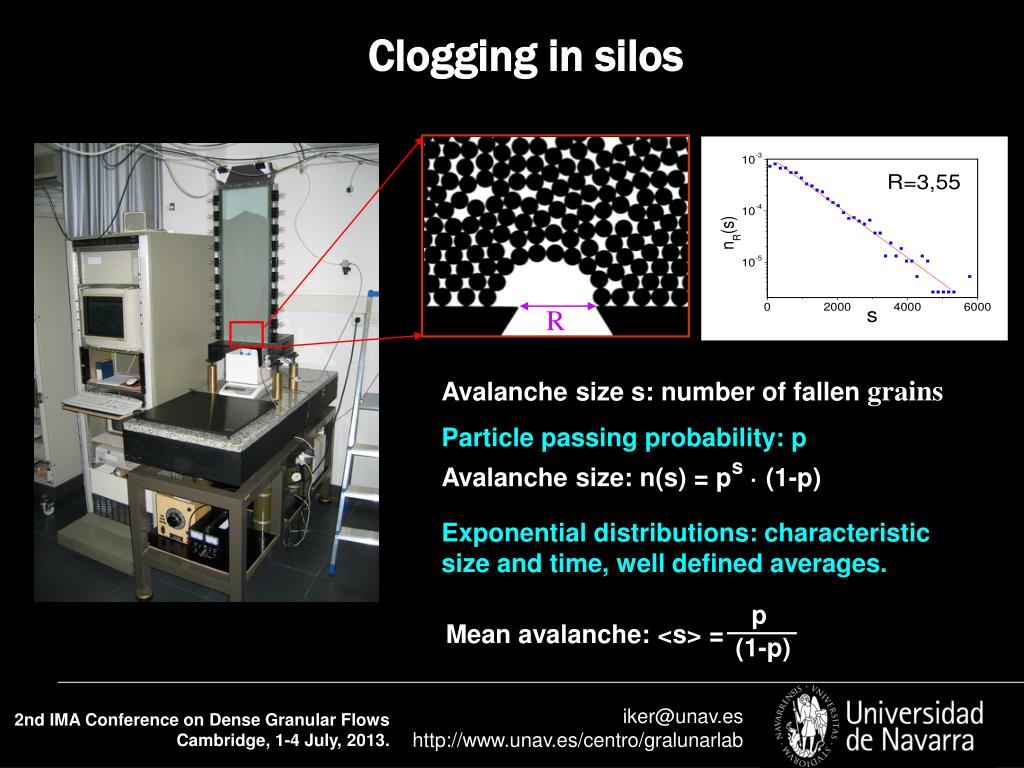

Clogging in silos

R

Avalanche size s: number of fallen grains

Particle passing probability: p

Avalanche size: n(s) = ps · (1-p)

Exponential distributions: characteristic size and time, well defined averages.

p

Mean avalanche: <s> =

(1-p)

[email protected]

http://www.unav.es/centro/gralunarlab

2nd IMA Conference on Dense Granular Flows

Cambridge, 1-4 July, 2013.

slide4

Clogging in silos

Mean avalanche size

Flow rate

Divergence or not? Critical R?

Modified Beverloo expression

A. Janda et al. EPL 2008

A. Janda et al. PRL 2012

[email protected]

http://www.unav.es/centro/gralunarlab

2nd IMA Conference on Dense Granular Flows

Cambridge, 1-4 July, 2013.

slide5

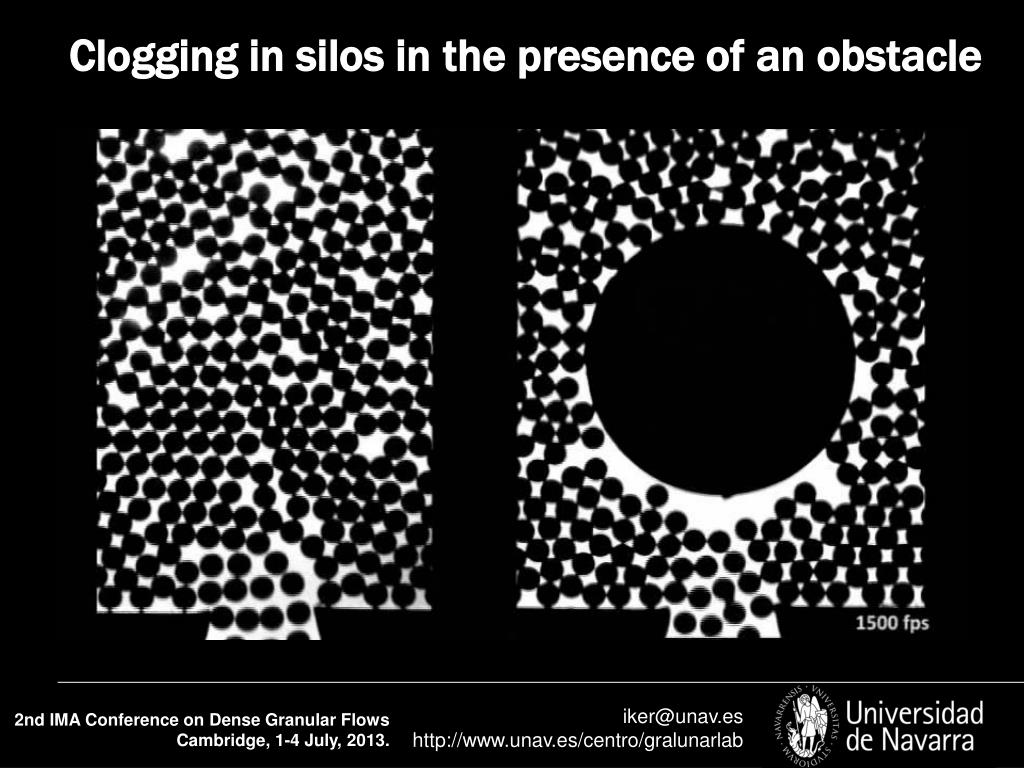

Clogging in silos in the presence of an obstacle

[email protected]

http://www.unav.es/centro/gralunarlab

2nd IMA Conference on Dense Granular Flows

Cambridge, 1-4 July, 2013.

slide6

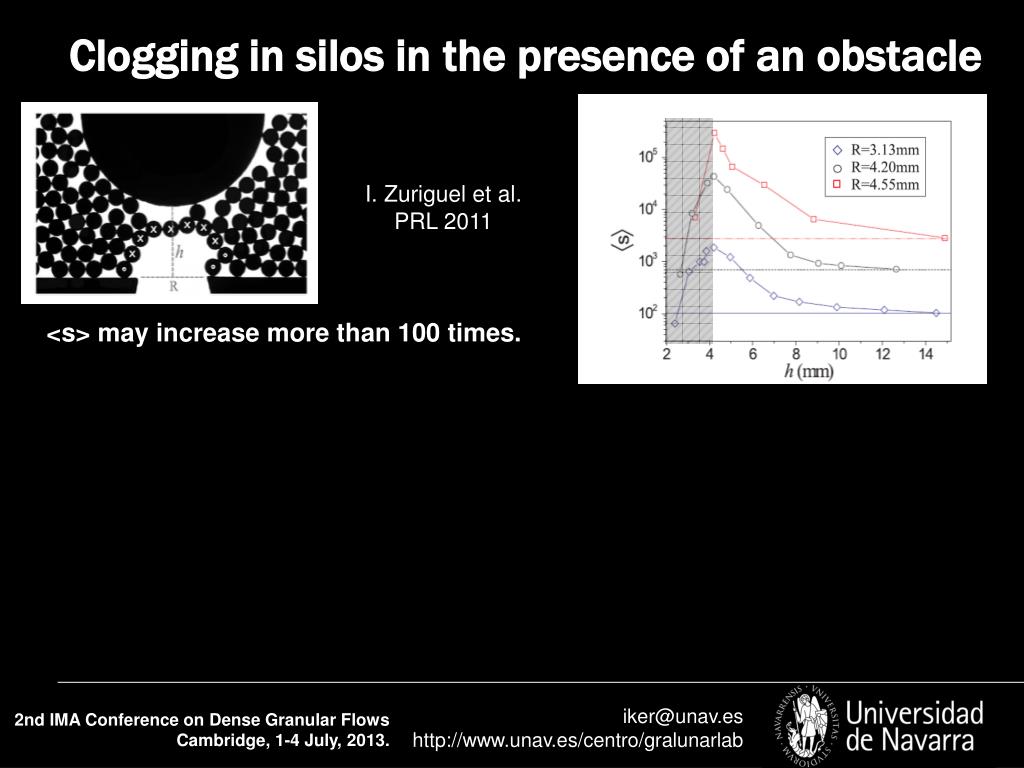

Clogging in silos in the presence of an obstacle

I. Zuriguel et al. PRL 2011

<s> may increase more than 100 times.

[email protected]

http://www.unav.es/centro/gralunarlab

2nd IMA Conference on Dense Granular Flows

Cambridge, 1-4 July, 2013.

slide7

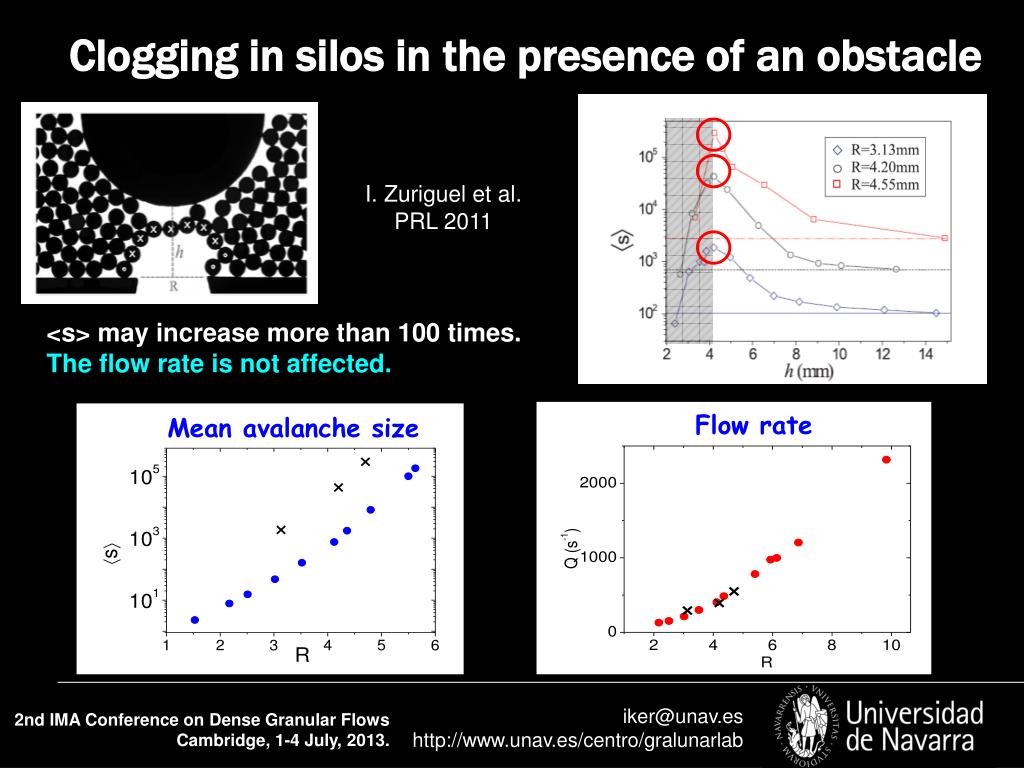

Clogging in silos in the presence of an obstacle

I. Zuriguel et al. PRL 2011

<s> may increase more than 100 times.

The flow rate is not affected.

Flow rate

Mean avalanche size

[email protected]

http://www.unav.es/centro/gralunarlab

2nd IMA Conference on Dense Granular Flows

Cambridge, 1-4 July, 2013.

clogging in crowd dynamics

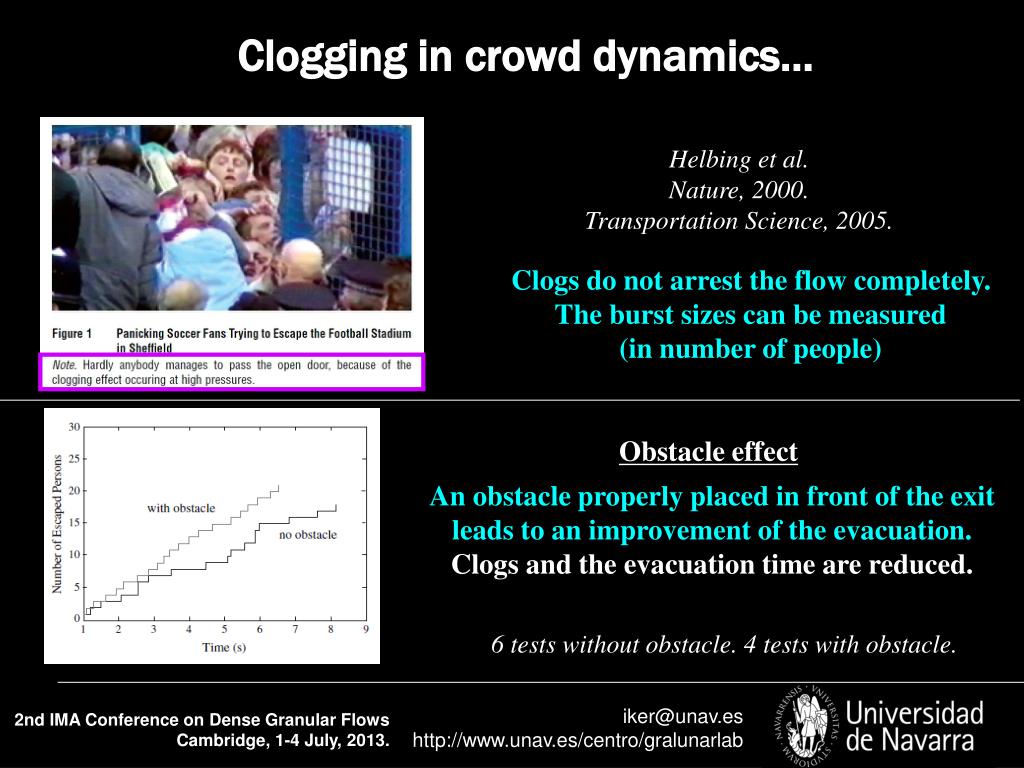

Clogging in crowd dynamics…

Helbing et al.

Nature, 2000.

Transportation Science, 2005.

Clogs do not arrest the flow completely.

The burst sizes can be measured

(in number of people)

Obstacle effect

An obstacle properly placed in front of the exit leads to an improvement of the evacuation.

Clogs and the evacuation time are reduced.

6 tests without obstacle. 4 tests with obstacle.

[email protected]

http://www.unav.es/centro/gralunarlab

2nd IMA Conference on Dense Granular Flows

Cambridge, 1-4 July, 2013.

slide9

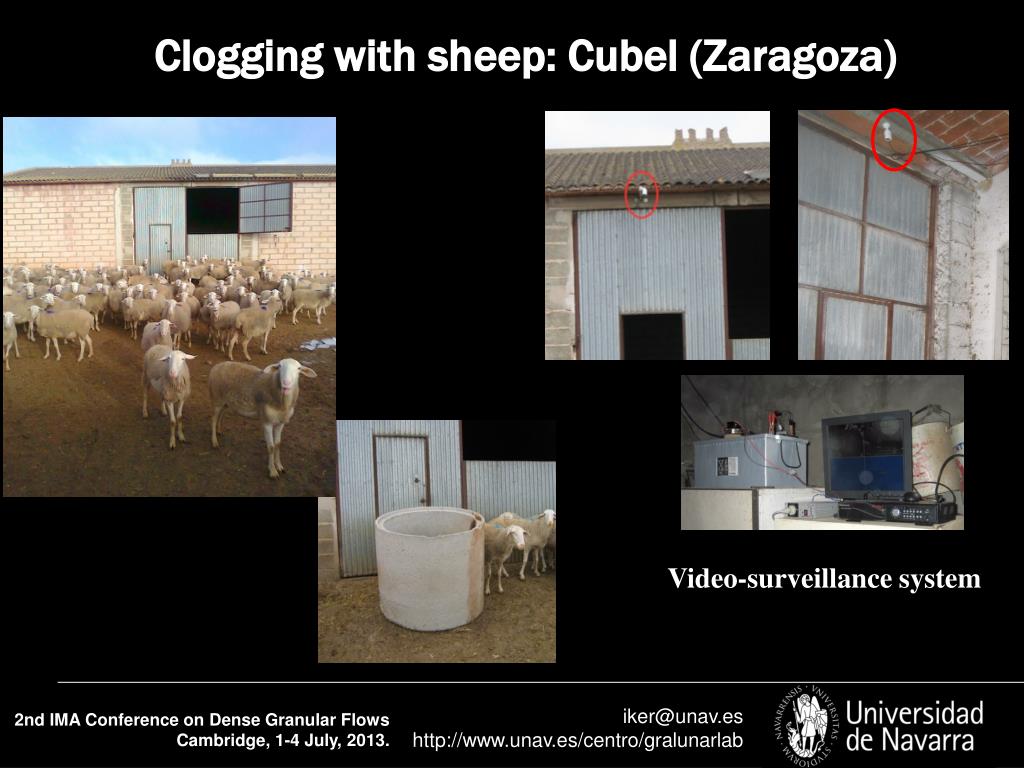

Clogging with sheep: Cubel (Zaragoza)

Video-surveillance system

[email protected]

http://www.unav.es/centro/gralunarlab

2nd IMA Conference on Dense Granular Flows

Cambridge, 1-4 July, 2013.

slide10

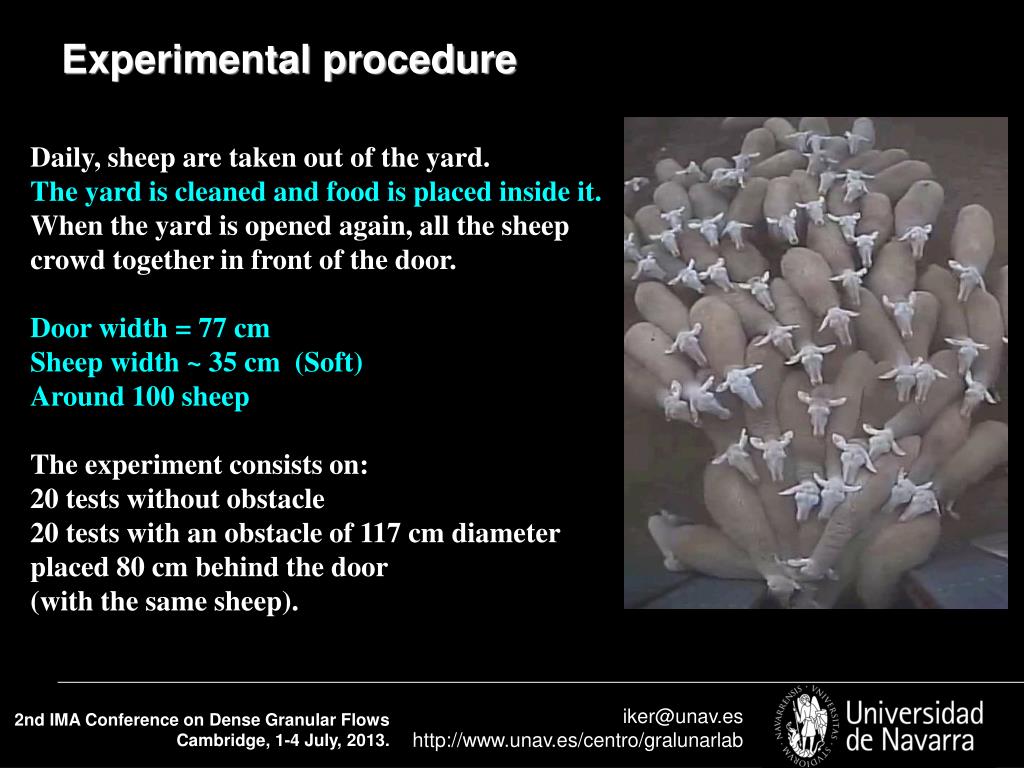

Experimental procedure

Daily, sheep are taken out of the yard.

The yard is cleaned and food is placed inside it.

When the yard is opened again, all the sheep crowd together in front of the door.

Door width = 77 cm

Sheep width ~ 35 cm (Soft)

Around 100 sheep

The experiment consists on:

20 tests without obstacle

20 tests with an obstacle of 117 cm diameter placed 80 cm behind the door

(with the same sheep).

[email protected]

http://www.unav.es/centro/gralunarlab

2nd IMA Conference on Dense Granular Flows

Cambridge, 1-4 July, 2013.

slide11

Experiment without obstacle

[email protected]

http://www.unav.es/centro/gralunarlab

2nd IMA Conference on Dense Granular Flows

Cambridge, 1-4 July, 2013.

slide12

Clogging times, burst size…

time

[email protected]

http://www.unav.es/centro/gralunarlab

2nd IMA Conference on Dense Granular Flows

Cambridge, 1-4 July, 2013.

slide13

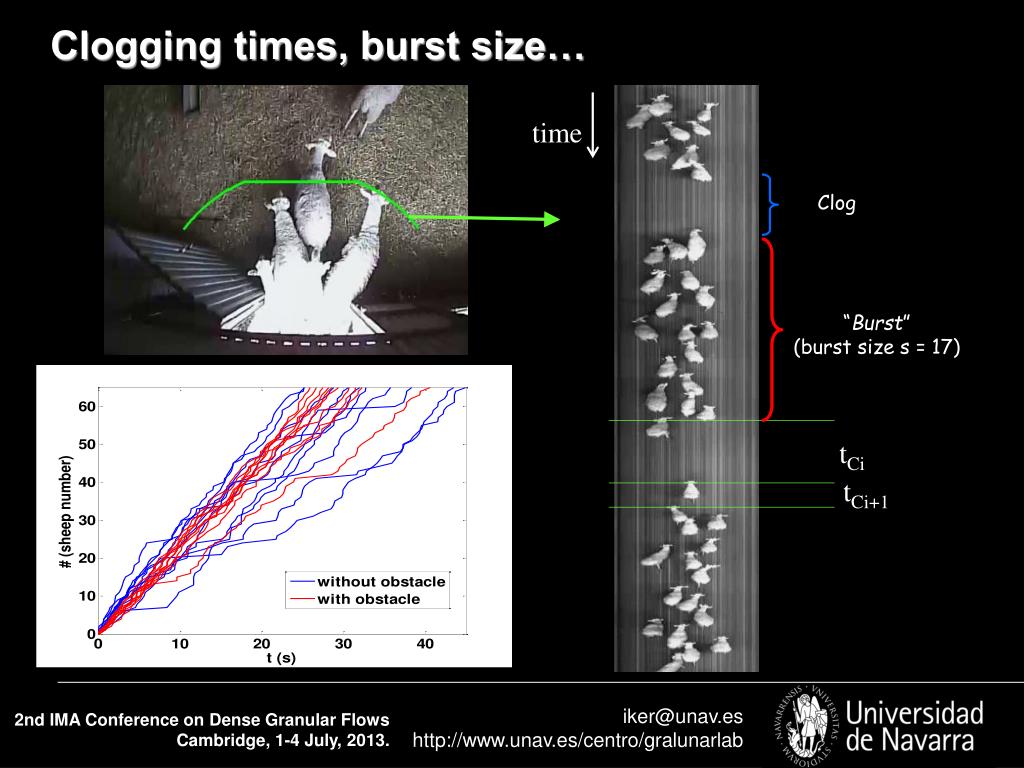

Clogging times, burst size…

time

Clog

“Burst”

(burst size s = 17)

tCi

tCi+1

[email protected]

http://www.unav.es/centro/gralunarlab

2nd IMA Conference on Dense Granular Flows

Cambridge, 1-4 July, 2013.

slide14

Clogging and unclogging of sheep

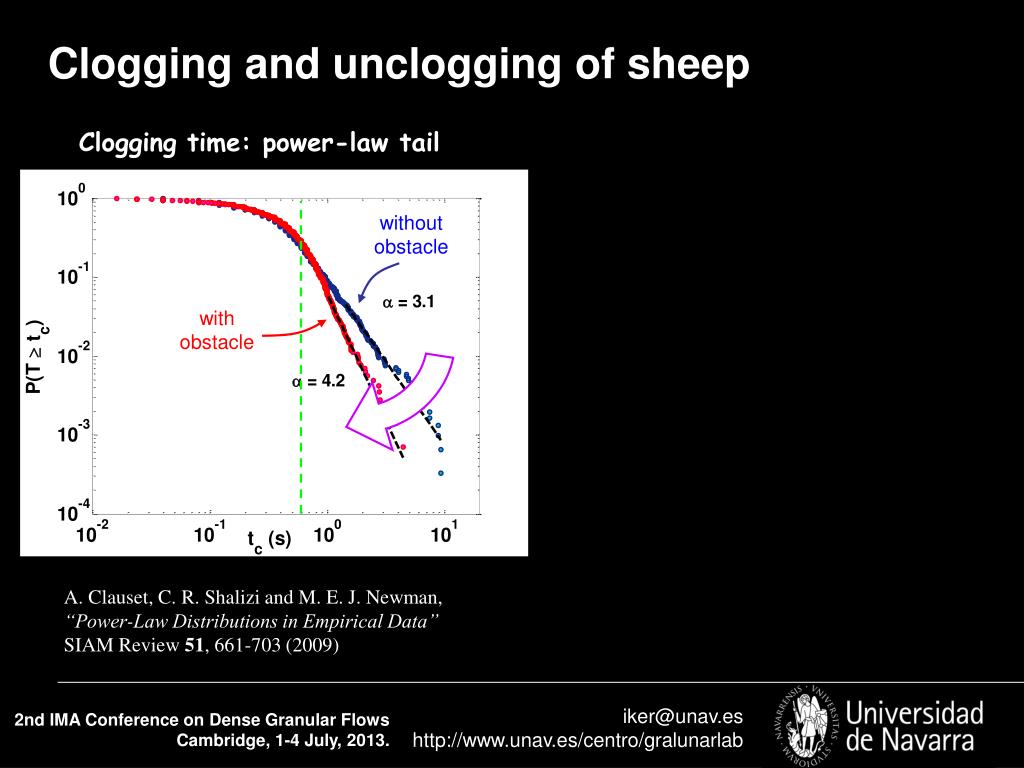

Clogging time: power-law tail

withoutobstacle

with obstacle

A. Clauset, C. R. Shalizi and M. E. J. Newman,

“Power-Law Distributions in Empirical Data”

SIAM Review 51, 661-703 (2009)

[email protected]

http://www.unav.es/centro/gralunarlab

2nd IMA Conference on Dense Granular Flows

Cambridge, 1-4 July, 2013.

slide15

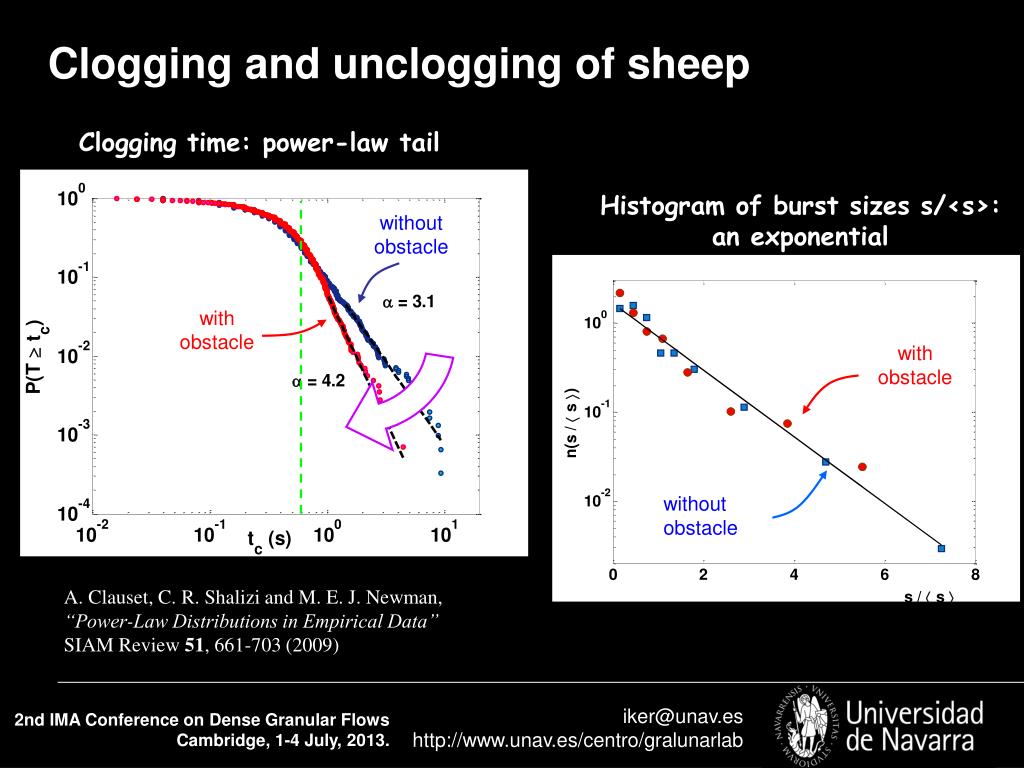

Clogging and unclogging of sheep

Clogging time: power-law tail

Histogram of burst sizes s/<s>:

an exponential

withoutobstacle

with obstacle

with obstacle

without obstacle

A. Clauset, C. R. Shalizi and M. E. J. Newman,

“Power-Law Distributions in Empirical Data”

SIAM Review 51, 661-703 (2009)

[email protected]

http://www.unav.es/centro/gralunarlab

2nd IMA Conference on Dense Granular Flows

Cambridge, 1-4 July, 2013.

slide16

But the dynamics in silos are completely different…

…once the system is clogged, the flow is not resumed by itself.

Vibrated silo.

[email protected]

http://www.unav.es/centro/gralunarlab

2nd IMA Conference on Dense Granular Flows

Cambridge, 1-4 July, 2013.

slide17

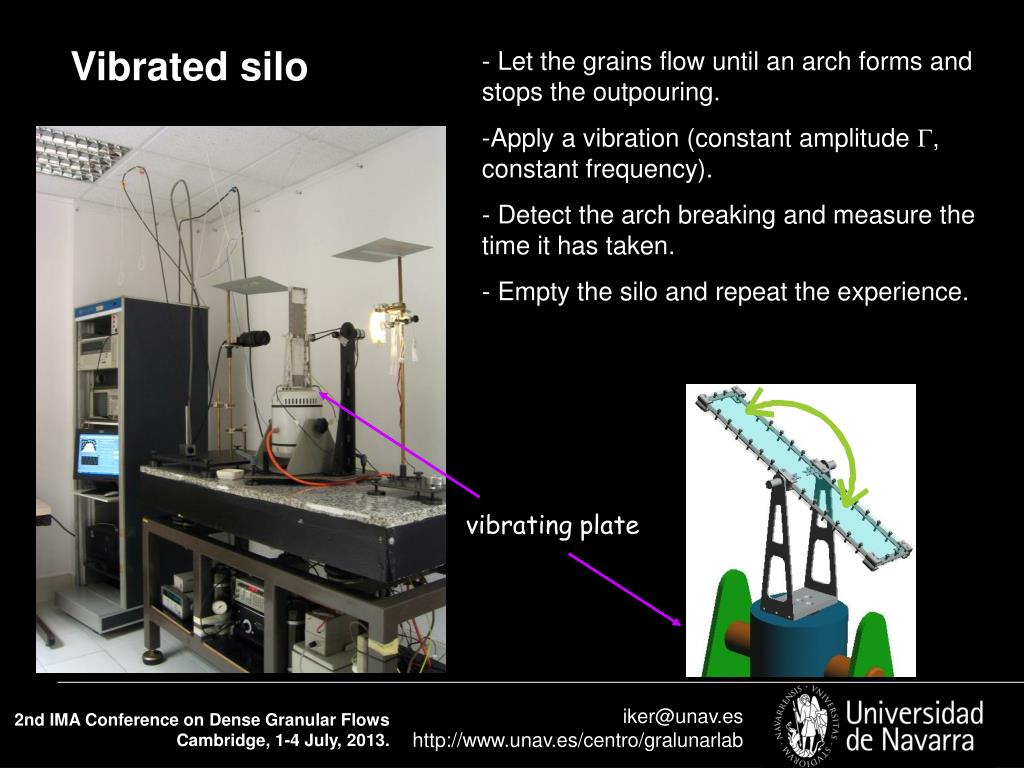

Vibrated silo

  • Let the grains flow until an arch forms and stops the outpouring.
  • Apply a vibration (constant amplitude G, constant frequency).
  • Detect the arch breaking and measure the time it has taken.
  • Empty the silo and repeat the experience.

vibrating plate

[email protected]

http://www.unav.es/centro/gralunarlab

2nd IMA Conference on Dense Granular Flows

Cambridge, 1-4 July, 2013.

slide18

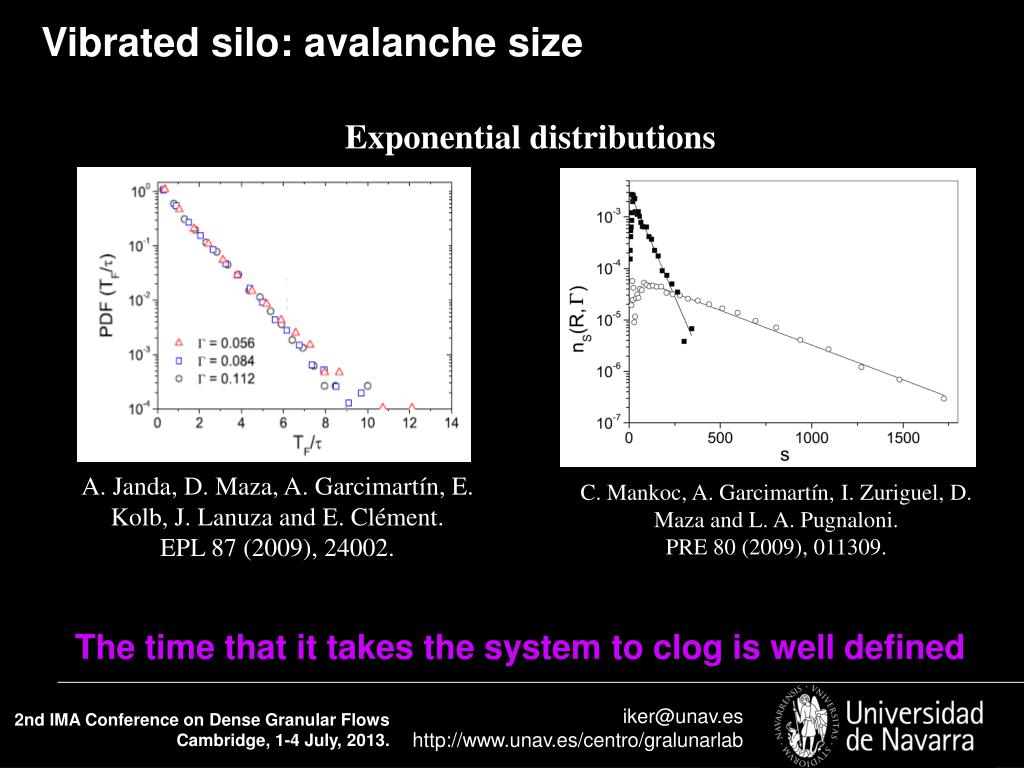

Vibrated silo: avalanche size

Exponential distributions

A. Janda, D. Maza, A. Garcimartín, E. Kolb, J. Lanuza and E. Clément.

EPL 87 (2009), 24002.

C. Mankoc, A. Garcimartín, I. Zuriguel, D. Maza and L. A. Pugnaloni.

PRE 80 (2009), 011309.

The time that it takes the system to clog is well defined

[email protected]

http://www.unav.es/centro/gralunarlab

2nd IMA Conference on Dense Granular Flows

Cambridge, 1-4 July, 2013.

slide19

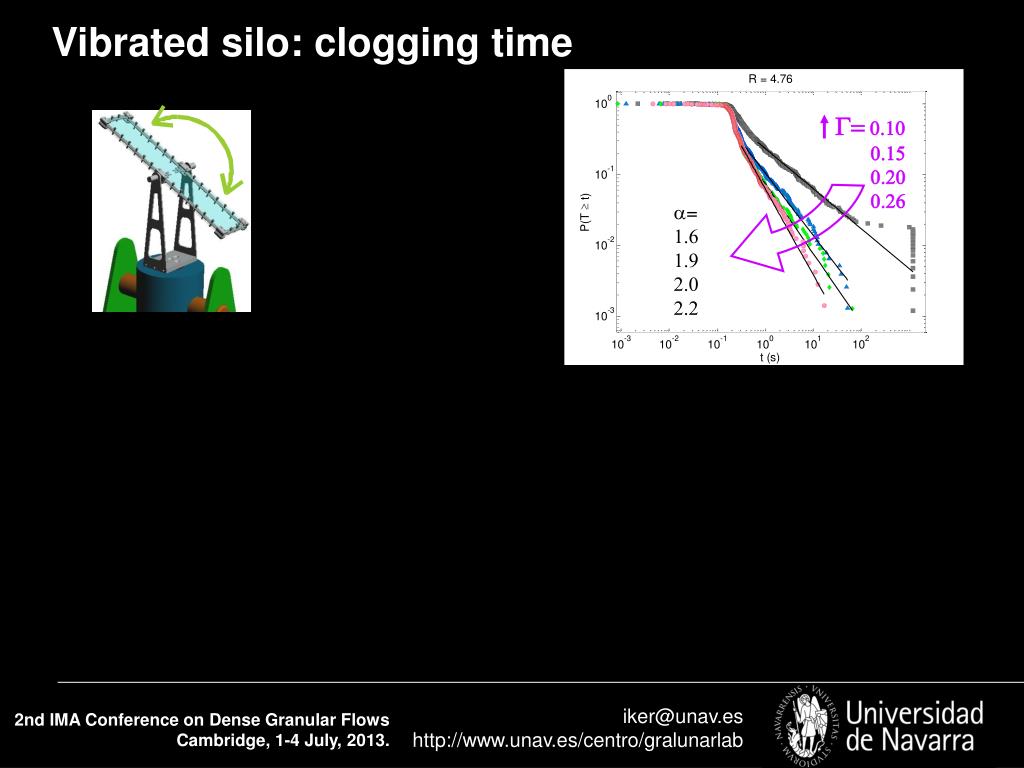

Vibrated silo: clogging time

G= 0.10

  • 0.15
  • 0.20
  • 0.26

a=

1.6

1.9

2.0

2.2

[email protected]

http://www.unav.es/centro/gralunarlab

2nd IMA Conference on Dense Granular Flows

Cambridge, 1-4 July, 2013.

slide20

Vibrated silo: clogging time

G= 0.10

  • 0.15
  • 0.20
  • 0.26

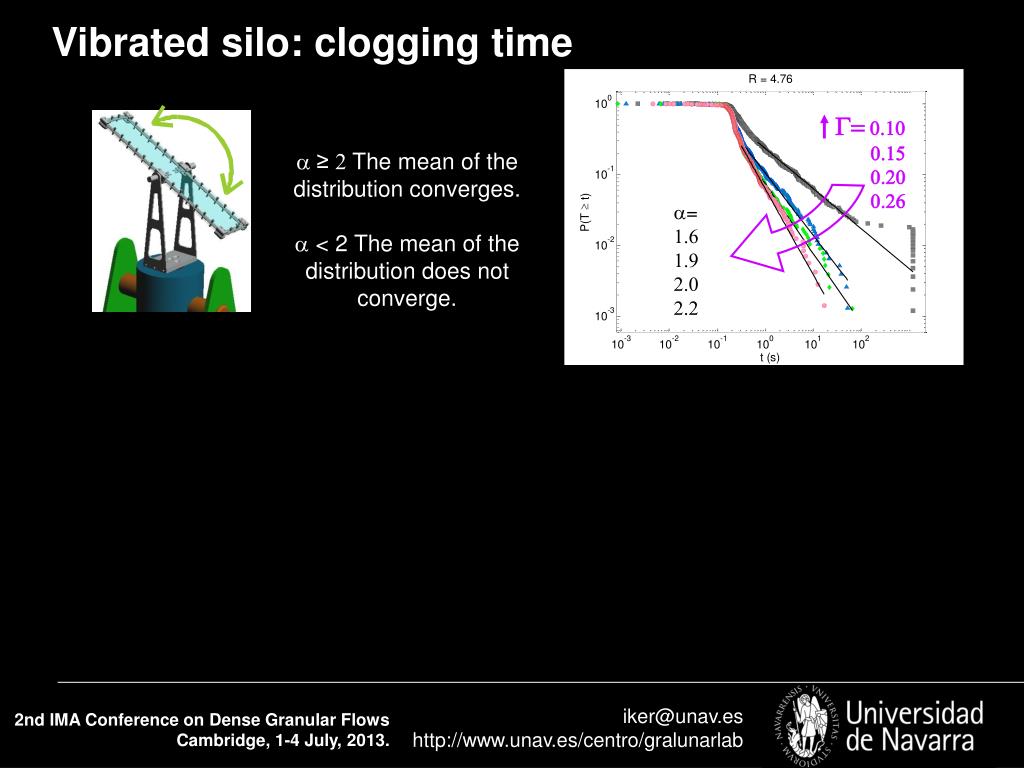

a ≥ 2 The mean of the distribution converges.

a< 2 The mean of the distribution does not converge.

a=

1.6

1.9

2.0

2.2

[email protected]

http://www.unav.es/centro/gralunarlab

2nd IMA Conference on Dense Granular Flows

Cambridge, 1-4 July, 2013.

slide21

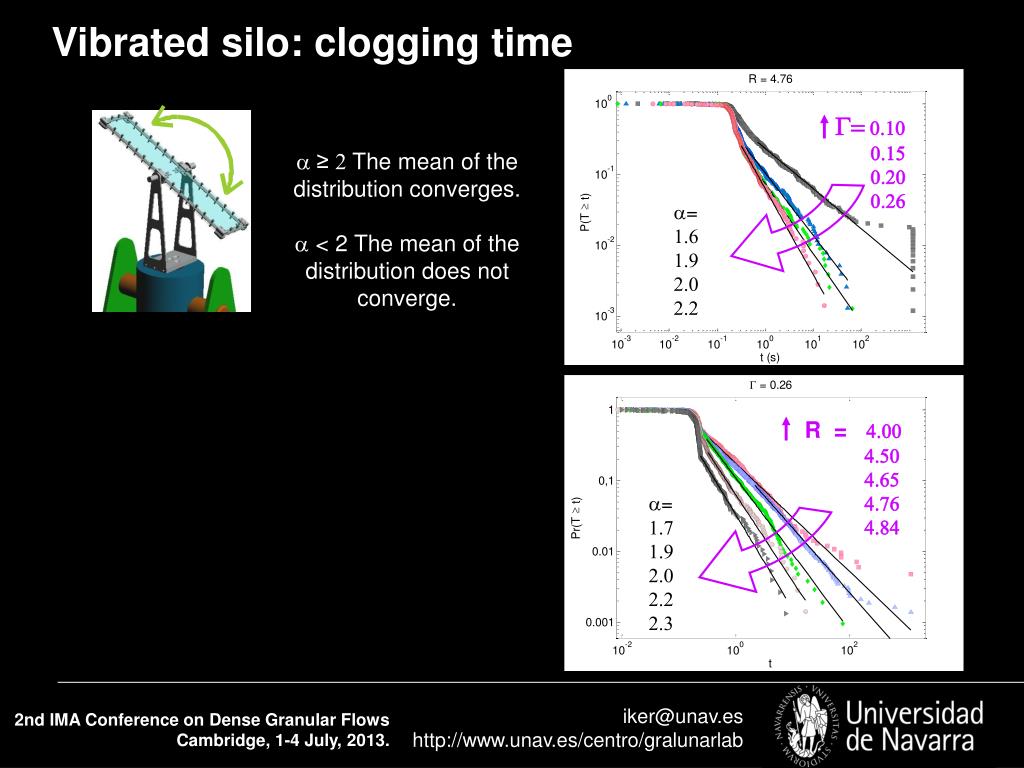

Vibrated silo: clogging time

G= 0.10

  • 0.15
  • 0.20
  • 0.26

a ≥ 2 The mean of the distribution converges.

a< 2 The mean of the distribution does not converge.

a=

1.6

1.9

2.0

2.2

  • R = 4.00
  • 4.50
  • 4.65
  • 4.76
  • 4.84

a=

1.7

1.9

2.0

2.2

2.3

[email protected]

http://www.unav.es/centro/gralunarlab

2nd IMA Conference on Dense Granular Flows

Cambridge, 1-4 July, 2013.

slide22

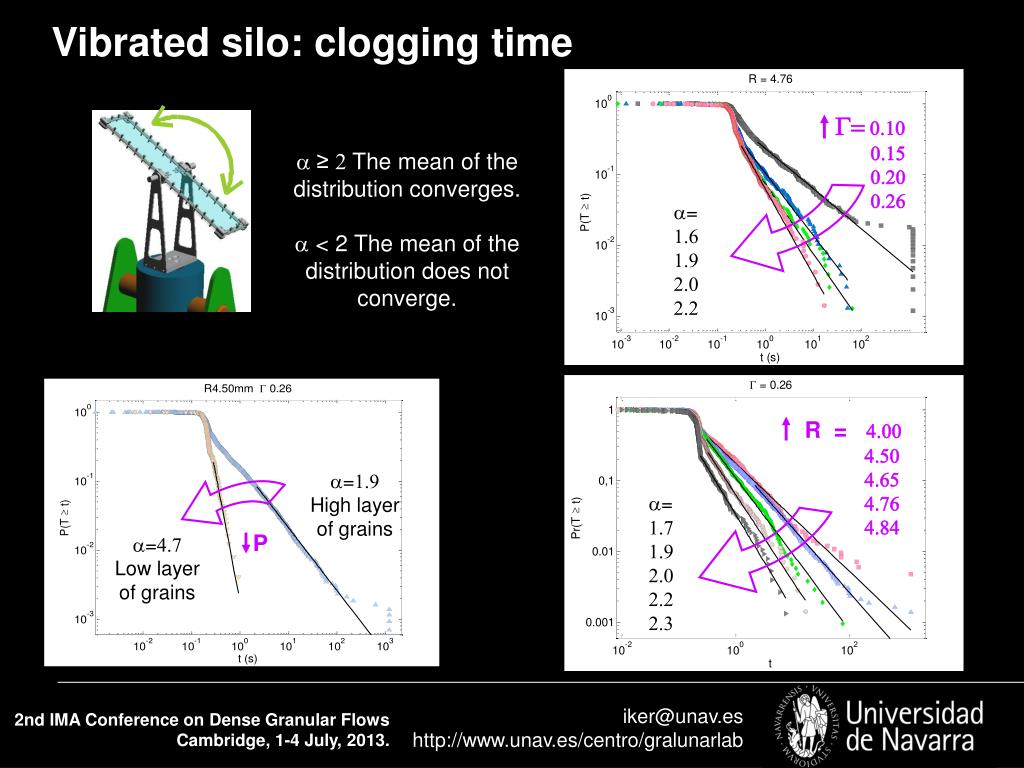

Vibrated silo: clogging time

G= 0.10

  • 0.15
  • 0.20
  • 0.26

a ≥ 2 The mean of the distribution converges.

a< 2 The mean of the distribution does not converge.

a=

1.6

1.9

2.0

2.2

  • R = 4.00
  • 4.50
  • 4.65
  • 4.76
  • 4.84

a=1.9

High layer of grains

a=

1.7

1.9

2.0

2.2

2.3

P

a=4.7

Low layer of grains

[email protected]

http://www.unav.es/centro/gralunarlab

2nd IMA Conference on Dense Granular Flows

Cambridge, 1-4 July, 2013.

slide23

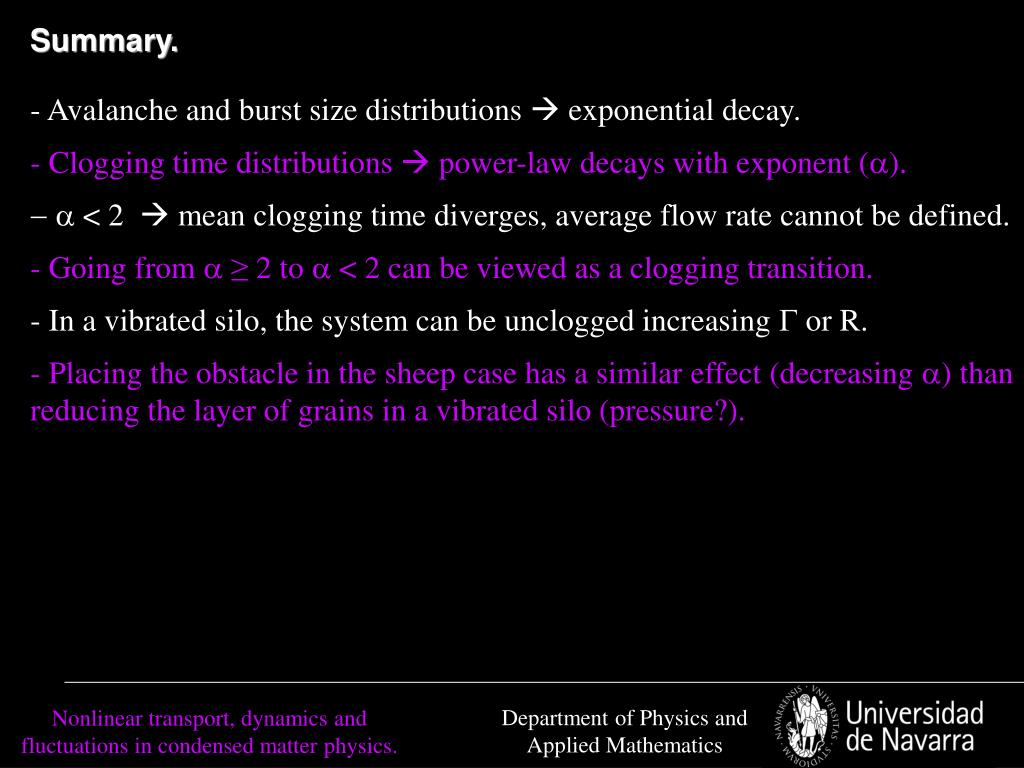

Summary.

  • Avalanche and burst size distributions  exponential decay.
  • Clogging time distributions  power-law decays with exponent (a).
  • a< 2  mean clogging time diverges, average flow rate cannot be defined.
  • Going from a≥ 2 to a< 2 can be viewed as a clogging transition.
  • In a vibrated silo, the system can be unclogged increasing G or R.
  • Placing the obstacle in the sheep case has a similar effect (decreasing a) than reducing the layer of grains in a vibrated silo (pressure?).

Department of Physics and Applied Mathematics

Nonlinear transport, dynamics and fluctuations in condensed matter physics.

slide24

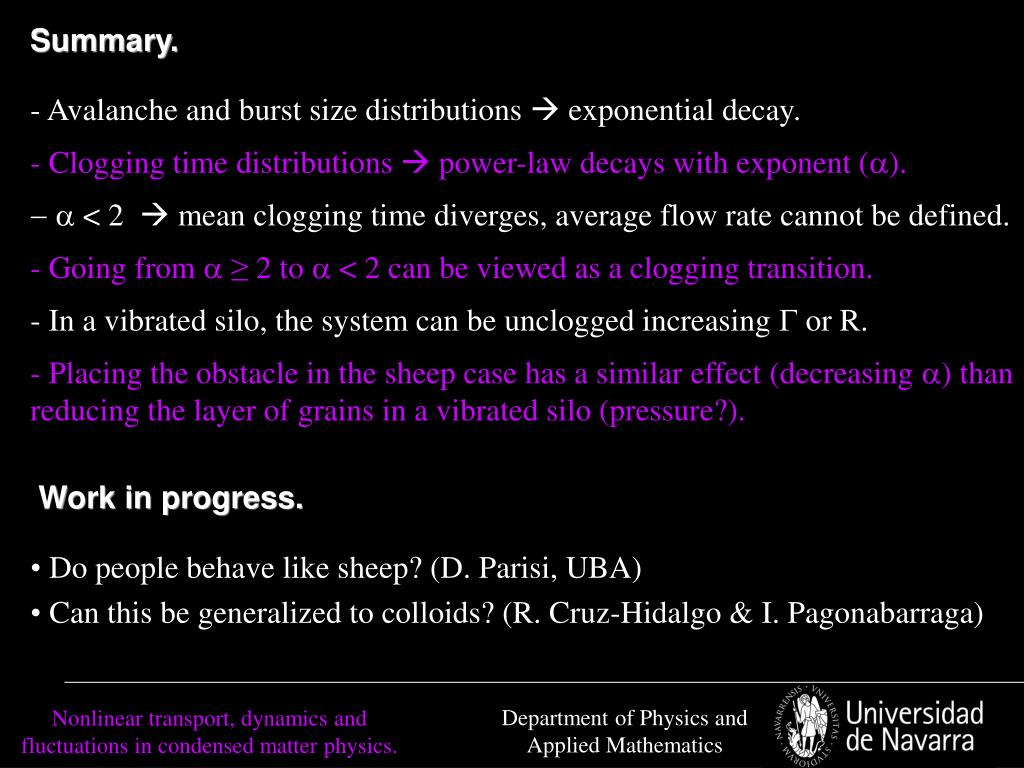

Summary.

  • Avalanche and burst size distributions  exponential decay.
  • Clogging time distributions  power-law decays with exponent (a).
  • a< 2  mean clogging time diverges, average flow rate cannot be defined.
  • Going from a≥ 2 to a< 2 can be viewed as a clogging transition.
  • In a vibrated silo, the system can be unclogged increasing G or R.
  • Placing the obstacle in the sheep case has a similar effect (decreasing a) than reducing the layer of grains in a vibrated silo (pressure?).

Work in progress.

  • Do people behave like sheep? (D. Parisi, UBA)
  • Can this be generalized to colloids? (R. Cruz-Hidalgo & I. Pagonabarraga)

Department of Physics and Applied Mathematics

Nonlinear transport, dynamics and fluctuations in condensed matter physics.

slide25

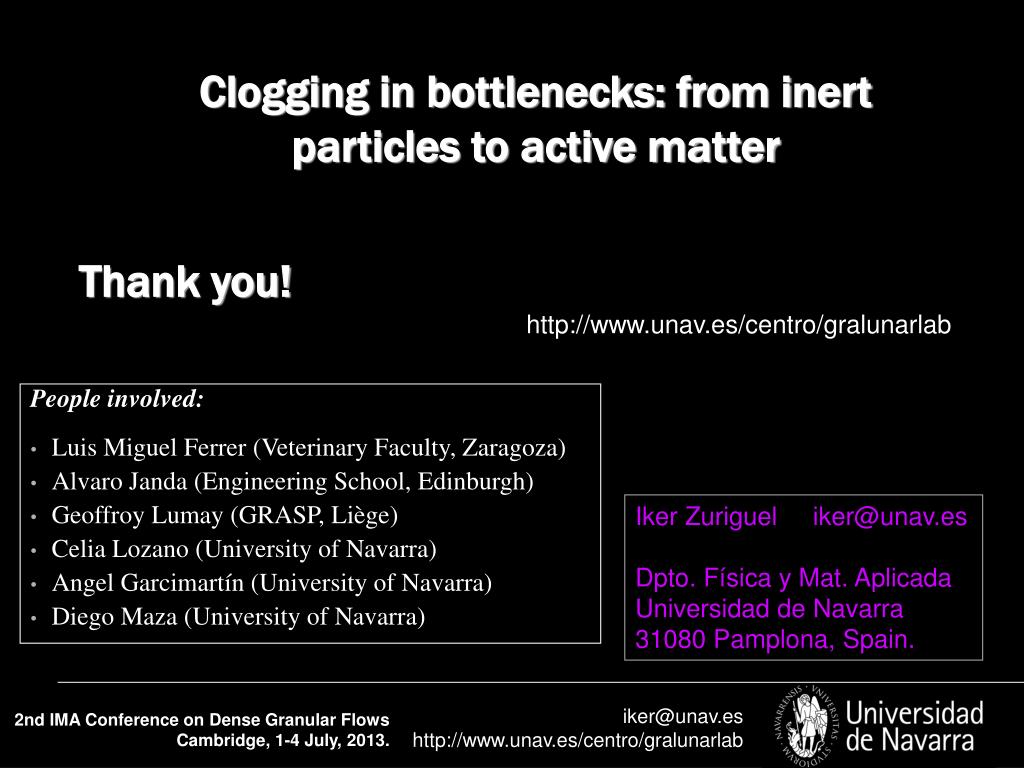

Clogging in bottlenecks: from inert particles to active matter

Thank you!
