Presentation Transcript


Psk31 l.jpg

PSK31


What is psk31 l.jpg

What is PSK31?

  • A digital mode

  • Created by Peter Martinez, G3PLX

  • PSK stands for Phase Shift Keying

  • 31 is the bit rate


Characteristics of psk31 l.jpg

Characteristics of PSK31

  • The power in a PSK-31 signal is concentrated in a 31 Hz bandwidth, versus 250 Hz for RTTY and 3300 Hz for SSB

  • Transcontinental QSO’s using PSK-31 are possible using less than 50 W under any conditions and when conditions are good, QRP (< 5W) PSK-31 contacts are possible to any point on the planet.


Equipment l.jpg

Equipment

  • Amateur transceiver that has low frequency drift

    • Any modern solid state rig is OK (IC-706, IC-746, TS-940, TS2000, FT-1000, Omni VI, etc.)

  • PC

    • Most PSK-31 software is compatible with any version of Windows

    • Sound card (16 bit Sound Blaster or better) is required

  • An interface that connects the PC and the transceiver

    • Commercially made (RigBlaster, RASCAL, etc.)

    • Homebrew

    • Audio Coupled

  • Computer Software

    • Ham Radio Deluxe (HRD)

    • Digipan

    • Hamscope


My shack l.jpg

My Shack

  • IC-718

  • Interface cables purchased from Associated Radio

  • eMachine running Windows 7

  • Ham Radio Deluxe


Pc interface l.jpg

PC Interface

  • The interface provides matching and isolation between the audio inputs and outputs of the PC and the transceiver

  • The interface may also provide connections between the computer’s serial port and the PTT input of the transceiver

  • Commercially made interfaces provide lots of functions and are very easy to install. However, they can be expensive.

  • A simple homebrew interface can normally be built for less than $10.

  • Certain transceivers can be connected directly to a PC:

    • ICOM 756

    • Yaesu FT-920


Acoustic coupling l.jpg

Acoustic Coupling

Rig’s speaker is placed near the PC’s microphone

  • Rig’s microphone is placed next to the PC’s speaker

  • VOX is used for T/R switching

  • Advantages

    • Absolutely no extra equipment required.

    • Good electrical isolation between PC and rig

  • Disadvantages

    • Transmit levels can be tricky to adjust

    • Ambient noise degrades signal


Basic psk31 setup l.jpg

Basic PSK31 Setup

  • The HF rig should be in the USB mode.

  • Output power should be set to 30 – 50 (this is a full duty mode – do not set to full power)

  • The transmit level should be set using the level controls in the software or the rig’s mic gain control so that the ALC level is just tickled

  • The receive level should be adjusted to a level that does not overdrive the sound card

  • PSK31 software running


Psk31 software l.jpg

PSK31 Software

  • There is serveral good free software packages available

    • Ham Radio Deluxe

    • Hamscope

    • Digipan


The waterfall l.jpg

PSK31

PSK31

PSK31

CW

PSK31

PSK31

PSK31

PSK31

PSK31

Contesia

The Waterfall

Receive

Transmit


Hrd qso screen l.jpg

HRD QSO Screen

Receive Screen

Transmit Screen

Waterfall Display

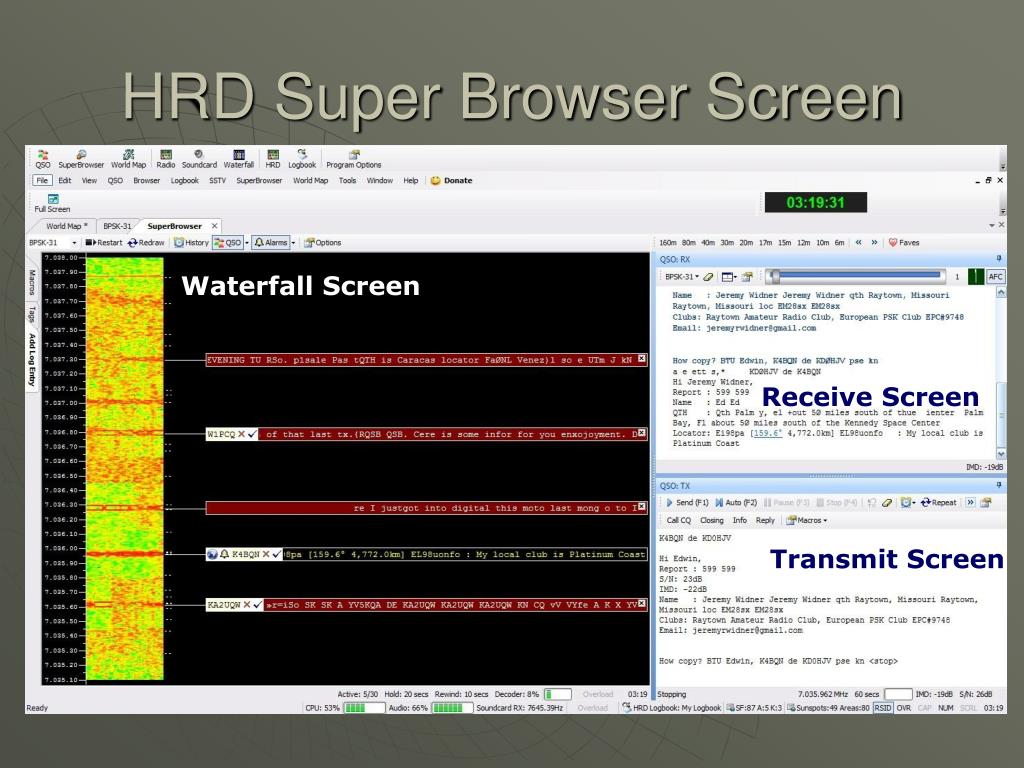

Hrd super browser screen l.jpg

HRD Super Browser Screen

Waterfall Screen

Receive Screen

Transmit Screen

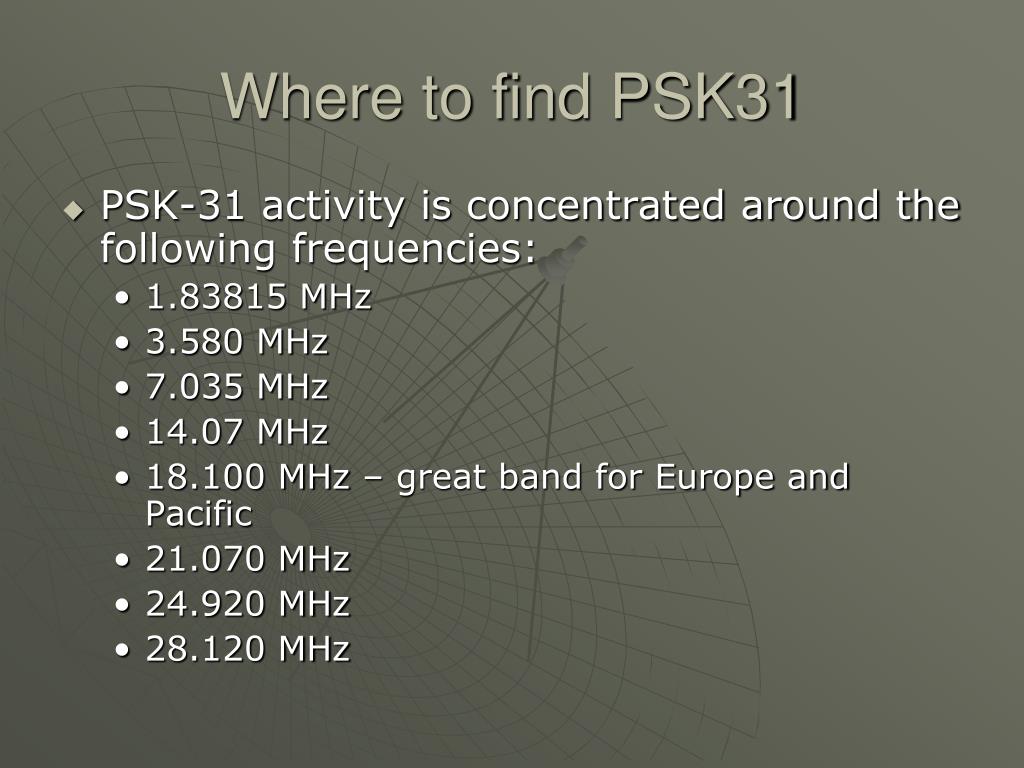

Where to find psk31 l.jpg

Where to find PSK31

  • PSK-31 activity is concentrated around the following frequencies:

    • 1.83815 MHz

    • 3.580 MHz

    • 7.035 MHz

    • 14.07 MHz

    • 18.100 MHz – great band for Europe and Pacific

    • 21.070 MHz

    • 24.920 MHz

    • 28.120 MHz


My success with psk31 l.jpg

My Success with PSK31

  • Over 680 contacts on PSK31

  • 75 countries

  • All HF bands except 160 meters


Contacts for last 3 months l.jpg

Contacts for Last 3 months


Questions l.jpg

Questions?
