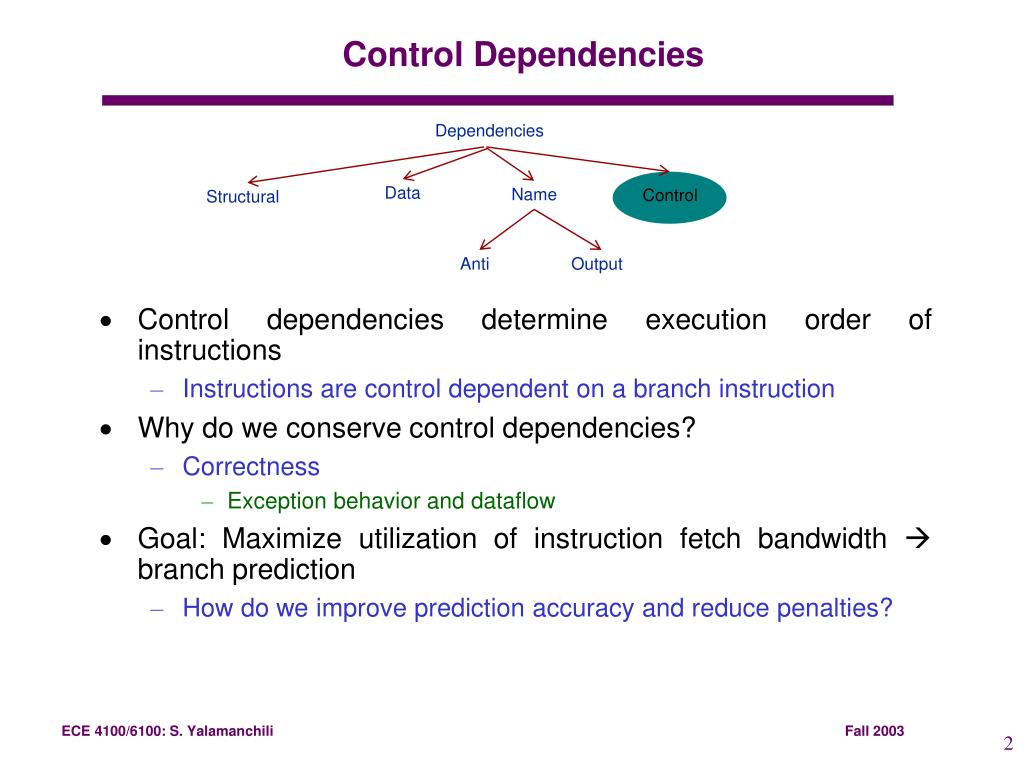

2. Control Dependencies Dependencies Data Name Control Structural Anti Output • Control dependencies determine execution order of instructions • Instructions are control dependent on a branch instruction • Why do we conserve control dependencies? • Correctness • Exception behavior and dataflow • Goal: Maximize utilization of instruction fetch bandwidth  branch prediction • How do we improve prediction accuracy and reduce penalties?

3. Impact of Branches EX INT • For general pipelines penalties occur because of two reasons • Branch target address generation • PC-relative address generation “can” occur after instruction fetch • Branch condition resolution • Unconditional branches do not incur this penalty • What cycle is the condition known? • ID?  testing the contents of a register as in BNEZ R1, Loop • EX?  testing equality as in BNE R1, R2, Loop IF ID EX FP MEM WB EX BR instruction issue

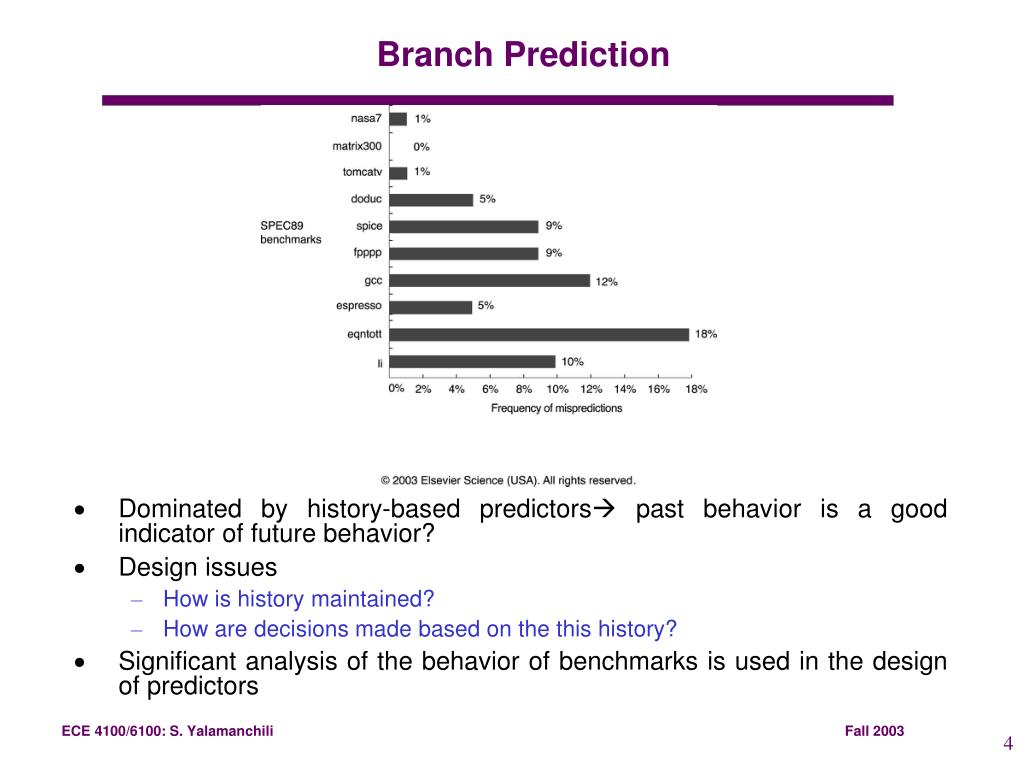

4. Branch Prediction • Dominated by history-based predictors past behavior is a good indicator of future behavior? • Design issues • How is history maintained? • How are decisions made based on the this history? • Significant analysis of the behavior of benchmarks is used in the design of predictors

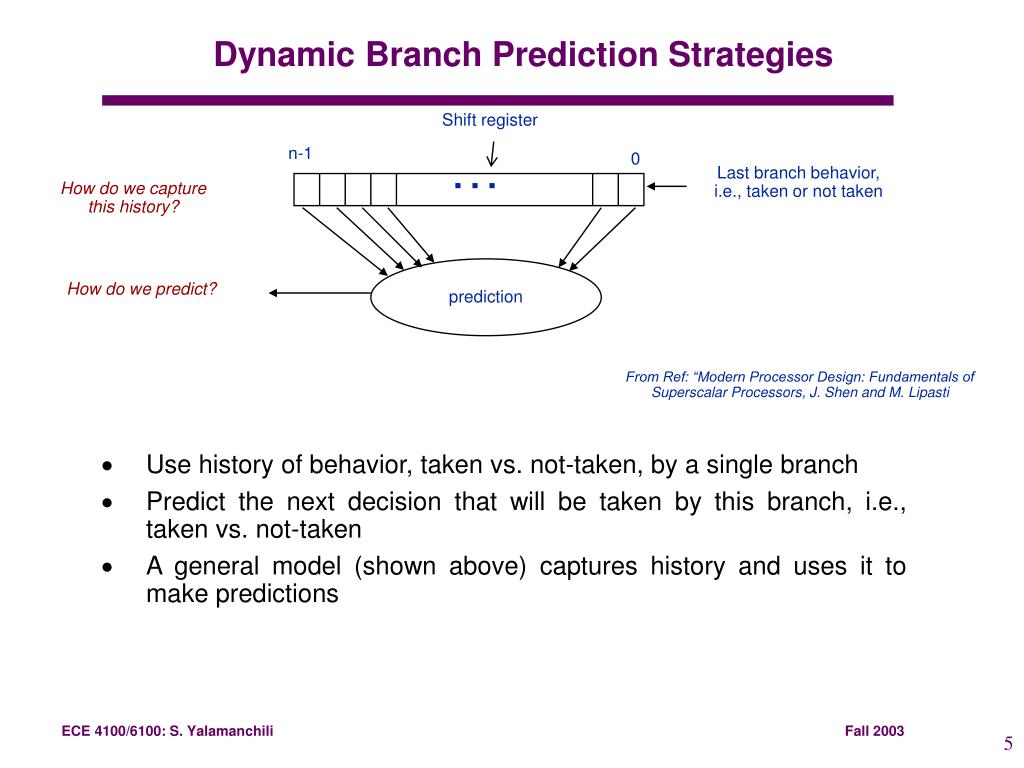

5. Dynamic Branch Prediction Strategies Shift register n-1 … • Use history of behavior, taken vs. not-taken, by a single branch • Predict the next decision that will be taken by this branch, i.e., taken vs. not-taken • A general model (shown above) captures history and uses it to make predictions 0 Last branch behavior, i.e., taken or not taken How do we capture this history? prediction How do we predict? From Ref: “Modern Processor Design: Fundamentals of Superscalar Processors, J. Shen and M. Lipasti

6. Predicting the Outcome of a Single Branch • n-bit predictors • Prediction bit addressed by k LSBs of the address of the branch instruction • Prediction bit set by a n-bit history: 2-bit most common • Useful when the branch address is known before the branch condition is known so as to support pre-fetching • Performance parameters: prediction accuracy, penalties, branch frequency • Example – how does this work in the pipeline? Impact on CPI. 1-bit predictor Index using address LSB bits Change to 2-bit predictor Generalize to n-bit predictor

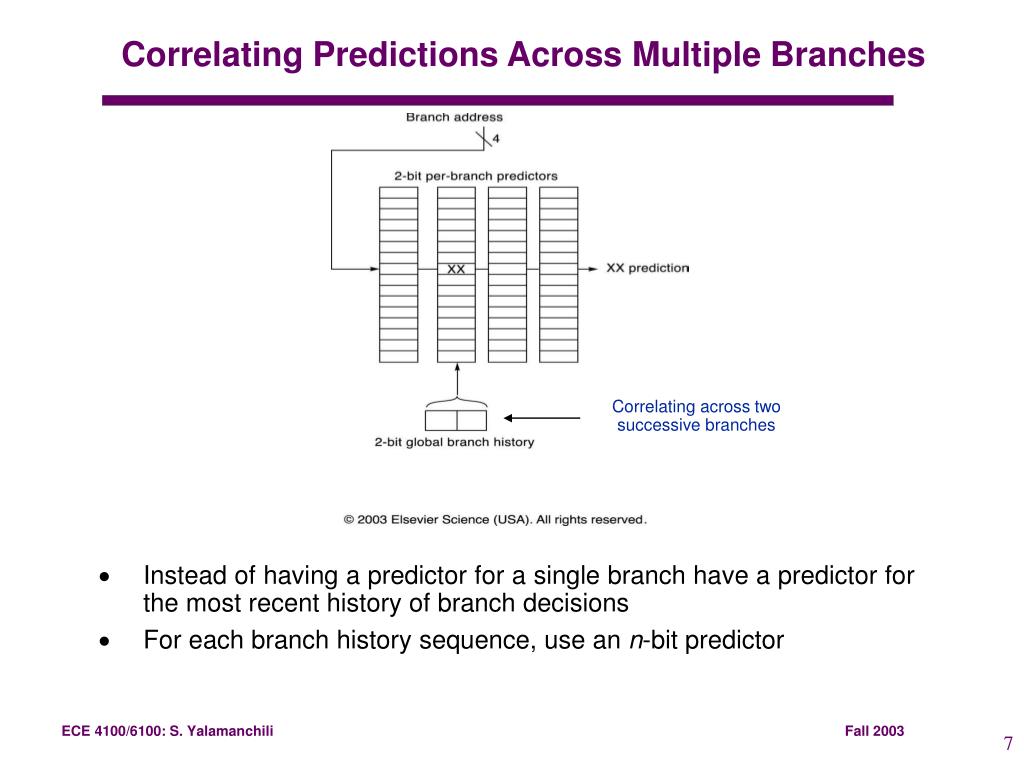

7. Correlating Predictions Across Multiple Branches • Instead of having a predictor for a single branch have a predictor for the most recent history of branch decisions • For each branch history sequence, use an n-bit predictor Correlating across two successive branches

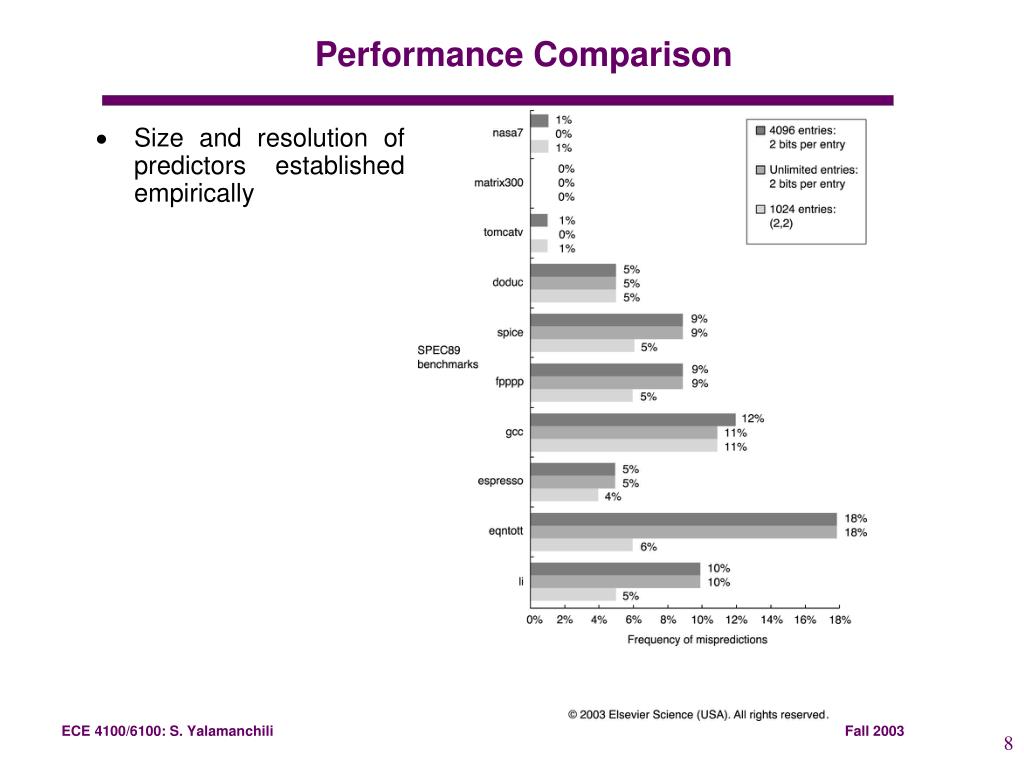

8. Performance Comparison • Size and resolution of predictors established empirically

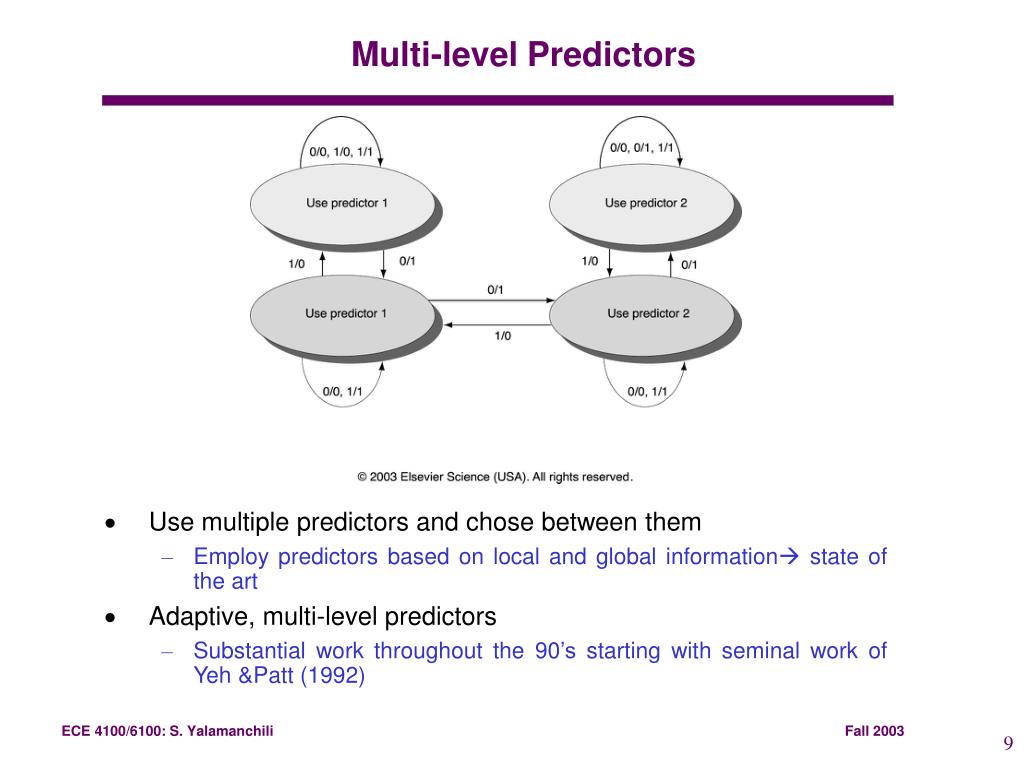

9. Multi-level Predictors • Use multiple predictors and chose between them • Employ predictors based on local and global information state of the art • Adaptive, multi-level predictors • Substantial work throughout the 90’s starting with seminal work of Yeh &Patt (1992)

10. Misprediction Recovery • What actions must be taken on a misprediction? • Remove “predicted” instructions • Start fetching from the correct branch target(s) • What information is necessary to recover from misprediction? • Address information for non-predicted branch target address • Identification of those instructions that are “predicted” • To be invalidated and prevented from completion • Association between “predicted” instructions and specific branch • When that branch is mispredicted then only those instructions must be squashed

11. Branch Target Buffers • Store the branch instruction address (PC) and corresponding target address in a small associative cache • Miss on the first access to a branch instruction • Access in parallel with instruction cache • Hit produces the branch target address

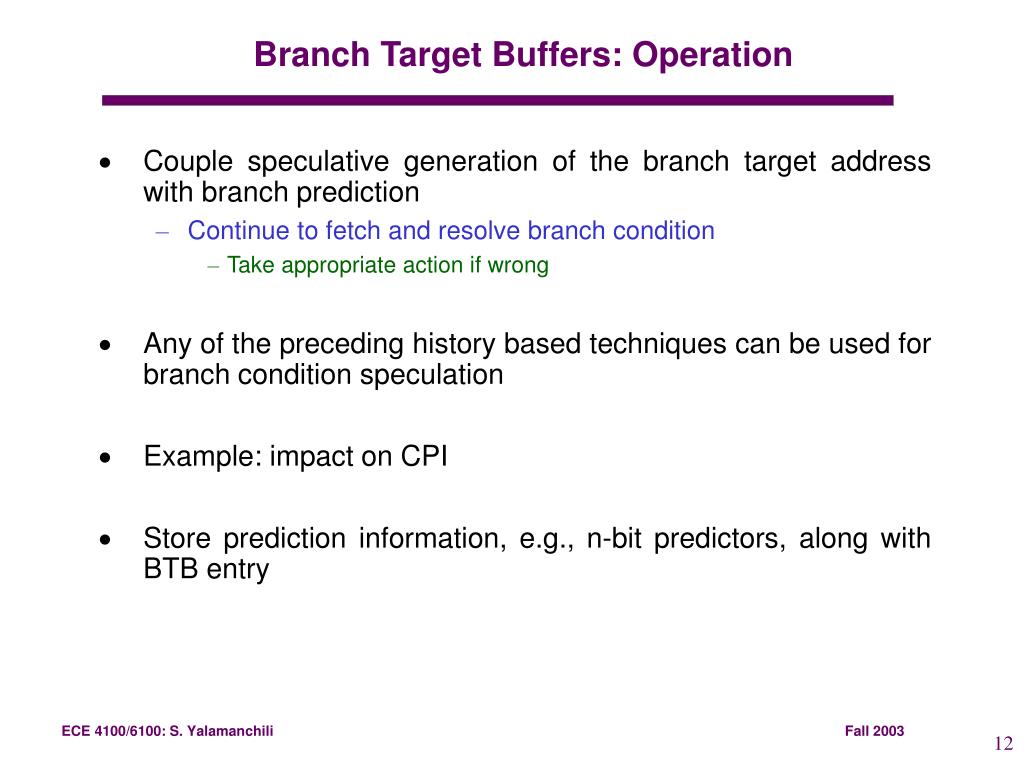

12. Branch Target Buffers: Operation • Couple speculative generation of the branch target address with branch prediction • Continue to fetch and resolve branch condition • Take appropriate action if wrong • Any of the preceding history based techniques can be used for branch condition speculation • Example: impact on CPI • Store prediction information, e.g., n-bit predictors, along with BTB entry

13. Some other Techniques • Static prediction techniques • Opcode-based: offline frequency analysis guides prediction • Static prediction recorded in the branch instruction • Off-line prediction (Motorola 8810) • Offset based prediction  negative target address offset triggers branch taken prediction • Motivated by behavior of loops (IBM RS 6000)

14. Concluding Remarks • Challenge to keeping the execution core fed is handling control flow • Prediction and recovery mechanisms key to keeping the pipeline active • Superscalar datapaths provide increased pressure pushing for better, more innovative techniques to keep pace with technology-enabled appetite for instruction level parallelism • What next?
