  1. 2-D Motion Because life is not in 1-D

  2. General

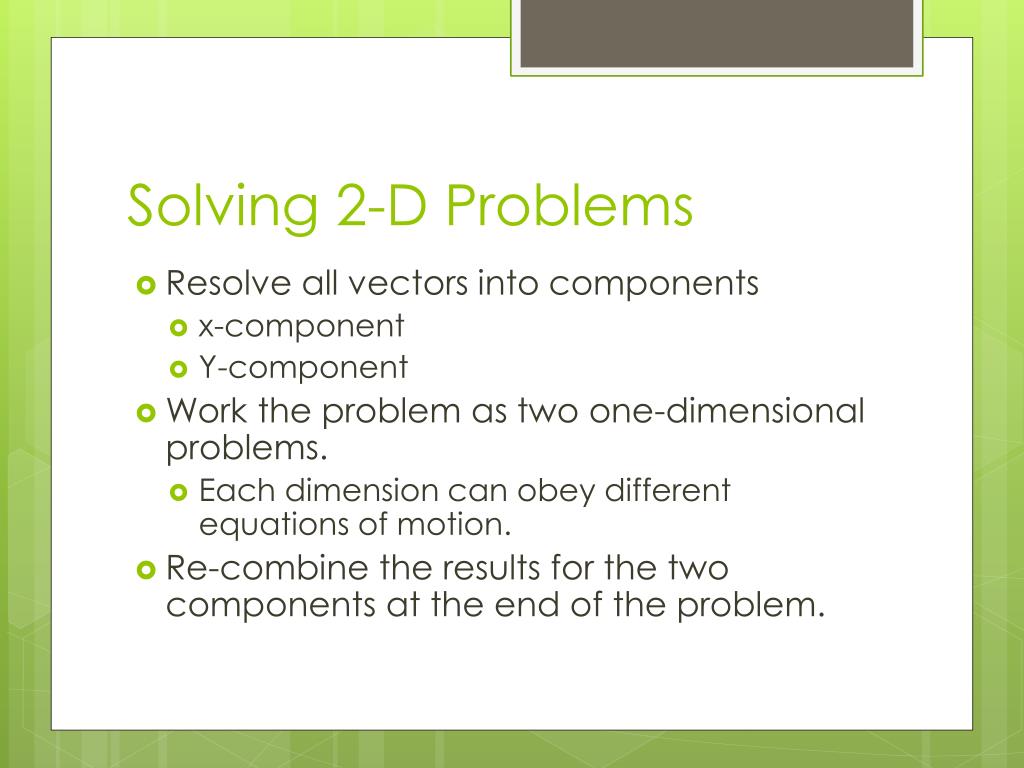

  3. Solving 2-D Problems • Resolve all vectors into components • x-component • Y-component • Work the problem as two one-dimensional problems. • Each dimension can obey different equations of motion. • Re-combine the results for the two components at the end of the problem.

  4. A roller coaster rolls down a 20o incline with an acceleration of 5.0 m/s2. • How far horizontally has the coaster traveled in 10 seconds? • How far vertically has the coaster traveled in 10 seconds?

  5. A particle passes through the origin with a speed of 6.2 m/s traveling along the y axis. If the particle accelerates in the negative x direction at 4.4 m/s2. What are the x and y positions at 5.0 s?

  6. A particle passes through the origin with a speed of 6.2 m/s traveling along the y axis. If the particle accelerates in the negative x direction at 4.4 m/s2. What are the x and y components of velocity at this time?

  7. Projectile Motion Moves both horizontally and vertically, subject to acceleration by gravity in vertical direction.

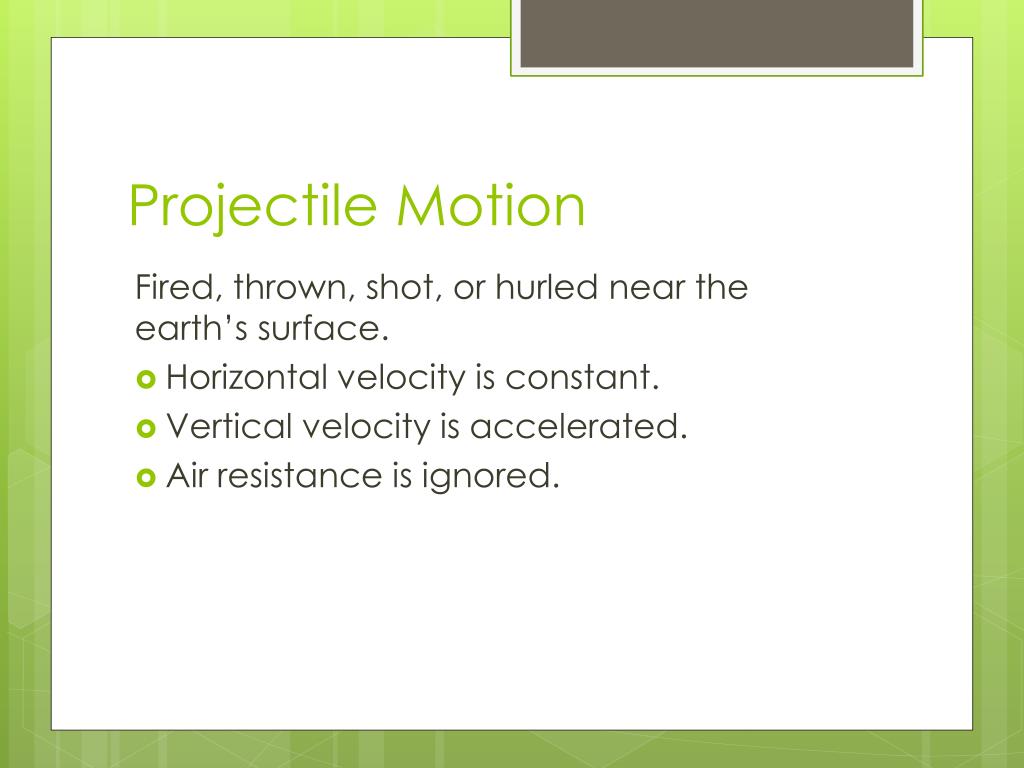

  8. Projectile Motion Fired, thrown, shot, or hurled near the earth’s surface. • Horizontal velocity is constant. • Vertical velocity is accelerated. • Air resistance is ignored.

  9. Horizontal Component of Velocity

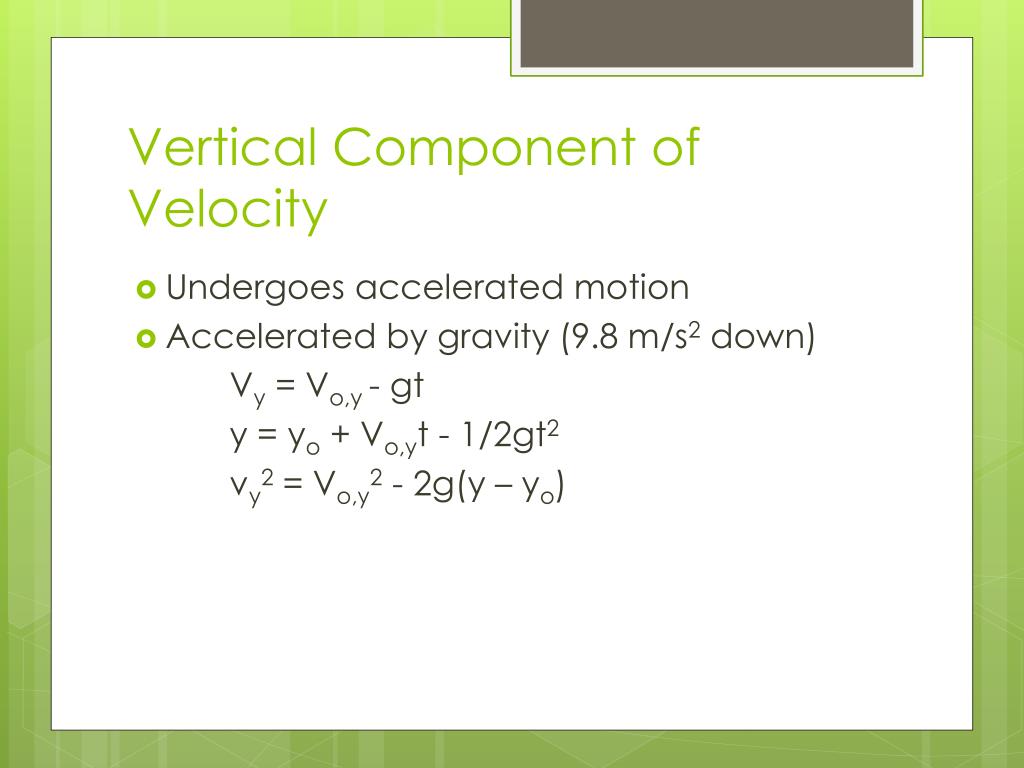

  10. Vertical Component of Velocity • Undergoes accelerated motion • Accelerated by gravity (9.8 m/s2 down) Vy = Vo,y- gt y = yo + Vo,yt - 1/2gt2 vy2 = Vo,y2 - 2g(y – yo)

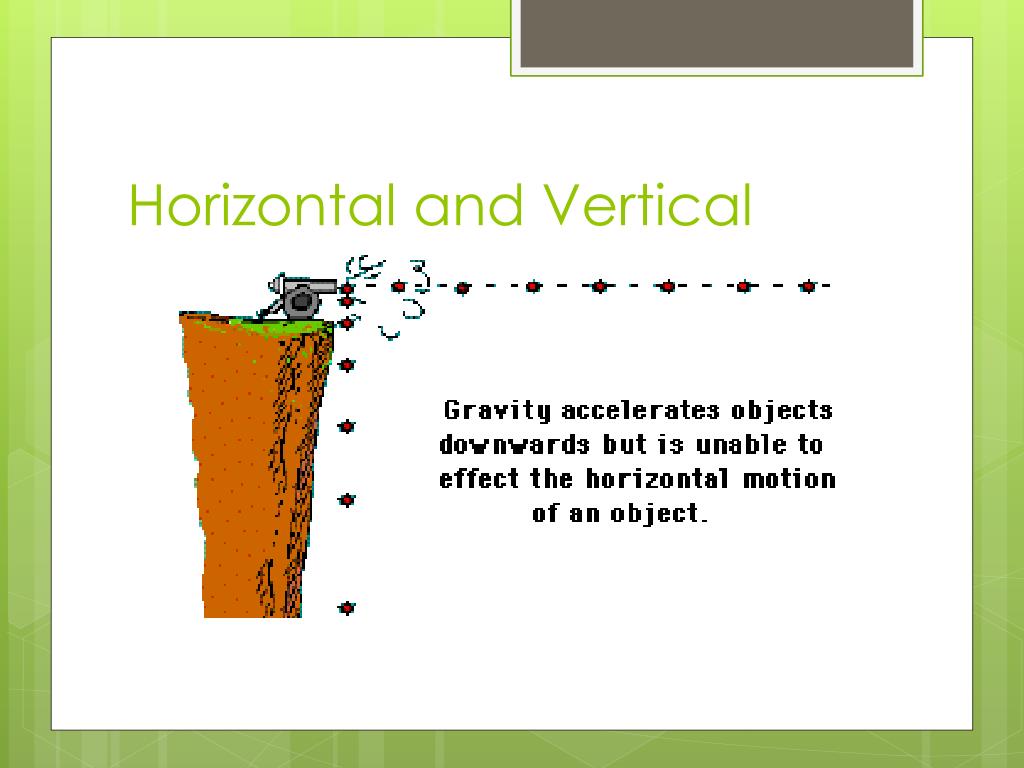

  11. Horizontal and Vertical

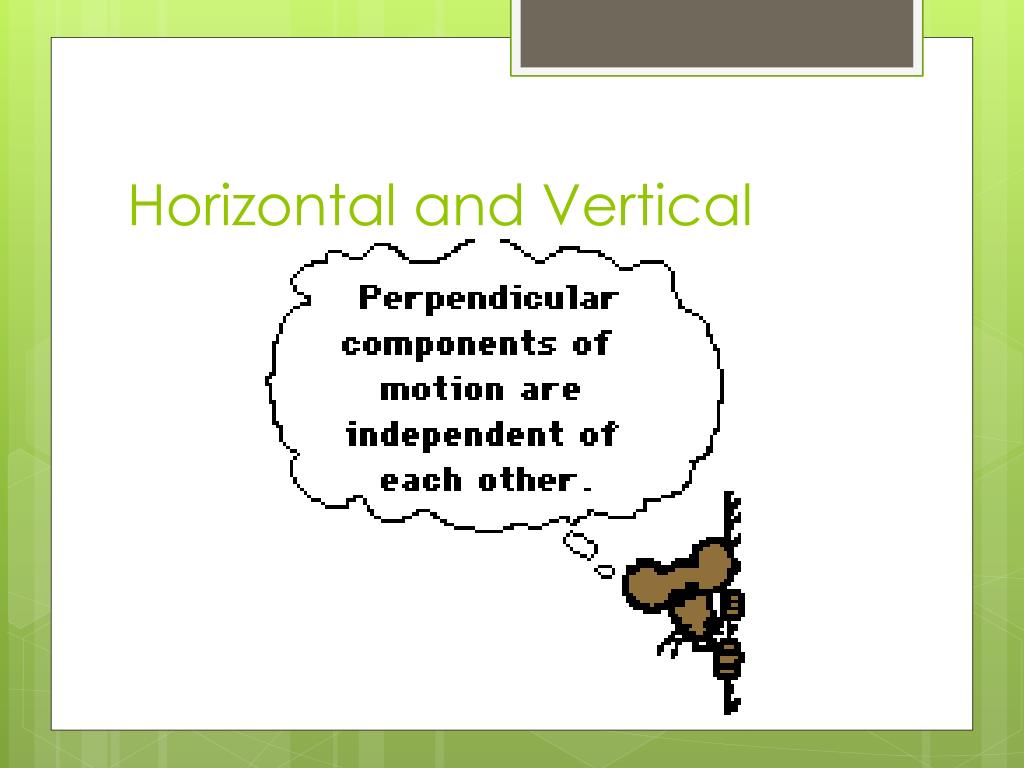

  12. Horizontal and Vertical

  13. vo Zero Launch angle A zero launch angle implies a perfectly horizontal launch.

  14. The Zambezi River flows over Victoria Falls in Africa. The falls are approximately 108 m high. If the river is flowing horizontally at 3.6 m/s just before going over the falls, what is the speed of the water when it hits the bottom? Assume the water is in freefall as it drops.

  15. An astronaut on the planet Zircon tosses a rock horizontally with a speed of 6.75 m/s. The rock falls a distance of 1.20 m and lands a horizontal distance of 8.95 m from the astronaut. What is the acceleration due to gravity on Zircon?

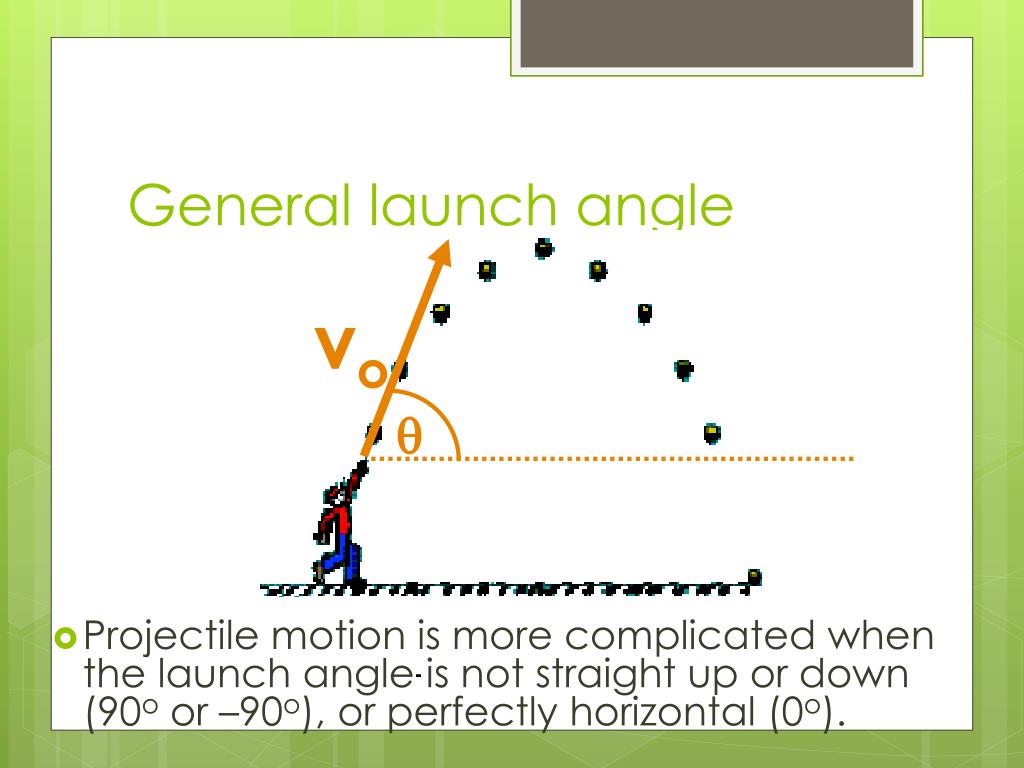

  16. vo  General launch angle • Projectile motion is more complicated when the launch angle is not straight up or down (90o or –90o), or perfectly horizontal (0o).

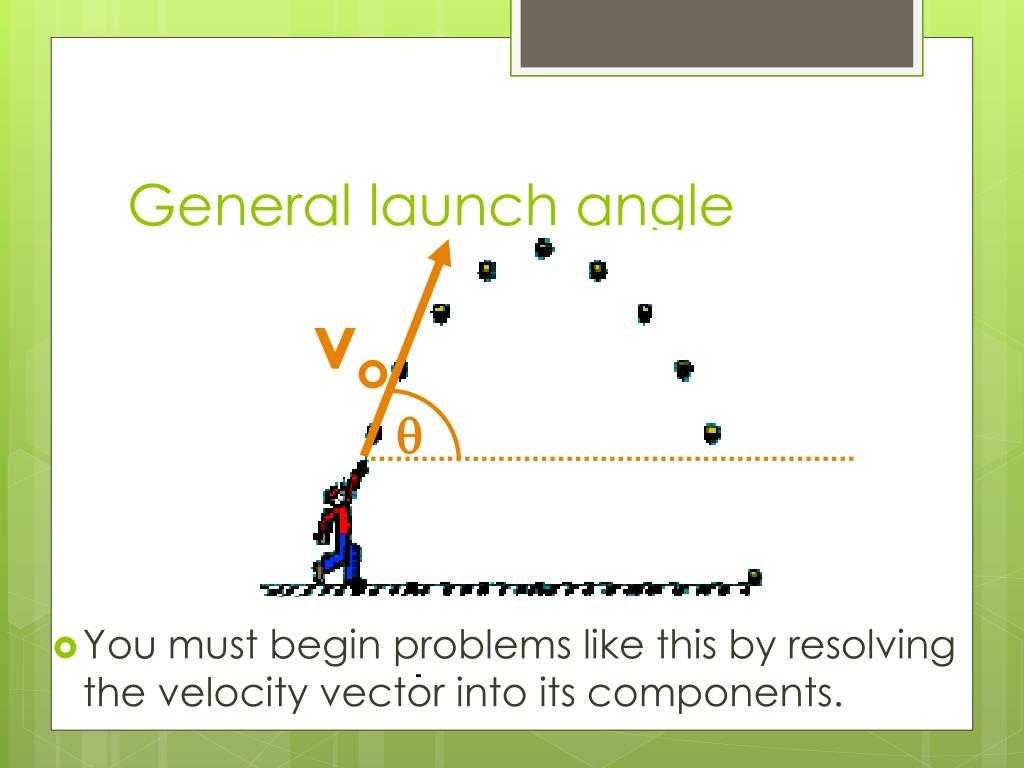

  17. vo  General launch angle • You must begin problems like this by resolving the velocity vector into its components.

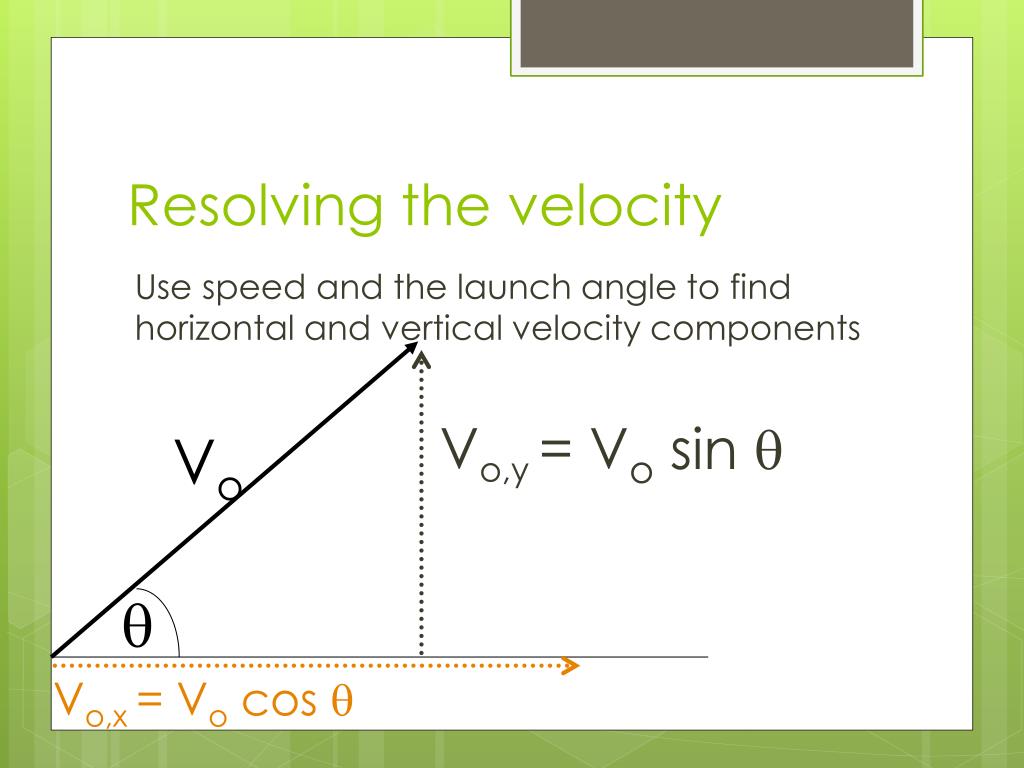

  18. Vo,y= Vo sin  Vo,x= Vocos Resolving the velocity Use speed and the launch angle to find horizontal and vertical velocity components Vo 

  19. Vo,y = Vo sin  Vo,x= Vocos Resolving the velocity Then proceed to work problems just like you did with the zero launch angle problems. Vo 

  20. A soccer ball is kicked with a speed of 9.50 m/s at an angle of 25o above the horizontal. If the ball lands at the same level from which is was kicked, how far from the kicker does it land?

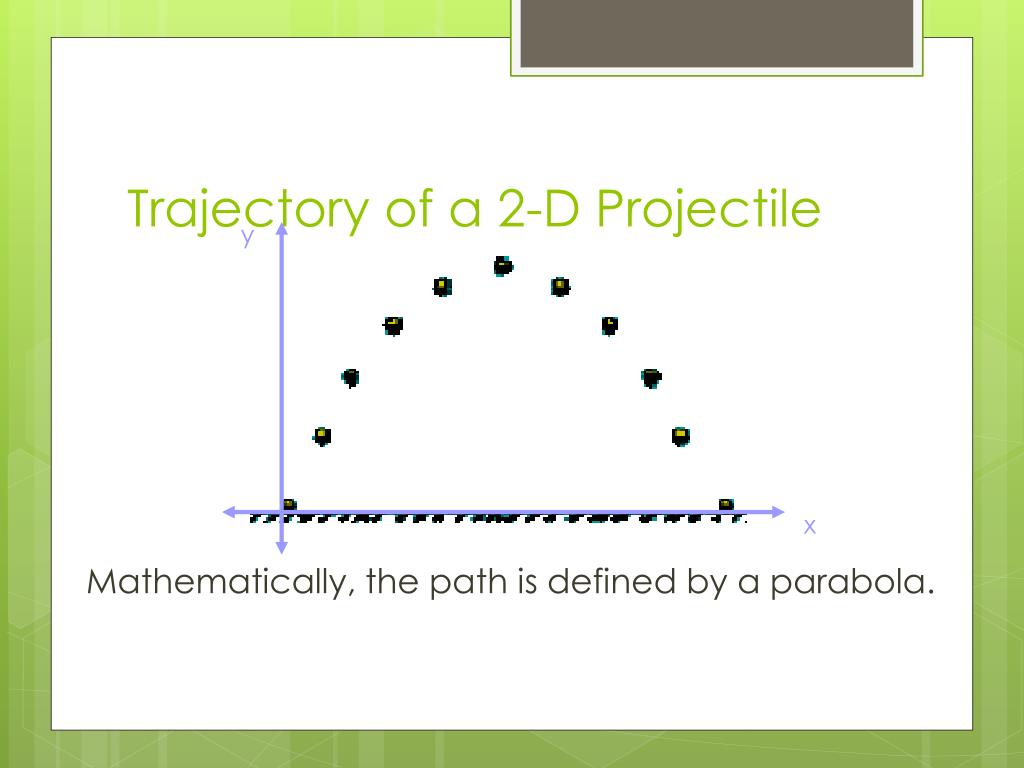

  21. y x Trajectory of a 2-D Projectile Mathematically, the path is defined by a parabola.

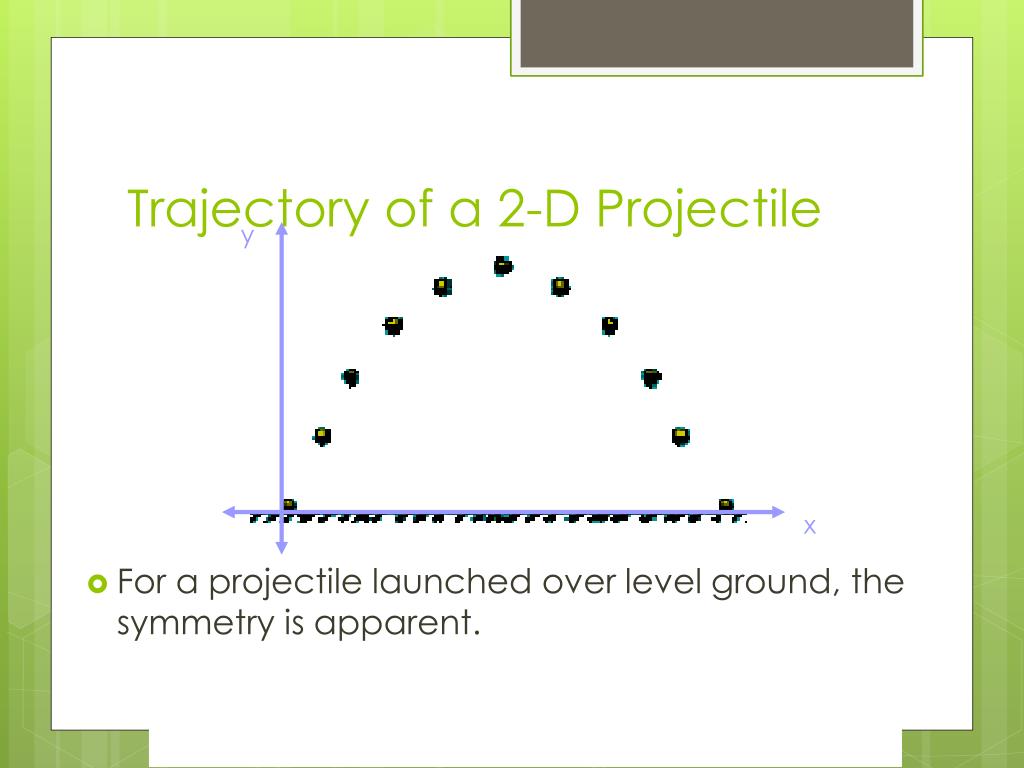

  22. y x Trajectory of a 2-D Projectile • For a projectile launched over level ground, the symmetry is apparent.

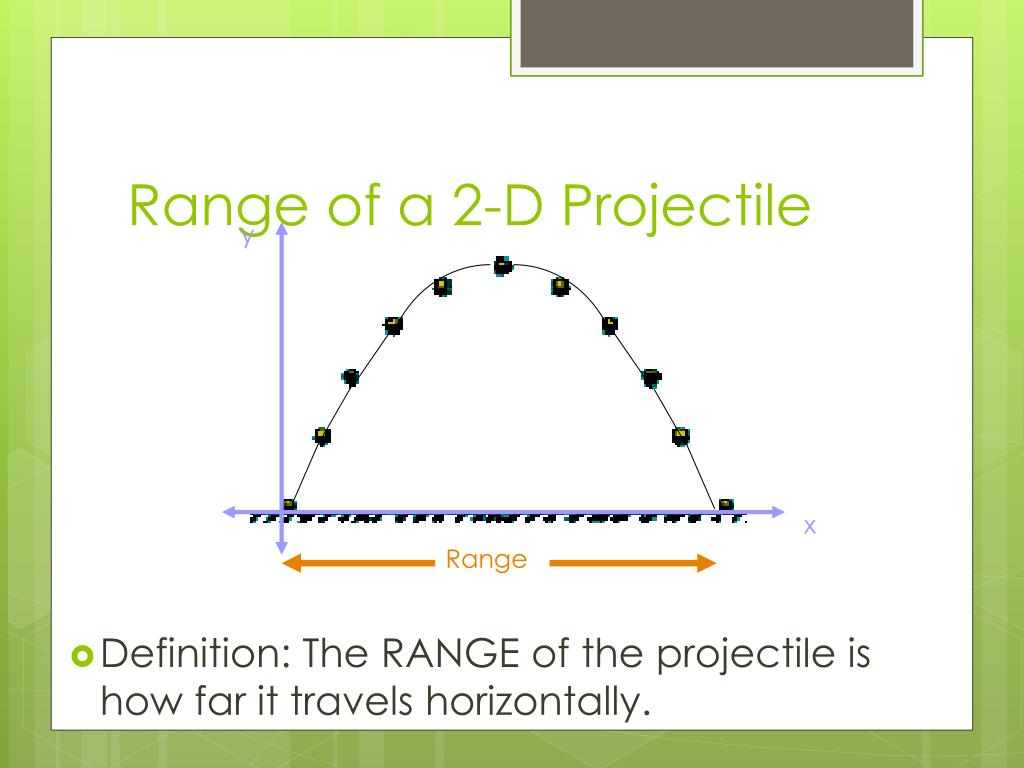

  23. y x Range of a 2-D Projectile • Definition: The RANGE of the projectile is how far it travels horizontally. Range

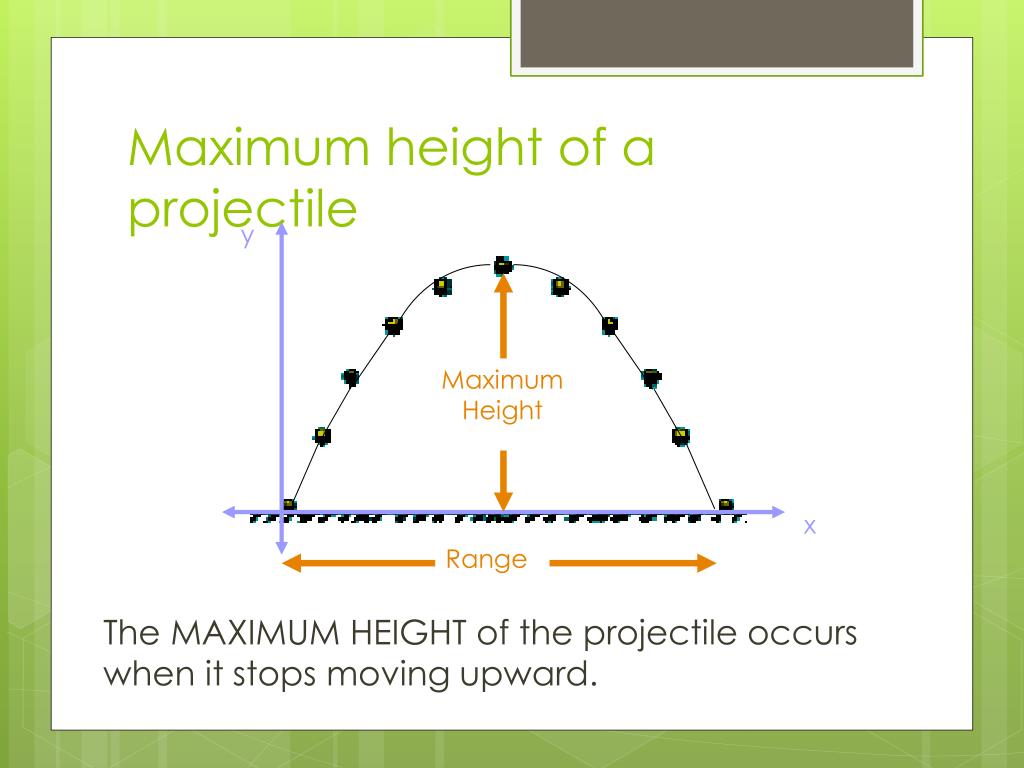

  24. y x Maximum height of a projectile The MAXIMUM HEIGHT of the projectile occurs when it stops moving upward. Maximum Height Range

  25. y x Maximum height of a projectile The vertical velocity component is zero at maximum height. Maximum Height Range

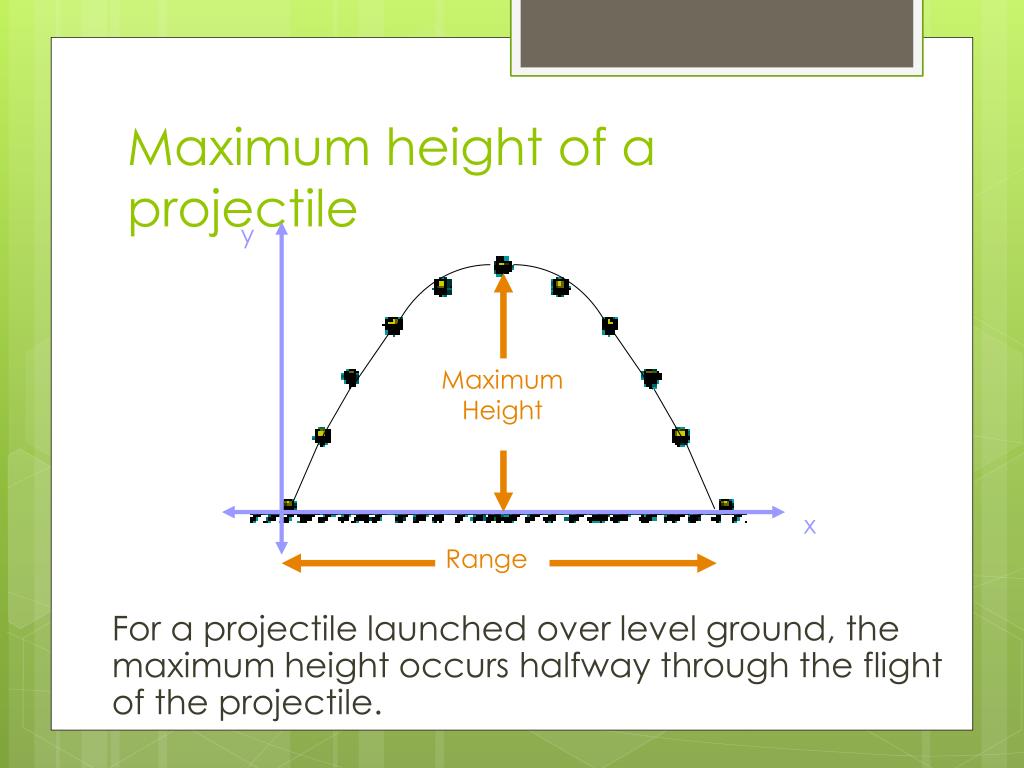

  26. y x Maximum height of a projectile For a projectile launched over level ground, the maximum height occurs halfway through the flight of the projectile. Maximum Height Range

  27. y g g g g g x Acceleration of a projectile Acceleration points down at 9.8 m/s2 for the entire trajectory of all projectiles.

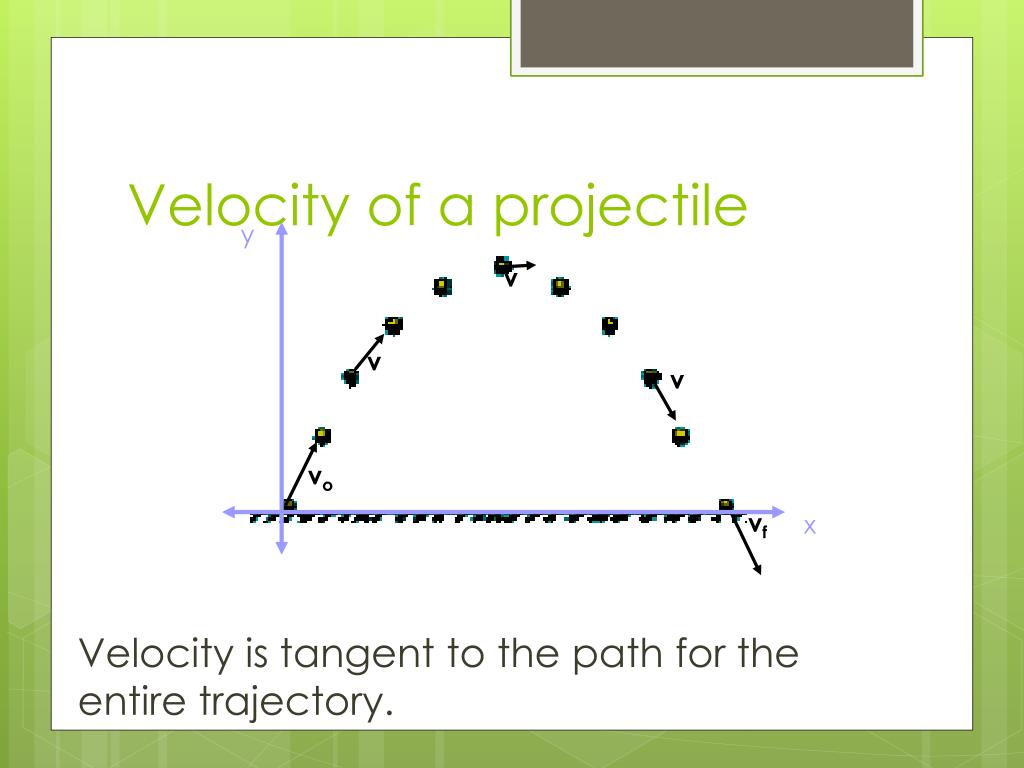

  28. y x Velocity of a projectile v Velocity is tangent to the path for the entire trajectory. v v vo vf

  29. y x Velocity of a projectile The velocity can be resolved into components all along its path. vx vx vy vy vx vy vx vy vx

  30. y x Velocity of a projectile • Notice how the vertical velocity changes while the horizontal velocity remains constant. vx vx vy vy vx vy vx vy vx

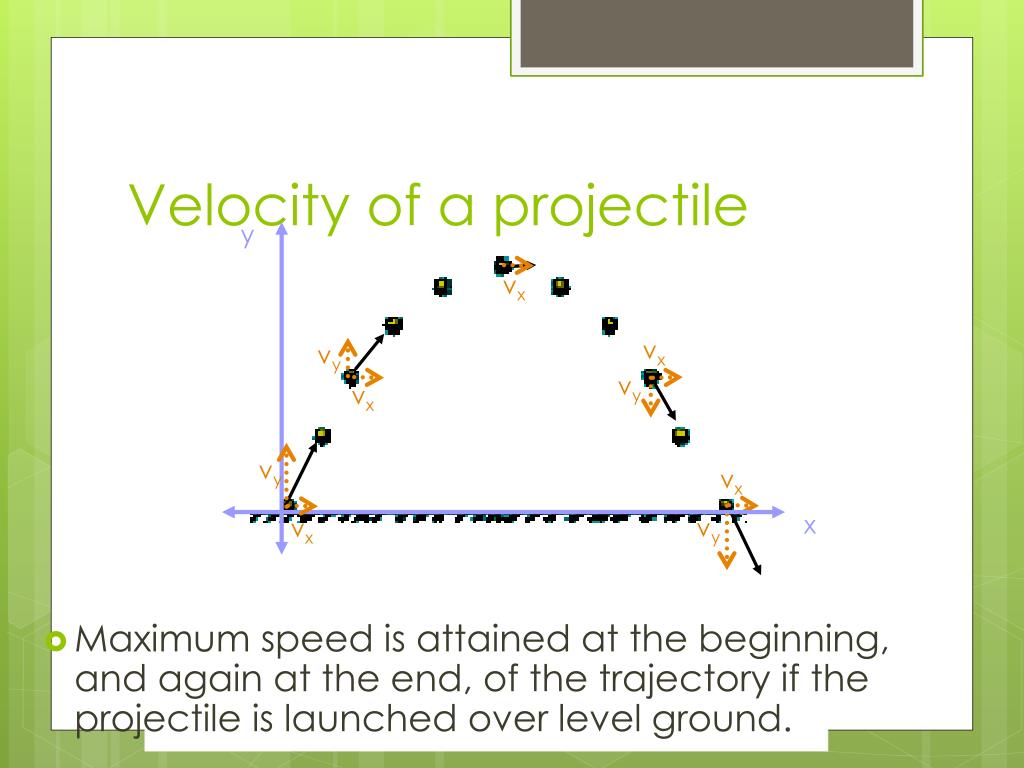

  31. y x Velocity of a projectile • Maximum speed is attained at the beginning, and again at the end, of the trajectory if the projectile is launched over level ground. vx vx vy vy vx vy vx vy vx

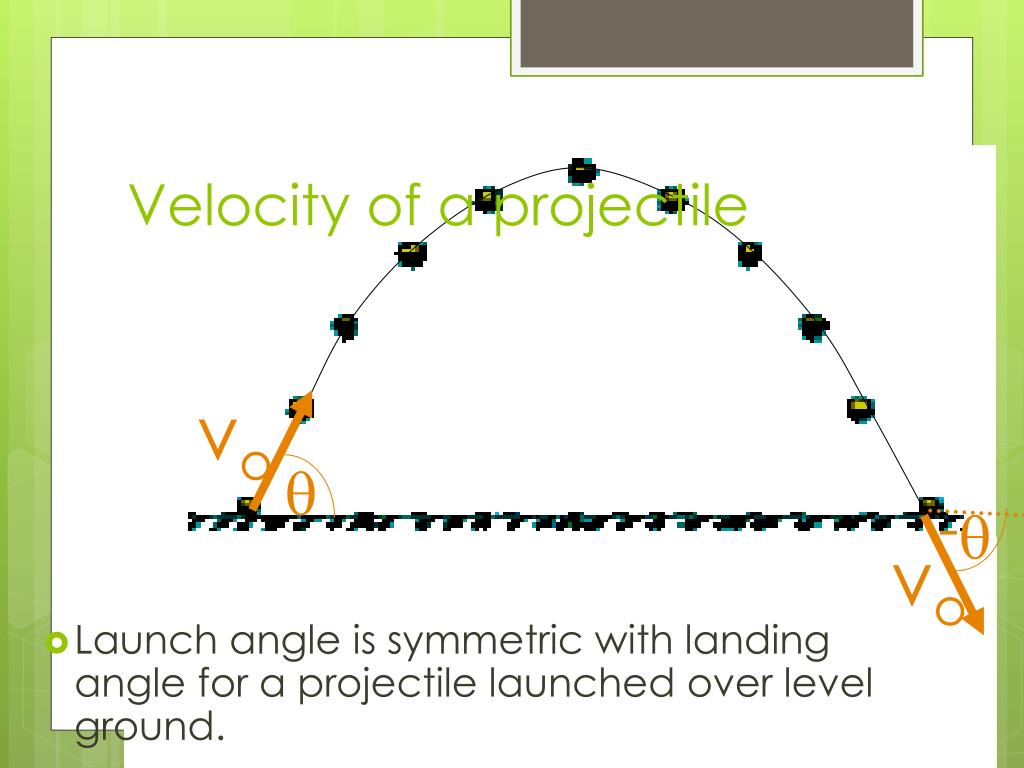

  32. vo  - vo Velocity of a projectile • Launch angle is symmetric with landing angle for a projectile launched over level ground.

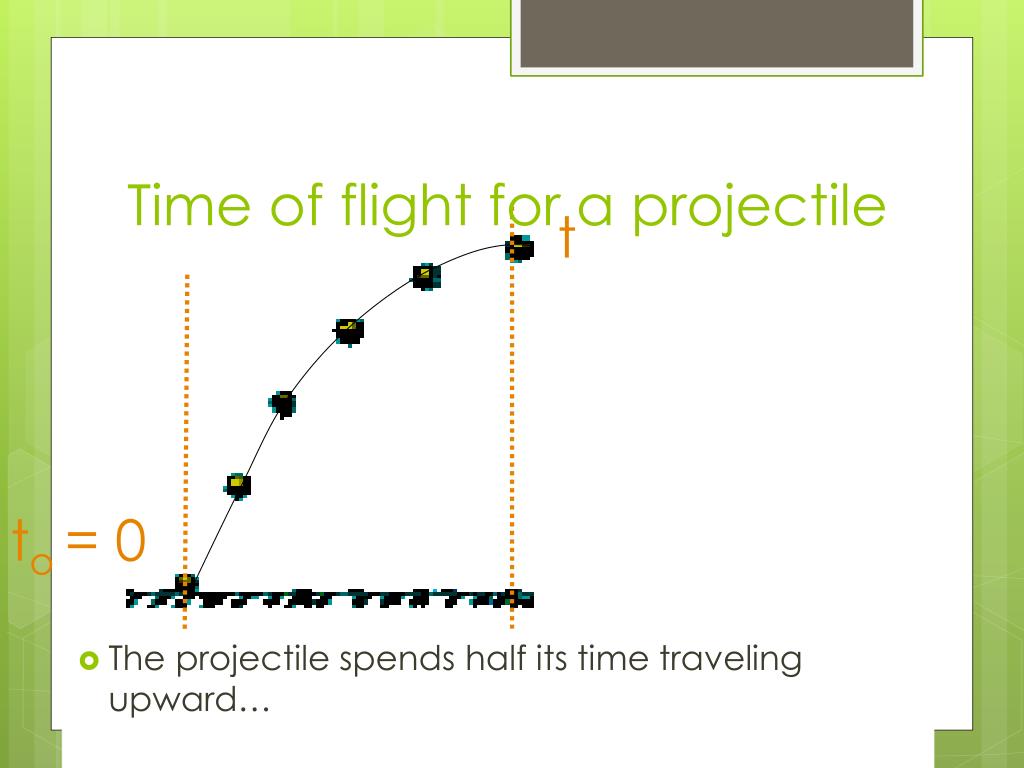

  33. t to = 0 Time of flight for a projectile • The projectile spends half its time traveling upward…

  34. t to = 0 2t Time of flight for a projectile • … and the other half traveling down.

  35. Snowballs are thrown with a speed of 13m/s from a roof 7.0 m above the ground. Snowball A is thrown straight downward; snowball B is thrown in a direction 25o above the horizontal. When the snowballs land, is the speed of A greater than, less than, or the same speed of B? Verify your answer by calculation of the landing speed of both snowballs.
