  1. Paired Programming! • Please sit next to your partner. • If you don’t have a partner, please find one now.

  2. Lab 2: SVN Tutorial CS 282

  3. But first… • Questions from last time? • Anything you would like to know about the assignment? • Notes • You should do all your drawing inside DrawGLScene • The completed framework is online for Mac OSX, Linux, and Windows (once OpenGL is installed in ECC). • In order to compile the framework, you must download OpenGL (XCode, apt-get, website).

  4. What is SVN? • SVN is a versioning control software.

  5. Why use SVN? • A repository of files with monitored access to keep track of who and what changes were made to files • Version tracking • Collaboration and sharing files • Historical information • Retrieve past versions • Manage branches

  6. Exercise: Your First Repository!

  7. Your First Repository (intro) • Let’s create a repository now. • First, have two terminal sessions up. • The first terminal will be used to access your ECC account (i.e. what you used to log onto the lab computer). • Everything accessed here is considered to be on your “local” machine • This is where your “local copy” is • The second terminal will be used to access your CSE account (i.e. a DIFFERENT account completely separate from your ECC account). • Everything accessed here is considered as being “remotely” accessed on a completely different computer than the ECC computer) • This is where your “repository” is

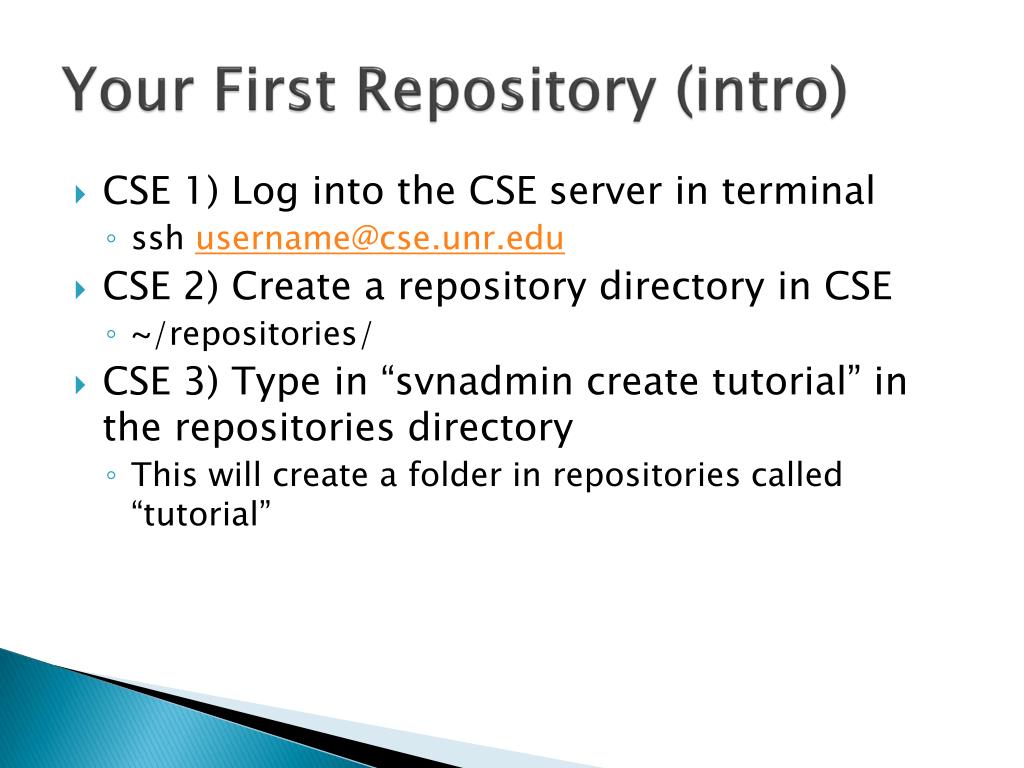

  8. Your First Repository (intro) • CSE 1) Log into the CSE server in terminal • sshusername@cse.unr.edu • CSE 2) Create a repository directory in CSE • ~/repositories/ • CSE 3) Type in “svnadmin create tutorial” in the repositories directory • This will create a folder in repositories called “tutorial”

  9. Your First Repository (cont’d) • ECC 1) Create a directory you would like to add repository files to. • Let’s name it “myproject” • ECC 2) Add the following folders in myproject • trunk • branches • tags • ECC 3) Now type in the following from one directory up from myproject • svn import myprojectsvn+ssh://username@cse.unr.edu/cs/username/repositories/tutorial • NOTE: this is all one command, and should all be typed onto a single line of the terminal before hitting enter • Replace “username” with your CSE username

  10. Your First Repository (end) • Those directories you just created are now in your repository • Use the import command on your first revision. • ECC 4) Now delete the local directory (myproject) on the ECC side. • rm –frmyproject • ECC 5) Now let’s get the revision stored in the repository. • svn checkout svn+ssh://username@cse.unr.edu/cs/username/repositories/tutorial • NOTE: this is all one command, and should all be typed onto a single line of the terminal before hitting enter • Replace “username” with your CSE username • Congratulations! You have just successfully created and downloaded your first svn repository!

  11. Exercise: SVN Commands

  12. SVN Commands (intro) • First, switch drivers! • ECC 6) Go into tutorial/trunk/ and create a file in it • For example, main.cpp • ECC 7) Commit this to your repository • svn commit –m “[insert meaningful message here]” • ECC 8) Now, use and test the following commands… • Use these commands by typing: svnCommandNameHere • add • Use this when you want to add a file to your repository. • Create a main.h and add it to the repository (don’t commit it yet).

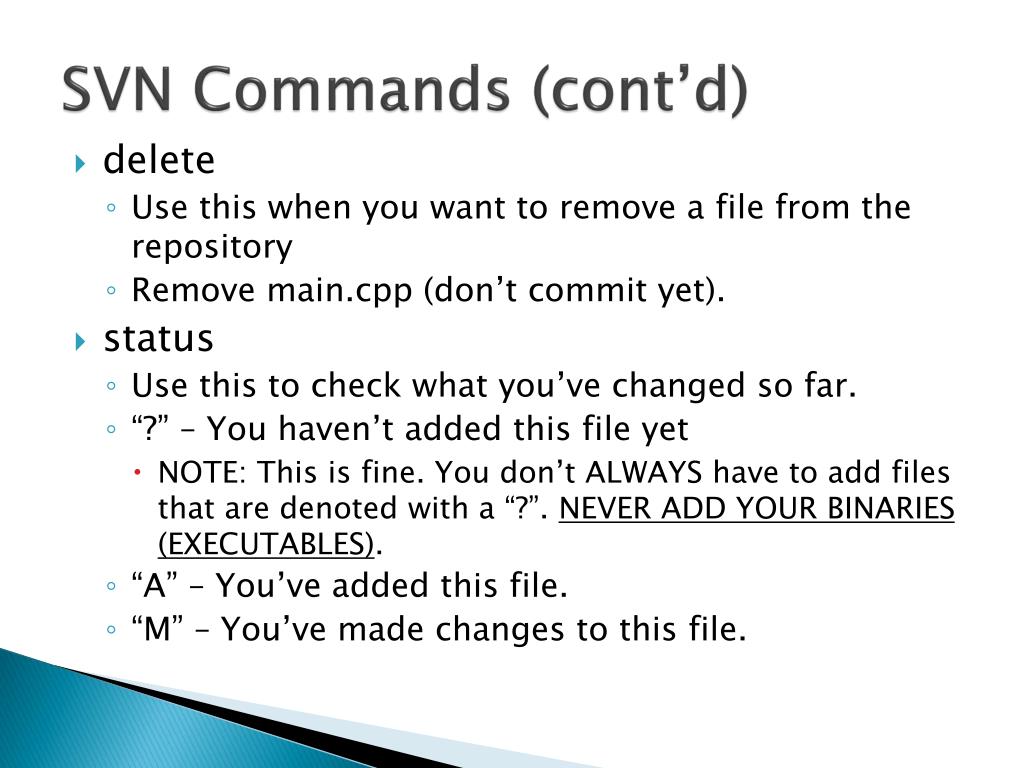

  13. SVN Commands (cont’d) • delete • Use this when you want to remove a file from the repository • Remove main.cpp (don’t commit yet). • status • Use this to check what you’ve changed so far. • “?” – You haven’t added this file yet • NOTE: This is fine. You don’t ALWAYS have to add files that are denoted with a “?”. NEVER ADD YOUR BINARIES (EXECUTABLES). • “A” – You’ve added this file. • “M” – You’ve made changes to this file.

  14. SVN Commands (end) • diff • Check out the exact lines of code you’ve added or removed. • “+” means you’ve added this line, • “-” means you’ve removed this line. • update • Allows you to update to the newest revision. • Have your partner svn checkout (co) the repository on their computer. • Commit the changes you’ve been making. • Have your partner svn update. • Call me when you have completed this step.

  15. Commands to Know and Love • add • add files to your local repository • status • check which files you’ve changed, which files haven’t been added yet • diff • see what’s different between the revision you’re running and the changes you’ve made • delete • remove files from your local repository • commit • commit your changes to the online repository • update • update your local repository with the latest version

  16. Conflicts

  17. Conflicts • Partner A and Partner B both work on the same file, test1.cpp. • Partner A commits his changes to the repository. • Partner B finishes a little later, and tries to commit. • Uh oh! Partner B has encountered a conflict. • SVN will then prompt you with a variety of options to handle this conflict

  18. Resolving Conflicts • In order to resolve conflicts, there are a few things you can do… • Tell SVN to ignore your changes • Tell SVN to ignore your partner’s changes • Manually remove whatever is conflicting, and recommit. • The best way, of course, is to not have a conflict in the first place. • Be sure to google SVN, and take a look at the documentary if you’re having trouble resolving conflicts.

  19. Questions?

  20. Useful Links • TortoiseSVN (For Windows): http://tortoisesvn.tigris.org/ • RabbitVCS (For Linux):http://www.rabbitvcs.org/
