A flexible approach to high level simulation of complex system on chip

A Flexible Approach to High Level Simulation of Complex System-on-Chip

Muhammad Usman Ilyas (LUMS, Pak)

Syed Ali Khayam (MSU, USA)

Muhammad Omer Suleman (Oxford, UK)

Shahid Masud (LUMS, Pak)


Presentation outline
Presentation Outline System-on-Chip

  • Problem Definition

  • Traditional Simulation Techniques

  • Alternative Approach

  • Outline of Model

  • Implementation & Results

  • Conclusions


Problem definition

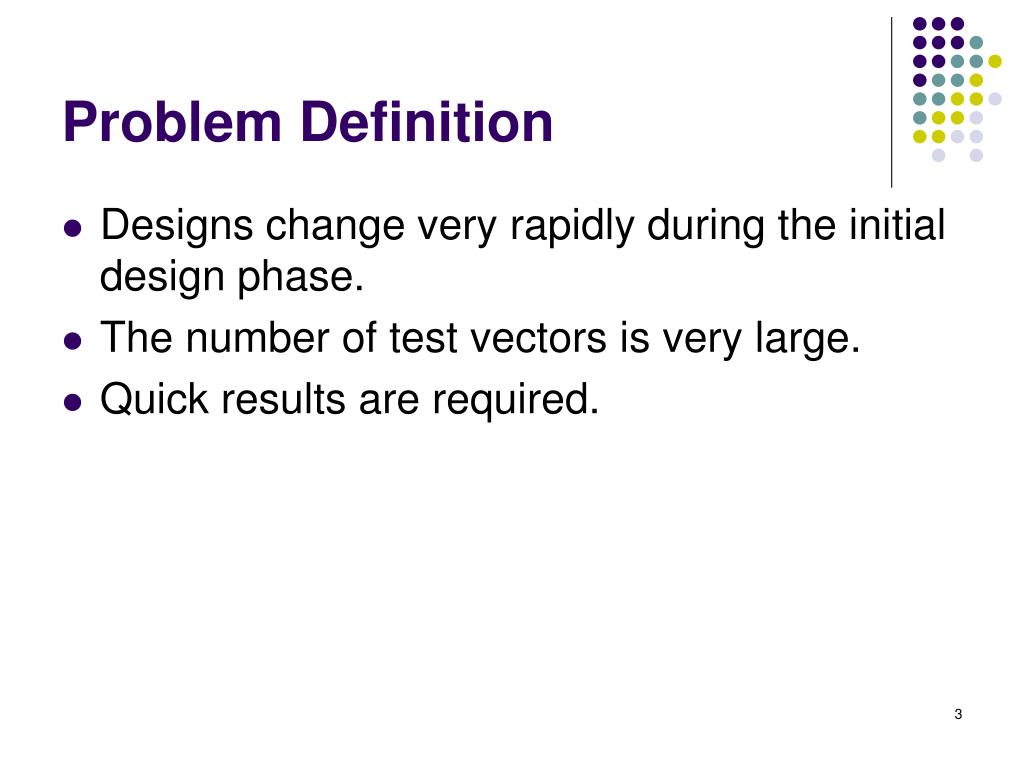

Problem Definition System-on-Chip

  • Designs change very rapidly during the initial design phase.

  • The number of test vectors is very large.

  • Quick results are required.


Traditional simulation techniques

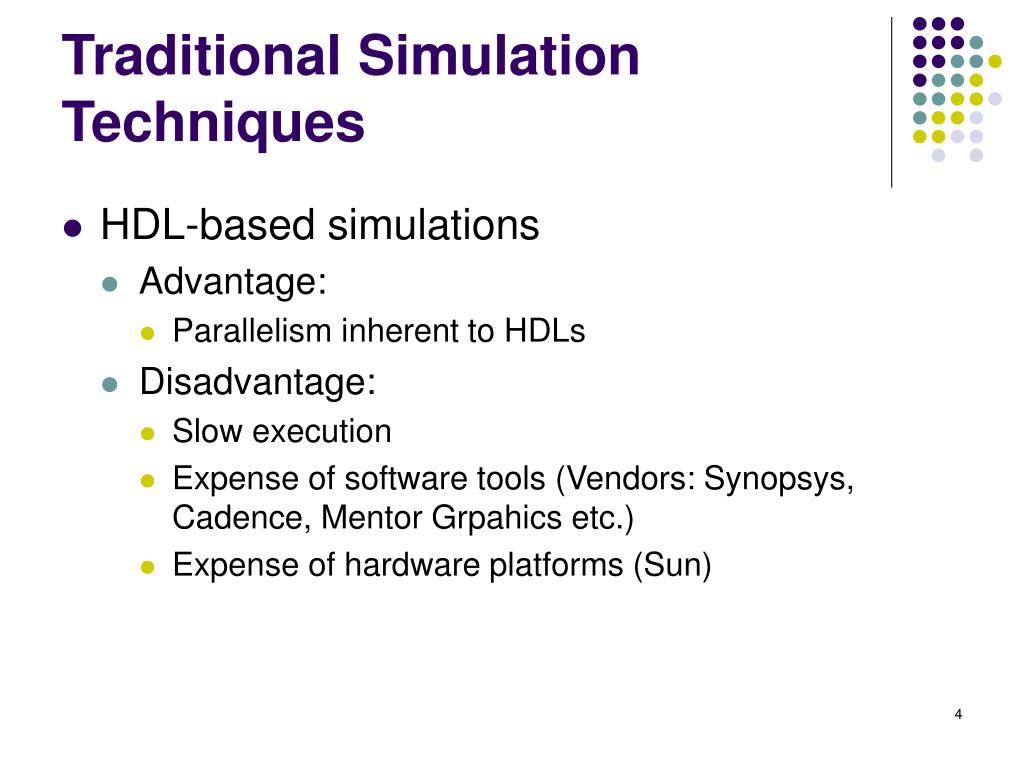

Traditional Simulation Techniques System-on-Chip

  • HDL-based simulations

    • Advantage:

      • Parallelism inherent to HDLs

    • Disadvantage:

      • Slow execution

      • Expense of software tools (Vendors: Synopsys, Cadence, Mentor Grpahics etc.)

      • Expense of hardware platforms (Sun)


Partial workaround
Partial Workaround System-on-Chip

  • HDL simulators allow independent modification of system and simulation clock resolutions.

    Assumptions -> Developers are not interested in timing issues at this stage

  • Max speedup is achieved by setting,

    resolution(simulation clock) = resolution(system clock)


Alternative approach

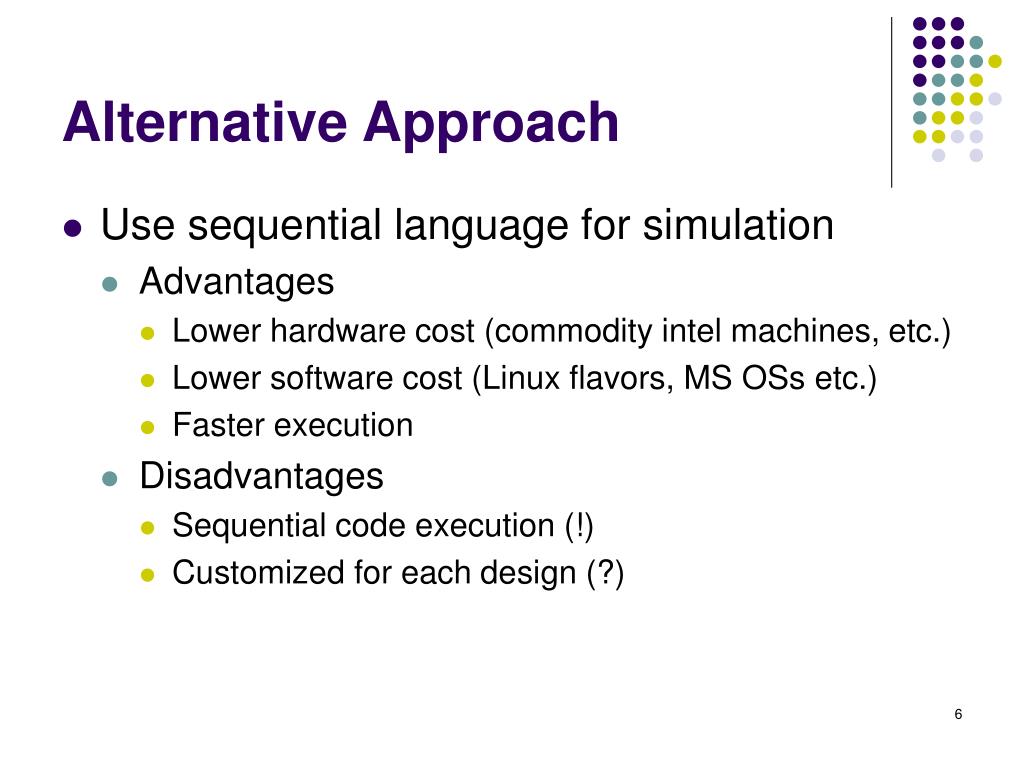

Alternative Approach System-on-Chip

  • Use sequential language for simulation

    • Advantages

      • Lower hardware cost (commodity intel machines, etc.)

      • Lower software cost (Linux flavors, MS OSs etc.)

      • Faster execution

    • Disadvantages

      • Sequential code execution (!)

      • Customized for each design (?)


Outline of model
Outline of Model System-on-Chip

  • The model we propose has the following features

    • Implemented in a sequential language

    • Virtual parallel code execution

    • Cycle accurate

    • Mapping of system components to Bus Functional Models (BFM)


Model characteristics

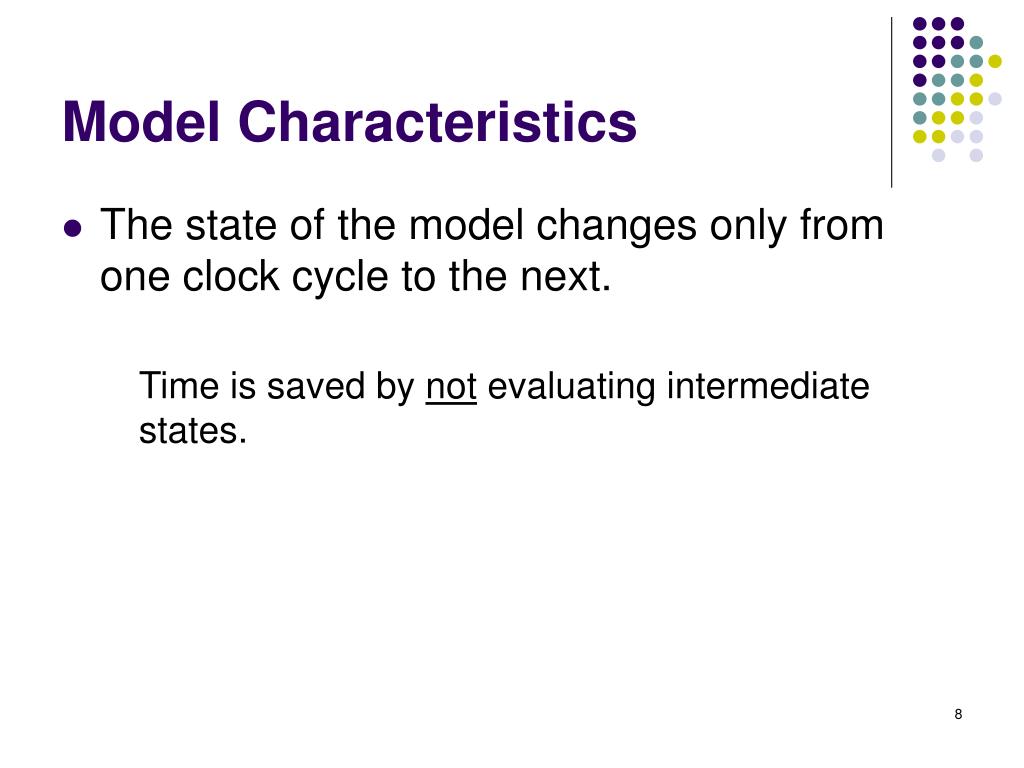

Model Characteristics System-on-Chip

  • The state of the model changes only from one clock cycle to the next.

    Time is saved by not evaluating intermediate states.


Restrictions

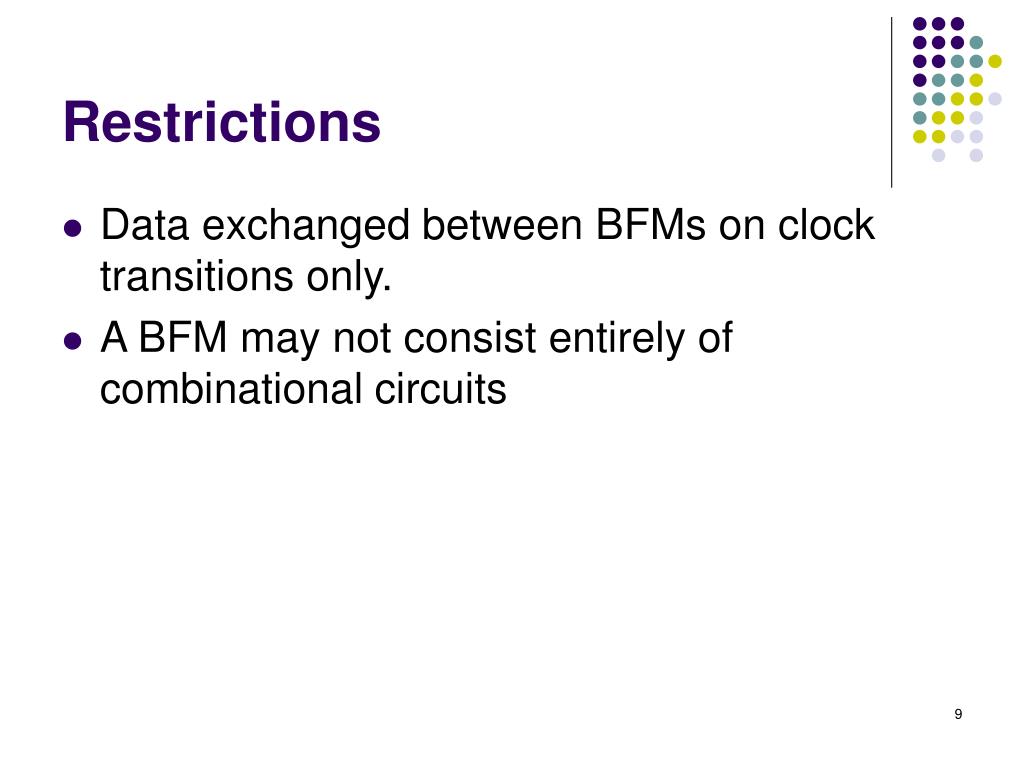

Restrictions System-on-Chip

  • Data exchanged between BFMs on clock transitions only.

  • A BFM may not consist entirely of combinational circuits


Module to bfm mapping 1
Module-to-BFM Mapping (1) System-on-Chip

  • The process of mapping the modules of the design to BFMs depends on the level of abstraction.

  • BFMs mimicking modules at a high level of abstraction are best modeled as Finite State Machines (FSM) of variable complexity.

  • Glue Logic is modeled as simple logical equations.


Module to bfm mapping 2

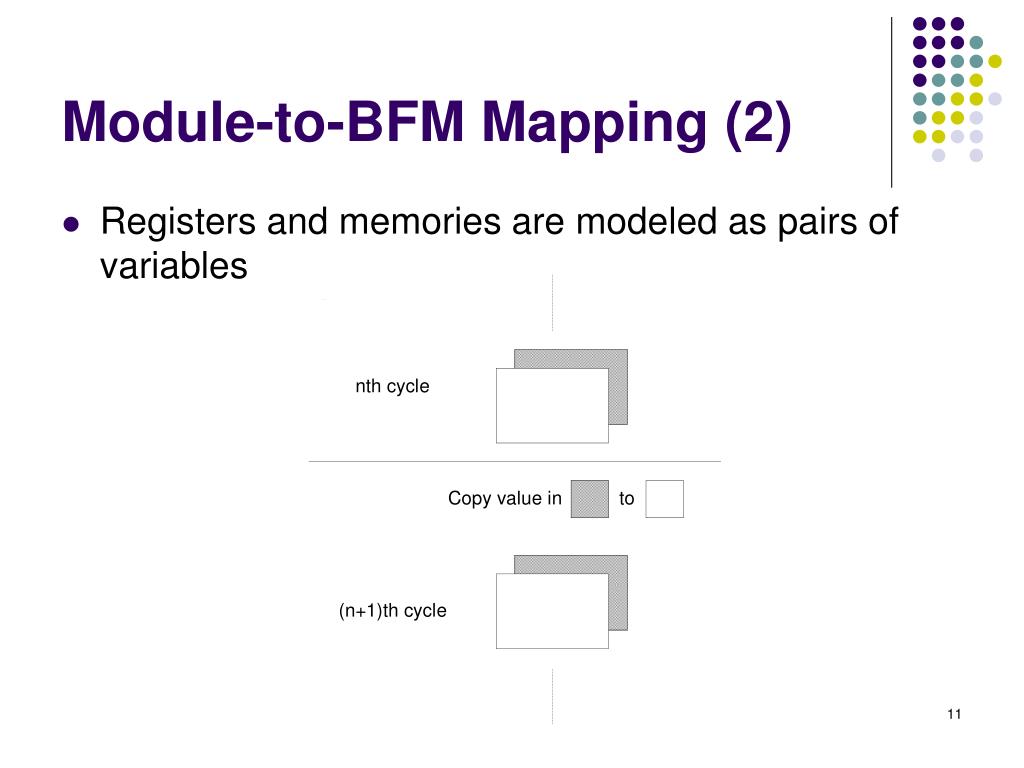

Module-to-BFM Mapping (2) System-on-Chip

  • Registers and memories are modeled as pairs of variables


Incorrect module to bfm mapping
System-on-Chip Incorrect Module-to-BFM Mapping


Corrected module to bfm mapping

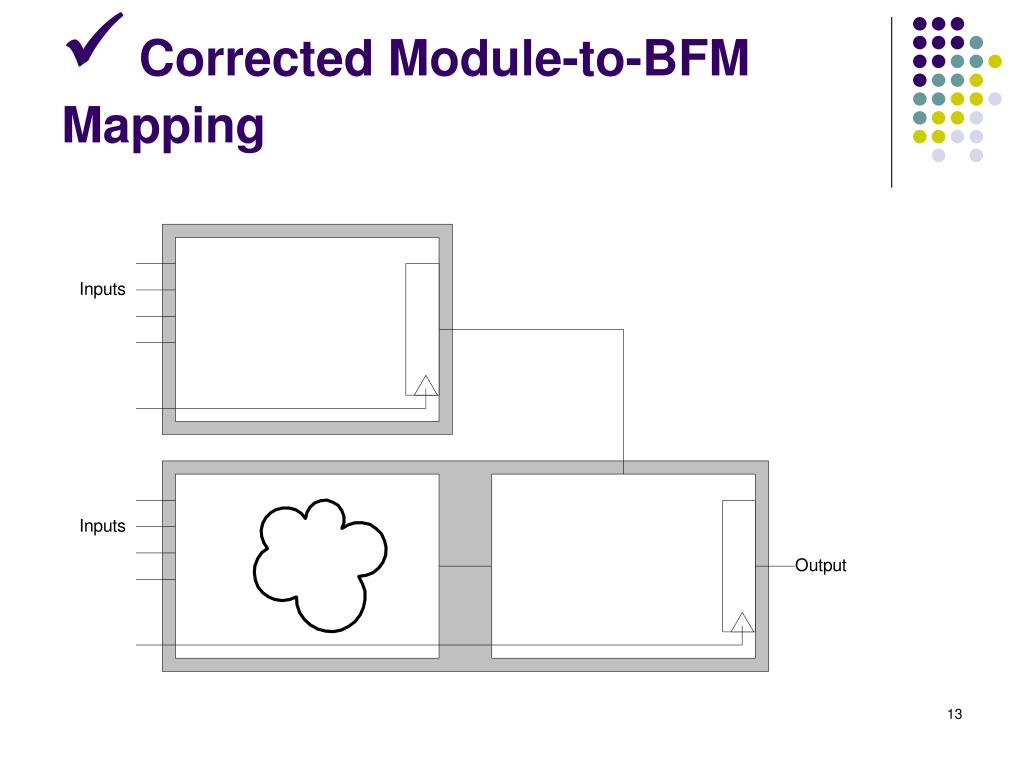

System-on-ChipCorrected Module-to-BFM Mapping


Implementation 1

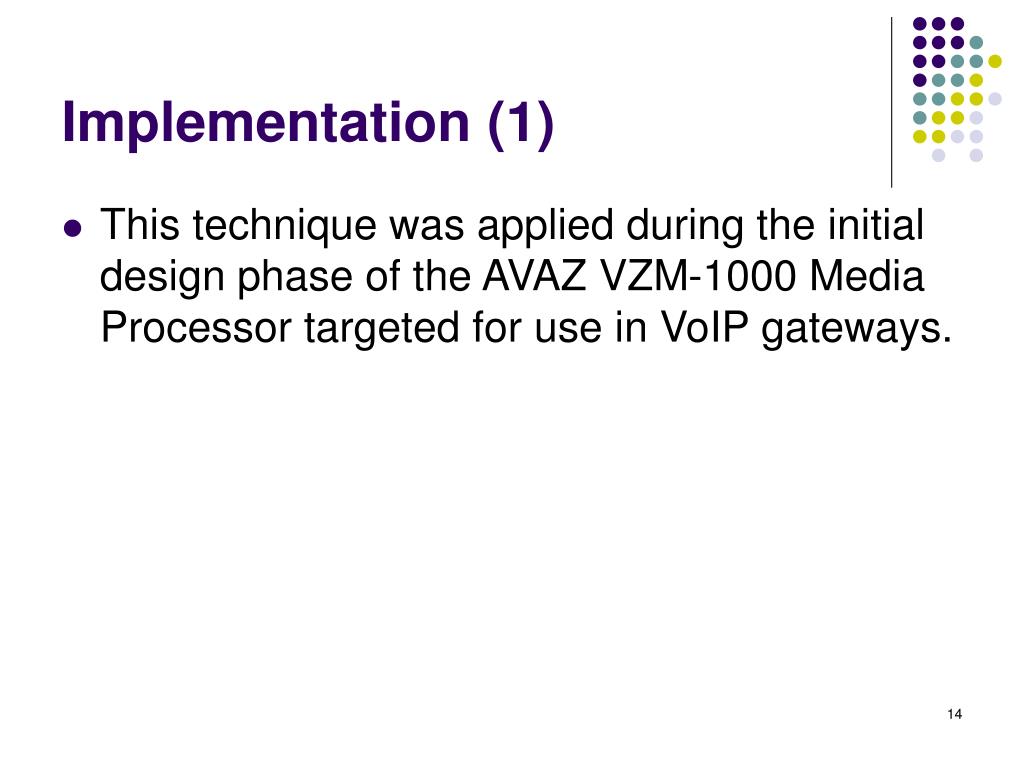

Implementation (1) System-on-Chip

  • This technique was applied during the initial design phase of the AVAZ VZM-1000 Media Processor targeted for use in VoIP gateways.


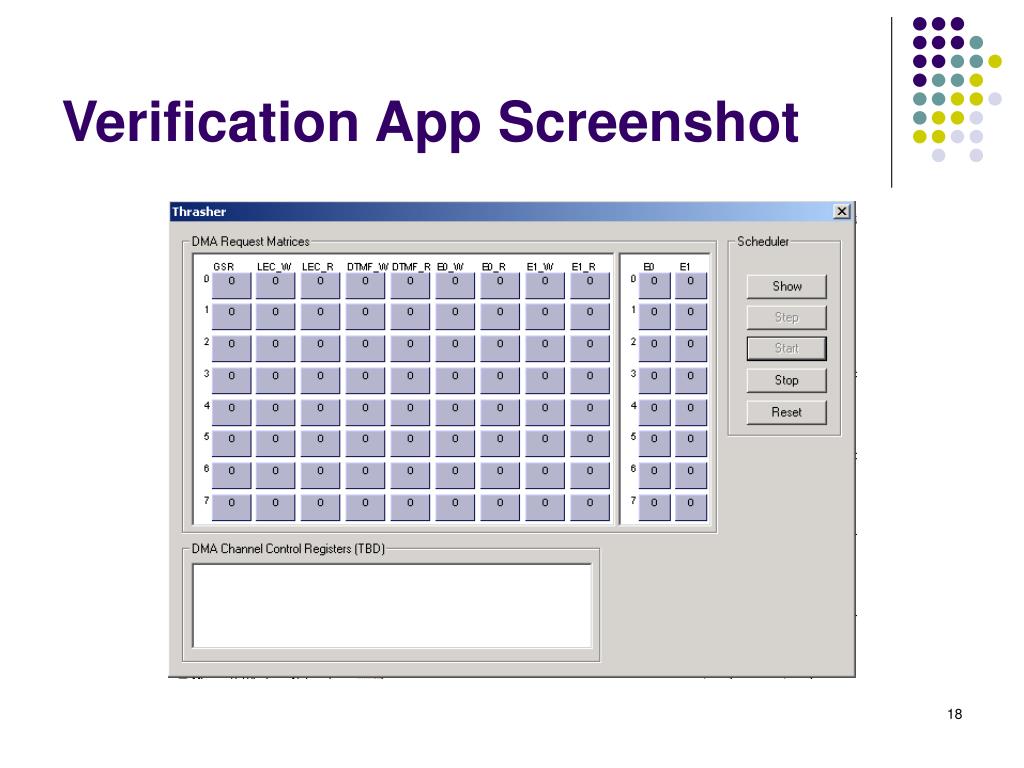

Implementation 2

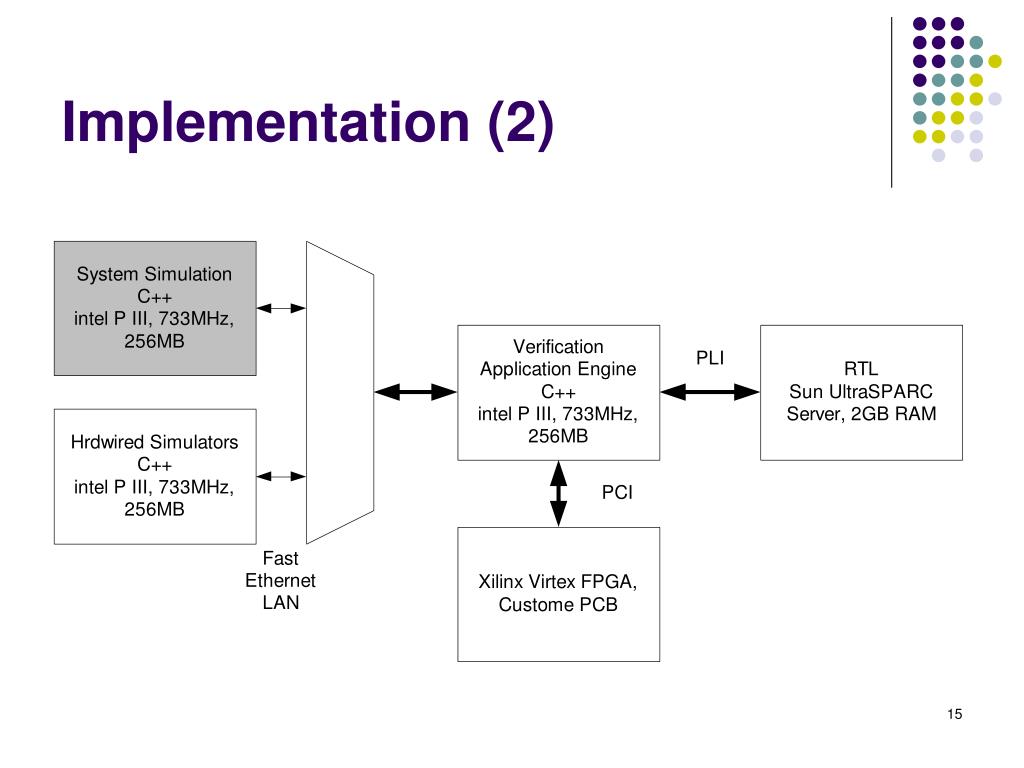

Implementation (2) System-on-Chip


Results 1
Results (1) System-on-Chip

  • Language: C++ model

  • Compiler: MS Visual C++ 6

  • OS: MS Windows 2000 Professional

  • Platform: intel P III, 733MHz, 256MB RAM

    Vs.

  • Language: Verilog

  • Compiler: VerilogXL

  • OS: Sun Solaris

  • Platform: Sun UltraSPARC Server, 2GB RAM


Results 2
Results (2) System-on-Chip

  • Code Complexity

    • Code complexity was measured by the number of code lines.

    • At equal levels of abstraction the code complexity of both Verilog and C++ codes was approximately the same.

  • Lower Execution Time

    • The C++ model performed approximately two orders of magnitudes faster.

  • Shorter Time-to-Market

    • Time-to-Market for this ASIC was reduced from approximately 18 months down to 10 months.




Conclusions
Conclusions System-on-Chip

  • Performance wise, this simulation method has proven to be more time efficient.

  • The approach is more efficient in terms of tool & equipment cost.

  • The approach required a custom made simulation.


Acknowledgements
Acknowledgements System-on-Chip

  • We were greatly facilitated in the work presented by,

    • Dr. Shoab Ahmed Khan

      CEO, AVAZ Networks

    • M. Mohsin Rahmatullah

      Manager (SoC), AVAZ Networks


References 1

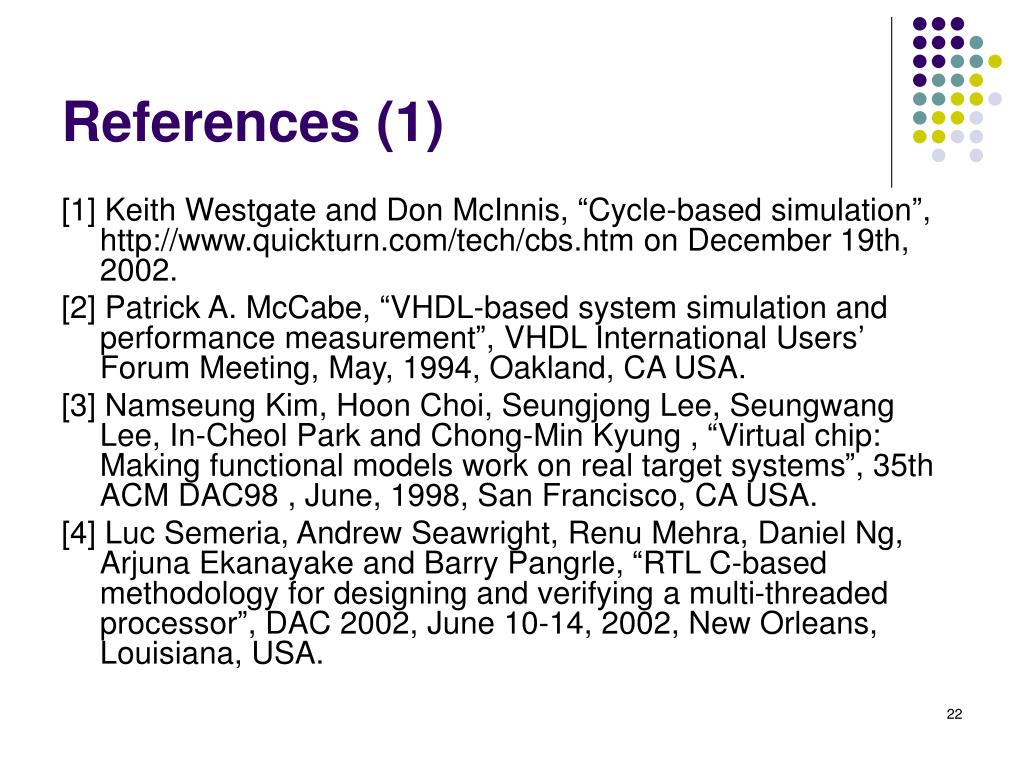

References (1) System-on-Chip

[1] Keith Westgate and Don McInnis, “Cycle-based simulation”, http://www.quickturn.com/tech/cbs.htm on December 19th, 2002.

[2] Patrick A. McCabe, “VHDL-based system simulation and performance measurement”, VHDL International Users’ Forum Meeting, May, 1994, Oakland, CA USA.

[3] Namseung Kim, Hoon Choi, Seungjong Lee, Seungwang Lee, In-Cheol Park and Chong-Min Kyung , “Virtual chip: Making functional models work on real target systems”, 35th ACM DAC98 , June, 1998, San Francisco, CA USA.

[4] Luc Semeria, Andrew Seawright, Renu Mehra, Daniel Ng, Arjuna Ekanayake and Barry Pangrle, “RTL C-based methodology for designing and verifying a multi-threaded processor”, DAC 2002, June 10-14, 2002, New Orleans, Louisiana, USA.


References 2
References (2) System-on-Chip

[5] Moon Gyung Kim, Byung In Moon, Sang Jun An, Dong Ryul Ryu, and Yong Surk Lee, “Implementation of a cycle-based simulator for the design of a processor core”, IEEE Asia-Pacific ASIC conference (AP-ASIC), 1999.

[6] Namseung Kim, Hoon Choi, Seungjong Lee, Seungwang Lee, In-Cheol Park and Chong-Min Kyung, “Virtual Chip: Making Functional Models Work On Real Target Systems”, 35th ACM DAC98, June, 1998, San Francisco, CA USA.

[7] H. Al-Asaad, D. Van Campenhout, J. P. Hayes, T. Mudge and R. B. Brown, “High-level design verification of microprocessors via error modeling”, Proceecdings IEEE International Workshop on High Level Design Validation and Test, Nov. 1997, pp. 194-201.

[8] Yufeng Luo, Tjahjadi Wongsonegoro and Adnan Aziz, “Hybrid Techniques for Fast Functional Simulation”, 35th ACM DAC98, June, 1998, San Francisco, CA USA.


Thank you

Thank You System-on-Chip

Q & A
