COOLRUNNER II REAL DIGITAL CPLD

1. COOLRUNNER IIREAL DIGITAL CPLD Ravi Kumar Vommina CPE 695 UAH

2. Contents • Introduction • Features • Architecture • Advanced Features • Applications • ISE 6.1 • Cool Runner II Family parameters UAH

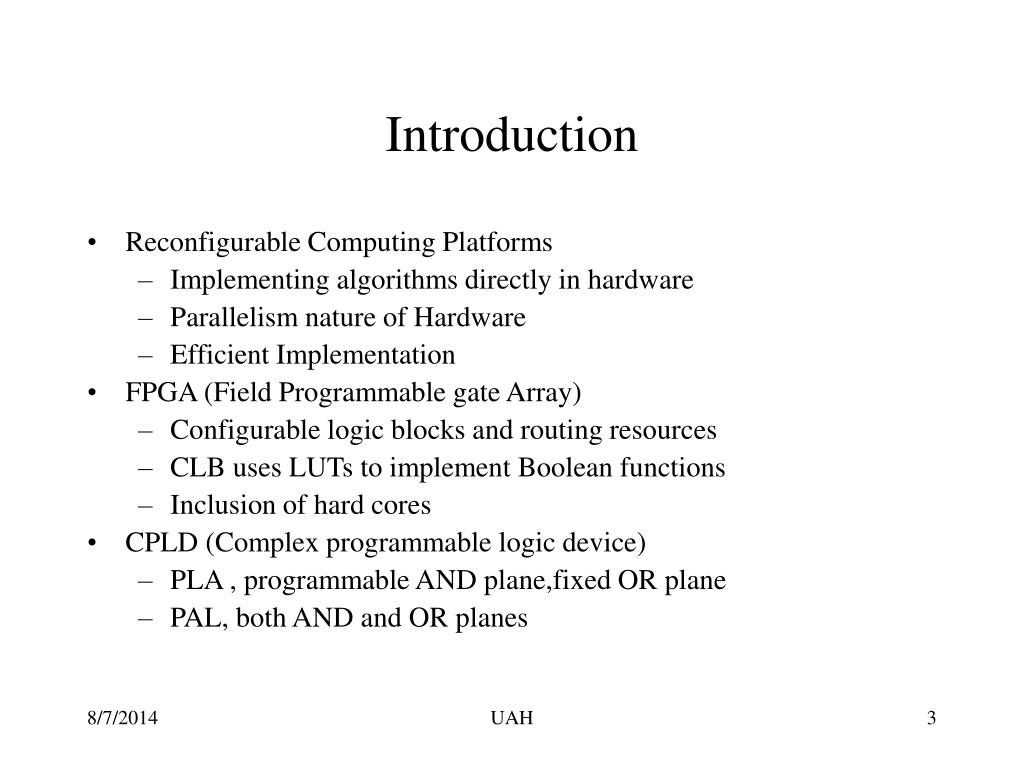

3. Introduction • Reconfigurable Computing Platforms • Implementing algorithms directly in hardware • Parallelism nature of Hardware • Efficient Implementation • FPGA (Field Programmable gate Array) • Configurable logic blocks and routing resources • CLB uses LUTs to implement Boolean functions • Inclusion of hard cores • CPLD (Complex programmable logic device) • PLA , programmable AND plane,fixed OR plane • PAL, both AND and OR planes UAH

4. Introduction PAL: Requires 4 pt’s! PLA: Requires only 3 pt’s! C A B C A B X = A & B # C Y = A & B # !C Can NOT share common logic Y X X Y Indicates ‘used’ junction Common logic may be shared in Cool Runner II Indicates ‘unused’ junction Indicates ‘fixed’ junction UAH

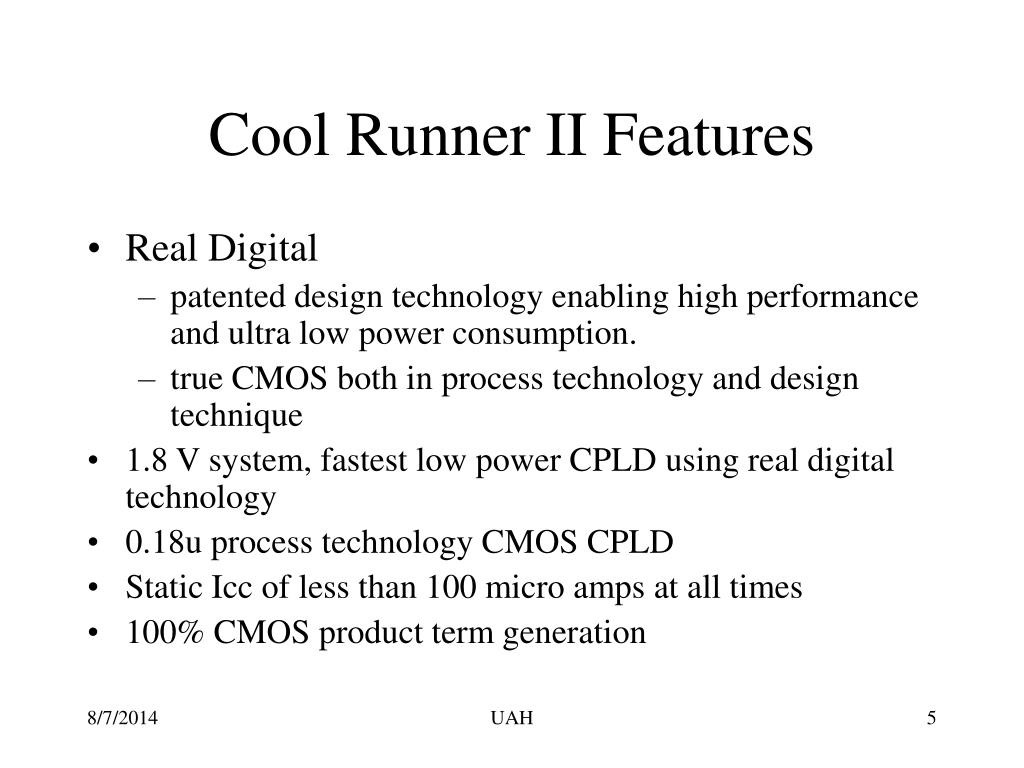

5. Cool Runner II Features • Real Digital • patented design technology enabling high performance and ultra low power consumption. • true CMOS both in process technology and design technique • 1.8 V system, fastest low power CPLD using real digital technology • 0.18u process technology CMOS CPLD • Static Icc of less than 100 micro amps at all times • 100% CMOS product term generation UAH

6. CMOS V DD • In steady state there exist always a finite resistance path between Vout and either VDD or Ground. • Ideal static power should be zero • Small static power consumption exists due to leakage currents and sub threshold conduction that is < 100 micro amps • Total power = dynamic+short circuit +static • Short circuit current flow is due to the delay in rise and fall times of input. • Dynamic power = C .VDD2/ 2 . f CMOS inverter V V in out C L V V DD DD R p V out V out R n V V V 0 5 5 UAH in DD in

7. D C B A C3 C2 C1 CL Product term generation Distributed RC model (Elmore delay) tpHL = 0.69 Reqn(C1+2C2+3C3+4CL) Design for speed: Alternative structures A B C D UAH

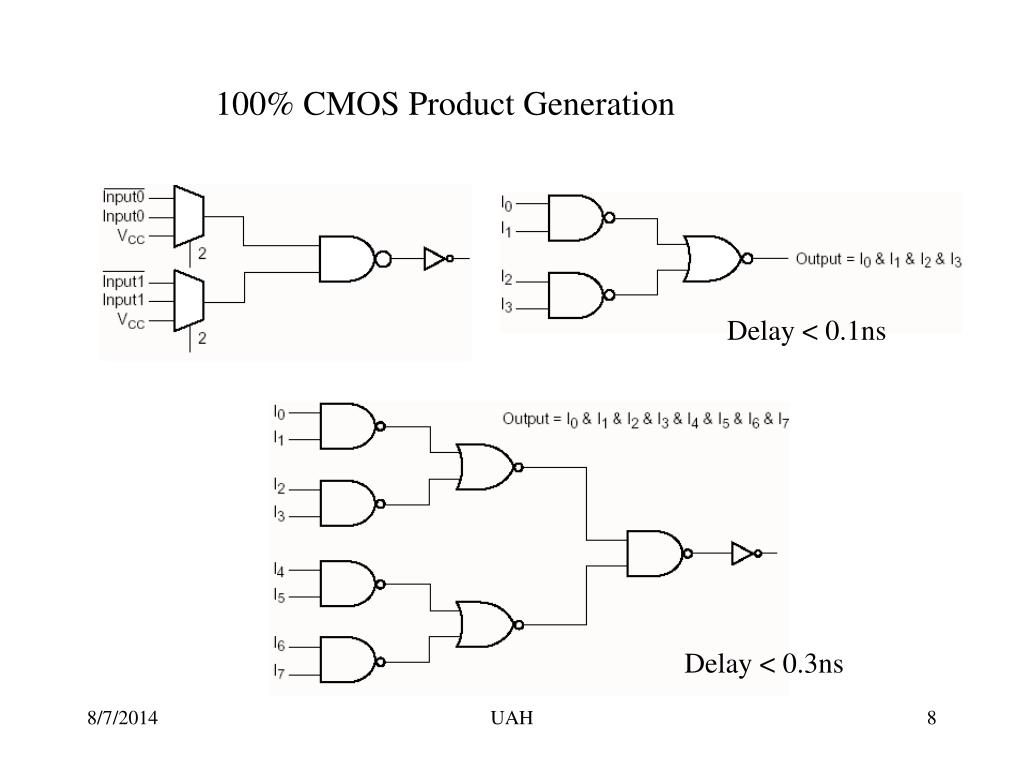

8. 100% CMOS Product Generation Delay < 0.1ns Delay < 0.3ns UAH

9. Cool Runner Architecture – High Level View UAH

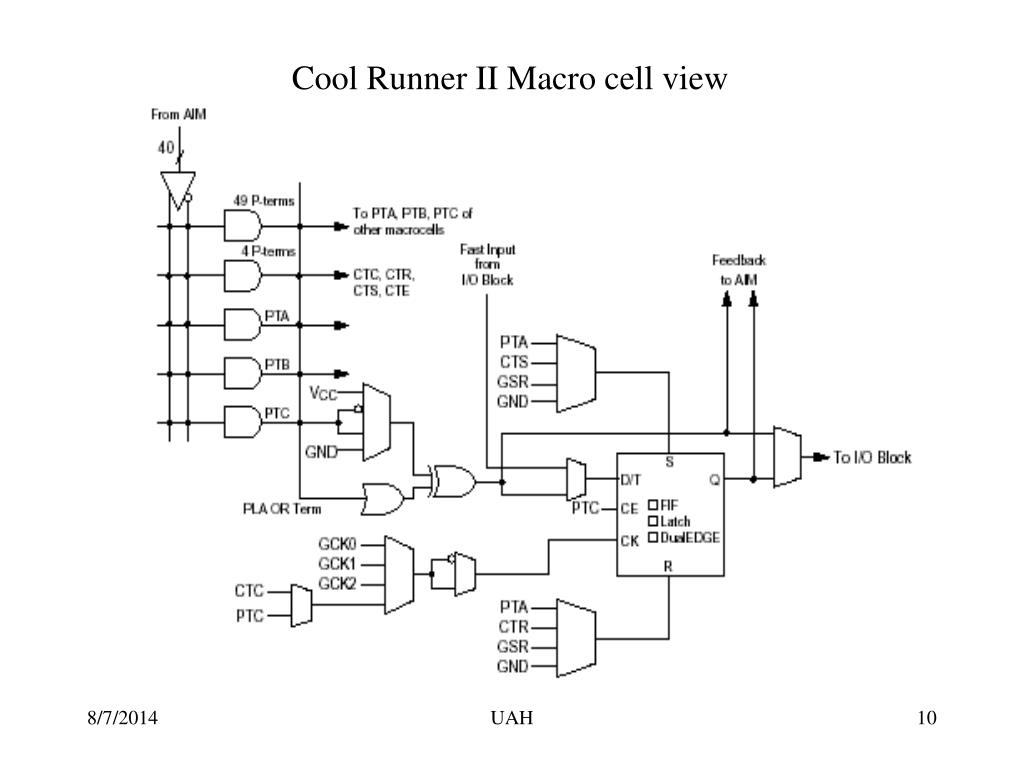

10. Cool Runner II Macro cell view UAH

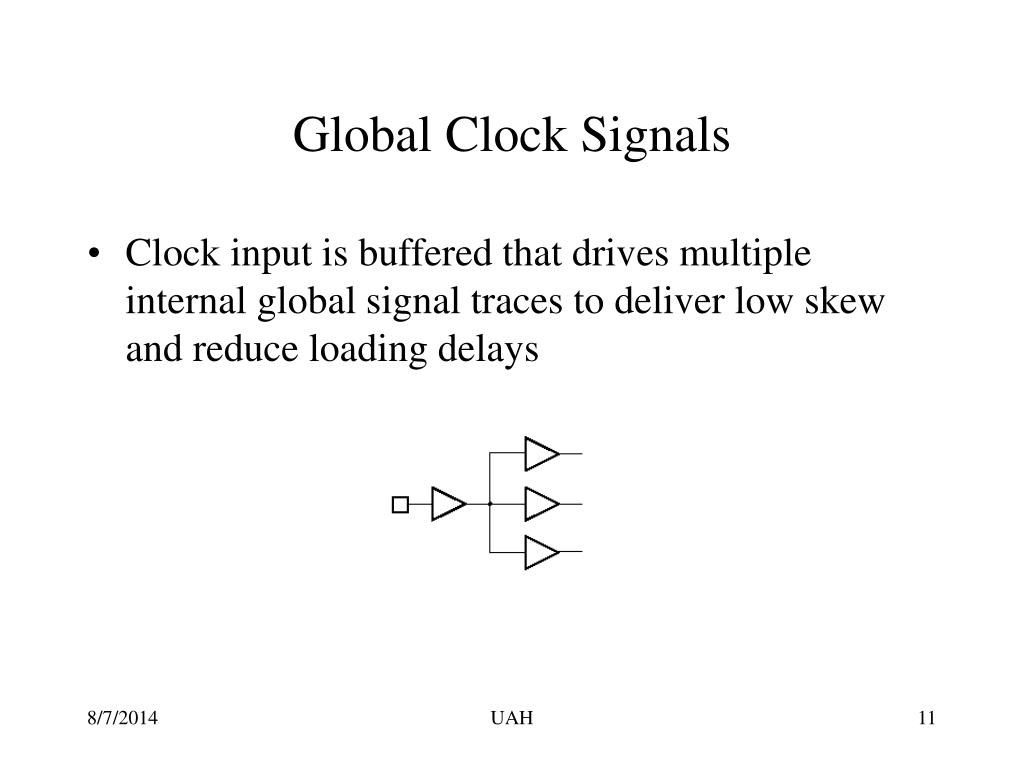

11. Global Clock Signals • Clock input is buffered that drives multiple internal global signal traces to deliver low skew and reduce loading delays UAH

12. Recap • High level View • 16 macro cells in a function block • Function blocks use PLA • Function blocks interconnect with advanced interconnect matrix • AIM is highly connected low power rapid switch • Macro cell View • 56 product terms • 4 control terms, 3 product terms • One flipflop as (D,T or latch) , ( edge or dual edge triggered) • Xilinx software makes the choice when to choose product or global or control term UAH

13. Cool Runner-II I/O Characteristics Programmable Output capabilities • performed with software attributes • Open drain with pull up • Slew rate UAH

14. Cool Runner II input view Schmitt Trigger Input UAH

15. Cool Runner II Input Characteristics • Termination Options • Bus- Hold (Weak Keeper) • Pull-Up • CGND • During power up device is in Quiescent state UAH

16. Advanced Features – Data Gate UAH

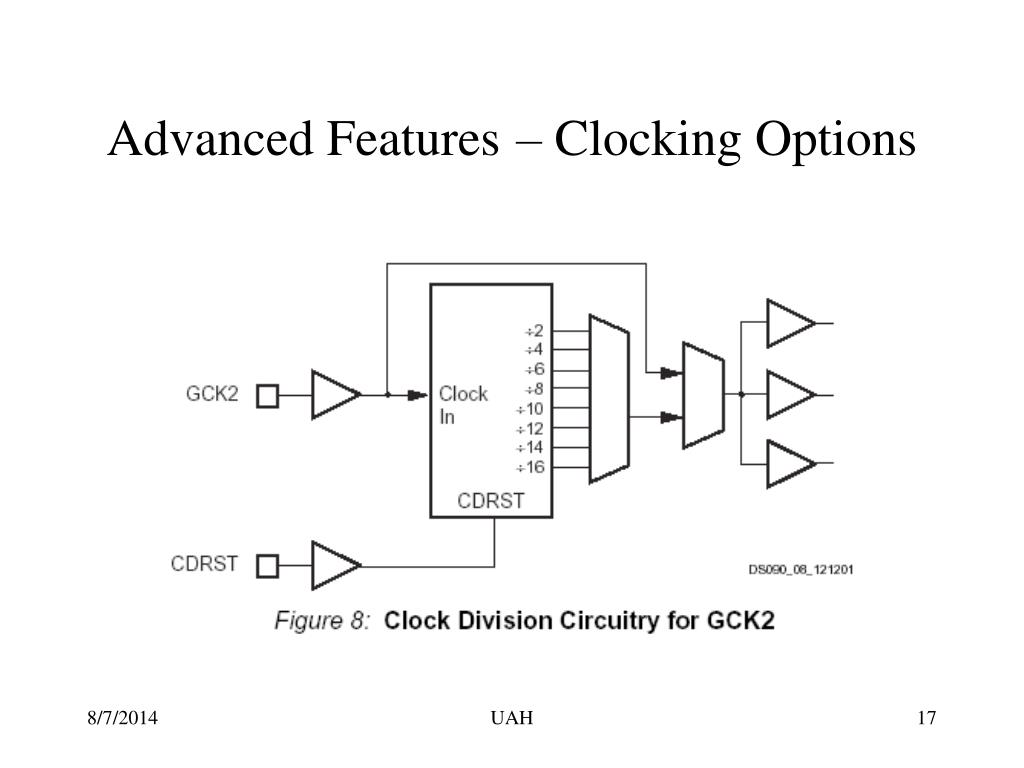

17. Advanced Features– Clocking Options UAH

18. Advanced Features-Cool Clock UAH

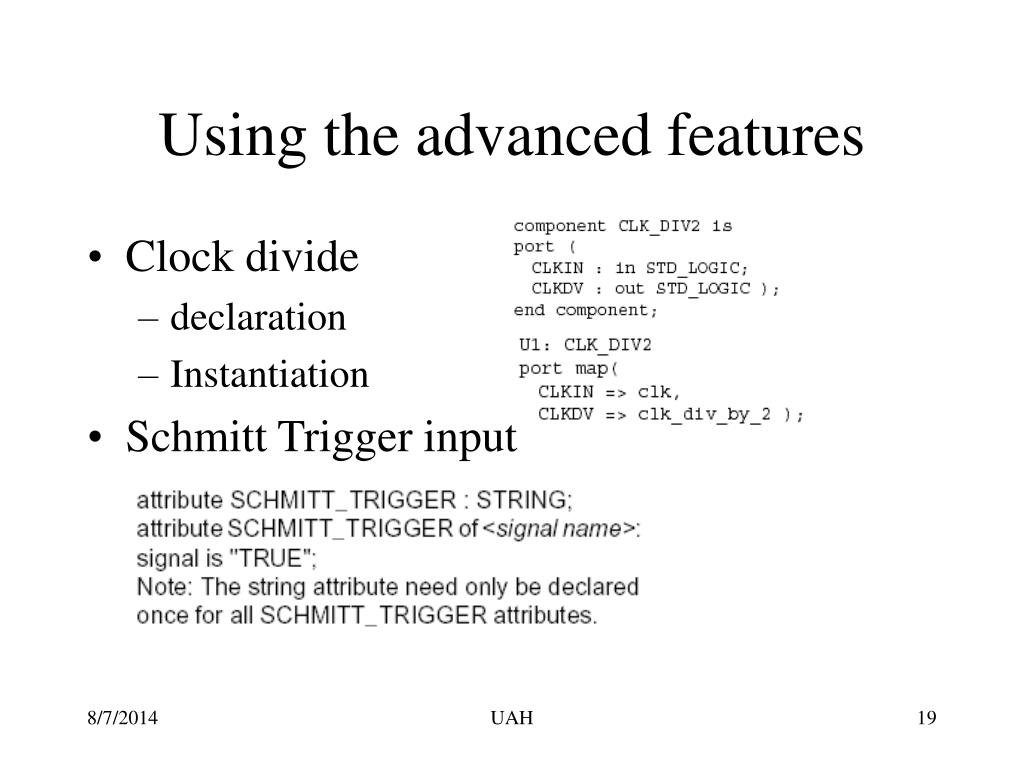

19. Using the advanced features • Clock divide • declaration • Instantiation • Schmitt Trigger input UAH

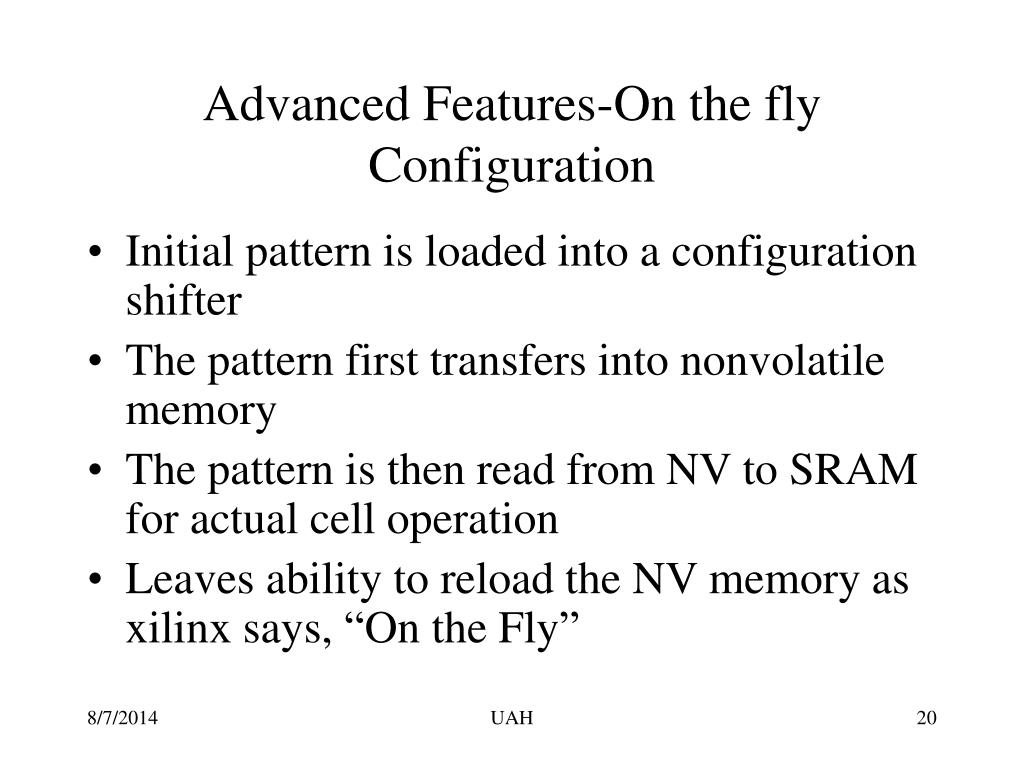

20. Advanced Features-On the fly Configuration • Initial pattern is loaded into a configuration shifter • The pattern first transfers into nonvolatile memory • The pattern is then read from NV to SRAM for actual cell operation • Leaves ability to reload the NV memory as xilinx says, “On the Fly” UAH

21. UAH

22. UAH

23. Impact Menu UAH

24. Selecting OTF UAH

25. Cool Runner II Features • Advanced Design Security • Hot Pluggable • Wide package availability • Supports Multi Voltage standards UAH

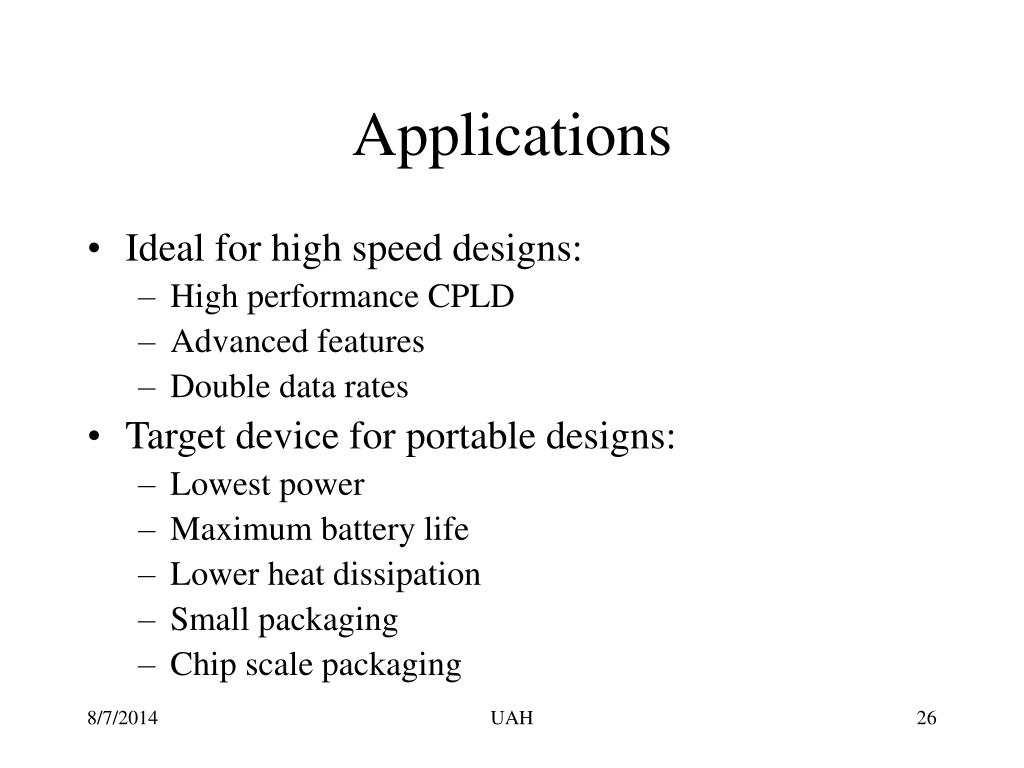

26. Applications • Ideal for high speed designs: • High performance CPLD • Advanced features • Double data rates • Target device for portable designs: • Lowest power • Maximum battery life • Lower heat dissipation • Small packaging • Chip scale packaging UAH

27. Flash CompactFlash Battery SRAM SMBus PDA IrDA LED P UART Docking Cradle LCD SPI Touchscreen Keypad UAH

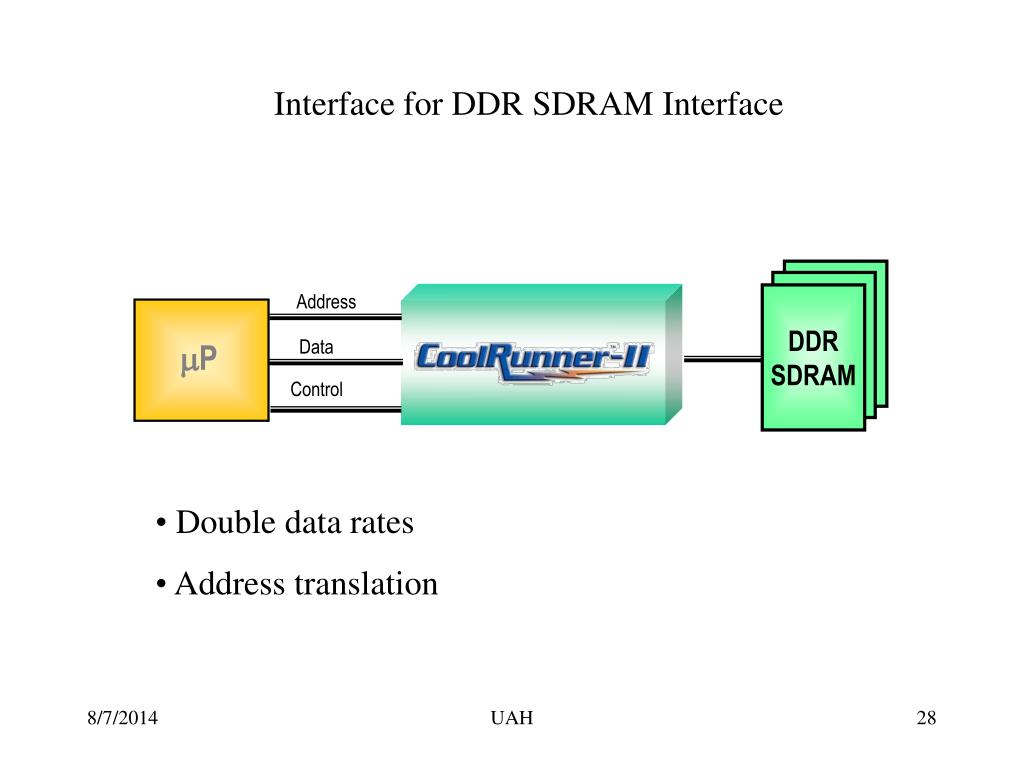

28. Address DDR SDRAM Data P Control Interface for DDR SDRAM Interface • Double data rates • Address translation UAH

29. ISE6.1Design Flow • An active project space is created. • Existing VHDL modules can be added or new ones can be created in the project. • A user constraint file is specified that maps the input and out put signals to the actual pins of the device • Synthesis of the design is performed by just selecting the implement design option. • Device is configured by IMPACT. UAH

30. Cool Runner II UAH
