Af 202 chris dimoulis

AF 202 – Chris Dimoulis

Advanced Aerodynamics 2


Objectives

Objectives

Review

Vectors

Forces in climbs and turns

Stability

Vg diagram


Force

Force

Force:

Any influence to an object that causes a change in speed, direction, or shape.

The 4 forces of flight

Weight

Lift

Thrust

Drag


To accelerate or not

To Accelerate or not…?

Acceleration:

A change in speed OR direction which requires an unbalanced forces

Straight, level, and constant speed flight required an equilibrium balance of the forces

Opposing forces are equal

Lift = Weight, Thrust = Drag


Weight

Weight

Weight is a force

In F=ma, the acceleration is the pull of gravity

As long as an object has mass (and is on earth) there is the downward force of gravity.


Advanced aerodynamics 2

Lift

Opposes Weight

Must EQUAL weight for level flight

2 principles cause lift:

Bernoulli’s

Newton’s 3rd law


Advanced aerodynamics 2

Lift

Four ways to control lift

Pilot Controlled:

Change Speed

Change Angle of Attack

Non-Pilot Controlled

Change Wing Surface Area

Change Air Density


The lift equation

The Lift Equation

L=1/2 (CL V² Ρ A)

V = √2L/ (CL Ρ A)

CL = 2L/(V² Ρ A)


Lift equation

Lift Equation

L - Total lift

CL - Coefficient of lift increases as Angle of attack increases

V – Magnitude of velocity (speed)

A – Area of the Wing

P – Air Density


Uses of the lift equation

Uses of the Lift Equation

To simulate level flight, keep L the same value

We can see how the angle of attack MUST increases as speed slows

We see that as angle of attack decreases we must increase speed to maintain lift.

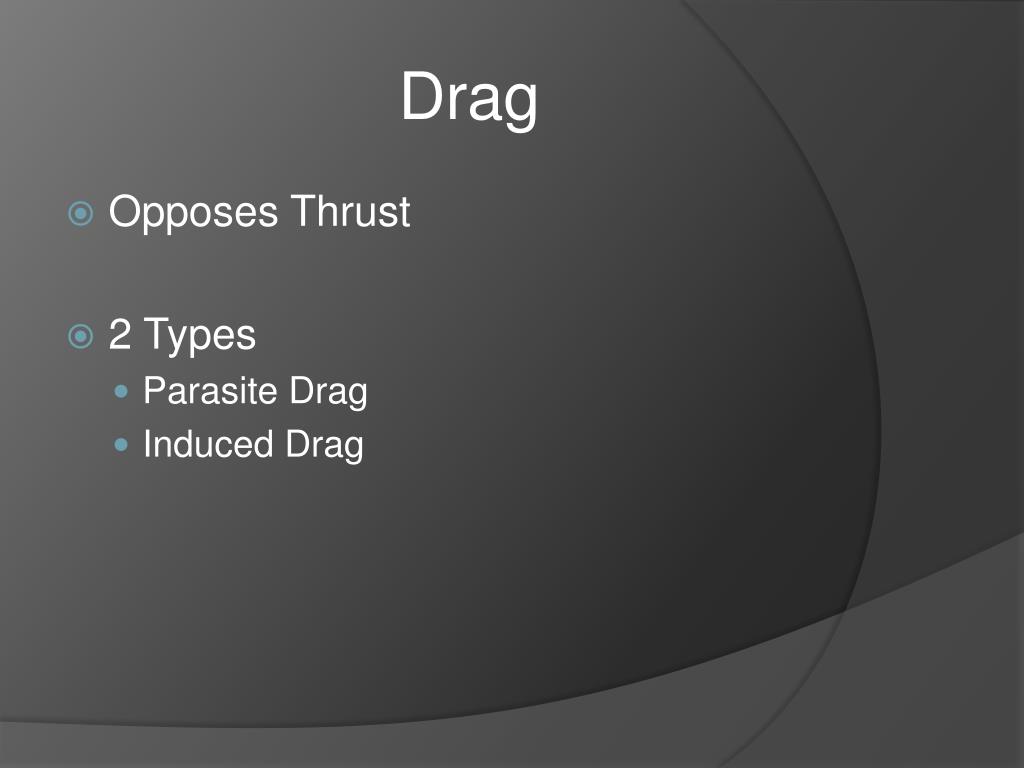

Advanced aerodynamics 2

Drag

Opposes Thrust

2 Types

Parasite Drag

Induced Drag


Parasite drag

Parasite Drag

3 Types

Form

Skin-Friction

Interference

Parasite drag INCREASES as speed increases


Induced drag

Induced Drag

Inherently created when lift is produced by use of angle of attack

As angle of attack increases, induced drag increases

Since angle of attack increases when speed degreases, induced drag ALSO increases when speed decreases.


Parasite vs induced drag

Parasite vs. Induced Drag


Region of reverse command

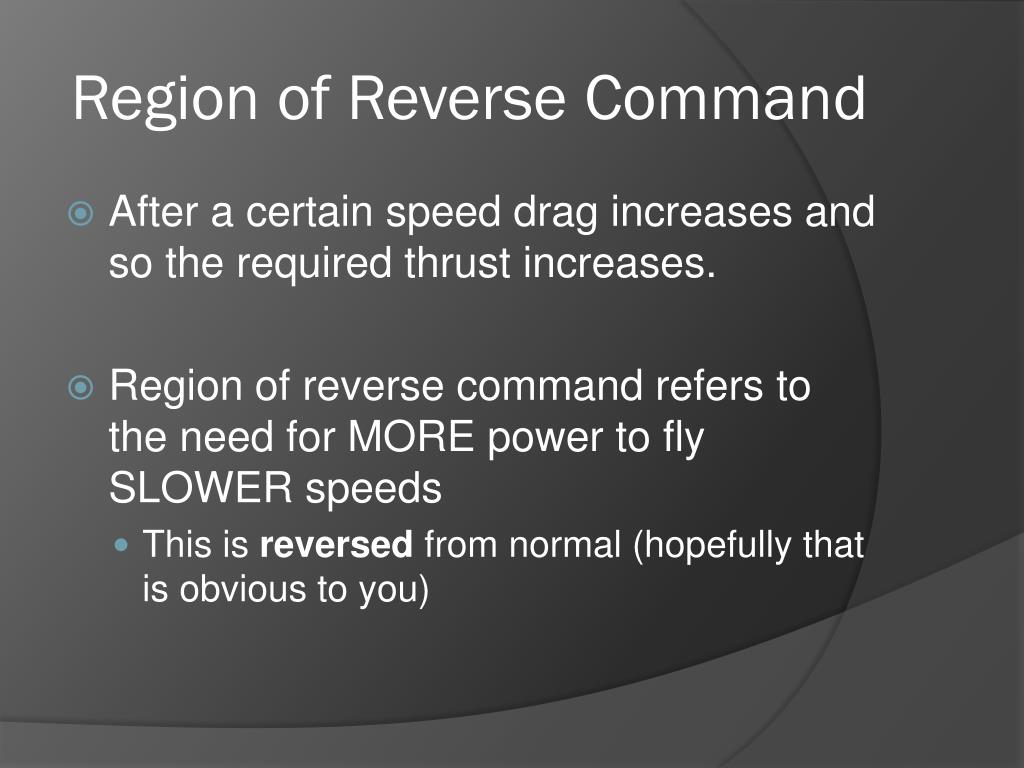

Region of Reverse Command

After a certain speed drag increases and so the required thrust increases.

Region of reverse command refers to the need for MORE power to fly SLOWER speeds

This is reversed from normal (hopefully that is obvious to you)


Thrust

Thrust

Thrust is most easily described as lift in the horizontal direction

The propeller aerodynamically functions similar to a wing

By spinning it creates its own relative wind.


Thrust1

Thrust


Propeller efficiency

Propeller Efficiency

No Propeller is 100% Efficient

Effecitve Pitch

Geometric Pitch

Slippage


Turning tendencies

Turning Tendencies

Asymmetrical Thrust (P-Factor)

Gyroscopic Precession

Spiraling Slipstream

Torque from the engine


Adverse yaw

Adverse Yaw

When rolling into a bank…

Lift is increased on the outside wing

Lift is decreased on the inside wing

When lift changes so does drag

Drag is increased on the outside wing

Drag is decreased on the inside wing

The aircraft pulls outside of the turn


Vectors forces in climbs

VectorsForces in Climbs


Vectors

Vectors

Remember that a force can be considered a vector

Vectors consist of magnitude and direction

They can be broken down into components


Vector

Vector

The components are PERPENDICULAR to each other

You can add 2 vectors together by adding the horizontal vectors and vertical vectors


Forces in a climb

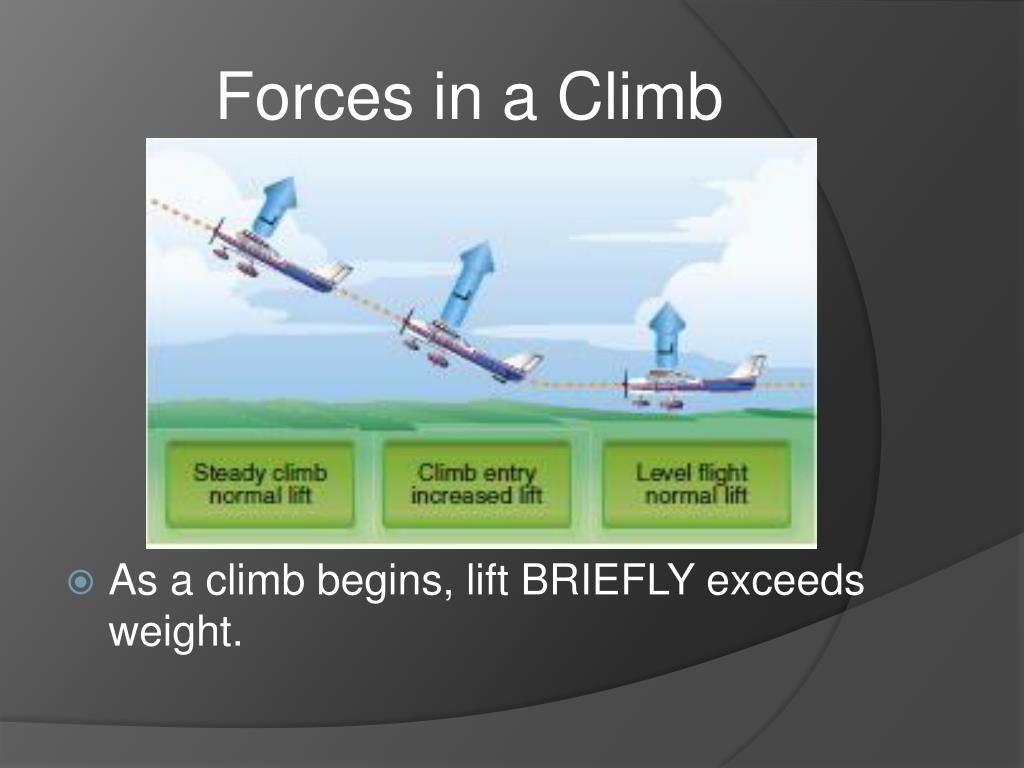

Forces in a Climb

As a climb begins, lift BRIEFLY exceeds weight.

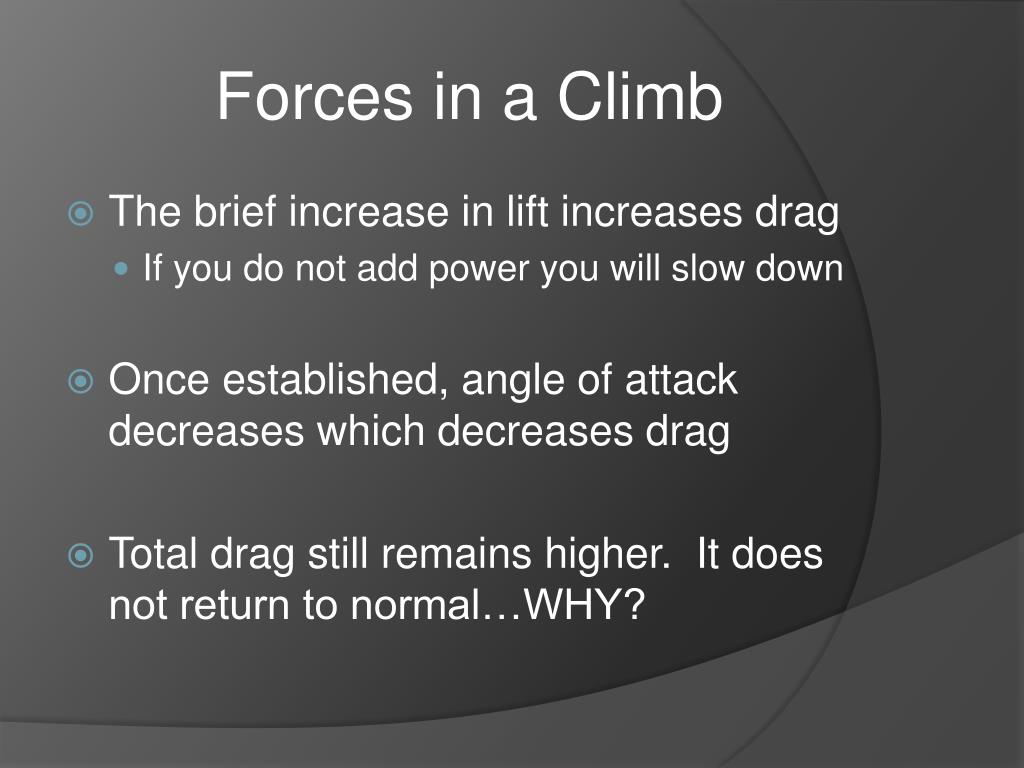

Forces in a climb1

Forces in a Climb

The brief increase in lift increases drag

If you do not add power you will slow down

Once established, angle of attack decreases which decreases drag

Total drag still remains higher. It does not return to normal…WHY?


Forces in a climb2

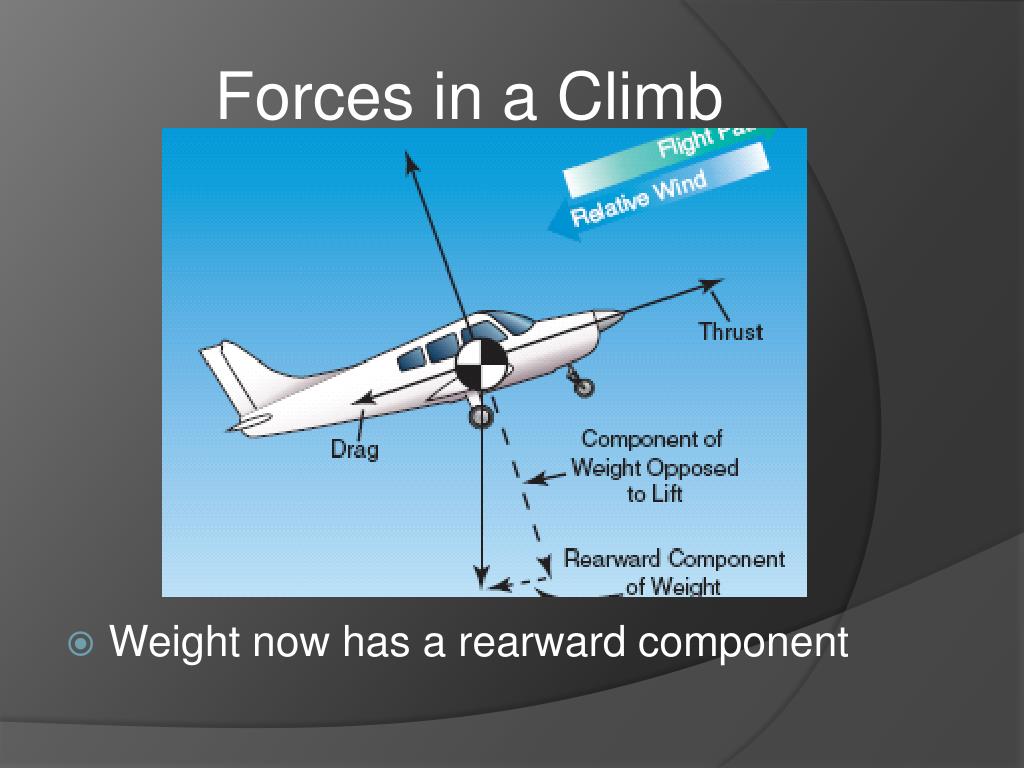

Forces in a Climb

Weight now has a rearward component


Forces in a climb3

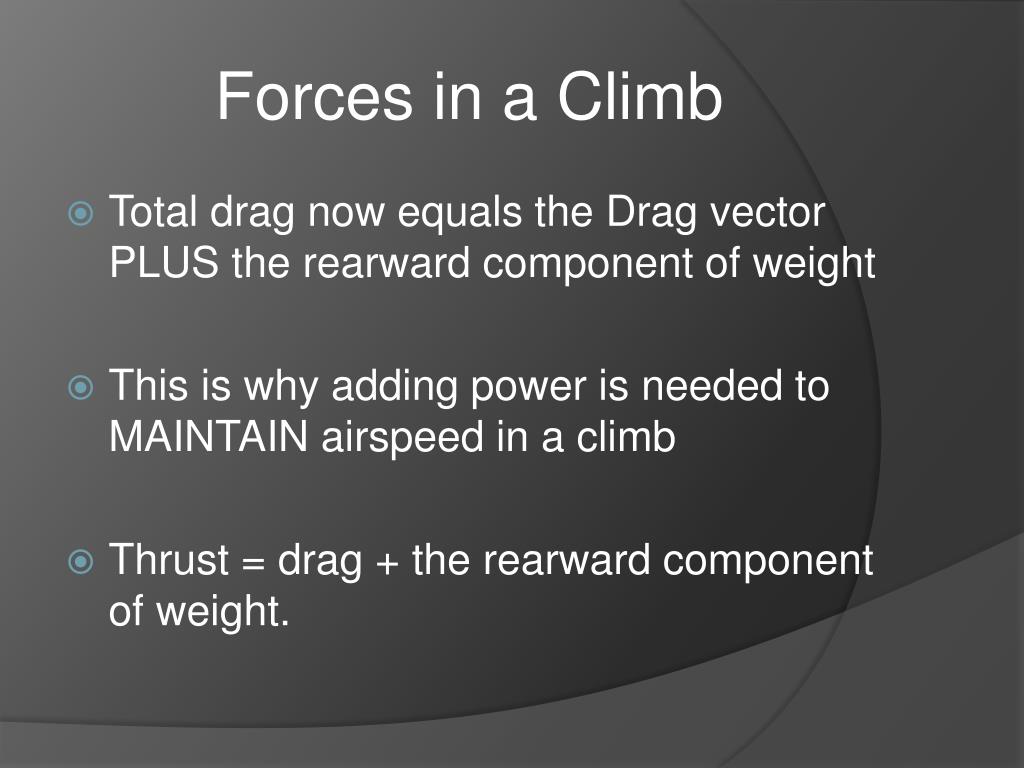

Forces in a Climb

Total drag now equals the Drag vector PLUS the rearward component of weight

This is why adding power is needed to MAINTAIN airspeed in a climb

Thrust = drag + the rearward component of weight.

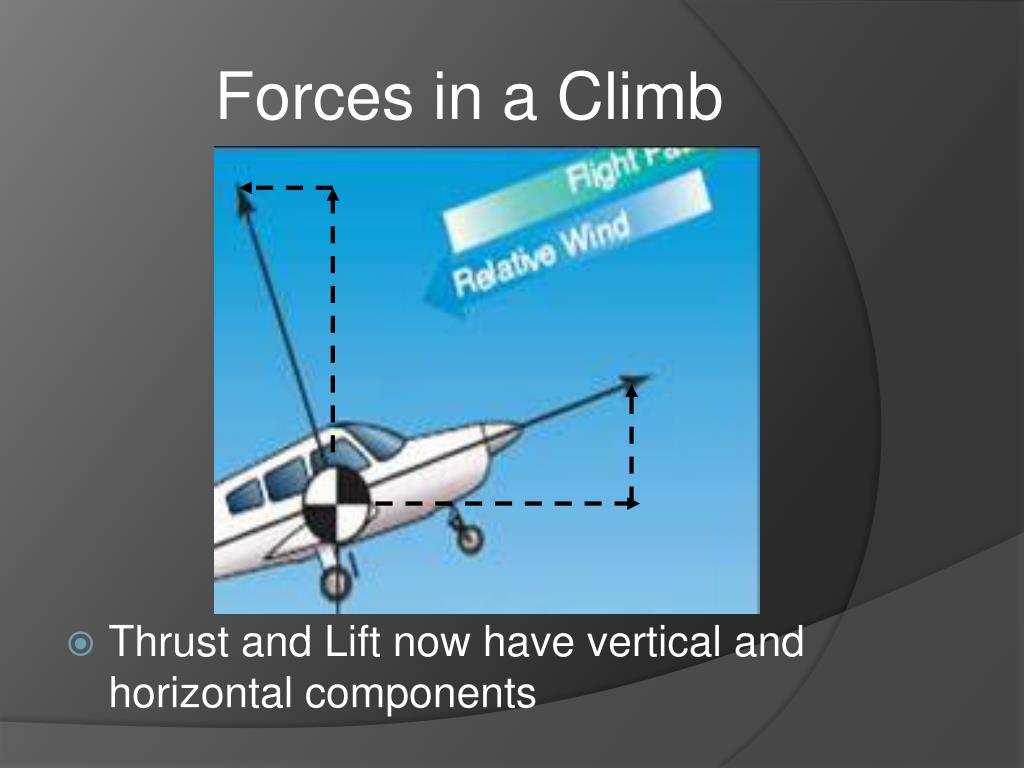

Forces in a climb4

Forces in a Climb

Thrust and Lift now have vertical and horizontal components


Forces in a climb5

Forces in a climb

Therefore you can say…

The vertical component of lift PLUS…

The vertical component of thrust EQUALS…

The total weight


Forces in a climb6

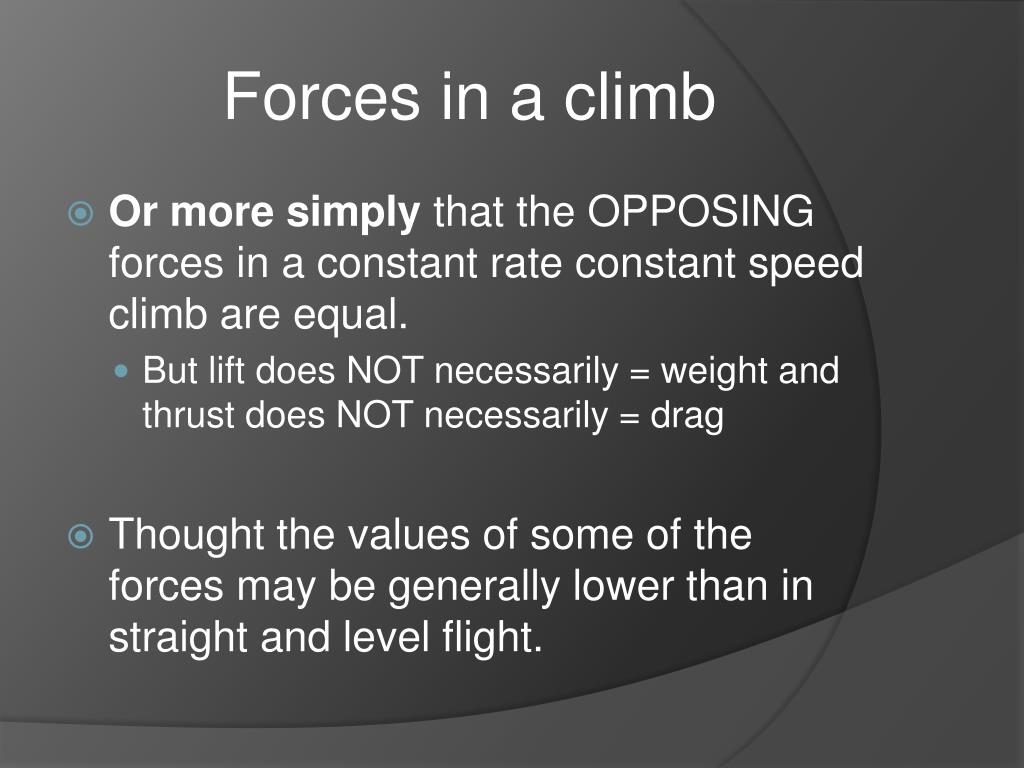

Forces in a climb

Or more simply that the OPPOSING forces in a constant rate constant speed climb are equal.

But lift does NOT necessarily = weight and thrust does NOT necessarily = drag

Thought the values of some of the forces may be generally lower than in straight and level flight.


Forces in turns

Forces in Turns


Forces in turns1

Forces in Turns

Lift remains perpendicular to the wings

When the aircraft is banked, lift can be broken down into components


Forces in turns2

Forces in Turns

Once in a turn, the horizontal component is responsible for turning.

The vertical component is opposing weight and responsible for pitch.


Forces in turns3

Forces in Turns

For the vertical component of lift to equal weight, Total Lift must be increased.

This is done by increasing angle of attack

This increases induced drag which will slow us down

And so we need to add power to maintain speed.


The math of turns

The Math of Turns

The angle of bank EQUALS the angle between the Total lift and Vertical Component of lift.

30 bank

45 bank

30

45


The math of turns1

The Math of Turns

Right Triangles:

cos θ = A/H

sin θ = O/H

H = Hypotenuse

A = Side adjacent to θ

O = Side opposite to θ


The math of turns2

The Math of Turns

So we can say this

cos θ = Vertical Lift / Total Lift

sin θ = Horizontal Lift / Total Lift

Total Lift x cos θ = Vertical Lift

Vertical Lift / cos θ = Total Lift

Total Lift x Sin θ = Horizontal Lift

Horizontal Lift / sin θ = Total Lift

θ = The angle of Bank.

{

{

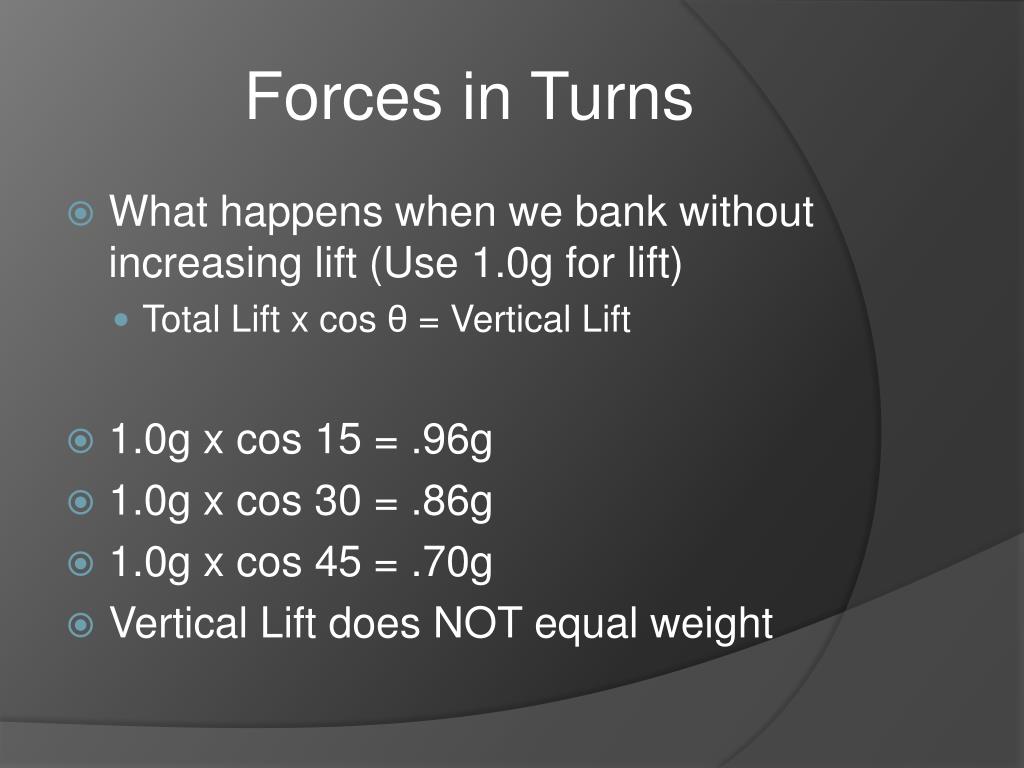

Forces in turns4

Forces in Turns

What happens when we bank without increasing lift (Use 1.0g for lift)

Total Lift x cos θ = Vertical Lift

1.0g x cos 15 = .96g

1.0g x cos 30 = .86g

1.0g x cos 45 = .70g

Vertical Lift does NOT equal weight


Forces in turns5

Forces in Turns

Vertical Lift must equal weight. Make vertical lift = 1.0g and see what total lift you get.

Vertical Lift / cos θ = Total Lift

1.0g/cos 15 = 1.03g

1.0g/cos 30 = 1.15g

1.0g/cos 45 = 1.41g


Forces in turns6

Forces in Turns

So we can see that as the angle of bank increases, the more TOTAL LIFT we need to remain level

So as bank angle increases, angle of attack must increase also.


Load factor

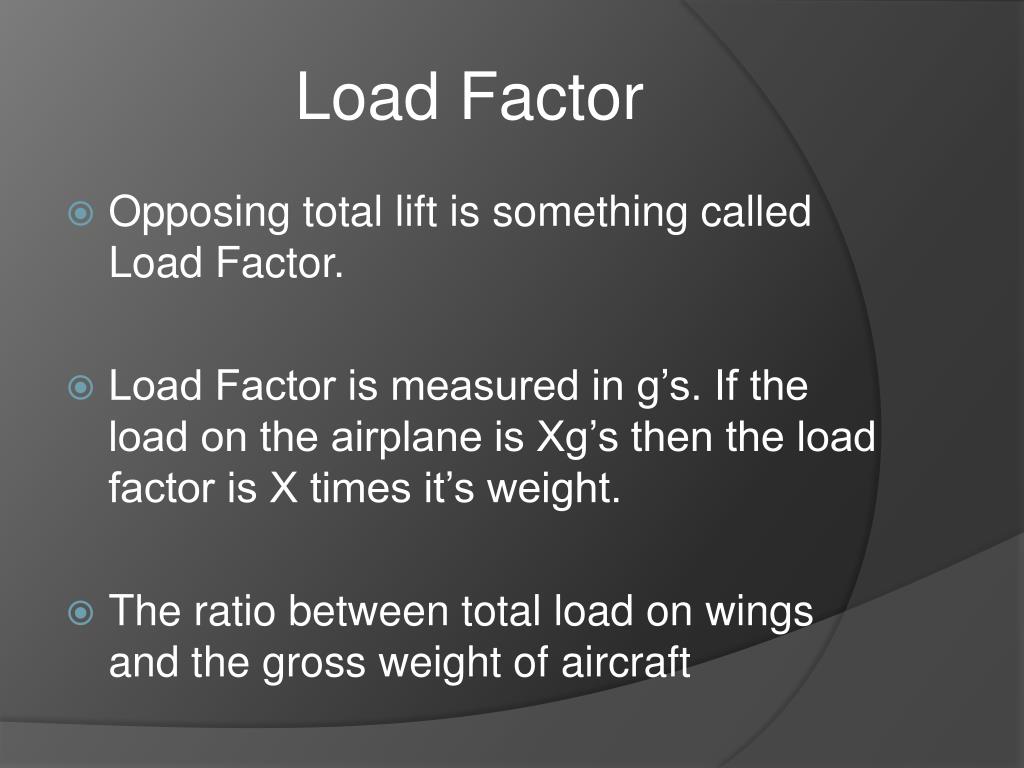

Load Factor

Opposing total lift is something called Load Factor.

Load Factor is measured in g’s. If the load on the airplane is Xg’s then the load factor is X times it’s weight.

The ratio between total load on wings and the gross weight of aircraft


Load factor1

Load Factor

LF = Wing Loading/Gross Weight

Wing loading = 4800 lbs

Gross Weight = 2400 lbs

Load Factor = 4800/2400 = 2g

BASICALLY – LF = Lift/Weight


Load factor2

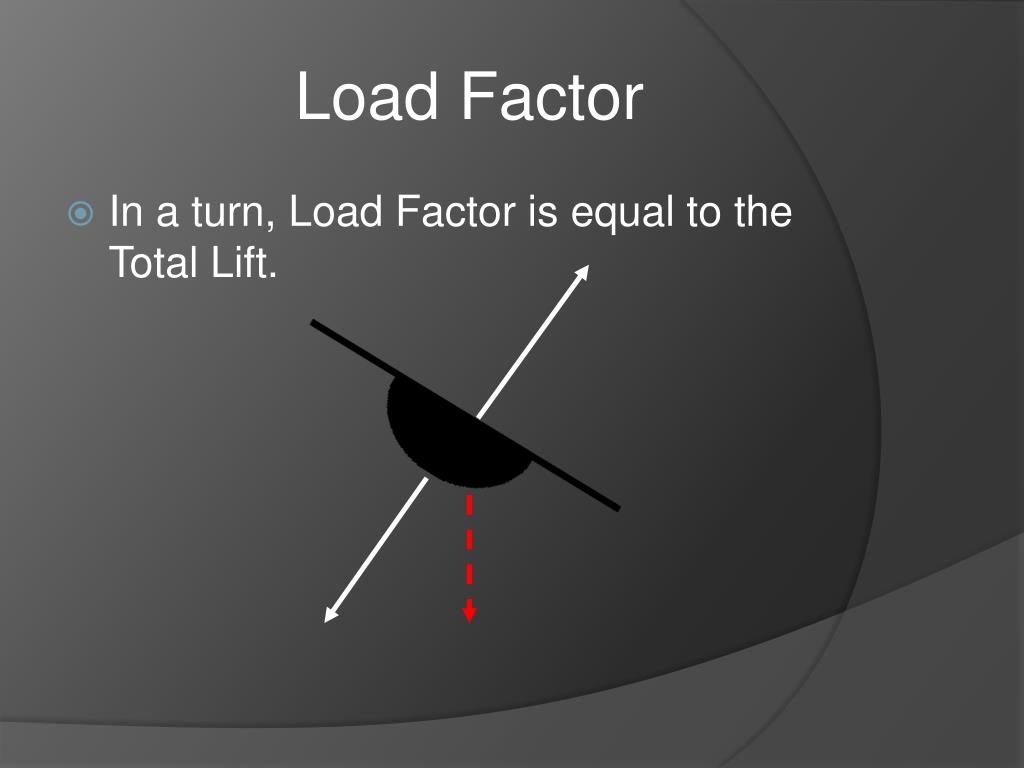

Load Factor

In a turn, Load Factor is equal to the Total Lift.


Load factor3

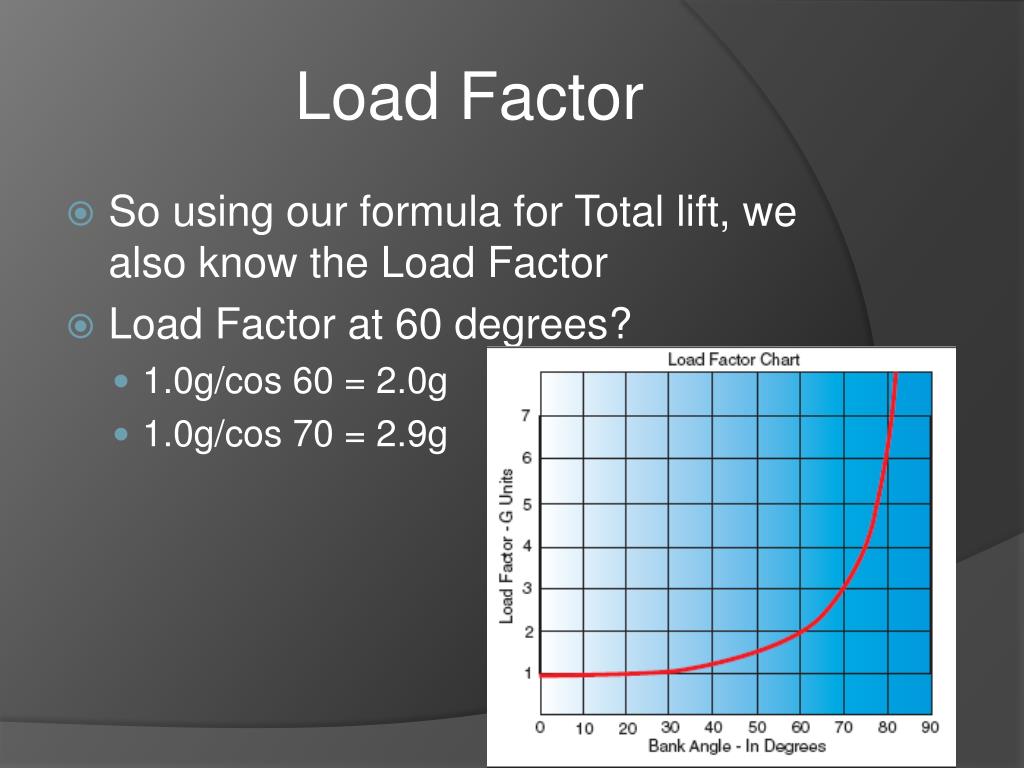

Load Factor

So using our formula for Total lift, we also know the Load Factor

Load Factor at 60 degrees?

1.0g/cos 60 = 2.0g

1.0g/cos 70 = 2.9g


Stability

Stability


Stability1

Stability

The axes of an airplane

Lateral

Longitudinal

Vertical


Stability2

Stability

Stability about the lateral axis affects pitch

Stability about the longitudinal axis affects roll

Stability about the vertical axis affects yaw

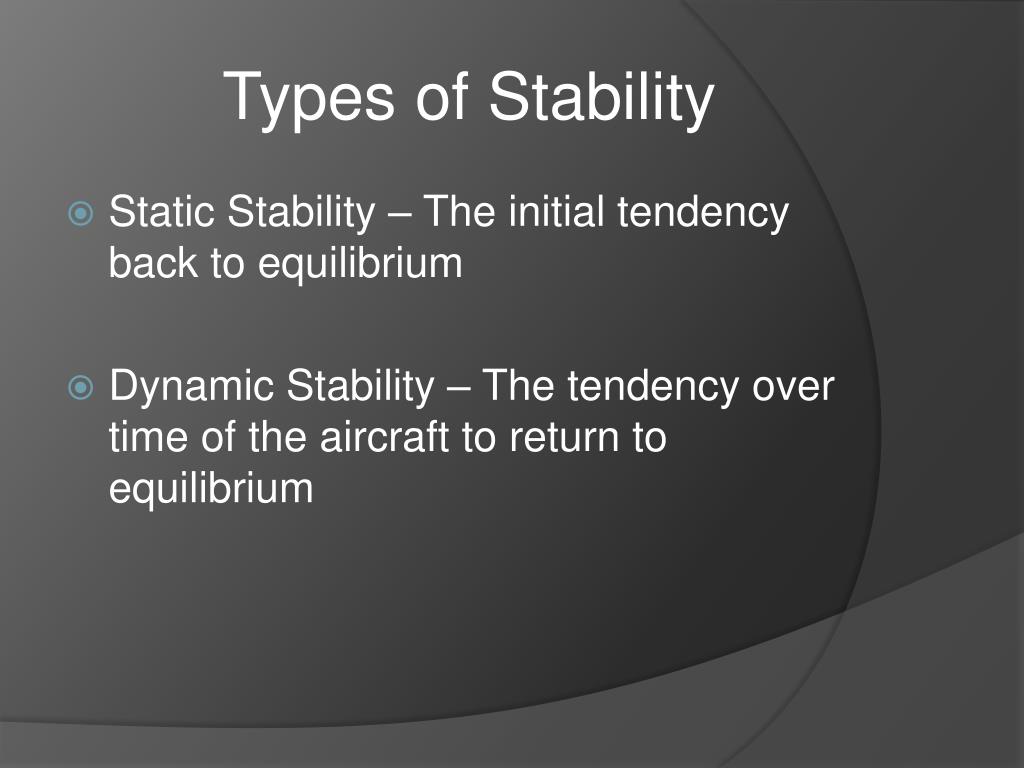

Types of stability

Types of Stability

Static Stability – The initial tendency back to equilibrium

Dynamic Stability – The tendency over time of the aircraft to return to equilibrium

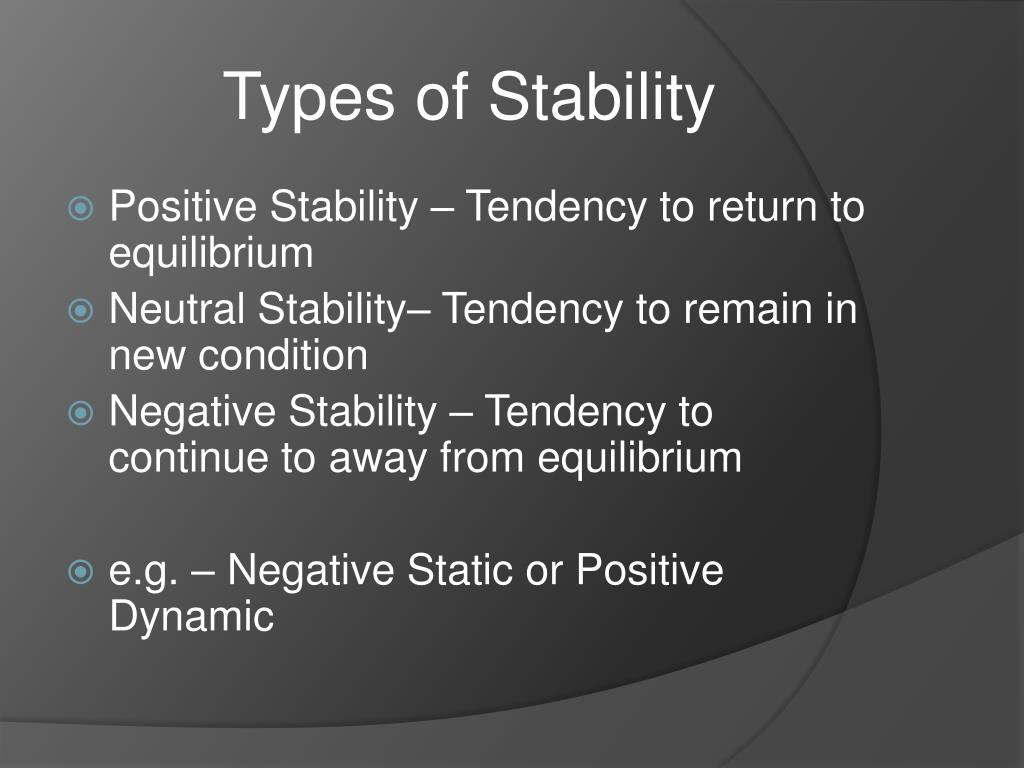

Types of stability1

Types of Stability

Positive Stability – Tendency to return to equilibrium

Neutral Stability– Tendency to remain in new condition

Negative Stability – Tendency to continue to away from equilibrium

e.g. – Negative Static or Positive Dynamic


Stability3

Stability

Stability effects:

Maneuverability

The quality of an aircraft that permits it to be maneuvered easily and to withstand the stresses imposed by maneuvers

Controllability

The quality of the aircraft’s response to the pilot’s control application when maneuvering the aircraft.


Longitudinal stability

Longitudinal Stability

Longitudinal stability is about the lateral axis


Longitudinal stability1

Longitudinal Stability

Three things affect Longitudinal Stability

Location of Wing with respect to CG

Location of the Horizontal Stabilizer with respect to CG

Area of size of the tail surface


Longitudinal stability2

Longitudinal Stability

Downwash of air from the wings strikes the top of the horizontal stabilizer producing downward pressure.


Lateral stability roll

Lateral Stability (Roll)

Lateral stability is about the Longitudinal axis.

Lateral Stability is most commonly attained by adding a dihedral to the wings


Dihedral

Dihedral

Wings are built 1-3 degrees above perpendicular to the longitudinal axis

Wind striking the plane may cause one wing to rise putting the plane in a bank.

With Dihedral the wind strikes the lower wing with a higher Angle of Attack


Dihedral1

Dihedral


Vertical stability yaw

Vertical Stability (Yaw)

Vertical Stability is about the vertical axis.

It is the vertical stabilizer that gives the aircraft stability

Like a weather vane

Like the keel on a ship


Miscellaneous fun

Miscellaneous Fun


Vg diagram

Vg Diagram
