Setup Firewall for QuickBooks Desktop Point of Sale

QuickBooks POS configure firewall automatically for you. Therefore the automatic configuration of firewall causes connectivity issues between server and client workstation. It happens because the firewall blocks the connectivity between server and client workstation.

Download Presentation

Setup Firewall for QuickBooks Desktop Point of Sale

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

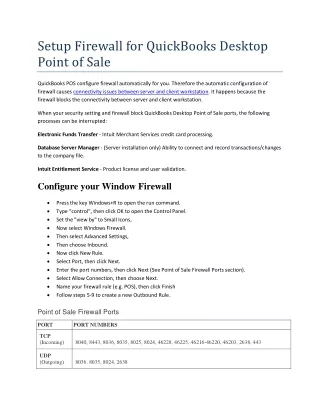

  1. Setup Firewall for QuickBooks Desktop Point of Sale QuickBooks POS configure firewall automatically for you. Therefore the automatic configuration of firewall causes connectivity issues between server and client workstation. It happens because the firewall blocks the connectivity between server and client workstation. When your security setting and firewall block QuickBooks Desktop Point of Sale ports, the following processes can be interrupted: Electronic Funds Transfer - Intuit Merchant Services credit card processing. Database Server Manager - (Server installation only) Ability to connect and record transactions/changes to the company file. Intuit Entitlement Service - Product license and user validation. Configure your Window Firewall Press the key Windows+R to open the run command. Type “control”, then click OK to open the Control Panel. Set the "view by" to Small Icons, Now select Windows Firewall. Then select Advanced Settings, Then choose Inbound. Now click New Rule. Select Port, then click Next. Enter the port numbers, then click Next (See Point of Sale Firewall Ports section). Select Allow Connection, then choose Next. Name your firewall rule (e.g. POS), then click Finish Follow steps 5-9 to create a new Outbound Rule. Point of Sale Firewall Ports PORT PORT NUMBERS TCP (Incoming) 8040, 8443, 8036, 8035, 8025, 8024, 46228, 46225, 46216-46220, 46203, 2638, 443 UDP (Outgoing) 8036, 8035, 8024, 2638

  2. Executable files and their required ports DEFAULT PORT PROGRAM FILE TASKS THAT REQUIRE THE PROGRAM FILE Throughout operation Merchant Service transactions 443 EFTSvr.exe Throughout operation Merchant Service transactions 8443 EFTSvr.exe Conversion from previous version Changing currently running database. Startup Detecting change to QBDatabases.ini Help > Manage my license Throughout operation DataImporter.exe EFTSvr.exe QBDBMgr.exe QBDBMgrN.exe QBPOSDBServiceEx.exe 2638 EFTSvr.exe QBDBMgrN.exe QBPOS.exe Throughout operation Changing currently running database 46203, 46204 Web installation License verification Throughout operation 8024, 8025 File Locations FILE LOCATION 64-bit: C:\Program Files (x86)\Intuit\QuickBooks POS XX\ 32-bit: C:\Program Files\Intuit\QuickBooks POS XX\ Eftsvr.exe (v9 &lower) DataImporter.exe QBPOS.exe QBPOSShell.exe (v10 & higher) 64-bit: C:\Program Files (x86)\Intuit\QuickBooks POS XX\DatabaseServer\ 32-bit: C:\Program Files\Intuit\QuickBooks POS XX\DatabaseServer\ QBDBMgr.exe QBDBMgrN.exe QBPOSDBService.exe Source: https://guides.co/g/setup-firewall-for-quickbooks-desktop-point-of-sale/194608
