Breeam a presentation by adrian doling technical director

The MLM Group

BREEAM

A presentation by

Adrian Doling

Technical Director


Breeam a presentation by adrian doling technical director

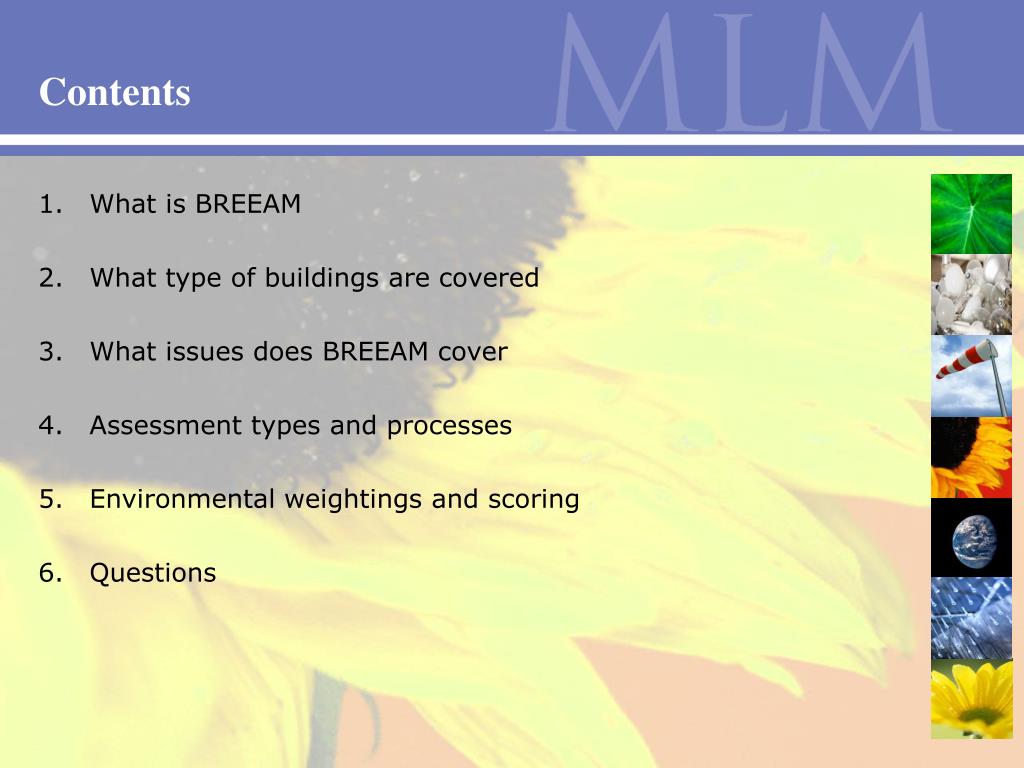

Contents

  • What is BREEAM

  • What type of buildings are covered

  • What issues does BREEAM cover

  • Assessment types and processes

  • Environmental weightings and scoring

  • Questions


Breeam a presentation by adrian doling technical director

1. BREEAM

What is BREEAM?

It stands for Building Research Establishment Environmental

Assessment Method.

What does BREEAM do?

Measures the environmental performance of a building throughout

its life.


Breeam a presentation by adrian doling technical director

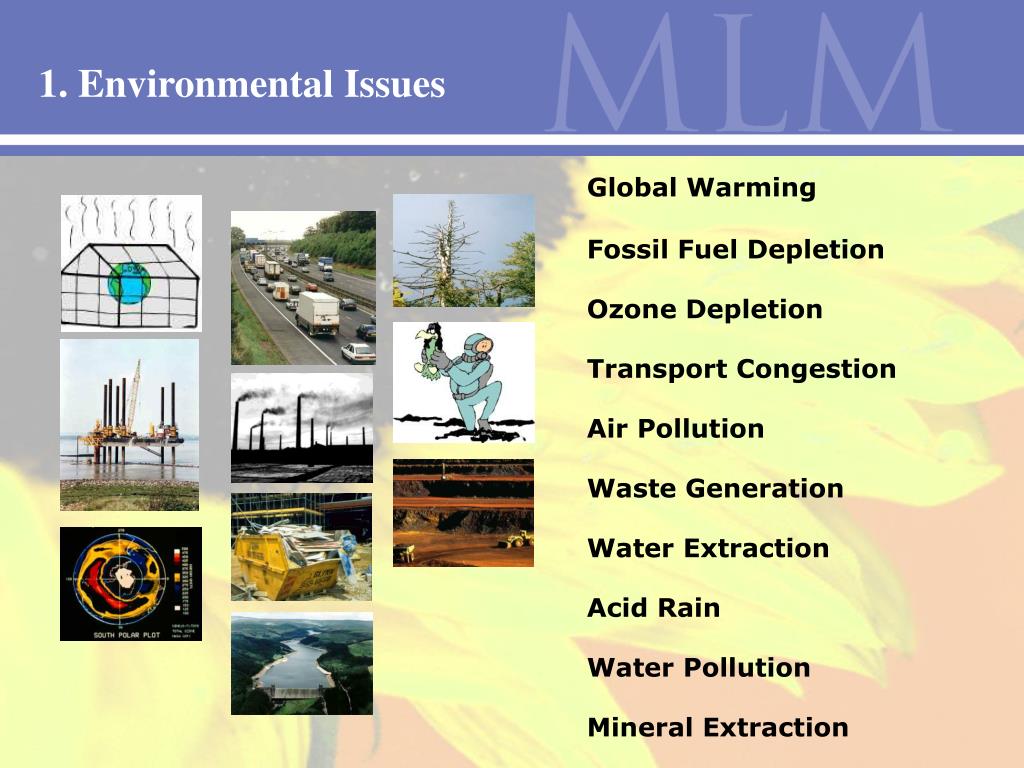

Global Warming

Fossil Fuel Depletion

Ozone Depletion

Transport Congestion

Air Pollution

Waste Generation

Water Extraction

Acid Rain

Water Pollution

Mineral Extraction

1. Environmental Issues


Breeam a presentation by adrian doling technical director

1. BREEAM – The Benefits

  • Provides comprehensive method of measuring environmental performance

  • Differentiates developments with higher environmental

  • performance

  • Quality mark stating that this building is ahead of regulations

  • Low running costs and improved health and well being for

  • occupants

  • Method of demonstrating environmental credentials to funding organisations, client, investor, planning authority etc.


Breeam a presentation by adrian doling technical director

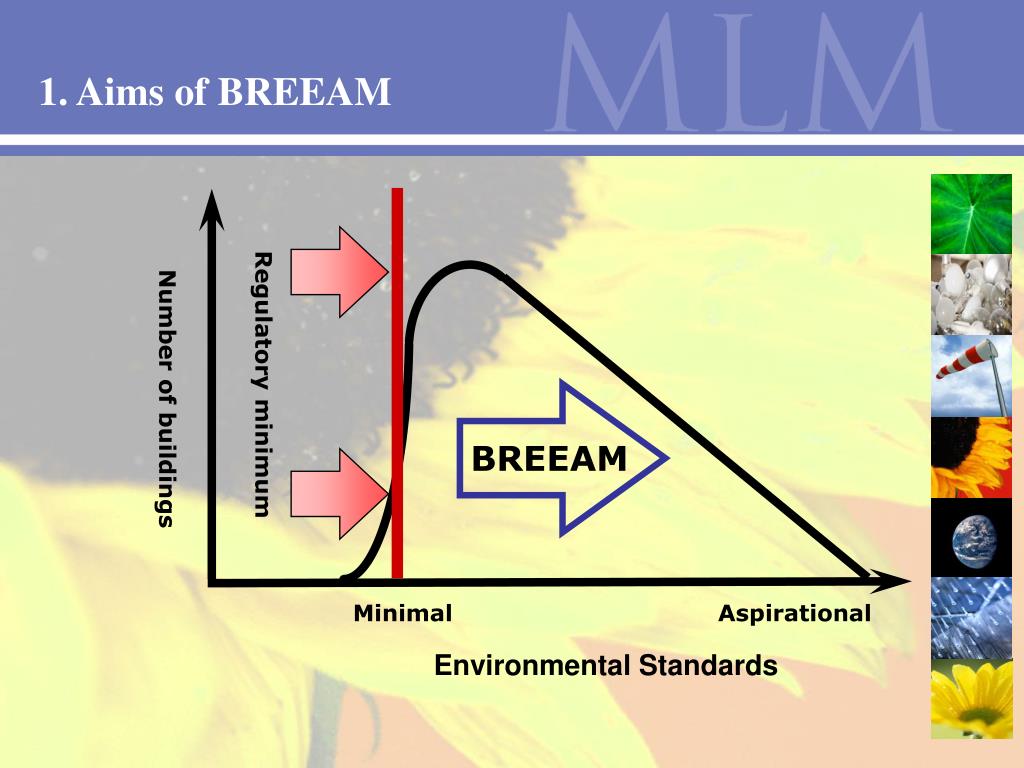

1. Aims of BREEAM

Regulatory minimum

BREEAM

Number of buildings

Minimal

Aspirational

Environmental Standards


Breeam a presentation by adrian doling technical director

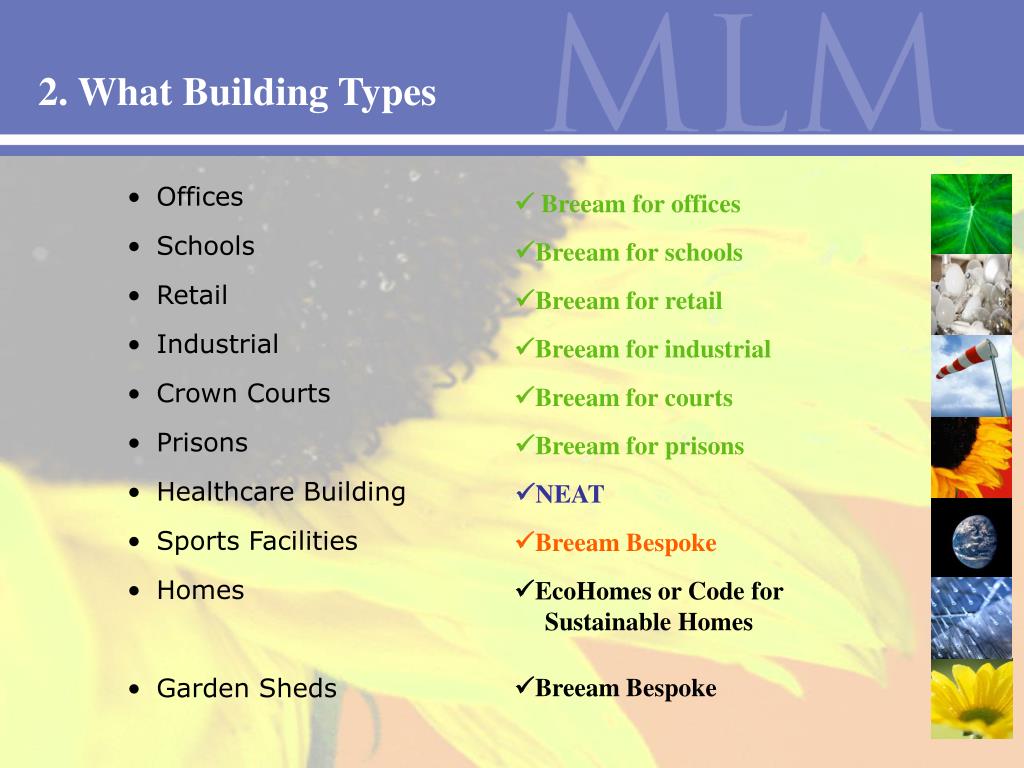

2. What Building Types

  • Offices

  • Schools

  • Retail

  • Industrial

  • Crown Courts

  • Prisons

  • Healthcare Building

  • Sports Facilities

  • Homes

  • Garden Sheds

 Breeam for offices

Breeam for schools

Breeam for retail

Breeam for industrial

Breeam for courts

Breeam for prisons

NEAT

Breeam Bespoke

EcoHomes or Code for Sustainable Homes

Breeam Bespoke


Breeam a presentation by adrian doling technical director

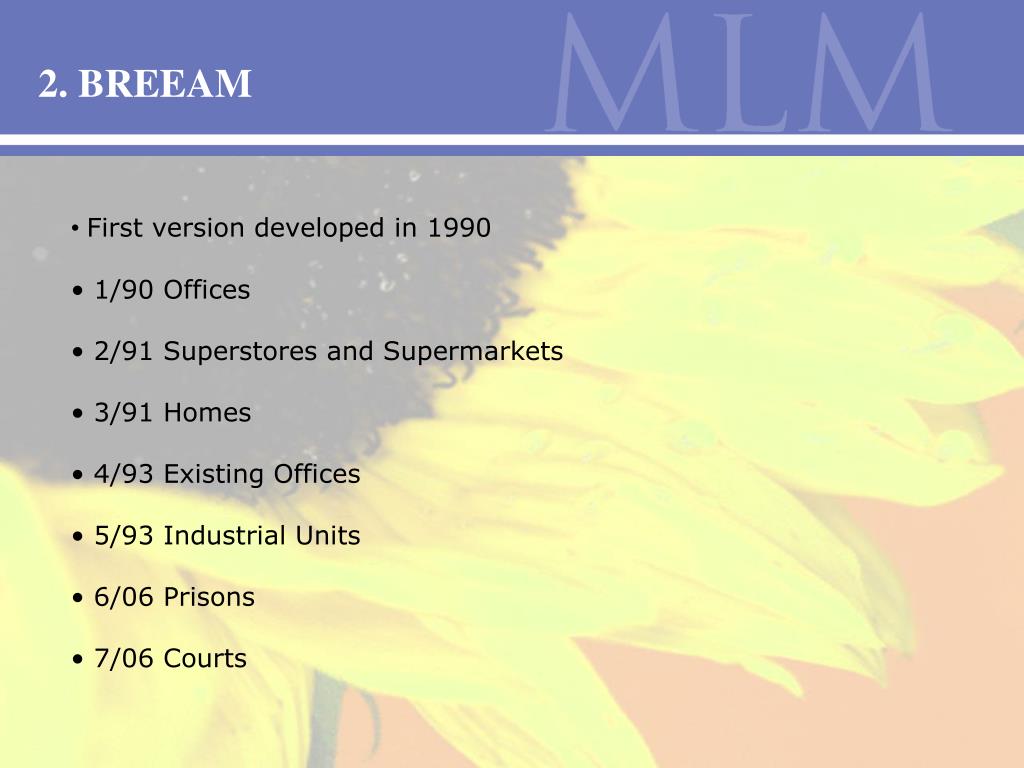

2. BREEAM

  • First version developed in 1990

  • 1/90 Offices

  • 2/91 Superstores and Supermarkets

  • 3/91 Homes

  • 4/93 Existing Offices

  • 5/93 Industrial Units

  • 6/06 Prisons

  • 7/06 Courts


Breeam a presentation by adrian doling technical director

2. EcoHomes

  • EcoHomes is an environmental assessment method for homes, launched by the Building Research Establishment (BRE) in 2000.

  • It is the domestic version of BREEAM (Building Research Establishment Environmental Assessment Method).

  • The current version went live 6 April 2006, all development registered after that date have to be assessed against EcoHomes 2006.

  • NB: Unless planning permission granted before 6 April 2006.


Breeam a presentation by adrian doling technical director

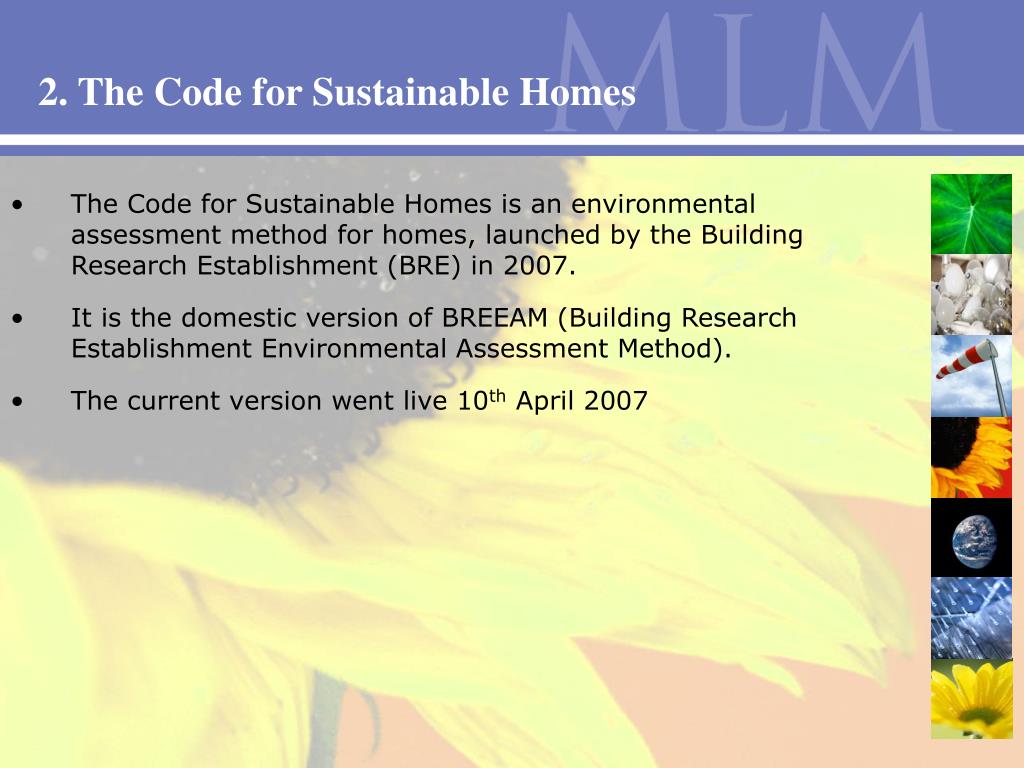

2. The Code for Sustainable Homes

  • The Code for Sustainable Homes is an environmental assessment method for homes, launched by the Building Research Establishment (BRE) in 2007.

  • It is the domestic version of BREEAM (Building Research Establishment Environmental Assessment Method).

  • The current version went live 10th April 2007


Breeam a presentation by adrian doling technical director

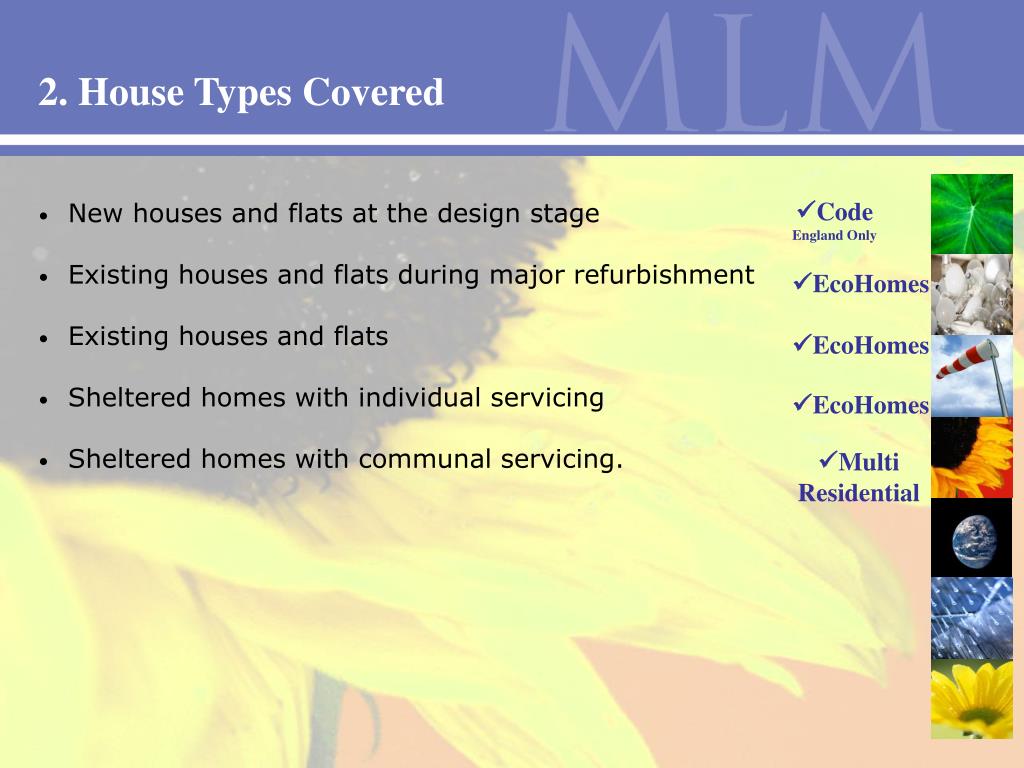

2. House Types Covered

  • New houses and flats at the design stage

  • Existing houses and flats during major refurbishment

  • Existing houses and flats

  • Sheltered homes with individual servicing

  • Sheltered homes with communal servicing.

Code England Only

EcoHomes

EcoHomes

EcoHomes

Multi Residential


Breeam a presentation by adrian doling technical director

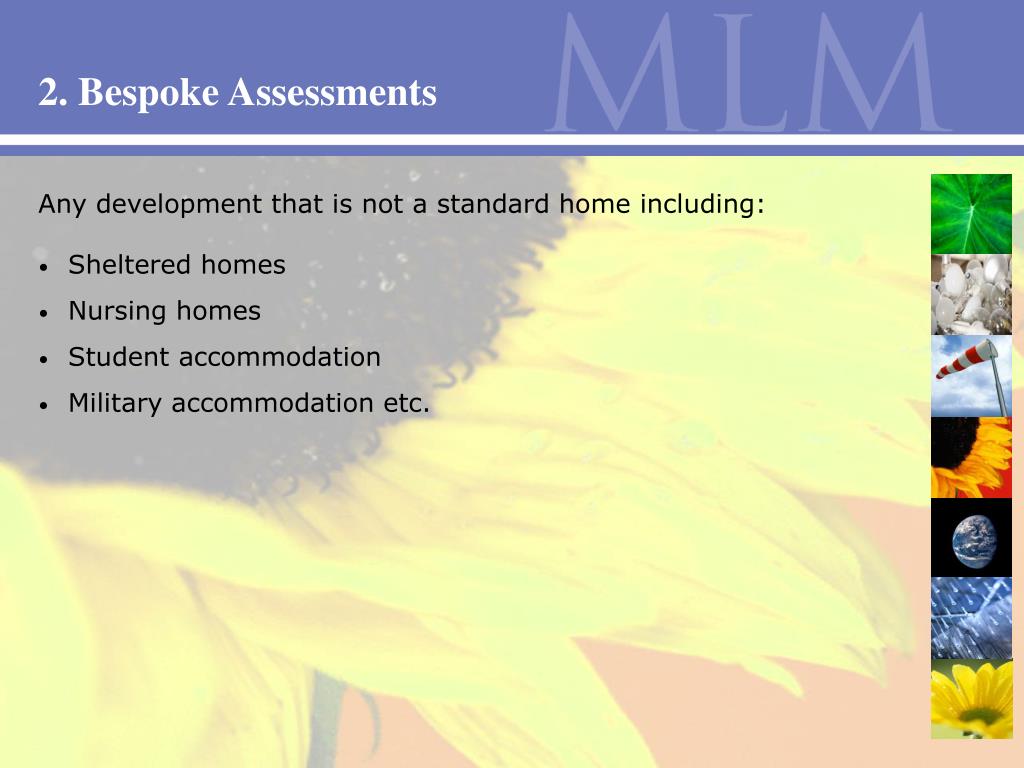

2. Bespoke Assessments

Any development that is not a standard home including:

  • Sheltered homes

  • Nursing homes

  • Student accommodation

  • Military accommodation etc.


Breeam a presentation by adrian doling technical director

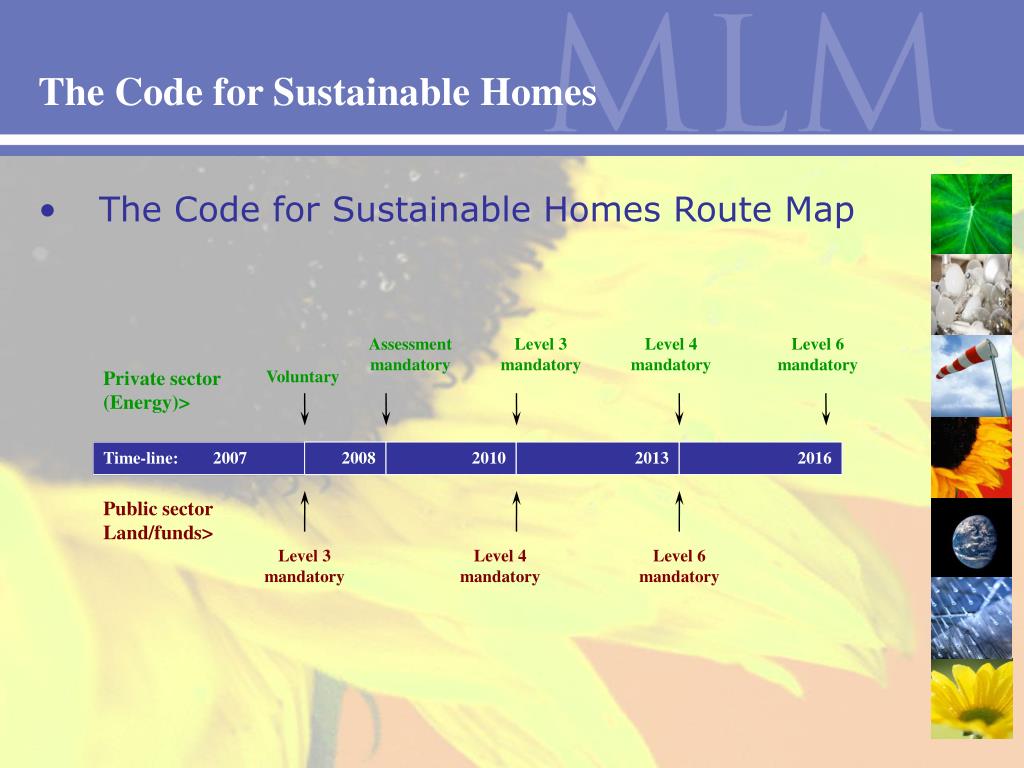

Assessment

mandatory

Level 3

mandatory

Level 4

mandatory

Level 6

mandatory

Private sector

(Energy)>

Voluntary

Time-line: 2007

2008

2010

2013

2016

Public sector

Land/funds>

Level 3

mandatory

Level 4

mandatory

Level 6

mandatory

The Code for Sustainable Homes

  • The Code for Sustainable Homes Route Map


Breeam a presentation by adrian doling technical director

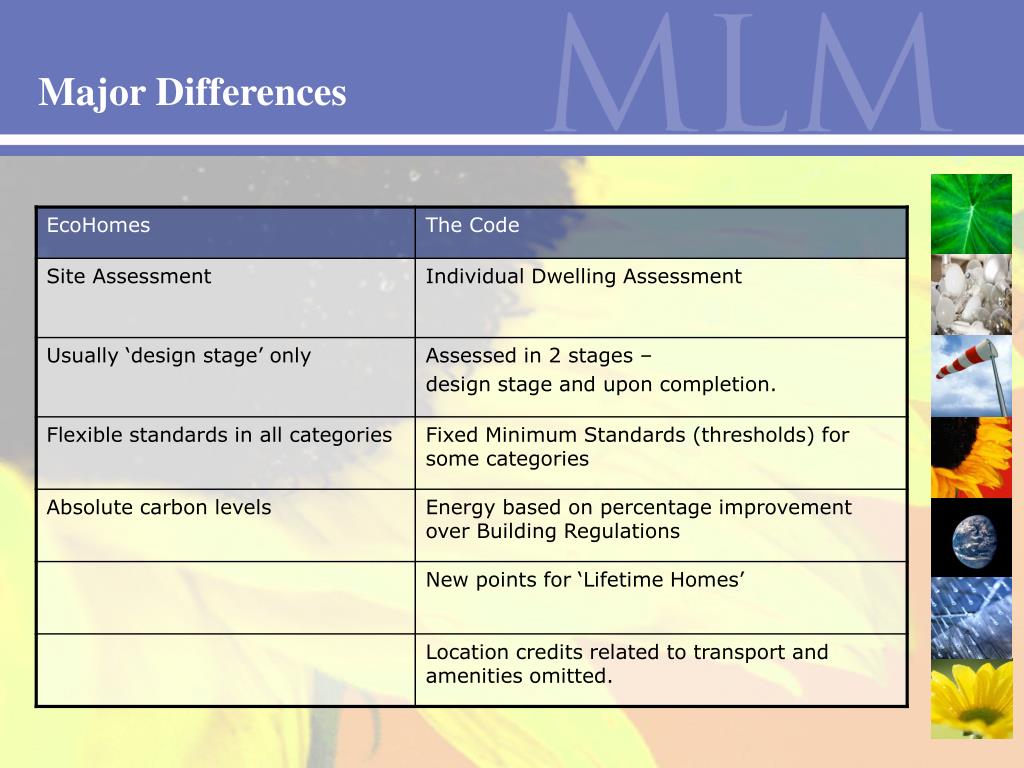

Major Differences


Breeam a presentation by adrian doling technical director

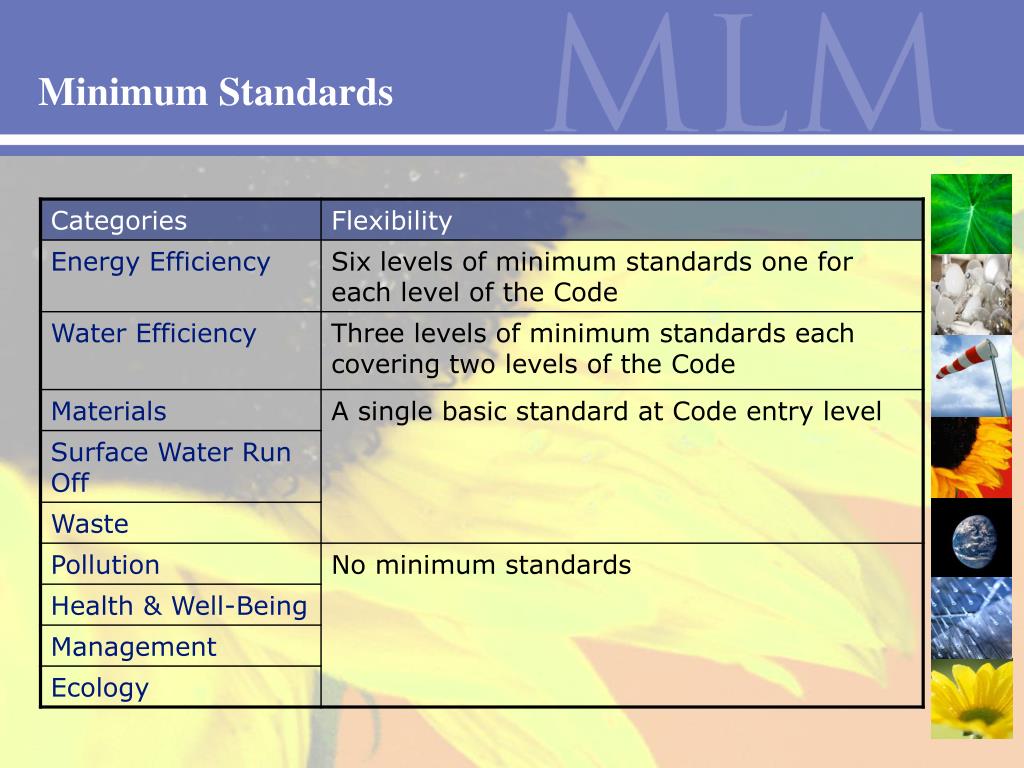

Minimum Standards


Breeam a presentation by adrian doling technical director

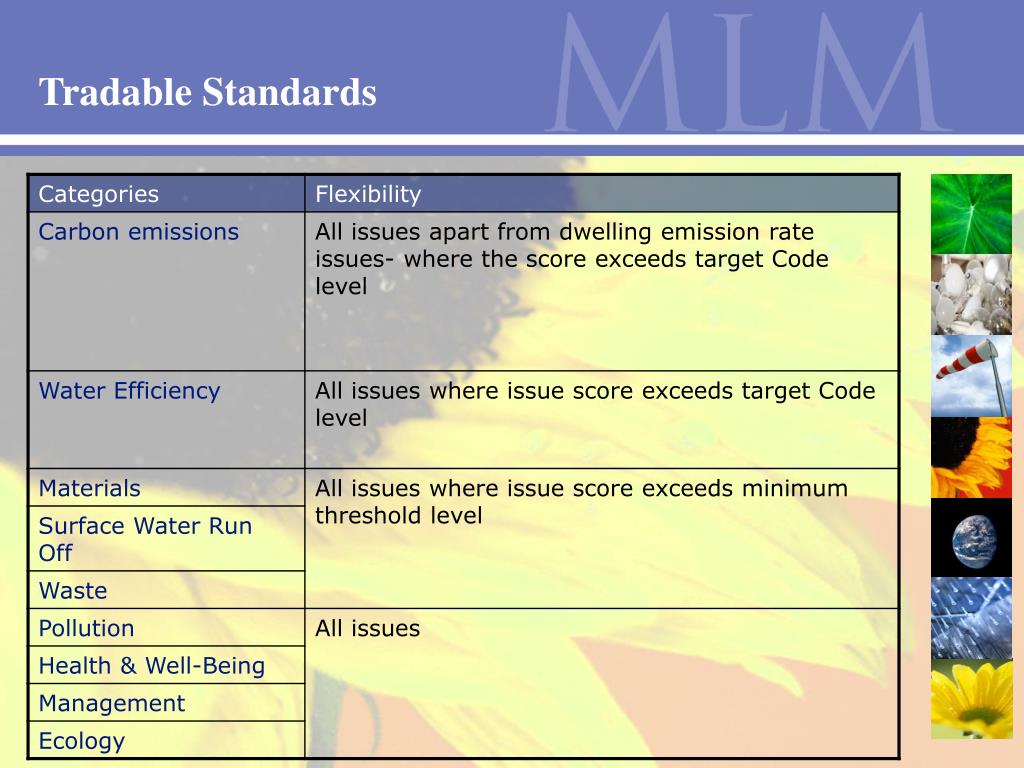

Tradable Standards


Breeam a presentation by adrian doling technical director

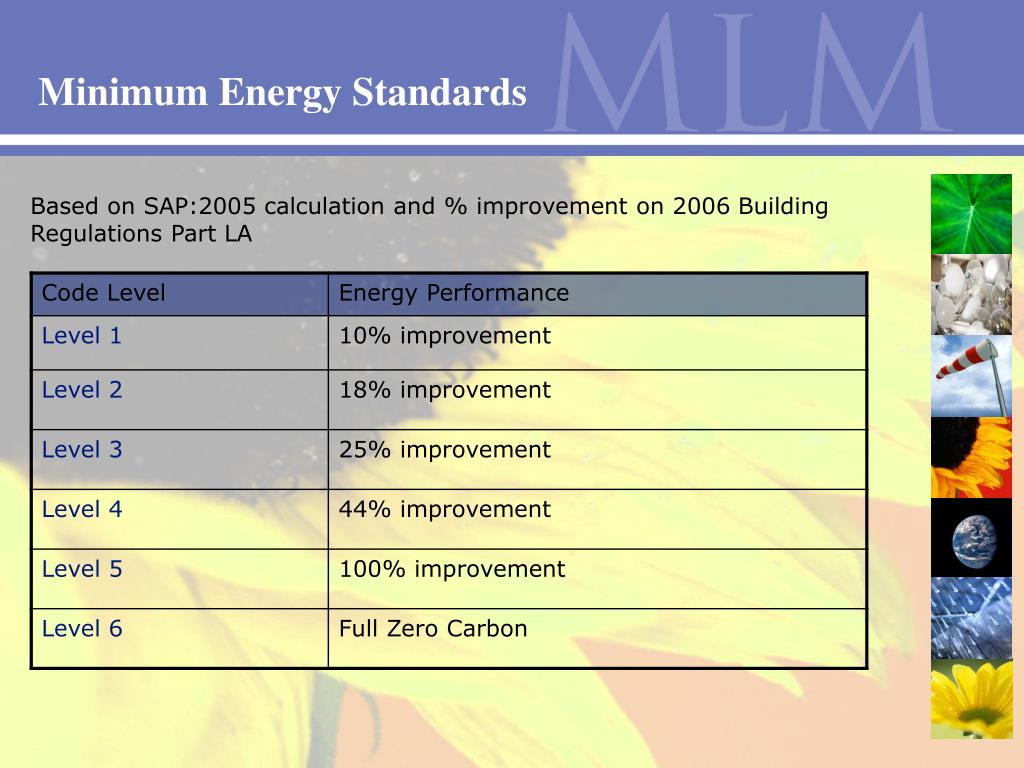

Minimum Energy Standards

Based on SAP:2005 calculation and % improvement on 2006 Building Regulations Part LA


Breeam a presentation by adrian doling technical director

Minimum Water Standards

  • Based on consumption of internal potable water inlitres/person/ dayusing the Code Water Calculator

  • Levels 1 & 2 – Above water regulations level (120 l / p / d)

  • Levels 3 & 4 – Cost effective water saving fittings (105 l / p / d)

  • Levels 5 & 6– Water recycling/ rainwater collection (80 l / p / d)


Breeam a presentation by adrian doling technical director

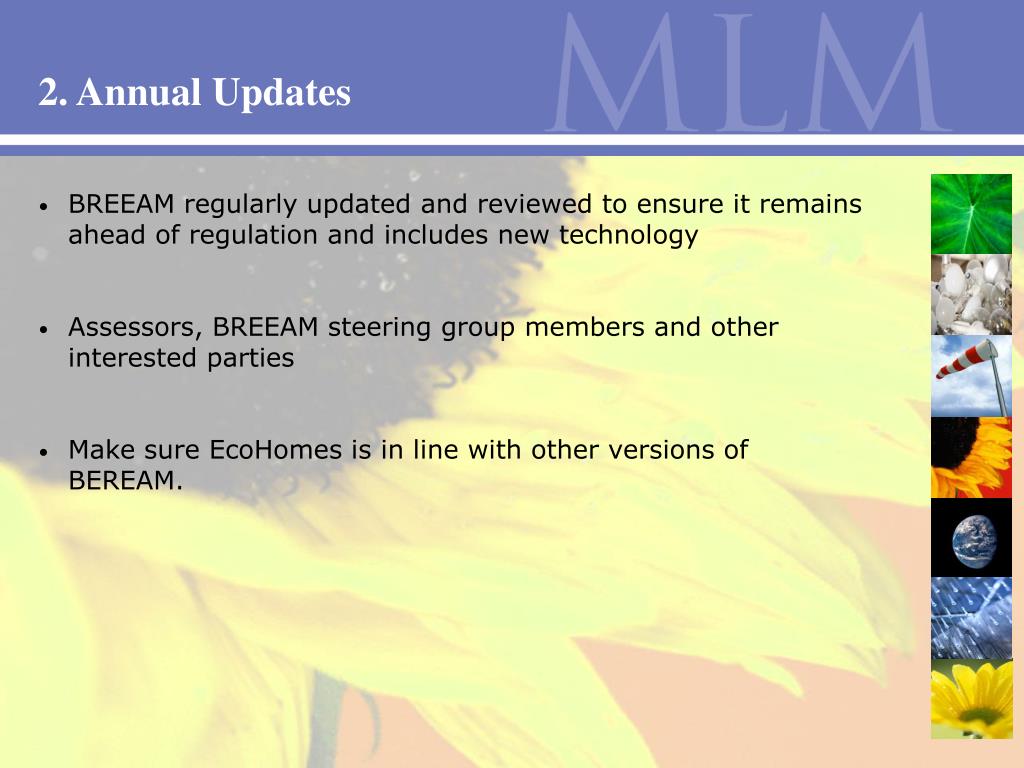

2. Annual Updates

  • BREEAM regularly updated and reviewed to ensure it remains ahead of regulation and includes new technology

  • Assessors, BREEAM steering group members and other interested parties

  • Make sure EcoHomes is in line with other versions of BEREAM.


Breeam a presentation by adrian doling technical director

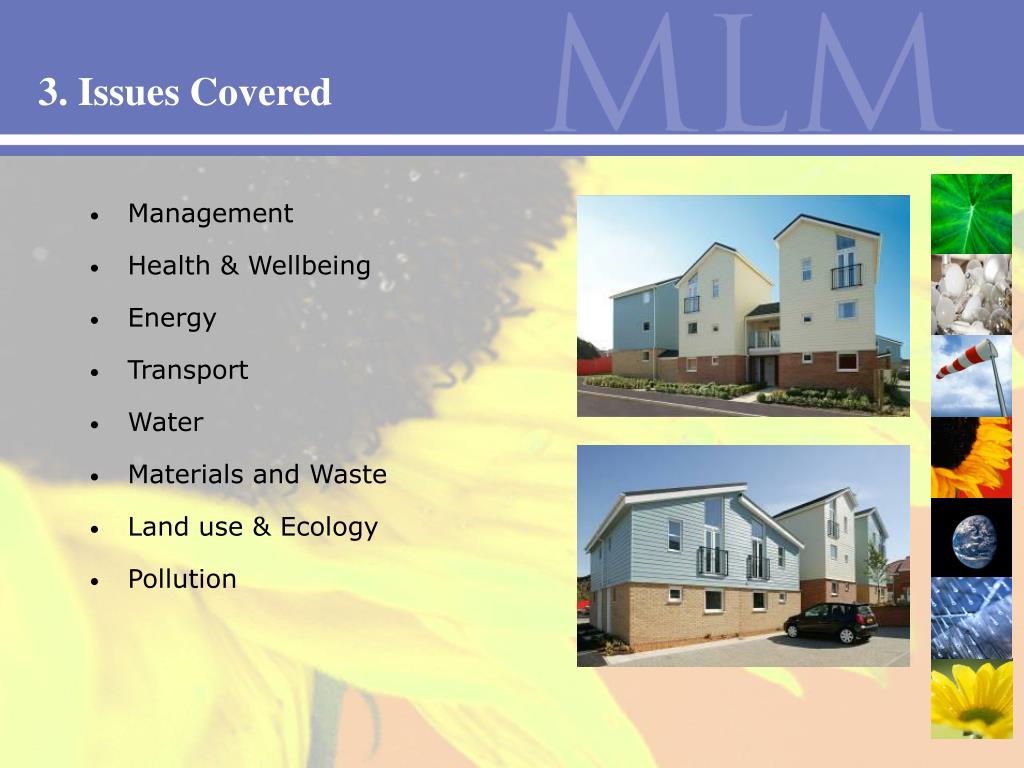

3. Issues Covered

  • Management

  • Health & Wellbeing

  • Energy

  • Transport

  • Water

  • Materials and Waste

  • Land use & Ecology

  • Pollution


Breeam a presentation by adrian doling technical director

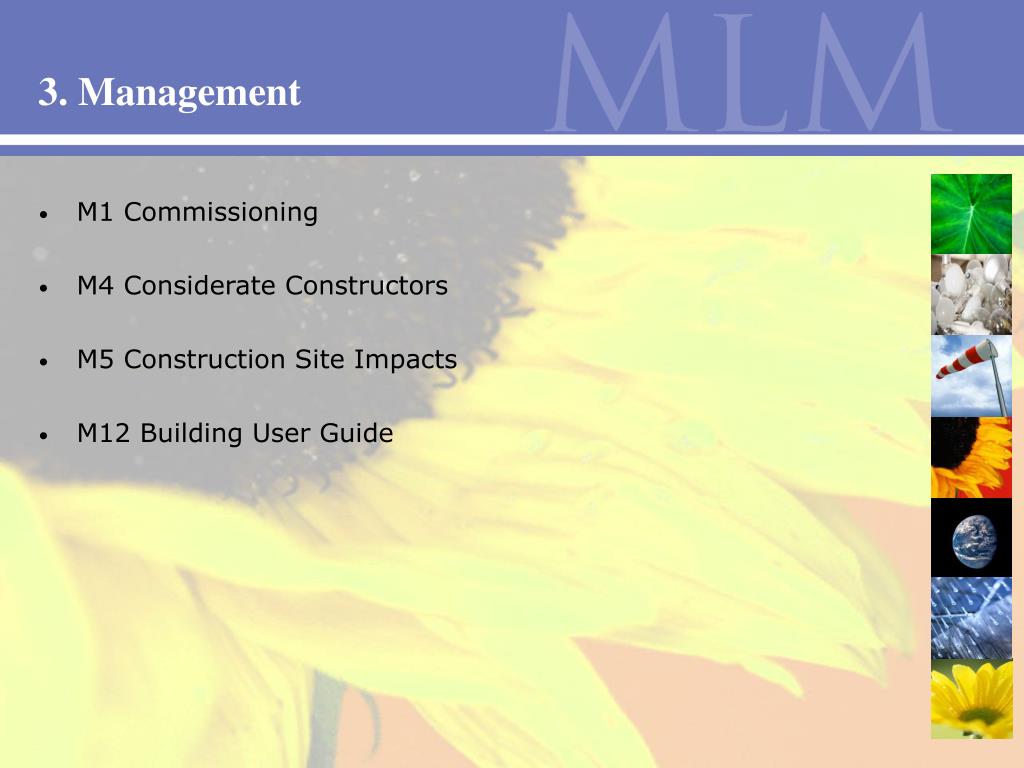

3. Management

  • M1 Commissioning

  • M4 Considerate Constructors

  • M5 Construction Site Impacts

  • M12 Building User Guide


Breeam a presentation by adrian doling technical director

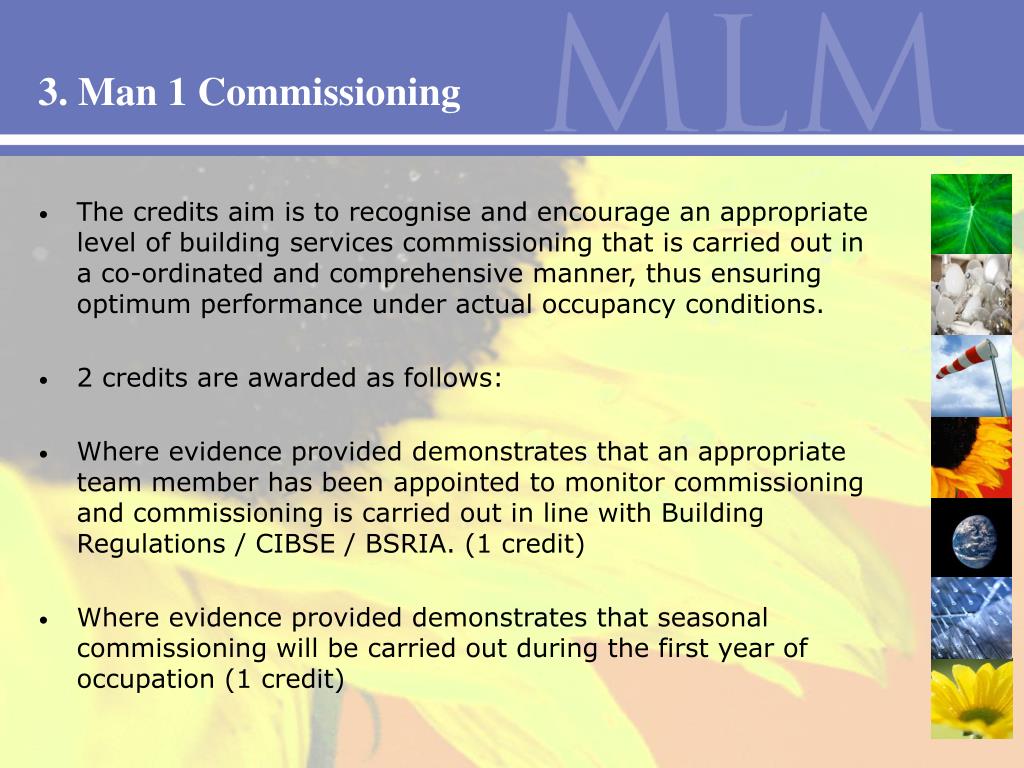

3. Man 1 Commissioning

  • The credits aim is to recognise and encourage an appropriate level of building services commissioning that is carried out in a co-ordinated and comprehensive manner, thus ensuring optimum performance under actual occupancy conditions.

  • 2 credits are awarded as follows:

  • Where evidence provided demonstrates that an appropriate team member has been appointed to monitor commissioning and commissioning is carried out in line with Building Regulations / CIBSE / BSRIA. (1 credit)

  • Where evidence provided demonstrates that seasonal commissioning will be carried out during the first year of occupation (1 credit)


Breeam a presentation by adrian doling technical director

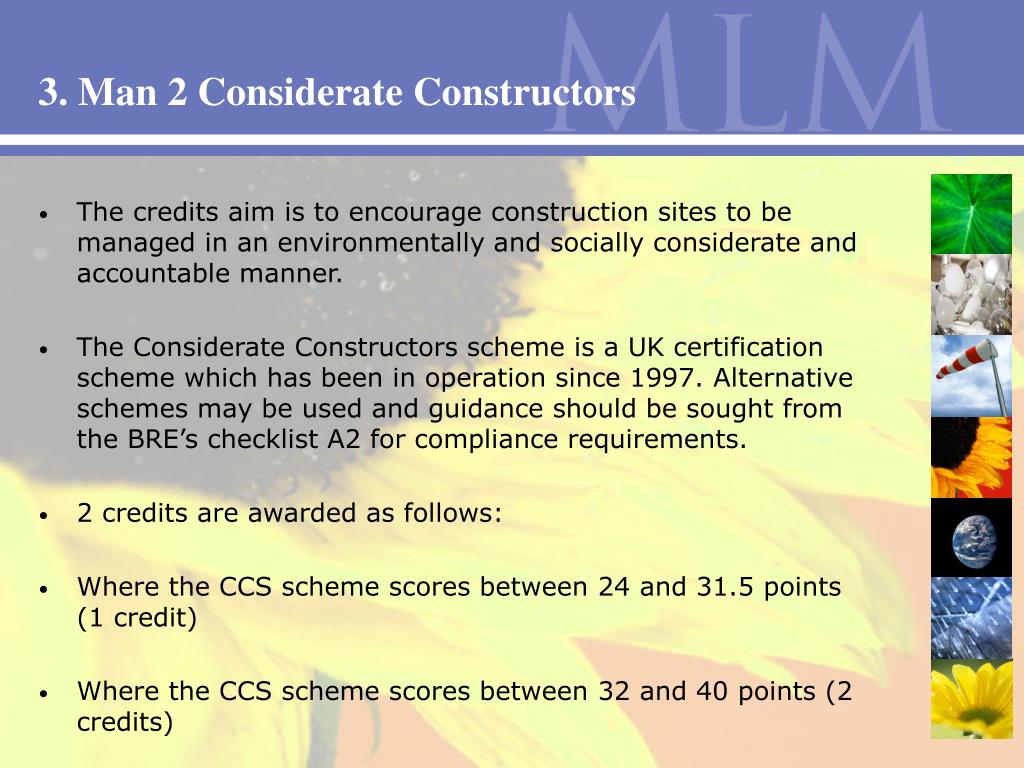

3. Man 2 Considerate Constructors

  • The credits aim is to encourage construction sites to be managed in an environmentally and socially considerate and accountable manner.

  • The Considerate Constructors scheme is a UK certification scheme which has been in operation since 1997. Alternative schemes may be used and guidance should be sought from the BRE’s checklist A2 for compliance requirements.

  • 2 credits are awarded as follows:

  • Where the CCS scheme scores between 24 and 31.5 points (1 credit)

  • Where the CCS scheme scores between 32 and 40 points (2 credits)


Breeam a presentation by adrian doling technical director

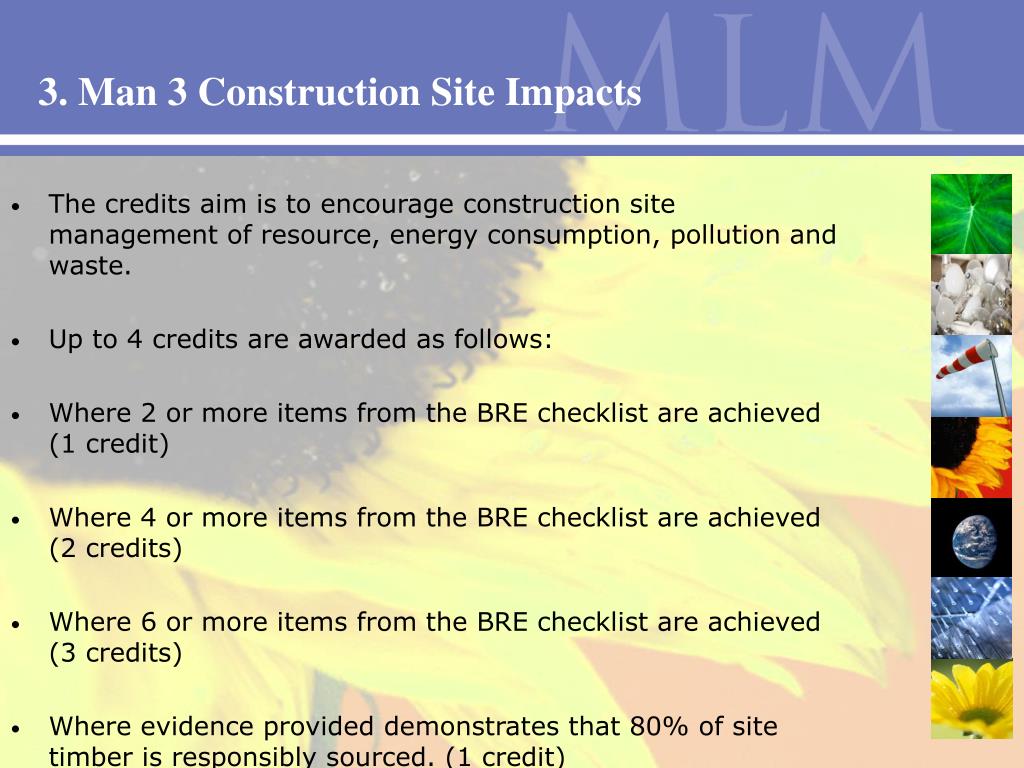

3. Man 3 Construction Site Impacts

  • The credits aim is to encourage construction site management of resource, energy consumption, pollution and waste.

  • Up to 4 credits are awarded as follows:

  • Where 2 or more items from the BRE checklist are achieved (1 credit)

  • Where 4 or more items from the BRE checklist are achieved (2 credits)

  • Where 6 or more items from the BRE checklist are achieved (3 credits)

  • Where evidence provided demonstrates that 80% of site timber is responsibly sourced. (1 credit)


Breeam a presentation by adrian doling technical director

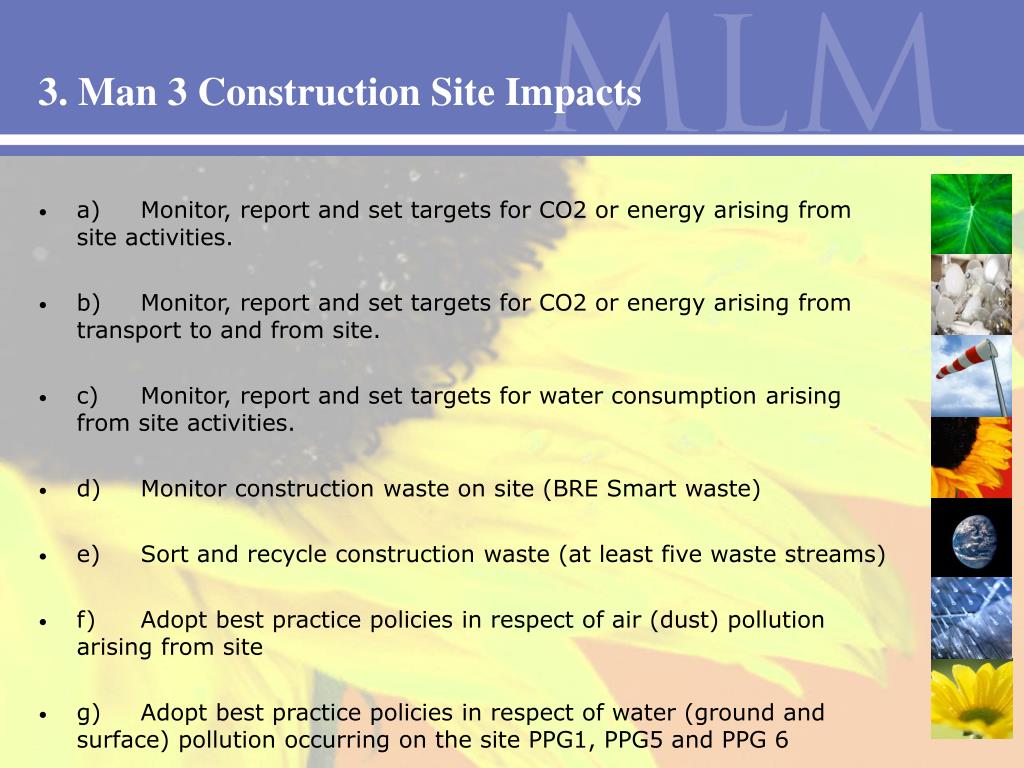

3. Man 3 Construction Site Impacts

  • a)Monitor, report and set targets for CO2 or energy arising from site activities.

  • b)Monitor, report and set targets for CO2 or energy arising from transport to and from site.

  • c)Monitor, report and set targets for water consumption arising from site activities.

  • d)Monitor construction waste on site (BRE Smart waste)

  • e)Sort and recycle construction waste (at least five waste streams)

  • f)Adopt best practice policies in respect of air (dust) pollution arising from site

  • g)Adopt best practice policies in respect of water (ground and surface) pollution occurring on the site PPG1, PPG5 and PPG 6


Breeam a presentation by adrian doling technical director

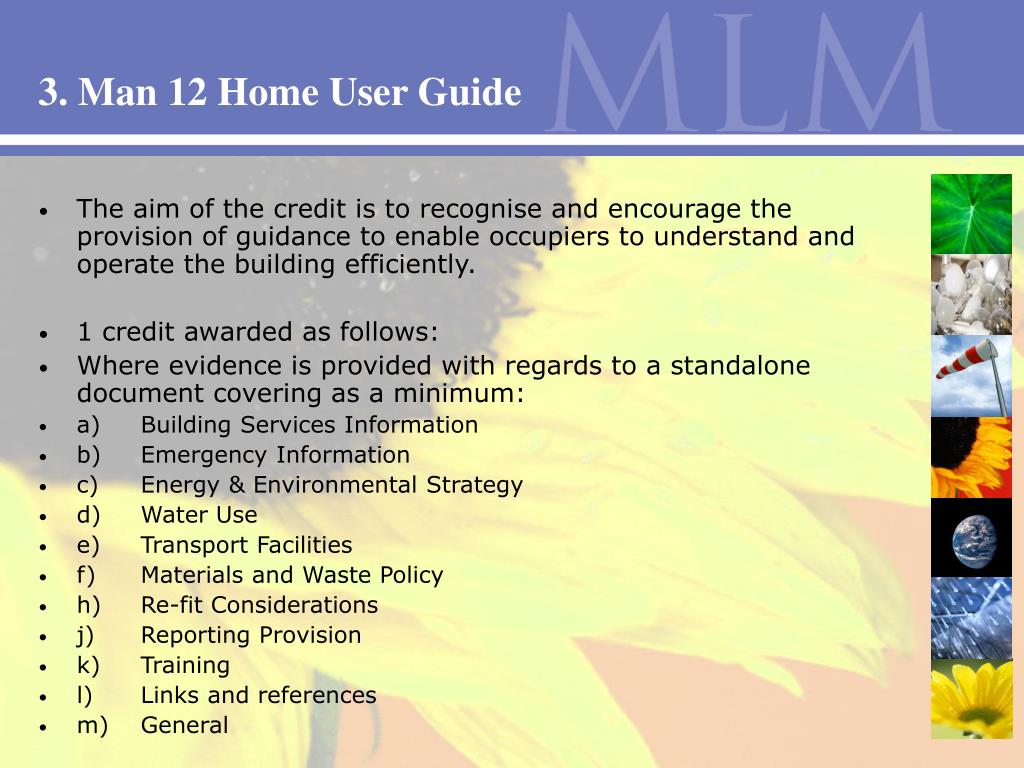

3. Man 12 Home User Guide

  • The aim of the credit is to recognise and encourage the provision of guidance to enable occupiers to understand and operate the building efficiently.

  • 1 credit awarded as follows:

  • Where evidence is provided with regards to a standalone document covering as a minimum:

  • a)Building Services Information

  • b)Emergency Information

  • c)Energy & Environmental Strategy

  • d)Water Use

  • e)Transport Facilities

  • f)Materials and Waste Policy

  • h)Re-fit Considerations

  • j)Reporting Provision

  • k)Training

  • l)Links and references

  • m)General


Breeam a presentation by adrian doling technical director

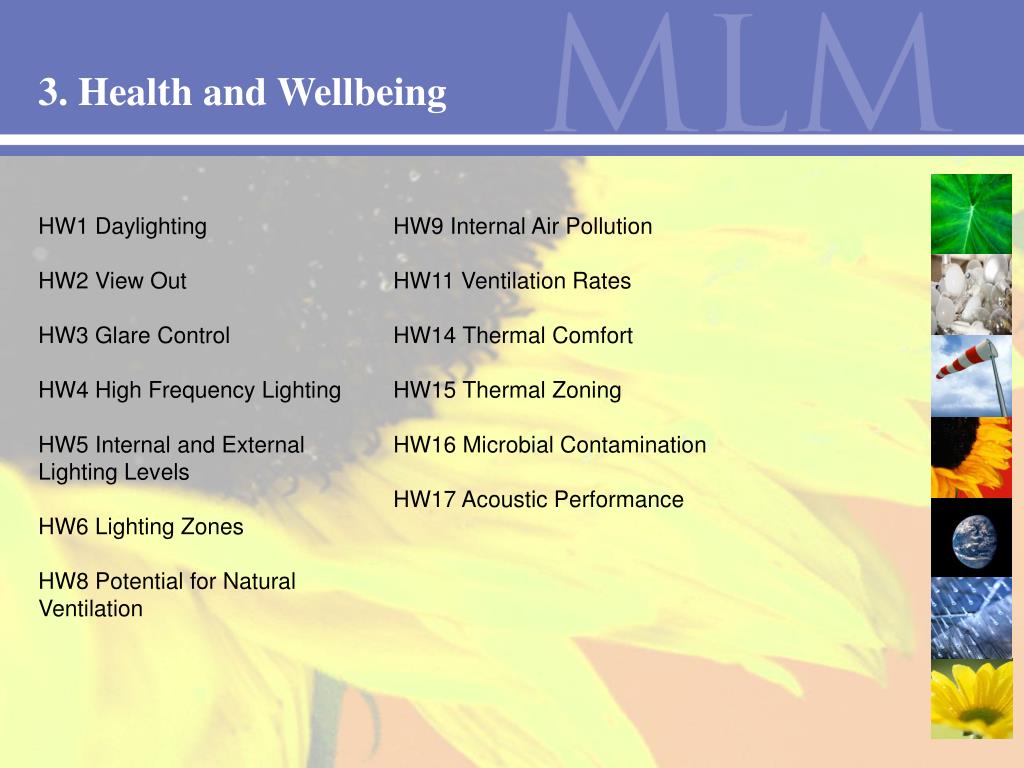

3. Health and Wellbeing

HW1 Daylighting

HW2 View Out

HW3 Glare Control

HW4 High Frequency Lighting

HW5 Internal and External Lighting Levels

HW6 Lighting Zones

HW8 Potential for Natural Ventilation

HW9 Internal Air Pollution

HW11 Ventilation Rates

HW14 Thermal Comfort

HW15 Thermal Zoning

HW16 Microbial Contamination

HW17 Acoustic Performance


Breeam a presentation by adrian doling technical director

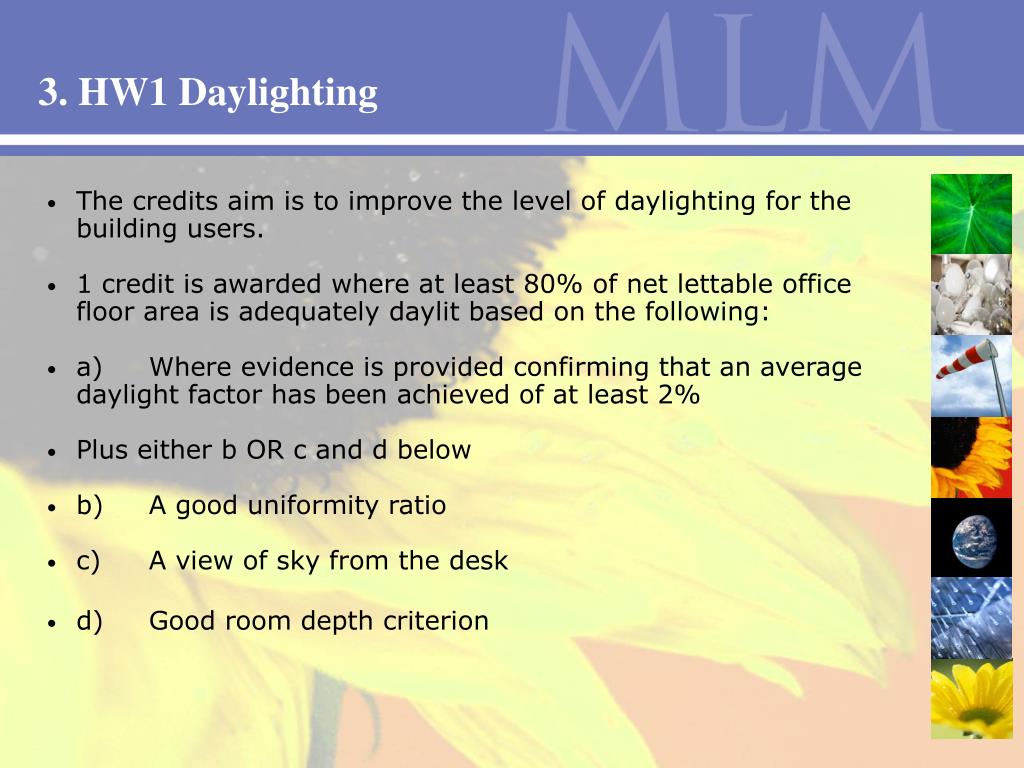

3. HW1 Daylighting

  • The credits aim is to improve the level of daylighting for the building users.

  • 1 credit is awarded where at least 80% of net lettable office floor area is adequately daylit based on the following:

  • a)Where evidence is provided confirming that an average daylight factor has been achieved of at least 2%

  • Plus either b OR c and d below

  • b)A good uniformity ratio

  • c)A view of sky from the desk

  • d)Good room depth criterion


Breeam a presentation by adrian doling technical director

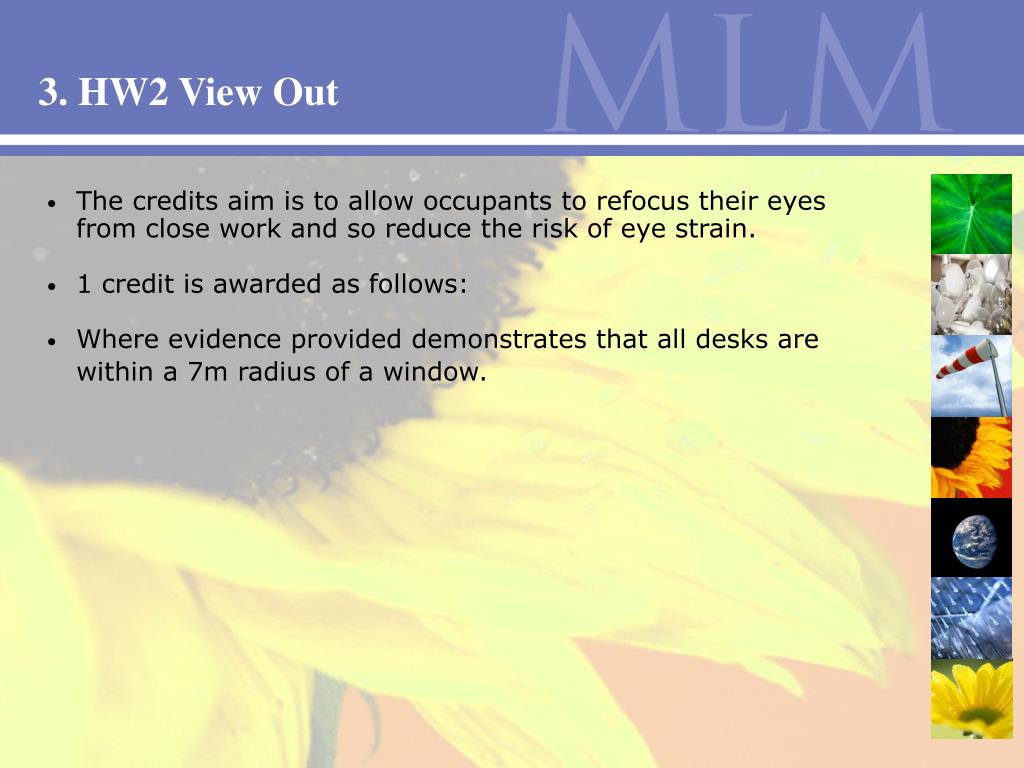

3. HW2 View Out

  • The credits aim is to allow occupants to refocus their eyes from close work and so reduce the risk of eye strain.

  • 1 credit is awarded as follows:

  • Where evidence provided demonstrates that all desks are within a 7m radius of a window.


Breeam a presentation by adrian doling technical director

3. HW3 Glare Control

  • The aim of the credit is to reduce problems with glare in internal occupied spaces.

  • 1 credit is awarded as follows:

  • Where evidence provided demonstrates that an occupant controlled glare control system (e.g. internal or external blinds) is fitted.


Breeam a presentation by adrian doling technical director

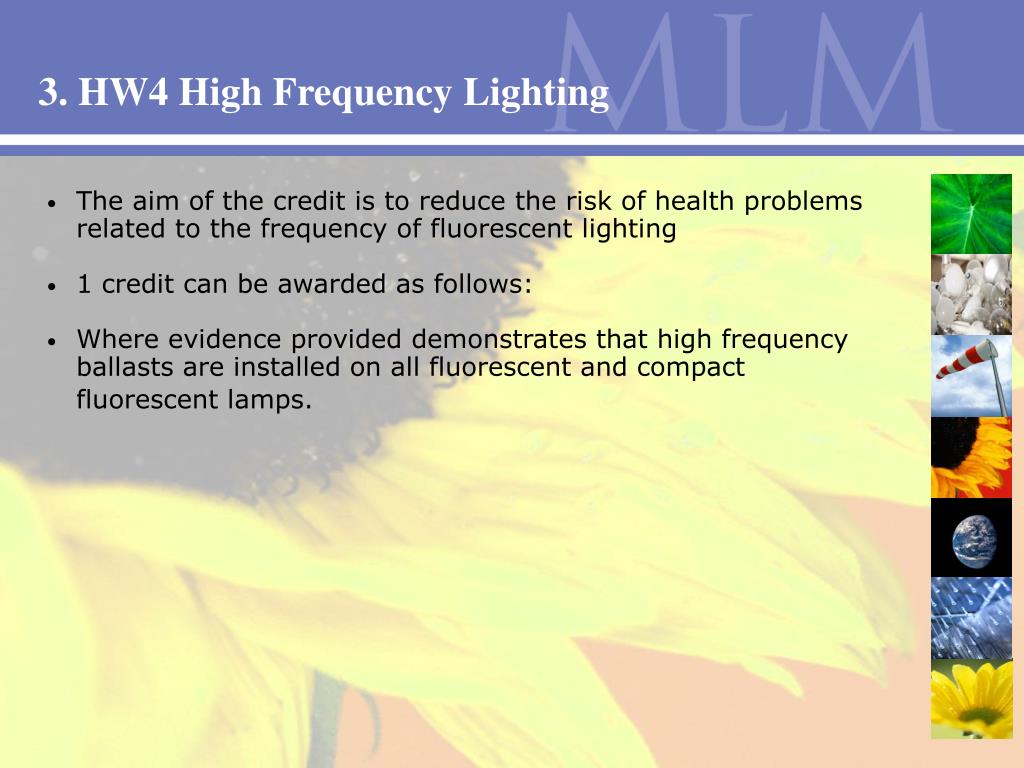

3. HW4 High Frequency Lighting

  • The aim of the credit is to reduce the risk of health problems related to the frequency of fluorescent lighting

  • 1 credit can be awarded as follows:

  • Where evidence provided demonstrates that high frequency ballasts are installed on all fluorescent and compact fluorescent lamps.


Breeam a presentation by adrian doling technical director

3. HW5 Internal & External Lighting Levels

  • The credits aim is to ensure lighting has been designed in line with best practice for suitability and visual comfort.

  • 1 credit is awarded as follows:

  • Where evidence provided demonstrates that all internal and external lighting, where relevant, is specified in accordance with the appropriate maintained illuminance levels (in lux) recommended by CIBSE


Breeam a presentation by adrian doling technical director

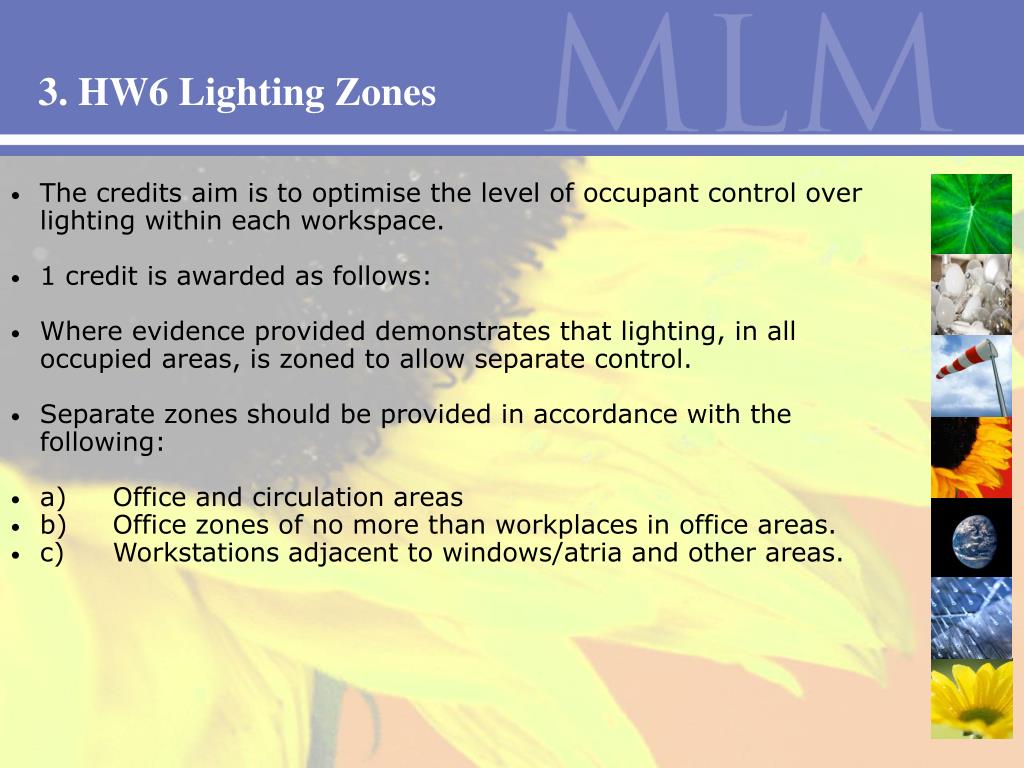

3. HW6 Lighting Zones

  • The credits aim is to optimise the level of occupant control over lighting within each workspace.

  • 1 credit is awarded as follows:

  • Where evidence provided demonstrates that lighting, in all occupied areas, is zoned to allow separate control.

  • Separate zones should be provided in accordance with the following:

  • a)Office and circulation areas

  • b)Office zones of no more than workplaces in office areas.

  • c)Workstations adjacent to windows/atria and other areas.


Breeam a presentation by adrian doling technical director

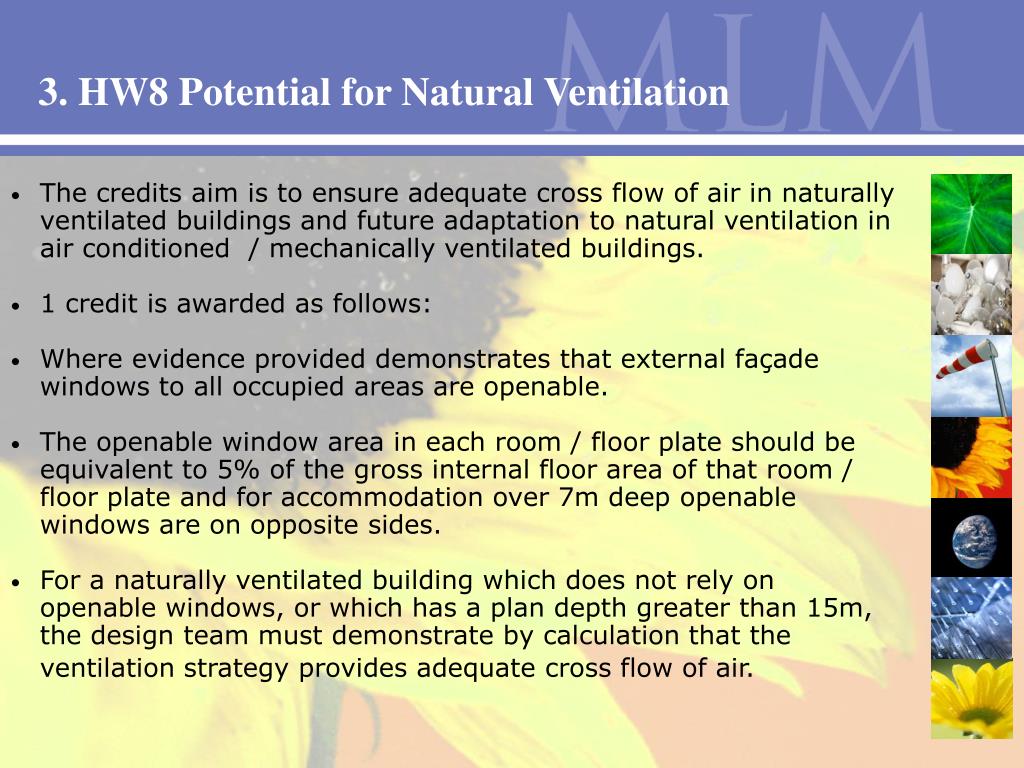

3. HW8 Potential for Natural Ventilation

  • The credits aim is to ensure adequate cross flow of air in naturally ventilated buildings and future adaptation to natural ventilation in air conditioned / mechanically ventilated buildings.

  • 1 credit is awarded as follows:

  • Where evidence provided demonstrates that external façade windows to all occupied areas are openable.

  • The openable window area in each room / floor plate should be equivalent to 5% of the gross internal floor area of that room / floor plate and for accommodation over 7m deep openable windows are on opposite sides.

  • For a naturally ventilated building which does not rely on openable windows, or which has a plan depth greater than 15m, the design team must demonstrate by calculation that the ventilation strategy provides adequate cross flow of air.


Breeam a presentation by adrian doling technical director

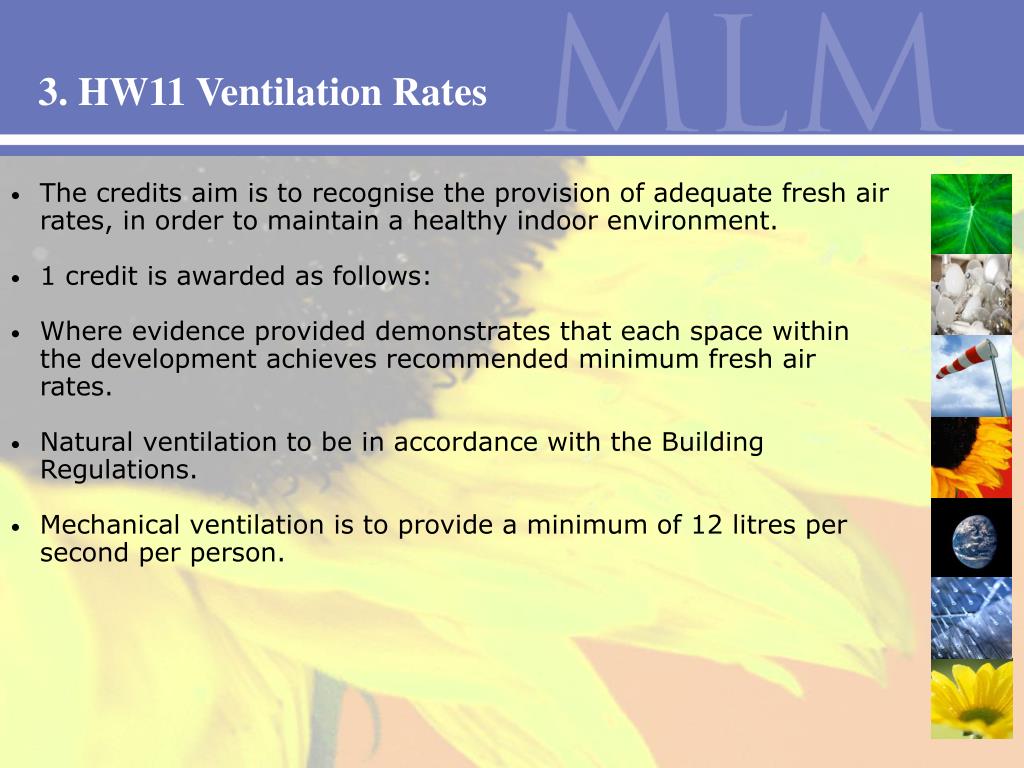

3. HW11 Ventilation Rates

  • The credits aim is to recognise the provision of adequate fresh air rates, in order to maintain a healthy indoor environment.

  • 1 credit is awarded as follows:

  • Where evidence provided demonstrates that each space within the development achieves recommended minimum fresh air rates.

  • Natural ventilation to be in accordance with the Building Regulations.

  • Mechanical ventilation is to provide a minimum of 12 litres per second per person.


Breeam a presentation by adrian doling technical director

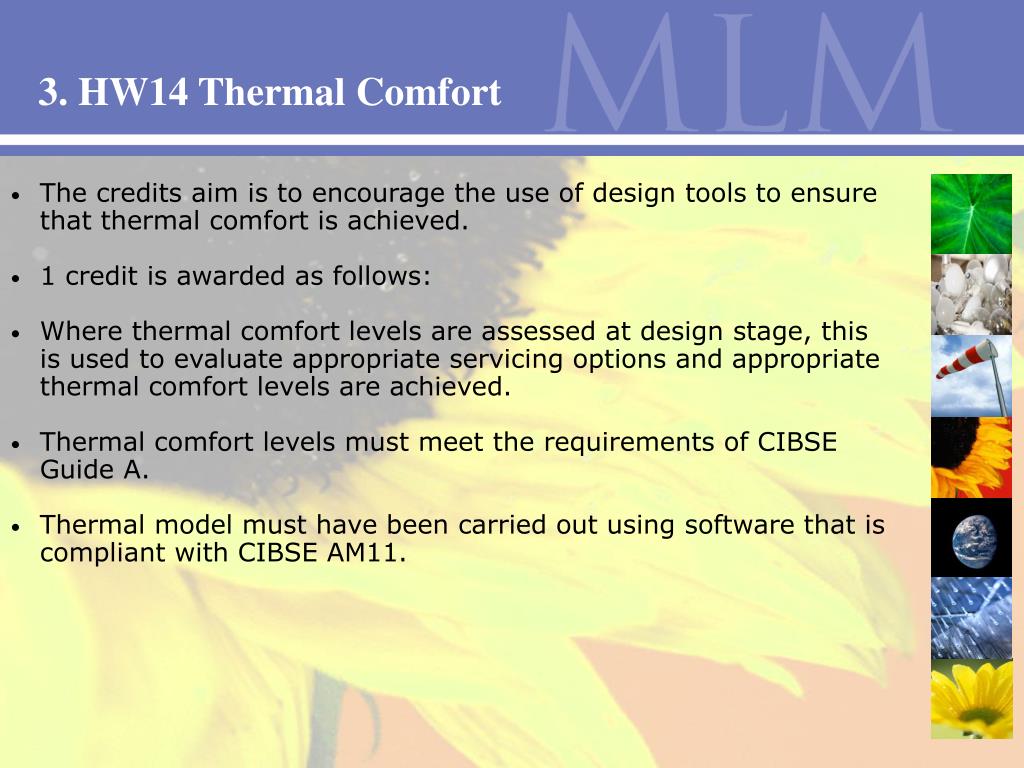

3. HW14 Thermal Comfort

  • The credits aim is to encourage the use of design tools to ensure that thermal comfort is achieved.

  • 1 credit is awarded as follows:

  • Where thermal comfort levels are assessed at design stage, this is used to evaluate appropriate servicing options and appropriate thermal comfort levels are achieved.

  • Thermal comfort levels must meet the requirements of CIBSE Guide A.

  • Thermal model must have been carried out using software that is compliant with CIBSE AM11.


Breeam a presentation by adrian doling technical director

3. HW15 Thermal Zoning

  • The credits aim is to recognise the provision of controls allowing independent adjustment of heating / cooling systems to reflect differing load requirements.

  • 1 credit is awarded as follows:

  • Where evidence provided demonstrates that local occupant control is available for temperature adjustment in each area to reflect differing load requirements.

  • The heating / cooling system is designed to allow independent occupant thermal comfort, in all separate rooms / areas within the building.

  • Zoning allows separate occupant control to be made of each perimeter area (i.e. within 7m of each external wall) and the central zone.

  • Where long lag systems are specified these are designed to service the base load only and responsive secondary heating is provided which is zoned as above.


Breeam a presentation by adrian doling technical director

3. HW16 Microbial Contamination

  • The credits aim is to ensure the building services are designed and maintained to avoid risk of Legionellosis.

  • 1 credit is awarded as follows:

  • Where evidence provided demonstrates that the risk of waterborne and airborne legionella contamination has been minimised.

  • All water and HVAC systems are designed to meet the requirements of HSE Approved Code of Practice and Guidance L8 – Legionnaires disease The control of legionella in water systems 2000.


Breeam a presentation by adrian doling technical director

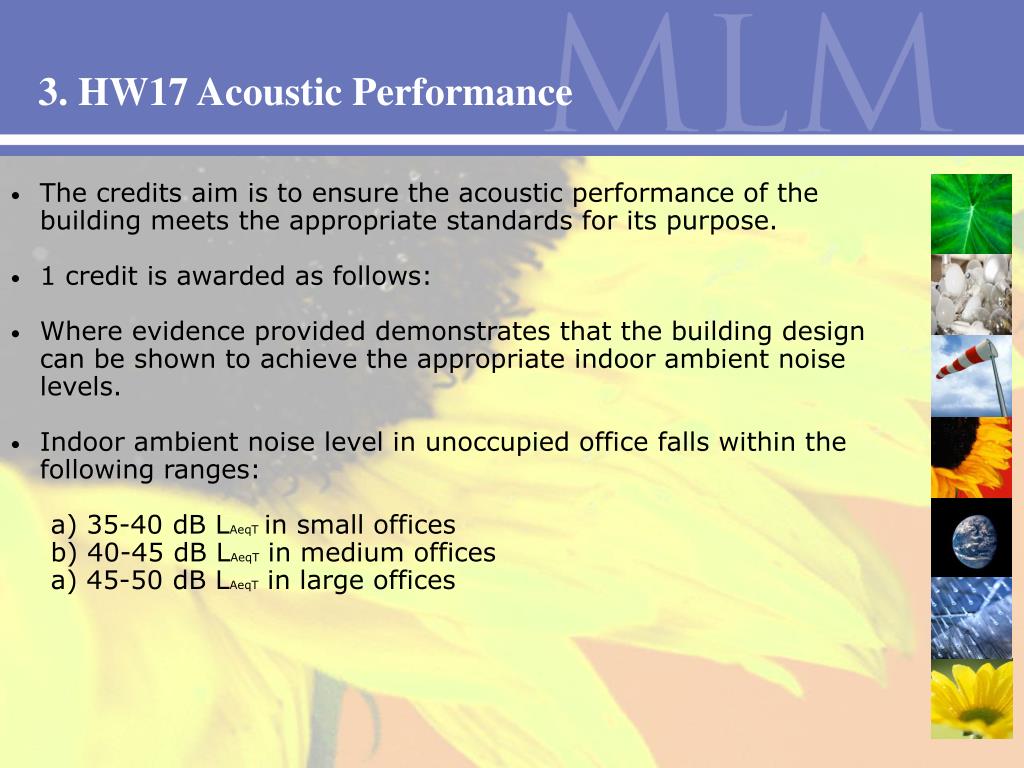

3. HW17 Acoustic Performance

  • The credits aim is to ensure the acoustic performance of the building meets the appropriate standards for its purpose.

  • 1 credit is awarded as follows:

  • Where evidence provided demonstrates that the building design can be shown to achieve the appropriate indoor ambient noise levels.

  • Indoor ambient noise level in unoccupied office falls within the following ranges:

  • a) 35-40 dB LAeqTin small offices

  • b) 40-45 dB LAeqT in medium offices

  • a) 45-50 dB LAeqT in large offices


Breeam a presentation by adrian doling technical director

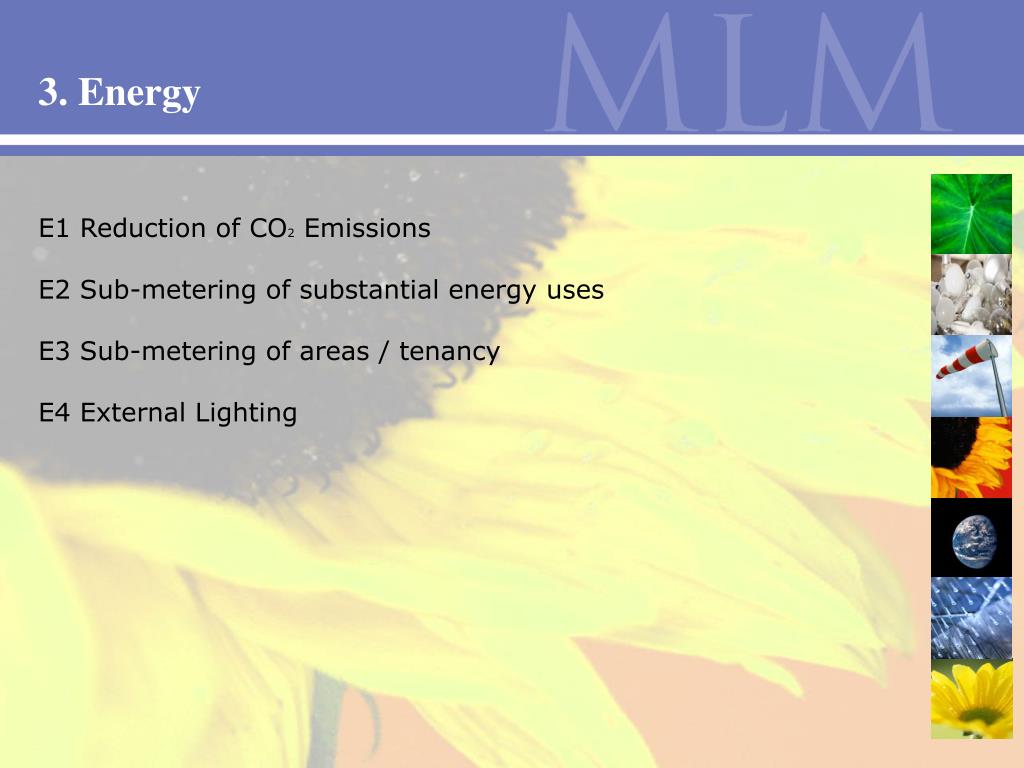

3. Energy

E1 Reduction of CO2 Emissions

E2 Sub-metering of substantial energy uses

E3 Sub-metering of areas / tenancy

E4 External Lighting


Breeam a presentation by adrian doling technical director

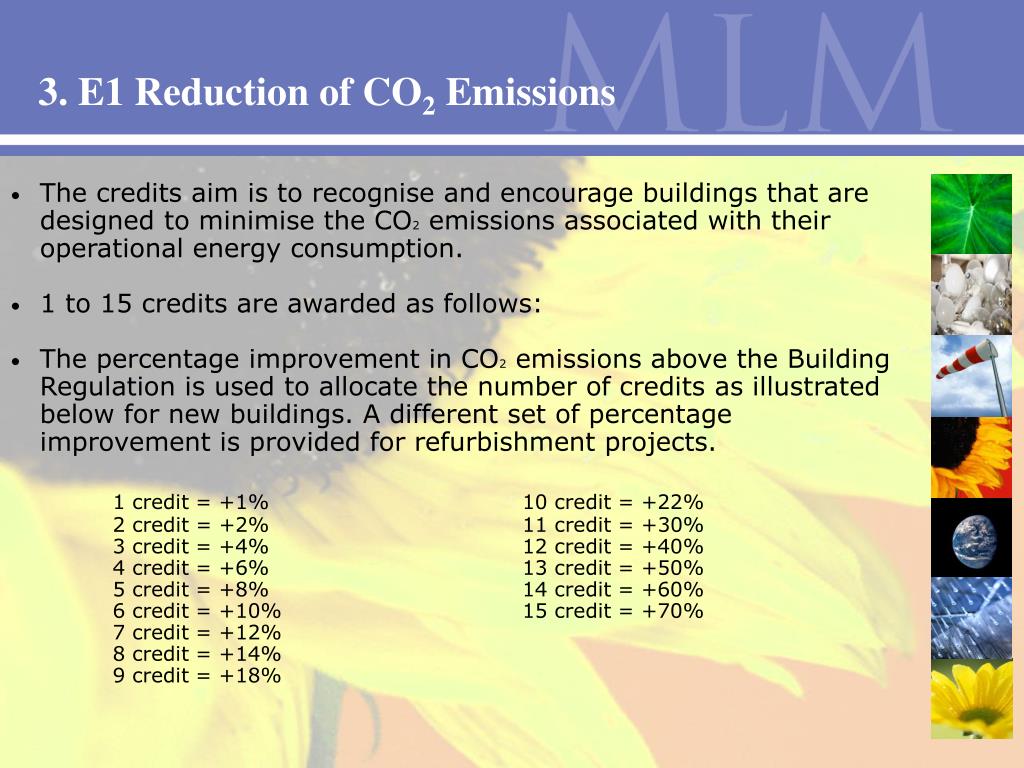

3. E1 Reduction of CO2 Emissions

  • The credits aim is to recognise and encourage buildings that are designed to minimise the CO2 emissions associated with their operational energy consumption.

  • 1 to 15 credits are awarded as follows:

  • The percentage improvement in CO2 emissions above the Building Regulation is used to allocate the number of credits as illustrated below for new buildings. A different set of percentage improvement is provided for refurbishment projects.

  • 1 credit = +1%10 credit = +22%

  • 2 credit = +2%11 credit = +30%

  • 3 credit = +4%12 credit = +40%

  • 4 credit = +6%13 credit = +50%

  • 5 credit = +8%14 credit = +60%

  • 6 credit = +10%15 credit = +70%

  • 7 credit = +12%

  • 8 credit = +14%

  • 9 credit = +18%


Breeam a presentation by adrian doling technical director

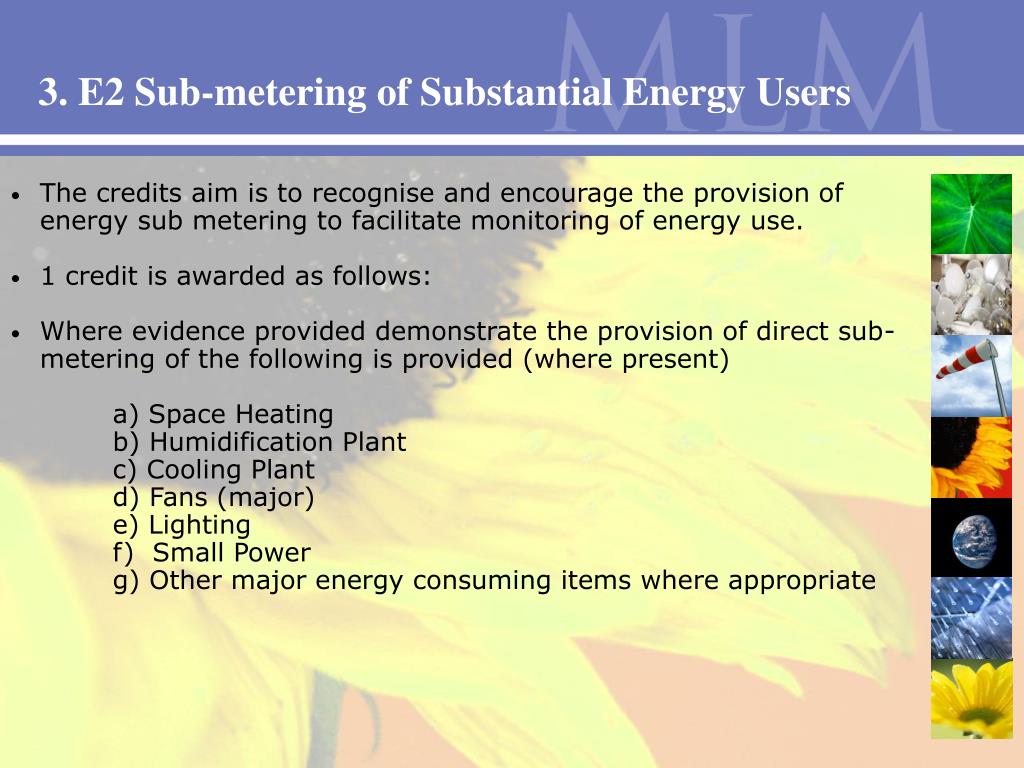

3. E2 Sub-metering of Substantial Energy Users

  • The credits aim is to recognise and encourage the provision of energy sub metering to facilitate monitoring of energy use.

  • 1 credit is awarded as follows:

  • Where evidence provided demonstrate the provision of direct sub-metering of the following is provided (where present)

  • a) Space Heating

  • b) Humidification Plant

  • c) Cooling Plant

  • d) Fans (major)

  • e) Lighting

  • f) Small Power

  • g) Other major energy consuming items where appropriate


Breeam a presentation by adrian doling technical director

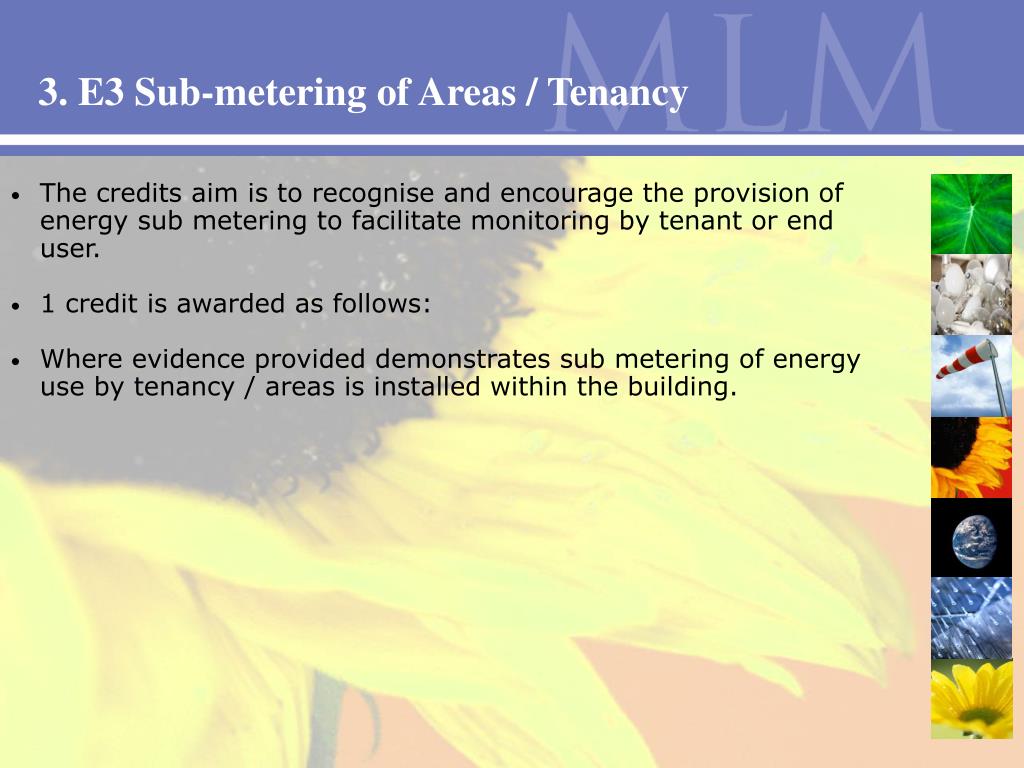

3. E3 Sub-metering of Areas / Tenancy

  • The credits aim is to recognise and encourage the provision of energy sub metering to facilitate monitoring by tenant or end user.

  • 1 credit is awarded as follows:

  • Where evidence provided demonstrates sub metering of energy use by tenancy / areas is installed within the building.


Breeam a presentation by adrian doling technical director

3. E4 External Lighting

  • The credits aim is to recognise and encourage the specification of energy efficient light fittings for external areas.

  • 1 credit is awarded as follows:

  • Where energy efficient external luminaires are specified and all light fittings controlled for the presence of daylight.

  • 80% of external luminaires have an efficacy of at least 100 luminaire lumens / circuit watt.


Breeam a presentation by adrian doling technical director

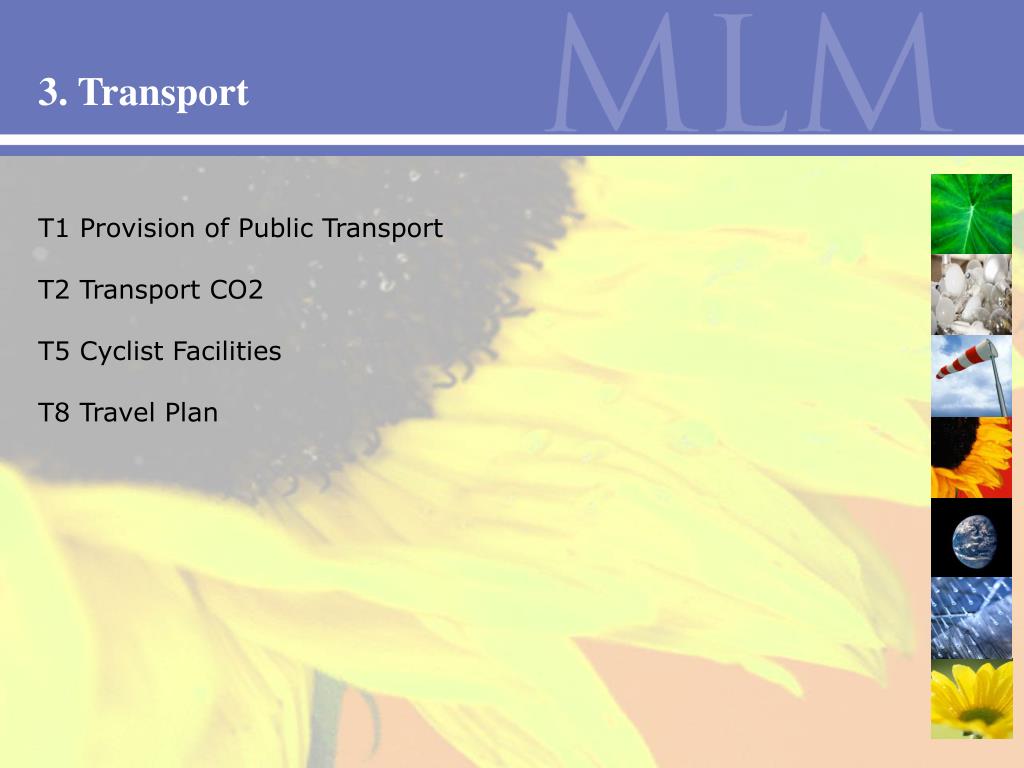

3. Transport

T1 Provision of Public Transport

T2 Transport CO2

T5 Cyclist Facilities

T8 Travel Plan


Breeam a presentation by adrian doling technical director

3. T1 Provision of Public Transport

  • The credits aim is to recognise and encourage the selection of sites served by good public transport facilities.

  • 2 credits are awarded as follows:

  • Where good access is available to and from transport networks for commuting as follows(1 credit)

  • The distance from the building entrance to the public transport node (bus stop, station, etc.) is less than 500m and has a service at least once every 15 minutes at peak times (i.e. 8.00am – 10.00am and 5.00pm – 7.00pm on working days to a local urban centre.

  • Where good access is available to and from transport networks for business travel (1 credit)

  • The distance from the building entrance to the public transport node (bus stop, station, etc.) is less than 500m and has a service at least once every 30 minutes through the working day (i.e. 8.00am – 7.00pm) to a major transport node serving local and regional infrastructure systems.


Breeam a presentation by adrian doling technical director

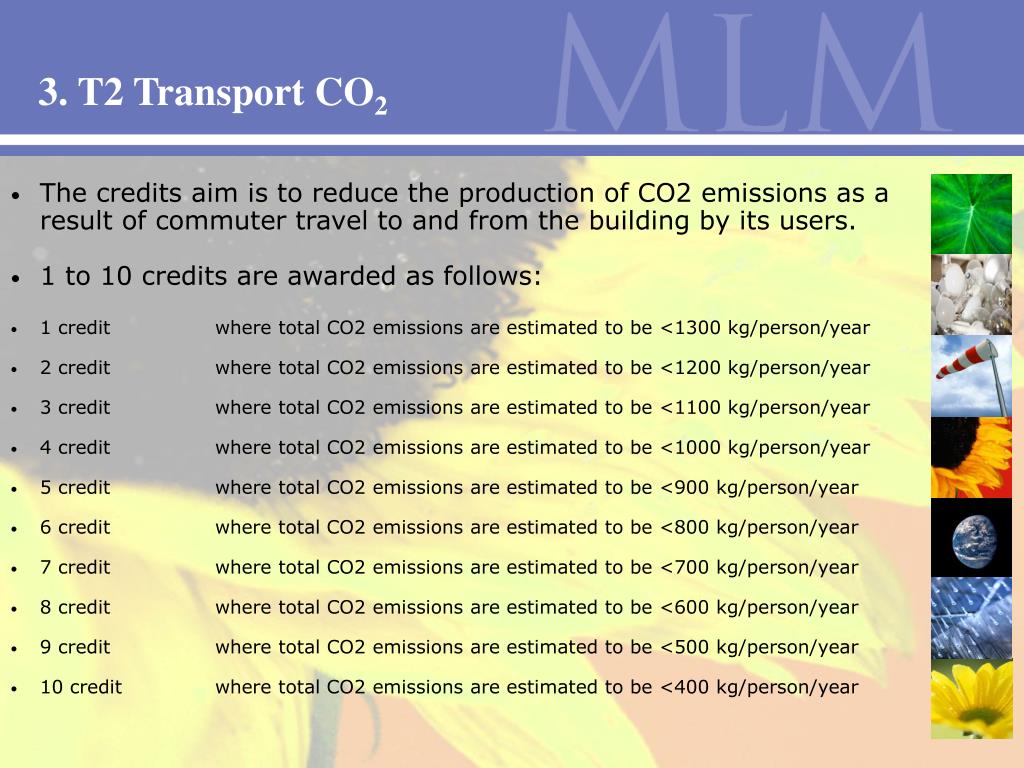

3. T2 Transport CO2

  • The credits aim is to reduce the production of CO2 emissions as a result of commuter travel to and from the building by its users.

  • 1 to 10 credits are awarded as follows:

  • 1 credit where total CO2 emissions are estimated to be <1300 kg/person/year

  • 2 credit where total CO2 emissions are estimated to be <1200 kg/person/year

  • 3 credit where total CO2 emissions are estimated to be <1100 kg/person/year

  • 4 credit where total CO2 emissions are estimated to be <1000 kg/person/year

  • 5 credit where total CO2 emissions are estimated to be <900 kg/person/year

  • 6 credit where total CO2 emissions are estimated to be <800 kg/person/year

  • 7 credit where total CO2 emissions are estimated to be <700 kg/person/year

  • 8 credit where total CO2 emissions are estimated to be <600 kg/person/year

  • 9 credit where total CO2 emissions are estimated to be <500 kg/person/year

  • 10 credit where total CO2 emissions are estimated to be <400 kg/person/year


Breeam a presentation by adrian doling technical director

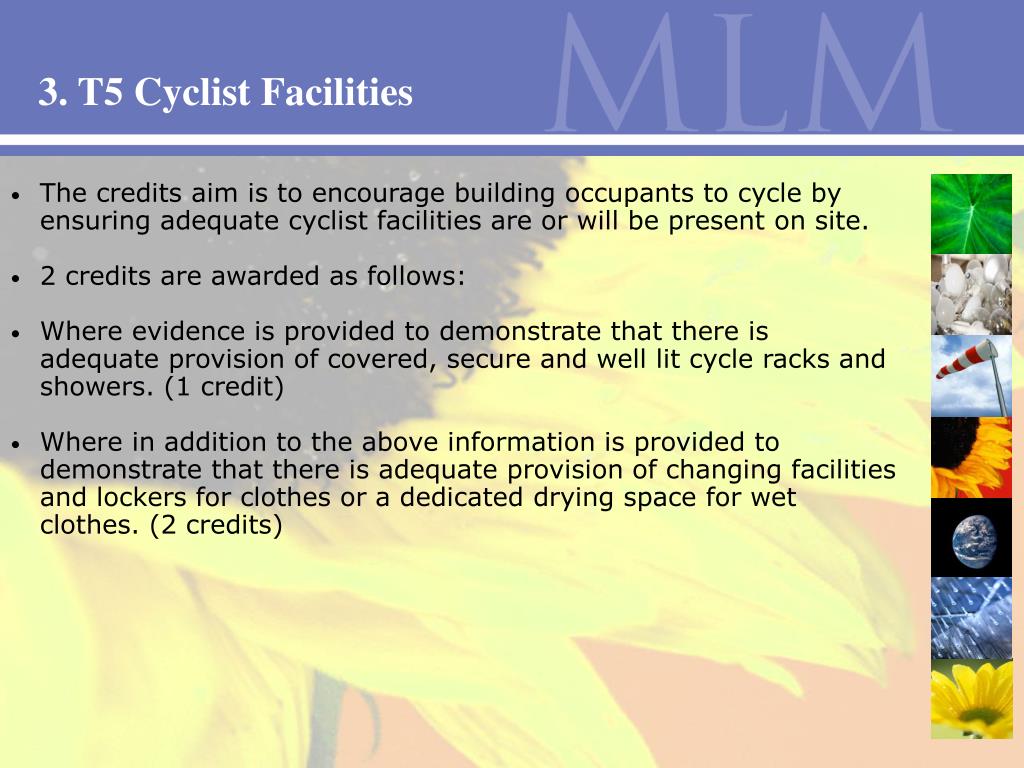

3. T5 Cyclist Facilities

  • The credits aim is to encourage building occupants to cycle by ensuring adequate cyclist facilities are or will be present on site.

  • 2 credits are awarded as follows:

  • Where evidence is provided to demonstrate that there is adequate provision of covered, secure and well lit cycle racks and showers. (1 credit)

  • Where in addition to the above information is provided to demonstrate that there is adequate provision of changing facilities and lockers for clothes or a dedicated drying space for wet clothes. (2 credits)


Breeam a presentation by adrian doling technical director

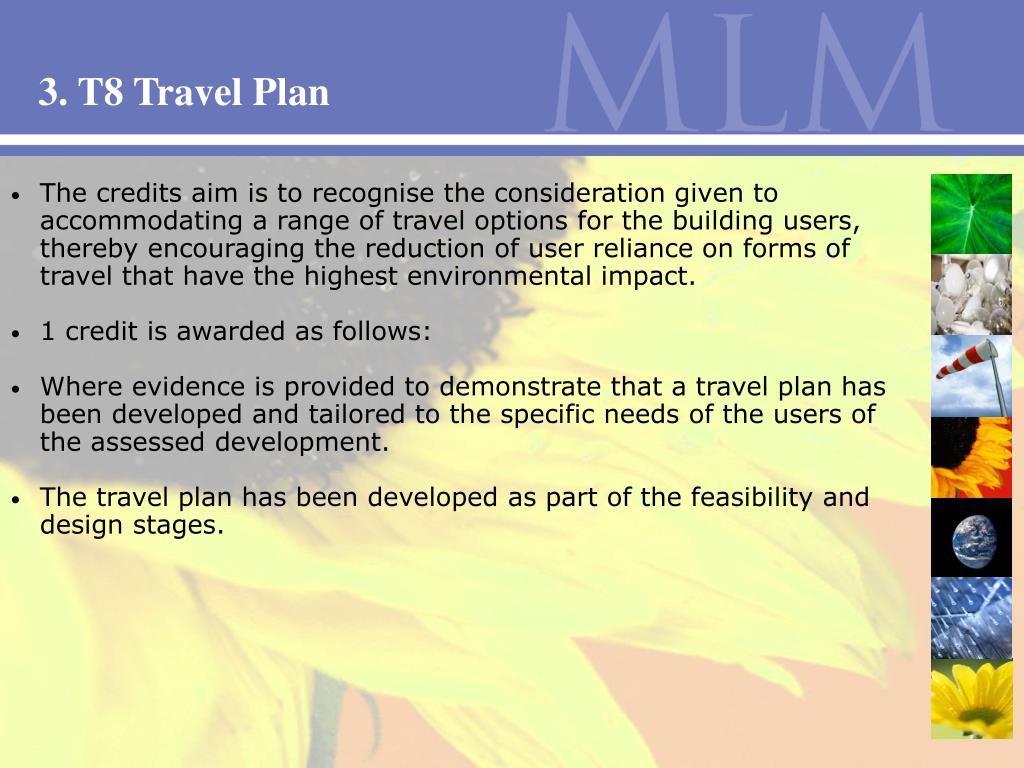

3. T8 Travel Plan

  • The credits aim is to recognise the consideration given to accommodating a range of travel options for the building users, thereby encouraging the reduction of user reliance on forms of travel that have the highest environmental impact.

  • 1 credit is awarded as follows:

  • Where evidence is provided to demonstrate that a travel plan has been developed and tailored to the specific needs of the users of the assessed development.

  • The travel plan has been developed as part of the feasibility and design stages.


Breeam a presentation by adrian doling technical director

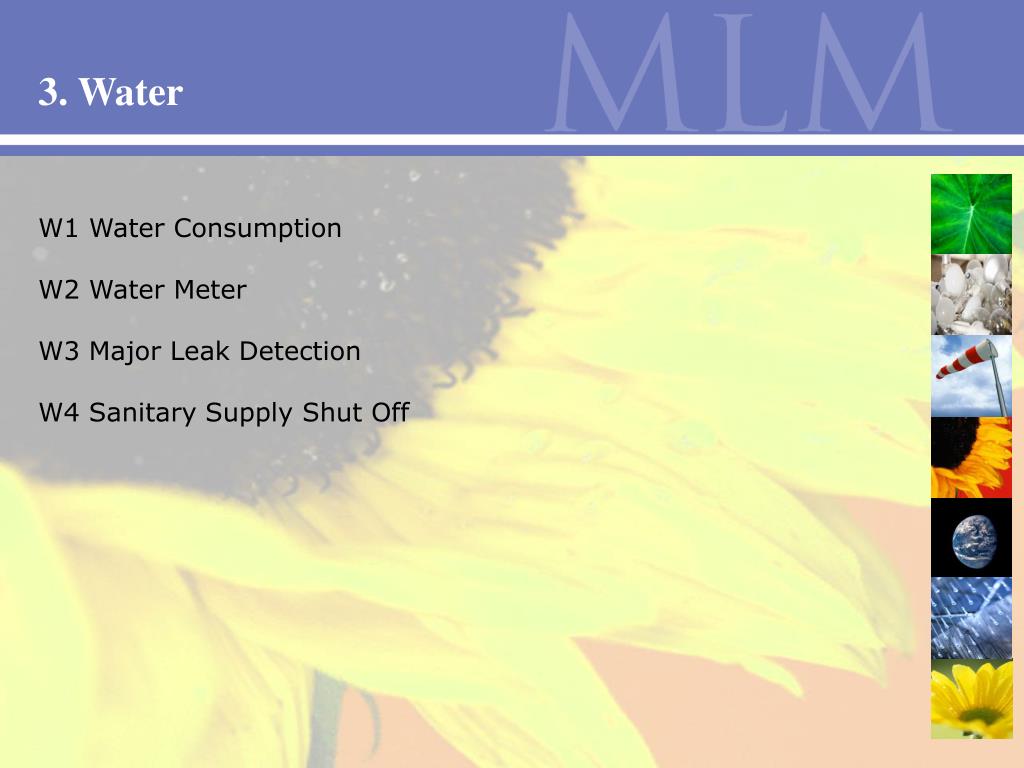

3. Water

W1 Water Consumption

W2 Water Meter

W3 Major Leak Detection

W4 Sanitary Supply Shut Off


Breeam a presentation by adrian doling technical director

3. W1 Water Consumption

  • The credits aim is to encourage the specification of low water use sanitary fittings.

  • 1 to 3 credits are awarded as follows:

  • 1 credit where the consumption is 4.5 – 5.5m3 /person / year

  • 2 credits where the consumption is 1.5 – 4.4m3 /person / year

  • 3 credits where the consumption is <1.5m3 /person / year

  • The calculation covers the types WC’s, Urinals, Showers and also takes into account the provision of grey water and / or rain water collection.


Breeam a presentation by adrian doling technical director

3. W2 Water Meter

  • The credits aim is to ensure water consumption can be monitored and managed and therefore encourage reductions in water consumption.

  • 1 credit is awarded as follows:

  • Where information provided demonstrates that a water meter with a pulsed output will be installed on the mains supply to each building. (Note the pulsed output does not need to be connected to a BMS but is available for future connection if required).


Breeam a presentation by adrian doling technical director

3. W3 Major Leak Detection

  • The credits aim is to reduce the impact of major water leaks.

  • 1 credit is awarded as follows:

  • The system must be capable of identifying major leaks both within the building and between the building and the site boundary and should cover all mains water supplies to the building.


Breeam a presentation by adrian doling technical director

3. W4 Sanitary Supply Shut Off

  • The credits aim is to reduce the risk of minor leaks in toilet areas.

  • 1 credit is awarded as follows:

  • Where evidence provided demonstrates that proximity detection shut off is provided to the water supply to all urinals and WC’s.


Breeam a presentation by adrian doling technical director

3. Materials and Waste

MW1 Materials Specification – Major Building Elements

MW3 Floor Finishes

MW5 Reuse of Building Façade

MW6 Reuse of Building Structure

MW7 Recycled Aggregates

MW8 Responsible Sourcing of Materials

MW12 Storage of Recyclable Waste


Breeam a presentation by adrian doling technical director

3. MW1 Material Specification Major Building Elements

  • The credits aim is to recognise and encourage the use of construction materials with a low environmental impact over the full life cycle of the building.

  • Up to 4 credits are awarded as follows:

  • Where evidence provided demonstrates that the major building elements specified have an “A” rating, as defined in the BRE Green Guide to specification.

  • The following elements are considered:

    • External Walls

    • Windows

    • Roof

    • Upper Floor Slabs (All floor slabs except ground floor)


Breeam a presentation by adrian doling technical director

3. MW3 Floor Finishes

  • The credits aim is to avoid wastage of materials by encouraging a single installation of floor finishes selected by the building occupants.

  • 1 credit is awarded as follows:

  • Where carpets and other floor finishes are specified by the future occupant or, in tenant areas of speculative buildings, where carpets or floor finishes are installed in a limited show area only.

  • A show area could be either a floor plate, or an office, however it must be less than 25% of the net lettable floor area.


Breeam a presentation by adrian doling technical director

3. MW5 Re-use of Building Facade

  • The credits aim is to recognise and encourage the reuse of existing facades from buildings that occupy the site.

  • 1 credit is awarded as follows:

  • Where at least 50% of the total façade (by area) is reused and at least 80% of the reused façade (by Mass) comprises in-situ reused material.


Breeam a presentation by adrian doling technical director

3. MW6 Re-use of Building Structure

  • The credits aim is to recognise and encourage the reuse of existing structures that previously occupied the site.

  • 1 credit is awarded as follows:

  • Where evidence provided demonstrates that a design reuses at least 80% of an existing primary structure and for part refurbishment and part new build, the volume of the reused structure comprises at least 50% of the final structures volume.


Breeam a presentation by adrian doling technical director

3. MW7 Recycled Aggregates

  • The credits aim is to recognise and encourage the use of recycled aggregates in construction thereby reducing the demand for virgin material.

  • 1 credit is awarded as follows:

  • Where significant use of crushed aggregate, crushed masonry or alternative aggregate (manufactured from recycled materials) are specified for “high grade” aggregate uses (such as the building structure, ground slabs, roads, etc.

  • To obtain the credit 25% of the aggregate used must be recycled and can be either;

  • a) Obtained on Site, OR

  • b) Obtained from sites within a 30km radius, OR

  • c) Obtained from a recycled, non construction post consumer / post industrial by product source, such as crushed / blown glass pellets, blast furnace slag, etc.


Breeam a presentation by adrian doling technical director

3. MW8 Responsible Sourcing of Materials

  • The credits aim is to recognise and encourage the specification of responsibly sourced materials for key building elements.

  • Up to 3 credits are awarded as follows:

  • 80% by volume of the materials in the following elements within the building must be responsibly sourced.

  • a)Roof

  • b)Frame

  • c)Walls (external)

  • d)Floors (ground and upper)

  • e)Foundations and substructure

  • f)Doors

  • g)Windows


Breeam a presentation by adrian doling technical director

3. MW12 Storage of Recyclable Waste

  • The credits aim is to recognise and encourage recycling of consumables in order to reduce the demand for virgin material and the amount of waste going to landfill or incineration.

  • 1 credit is awarded as follows:

  • Where a central, dedicated storage space is provided for materials that can be recycled. This can be either within the building itself, or onsite using skips, (provided there is good access for collections and it is in easy reach of the building).

  • The size of the space allocated must be at least 2m2 per 1000m2 of net floor area up to a maximum of 10m2.

  • The area must be clearly labelled for recycling only, less than 20m from the base of a stair well serving all floors and be in a location with good vehicular access.


Breeam a presentation by adrian doling technical director

3. Land Use & Ecology

LE1 Reuse of Land

LE2 Contaminated Land

LE3 Ecological Value of Land and Protection of Ecological

Features

LE4 Mitigating Ecological Impact

LE5 Enhancing Site Ecology

LE6 Long Term Impact on Biodiversity


Breeam a presentation by adrian doling technical director

3. LE1 Reuse of Land

  • The credits aim is to encourage the reuse of land that has been previously occupied by building developments and discourage the use of previously undeveloped land for building.

  • 1 credit is awarded as follows:

  • Where evidence is provided that demonstrates that at least 75% of the proposed developments footprint is on an area of land which has previously been developed or used for industrial purposes in the last 50 years.


Breeam a presentation by adrian doling technical director

3. LE2 Contaminated Land

  • The credits aim is to encourage positive action to use contaminated land that otherwise would not have been developed.

  • 1 credit is awarded as follows:

  • Where evidence is provided that demonstrates that the land used for the new development has prior to development been defined as contaminated and where adequate remedial steps have been taken to decontaminate the site prior to construction.


Breeam a presentation by adrian doling technical director

3. LE3 Ecological Value of Land and Protection of Ecological Features

  • The credits aim is to encourage development on land that already has limited value to wildlife and to protect existing ecological features from substantial damage during site preparation and completion of construction works.

  • 1 credit is awarded as follows:

  • Where evidence is provided to demonstrate that the construction zone is defined as land of low ecological value and all existing features of ecological value will be fully protected from damage during site preparation and construction works.

  • The definition of “land of low ecological value” can be obtain using either the BREEAM checklist or a suitably qualified ecological consultant.


Breeam a presentation by adrian doling technical director

3. LE4 Mitigating Ecological Impact

  • The credits aim is to minimise the impact of a building development on existing site ecology.

  • 2 credits are awarded as follows:

  • Where evidence is provided to demonstrate the change in ecological value of the site, as a result of development, is between less than zero and equal to or less than minus nine species, i.e. a small negative change. (1 credit)

  • Where evidence is provided to demonstrate there is no negative change in the ecological value of the site as a result of development, i.e. equal to or greater than zero species. (2 credit)


Breeam a presentation by adrian doling technical director

3. LE5 Enhancing Site Ecology

  • The credits aim is to maintain and enhance the ecological value of the site.

  • Up to 3 credits are awarded as follows:

  • Where evidence is provided to demonstrate that the design team (or client) has appointed a professional to advise and report on enhancing and protecting the ecological value of the site and implemented the professionals recommendations for general enhancement and protection for the site ecology. (1 credit)

  • Where evidence is provided to demonstrate that the above has been carried out and there is a positive increase in the ecological value of the site of up to (but not including) 6 species. (2 credits)

  • Where evidence is provided to demonstrate that the above has been carried out and there is a positive increase in the ecological value of the site of 6 species or greater. (3 credits)


Breeam a presentation by adrian doling technical director

3. LE6 long Term Impact on Biodiversity

  • The credits aim is to minimise the long term impact of the development on the site and the surrounding areas biodiversity.

  • Up to 2 credits are awarded as follows:

  • Where evidence is provided to demonstrate that the client has committed to achieving the mandatory requirements and at least two of the additional requirements. (1 credit)

  • Where evidence is provided to demonstrate that the client has committed to achieving the mandatory requirements and at least four of the additional requirements. (2 credits)


Breeam a presentation by adrian doling technical director

3. LE6 long Term Impact on Biodiversity contd

  • Mandatory Requirements

  • A suitably qualified ecologist appointed prior to commencement of activities on site must confirm in writing that:

  • 1.All relevant UK and EU legislation relating to protection and enhancement of ecology has been or will be complied with during the design and construction phase.

  • 2.An appropriate management plan is produced covering at least the first 5 years after project completion and will be handed to the building occupants.

  • 3.Where there is a commitment to produce a management plan information is provided detailing:

    • Scope of management plan

    • Key responsibilities and with whom these responsibilities lie, i.e. owner, landlord, occupier, FM, etc.


Breeam a presentation by adrian doling technical director

3. LE6 long Term Impact on Biodiversity contd

  • Additional Requirements

  • 1.The contractor is required to nominate a “Biodiversity Champion” with the authority to influence site activities and ensure that detrimental impacts are minimised.

  • 2.The contractor is required to train all relevant site work-force on how to protect site ecology during the project.

  • 3.The contractor is required to record actions taken to protect biodiversity and monitor their effectiveness throughout key stages of construction.

  • 4.The client requires that a new ecologically valuable habitat, appropriate to the local area be created.

  • 5.The client requires the contractor to programme site works to minimise disturbance to wildlife.

  • 6.The client requires actions to be taken to protect / enhance biodiversity, take full account of the UK biodiversity Action Plan (UK BAP) and use local biodiversity experts (e.g. the local wildlife trust) to help identify ecologically important habitats / species on site.


Breeam a presentation by adrian doling technical director

3. Pollution

P1 Refrigerant GWP – Building Services

P2 Preventing Refrigerant Leaks

P4 Insulant GWP

P6 NOx Emissions of Heating Source

P7 Minimising Flood Risk

P8 Minimising Watercourse Pollution

P11 Renewable & Low Emission Energy

P12 Reduction of Night Time Light Pollution


Breeam a presentation by adrian doling technical director

3. P1 Refrigerant GWP – Building Services

  • The credits aim is to reduce the contribution to potential climate change from refrigerants with a high global warming potential.

  • 1 credit is awarded as follows:

  • Where evidence is provided demonstrates the use of refrigerants with a global warming potential (GWP) of less than 5 or where no refrigerants specified for use in building services.


Breeam a presentation by adrian doling technical director

3. P2 Preventing Refrigerant Leaks

  • The credits aim is to reduce the emissions of refrigerants to atmosphere arising from leakages in cooling plant.

  • Up to 2 credits are awarded as follows:

  • Where evidence provided demonstrates that refrigerant leaks can be detected or where there are no refrigerants specified for use in the building or development. (1 credit)

  • Where evidence provided demonstrates that the provision of automatic refrigerant pump down is made to a heat exchanger (or dedicated storage tanks) with isolation valves or where there are no refrigerants specified for use in building services. (1 credit)


Breeam a presentation by adrian doling technical director

3. P4 Insulant GWP

  • The credits aim is to reduce the potential for global warming from substances used in the manufacture or composition of insulating materials.

  • 1 credit is awarded as follows:

  • Where evidence provided demonstrates that the specification of insulating materials avoids the use of substances with a global warming potential (GWP) of 5 or more in either manufacture or composition.

  • The criteria apply to insulation products used in the following building areas:

    • Building fabric including (but not exclusively); walls, roof, floor, window frames, doors, cavity closures and lintels.

    • Building services including (but not exclusively); chilled water pipework, refrigerant pipework, ductwork, hot and cold water pipes and water tanks, etc.

    • Internal sound proofing.


Breeam a presentation by adrian doling technical director

3. P6 NOx Emissions of Heating Source

  • The credits aim is to encourage the use of heating that minimises NOx emissions and therefore reduces pollution of the local environment.

  • Up to 3 credits are awarded as follows:

  • Where evidence provided demonstrates that the maximum dry NOx emissions from delivered space heating energy are:

  •  100 mg/kWh (at 0% excess) (1 credit)

  • Where evidence provided demonstrates that the maximum dry NOx emissions from delivered space heating energy are:

  •  70 mg/kWh (at 0% excess) (2 credits)

  • Where evidence provided demonstrates that the maximum dry NOx emissions from delivered space heating energy are:

  •  40 mg/kWh (at 0% excess) (3 credits)


Breeam a presentation by adrian doling technical director

3. P7 Minimising Flood Risk

  • The credits aim is to encourage the development of buildings in areas with reduced risk of flooding and ensure that storm water run-off from the development does not increase the flood risk on site or elsewhere.

  • Up to 3 credits are awarded as follows:

  • Where evidence demonstrates that the assessed development is located in a zone defined as having a low annual probability of flooding and 50% attenuation is provided. (3 credits)

  • Where evidence demonstrates that the assessed development is located in a zone defined as having a low probability of flooding OR

  • Where evidence demonstrates that the assessed development is located in a zone defined as having a medium annual probability of flooding and 75% attenuation is provided along with mitigating design within the flood area. (2 credits)

  • Where evidence demonstrates that the assessed development is located in a zone defined as having a medium annual probability of flooding and 75% attenuation is provided

  • OR

  • Where evidence demonstrates that the assessed development is located in a zone defined as having a high annual probability of flooding and 100% attenuation is provided. (1 credit)


Breeam a presentation by adrian doling technical director

3. P8 Minimising Watercourse Pollution

  • The credits aim is to reduce the potential for pollution to natural watercourses from surface water run-off from buildings and hard surfaces.

  • 1 credit is awarded as follows:

  • Where evidence provided demonstrates that on site treatment such as oil separators / interceptors or filtration have been specified for areas at risk from pollution, i.e. vehicle manoeuvring areas, car parks, waste disposal facilities, delivery facilities or plant areas.

  • Confirmation is required from the Local Authority and /or Environment Agency that they are content with the proposals.

  • Note:

  • Permeable surfaces or infiltration trenches from smaller car parks (10 cars or less) are sufficient means of treatment removing the need for a separator in this instances.


Breeam a presentation by adrian doling technical director

3. P11 Renewable & Low Emission Energy

  • The credits aim is to reduce the atmospheric pollution by encouraging locally generated renewable or low emission energy to supply a significant proportion of the buildings energy demand.

  • Up to 3 credits are awarded as follows:

  • Where evidence provided demonstrates that a feasibility study considering renewable and low emission energy has been carried out and the results implemented. (1 credit)

  • Where evidence provided demonstrates that the first credit has been achieved and 10% of total energy demand for the building/development is supplied from local renewable, or low emission energy sources. (2 credits)

  • Where evidence provided demonstrates that the first credit has been achieved and 15% of total energy demand for the building/development is supplied from local renewable, or low emission energy sources. (3 credits)


Breeam a presentation by adrian doling technical director

3. P12 Reduction of Night Time Light Pollution

  • The credits aim is to ensure that night-time lighting is concentrated in the appropriate areas and that upward lighting is minimised, reducing unnecessary light pollution, energy consumption and nuisance to neighbouring properties.

  • 1 credit is awarded as follows:

  • Where evidence provided demonstrates that the external lighting design is in compliance with the guidance in the Institution of Lighting Engineers (ILE) guidance notes for the reduction of obtrusive light 2005.

  • All external lighting (except for safety and security lighting) can be automatically switched off between 2300 and 0700. This can be achieved by providing a timer for all external lighting set to the appropriate hours.


Breeam a presentation by adrian doling technical director

  • Energy

  • Transport

  • Pollution

  • Materials

  • Water

  • Land Use and Ecology

  • Health and well being

  • Management

EcoHomes Rating

Environmental Weightings

Single Score

Assessment Credits

Issue Category Scores

4. The Assessment Process


Breeam a presentation by adrian doling technical director

4. Pre-Assessment Estimator

A Pre Assessment Estimator is available for anyone to do a quick check on how well a scheme may perform. An up to date Pre Assessment estimator is available from the BRE Website (PLEASE USE WITH CAUTION)!!!!!!

  • Tool to get a first estimate rating

  • Uses points (pre-weighted)

  • Very approximate

  • Final rating may differ

  • Certificates not issued for pre-assessments.


Breeam a presentation by adrian doling technical director

4. Formal Assessments

All formal assessments have to be carried out by a qualified assessor under license from the BRE.The role of the assessor is to support the development team with simple cost effective approaches to enable the highest possible rating for minimum capital cost.The elemental approach to BREEAM ratings provides flexibility in a scheme specific framework. Assessor require documentary evidence via the developer / designers to estimate the performance of the building and confirm the rating.


Breeam a presentation by adrian doling technical director

4. Formal Assessments

There are currently four types of assessments as follows:1.Design and Procurement2.Fit Out3.Post Construction Review4.Management and OperationBespoke assessments are carried out on buildings not covered by a standard set of assessment criteria.


Breeam a presentation by adrian doling technical director

4. Assessment Registered

Assessment Registered

BREEAM Consultancy

Information Gathering / Meeting

Draft Report

Final Report

BRE QA Check

BREEAM Certificate Issued


Breeam a presentation by adrian doling technical director

4. Assessment Registration

Mandatory requirement

  • Ensures that assessment is registered under correct version of BREEAM

  • Enables BRE to monitor take up of scheme

  • Registration valid for 5 years.


Breeam a presentation by adrian doling technical director

4. BREEAM Consultancy

Assessment Registered

BREEAM Consultancy

Information Gathering / Meeting

Draft Report

Final Report

BRE QA Check

BREEAM Certificate Issued


Breeam a presentation by adrian doling technical director

4. BREEAM Consultancy

Optional service

  • Provide client with advice to enable them to maximise their potential BREEAM rating

  • Best carried out at the early stages of a project (RIBA Stages B to D for D & P assessment)

  • Especially valuable to clients who have a mandatory requirement to achieve a specified BREEAM rating.


Breeam a presentation by adrian doling technical director

4. Information Gathering/Meeting

Assessment Registered

BREEAM Consultancy

Information Gathering / Meeting

Draft Report

Final Report

BRE QA Check

BREEAM Certificate Issued


Breeam a presentation by adrian doling technical director

4. Information Gathering

Mandatory requirement

  • Assessment meeting / Issue developers sheets

    Note the use of Developers sheets (EcoHomes Only) is not compulsory but ensures that all the information needed by the assessor is provided

  • List all information required in order to carry out assessment

  • Identify who should supply the information e.g. architect, mechanical engineer etc.


Breeam a presentation by adrian doling technical director

4. Draft Report

Assessment Registered

BREEAM Consultancy

Information Gathering / Meeting

Draft Report

Final Report

BRE QA Check

BREEAM Certificate Issued


Breeam a presentation by adrian doling technical director

4. Draft Report

Optional service

  • Provide draft report to client for comment

  • Useful where an assessment is started at an early stage and not all supporting documentation is available

  • Useful to clients whose funding is subject to achieving a specific BREEAM rating.


Breeam a presentation by adrian doling technical director

4. Final Report

Assessment Registered

BREEAM Consultancy

Information Gathering / Meeting

Draft Report

Final Report

BRE QA Check

BREEAM Certificate Issued


Breeam a presentation by adrian doling technical director

4. Final Report

Mandatory requirement

  • BRE have certain requirements for the report

  • Report is quality checked by assessor organisation

  • Report issued to BRE for QA checks

  • After QA check, final report issued to client.


Breeam a presentation by adrian doling technical director

4. BRE QA Check

Assessment Registered

BREEAM Consultancy

Information Gathering / Meeting

Draft Report

Final Report

BRE QA Check

BREEAM Certificate Issued


Breeam a presentation by adrian doling technical director

4. BRE QA Check

Mandatory requirement

  • All assessment reports checked for completeness and minimum report requirements

  • Selected reports undergo detailed technical credit checks

  • QA comments issued to assessor for action (prior to certification.)


Breeam a presentation by adrian doling technical director

4. BREEAM Certificate Issued

Mandatory requirement

  • BREEAM certificate will only be issued after the assessment report has satisfactorily passed the QA process

  • Certificate issued by BRE direct to client.

    No assessment can claim to have a

    BREEAM rating unless a certificate has been issued.


Breeam a presentation by adrian doling technical director

4. BREEAM Certificate Issued


Breeam a presentation by adrian doling technical director

5. Weighting Exercise

Industry Consultation process for DETR involving:

  • Local and Central Government

  • Construction Professionals

  • Materials producers

  • Property investors

  • Environmental lobbyists

  • Academic researchers.


Breeam a presentation by adrian doling technical director

5. Overall Weightings


Breeam a presentation by adrian doling technical director

  • Energy

  • Transport

  • Pollution

  • Materials

  • Water

  • Land Use and Ecology

  • Health and well being

  • Management

EcoHomes Rating

Environmental Weightings

Single Score

Assessment Credits

Issue Category Scores

5. Overall Weightings


Breeam a presentation by adrian doling technical director

5. Environmental Weightings

Different building types / BREEAM have different environmental weightings

For BREEAM for Offices the following weightings apply

Energy & Transport 25%

Pollution15%

Materials10%

Water 5%

Land Use and Ecology15%

Health and Well Being15%

Management15%


Breeam a presentation by adrian doling technical director

5. Scoring

Different building types / BREEAM have different minimum score required for each rating

For BREEAM for Offices the following ratings apply for the design and procurement assessment

25PASS

40GOOD

55VERY GOOD

70EXCELLENT


Breeam a presentation by adrian doling technical director

5. Post Construction Review

  • Requested by English Partnerships for all their buildings

  • Now a requirement under the Code for Sustainable Homes

  • Reviews may need to be carried out on individual houses as they are completed (because this process is part of the land release)

  • Can be carried out by the same assessor who carried out the design assessment.


Breeam a presentation by adrian doling technical director

5. Post Construction Review

  • The assessor should register the requirement for a PCR at the design stage of the assessment

  • The procedure involves checking that the development details agree with the design assessment

  • BRE have a written procedure for assessors to follow.


Breeam a presentation by adrian doling technical director

5. Post Construction Review

  • Documentary, photographic and video evidence may all be used to demonstrate compliance

  • BRE performs higher levels of QA on PCR’s and so fees are higher than for design stage assessments. This will need to be reflected in the assessment fees

  • BRE is likely to perform a site audit of developments receiving PCR’s.


Breeam a presentation by adrian doling technical director

Any Questions

Any Questions?


  • Login
