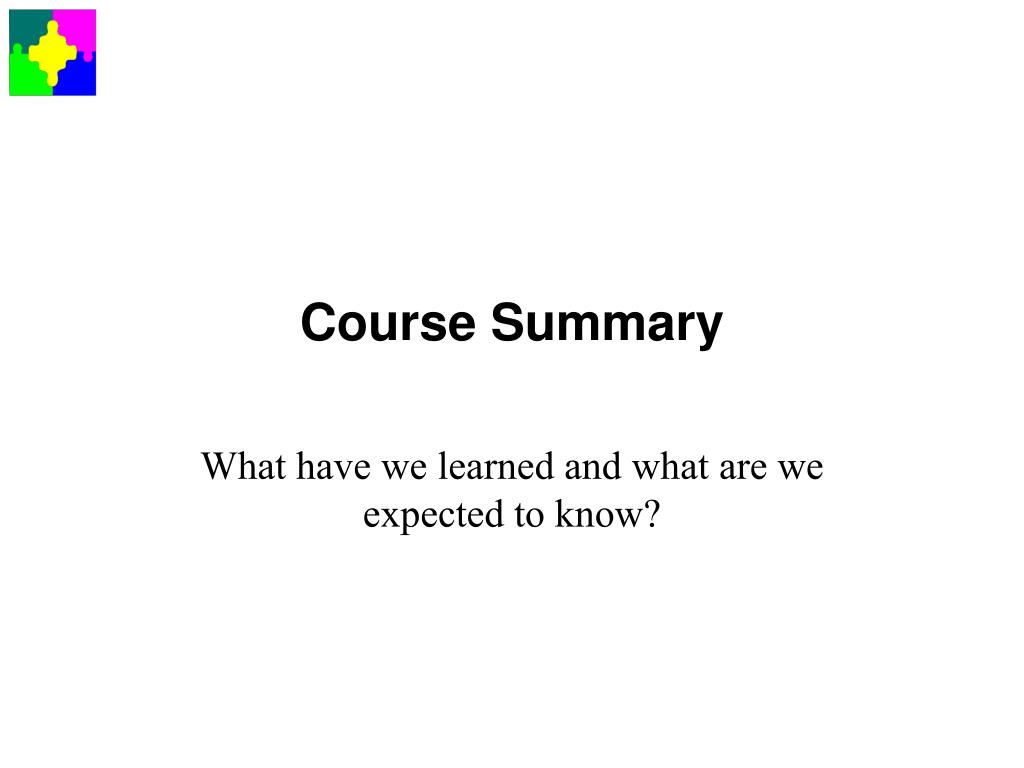

  1. Course Summary What have we learned and what are we expected to know?

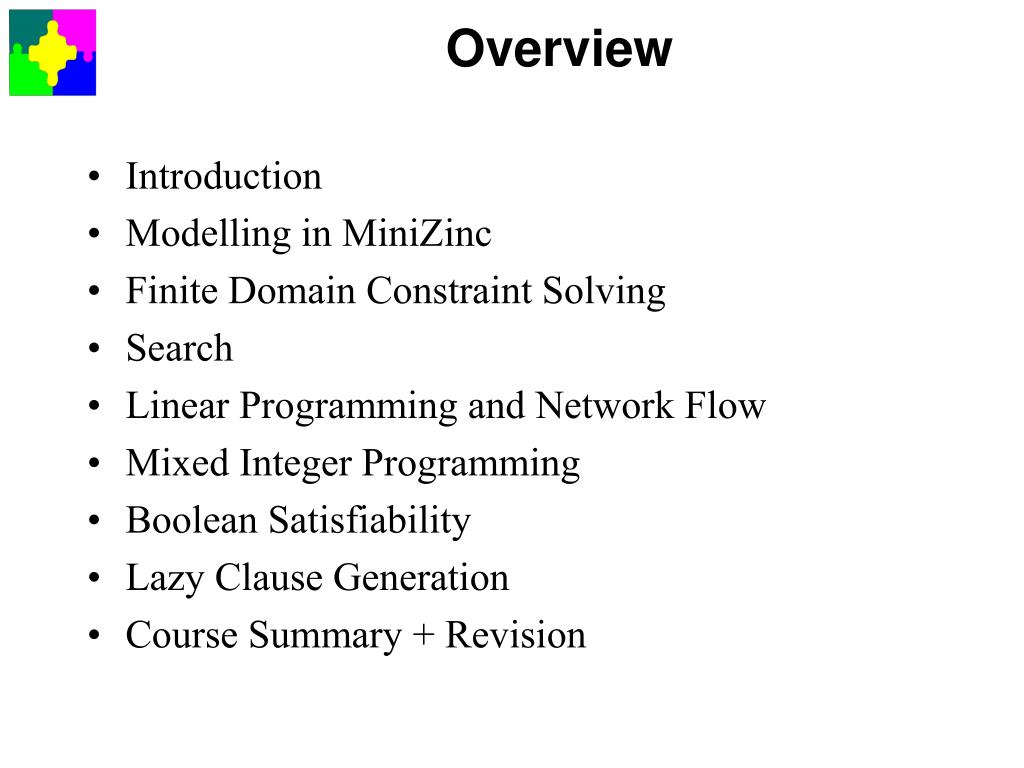

  2. Overview • Introduction • Modelling in MiniZinc • Finite Domain Constraint Solving • Search • Linear Programming and Network Flow • Mixed Integer Programming • Boolean Satisfiability • Lazy Clause Generation • Course Summary + Revision

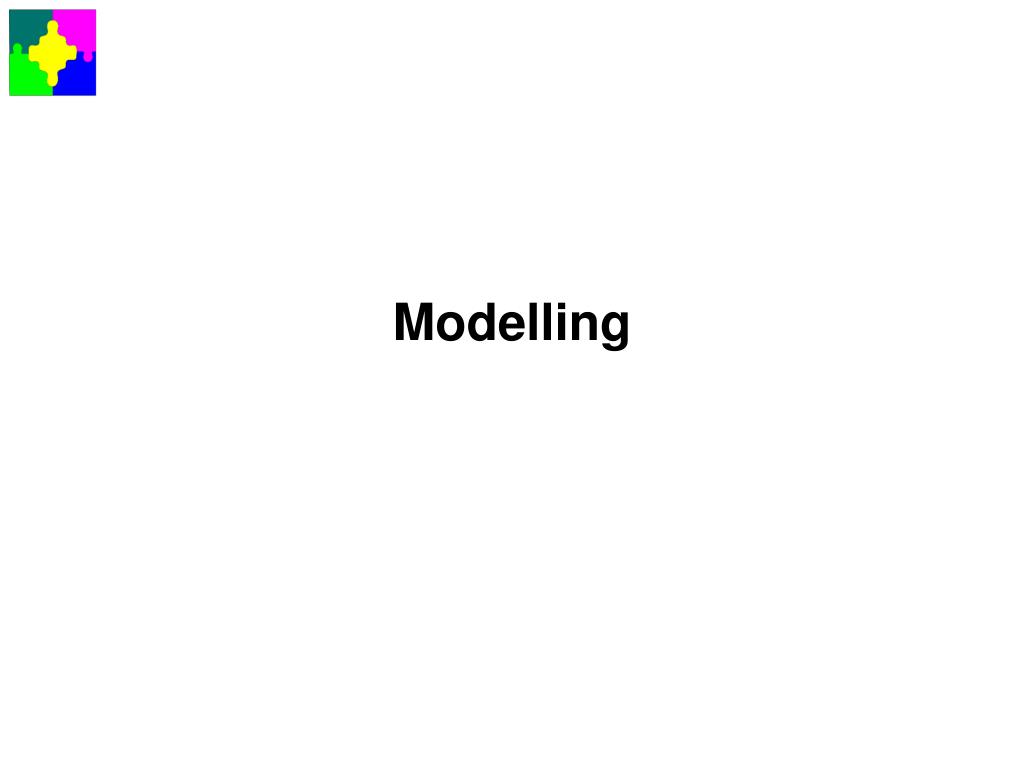

  3. Modelling

  4. Modelling Approaches • Approaches to modelling • traditional language and constraint-solving library • OO language with high-level library • constraint programming language • mathematical programming language • embedded domain specific language • Strengths and weaknesses of approaches

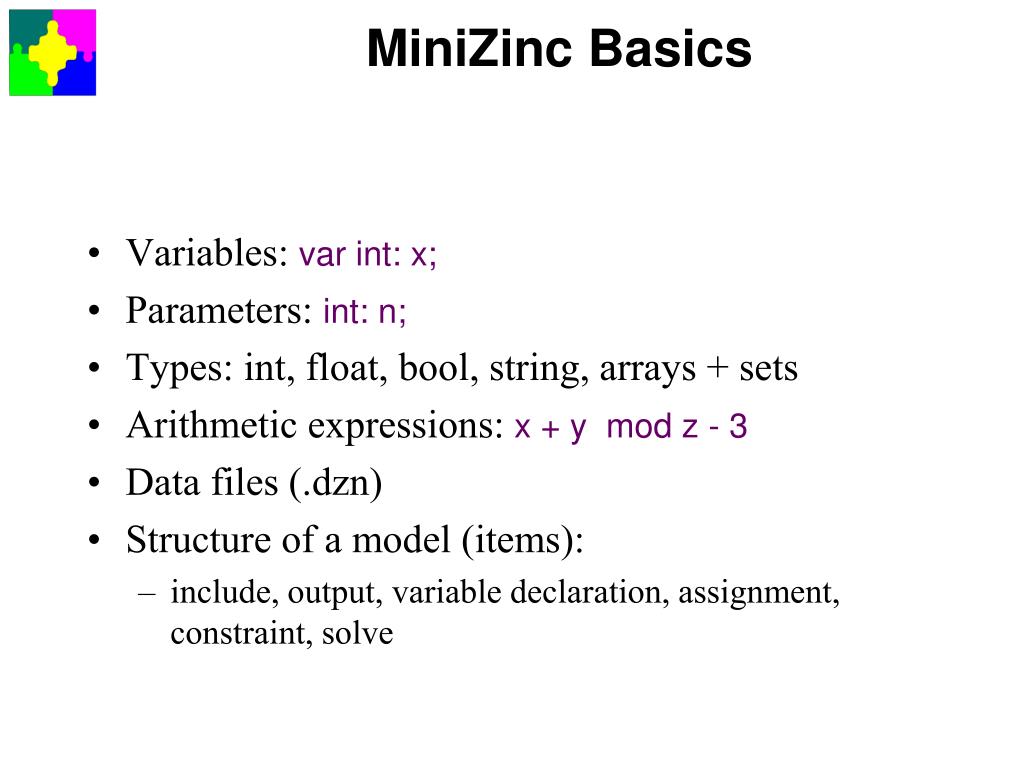

  5. MiniZinc Basics • Variables: varint: x; • Parameters: int: n; • Types: int, float, bool, string, arrays + sets • Arithmetic expressions: x + y mod z - 3 • Data files (.dzn) • Structure of a model (items): • include, output, variable declaration, assignment, constraint, solve

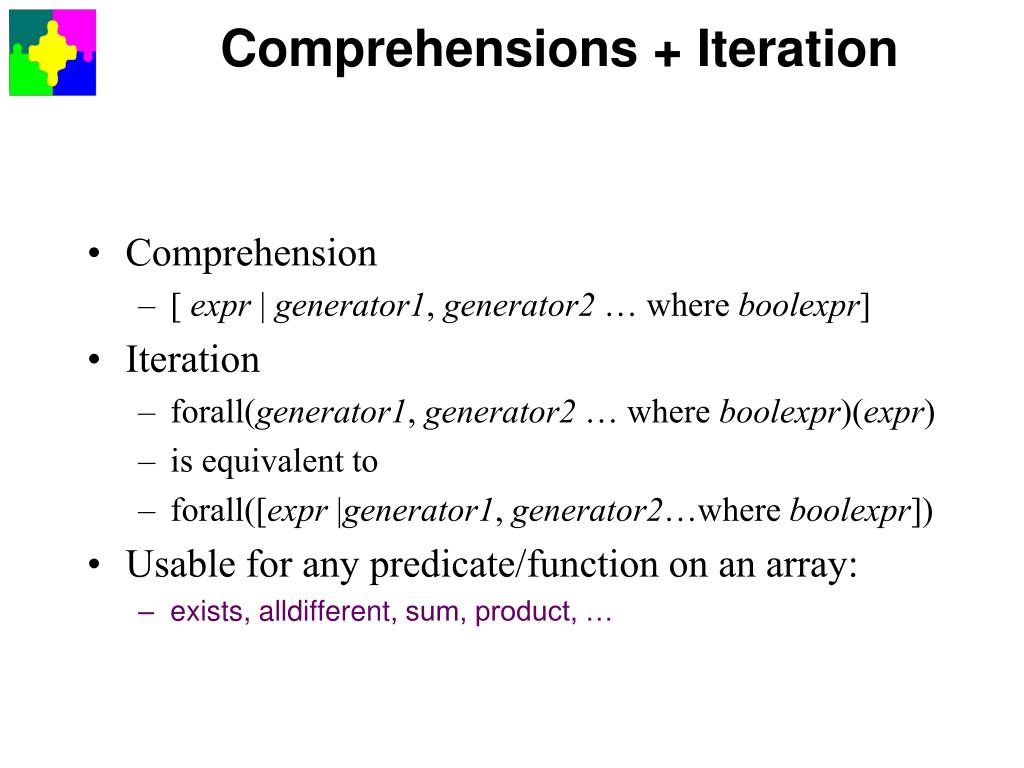

  6. Comprehensions + Iteration • Comprehension • [ expr| generator1, generator2 … where boolexpr] • Iteration • forall(generator1, generator2 … where boolexpr)(expr) • is equivalent to • forall([expr|generator1, generator2…where boolexpr]) • Usable for any predicate/function on an array: • exists, alldifferent, sum, product, …

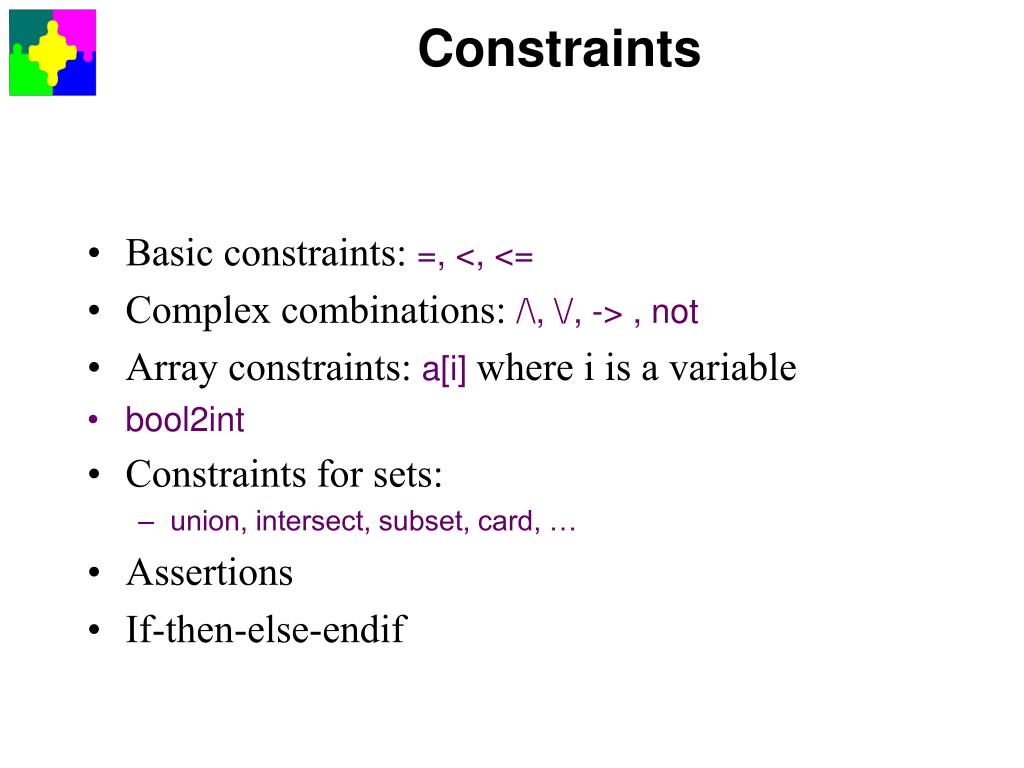

  7. Constraints • Basic constraints: =, <, <= • Complex combinations: /\, \/, -> , not • Array constraints: a[i] where i is a variable • bool2int • Constraints for sets: • union, intersect, subset, card, … • Assertions • If-then-else-endif

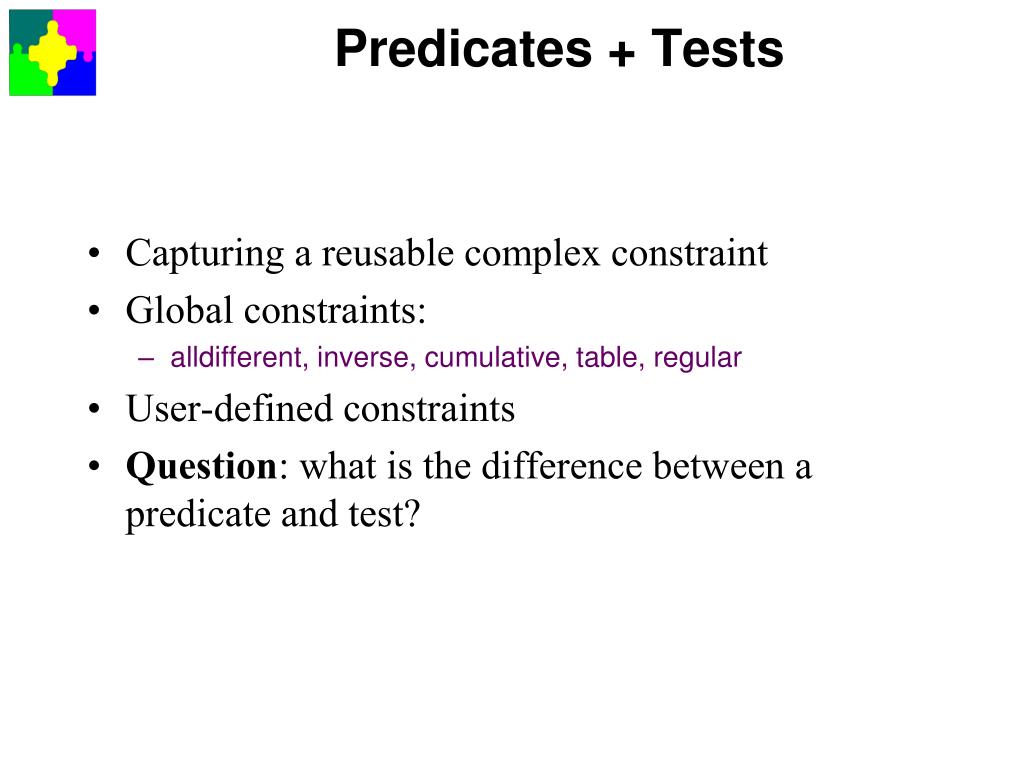

  8. Predicates + Tests • Capturing a reusable complex constraint • Global constraints: • alldifferent, inverse, cumulative, table, regular • User-defined constraints • Question: what is the difference between a predicate and test?

  9. Complex Predicates • Reflection Functions: • information about array indices and variable domains • index_set, index_set_2of3, lb, ub, dom, lb_array, … • Local variables: • predicate even(varint:x) = let { varint: y } in x = 2*y; • Local parameters must be initialized • No local variables in a negative context

  10. Partial Functions • Question: What is the expected behaviour for • constraint a[i] >= 2 -> a[i] <= 3; • Relational semantics • partial function application leads to false at nearest enclosing Boolean context

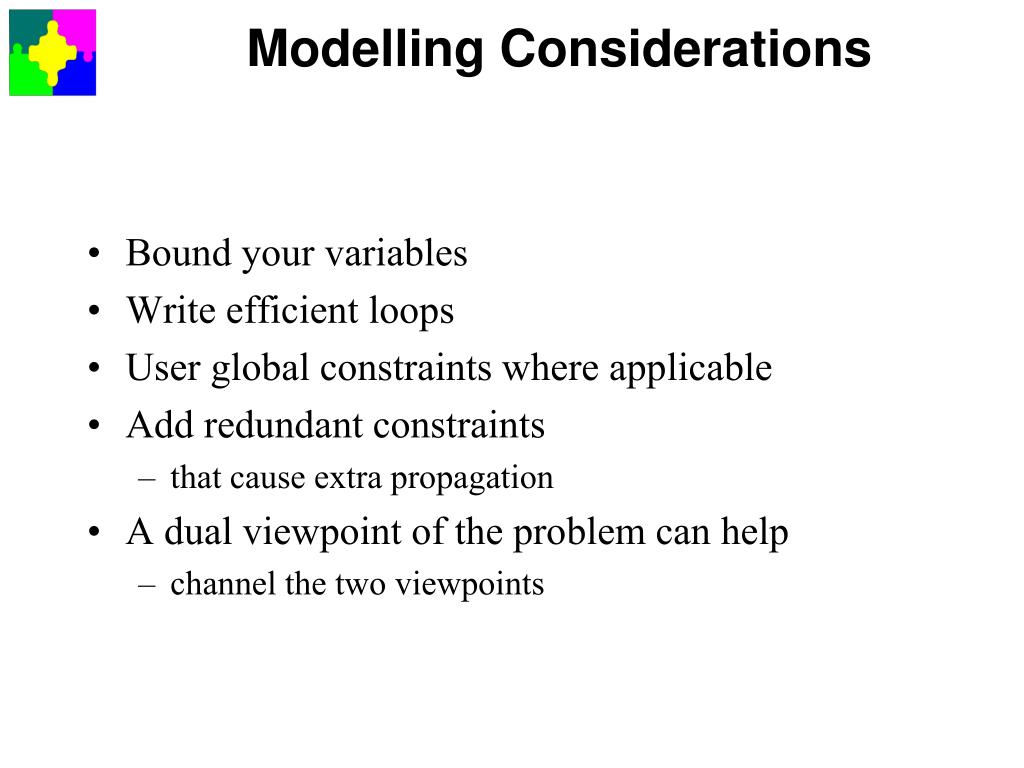

  11. Modelling Considerations • Bound your variables • Write efficient loops • User global constraints where applicable • Add redundant constraints • that cause extra propagation • A dual viewpoint of the problem can help • channel the two viewpoints

  12. Key Skills • Interpret MiniZinc models • understand what they mean • Write MiniZinc models • from an English description of the problem • including complex loops and output • understand and use the globals studied • write complex predicate definitions

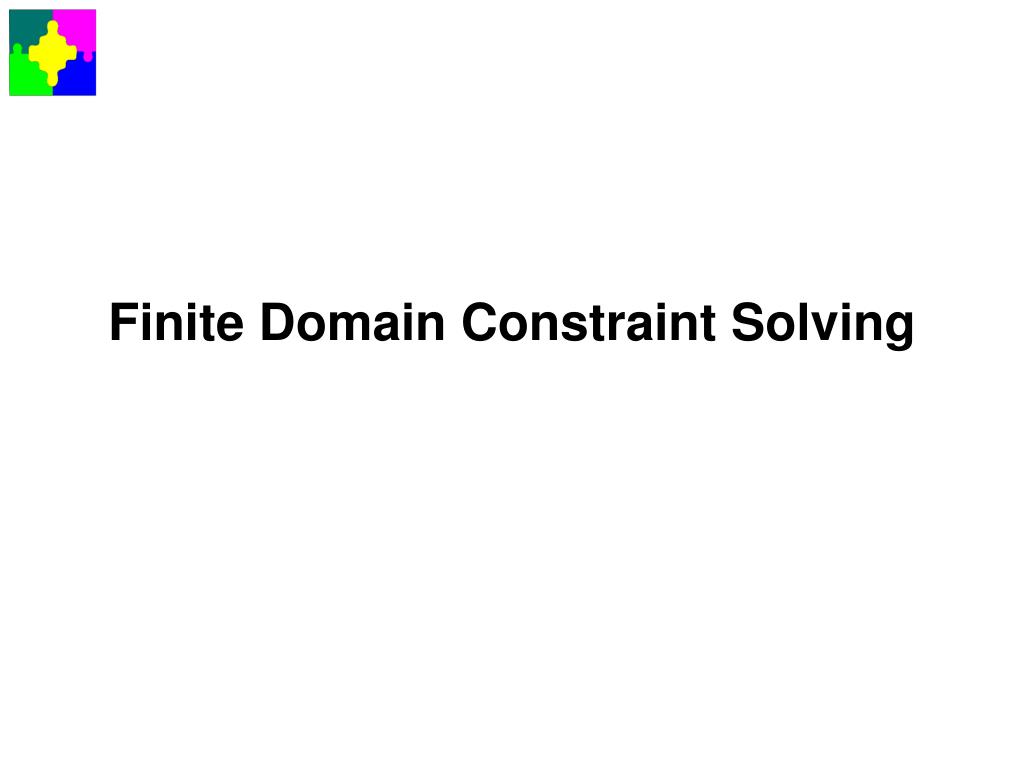

  13. Finite Domain Constraint Solving

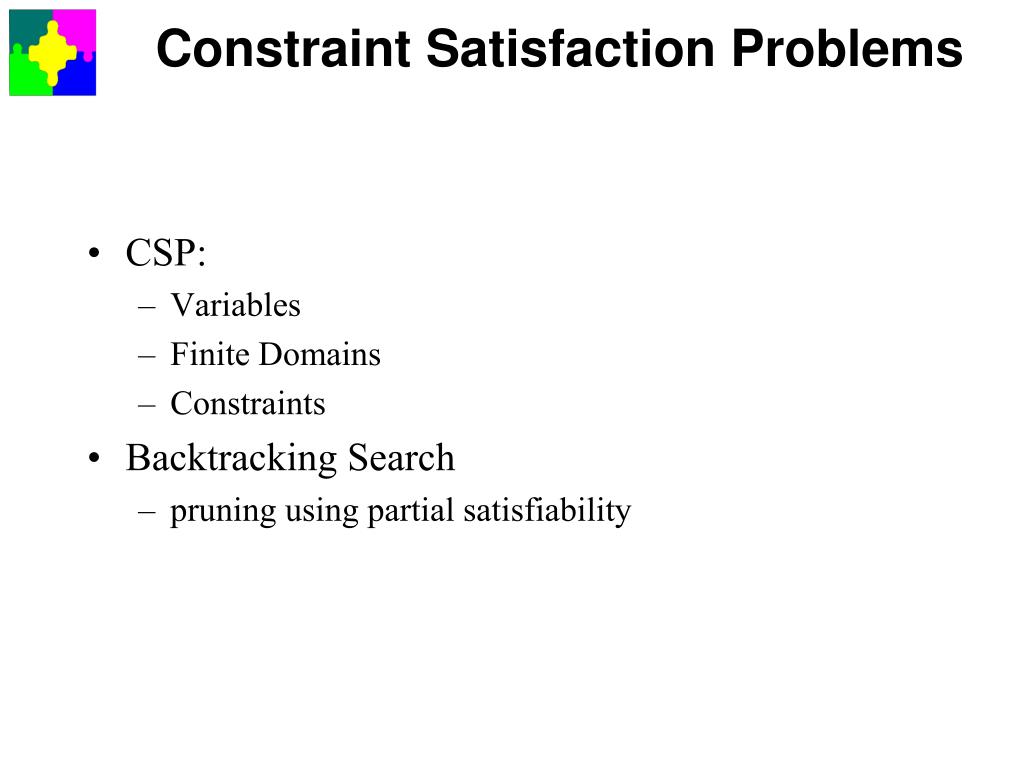

  14. Constraint Satisfaction Problems • CSP: • Variables • Finite Domains • Constraints • Backtracking Search • pruning using partial satisfiability

  15. Consistency • Node consistency • unary constraints: • remove invalid values • only require one application per constraint • Arc consistency • binary constraints • remove unsupported values • requires fixpoint • Domain consistency • n-ary constraints • removes all values that are not part of a solution • NP-hard for many constraints

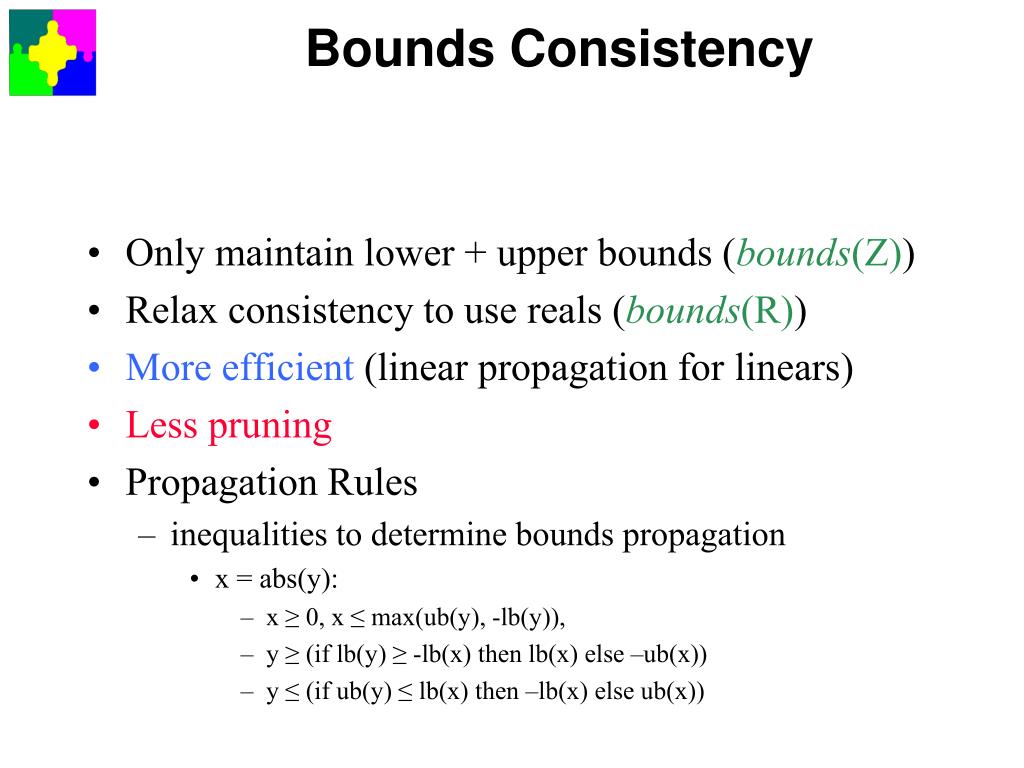

  16. Bounds Consistency • Only maintain lower + upper bounds (bounds(Z)) • Relax consistency to use reals (bounds(R)) • More efficient (linear propagation for linears) • Less pruning • Propagation Rules • inequalities to determine bounds propagation • x = abs(y): • x ≥ 0, x ≤ max(ub(y), -lb(y)), • y ≥ (if lb(y) ≥ -lb(x) then lb(x) else –ub(x)) • y ≤ (if ub(y) ≤ lb(x) then –lb(x) else ub(x))

  17. Propagation • Propagator: mapping from domain to domain • correct: does not remove solutions • checking: answers false when all variables fixed and not solution • may not implement any notion of consistency! • Propagation solving: • run all propagators to fixpoint • avoid rerunning propagators that must be at fixpoint • events, idempotence

  18. Complex Constraints • Complex constraints \/ -> … are flattened • broken into reified components • Reified constraints: • Boolean reflects if constraint holds • e.g. b <-> x <= y • Complex constraints propagate weakly • compare x = abs(y) with b1 <-> x = y, b2 <-> x = -y, b1 \/ b2

  19. Global Constraints • Individual propagation algorithms • alldifferent: • naïve: equal to decomposition but faster • domain: based on maximal matching • element: (array access with variable index) • domain consistent • cumulative • many different propagation algorithms • timetable: compulsory parts reasoning

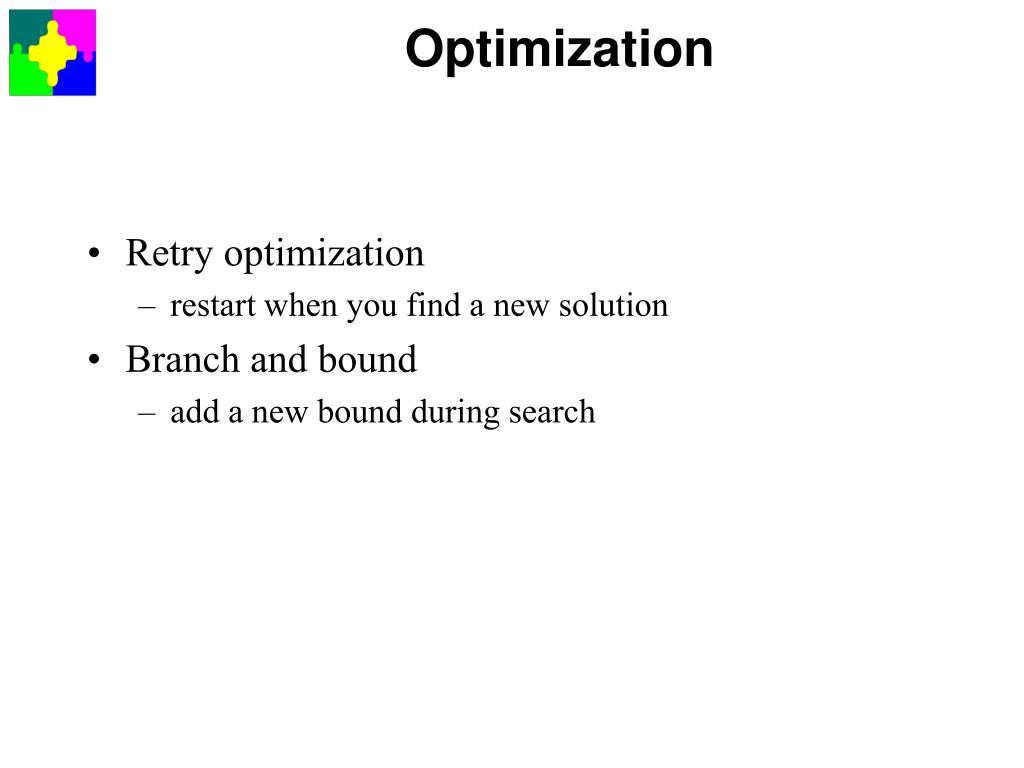

  20. Optimization • Retry optimization • restart when you find a new solution • Branch and bound • add a new bound during search

  21. Key Skills • Define, explain, compare • consistencies, backtracking search, propagators, optimization search • Execute propagation algorithm • Create propagators for given constraint • Reason about global constraint propagation

  22. Search

  23. Basic Search • Labeling • Choose a variable: var • input_order, first_fail, smallest, max_regret … • Choose a value: val • indomain_min, indomain_random, indomain_median… • Add var= val; var≠ val • Splitting • Choose variable: var • Choose split point: val • Add var≤ val; var> val

  24. Search Considerations • Which variables to search on? • Variable selection changes the search tree • Value selection reorders it: move solutions left • Complex search strategies • seq_search: one search then another • Comparing search strategies • time, choices, fails • usually needs experimentation

  25. Search Techniques • Restarts + Heavy tailed behaviour • types of restart • Incomplete Search: • limits on fails, times, choices • limited discrepancy search • Autonomous Search: • dom_w_deg • impact • activity

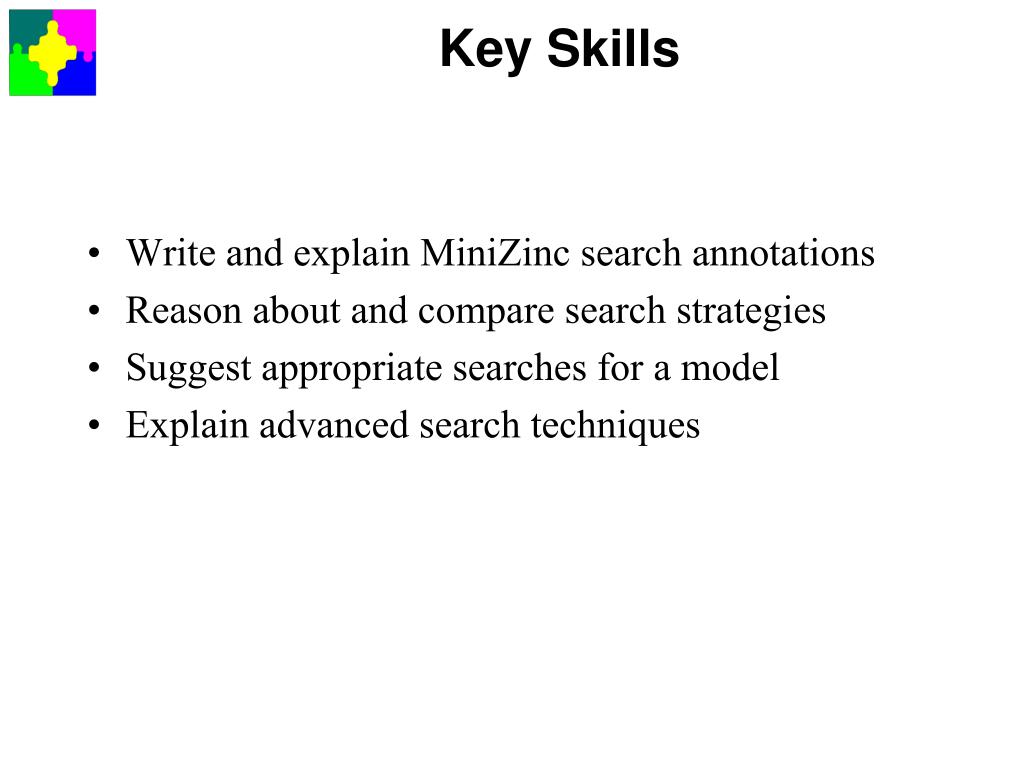

  26. Key Skills • Write and explain MiniZinc search annotations • Reason about and compare search strategies • Suggest appropriate searches for a model • Explain advanced search techniques

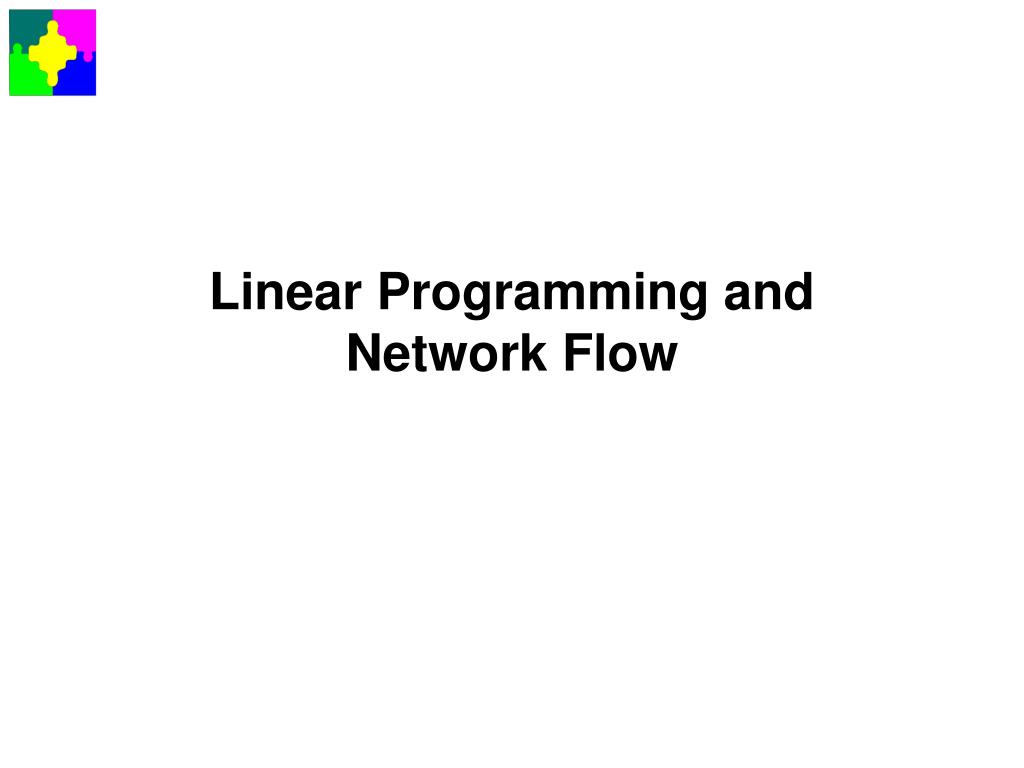

  27. Linear Programming and Network Flow

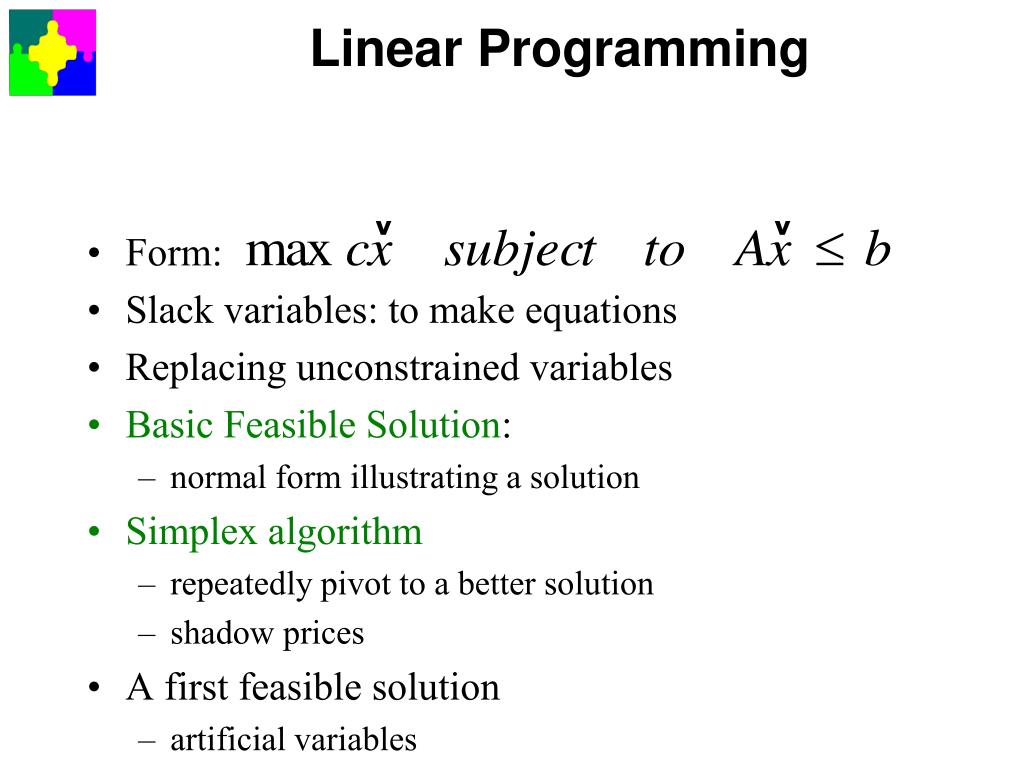

  28. Linear Programming • Form: • Slack variables: to make equations • Replacing unconstrained variables • Basic Feasible Solution: • normal form illustrating a solution • Simplex algorithm • repeatedly pivot to a better solution • shadow prices • A first feasible solution • artificial variables

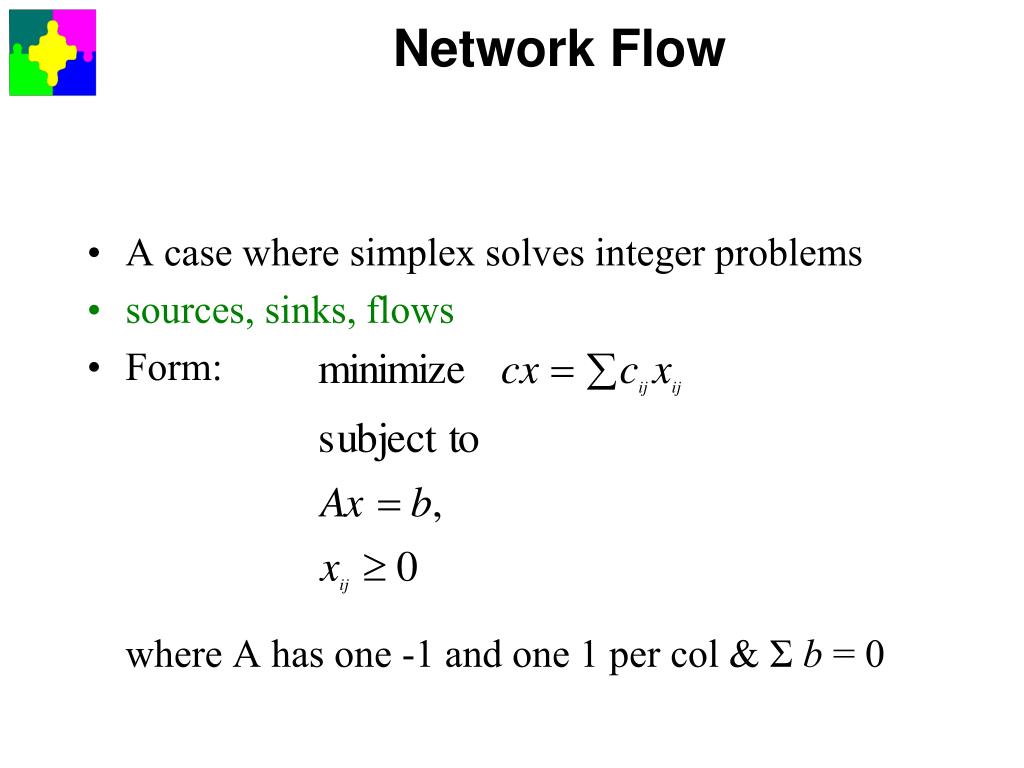

  29. Network Flow • A case where simplex solves integer problems • sources, sinks, flows • Form: where A has one -1 and one 1 per col & Σb= 0

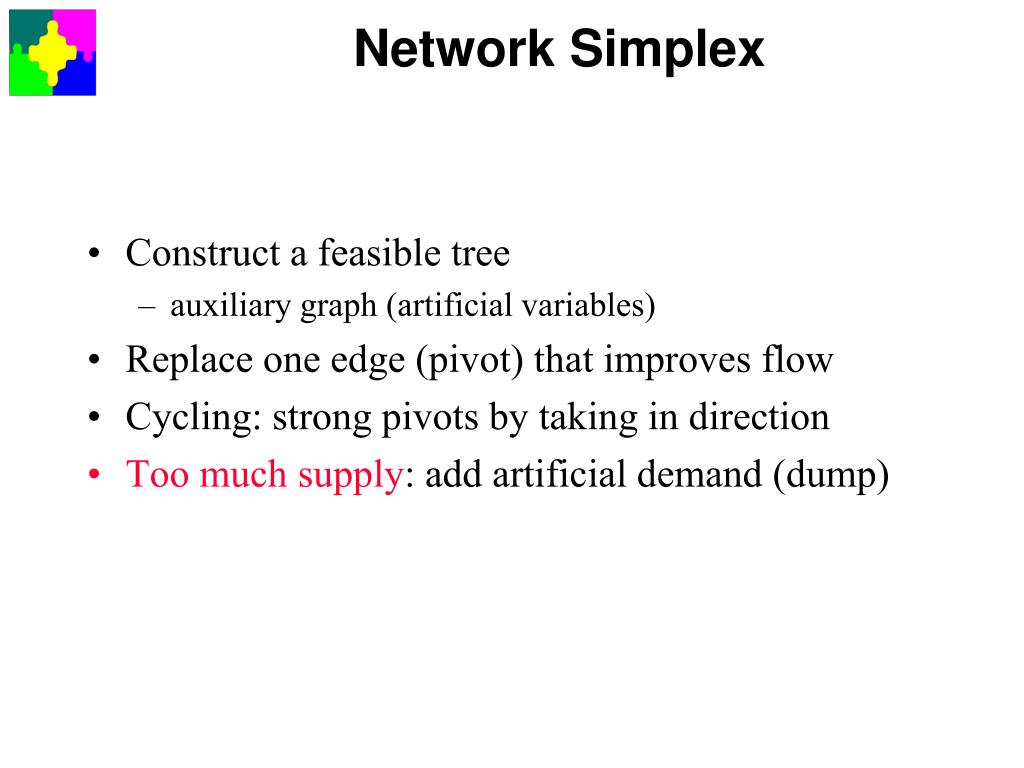

  30. Network Simplex • Construct a feasible tree • auxiliary graph (artificial variables) • Replace one edge (pivot) that improves flow • Cycling: strong pivots by taking in direction • Too much supply: add artificial demand (dump)

  31. Key Skills • Define and explain the key concepts • linear program, basic feasible solution, pivot, network flow problem, network pivot, feasible tree • Put a problem into simplex form • Execute the two phase simplex algorithm • Map a problem to network flow form (where possible) • Execute the network flow algorithm

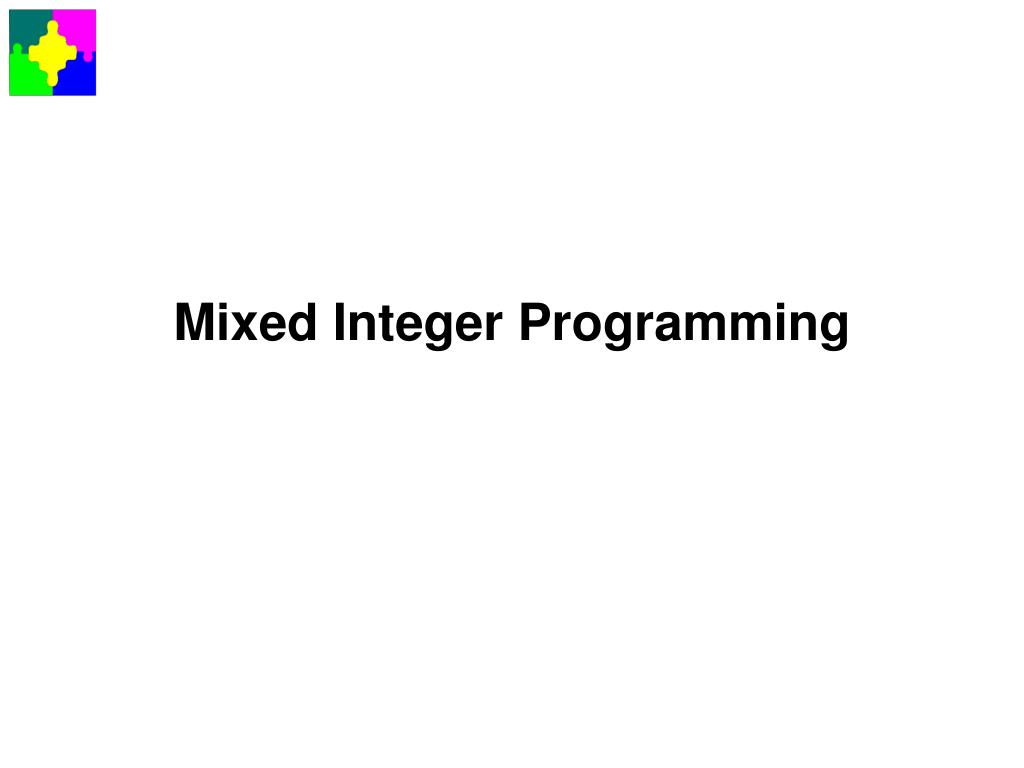

  32. Mixed Integer Programming

  33. MIP Problems • Form: where xare integer, yare real • Integer Programs: no y • 0-1 Integer Problems: xiin {0,1} • Modelling in MIP • Boolean constraints • Reified linears • alldifferent, element,

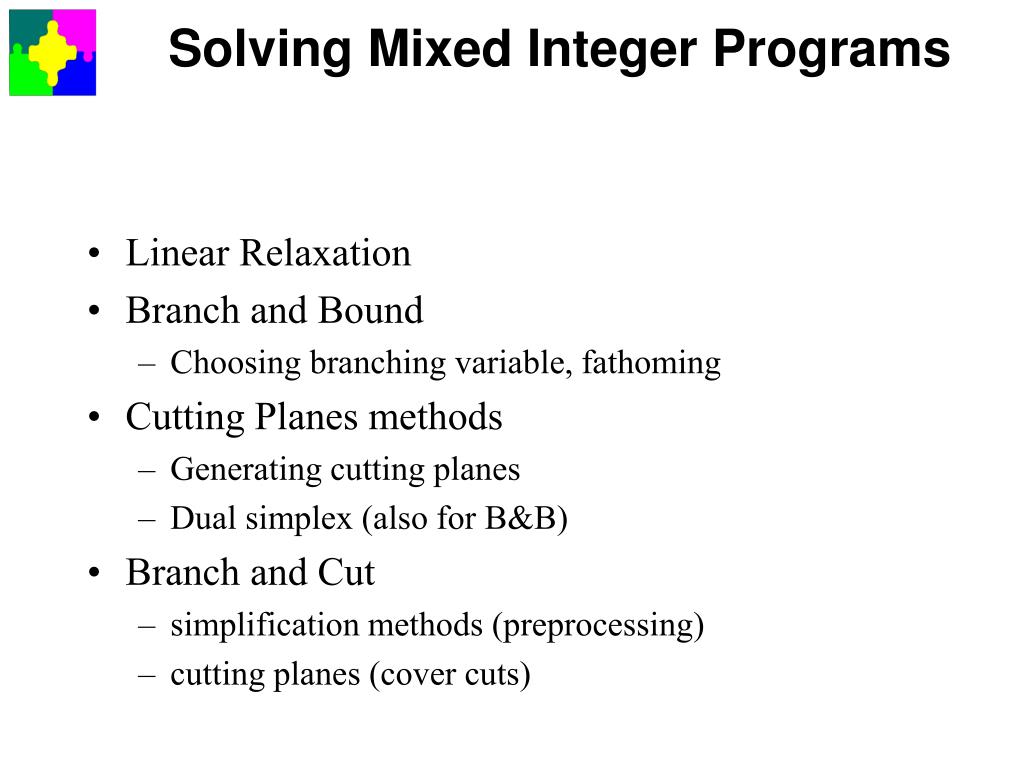

  34. Solving Mixed Integer Programs • Linear Relaxation • Branch and Bound • Choosing branching variable, fathoming • Cutting Planes methods • Generating cutting planes • Dual simplex (also for B&B) • Branch and Cut • simplification methods (preprocessing) • cutting planes (cover cuts)

  35. Key Skills • Model and solve problems in MIP using MiniZinc • model complex constraints using linear inequalities and 0-1 variables • Solve small MIP problems • execute branch and bound • create Gomory cuts • execute the dual simplex • preprocess (simplify) MIP problems • Explain the MIP solving methods

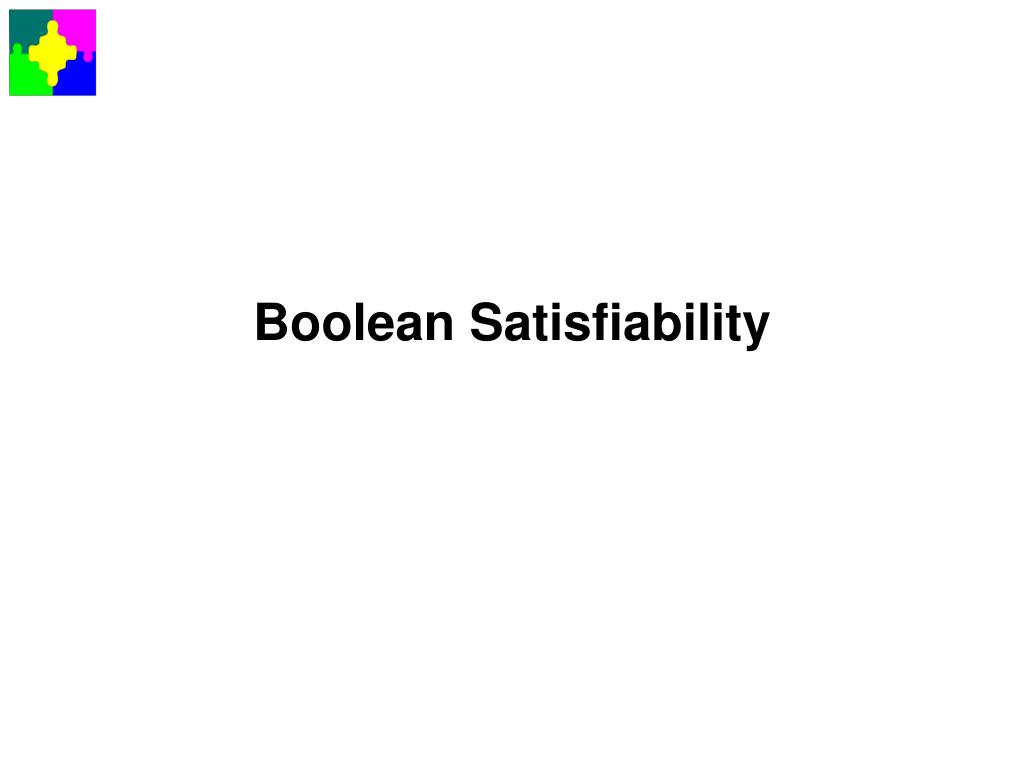

  36. Boolean Satisfiability

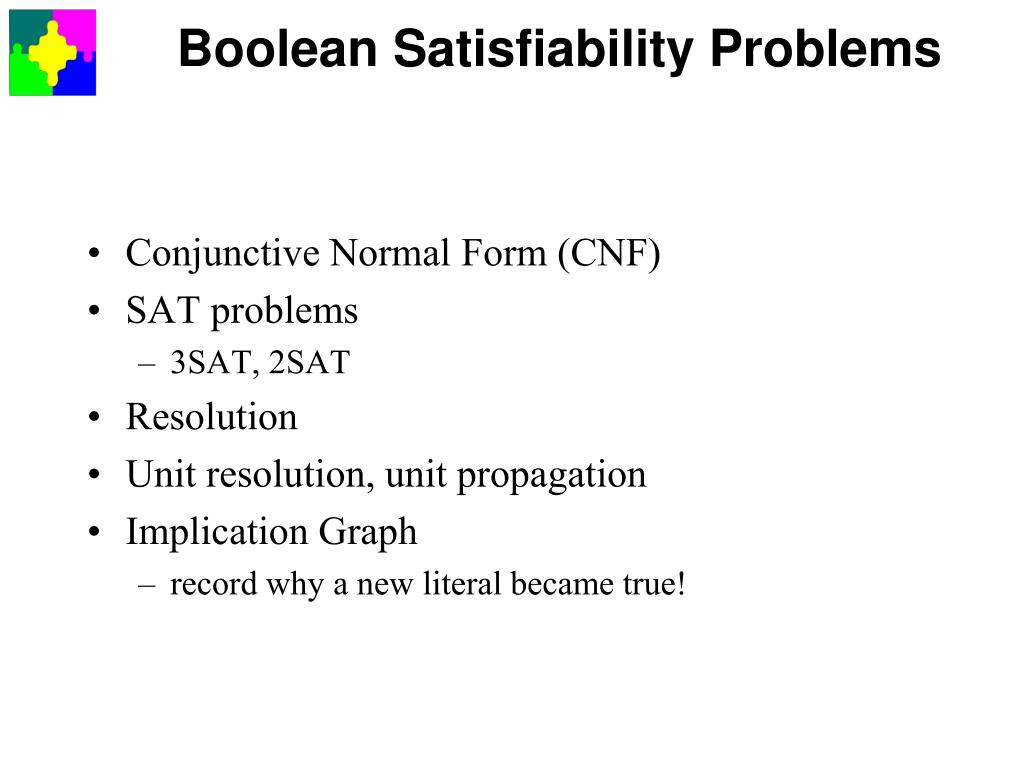

  37. Boolean Satisfiability Problems • Conjunctive Normal Form (CNF) • SAT problems • 3SAT, 2SAT • Resolution • Unit resolution, unit propagation • Implication Graph • record why a new literal became true!

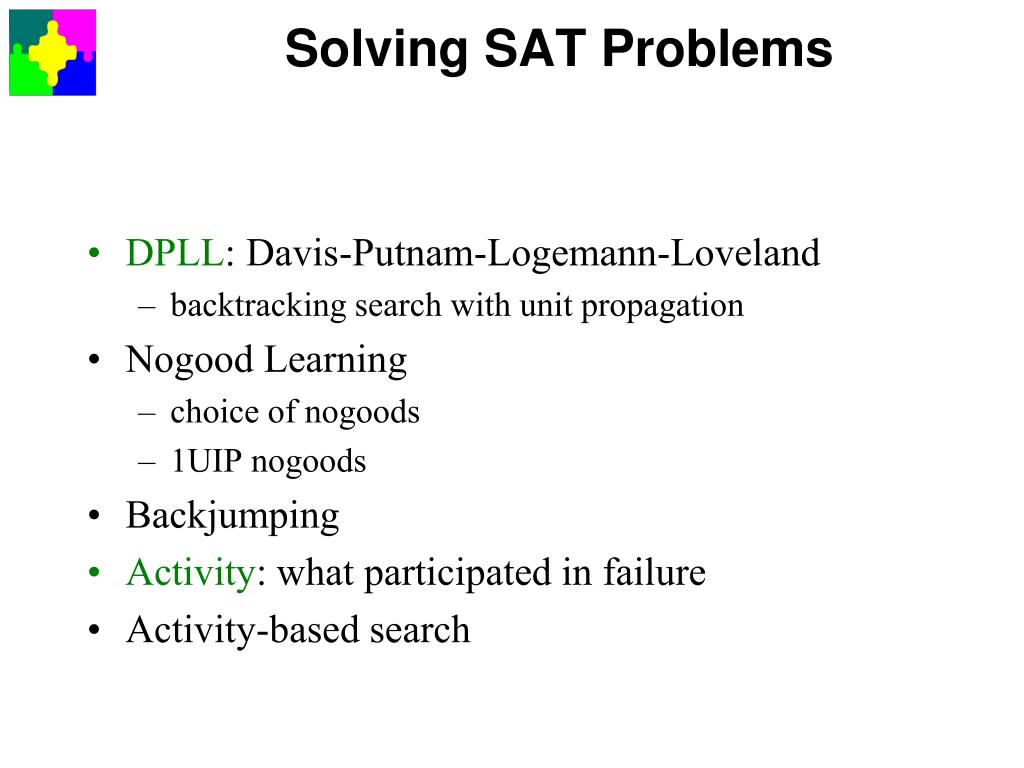

  38. Solving SAT Problems • DPLL: Davis-Putnam-Logemann-Loveland • backtracking search with unit propagation • Nogood Learning • choice of nogoods • 1UIP nogoods • Backjumping • Activity: what participated in failure • Activity-based search

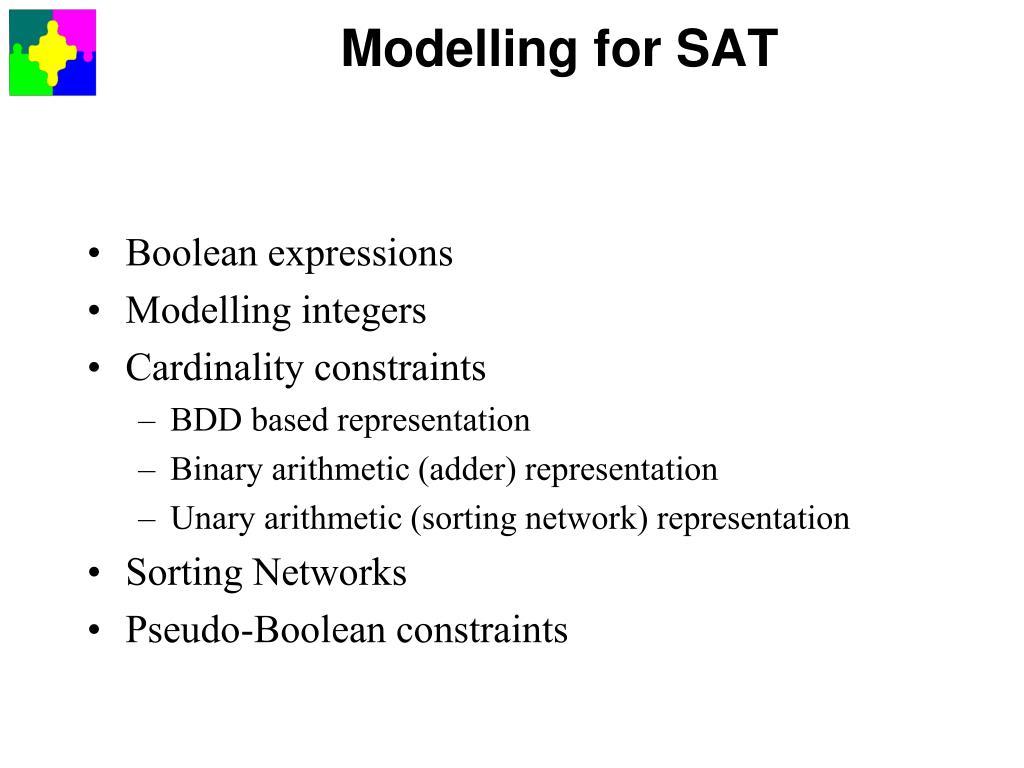

  39. Modelling for SAT • Boolean expressions • Modelling integers • Cardinality constraints • BDD based representation • Binary arithmetic (adder) representation • Unary arithmetic (sorting network) representation • Sorting Networks • Pseudo-Boolean constraints

  40. Key Skills • Modelling restricted problems using SAT in MiniZinc • Explain and execute DPLL SAT solving • unit propagation • 1UIP nogood generation • backjumping • Model cardinality constraints in SAT • Compare and contrast Boolean models.

  41. Lazy Clause Generation

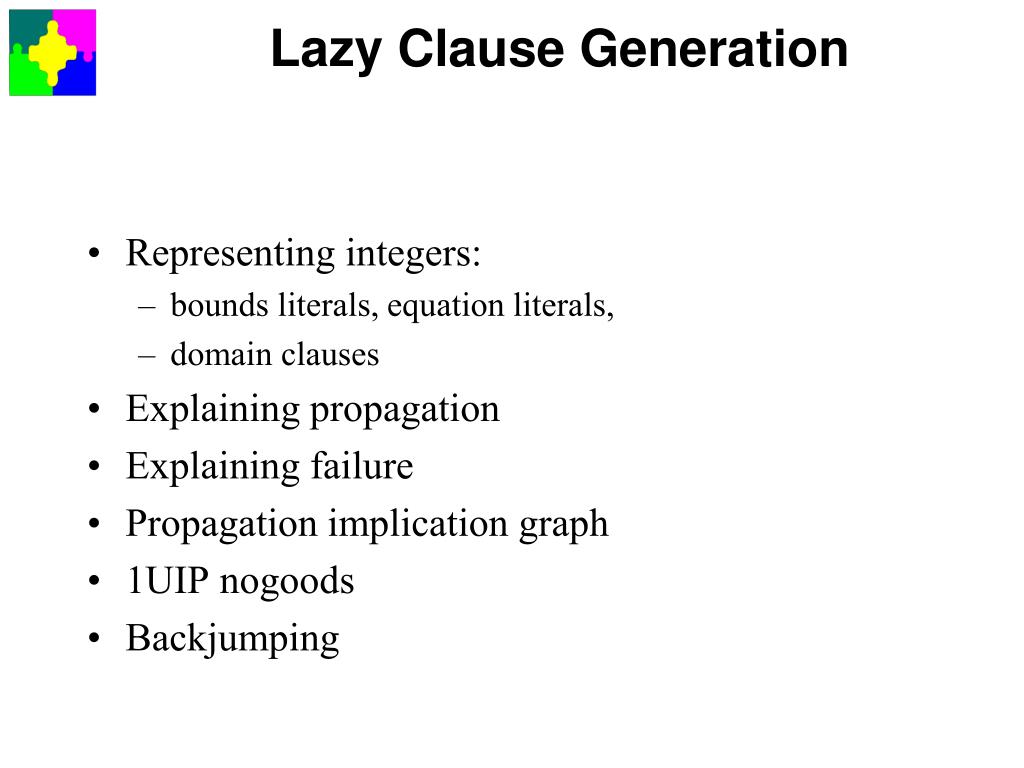

  42. Lazy Clause Generation • Representing integers: • bounds literals, equation literals, • domain clauses • Explaining propagation • Explaining failure • Propagation implication graph • 1UIP nogoods • Backjumping

  43. Lazier Clause Generation • Lazy variable generation: • array: generate equation literals on demand • list: generate both on demand • Views: a way to reduce the number of variables • map accesses/updates on views to base var • Lazy Explanation • deletion of explanations • generating only needed explanations

  44. LCG + Globals • Globality of Nogood Learning • Globals by Decomposition • advantages and disadvantages • which decomposition? • Explaining Globals • choices in how to explain • what is the best explanation • Search • nogoods work for all search

  45. Key Skills • Compare and contrast LCG with SAT and FD solving • Define explaining propagators • Execute lazy clause generation • Discuss variations on lazy clause generation • Examine issues for globals in LCG • decomposition, choice of propagation

  46. Course Summary

  47. Importance • Introduction: LOW • Modelling in MiniZinc: CRITICAL • Finite Domain Constraint Solving: HIGH • Search: MEDIUM • Linear Programming and Network Flow: LOW • Mixed Integer Programming: HIGH • Boolean Satisfiability: MEDIUM • Lazy Clause Generation: MEDIUM • Course Summary + Revision: CRITICAL

  48. Exam Questions • Look at previous exams • modelling in Sicstus Prolog: NO • constraint logic programming: NO • constraint solvers in general: NO • the rest YES including modelling questions (MiniZinc) • Workshop + Project Questions • Questions in Lectures • Exercises in Slides

  49. The Exam • My exams: • tend to be a bit long • have some hard questions (a) Don’t Panic • a hard/long exam means standardization up (b) Do the easiest mark/time questions first • for what you find easy (c) Attend even if you think you havent passed project hurdle • hurdles can always be relaxed

  50. Good Luck!
