  1. Introduction to Propulsion Lecture #3 Ehsan Roohi Ferdowsi University of Mashhad Faculty of Engineering

  2. Oblique Shock: who Knows me? (Chap. 4, Anderson, MCF)

  3. Breaking the Sound Barrier with an Aircraft

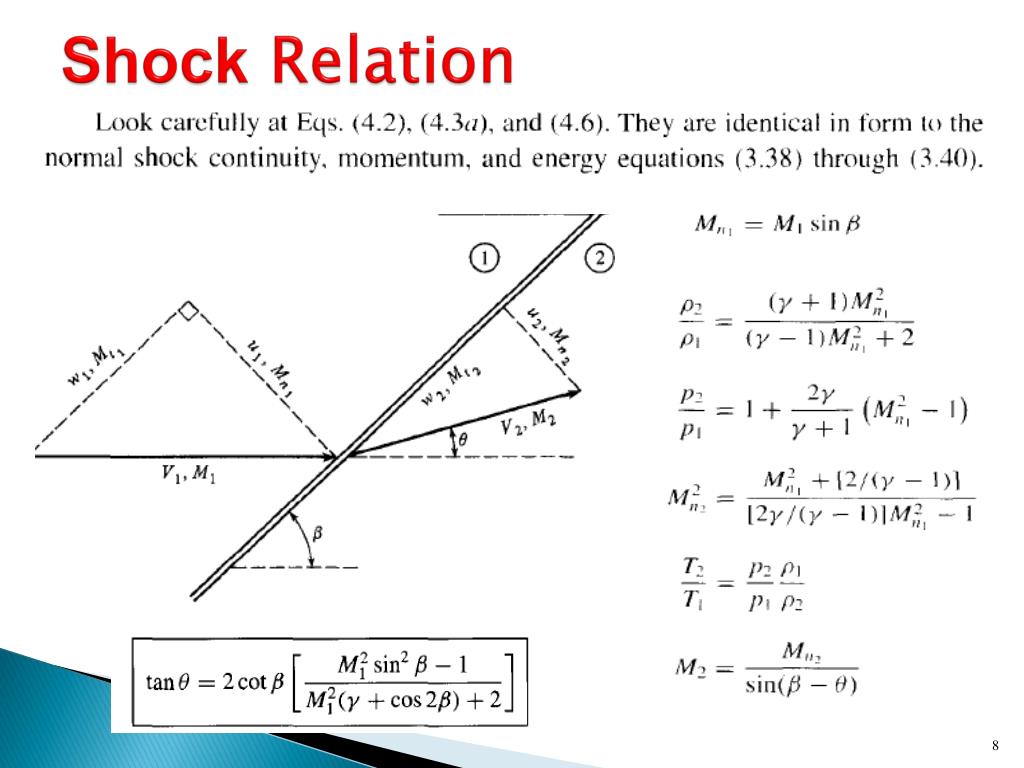

  4. Shock Relation

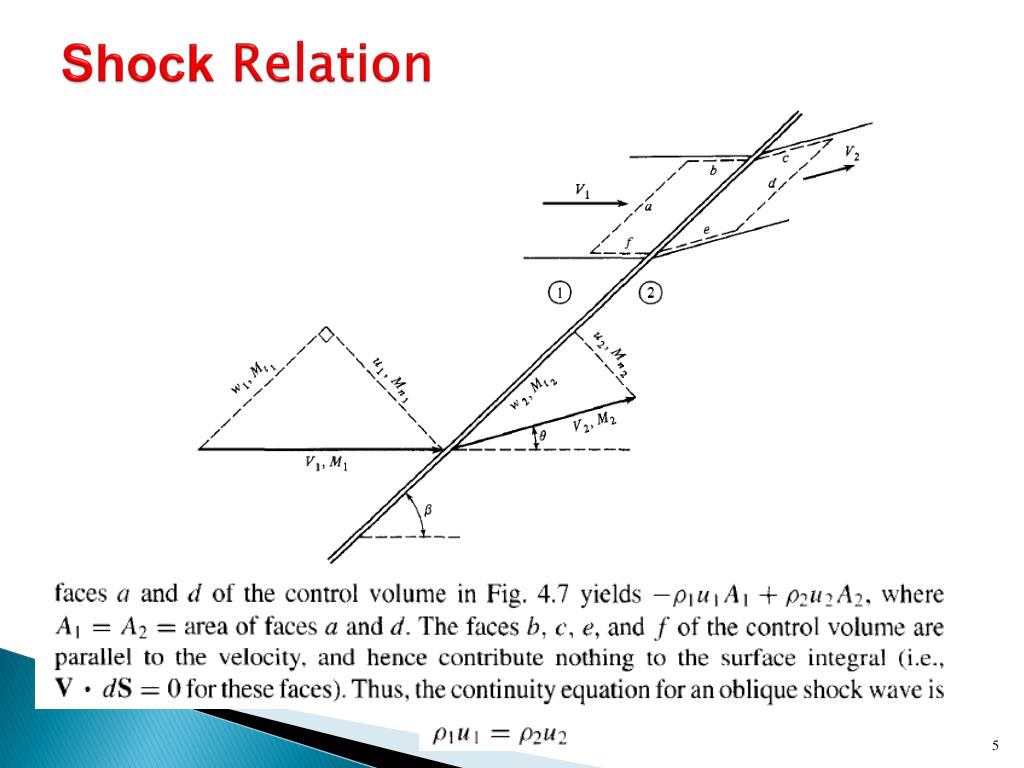

  5. Shock Relation

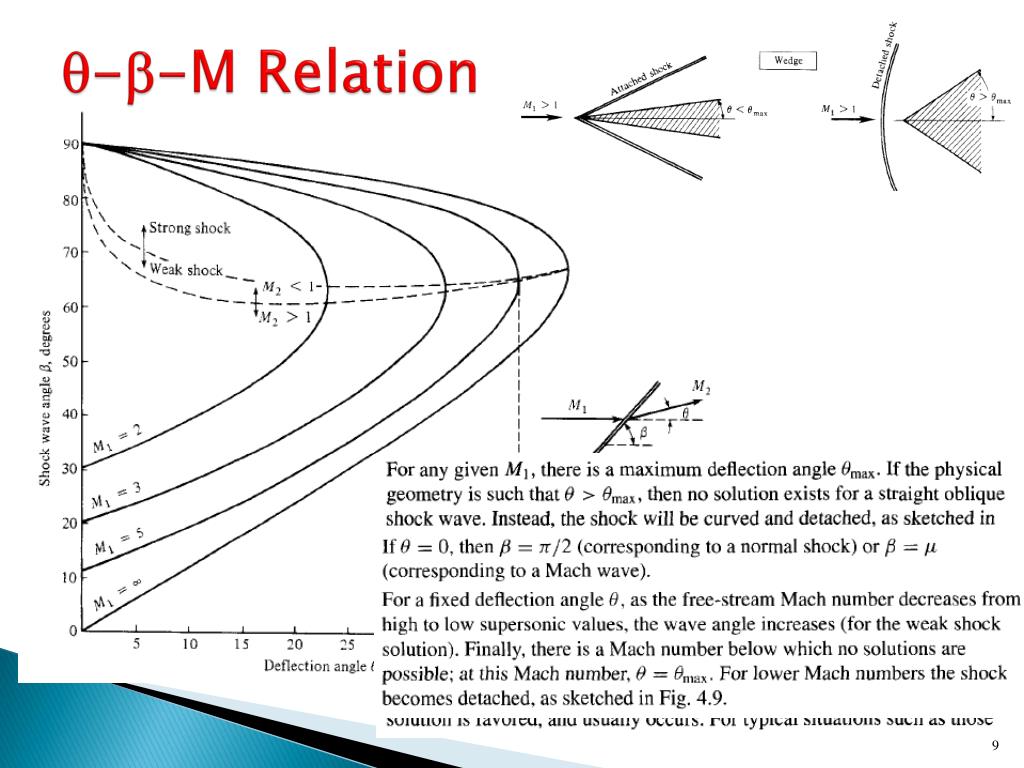

  6. q-b-M Relation

  7. Example Pages 513-514 Aerodynamics, by: Anderson

  8. Example P1 effects comes inside Cp

  9. Shock Reflection

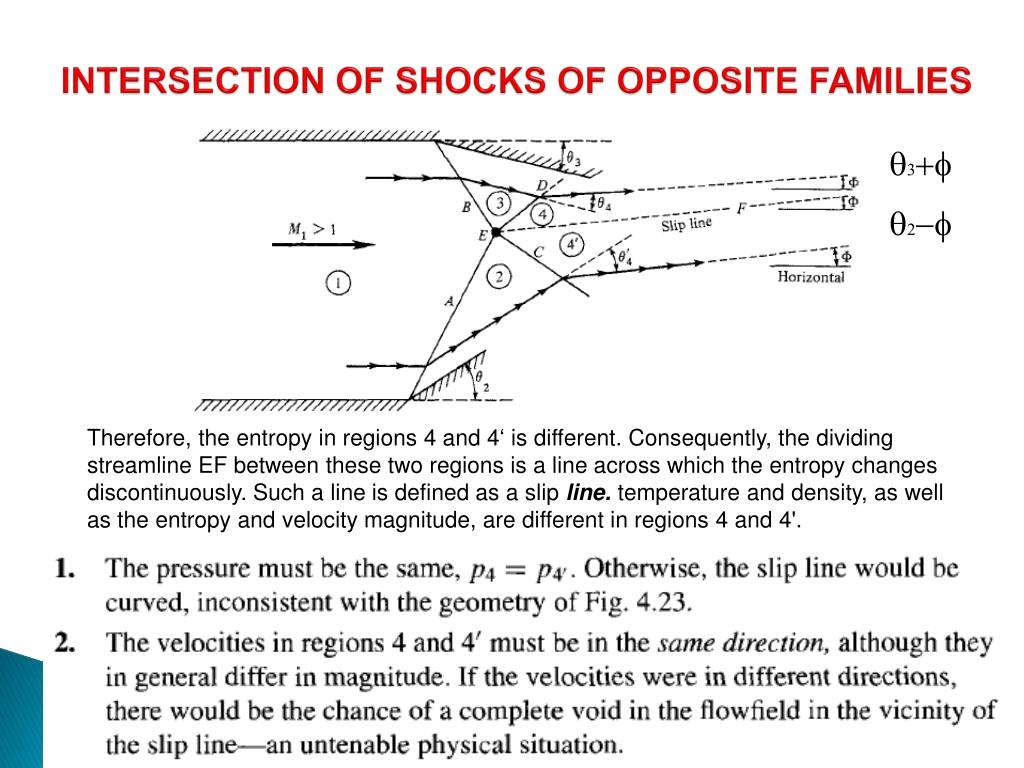

  10. INTERSECTION OF SHOCKS OF OPPOSITE FAMILIES q3+f q2-f Therefore, the entropy in regions 4 and 4‘ is different. Consequently, the dividing streamline EF between these two regions is a line across which the entropy changes discontinuously. Such a line is defined as a slip line. temperature and density, as well as the entropy and velocity magnitude, are different in regions 4 and 4'.

  11. INTERSECTION OF SHOCKSOF THE SAME FAMILY

  12. DETACHED SHOCK WAVE IN FRONT OF A BLUNT BODY

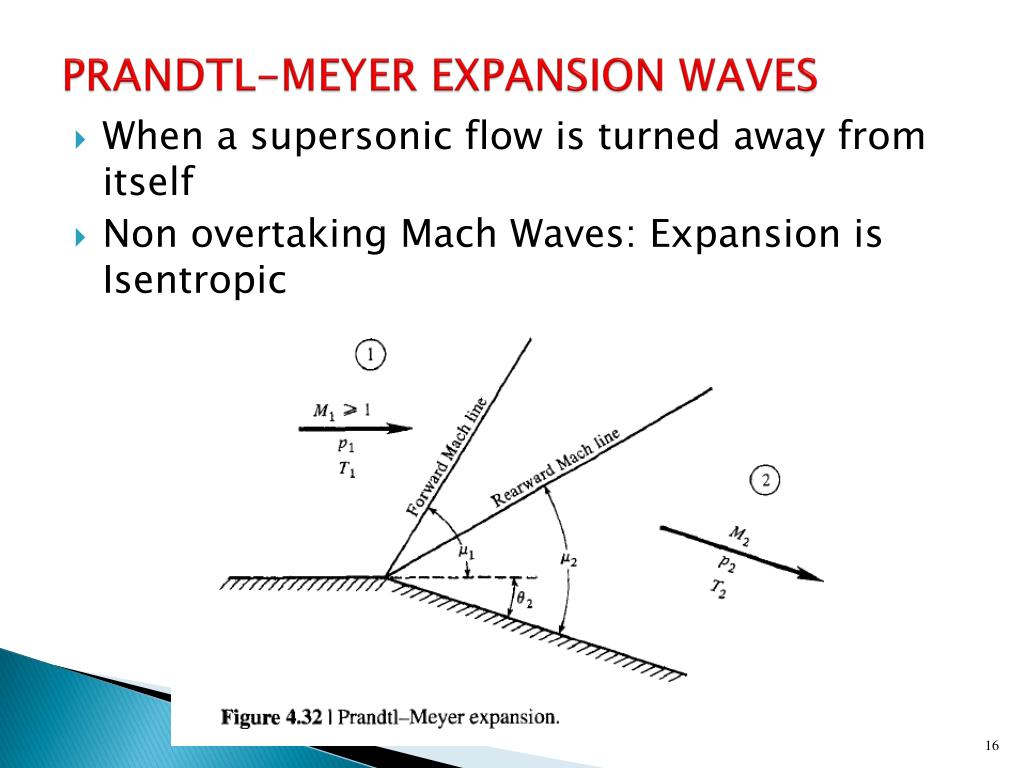

  13. PRANDTL-MEYER EXPANSION WAVES • When a supersonic flow is turned away from itself • Non overtaking Mach Waves: Expansion is Isentropic

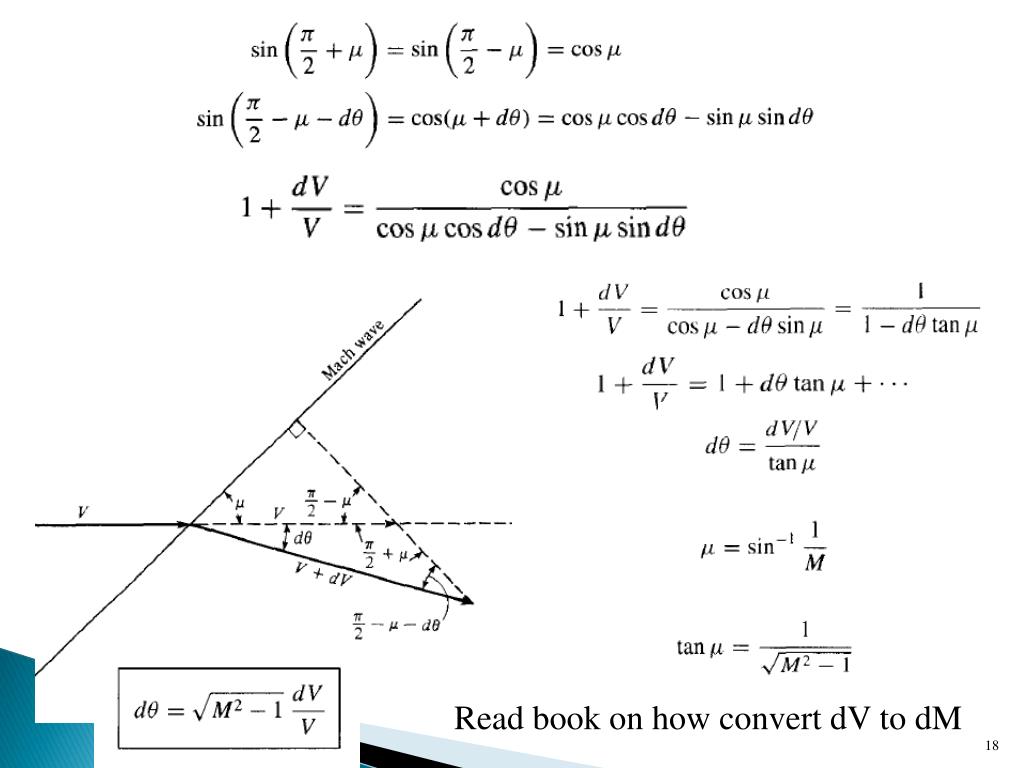

  14. Read book on how convert dV to dM

  15. PRANDTL-MEYER EXPANSION WAVES

  16. Example Read Ex. 4.16/ 4.17

  17. Nozzle

  18. Example: Constant Area Heating

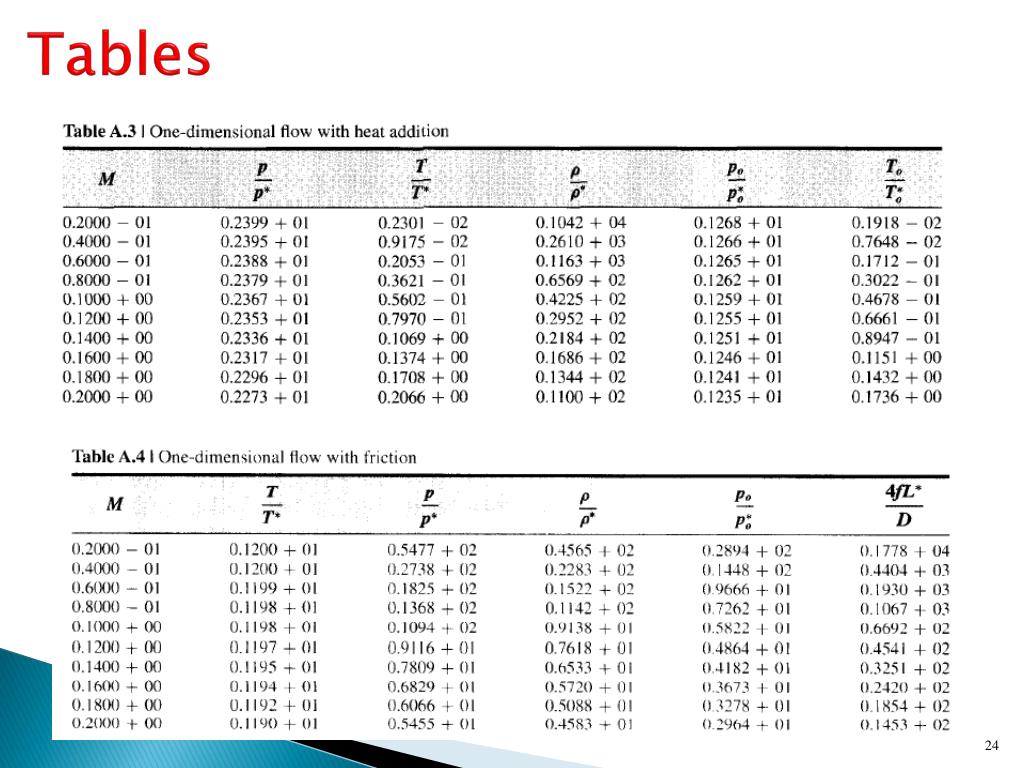

  19. Tables

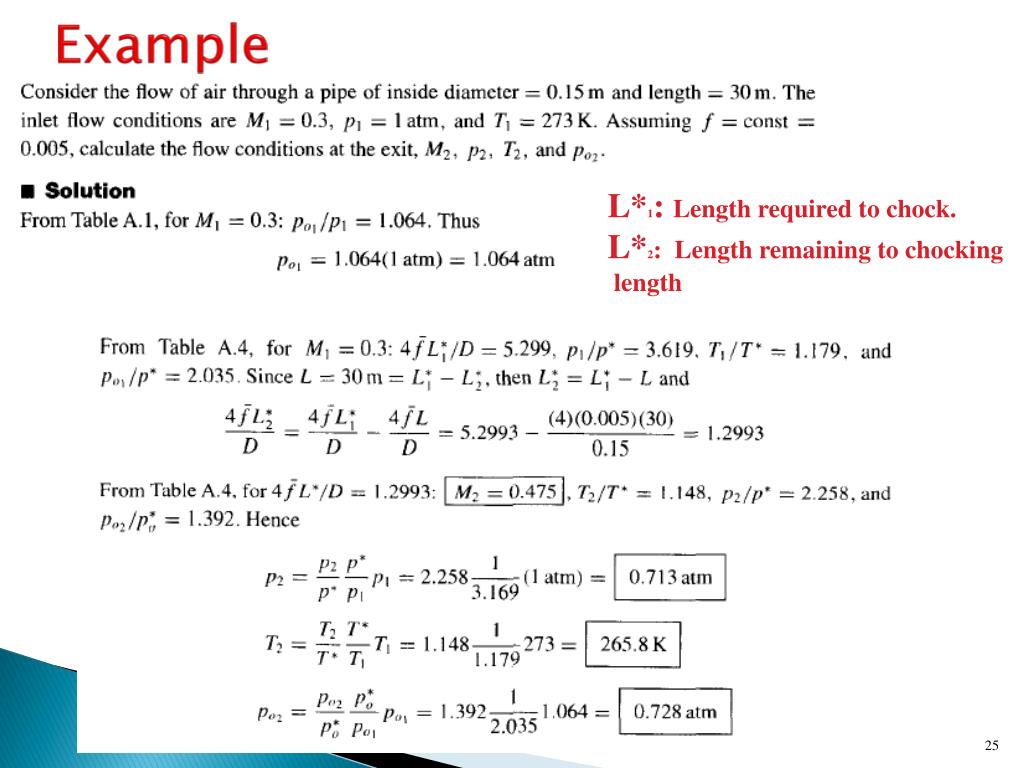

  20. Example L*1: Length required to chock. L*2: Length remaining to chocking length
