Presentation Transcript


3381376

Efficient search space exploration and feature description based on the floating point arithmetic of FPGA

李海娥


1 introduction
1 Introduction based on the floating point arithmetic of FPGA

  • IP reuse;

  • parameterized IP(number,pipeline,resource)

    meet the needs of many different designs and reduce design time and risk);

  • Power

  • Floating point arithmetic

Tianjin University


2 the purpose
2 the purpose based on the floating point arithmetic of FPGA

How to set the parameters of the floating point to meet requirements:

  • Meet the function

  • Save resources

  • Running time

  • Reduce the power dissipation

Tianjin University


3 the method
3 the method based on the floating point arithmetic of FPGA

  • Fully pipelined single precision floating point multiply and adder;

  • Different parameters(LUTS or DSP, latency, ports);

  • Latency:describes the number of clock cycles between an operand input and the result output.

Tianjin University


The design architecture
the design architecture based on the floating point arithmetic of FPGA

Figure 1. Data-path designs for MAC c=c+ai*bi, i=1..N.

Tianjin University


A signal operation
A Signal operation based on the floating point arithmetic of FPGA

One AM

One ADD

Tianjin University


B combinations
B combinations based on the floating point arithmetic of FPGA

1 resources(slice luts、registers)

2 power

3 the maximum frequency of the combinations is less then the related AM and ADD

Tianjin University


The two optimization models
the two optimization models based on the floating point arithmetic of FPGA

  • design space of the system includes:

    power consumption

    resource usage

    the speed

    The latency

  • P=fp* ( PAM + PADD) /(100MHZ)

  • L=m* LAM +n* LADD

  • R=m* RAM +n* RADD

  • F< =min (FAM, FADD)

  • Running time constraints

Tianjin University


Running time constraints
Running time constraints based on the floating point arithmetic of FPGA

C=N/zm-1 + Lm + La *(log2za+1) + La*(log2La+1)

za=zm=2z

C – fp*T<=0

Tianjin University


3 1 1 linear models
3.1.1 linear models based on the floating point arithmetic of FPGA

Tianjin University

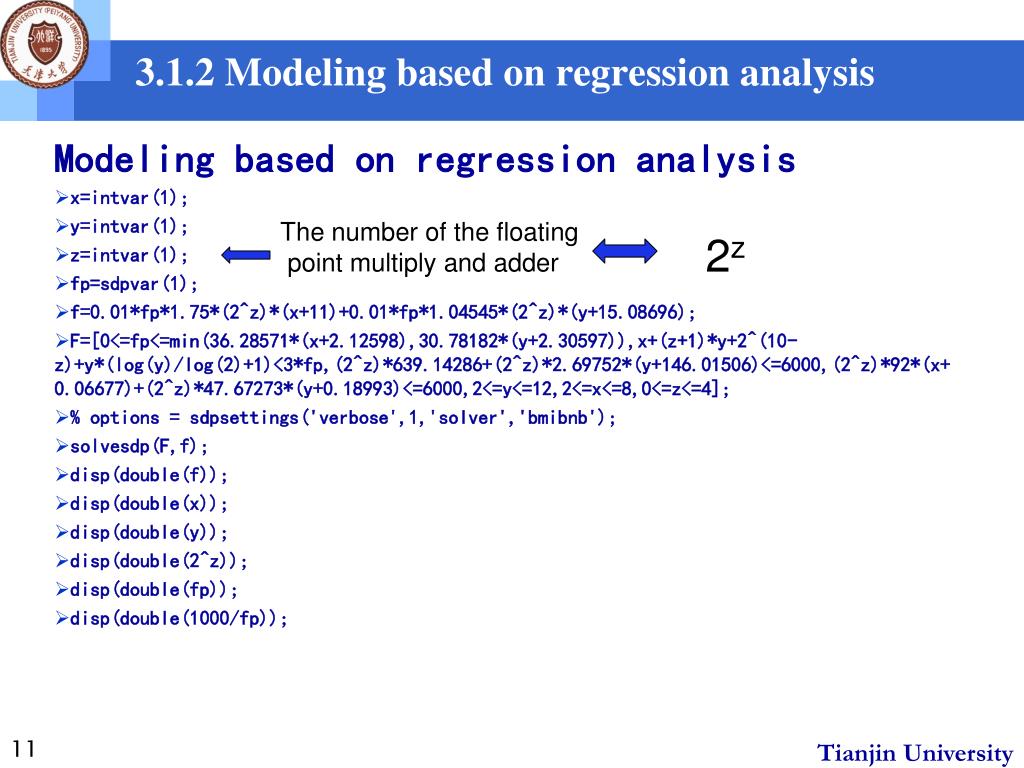

3 1 2 modeling based on regression analysis
3.1.2 Modeling based on regression analysis based on the floating point arithmetic of FPGA

Modeling based on regression analysis

  • x=intvar(1);

  • y=intvar(1);

  • z=intvar(1);

  • fp=sdpvar(1);

  • f=0.01*fp*1.75*(2^z)*(x+11)+0.01*fp*1.04545*(2^z)*(y+15.08696);

  • F=[0<=fp<=min(36.28571*(x+2.12598),30.78182*(y+2.30597)),x+(z+1)*y+2^(10-z)+y*(log(y)/log(2)+1)<3*fp,(2^z)*639.14286+(2^z)*2.69752*(y+146.01506)<=6000,(2^z)*92*(x+0.06677)+(2^z)*47.67273*(y+0.18993)<=6000,2<=y<=12,2<=x<=8,0<=z<=4];

  • % options = sdpsettings('verbose',1,'solver','bmibnb');

  • solvesdp(F,f);

  • disp(double(f));

  • disp(double(x));

  • disp(double(y));

  • disp(double(2^z));

  • disp(double(fp));

  • disp(double(1000/fp));

The number of the floating

point multiply and adder

2z

Tianjin University


3 2 the polynomial models
3.2 the polynomial models based on the floating point arithmetic of FPGA

Tianjin University


3 2 1 modeling based on simulated annealing
3.2.1 Modeling based on Simulated annealing based on the floating point arithmetic of FPGA

  • Parameters x[2,8,0],y[2,12,0],z[0,4,0],rf[0,500];

  • MinFunction 0.01*rf*(2^z)*(93.73807-89.77205*x+40.53269*x^2-8.26548*x^3+0.7934*x^4-0.02916*x^5)+0.01*rf*(2^z)*(-10.71794+24.35363*y-7.40564*y^2+1.08772*y^3-0.07455*y^4+ 0.00192*y^5);

  • (2^z)*(-3384.85647+5039.78552*x-2312.30642*x^2+494.61355*x^3-50.02651*x^4+ 1.93333*x^5)+(2^z)*(122.23825+239.21494*y-68.6165*y^2+8.59996*y^3-0.47702*y^4+ 0.00944*y^5)<=6000;

  • (2^z)*(2223.14264-2720.01336*x+1270.69305*x^2-262.053*x^3+25.30682*x^4-0.93333*x^5) +(2^z)*(-219.77249+252.99128*y-73.2325*y^2+12.26375*y^3-0.9434*y^4+0.02675*y^5)<=6000;

  • x+(z+1)*y+2^(10-z)+y*(log(y)/log(2)+1)<=1.0*rf;

  • rf<=min(-54.8162+151.86111*x-42.53182*x^2+9.09894*x^3-1.06665*x^4+0.04994*x^5,88.24364-24.82321*y+28.04692*y^2-5.27886*y^3+0.43151*y^4-0.01299*y^5);

Tianjin University


4 the verification
4 the verification based on the floating point arithmetic of FPGA

  • The verification is based on the dot product:

  • 1024*1024

    1 Slice luts<=9000;

    Slice registers<=9000;

    running time constraints:

    0.9ms,1.0ms,1.1ms……

    2 Slice luts<=6000;

    Slice registers<=6000;

    running time constraints:

    0.9ms,1.0ms,1.1ms……

Tianjin University


Result 1
Result 1 based on the floating point arithmetic of FPGA

Tianjin University


Result 2
Result 2 based on the floating point arithmetic of FPGA

Tianjin University


3381376

谢谢大家 based on the floating point arithmetic of FPGA
