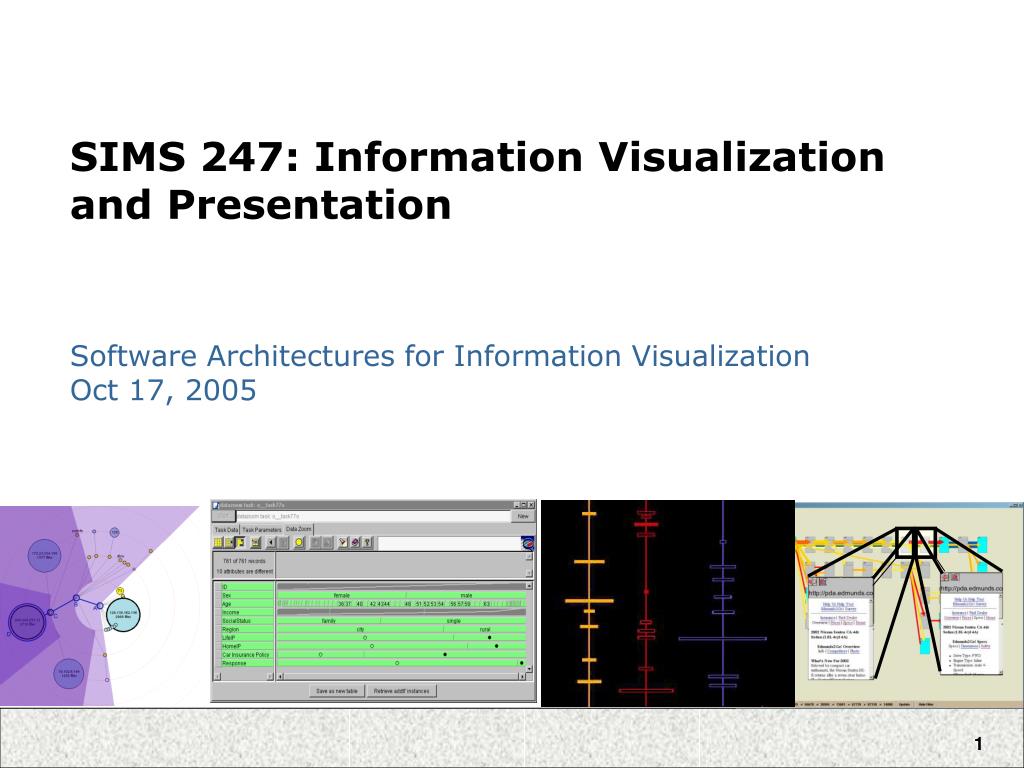

Sims 247 information visualization and presentation

SIMS 247: Information Visualization and Presentation

Software Architectures for Information Visualization

Oct 17, 2005


Infovis history

infovis history

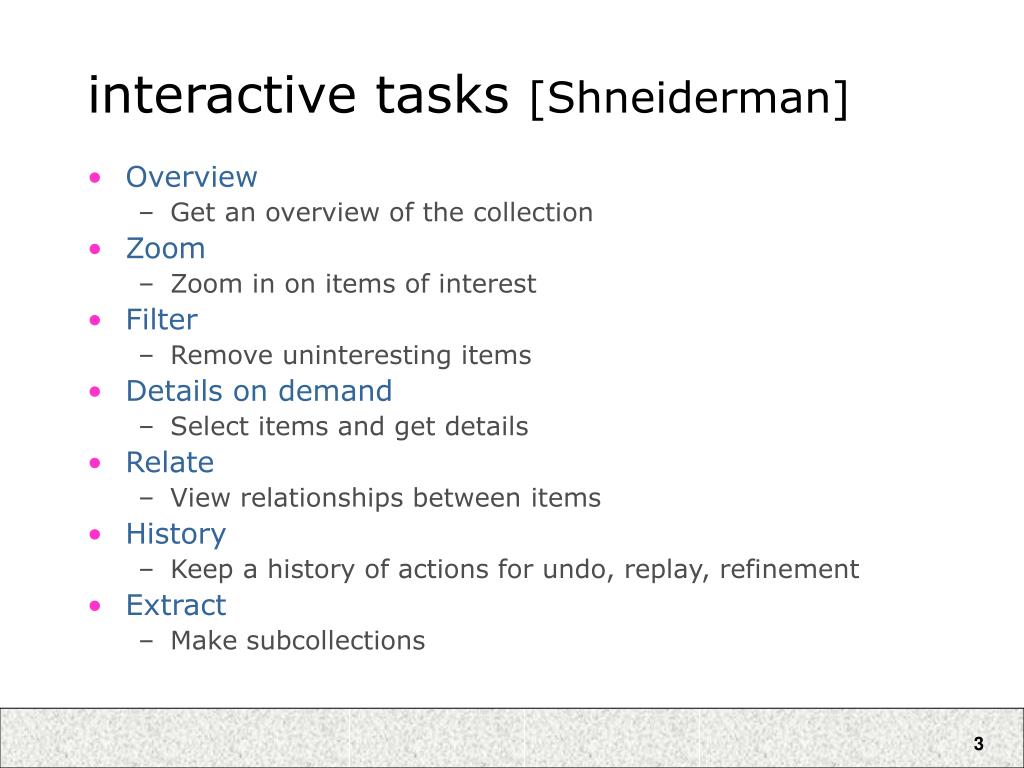

Interactive tasks shneiderman

interactive tasks [Shneiderman]

  • Overview

    • Get an overview of the collection

  • Zoom

    • Zoom in on items of interest

  • Filter

    • Remove uninteresting items

  • Details on demand

    • Select items and get details

  • Relate

    • View relationships between items

  • History

    • Keep a history of actions for undo, replay, refinement

  • Extract

    • Make subcollections


Software architectures for infovis

software architectures for infovis

  • what tools should be provided?

    • (in-class brainstorm)


Overview

overview

  • modeling visualizations

  • existing infrastructures

  • platform demos

    • processing

    • prefuse

  • administrivia

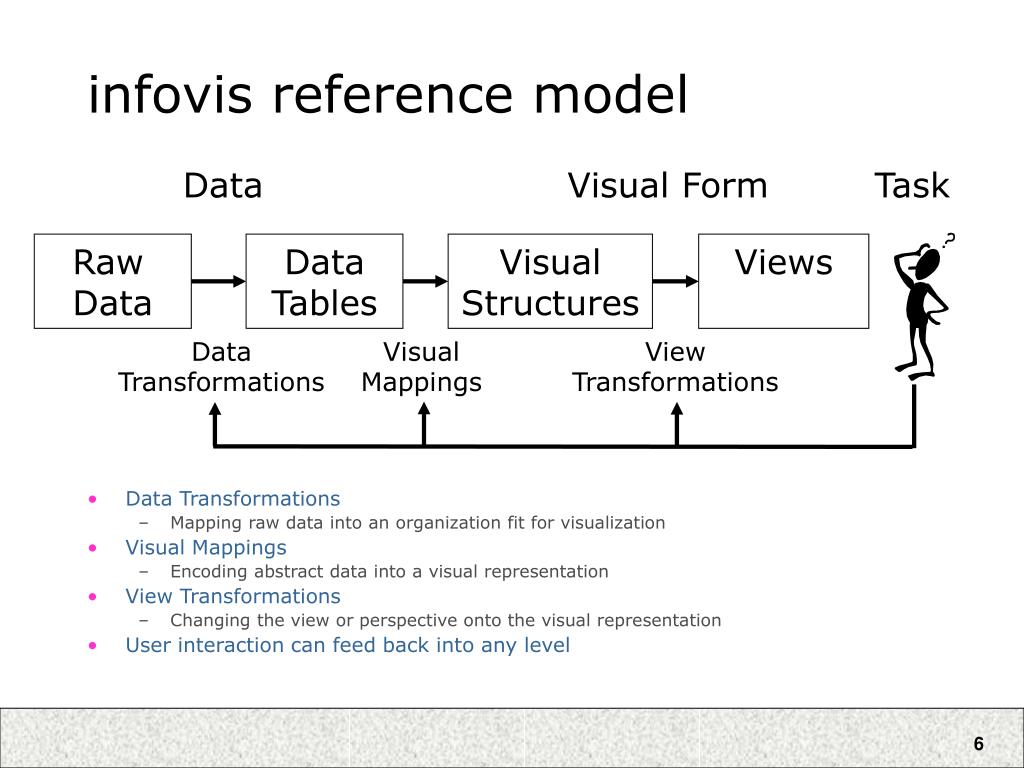

Infovis reference model

Data

Visual Form

Task

Raw Data

Data Tables

Visual Structures

Views

Data Transformations

Visual Mappings

View Transformations

infovis reference model

  • Data Transformations

    • Mapping raw data into an organization fit for visualization

  • Visual Mappings

    • Encoding abstract data into a visual representation

  • View Transformations

    • Changing the view or perspective onto the visual representation

  • User interaction can feed back into any level

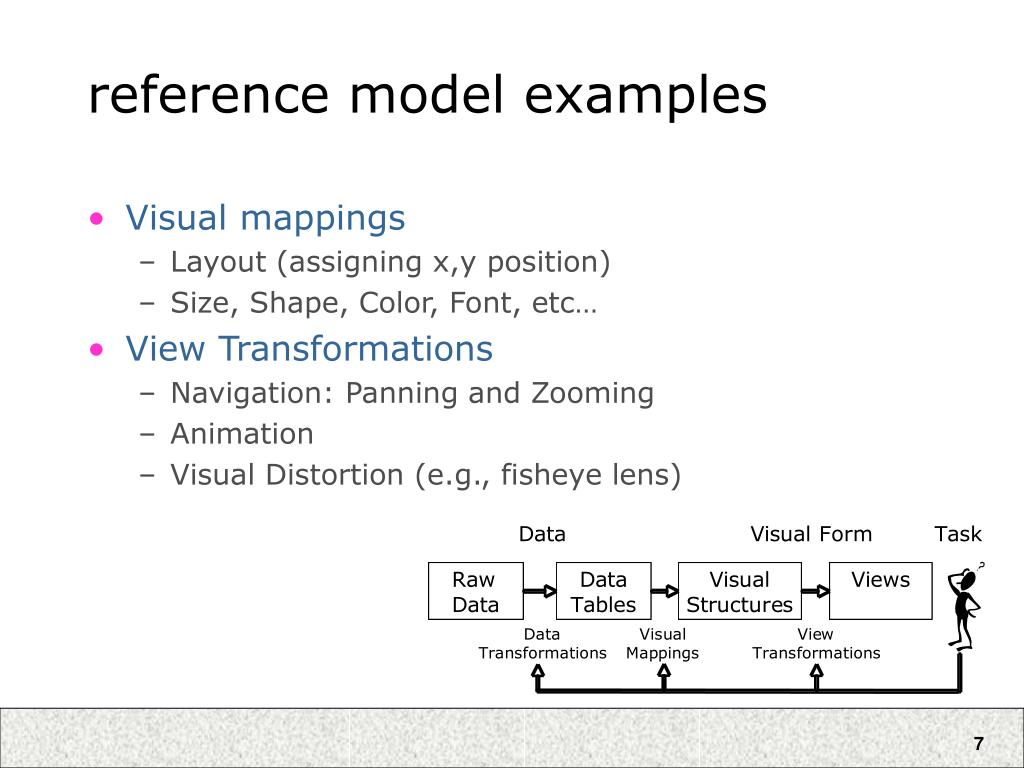

Reference model examples

reference model examples

  • Visual mappings

    • Layout (assigning x,y position)

    • Size, Shape, Color, Font, etc…

  • View Transformations

    • Navigation: Panning and Zooming

    • Animation

    • Visual Distortion (e.g., fisheye lens)

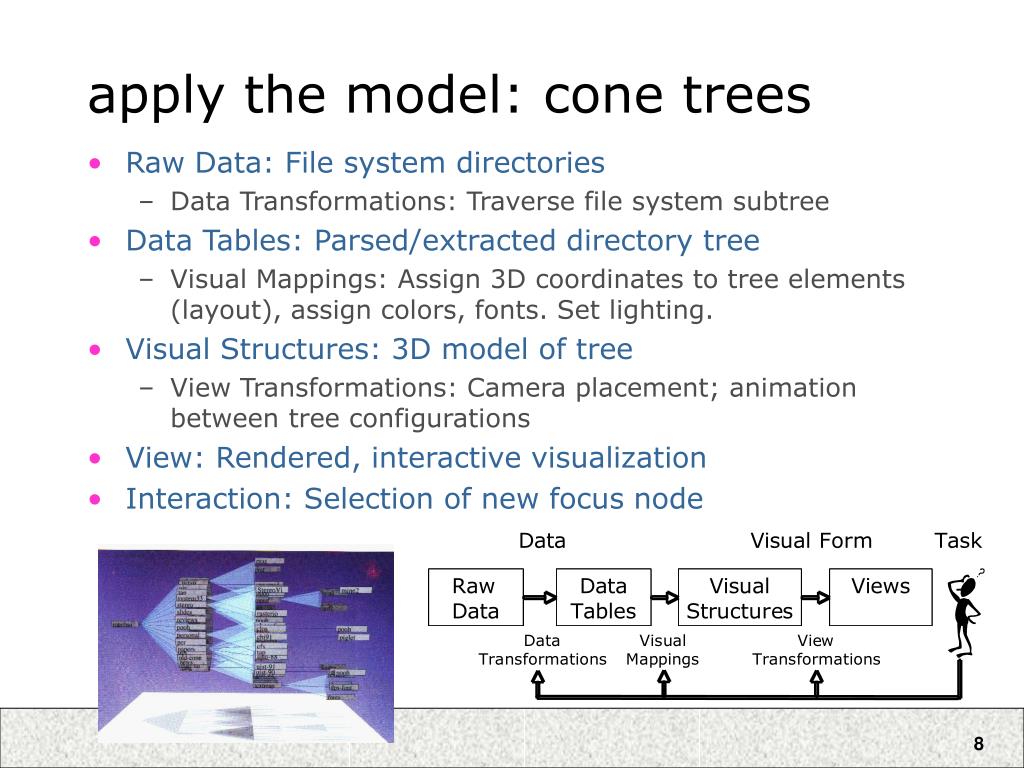

Apply the model cone trees

apply the model: cone trees

  • Raw Data: File system directories

    • Data Transformations: Traverse file system subtree

  • Data Tables: Parsed/extracted directory tree

    • Visual Mappings: Assign 3D coordinates to tree elements (layout), assign colors, fonts. Set lighting.

  • Visual Structures: 3D model of tree

    • View Transformations: Camera placement; animation between tree configurations

  • View: Rendered, interactive visualization

  • Interaction: Selection of new focus node

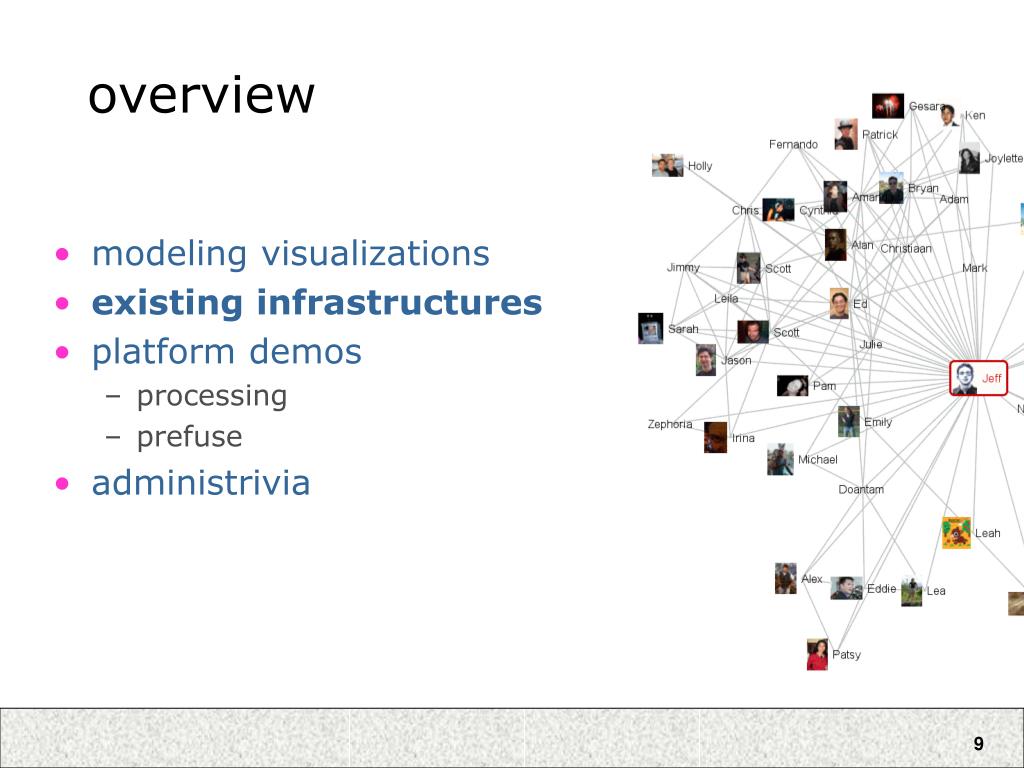

Overview1

overview

  • modeling visualizations

  • existing infrastructures

  • platform demos

    • processing

    • prefuse

  • administrivia

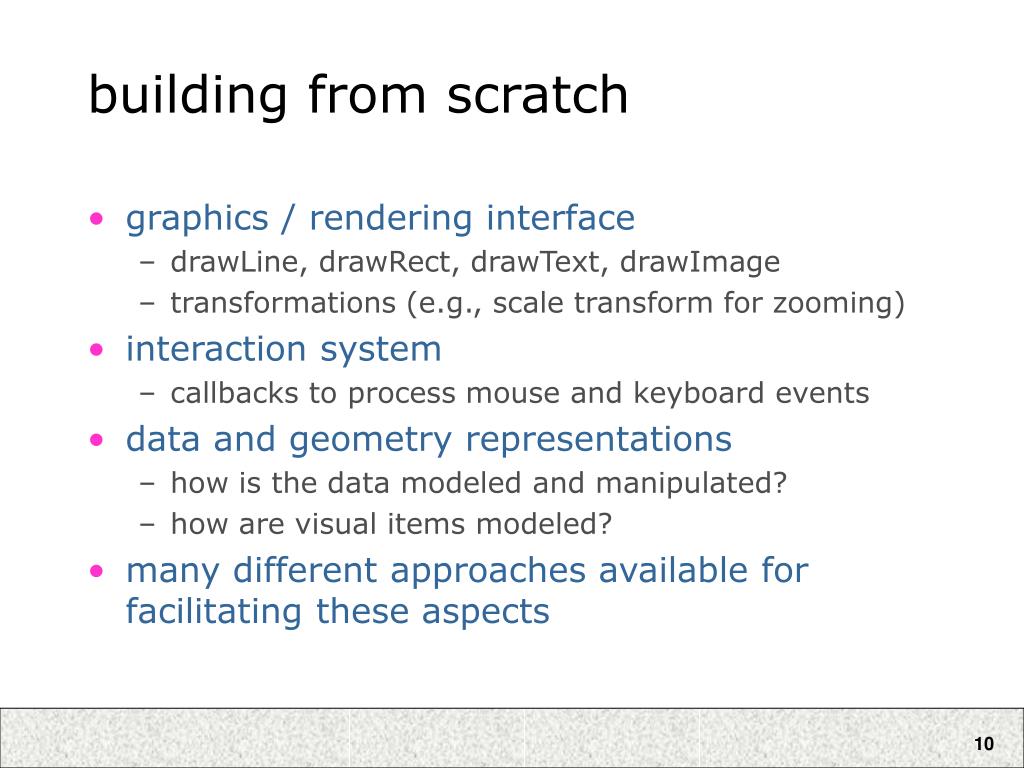

Building from scratch

building from scratch

  • graphics / rendering interface

    • drawLine, drawRect, drawText, drawImage

    • transformations (e.g., scale transform for zooming)

  • interaction system

    • callbacks to process mouse and keyboard events

  • data and geometry representations

    • how is the data modeled and manipulated?

    • how are visual items modeled?

  • many different approaches available for facilitating these aspects

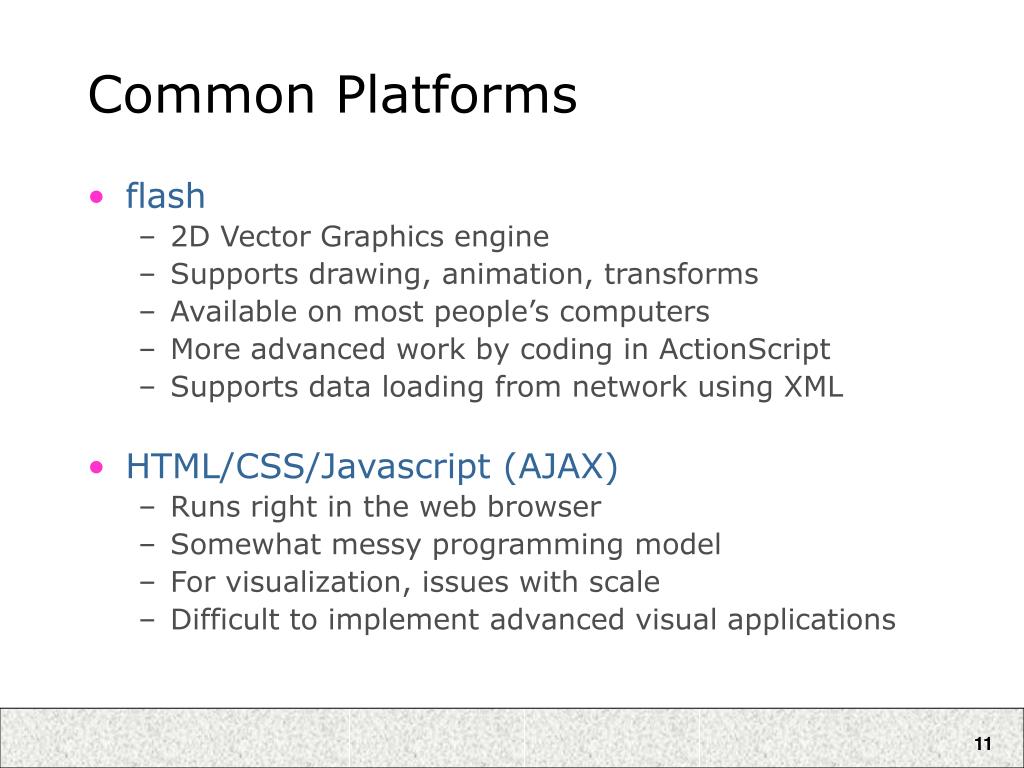

Common platforms

Common Platforms

  • flash

    • 2D Vector Graphics engine

    • Supports drawing, animation, transforms

    • Available on most people’s computers

    • More advanced work by coding in ActionScript

    • Supports data loading from network using XML

  • HTML/CSS/Javascript (AJAX)

    • Runs right in the web browser

    • Somewhat messy programming model

    • For visualization, issues with scale

    • Difficult to implement advanced visual applications

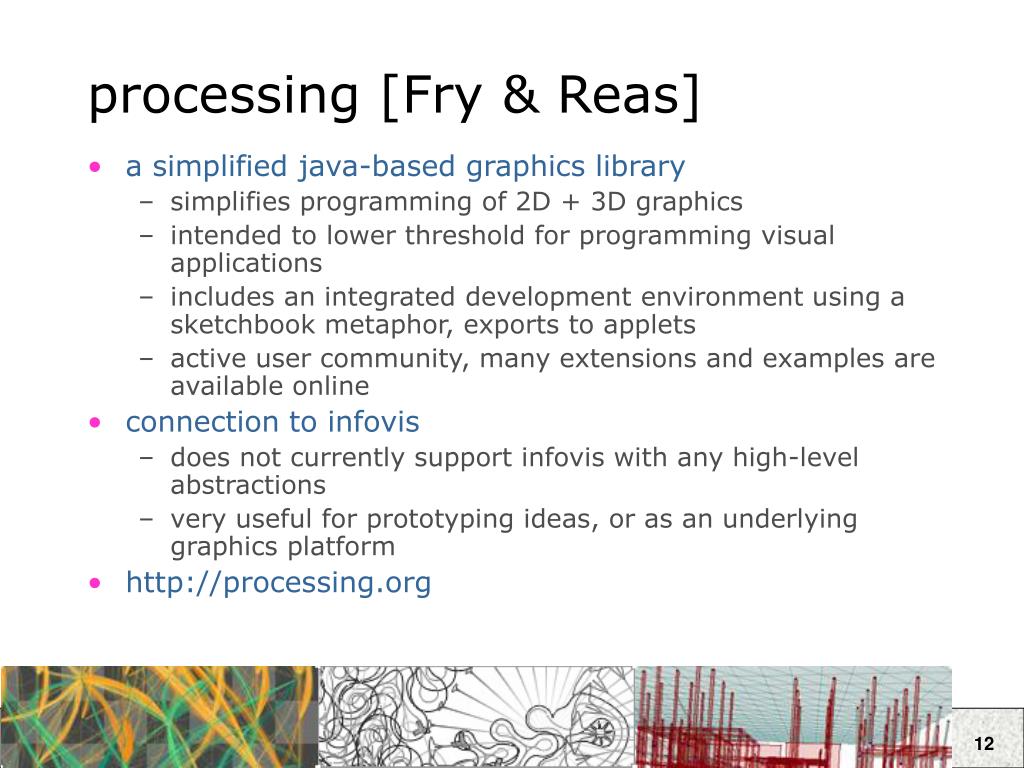

Processing fry reas

processing [Fry & Reas]

  • a simplified java-based graphics library

    • simplifies programming of 2D + 3D graphics

    • intended to lower threshold for programming visual applications

    • includes an integrated development environment using a sketchbook metaphor, exports to applets

    • active user community, many extensions and examples are available online

  • connection to infovis

    • does not currently support infovis with any high-level abstractions

    • very useful for prototyping ideas, or as an underlying graphics platform

  • http://processing.org

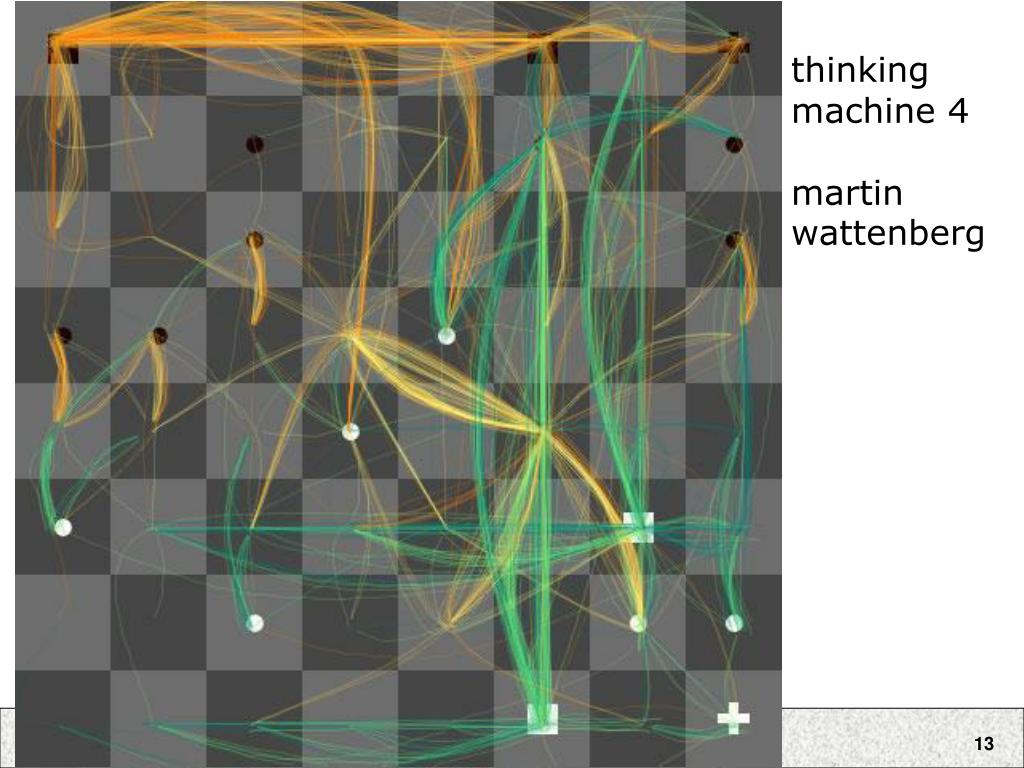

Sims 247 information visualization and presentation

thinking

machine 4

martin

wattenberg


Existing toolkits

existing toolkits

information visualizer

graphviz / jung / pajek

jazz / piccolo

infovis toolkit

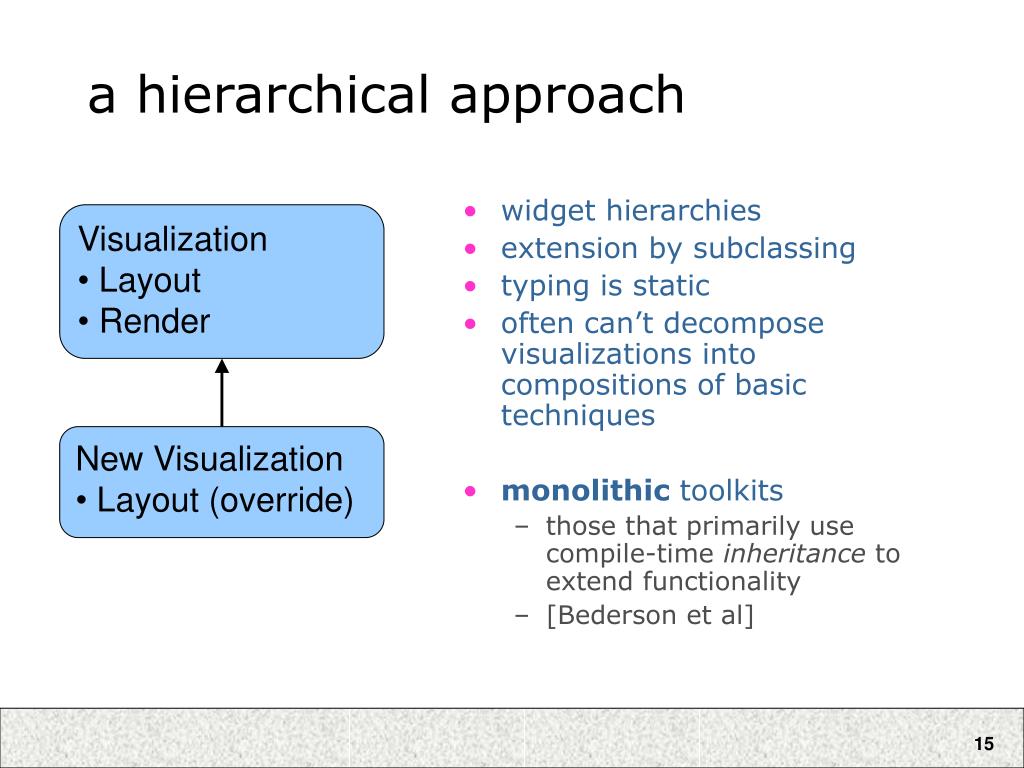

A hierarchical approach

a hierarchical approach

  • widget hierarchies

  • extension by subclassing

  • typing is static

  • often can’t decompose visualizations into compositions of basic techniques

  • monolithic toolkits

    • those that primarily use compile-time inheritance to extend functionality

    • [Bederson et al]

  • Visualization

  • Layout

  • Render

  • New Visualization

  • Layout (override)

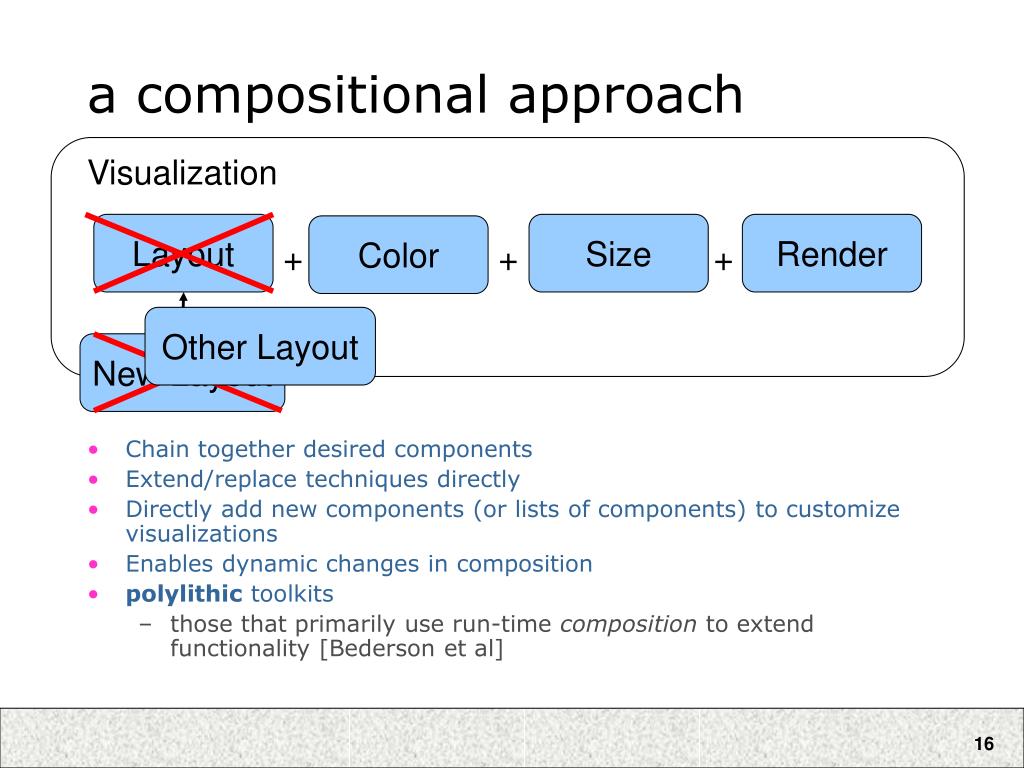

A compositional approach

a compositional approach

Visualization

Layout

Size

Render

Color

+

+

+

Other Layout

New Layout

  • Chain together desired components

  • Extend/replace techniques directly

  • Directly add new components (or lists of components) to customize visualizations

  • Enables dynamic changes in composition

  • polylithic toolkits

    • those that primarily use run-time composition to extend functionality [Bederson et al]

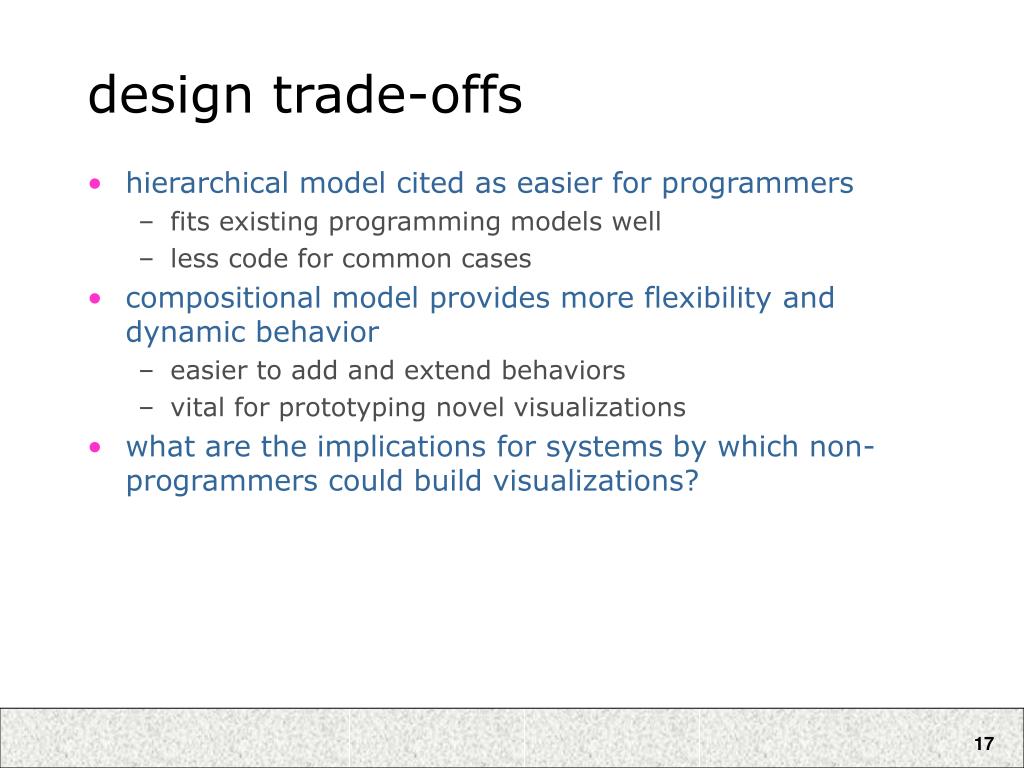

Design trade offs

design trade-offs

  • hierarchical model cited as easier for programmers

    • fits existing programming models well

    • less code for common cases

  • compositional model provides more flexibility and dynamic behavior

    • easier to add and extend behaviors

    • vital for prototyping novel visualizations

  • what are the implications for systems by which non-programmers could build visualizations?

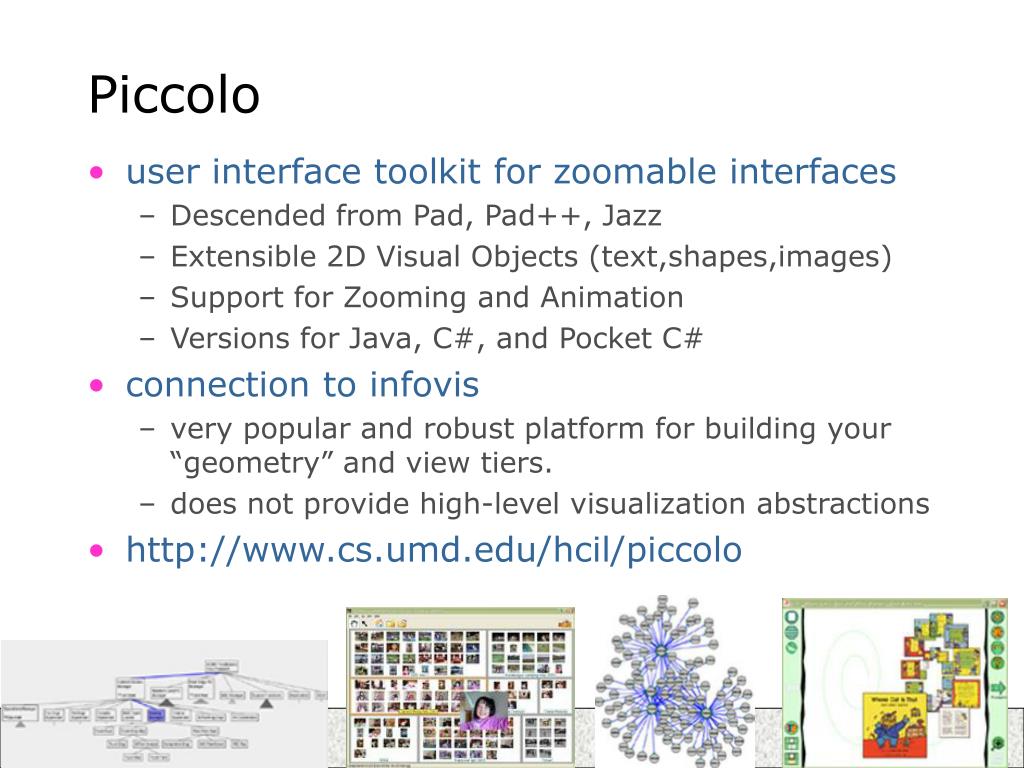

Piccolo

Piccolo

  • user interface toolkit for zoomable interfaces

    • Descended from Pad, Pad++, Jazz

    • Extensible 2D Visual Objects (text,shapes,images)

    • Support for Zooming and Animation

    • Versions for Java, C#, and Pocket C#

  • connection to infovis

    • very popular and robust platform for building your “geometry” and view tiers.

    • does not provide high-level visualization abstractions

  • http://www.cs.umd.edu/hcil/piccolo


Authoring piccolo applications

Authoring Piccolo Applications

  • structure visual items in a scenegraph

  • create custom visual items through compositing or subclassing existing items

  • write interaction code (e.g., mouse listeners)


Sims 247 information visualization and presentation

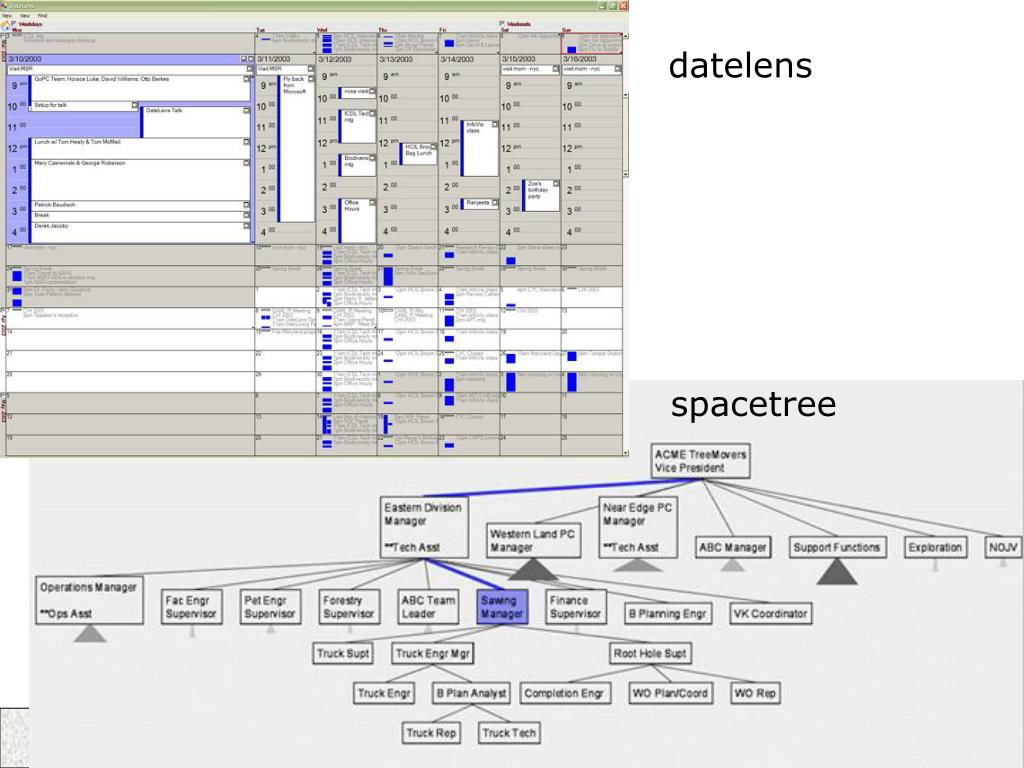

datelens

spacetree


Infovis toolkit fekete04

infovis toolkit [Fekete04]

  • extensible collection of infovis ‘widgets’

    • scatterplot, treemaps, graph visualizations, etc

  • unified data model, similar to database

  • general interactive components

    • dynamic queries, distortion lenses, excentric label

  • missing a dedicated “geometry” tier

    • underlying data and visual abstraction interleaved

  • http://infovis.sourceforge.net

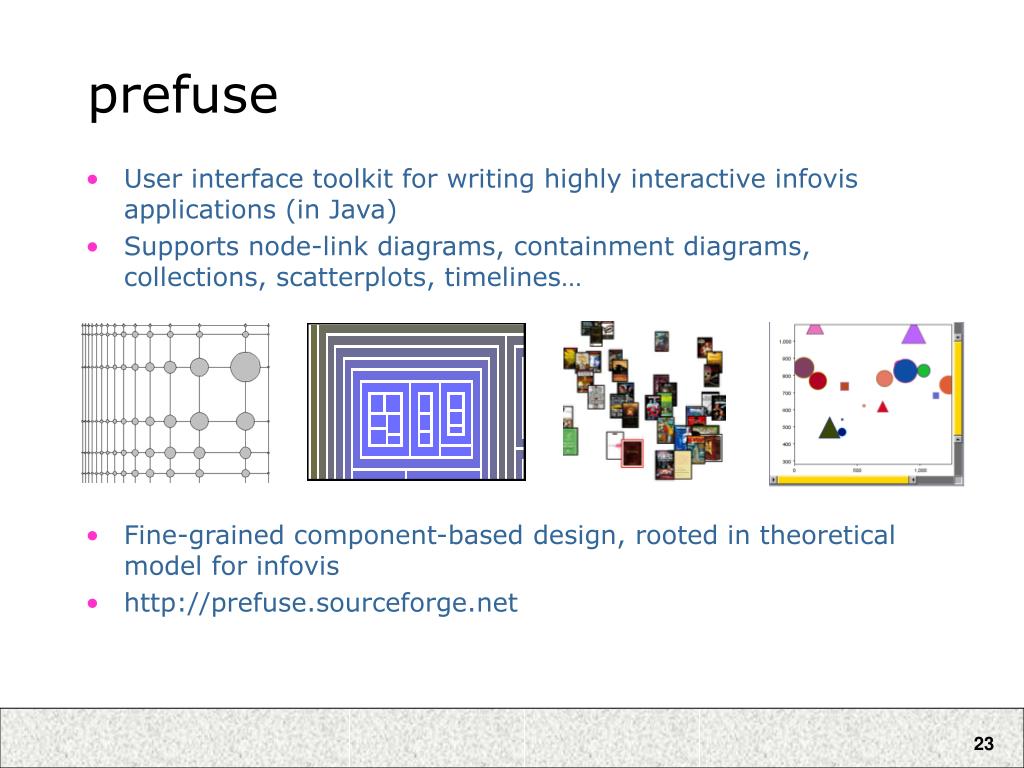

Prefuse

prefuse

  • User interface toolkit for writing highly interactive infovis applications (in Java)

  • Supports node-link diagrams, containment diagrams, collections, scatterplots, timelines…

  • Fine-grained component-based design, rooted in theoretical model for infovis

  • http://prefuse.sourceforge.net

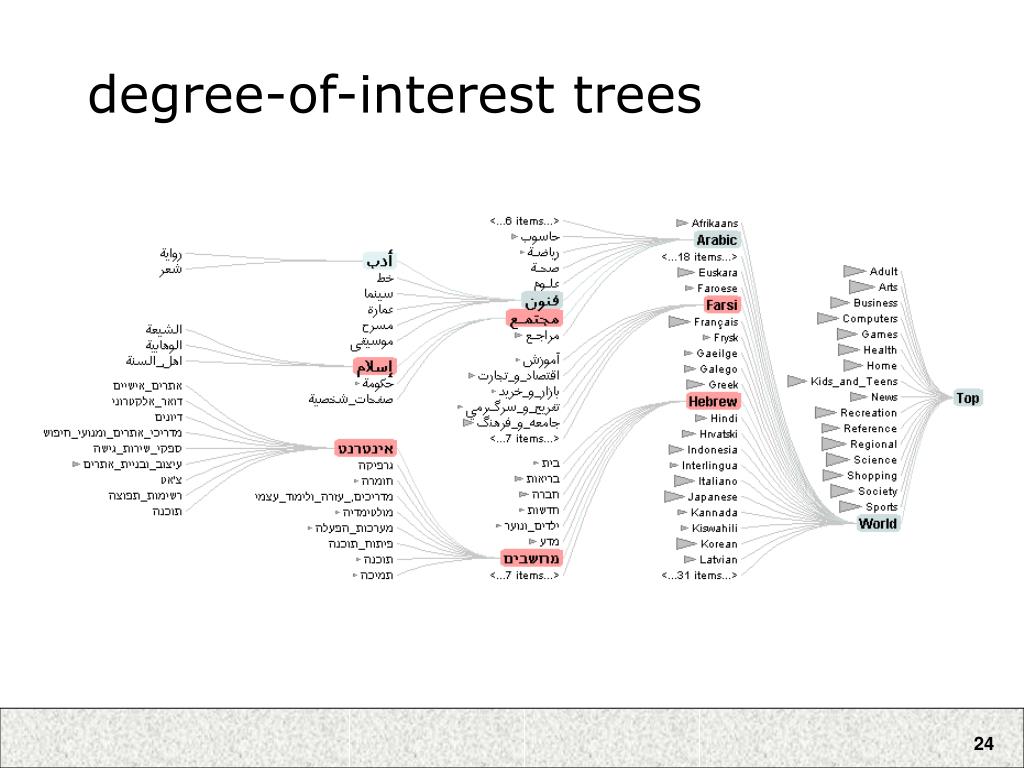

Degree of interest trees

degree-of-interest trees

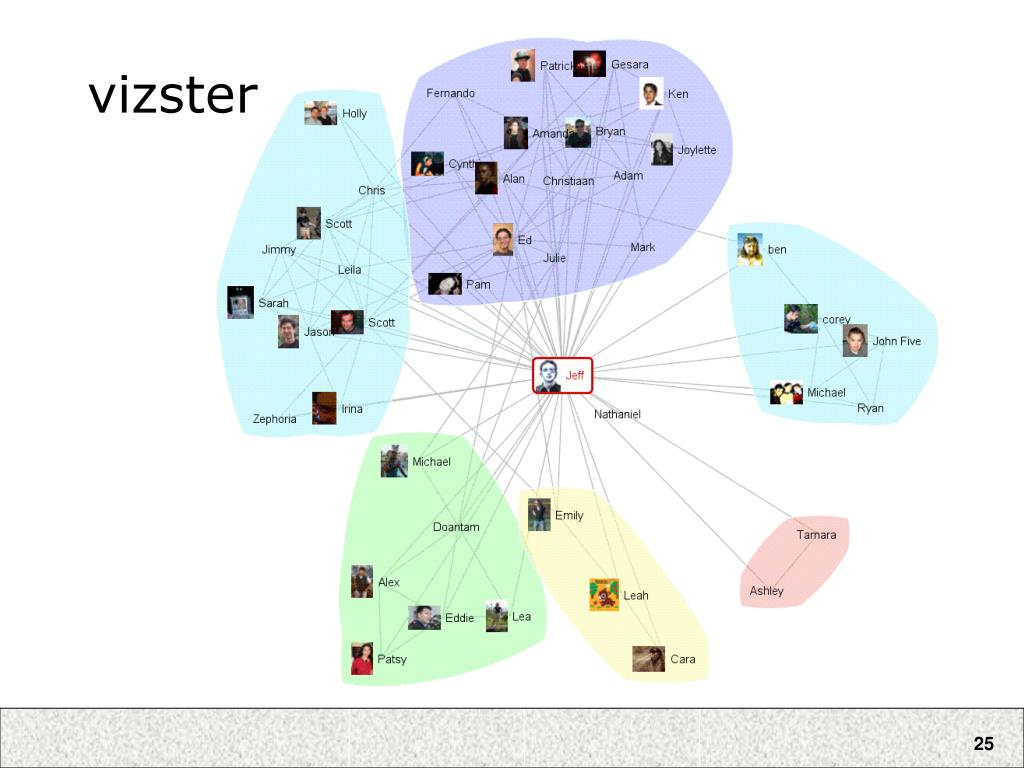

Vizster

vizster

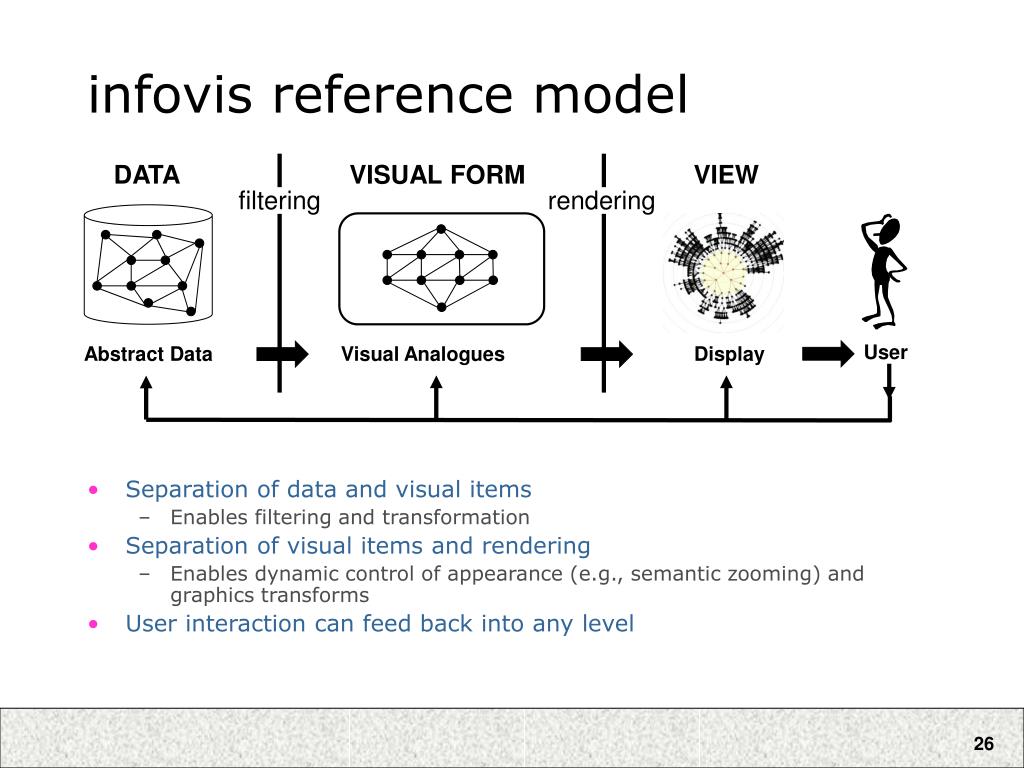

Infovis reference model1

infovis reference model

DATA

VISUAL FORM

VIEW

filtering

rendering

  • Separation of data and visual items

    • Enables filtering and transformation

  • Separation of visual items and rendering

    • Enables dynamic control of appearance (e.g., semantic zooming) and graphics transforms

  • User interaction can feed back into any level

User

Abstract Data

Visual Analogues

Display

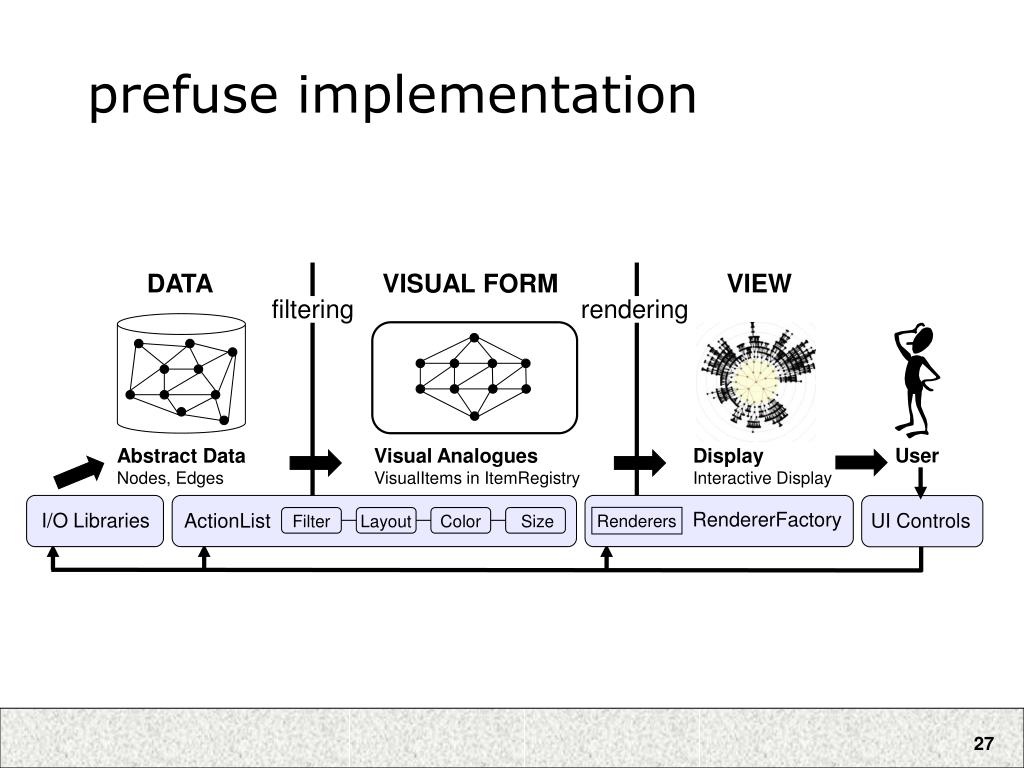

Prefuse implementation

prefuse implementation

DATA

VISUAL FORM

VIEW

filtering

rendering

User

Abstract Data

Nodes, Edges

Visual Analogues

VisualItems in ItemRegistry

Display

Interactive Display

RendererFactory

I/O Libraries

ActionList

UI Controls

Renderers

Filter

Layout

Color

Size

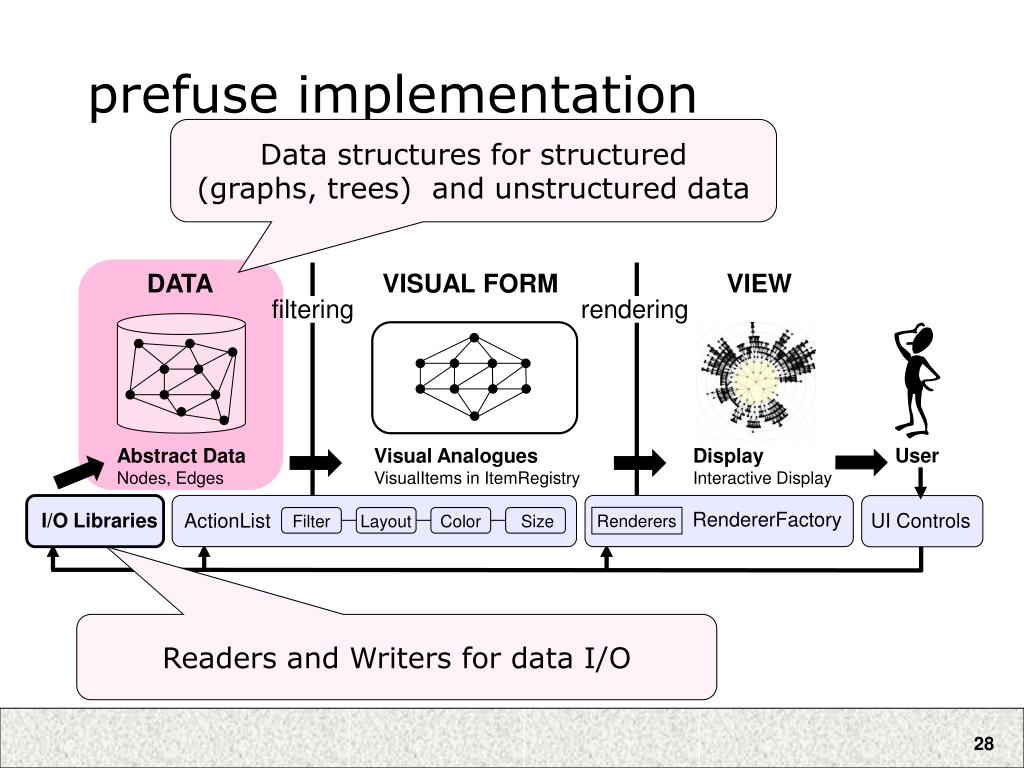

Prefuse implementation1

prefuse implementation

Data structures for structured

(graphs, trees) and unstructured data

DATA

VISUAL FORM

VIEW

filtering

rendering

User

Abstract Data

Nodes, Edges

Visual Analogues

VisualItems in ItemRegistry

Display

Interactive Display

RendererFactory

I/O Libraries

ActionList

UI Controls

Renderers

Filter

Layout

Color

Size

Readers and Writers for data I/O

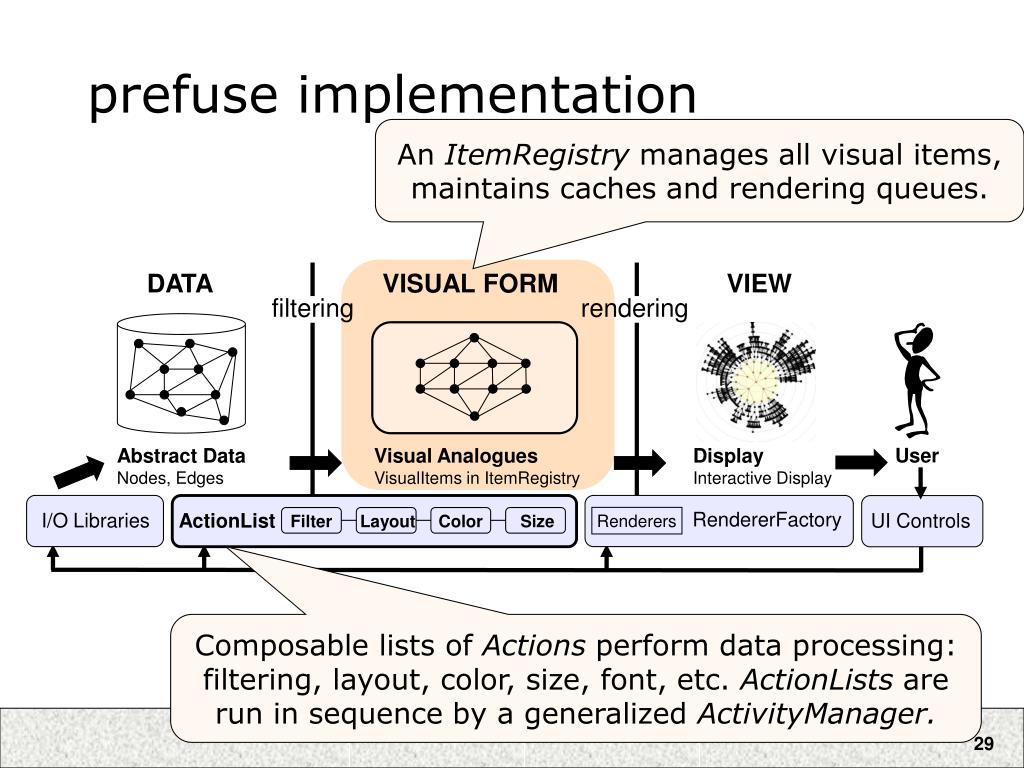

Prefuse implementation2

prefuse implementation

An ItemRegistry manages all visual items,

maintains caches and rendering queues.

DATA

VISUAL FORM

VIEW

filtering

rendering

User

Abstract Data

Nodes, Edges

Visual Analogues

VisualItems in ItemRegistry

Display

Interactive Display

RendererFactory

I/O Libraries

ActionList

UI Controls

Renderers

Filter

Layout

Color

Size

Composable lists of Actions perform data processing:

filtering, layout, color, size, font, etc. ActionLists are

run in sequence by a generalized ActivityManager.

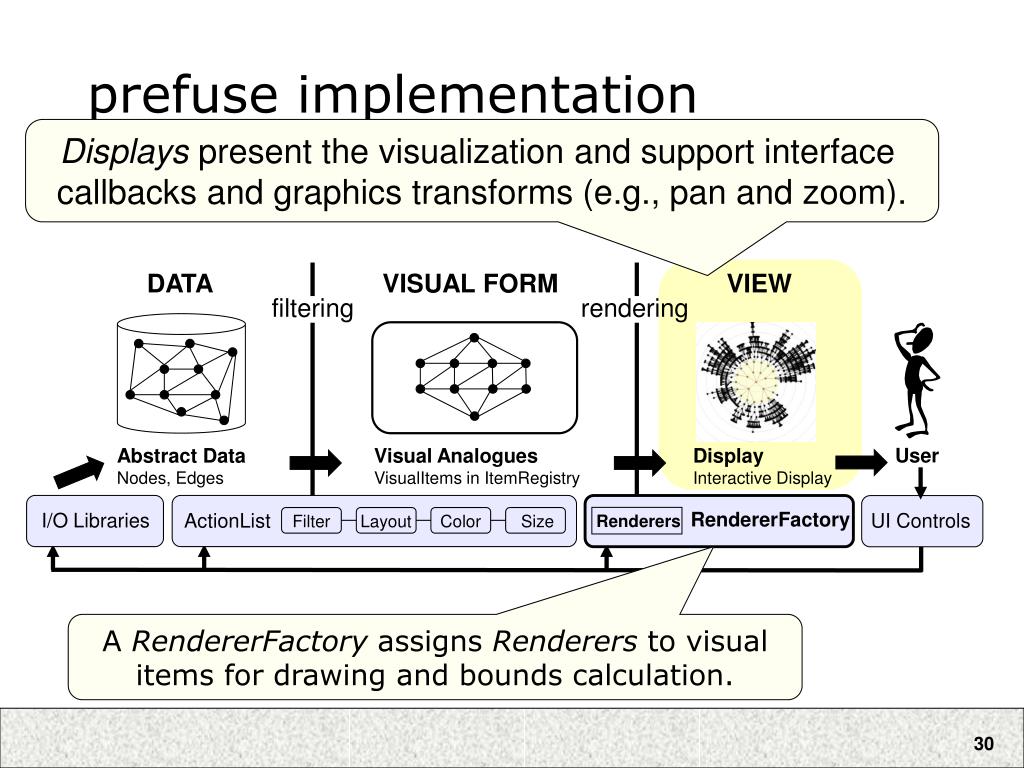

Prefuse implementation3

prefuse implementation

Displays present the visualization and support interface

callbacks and graphics transforms (e.g., pan and zoom).

DATA

VISUAL FORM

VIEW

filtering

rendering

User

Abstract Data

Nodes, Edges

Visual Analogues

VisualItems in ItemRegistry

Display

Interactive Display

RendererFactory

I/O Libraries

ActionList

UI Controls

Renderers

Filter

Layout

Color

Size

A RendererFactory assigns Renderers to visual

items for drawing and bounds calculation.

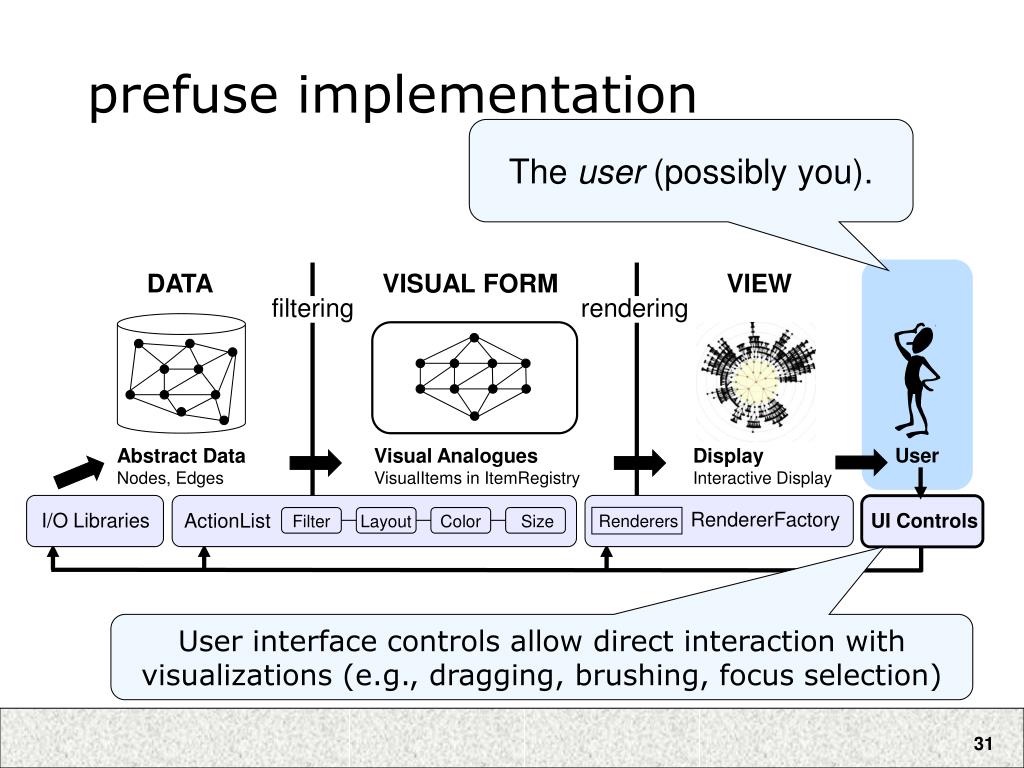

Prefuse implementation4

prefuse implementation

The user (possibly you).

DATA

VISUAL FORM

VIEW

filtering

rendering

User

Abstract Data

Nodes, Edges

Visual Analogues

VisualItems in ItemRegistry

Display

Interactive Display

RendererFactory

I/O Libraries

ActionList

UI Controls

Renderers

Filter

Layout

Color

Size

User interface controls allow direct interaction with

visualizations (e.g., dragging, brushing, focus selection)

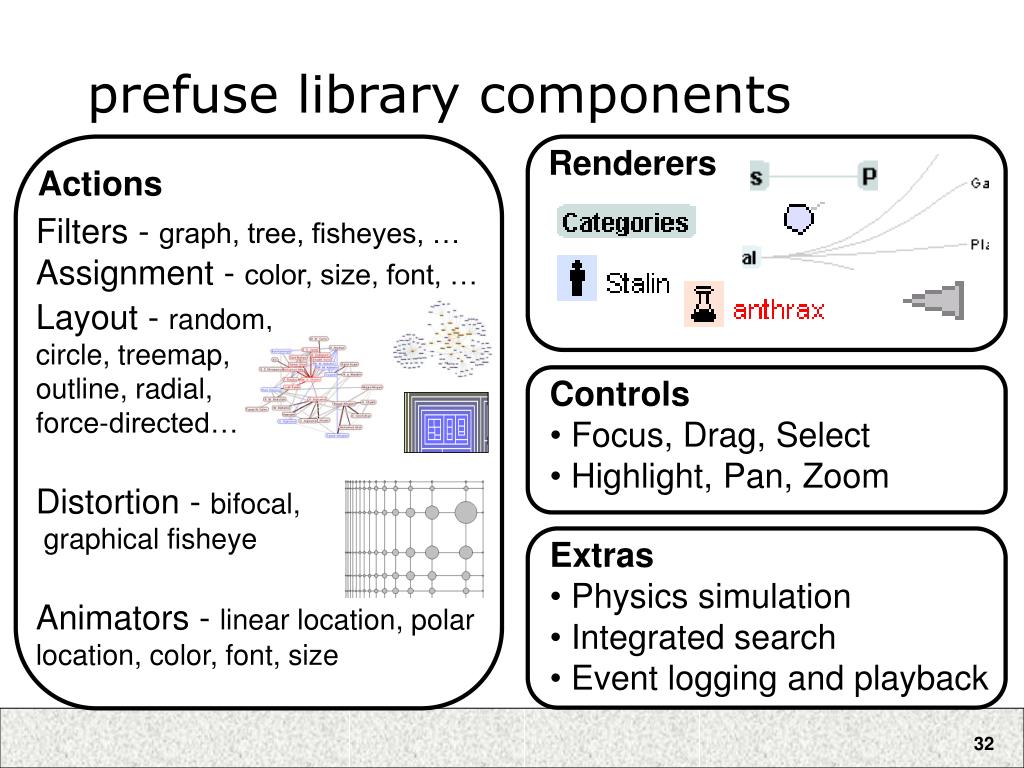

Prefuse library components

prefuse library components

Renderers

Actions

Filters - graph, tree, fisheyes, …

Assignment - color, size, font, …

Layout - random,

circle, treemap,

outline, radial,

force-directed…

Distortion - bifocal,

graphical fisheye

Animators - linear location, polar location, color, font, size

  • Controls

  • Focus, Drag, Select

  • Highlight, Pan, Zoom

  • Extras

  • Physics simulation

  • Integrated search

  • Event logging and playback

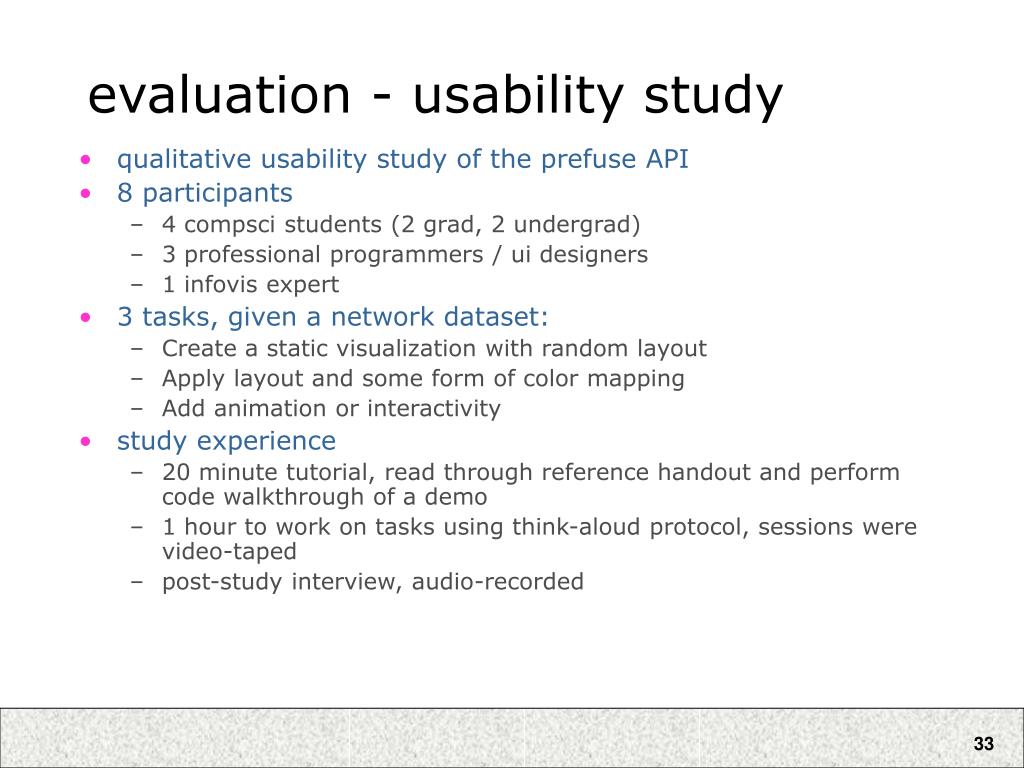

Evaluation usability study

evaluation - usability study

  • qualitative usability study of the prefuse API

  • 8 participants

    • 4 compsci students (2 grad, 2 undergrad)

    • 3 professional programmers / ui designers

    • 1 infovis expert

  • 3 tasks, given a network dataset:

    • Create a static visualization with random layout

    • Apply layout and some form of color mapping

    • Add animation or interactivity

  • study experience

    • 20 minute tutorial, read through reference handout and perform code walkthrough of a demo

    • 1 hour to work on tasks using think-aloud protocol, sessions were video-taped

    • post-study interview, audio-recorded

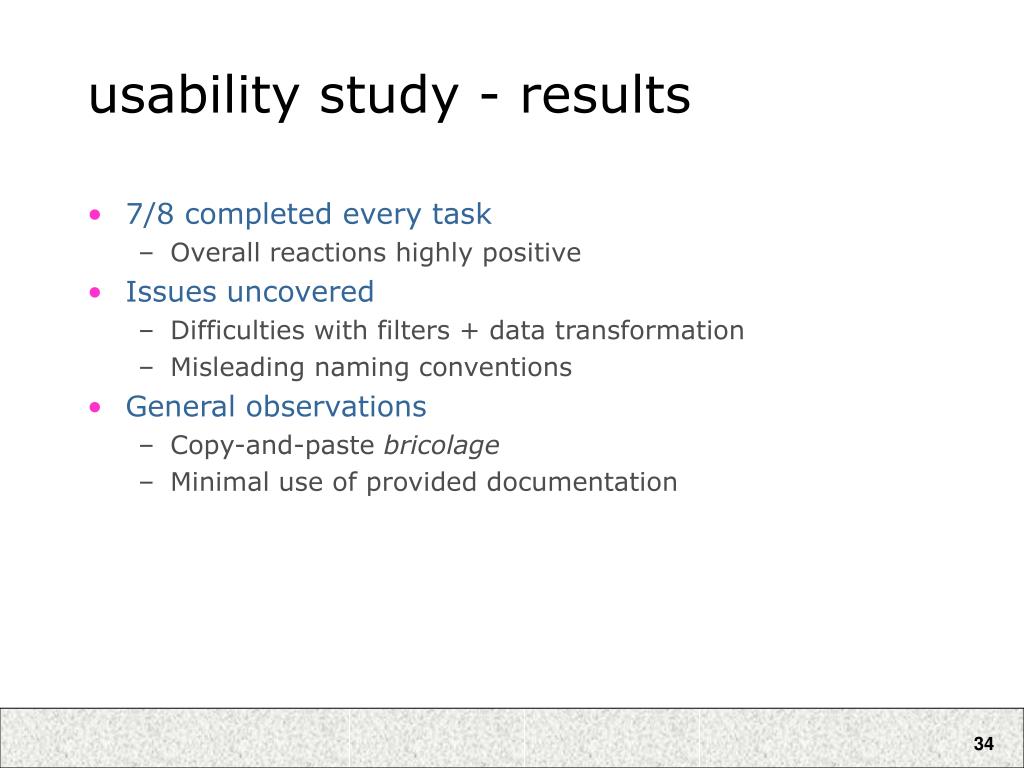

Usability study results

usability study - results

  • 7/8 completed every task

    • Overall reactions highly positive

  • Issues uncovered

    • Difficulties with filters + data transformation

    • Misleading naming conventions

  • General observations

    • Copy-and-paste bricolage

    • Minimal use of provided documentation


Future directions

future directions

  • refinement of existing models

    • integration of advanced data modeling with visualization architecture

    • richer component libraries

    • visualization “export” features

    • (all have been developed in different projects)

  • tools for non-programmers

    • declarative construction of visualizations

    • Spotfire, Tableau, and others allow this at one level

    • how best to extend to richer, more nuanced design?

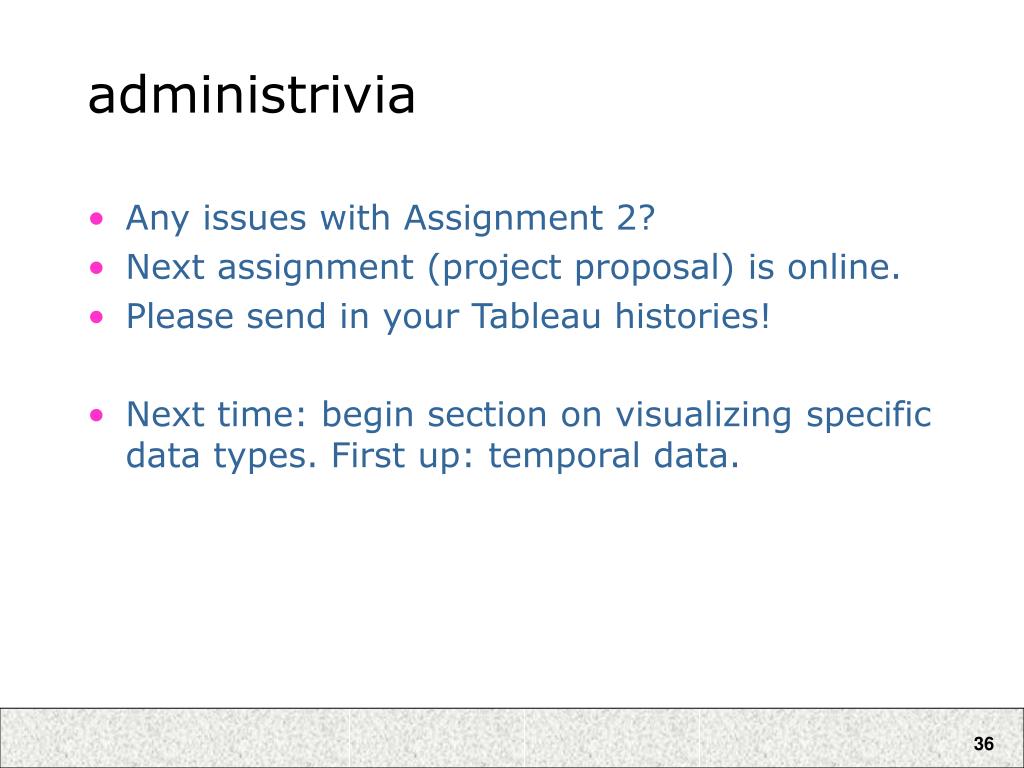

Administrivia

administrivia

  • Any issues with Assignment 2?

  • Next assignment (project proposal) is online.

  • Please send in your Tableau histories!

  • Next time: begin section on visualizing specific data types. First up: temporal data.

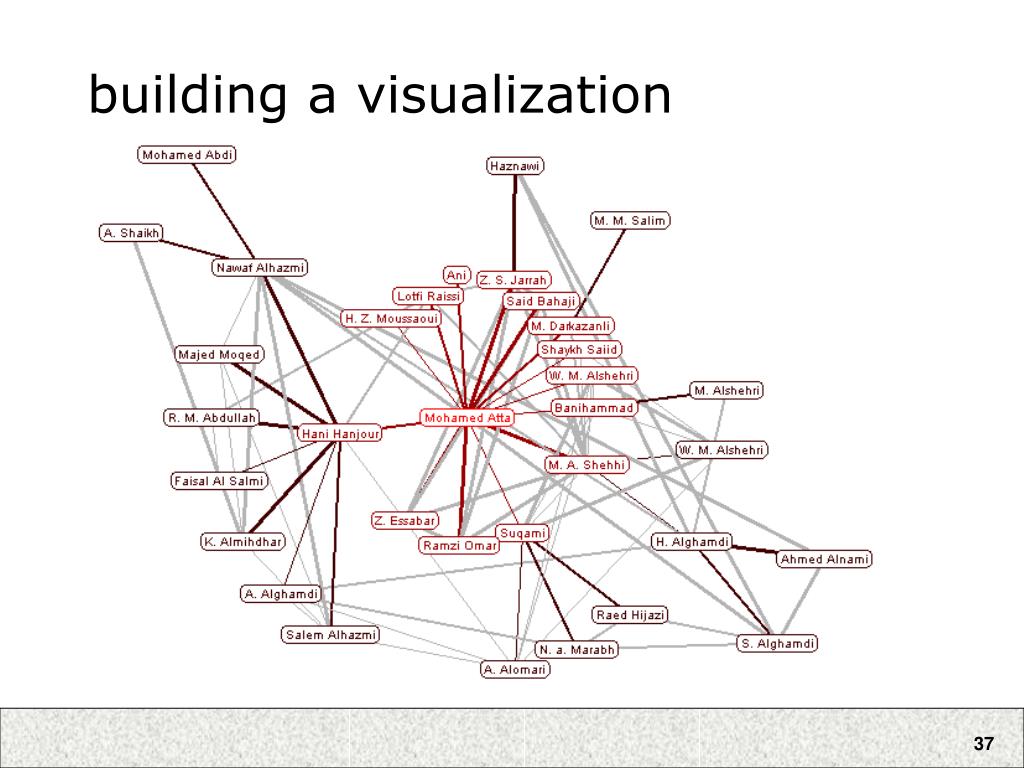

Building a visualization

building a visualization

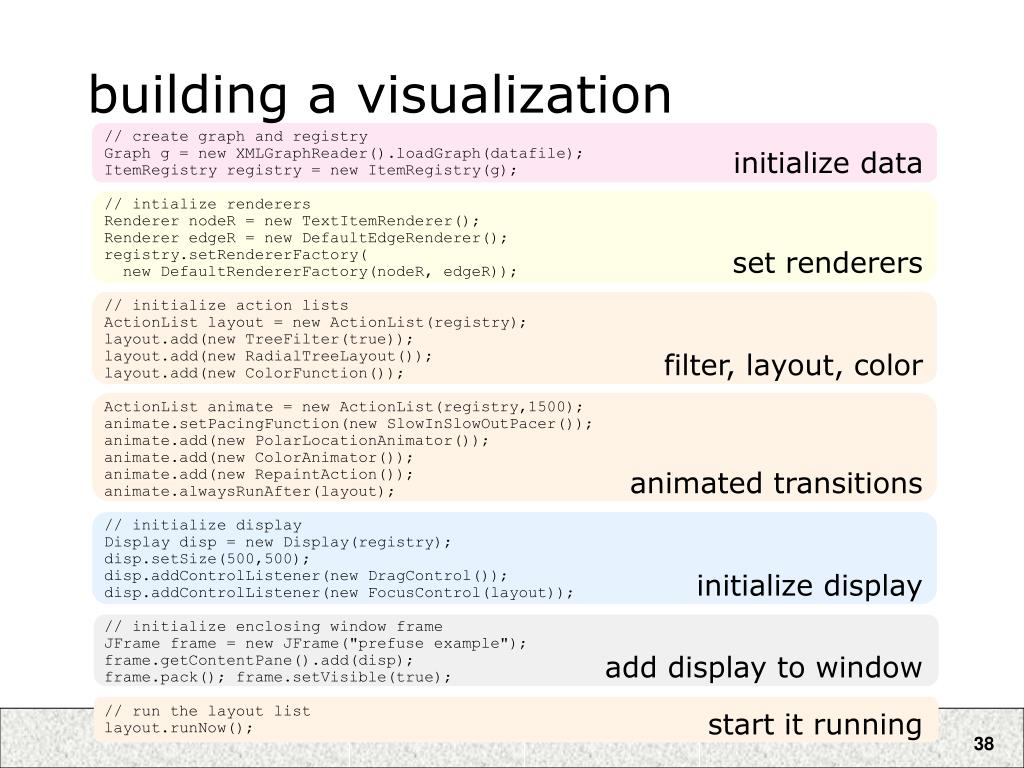

Building a visualization1

building a visualization

// create graph and registry

Graph g = new XMLGraphReader().loadGraph(datafile);

ItemRegistry registry = new ItemRegistry(g);

// intialize renderers

Renderer nodeR = new TextItemRenderer();

Renderer edgeR = new DefaultEdgeRenderer();

registry.setRendererFactory(

new DefaultRendererFactory(nodeR, edgeR));

// initialize action lists

ActionList layout = new ActionList(registry);

layout.add(new TreeFilter(true));

layout.add(new RadialTreeLayout());

layout.add(new ColorFunction());

ActionList animate = new ActionList(registry,1500);

animate.setPacingFunction(new SlowInSlowOutPacer());

animate.add(new PolarLocationAnimator());

animate.add(new ColorAnimator());

animate.add(new RepaintAction());

animate.alwaysRunAfter(layout);

// initialize display

Display disp = new Display(registry);

disp.setSize(500,500);

disp.addControlListener(new DragControl());

disp.addControlListener(new FocusControl(layout));

// initialize enclosing window frame

JFrame frame = new JFrame("prefuse example");

frame.getContentPane().add(disp);

frame.pack(); frame.setVisible(true);

// run the layout list

layout.runNow();

initialize data

set renderers

filter, layout, color

animated transitions

initialize display

add display to window

start it running

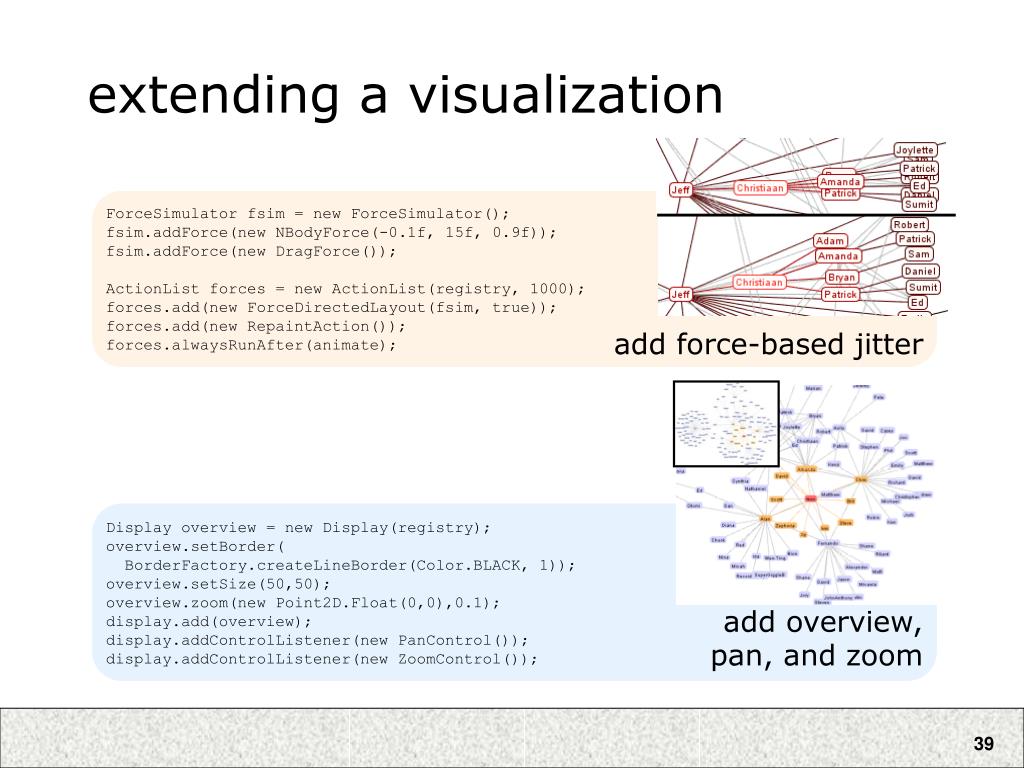

Extending a visualization

extending a visualization

ForceSimulator fsim = new ForceSimulator();

fsim.addForce(new NBodyForce(-0.1f, 15f, 0.9f));

fsim.addForce(new DragForce());

ActionList forces = new ActionList(registry, 1000);

forces.add(new ForceDirectedLayout(fsim, true));

forces.add(new RepaintAction());

forces.alwaysRunAfter(animate);

add force-based jitter

Display overview = new Display(registry);

overview.setBorder(

BorderFactory.createLineBorder(Color.BLACK, 1));

overview.setSize(50,50);

overview.zoom(new Point2D.Float(0,0),0.1);

display.add(overview);

display.addControlListener(new PanControl());

display.addControlListener(new ZoomControl());

add overview, pan, and zoom


Selected applications

selected applications


  • Login
