  1. DELTA AC Drives for Elevator Industrial

  2. Feature Power Range Dimensions C : H350*W235*D136 mm (V:323*200*183.2 Danaher :) D : H403.8*W250*D210mm High Performance Vector Control(FOC) IM/SPM Common drive Flange & Wall Mounting Built-In PG feedback(ABZ) Built-in Brake Unit(22kw) Optional LCM copy keypad

  3. Elevator Drive Structure Diagram

  4. C FrameDimension

  5. Outline

  6. Elevator Drive System - IM Vs. PM Gear IM Gearless Space Saving!

  7. Advantages of PM Gearless Elevator • Flat motor: simplified transmission, space-saving, easy to arrange; • Eliminate noise & vibration; • High transmission efficiency: energy-saving 20%; • Environmental protection, no leakage oil; • More comfort. • (From Mitsubishi.)

  8. Encoder types for PM Drive • ABZ encoder(Built-in); • 2) UVW encoder; (not support) • 3) Resolver (not support); • 4) SIN/COS encoder(Built-in); • 5) Absolute encoder. (not support)

  9. Benchmark Products • YASKAWA : L7A(IM),L7B(PM),L7C • FUJI : 5000G11UD, 5000LIFT • SIEI : AVY-LIFT • EMERSON : TSD3100(IM),EV3100 • EMERSON/CT : ES2400/3400 • KEB : F4F(尚未查到資料) • MAGNETEK : HPV9000(GAL使用)

  10. Overload Capability Yaskawa GL5: 150% 60s; 200% 10S Yaskawa L7: 150% 30s; Fuji G11UD: 150% 10s; Fuji Lift: 200% 10s; Emerson TD/EV3100: 150% 120s; CT/Emerson ES2400/3400: 175% 20s; HPV900: 250% 5s; 150% 60s

  11. Geographic,Customers TAIWAN 7000/YEAR 崇友 1500/YEAR 元太 500/YEAR INDIA 40000/YEAR OMEGA 1000/YEAR TECHNO 1500/YEAR 中國大陸 140000/YEAR USA 20000/YEAR

  12. Power Range 7.5(5.5)kW ~ 22kW for China Market 依據經驗電梯使用一般變頻器的功率範圍大部分是在5.5kW~22kW, 建議依此5.5(7.5)kW~22kW區段為第一階段開發範圍, 須考慮低於5.5kW的相容性or 策略 目前無機房不會大於15kW

  13. TYPE DATA

  14. Frame Size Dimensions C : H323*W200*D136 mm D : H403.8*W250*D210mm

  15. Built-in Braking Unit Yaskawa L7C Emerson EV3100 SIEI AVy-Lift Fuji 5000G11UD2 220V 3.7kW~18kW N/A 7.5kW(Type3150) 7.5kW and Below 30kW and UP 440V 3.7kW ~18kW 5.5kW~22kW 15kW(Type3150) 7.5kW and Below 30kW and UP DELTA-LIFT Build in Braking for 18kW and below

  16. Enclosure/Temperature Yaskawa L7C Emerson EV3100 SIEI AVy-Lift Fuji-LIFT IP IP00/IP20/NEMA1 IP20 IP20 IP20 Ambient operation temperature -10℃ ~ 40℃ -10℃ ~ 45℃(OPEN) -10℃ ~ 40℃ -10℃ ~ 50℃(移上蓋) -10℃ ~ 40℃ -10℃ ~ 50℃(22kW以下須移下通風蓋) Storage temperature -20℃ ~ 60℃ -40℃ ~ 70℃ -25℃ ~ 55℃ -20℃~55℃(WITH KEYPAD) -25℃ ~ 65℃ Transport temperature N/A N/A -25℃ ~ 70℃ -20℃~60℃(WITH KEYPAD) N/A -10℃ ~ 40℃ -10℃ ~ 50℃(移上蓋) DELTA-LIFT IP00(IP20)/ -10℃ ~ 50℃/ -20℃ ~ 60℃

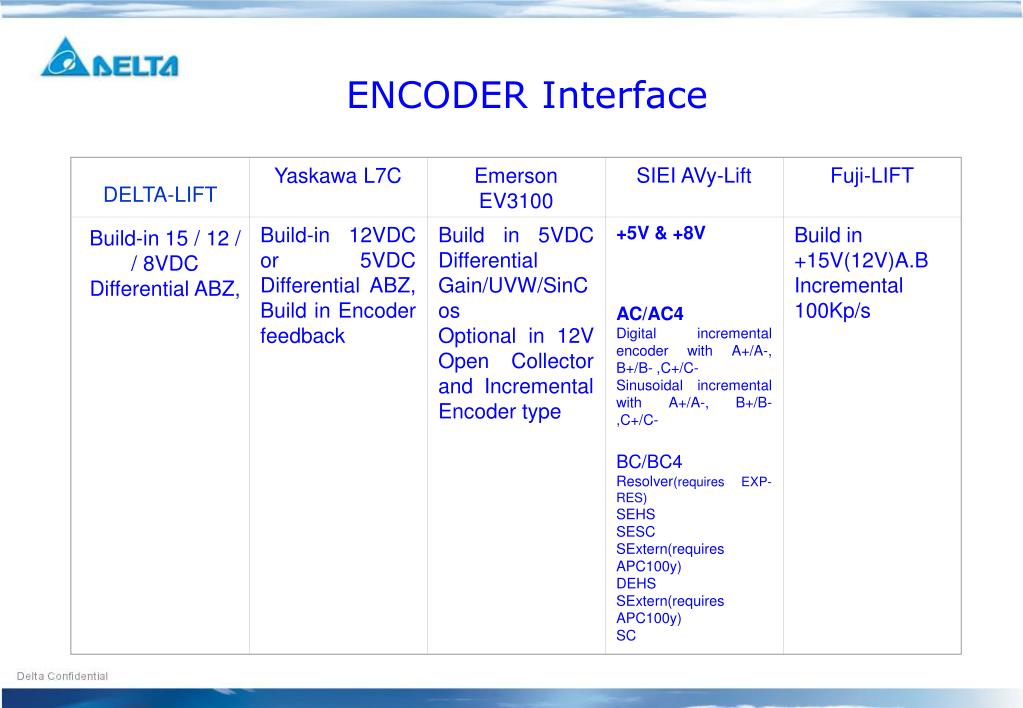

  17. ENCODER Interface DELTA-LIFT Yaskawa L7C Emerson EV3100 SIEI AVy-Lift Fuji-LIFT Build-in 12VDC or 5VDC Differential ABZ, Build in Encoder feedback Build in 5VDC Differential Gain/UVW/SinCos Optional in 12V Open Collector and Incremental Encoder type Build in +15V(12V)A.B Incremental 100Kp/s +5V & +8V AC/AC4 Digital incremental encoder with A+/A-, B+/B- ,C+/C- Sinusoidal incremental with A+/A-, B+/B- ,C+/C- BC/BC4 Resolver(requires EXP-RES) SEHS SESC SExtern(requires APC100y) DEHS SExtern(requires APC100y) SC Build-in 15 / 12 / / 8VDC Differential ABZ,

  18. EMERGENCY DC power SUPPLY

  19. I/O Terminals Yaskawa L7C DELTA LIFT SIEI AVy-Lift Fuji 5000G11UD2 BULIT-IN DI * 8 DO*3 & RC*1 AVI *1 AI*3(±10V) DI*8 AO*2(±10V) DO*4(R*2 ,P*2) Motor PTC AUI*1/ACI*1 DI*12 RC*1/RA*1/MO*4 頻率計數器 OPTION CARD C CONNECTOR SI-N1(DeviceNet) SI-P1(Profibus-Dp) SI-R1(InterBus-S) SI-S1(CANOpen) AI-14U(14bitAVI&ACI) AI-14B(13bitAUI&ACI) D CONNECTOR AO-08(8bit*2channels) AO-12(12bit*2channels) DO-08(photo*6,relay*2) DO-02C(relay*2) DO*8+AO*2 CAN? A CONNECTOR Relay Output Card(RB*2) AIO CARD(AI*2 , AO*2) PG 2 MOTOR 同步卡 B CONNECTOR COMMUNCAITON CARD DI *10 RC*2/PHOTO*2 AVI*1,AVI(ACI)*1,COM*2

  20. Firmware Specification Yaskawa L7C DELTA-LIFT SIEI AVy-Lift Fuji -LIFT 控制方式 V/F Open-loop vector Closed-loop vector IM Open-loop with SVC IM Close-loop Vector PM Close-loop Vector IM FOC / SVC / V/f Brushless Control FLOOR DISTANCE AUTO-TURNING N/A YES YES N/A OVERLOAD CAPABILITY 8kHz/150%/30Sec 150%/1min,200%/3 Sec 183% 10Sec 200% 10Sec Accel/Decel Time Slope Slope Time

  21. Product Development Schedule Standard Type 5.5 kW ~ 22 kW(220V/440V) and Built-in Braking unit SPM Control/Brake Sequence Control Suppress the Noise 3/16 EP 4/23 PP 5/18 MP Field test Members

  22. Thank You !!

  23. Key for enhanced specialized elevator drive: 1. PM drive(SPM/IPM); 2. 48VDC emergency supply; 3. Built in Braking Unit 4. Slim Type 5. PG card; 6. LCM Keypad 7. PC Software 8. 測試環境的建立 Key for PM drive: 1) W/ multi-type Encoder signal; 2) Initial Pole position decision for startup; 3) Encoder installation error Auto-tuning 4) Specialized auto-tuning 5) Vibration observer & suppression

  24. HPV900 DRIVE RATINGS

  25. DYNMAIC BRAKING RESISTOR

  26. 2004信東的價格(Taiwan) Appendix

  27. 2003 網路價格 (CHINA)

  28. FUJI FRENIC LIFT
