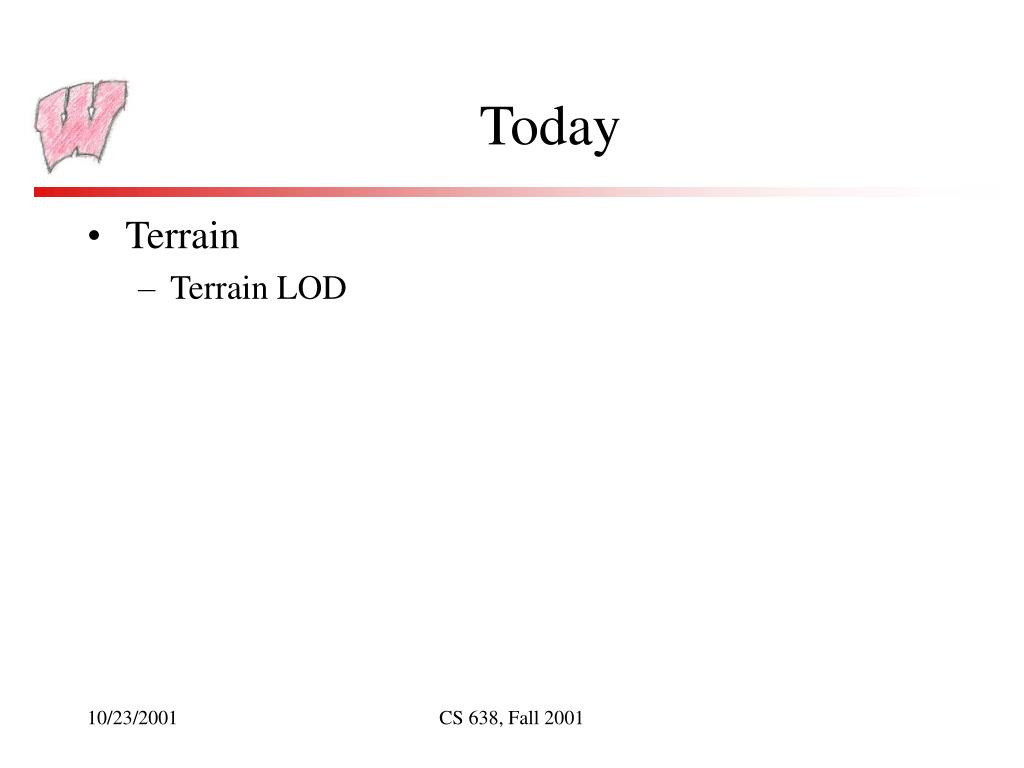

  1. Today • Terrain • Terrain LOD CS 638, Fall 2001

  2. Terrain LOD • As you have heard by now, terrain poses problems for static LOD methods • Must have high resolution in the near field, and low resolution in the distance, all in one model • Dynamic LOD methods are the answer • All based on the idea of cuts through a tree of potential simplifications • We will discuss the ROAM algorithm in detail • Other algorithms are similar in style, but this is the best CS 638, Fall 2001

  3. Terrain is Easier! • Assumption: We are starting with a height field defined on a regular grid • Assume it’s a square to make it easier • We can mesh it by forming triangles with the data points • The data is highly structured • Every data point has the same number of neighbors • Every triangle can be the same size • Hence, the tree of possible simplifications is very regular • Still, multiple possibilities exist for the triangulation and the simplification operations CS 638, Fall 2001

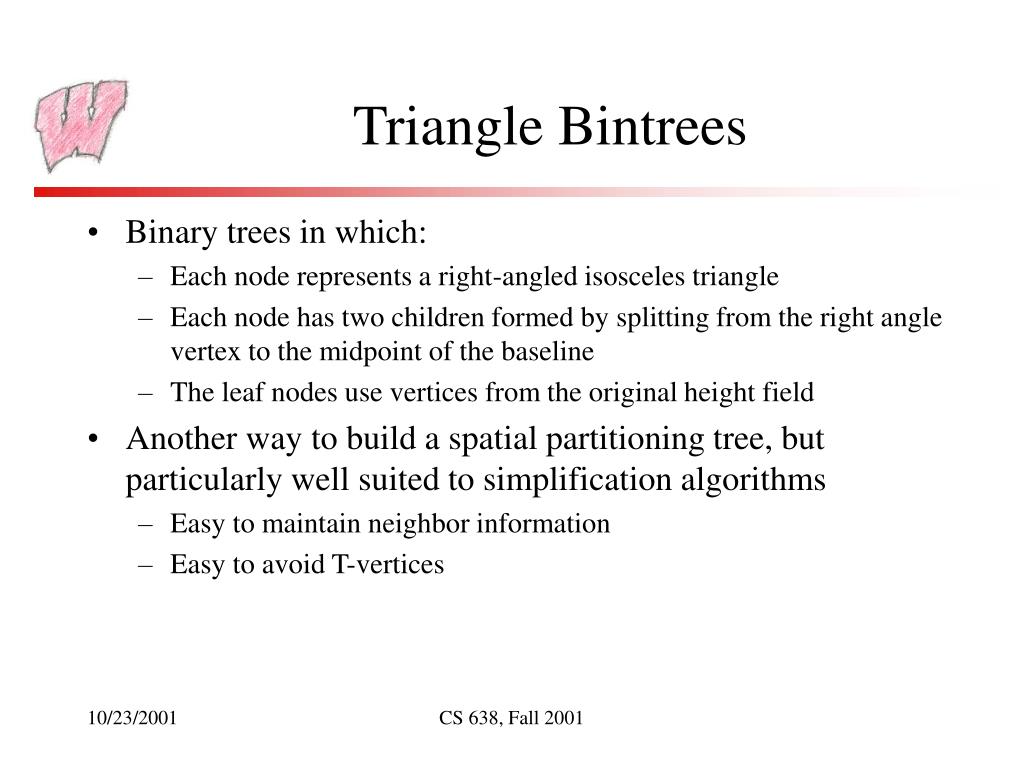

  4. Triangle Bintrees • Binary trees in which: • Each node represents a right-angled isosceles triangle • Each node has two children formed by splitting from the right angle vertex to the midpoint of the baseline • The leaf nodes use vertices from the original height field • Another way to build a spatial partitioning tree, but particularly well suited to simplification algorithms • Easy to maintain neighbor information • Easy to avoid T-vertices CS 638, Fall 2001

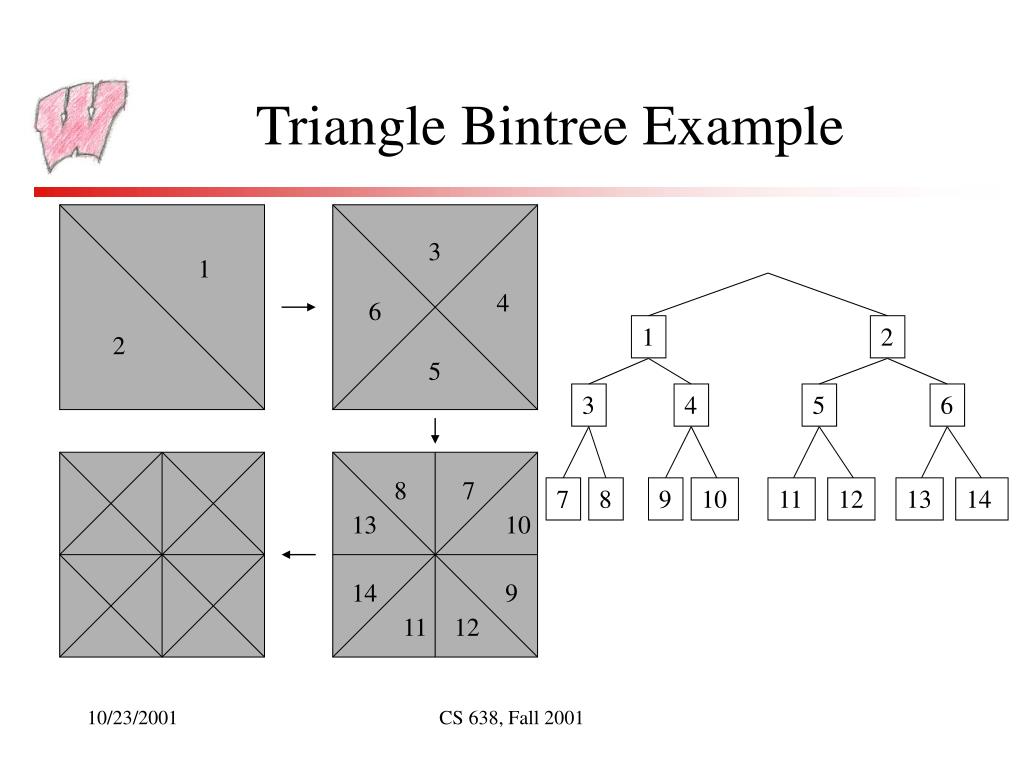

  5. Triangle Bintree Example 3 1 4 6 1 2 2 5 3 4 5 6 8 7 7 8 9 10 11 12 13 14 13 10 14 9 11 12 CS 638, Fall 2001

  6. Bintree Data Structure • Parent and child pointers • Neighbors • A left neighbor, a right neighbor, and a base neighbor • Note that the base and right angle give us a way to orient the triangle • Neighbors are not necessarily at your own level • Later, error bounds that say how much variation in height there is in your children CS 638, Fall 2001

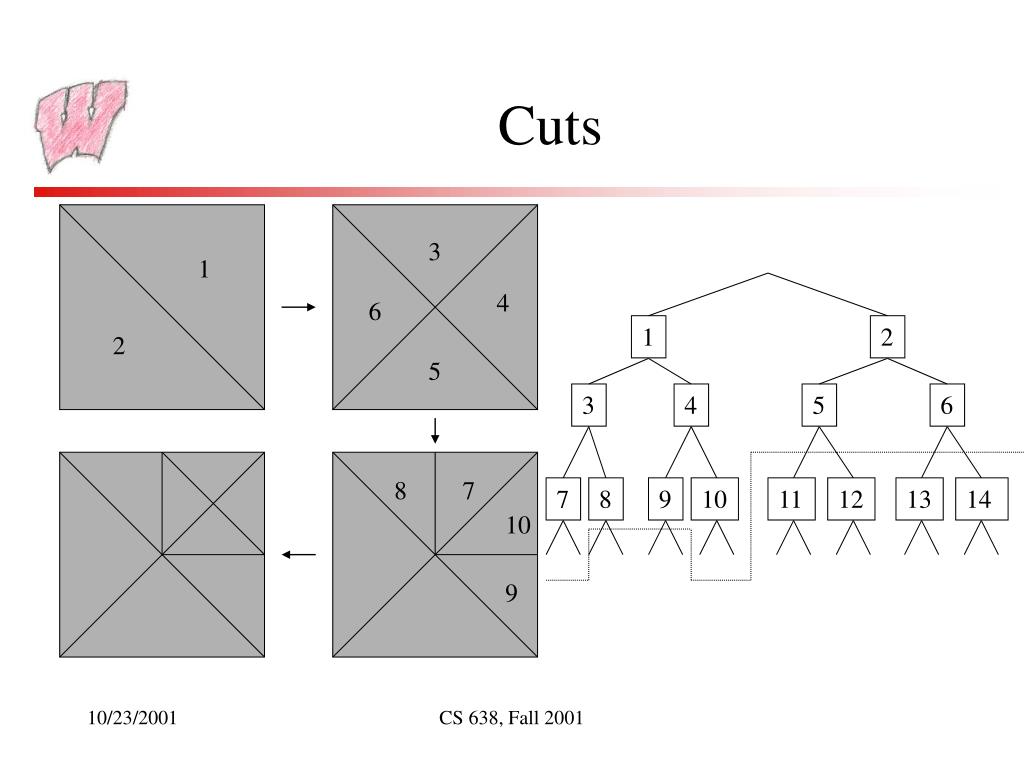

  7. Cuts 3 1 4 6 1 2 2 5 3 4 5 6 8 7 7 8 9 10 11 12 13 14 10 9 CS 638, Fall 2001

  8. 5: left neighbor 6, right neighbor 9 6: left neighbor 8, right neighbor 5 7: left neighbor 8, base neighbor 10 8: base neighbor 6, right neighbor 7 9: base neighbor 5, left neighbor 10 10: base neighbor 7, right neighbor 9 Note that 8 is 6’s left neighbor but 6 is 8’s base neighbor If you are someone’s left/right/base neighbor they are not always your right/left/base neighbor In other words, neighbors need not come from the same level in the tree Neighbors 8 7 10 6 9 5 CS 638, Fall 2001

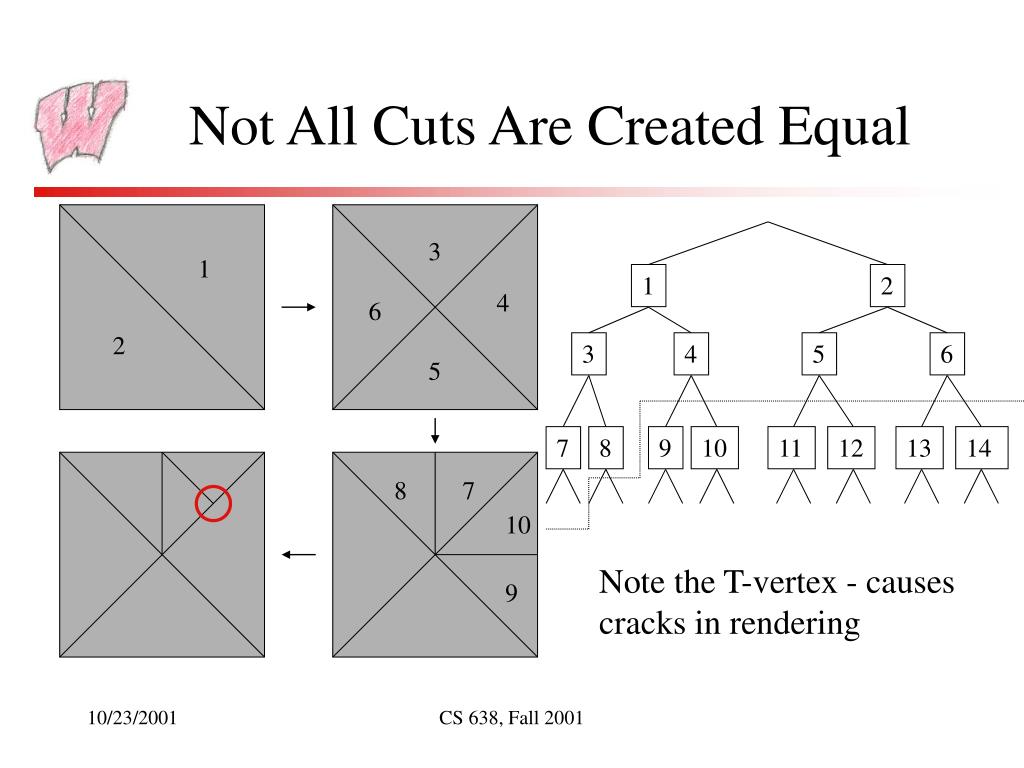

  9. Not All Cuts Are Created Equal 3 1 1 2 4 6 2 3 4 5 6 5 7 8 9 10 11 12 13 14 8 7 10 Note the T-vertex - causes cracks in rendering 9 CS 638, Fall 2001

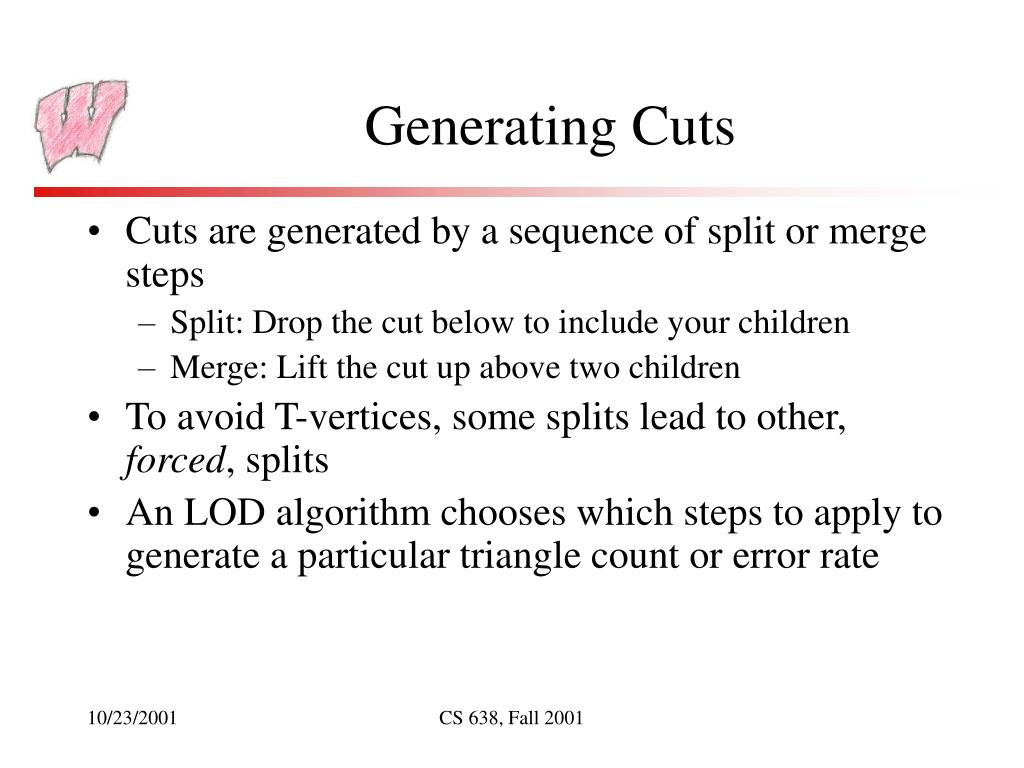

  10. Generating Cuts • Cuts are generated by a sequence of split or merge steps • Split: Drop the cut below to include your children • Merge: Lift the cut up above two children • To avoid T-vertices, some splits lead to other, forced, splits • An LOD algorithm chooses which steps to apply to generate a particular triangle count or error rate CS 638, Fall 2001

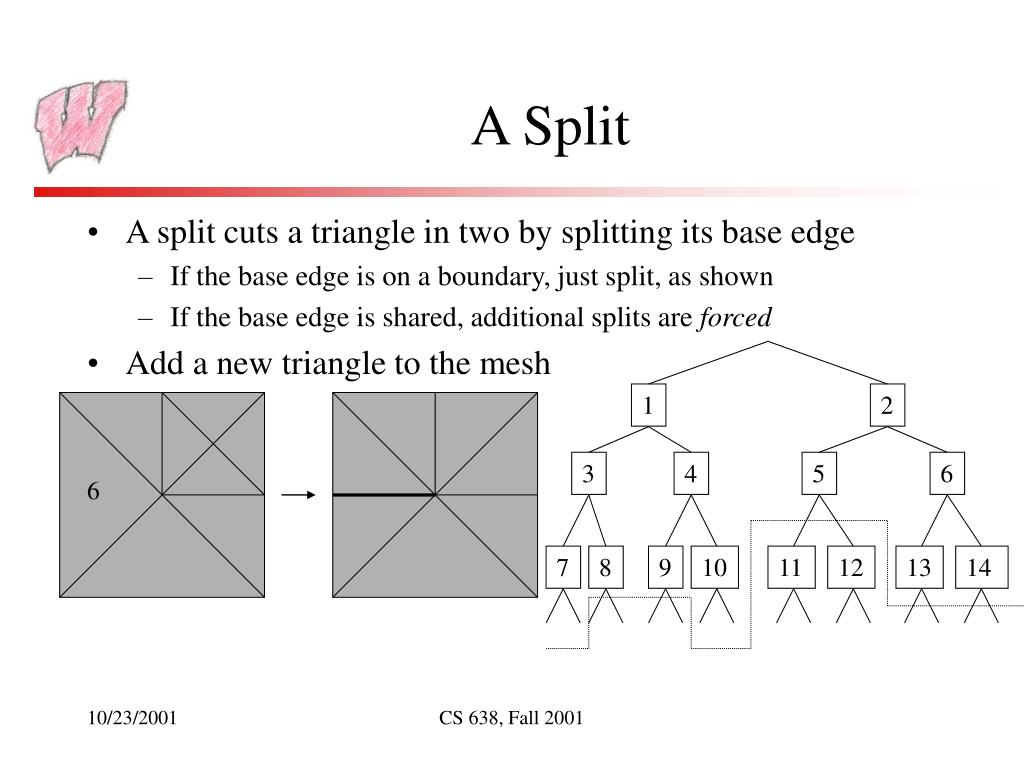

  11. A Split • A split cuts a triangle in two by splitting its base edge • If the base edge is on a boundary, just split, as shown • If the base edge is shared, additional splits are forced • Add a new triangle to the mesh 1 2 3 4 5 6 6 7 8 9 10 11 12 13 14 CS 638, Fall 2001

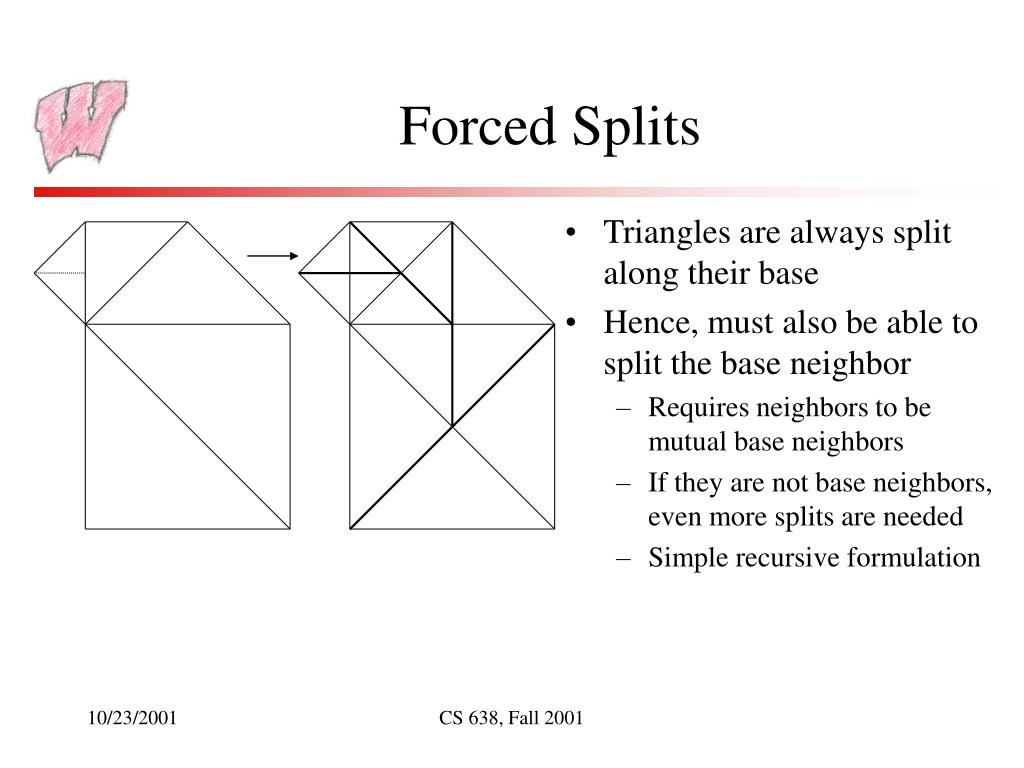

  12. Forced Splits • Triangles are always split along their base • Hence, must also be able to split the base neighbor • Requires neighbors to be mutual base neighbors • If they are not base neighbors, even more splits are needed • Simple recursive formulation CS 638, Fall 2001

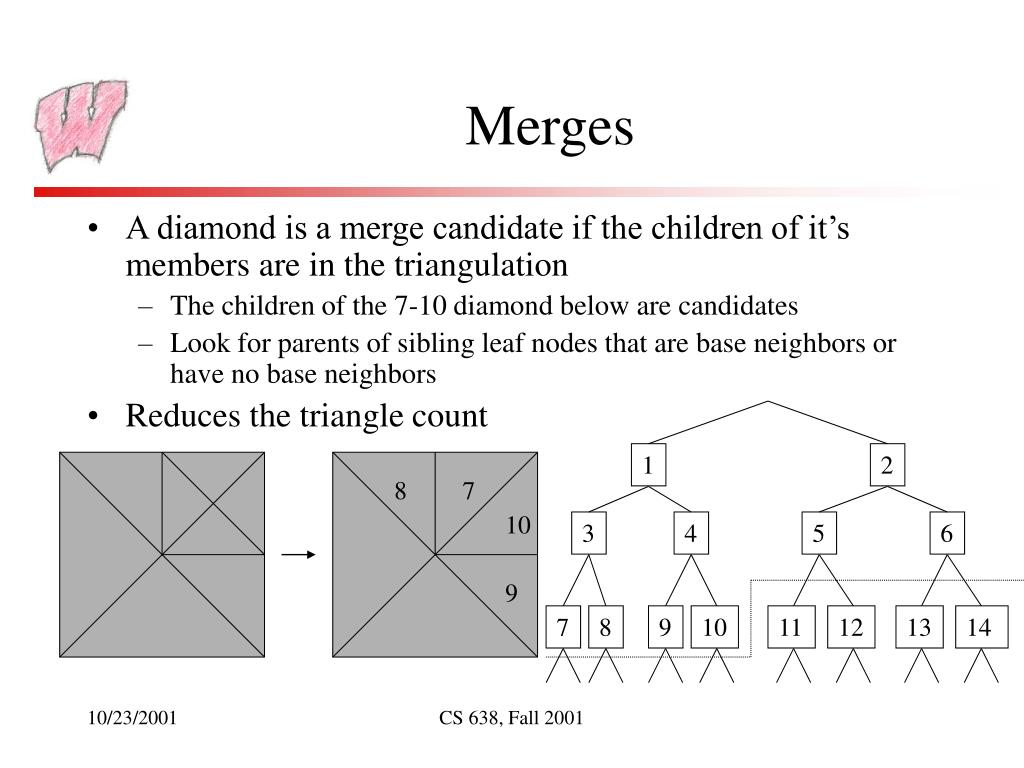

  13. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Merges • A diamond is a merge candidate if the children of it’s members are in the triangulation • The children of the 7-10 diamond below are candidates • Look for parents of sibling leaf nodes that are base neighbors or have no base neighbors • Reduces the triangle count 8 7 10 9 CS 638, Fall 2001

  14. Refinement LOD Algorithm • Start with the base mesh • Repeatedly split triangles until done • Stop when a specific triangle count is reached, or … • Stop when error is below some amount • To guide the split order, assign priorities to each split and always do the one with the highest priority • After each split, update priorities of affected triangles • Sample priority: High priority to splits that will reduce big errors • What is the complexity of this? (Roughly) • A similar algorithm works by simplifying the mesh through merge operations. Why choose one over the other? CS 638, Fall 2001

  15. Refinement Notes • If the priorities are monotonic, then the resulting terrain is optimal • Monotonic: Priorities of children are not larger than that of their parent • Priorities can come from many sources: • In or out of view, silhouette, projected error, under a vehicle, line of sight, … • Does not exploit coherence: As the view moves over the terrain, the triangulation isn’t likely to change much • We should be able to start with the existing triangulation, and modify it to produce the new optimal triangulation CS 638, Fall 2001

  16. Dual Queue Optimization • Have the split queue, as before • Have a merge queue: • Queue of potential merges, with priority as the max of the split priority for the triangles in each merge • Repeat until target size/accuracy and the max split priority is less than the min merge priority • If the mesh is too large/accurate, do the optimal merge • Update data structures appropriately • Otherwise, do the optimal split • Update data structures appropriately CS 638, Fall 2001

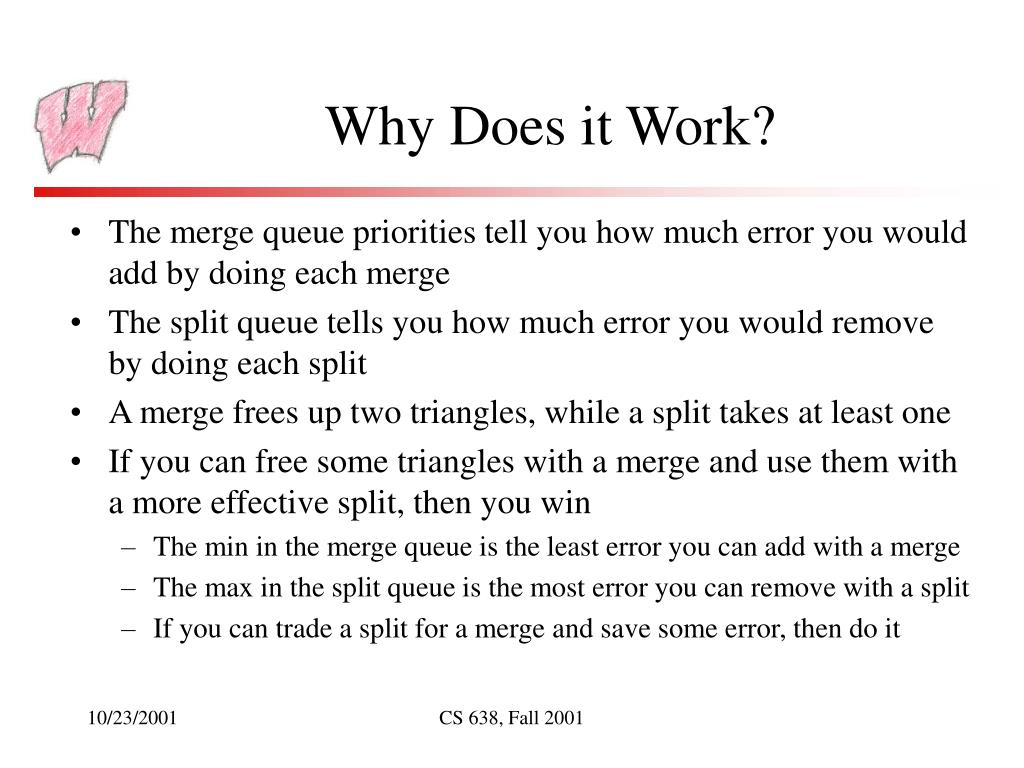

  17. Why Does it Work? • The merge queue priorities tell you how much error you would add by doing each merge • The split queue tells you how much error you would remove by doing each split • A merge frees up two triangles, while a split takes at least one • If you can free some triangles with a merge and use them with a more effective split, then you win • The min in the merge queue is the least error you can add with a merge • The max in the split queue is the most error you can remove with a split • If you can trade a split for a merge and save some error, then do it CS 638, Fall 2001

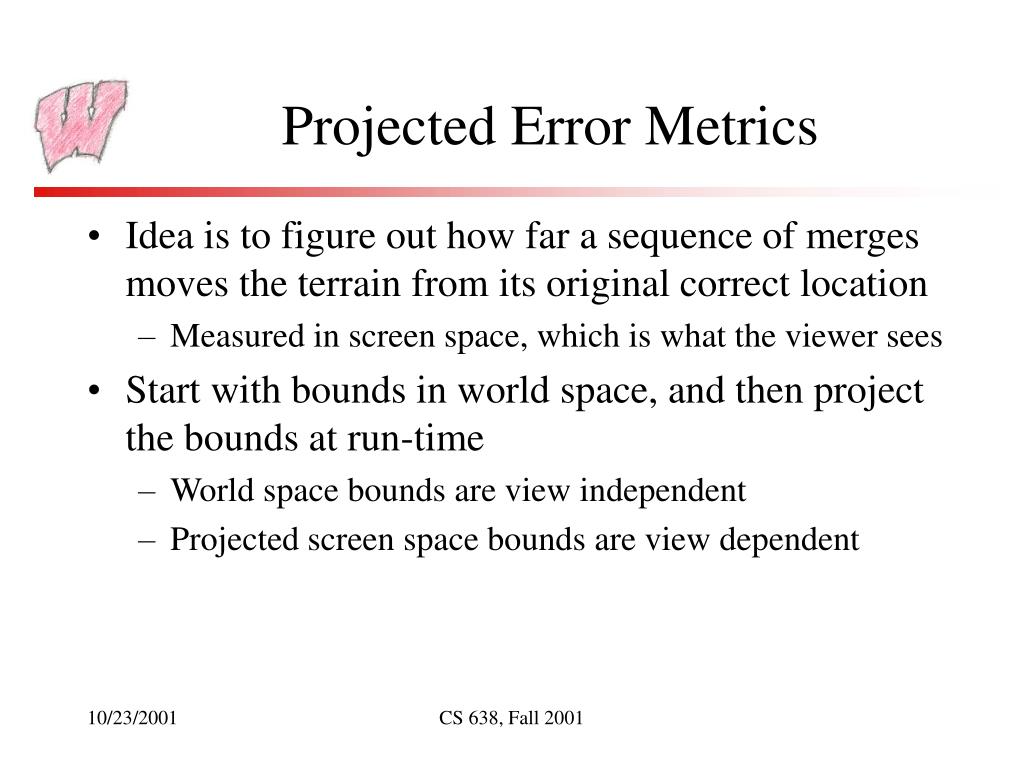

  18. Projected Error Metrics • Idea is to figure out how far a sequence of merges moves the terrain from its original correct location • Measured in screen space, which is what the viewer sees • Start with bounds in world space, and then project the bounds at run-time • World space bounds are view independent • Projected screen space bounds are view dependent CS 638, Fall 2001

  19. World Space Bounds • With terrain, merge only moves points up or down • Bound how far a point can move with a wedgie • A bintree triangle extruded up and down to contain its children • Defined by d, the thickness of the extrusion • Fast to compute, so works for dynamic terrain • Important for explosion craters and the like d CS 638, Fall 2001

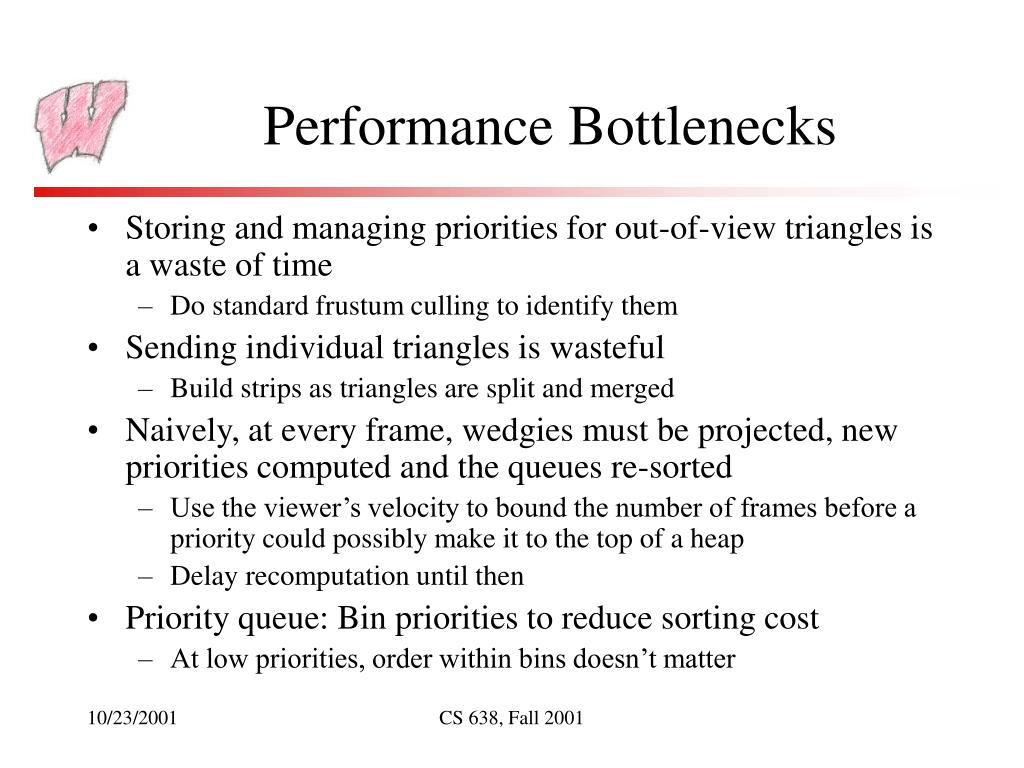

  20. Performance Bottlenecks • Storing and managing priorities for out-of-view triangles is a waste of time • Do standard frustum culling to identify them • Sending individual triangles is wasteful • Build strips as triangles are split and merged • Naively, at every frame, wedgies must be projected, new priorities computed and the queues re-sorted • Use the viewer’s velocity to bound the number of frames before a priority could possibly make it to the top of a heap • Delay recomputation until then • Priority queue: Bin priorities to reduce sorting cost • At low priorities, order within bins doesn’t matter CS 638, Fall 2001

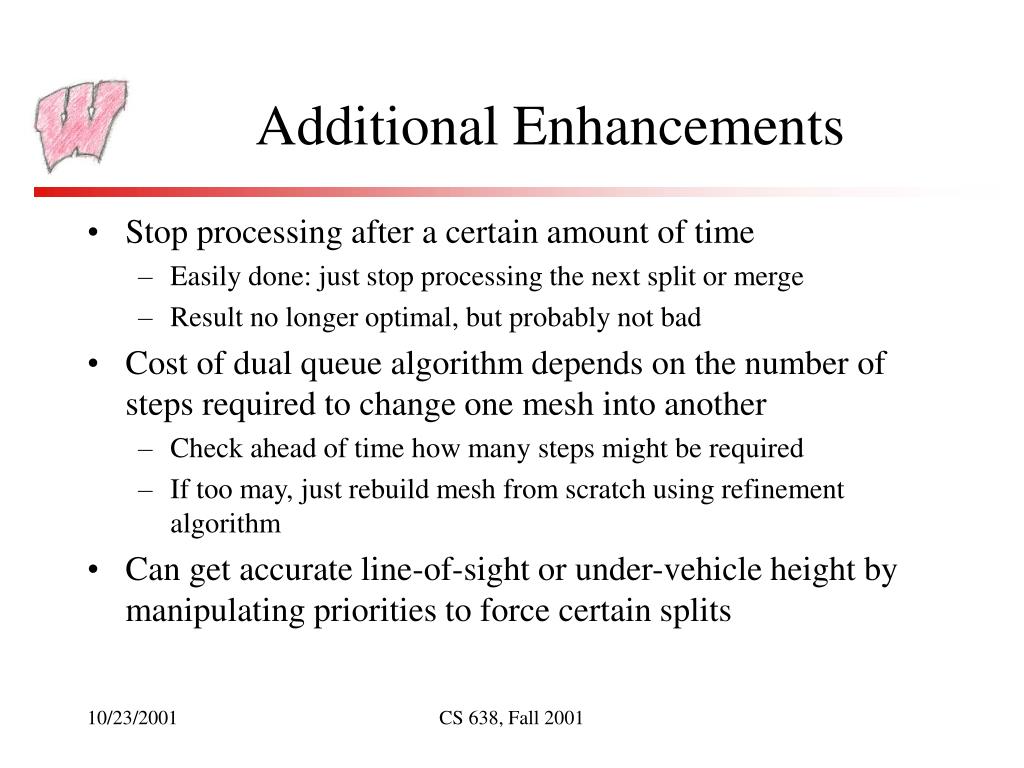

  21. Additional Enhancements • Stop processing after a certain amount of time • Easily done: just stop processing the next split or merge • Result no longer optimal, but probably not bad • Cost of dual queue algorithm depends on the number of steps required to change one mesh into another • Check ahead of time how many steps might be required • If too may, just rebuild mesh from scratch using refinement algorithm • Can get accurate line-of-sight or under-vehicle height by manipulating priorities to force certain splits CS 638, Fall 2001

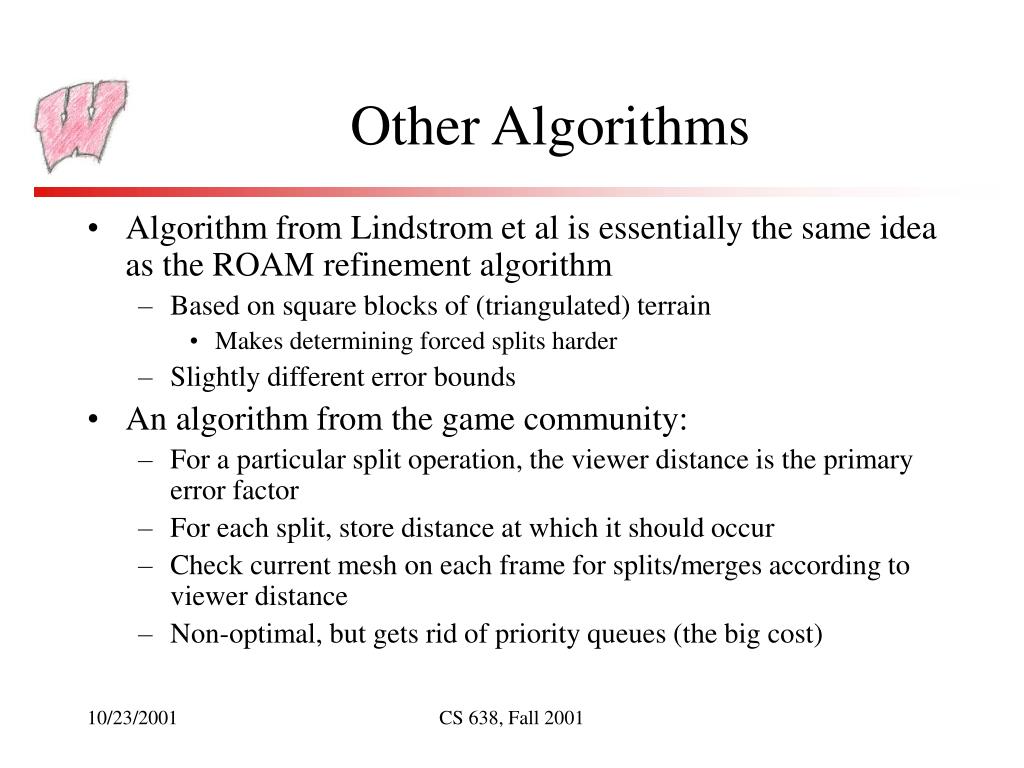

  22. Other Algorithms • Algorithm from Lindstrom et al is essentially the same idea as the ROAM refinement algorithm • Based on square blocks of (triangulated) terrain • Makes determining forced splits harder • Slightly different error bounds • An algorithm from the game community: • For a particular split operation, the viewer distance is the primary error factor • For each split, store distance at which it should occur • Check current mesh on each frame for splits/merges according to viewer distance • Non-optimal, but gets rid of priority queues (the big cost) CS 638, Fall 2001

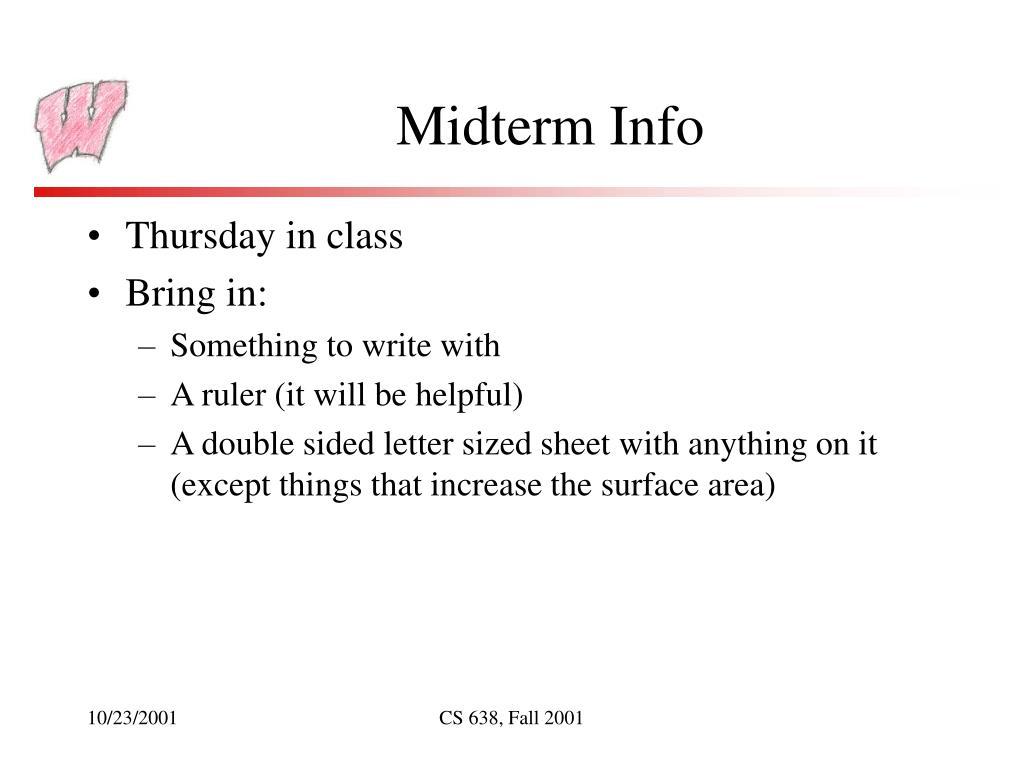

  23. Midterm Info • Thursday in class • Bring in: • Something to write with • A ruler (it will be helpful) • A double sided letter sized sheet with anything on it (except things that increase the surface area) CS 638, Fall 2001

  24. Project Next Stage • LithTech does almost everything we have talked about in the last six weeks • So, the next stage is going to be done mostly in OpenGL (or similar) • Light maps • Stencil-buffer shadow volume algorithms • LOD in LithTech CS 638, Fall 2001
