Goes r awg product validation tool development

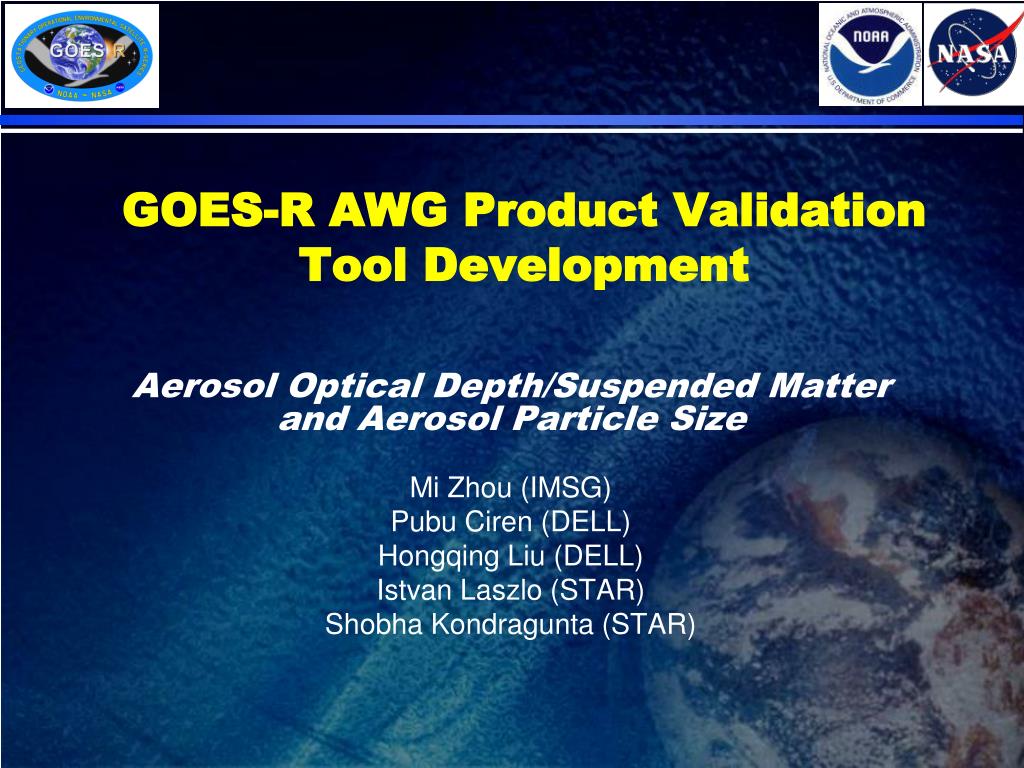

GOES-R AWG Product Validation Tool Development

Aerosol Optical Depth/Suspended Matter and Aerosol Particle Size Mi Zhou (IMSG)

PubuCiren (DELL)

Hongqing Liu (DELL)

Istvan Laszlo (STAR)

ShobhaKondragunta (STAR)


Outline

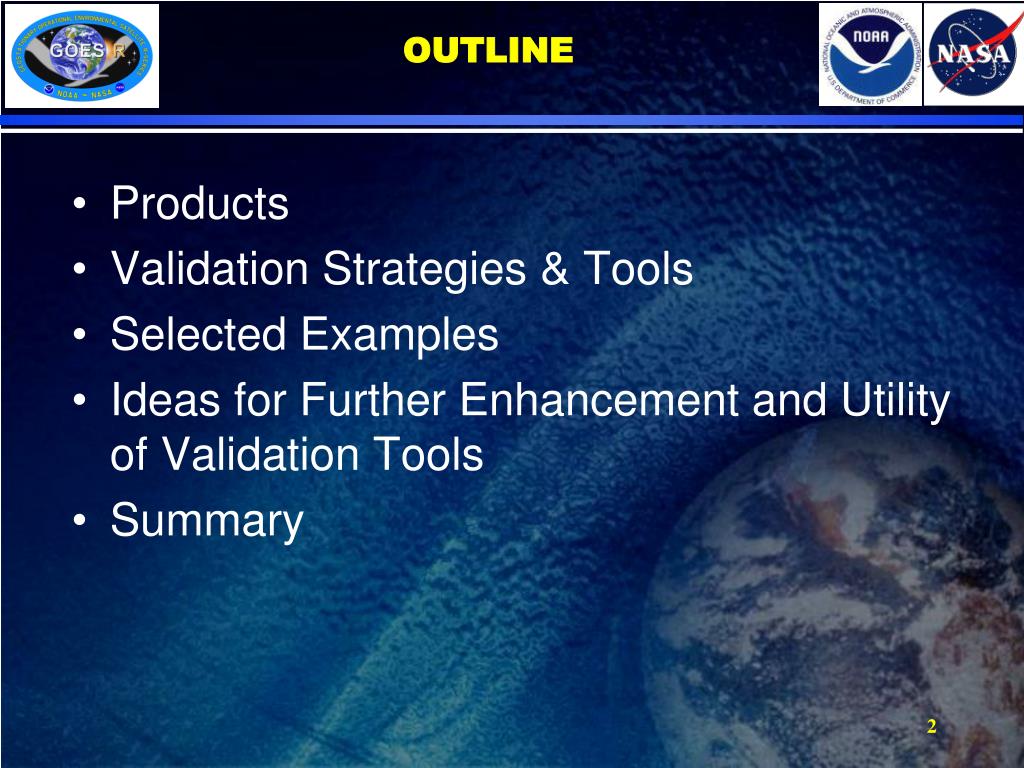

OUTLINE

  • Products

  • Validation Strategies & Tools

  • Selected Examples

  • Ideas for Further Enhancement and Utility of Validation Tools

  • Summary


Products

Products

  • Aerosol Optical Depth (AOD) / Suspended Matter (SM)

  • Aerosol Particle Size (APS)

    • Ångström Exponent is reported

    • at 2 km every 15 minutes for CONUS and FD


Validation strategy and tools

Validation Strategy and Tools

Strategy

  • Spatial and temporal match-up with ground “truth” and independent satellite retrievals

    • ground data are temporally averaged within a 1-hour window around the satellite overpass time; satellite data are spatially averaged in a 50x50-km box centered on the ground station

    • Quality control of comparison data set

    • Comparison and calculation of appropriate statistics

      Tools

  • Monitor operational Level-2 aerosol products

    • Displays images of product and quality flags

    • Plots histograms for specified granules

  • Collocate aerosol products with reference (“truth”) observations

    • Compare with ground truth

    • Time series for collocated AERONET stations

    • Frequency scatter-plot and linear regression

    • Statistics for comparison with F&PS requirements

  • IDL is used for visualization and calculation of statistics


Reference data

Reference Data

  • AERONET aerosol product

    • ground-based remote sensing network providing a comprehensive dataset of aerosol properties http://aeronet.gsfc.nasa.gov/cgi-bin/combined_data_access_new

  • MODIS aerosol product

    • AOD, Ångström Exponent, fine-mode weight over ocean, surface reflectance over land, aerosol type over land from MODIS collection 5 aerosol products ftp://ladsweb.nascom.nasa.gov/allData/5/

  • CALIPSO

    • Level 2 AOD and aerosol type profile from 5-km aerosol layer data http://eosweb.larc.nasa.gov/cgi-bin/searchTool.cgi?Dataset=CAL_LID_L2_05kmALay-Prov-V3-01

  • MAPSS

    • A Multi-sensor Aerosol Products Sampling System providing co-located MODIS-AERONET, CALIPSO-AERONET, and MISR-AERONET data http://disc.sci.gsfc.nasa.gov/aerosols/services/mapss/mapssdoc.html#caliop

09/2007


Routine tools gui

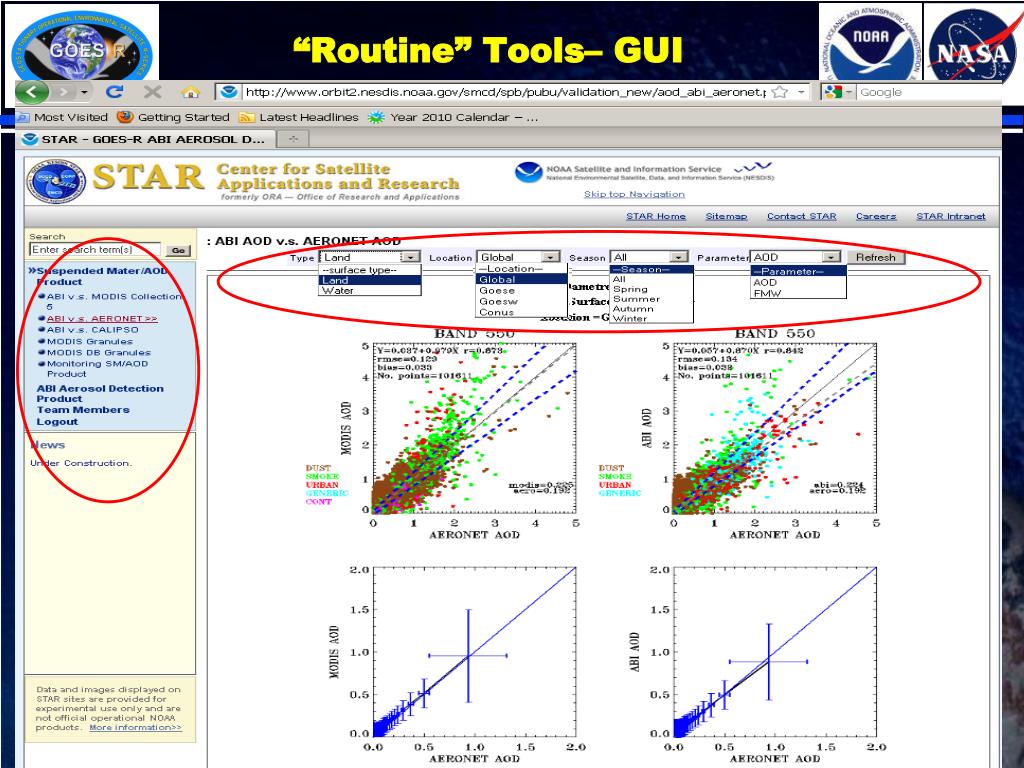

“Routine” Tools– GUI


Example use of deep dive tools

Example use of “Deep-Dive” Tools

ABI retrieval

MODIS retrieval

  • ABI image vs. MODIS image has much less valid retrievals;

  • Plotting of inputs suggests it is due to bad snow mask

  • Correct snow mask and reprocess this granule

ABI snow mask

Correct ABI snow mask

Reprocessed ABI retrieval


Summary

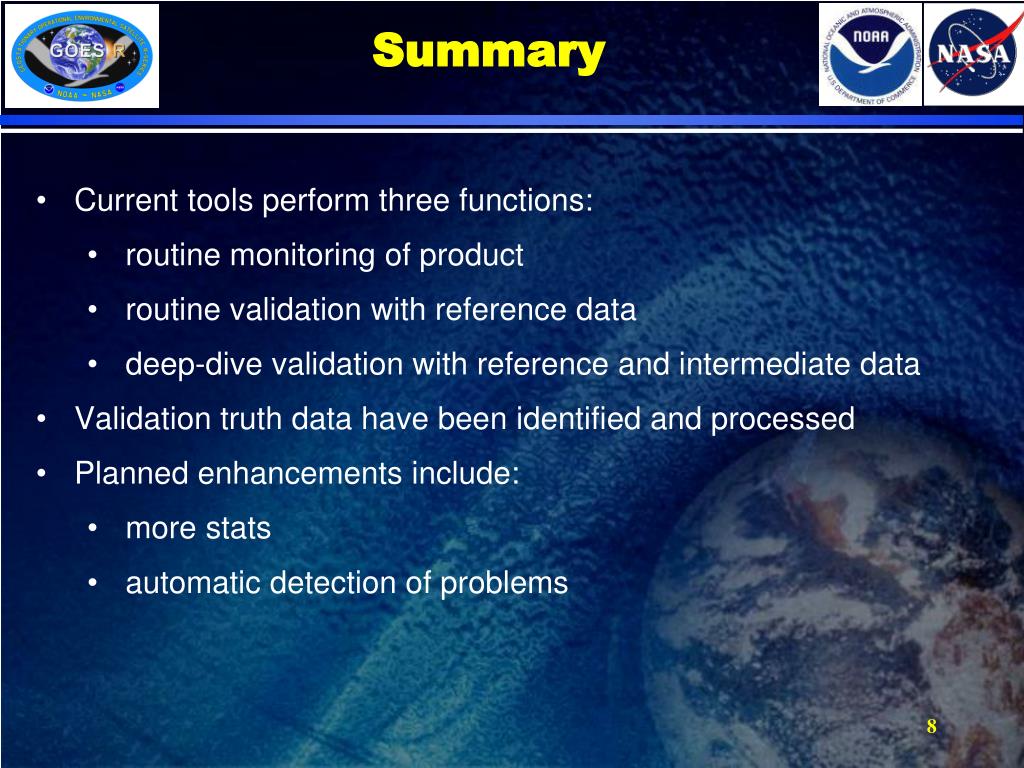

Summary

  • Current tools perform three functions:

    • routine monitoring of product

    • routine validation with reference data

    • deep-dive validation with reference and intermediate data

  • Validation truth data have been identified and processed

  • Planned enhancements include:

    • more stats

    • automatic detection of problems


Goes r awg product validation tool development1

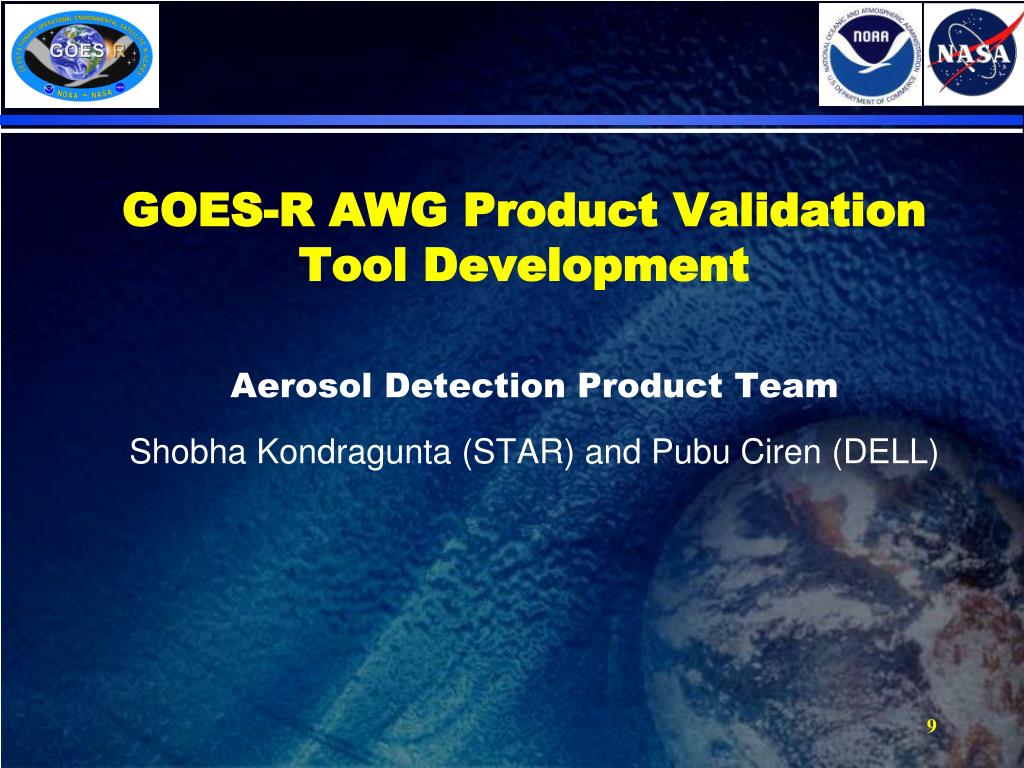

GOES-R AWG Product Validation Tool Development

Aerosol Detection Product Team Shobha Kondragunta (STAR) and Pubu Ciren (DELL)


Products1

Products

Dust plume over China

05/10 /2011

Smoke over eastern Asia

04/13/2011

Product generated using MODIS L1B radiances at 1 km resolution. Accuracy requirements: 80% (dust); 80% (smoke over land) and 70% (smoke over water)


Validation strategies

Validation Strategies

  • Product is qualitative in nature. So finding “truth data” is not that straight forward. Therefore strategy is:

    • to use whatever coincident other similar satellite data exist. These are:

      • CALIPSO Vertical Feature Mask (VFM)

      • OMI (OMPS in the future) Aerosol Index product (positive for dust and smoke)

    • to infer the presence of smoke and dust in the atmosphere using in situ observations and use the data. These are:

      • AERONET Angstrom Exponent (itself an un-validated product)

      • IMPROVE speciated aerosol measurements (daily average)

      • Visual inspection of GOES-R ABI RGB imagery (same temporal scale as dust/smoke detection – For internal consistency check for diagnosing issues and may not be released to public.

      • SEARCH speciated aerosol measurements (hourly)

      • Hazard Mapping System (HMS) fire and smoke analysis

      • Field campaign data during which visual reports of dust and smoke, if they exist

    • Compare aerosol model (type) identified by GOES-R ABI Suspended Matter/AOD algorithm for qualitative comparison and assigning a quality flag that indicates the mis-match - For internal consistency check for diagnosing issues and may not be released to public


Routine validation tools

Routine Validation Tools

  • ABI aerosol detection algorithm run in near real time using MODIS L1B data as proxy:

    • Global (2-week delay)

    • CONUS (1-day delay)

  • Product and quality

    flags displayed

http://www.orbit2.nesdis.noaa.gov/smcd/spb/pubu/validation_new/adp_modis_db.php

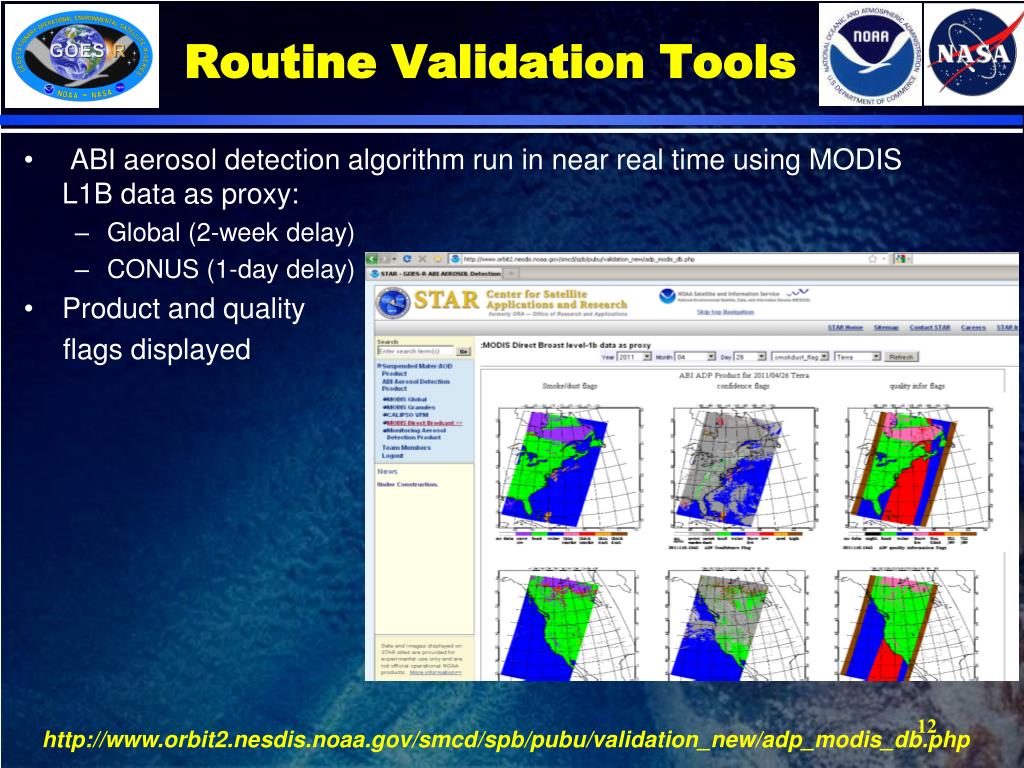

Routine validation tools1

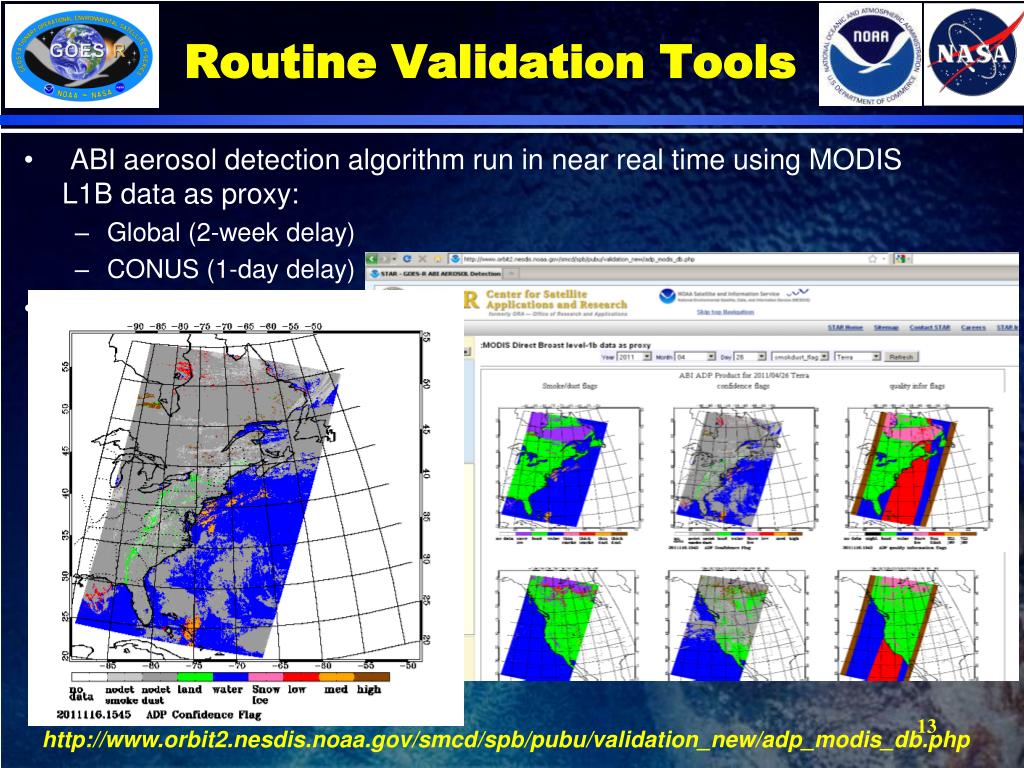

Routine Validation Tools

  • ABI aerosol detection algorithm run in near real time using MODIS L1B data as proxy:

    • Global (2-week delay)

    • CONUS (1-day delay)

  • Product and quality

    flags displayed

http://www.orbit2.nesdis.noaa.gov/smcd/spb/pubu/validation_new/adp_modis_db.php


Routine validation tools2

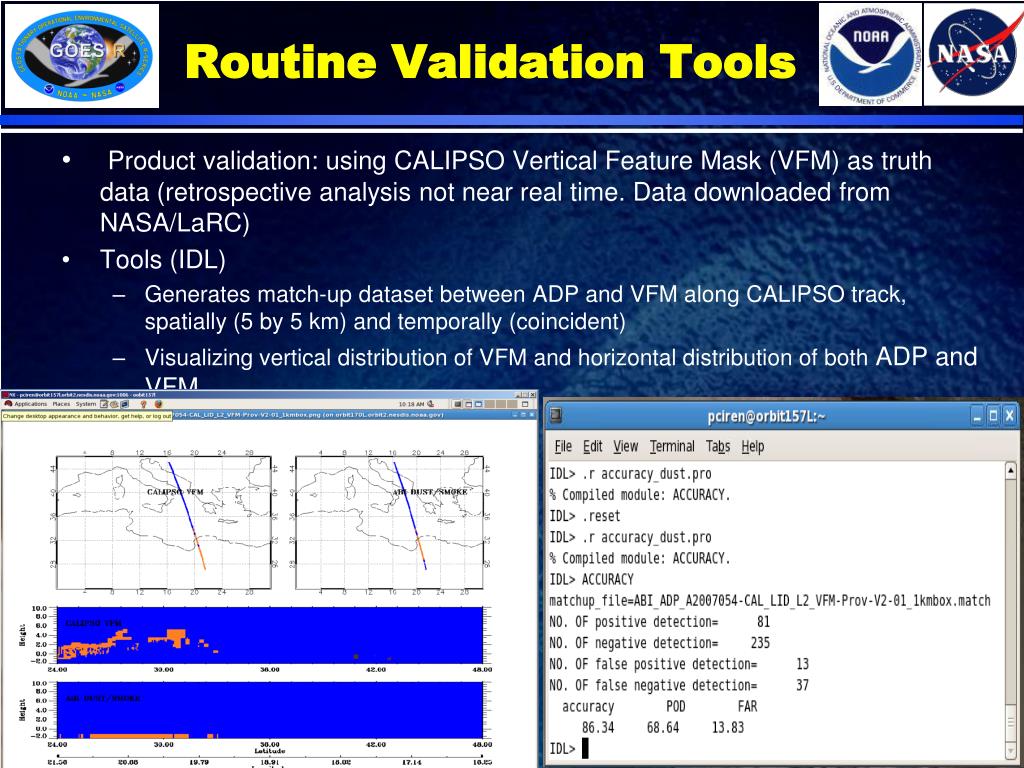

Routine Validation Tools

  • Product validation: using CALIPSO Vertical Feature Mask (VFM) as truth data (retrospective analysis not near real time. Data downloaded from NASA/LaRC)

  • Tools (IDL)

    • Generates match-up dataset between ADP and VFM along CALIPSO track, spatially (5 by 5 km) and temporally (coincident)

    • Visualizing vertical distribution of VFM and horizontal distribution of both ADP and VFM

    • Generating statistic matrix


Deep dive validation tools

”Deep-Dive” Validation Tools

Percentage of Pixels (%)

Day of the Year (2011)


Summary1

Summary

  • Routine validation tools have been developed to validate ABI aerosol detection product derived from MODIS level-1B data:

    • Matchup tools for comparisons to AERONET, CALIPSO, and IMPROVE have been developed

    • Matchup tools for comparisons to OMI, SEARCH, and HMS datasets are in R&D phase

  • Web-based monitoring tool has been developed to identify issues with algorithm:

    • Change in product performance as indicated by low probability of detection or low confidence in retrieval can trigger a deep-dive analysis to understand:

      • Accuracy of cloud detection

      • Accuracy of snow/ice mask

      • Etc.


Goes r awg product validation tool development2

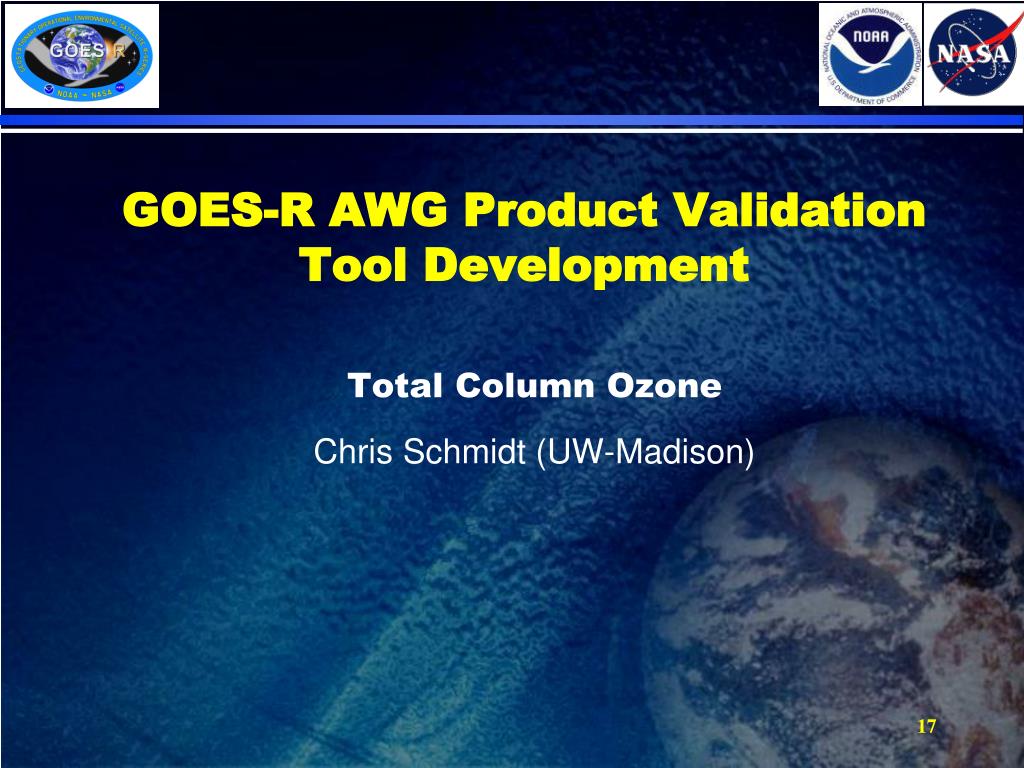

GOES-R AWG Product Validation Tool Development

Total Column Ozone Chris Schmidt (UW-Madison)


Ozone requirements

Ozone Requirements

* The 10 km resolution is a legacy of the cancelled GOES-R sounder.

18


Validation approach

Validation Approach

There are three potential sources of validation data

Satellite collocations of ozone values

  • SEVIRI proxy data allows for validation against polar-orbiting UV-based ozone detection from Ozone Monitoring Instrument (OMI)

  • OMI footprints are estimated based on building rectangles around OMI locations in OMI space

  • SEVIRI pixels within the footprints are averaged

  • Method applicable to ABI and polar orbiting ozone instruments in the future

  • OMI is extensively validated against ground-based Dobson Photospectrometers, %RMSE less than 2%

    Ground based detection

  • Dobson photospectrometers provide total column ozone at certain sites around the world, typically at solar noon

  • Global network is shrinking

    Model-generated proxy data

  • Difficult to generate, numerical weather prediction models typically use climatological ozone

  • Some is now available and will be tested

    Approach: Focus on satellite collocations as primary validation.


Validation approach1

Validation Approach

Long-term Validation Plan: Validate against UV-based satellites and ground-based network as available

August 2006 average total column ozone

Desert surfaces pose a challenge for the regression

Dobson

Units

Dobson

Units

200

500

200

500

Met-8

OMI


Ozone validation against requirements

Ozone Validation Against Requirements

Ozone total column requirement is that precision be within 25 DU and accuracy be within 15 DU.

Regression is trained for each satellite, unaccounted for biases in BTs will lead to differences in performance between satellites.

For the Met-8 dates (August 2006, 1-14 Feb 2007, 1-10 April 2007) in the standard 10 week proxy dataset, overall precision was 14.8 DU and accuracy was 3.3 DU.

For the Met-9 dates (11-13 April 2007, 1-13 October 2007) the precision was 18.6 DU and the accuracy was 8.1 DU. There appears to be bias in the BTs that is unaccounted for in the regression training.

Cloud mask is from the AWG Clouds team.


Goes r awg product validation tool development

OMI Validation


Goes r awg product validation tool development

Ground Station Validation

TCO from Dobson instruments at ground stations, primarily in Europe but some in Africa (see below), compared to SEVIRI TCO for dates August 2006, 1-14 Feb 2007, 1-13 April 2007, and 1-13 October 2007. Overall precision was 23.7 DU and accuracy was 2.1 DU.

23
