Feature Selection of DNA Micrroarray Data

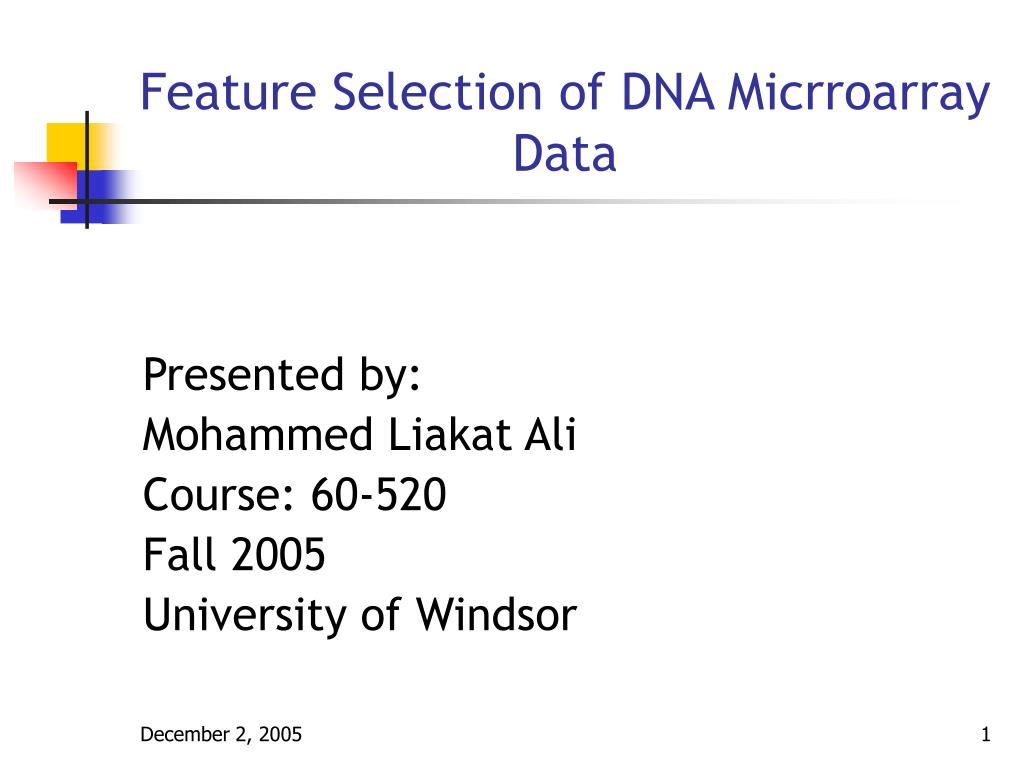

1. Feature Selection of DNA Micrroarray Data Presented by: Mohammed Liakat Ali Course: 60-520 Fall 2005 University of Windsor

2. Outline • Introduction • Deployment of Feature Selection methods • Feature Selection Methods • Class Separability Measures • Review of Minimum Redundancy feature selection methods • Comparison with our Experimental Results • Conclusions • Q & A

3. Introduction • Microarray Data • Representation of Objects • Classifiers • Feature Selection vs. Feature Extraction • Optimal Feature Set for Classification

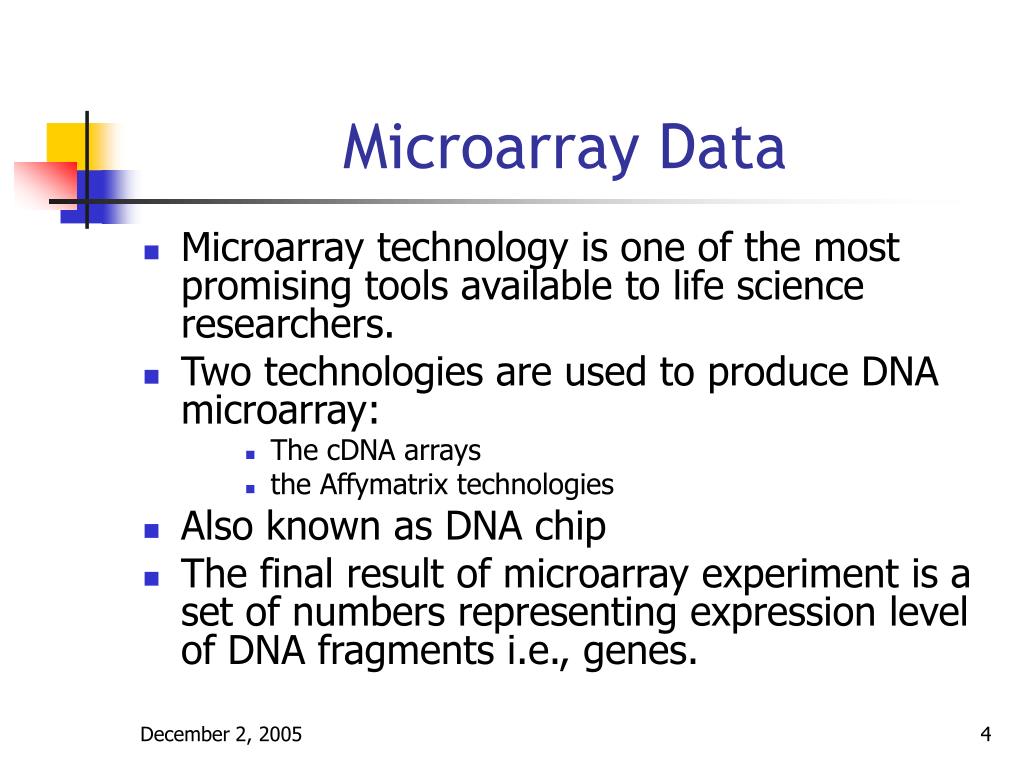

4. Microarray Data • Microarray technology is one of the most promising tools available to life science researchers. • Two technologies are used to produce DNA microarray: • The cDNA arrays • the Affymatrix technologies • Also known as DNA chip • The final result of microarray experiment is a set of numbers representing expression level of DNA fragments i.e., genes.

5. Representation of Objects • Objects are represented by their characteristic features • Three main reasons to keep dimensionality low: • Measurement Cost • Classification Accuracy • To identify and monitor the target disease or function types • It is very important to represent an object with features having high discriminating ability.

6. Classifiers • A classifier will use features of an object and a discriminant function to assign the object to a category i.e., class. • Domain independent theory of classification is based on the abstraction provided by features of the input data • We can divide classifiers as: • linear • non-linear

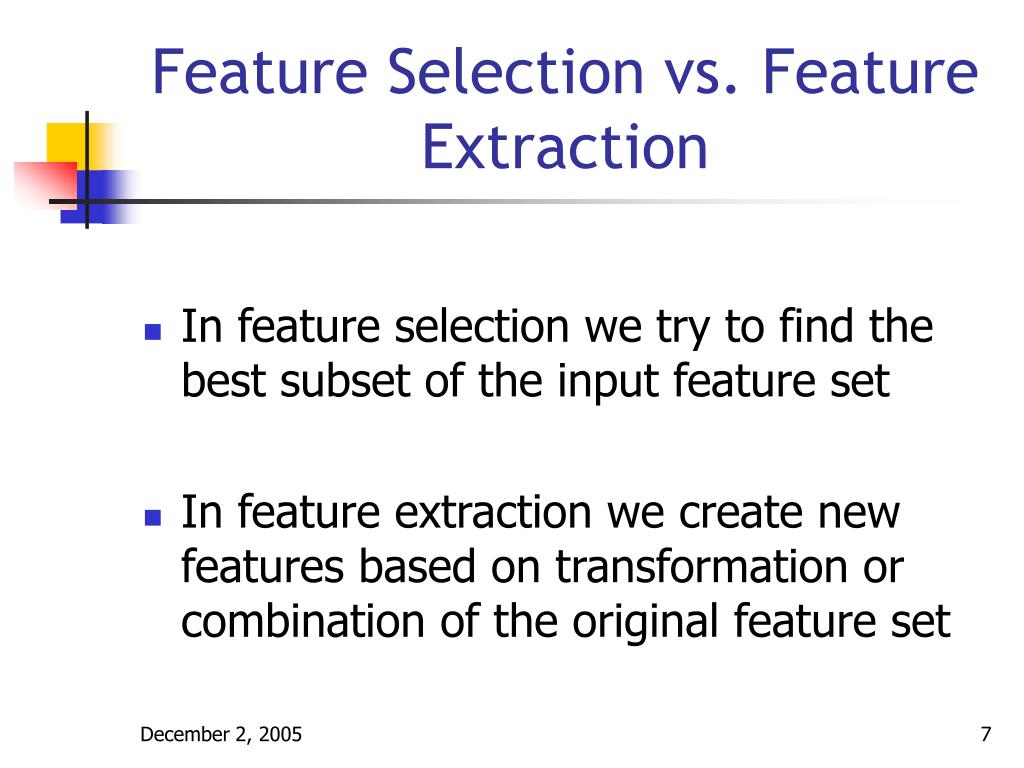

7. Feature Selection vs. Feature Extraction • In feature selection we try to find the best subset of the input feature set • In feature extraction we create new features based on transformation or combination of the original feature set

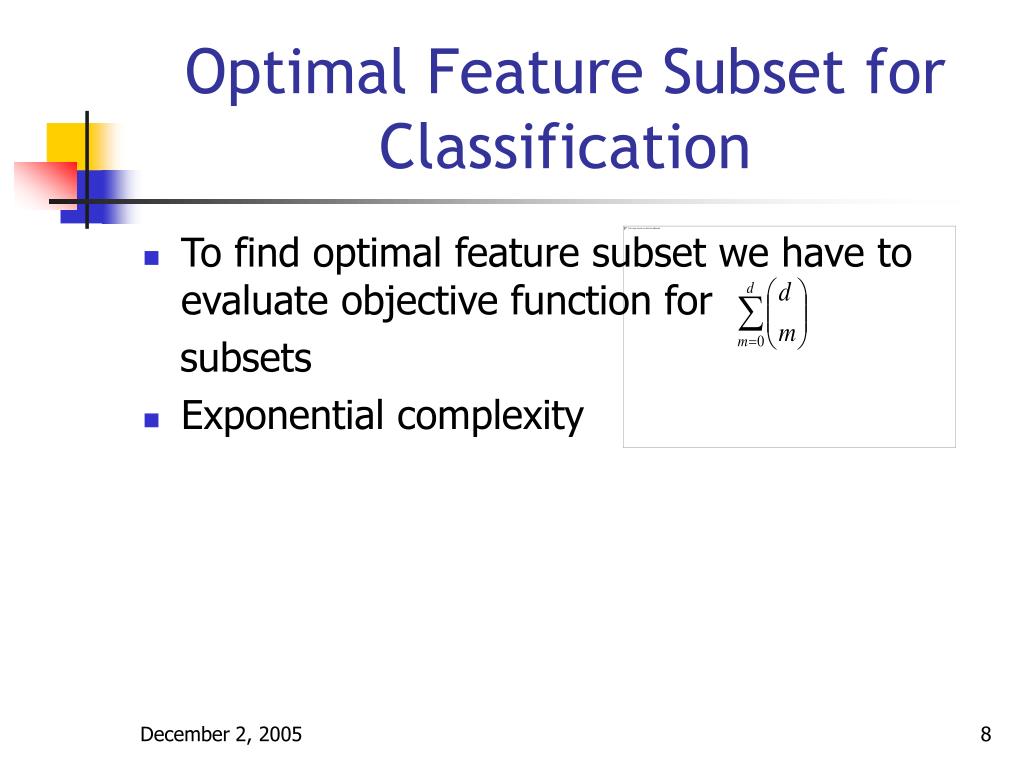

8. Optimal Feature Subset for Classification • To find optimal feature subset we have to evaluate objective function for subsets • Exponential complexity

9. Deployment of Feature Selection Methods • Based on their relation to the induction algorithm feature selection methods can be grouped as: • Embedded: They are a part of induction algorithms • Filter: They are separate processes from the induction algorithms • Wrapper: They are also separate processes from induction algorithm but they use induction algorithm as a subroutine

10. Deployment of Feature Selection Methods

11. Feature Selection Methods • Based on the optimal solution of the problem, we can divide feature selection methods as: • Optimal Selection Methods • Suboptimal Selection Methods

12. Feature Selection Methods

13. Optimal Selection Methods • Exhaustive Search • Branch and Bound Search

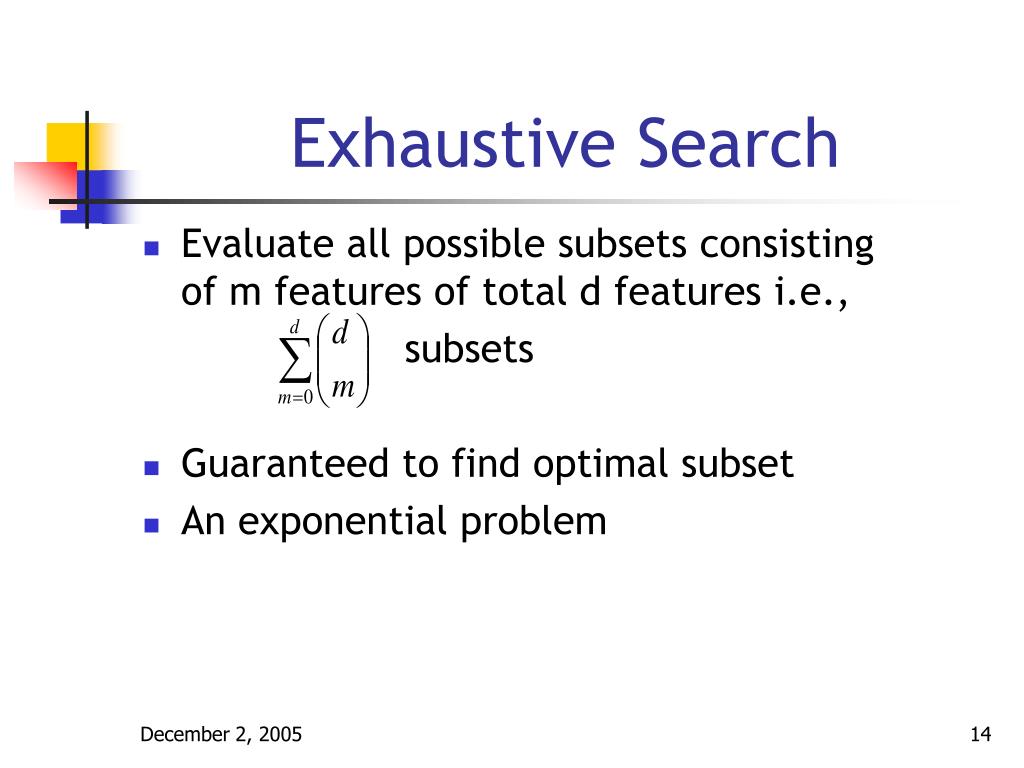

14. Exhaustive Search • Evaluate all possible subsets consisting of m features of total d features i.e., subsets • Guaranteed to find optimal subset • An exponential problem

15. Branch and Bound Search • Only fraction of all possible feature subsets will be evaluated • Guaranteed to find optimal subset • Criterion function must satisfy the monotonicity property i.e.,

16. Suboptimal Selection Methods • Best individual Feature • Sequential Forward Selection (SFS) • Sequential Backward Selection (SBS) • “Plus l take away r” Selection • Sequential Forward Floating Search (SFFS) • Sequential Backward Floating Search (SBFS)

17. Best individual Feature • Evaluate all d features individually using an scalar criterion function • Select m best features • Clearly a sub optimal method • Complexity is O(d)

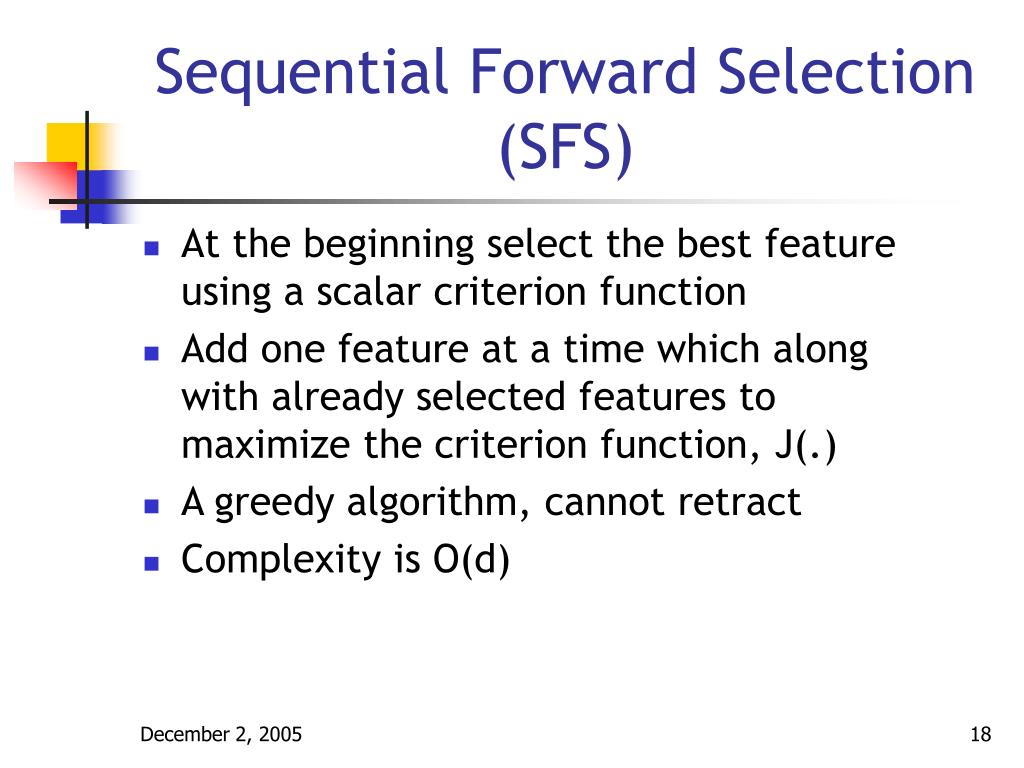

18. Sequential Forward Selection (SFS) • At the beginning select the best feature using a scalar criterion function • Add one feature at a time which along with already selected features to maximize the criterion function, J(.) • A greedy algorithm, cannot retract • Complexity is O(d)

19. Sequential Backward Selection (SBS) • At the beginning select all d features • Delete one feature at a time and Select the subset which maximize the criterion function, J(.) • Also a greedy algorithm, cannot retract • Complexity is O(d)

20. “Plus l take away r” Selection • At first add l features by forward selection, then discard r features by backward selection • Need to decide optimal l and r • No subset nesting problems Like SFS and SBS

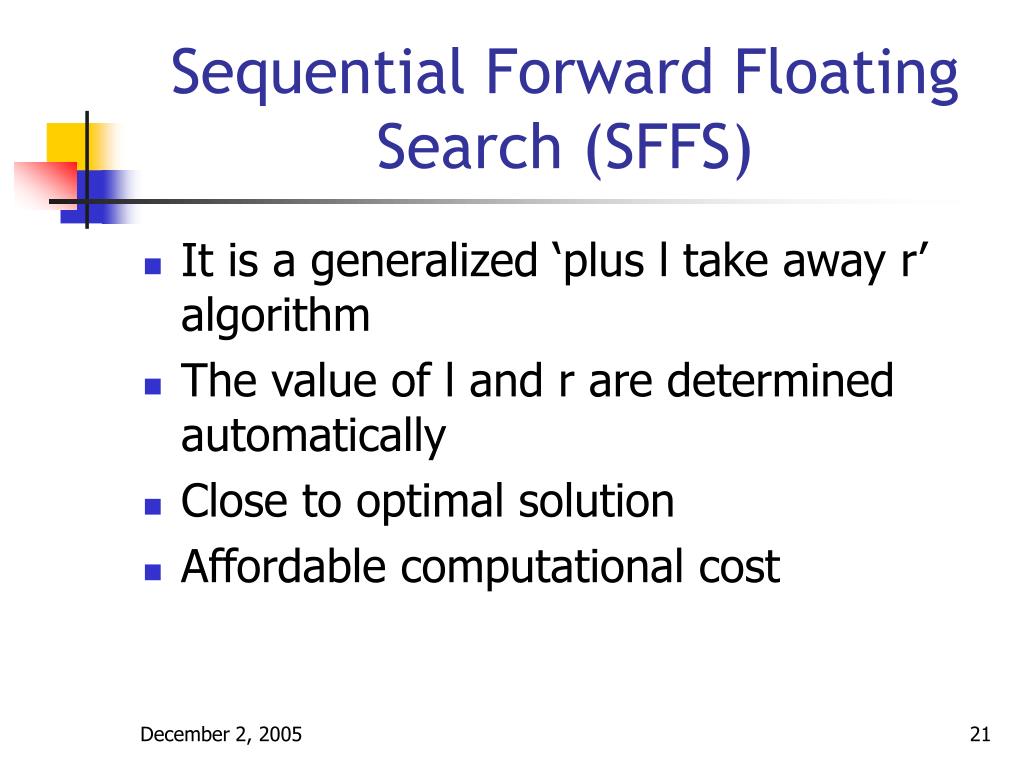

21. Sequential Forward Floating Search (SFFS) • It is a generalized ‘plus l take away r’ algorithm • The value of l and r are determined automatically • Close to optimal solution • Affordable computational cost

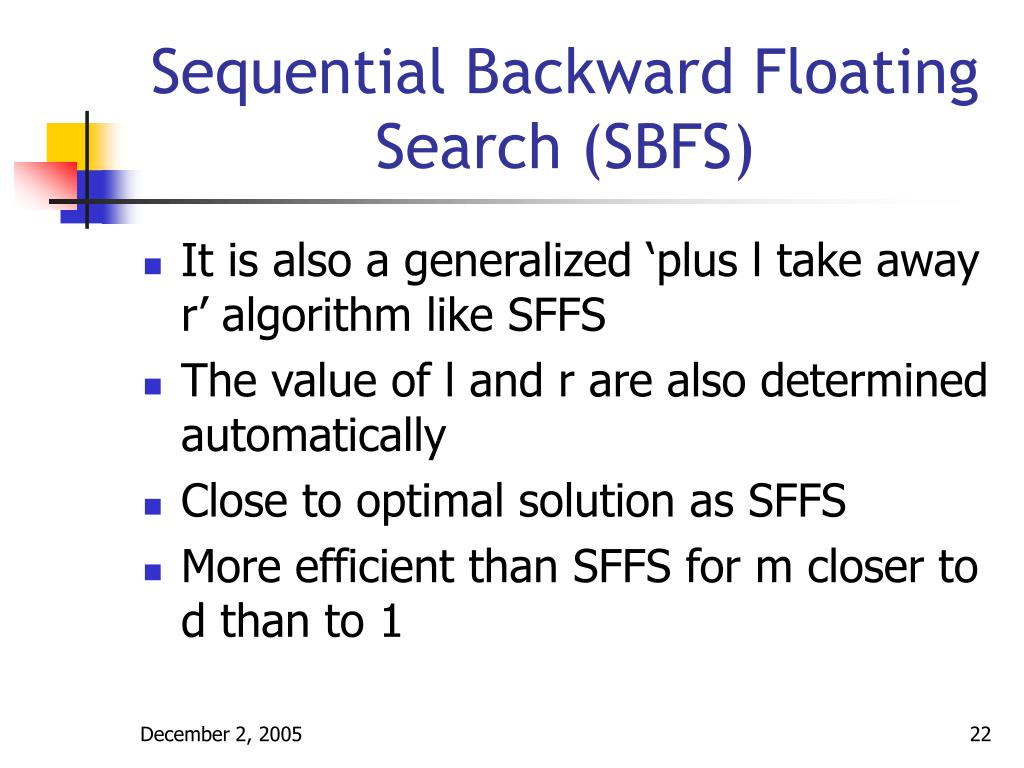

22. Sequential Backward Floating Search (SBFS) • It is also a generalized ‘plus l take away r’ algorithm like SFFS • The value of l and r are also determined automatically • Close to optimal solution as SFFS • More efficient than SFFS for m closer to d than to 1

23. Class Separability Measures • Divergence • Scatter Matrices

24. Divergence • As per Bayes rule, given two classes ω1 and ω2 and a feature vector x, • we select ω1 if P(ω1|x) > P(ω2|x) • Hence ratio has discriminating capability

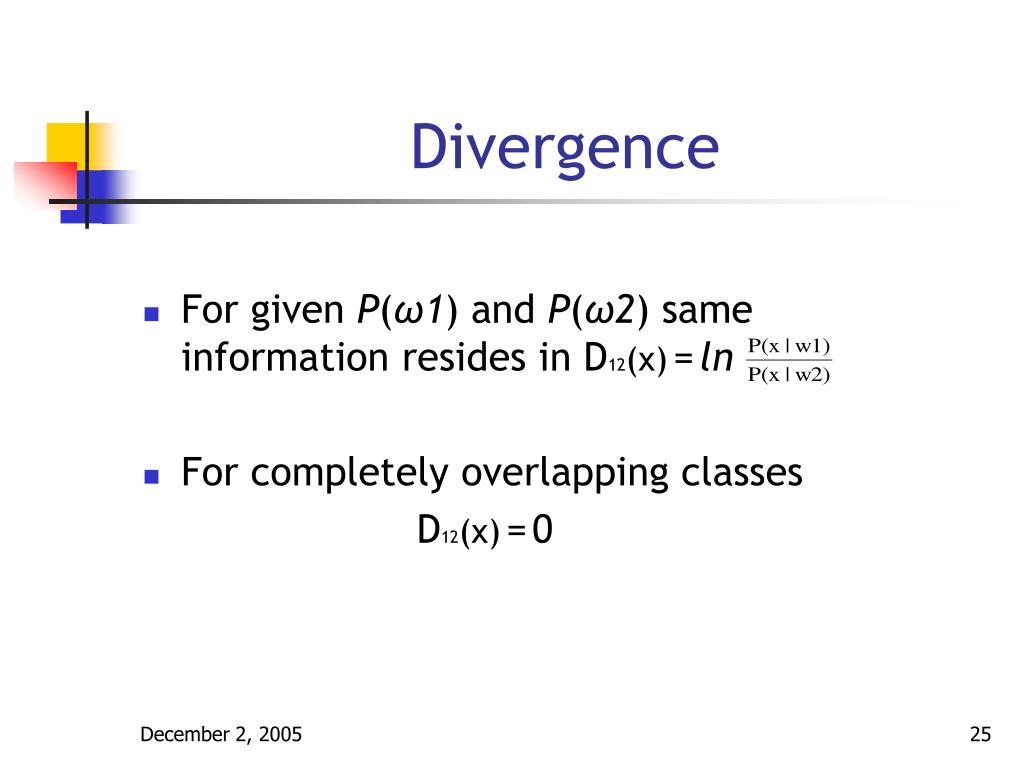

25. Divergence • For given P(ω1) and P(ω2) same information resides in D12(x)=ln • For completely overlapping classes D12(x)=0

26. Divergence • Since x takes different values, it is natural to consider mean value over class ω1 D12 = • Similarly for ω2 D21 = • The sum d12 = D12 +D21

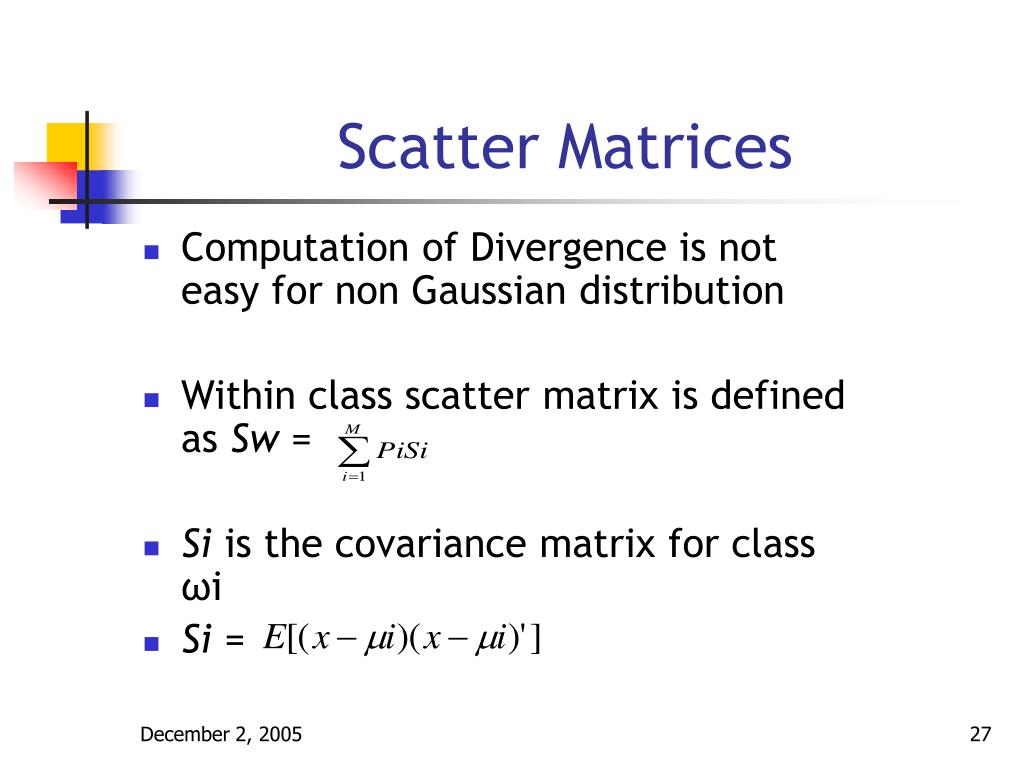

27. Scatter Matrices • Computation of Divergence is not easy for non Gaussian distribution • Within class scatter matrix is defined as Sw = • Si is the covariance matrix for class ωi • Si =

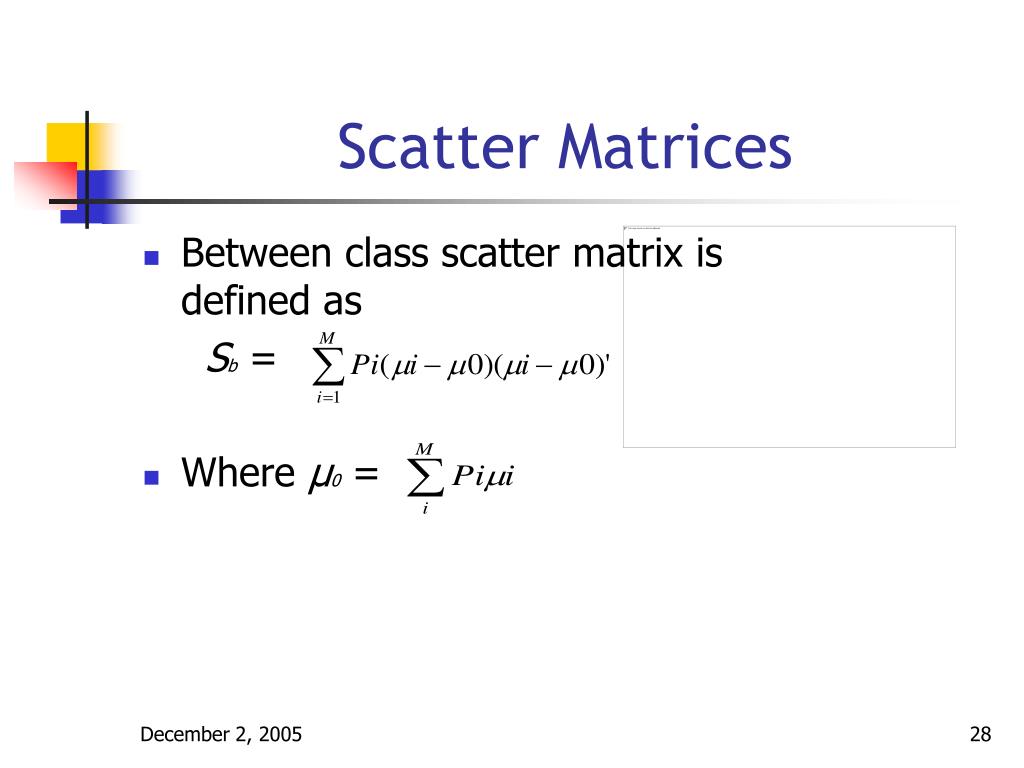

28. Scatter Matrices • Between class scatter matrix is defined as Sb = • Whereμ0 =

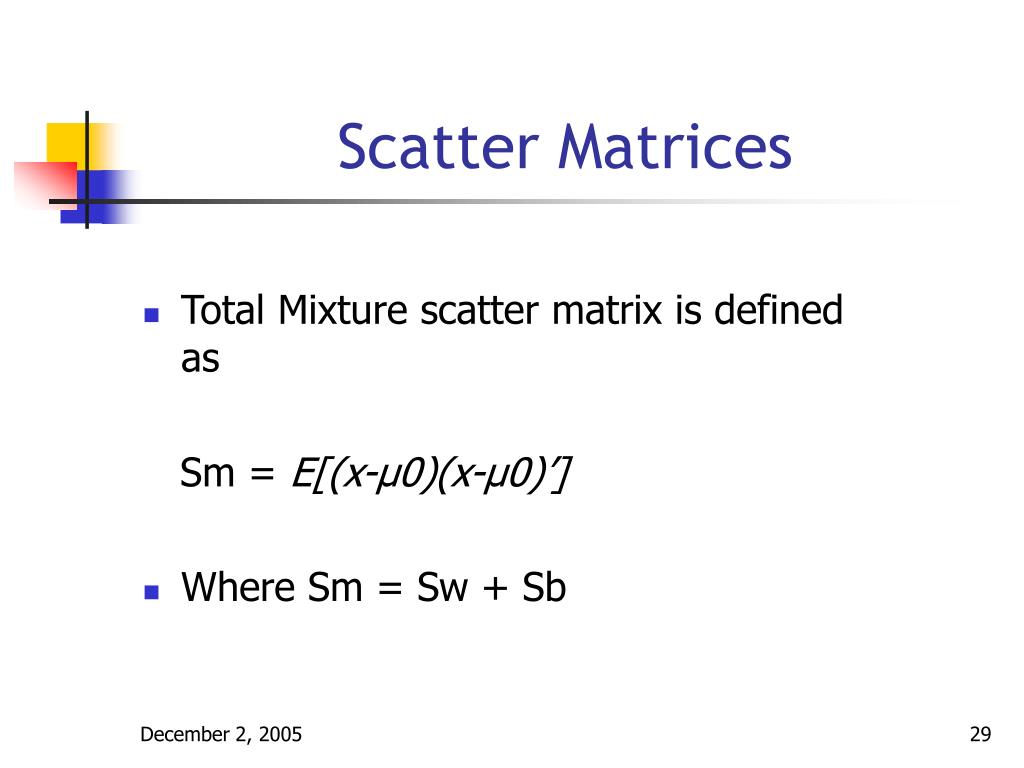

29. Scatter Matrices • Total Mixture scatter matrix is defined as Sm = E[(x-µ0)(x-μ0)’] • Where Sm = Sw + Sb

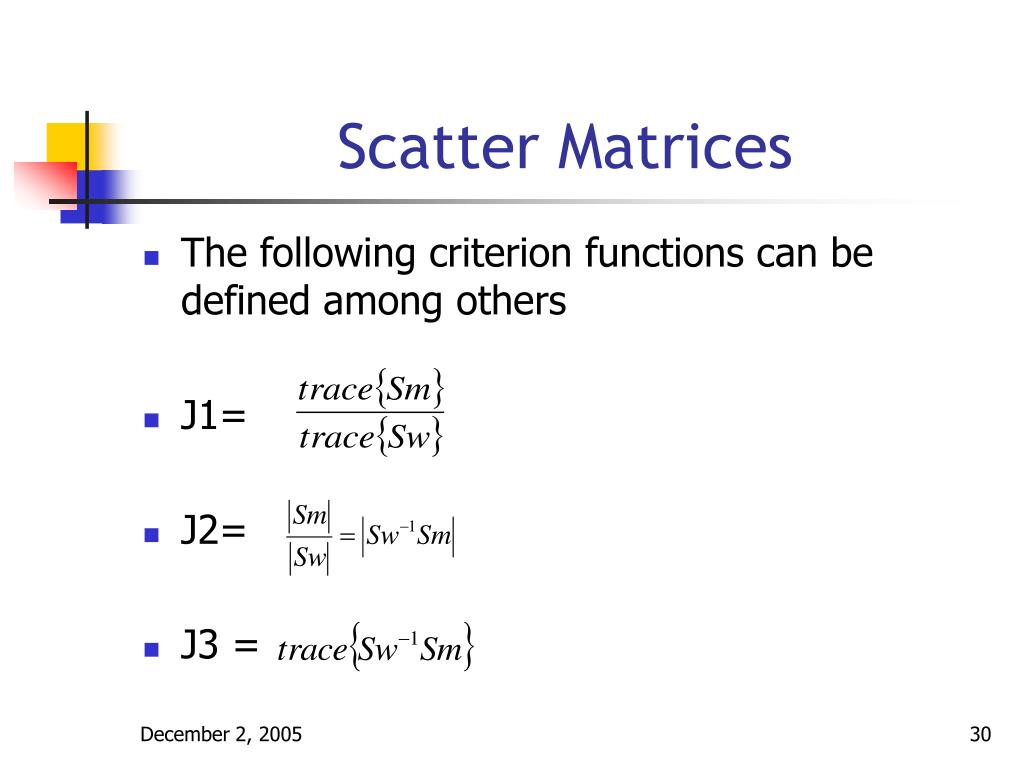

30. Scatter Matrices • The following criterion functions can be defined among others • J1= • J2= • J3 =

31. Scatter Matrices • For equally probable two classes problem • |Sw| is proportional to σ1²+ σ2² • |Sb| is proportional to (µ1-µ2)²

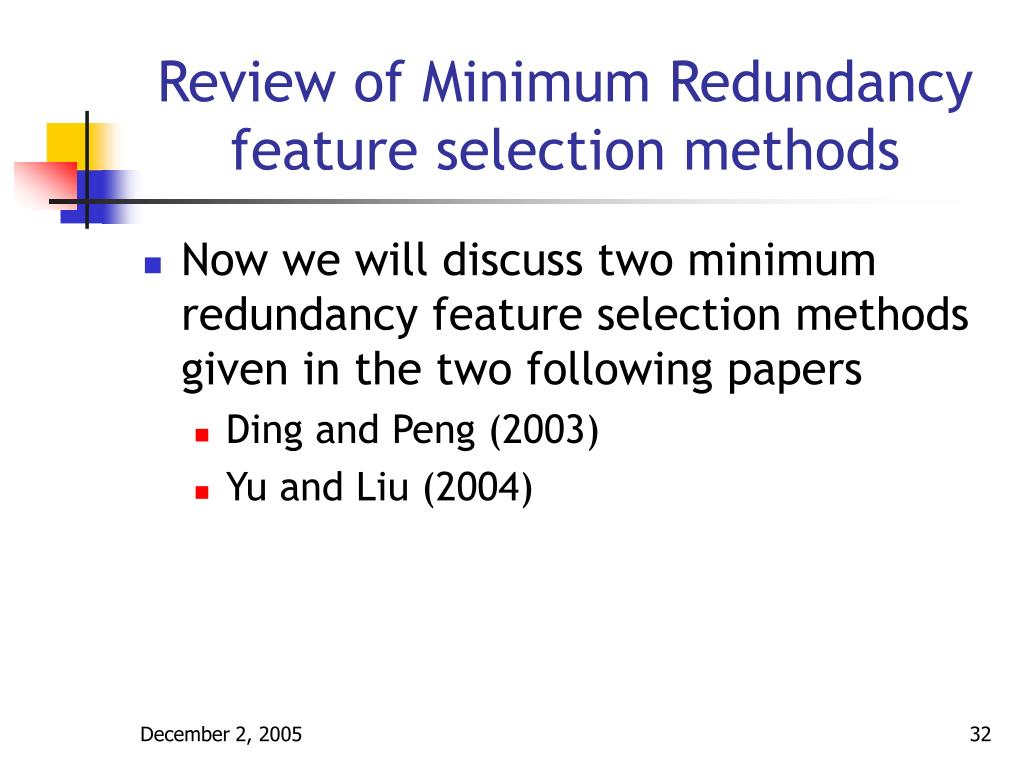

32. Review of Minimum Redundancy feature selection methods • Now we will discuss two minimum redundancy feature selection methods given in the two following papers • Ding and Peng (2003) • Yu and Liu (2004)

33. Review of Minimum Redundancy feature selection methods • In Ding and Peng (2003) • Filter method is used • Algorithm is SFS • The first feature was selected using • maxV1, for all genes in the set S

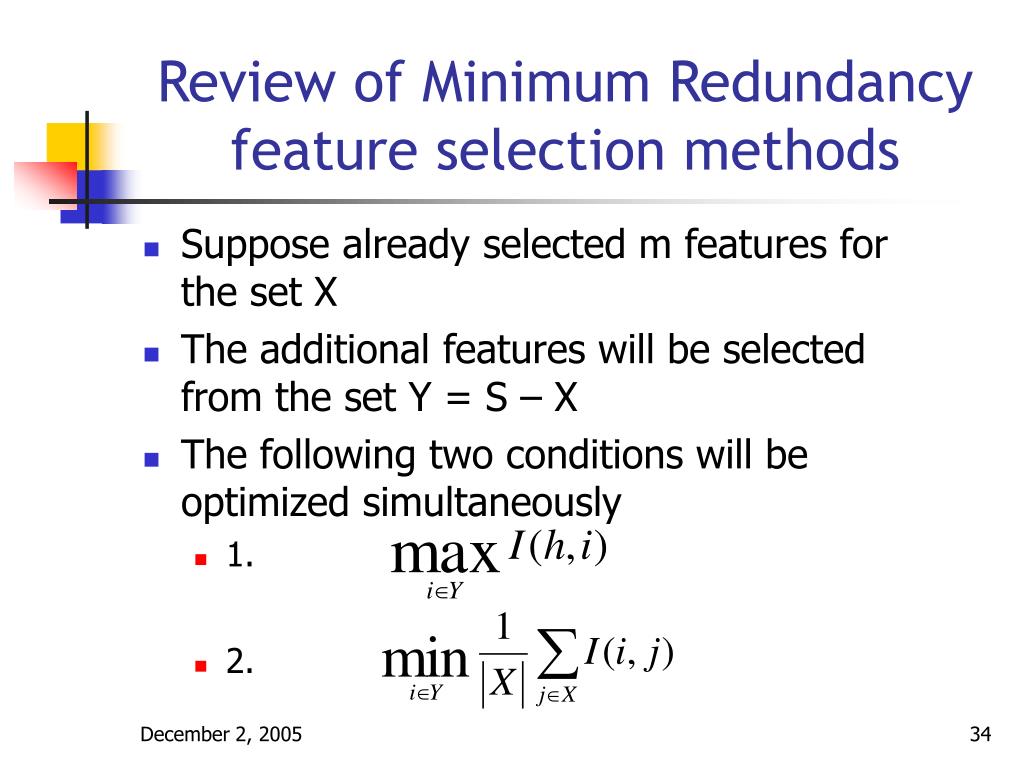

34. Review of Minimum Redundancy feature selection methods • Suppose already selected m features for the set X • The additional features will be selected from the set Y = S – X • The following two conditions will be optimized simultaneously • 1. • 2.

35. Review of Minimum Redundancy feature selection methods • Mutual information, I of two variable x and y is defined as • Importance of minimum redundancy is highlighted in the paper

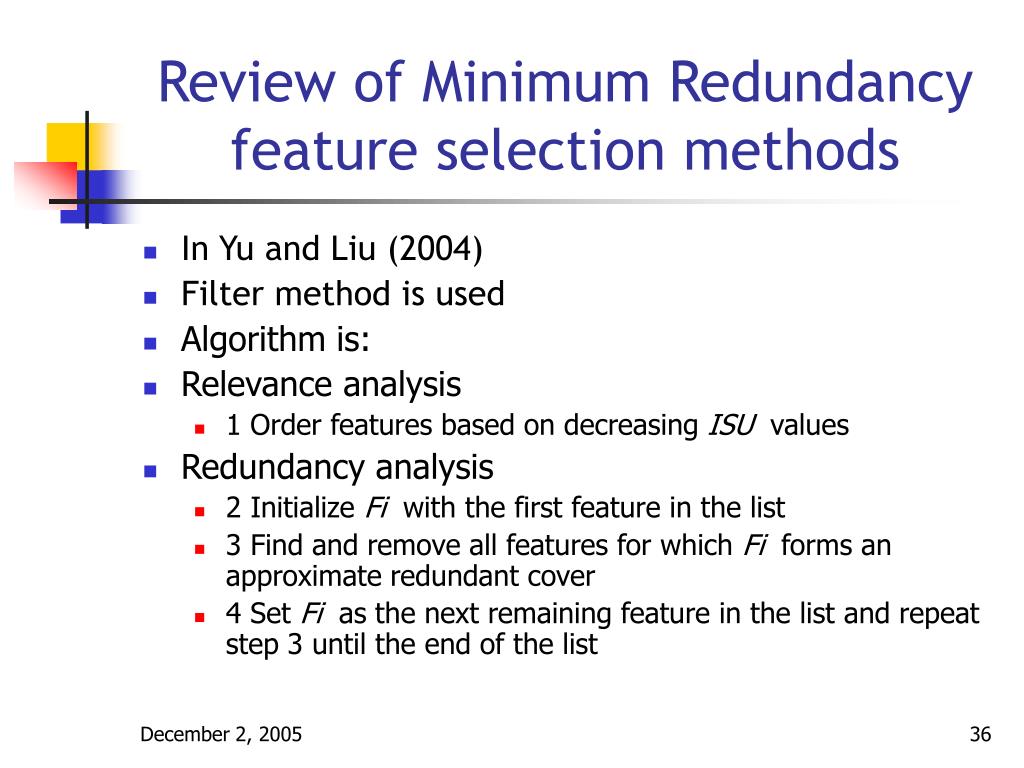

36. Review of Minimum Redundancy feature selection methods • In Yu and Liu (2004) • Filter method is used • Algorithm is: • Relevance analysis • 1 Order features based on decreasing ISU values • Redundancy analysis • 2 Initialize Fi with the first feature in the list • 3 Find and remove all features for which Fi forms an approximate redundant cover • 4 Set Fi as the next remaining feature in the list and repeat step 3 until the end of the list

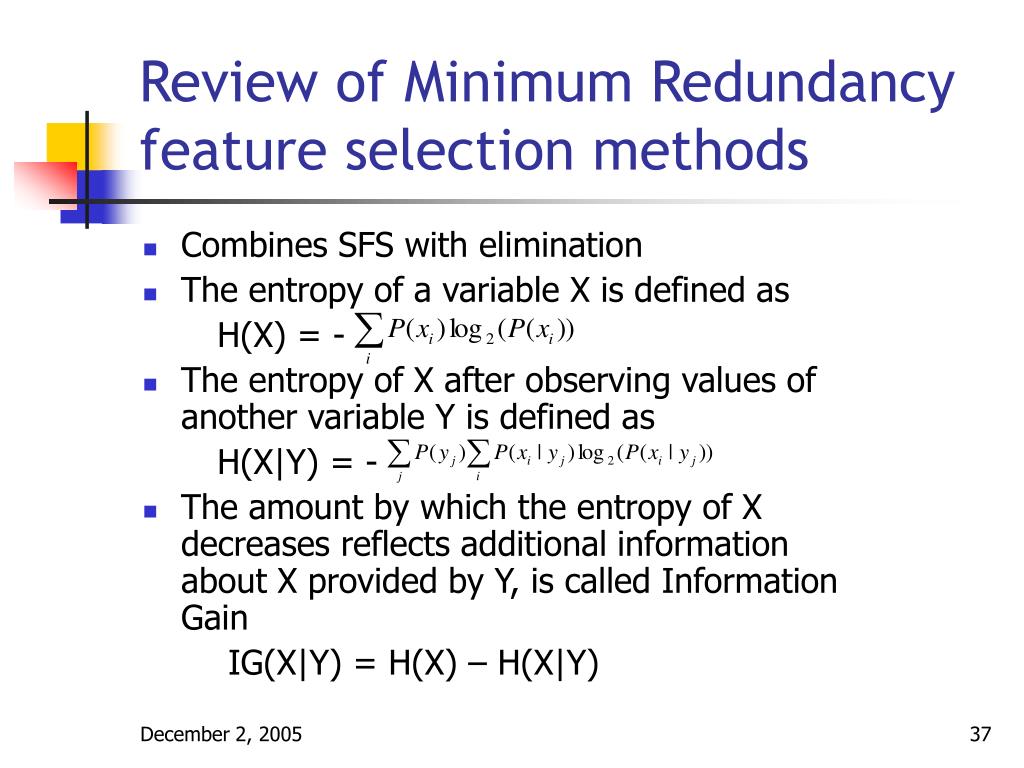

37. Review of Minimum Redundancy feature selection methods • Combines SFS with elimination • The entropy of a variable X is defined as H(X) = - • The entropy of X after observing values of another variable Y is defined as H(X|Y) = - • The amount by which the entropy of X decreases reflects additional information about X provided by Y, is called Information Gain IG(X|Y) = H(X) – H(X|Y)

38. Review of Minimum Redundancy feature selection methods • Symmetrical uncertainty is defined as • SU(X, Y) = • Individual C-correlation (ISUi): The correlation between any feature Fi and the class C is called Individual C-correlation, ISUi • Combined C-correlation (CSUi): The correlation between any feature Fi and Fj (i ≠ j) and the class C is called combined C-correlation, CSUi_j • Approximate redundant cover: For two features Fi and Fj, Fi formed an approximate redundant cover for FjiffISUi ≥ ISUj and ISUi ≥ CSUi_j

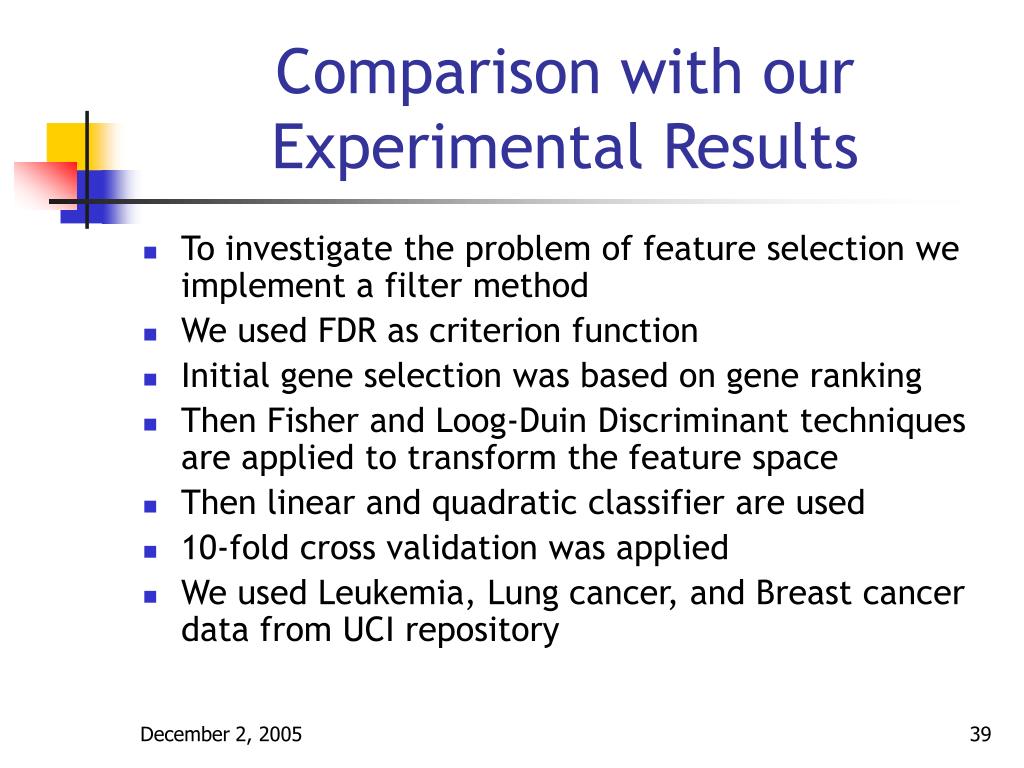

39. Comparison with our Experimental Results • To investigate the problem of feature selection we implement a filter method • We used FDR as criterion function • Initial gene selection was based on gene ranking • Then Fisher and Loog-Duin Discriminant techniques are applied to transform the feature space • Then linear and quadratic classifier are used • 10-fold cross validation was applied • We used Leukemia, Lung cancer, and Breast cancer data from UCI repository

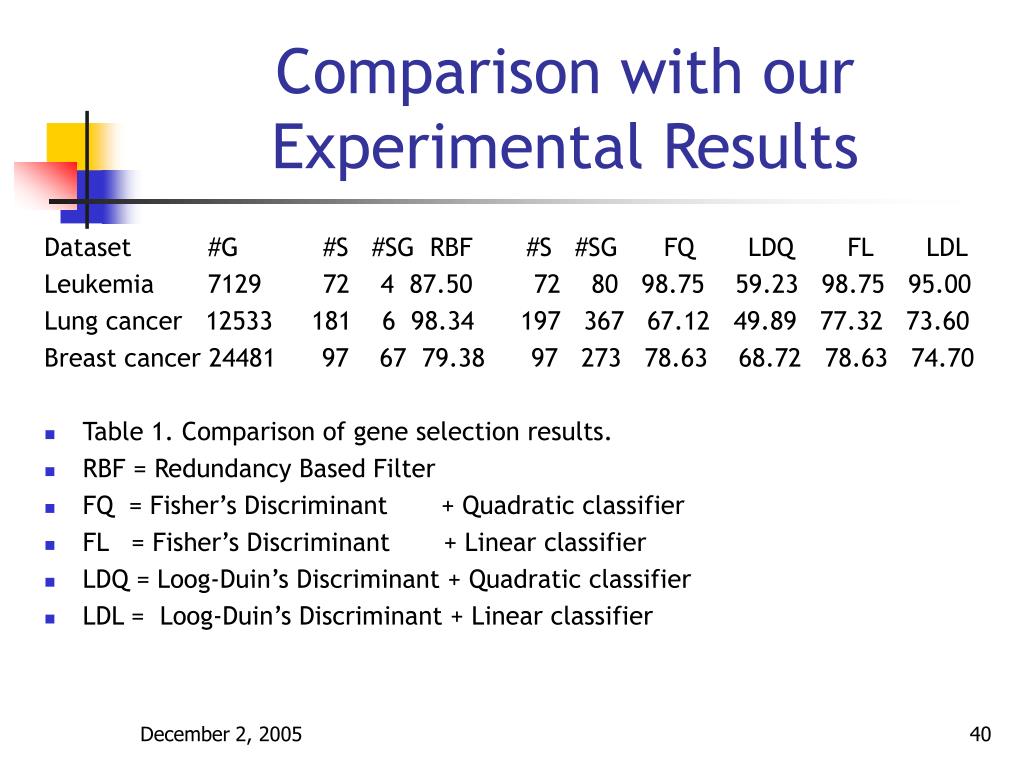

40. Comparison with our Experimental Results Dataset #G #S #SG RBF #S #SG FQ LDQ FL LDL Leukemia 7129 72 4 87.50 72 80 98.75 59.23 98.75 95.00 Lung cancer 12533 181 6 98.34 197 367 67.12 49.89 77.32 73.60 Breast cancer 24481 97 67 79.38 97 273 78.63 68.72 78.63 74.70 • Table 1. Comparison of gene selection results. • RBF = Redundancy Based Filter • FQ = Fisher’s Discriminant + Quadratic classifier • FL = Fisher’s Discriminant + Linear classifier • LDQ = Loog-Duin’s Discriminant + Quadratic classifier • LDL = Loog-Duin’s Discriminant + Linear classifier

41. Comparison with our Experimental Results • From the table we can observed that RBF selected very compact gene sets for all the cases. • FQ and FL out perform LDQ and LDL in all 3 datasets. • RBF out perform all methods in 1 dataset by big margin. • FQ and FL jointly out perform others in 1 dataset also in big margin. • RBF, FQ, and FL have comparable result in 1 dataset.

42. Conclusions • We can conclude that minimum redundancy methods select very compact gene sets. It can help to identify and monitor the target disease or function types.

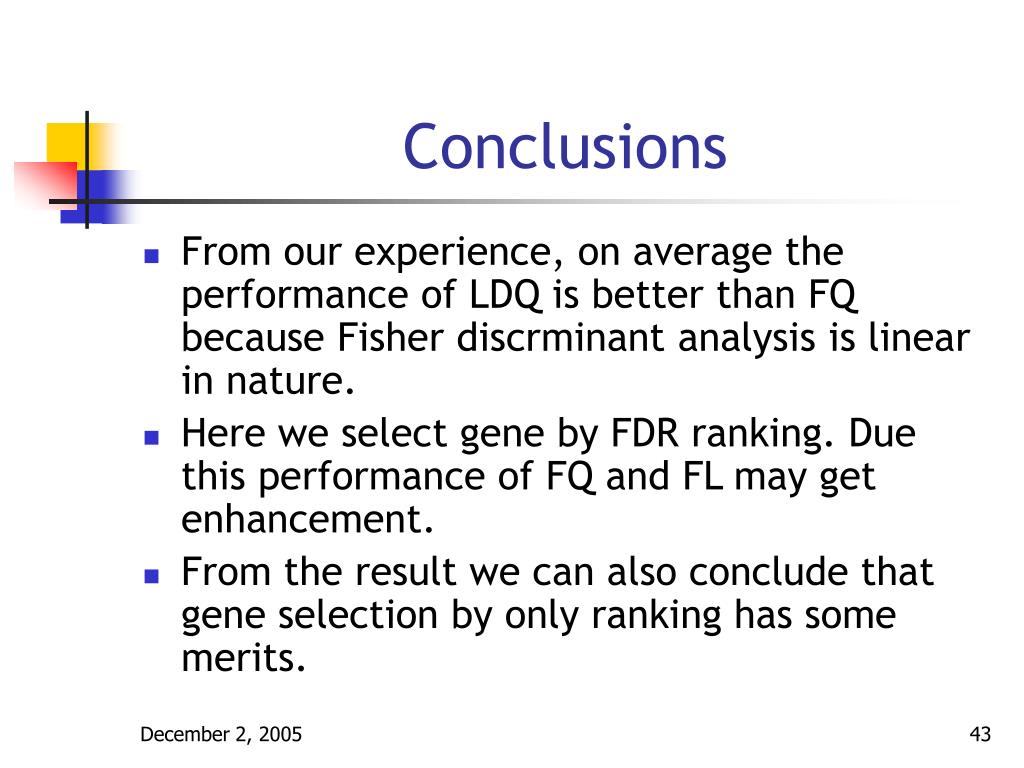

43. Conclusions • From our experience, on average the performance of LDQ is better than FQ because Fisher discrminant analysis is linear in nature. • Here we select gene by FDR ranking. Due this performance of FQ and FL may get enhancement. • From the result we can also conclude that gene selection by only ranking has some merits.

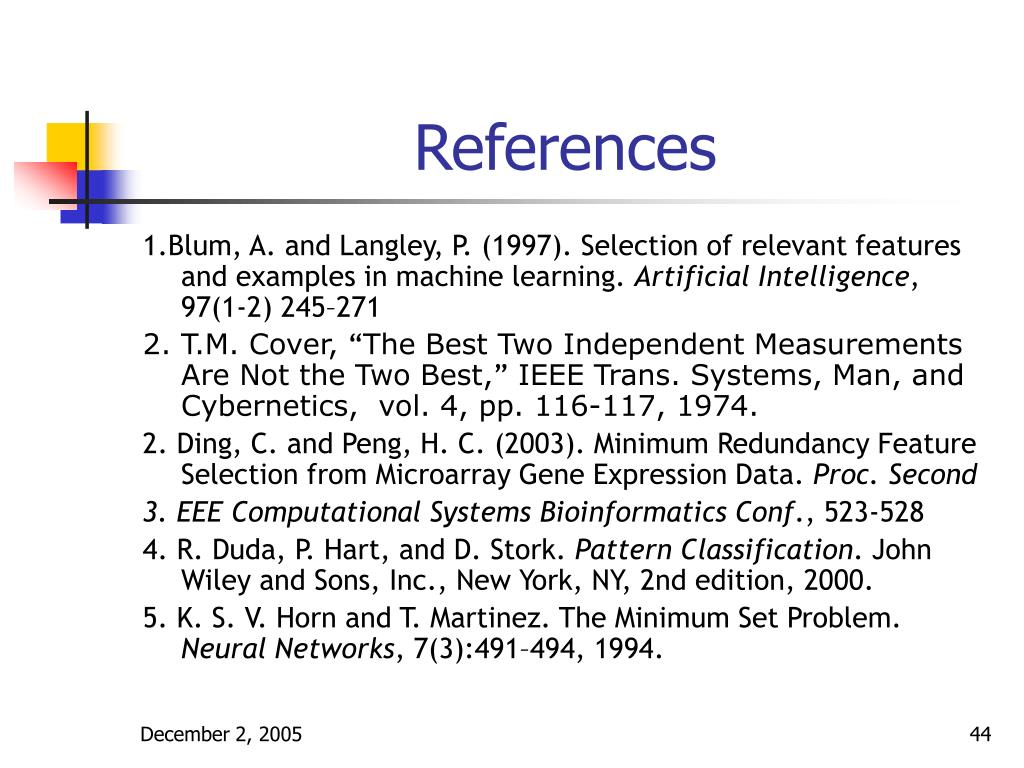

44. References 1.Blum, A. and Langley, P. (1997). Selection of relevant features and examples in machine learning. Artificial Intelligence, 97(1-2) 245–271 2. T.M. Cover, “The Best Two Independent Measurements Are Not the Two Best,”IEEE Trans. Systems, Man, and Cybernetics, vol. 4, pp. 116-117, 1974. 2. Ding, C. and Peng, H. C. (2003). Minimum Redundancy Feature Selection from Microarray Gene Expression Data. Proc. Second 3. EEE Computational Systems Bioinformatics Conf., 523-528 4. R. Duda, P. Hart, and D. Stork. Pattern Classification. John Wiley and Sons, Inc., New York, NY, 2nd edition, 2000. 5. K. S. V. Horn and T. Martinez. The Minimum Set Problem. Neural Networks, 7(3):491–494, 1994.

45. References 6. Duin R. P. W. Jain, A. K. and J. Mao. Statistical Pattern Recognition: A review. IEEE Transaction on Pattern Analysis and Machine Intelligence, 22(1), 2000. 7. M. Loog and P.W. Duin. Linear Dimensionality Reduction via a Heteroscedastic Extension of LDA: The Chernoff Criterion. IEEE Transactions on Pattern Analysis and Machine Intelligence, 26(6):732–739, 2004. 8. S. Theodoridis and K. Koutroumbas. Pattern Recognition. Elsevier Academic Press, second edition, 2003. 9. L. Yu and H. Liu. Redundency Based Feature Selection for Microarray Data. Proceedings of the tenth ACM SIGKDD international conference on Knowledge discovery and data mining, pages 737 – 742, 2004.

46. Q & A Thanking You
