IMPORTANT

Please understand your entire HWH Operator’s Manual BEFORE operating your Leveling System. Instructions may vary slightly from coach to coach.

Read CAUTIONS and PROCEDURES carefully.


THE FOLLOWING PRESENTATION WILL GUIDE YOU THROUGH A TYPICAL LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

STRAIGHT-ACTING JACKS.


With the vehicle LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

parked, the park brake

set and the vehicle

ignition in the

“Accessory” position,

the TRAVEL MODE

light will be on.


AUTO LEVEL LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

Press the “LEVEL”

button, the level light

will glow steady.


FRONT END LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

RIGHT SIDE

AUTO LEVEL

In this scenario the

two yellow lights

indicate that the right

side and the front

end of the vehicle

is low.


AUTO LEVEL LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

Press the “LEVEL”

button a second time,

the level light will

begin flashing.


AUTO LEVEL LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

For approximately

25 seconds air will

be dumped from the

vehicle suspension.


AUTO LEVEL LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

After the suspension

is dumped, the

system will look for

yellow lights.

A side yellow light

will be recognized

before a front or rear

yellow light.


AUTO LEVEL LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

This yellow light

indicates that the right

side of the vehicle is

low.


AUTO LEVEL LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

The right side jacks

will extend. As the

jacks extend their

(red) WARNING lights

will come on.


AUTO LEVEL LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

The jacks will

continue to extend

until the right side

yellow light goes out.


In this scenario the LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

front yellow light is

still on.

AUTO LEVEL


AUTO LEVEL LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

Both front jacks will

extend to raise the

front of the vehicle.

The left front jack

(red) WARNING light

will come on.


AUTO LEVEL LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

As the front jacks

extend the front of the

vehicle will raise and

the front yellow light

will go out.


AUTO LEVEL LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

With no yellow lights

on the vehicle is level.

The system will now

stabilize the vehicle

by extending any

remaining jacks.


STABILIZE LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

The jack will continue

to extend until it is

seated firmly on the

ground.

In this scenario the

left rear jack will be

extended. It’s (red)

WARNING light will

come on.


STABILIZE LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

With the vehicle level

and stabile the system

will shut down.


STABILIZE LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

With the vehicle level

and stabile the system

will shut down.


MANUAL OPERATIONS LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH


With the vehicle LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

parked, the park brake

set and the vehicle

ignition in the

“Accessory” position,

the TRAVEL MODE

light will be on.

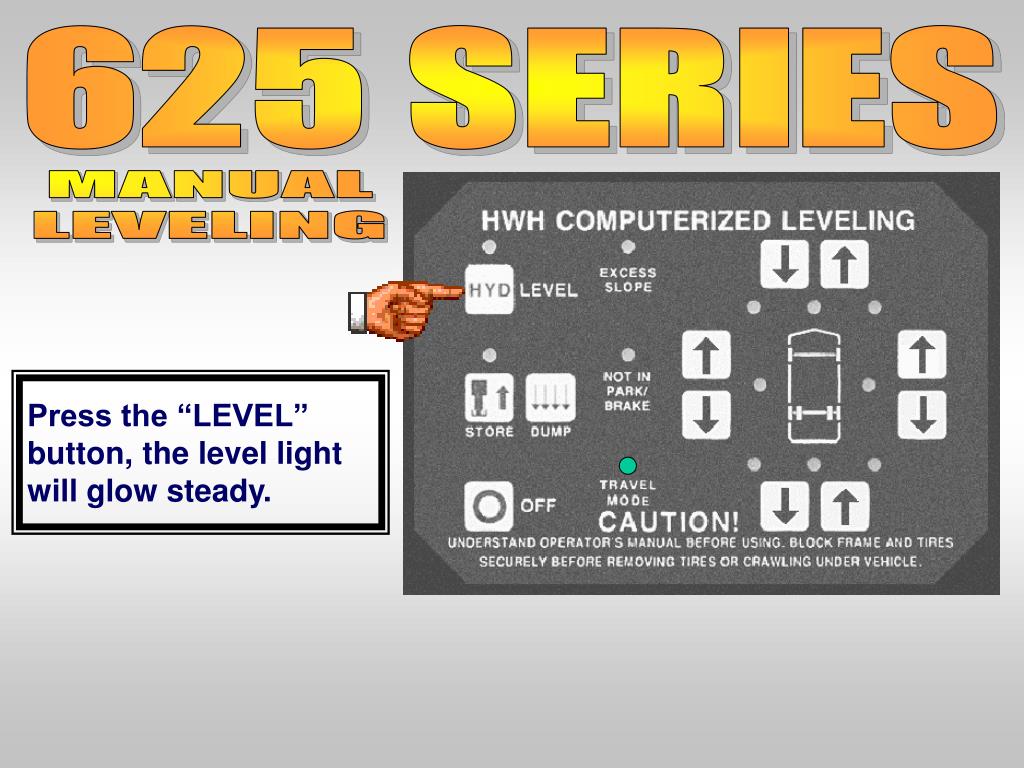

MANUAL LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

LEVELING

Press the “LEVEL”

button, the level light

will glow steady.


MANUAL LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

LEVELING

Press and hold the

“DUMP” button until

all air is exhausted

from the suspension

system.


FRONT END LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

RIGHT SIDE

MANUAL

LEVELING

In this scenario the

two yellow lights

indicate that the right

side and the front

end of the vehicle

is low.


MANUAL LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

LEVELING

Press and hold the

UP ARROW closest

to the side (yellow)

light that is on.


MANUAL LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

LEVELING

As you hold the

UP ARROW the right

side jacks will extend.

As the jacks extend

their (red) WARNING

lights will come on.


MANUAL LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

LEVELING

Release the

UP ARROW when the

right side yellow light

goes out.


In this scenario the LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

front yellow light is

still on.

MANUAL

LEVELING


MANUAL LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

LEVELING

Press and hold the

UP ARROW closest

to the front (yellow)

light that is on.


AUTO LEVEL LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

Both front jacks will

extend to raise the

front of the vehicle.

The left front jack

(red) WARNING light

will come on.


MANUAL LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

LEVELING

As the front jacks

extend the front of the

vehicle will raise.

Release the

UP ARROW when

The front end yellow

light goes out.


MANUAL LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

LEVELING

With no yellow lights

on the vehicle is level.

stabilize the vehicle

by extending any

remaining jacks.


STABILIZE LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

Press and hold the

UP ARROW closest to

the rear of the coach

symbol on the touch

panel.


STABILIZE LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

The left rear jack’s

(red) WARNING light

will come on.


STABILIZE LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

Release the button

when the left rear jack

has reached the

ground and slightly

lifted the vehicle.


STABILIZE LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH

With the vehicle level

and stabile press the

off button.


STABILIZE LEVELING PROCEDURE USING AN HWH 625 SERIES COMPUTERIZED LEVELING SYSTEM THAT IS EQUIPPED WITH


THIS CONCLUDES THIS SLIDE PRESENTATION. HWH CORPORATION WOULD LIKE TO THANK YOU FOR YOUR PATRONAGE.

THE HWH HOME PAGE WILL CONTINUALLY BE UPDATED WITH FURTHER SLIDE PRESENTATIONS REPRESENTING OTHER HWH PRODUCTS.

QUESTIONS?

CONTACT HWH CORPORATION AT:

1-800-321-3494 or 1-563-724-3396
