Reed Switch Motor. By Troy Coleman. & Colby Cravens. Supplies we used. Roller blade wheels Two bolts One nut One large reed switch Coil Copper wire Hot Glue Four Magnets Wood. How we made it. First we attached the wheels to a piece of wood to use as bearings.

Download Presentation

Reed Switch Motor

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Reed Switch Motor By Troy Coleman & Colby Cravens

  2. Supplies we used • Roller blade wheels • Two bolts • One nut • One large reed switch • Coil • Copper wire • Hot Glue • Four Magnets • Wood

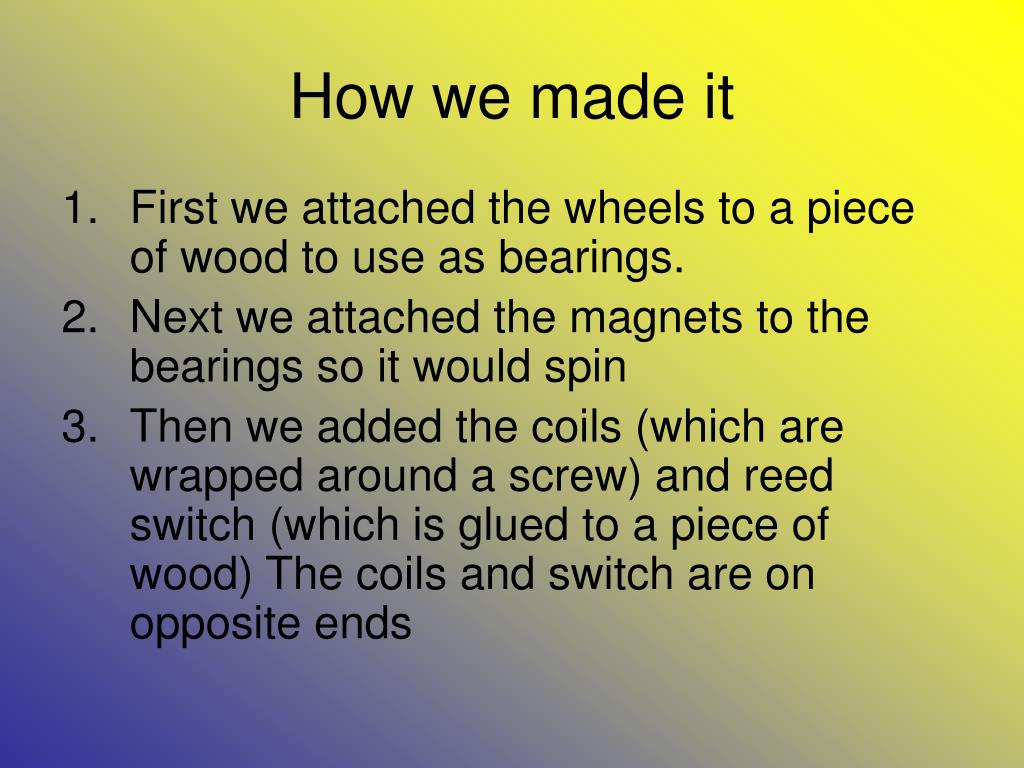

  3. How we made it • First we attached the wheels to a piece of wood to use as bearings. • Next we attached the magnets to the bearings so it would spin • Then we added the coils (which are wrapped around a screw) and reed switch (which is glued to a piece of wood) The coils and switch are on opposite ends

  4. How it works • The reed switch motor works by having magnets spinning freely. On one side is a reed switch, on the other side connected to the reed switch is some coil. • The coil/ reed switch are attached to a battery. • The reed switch times the revolutions of the magnet and the coil push the magnets up to finish the rotation.

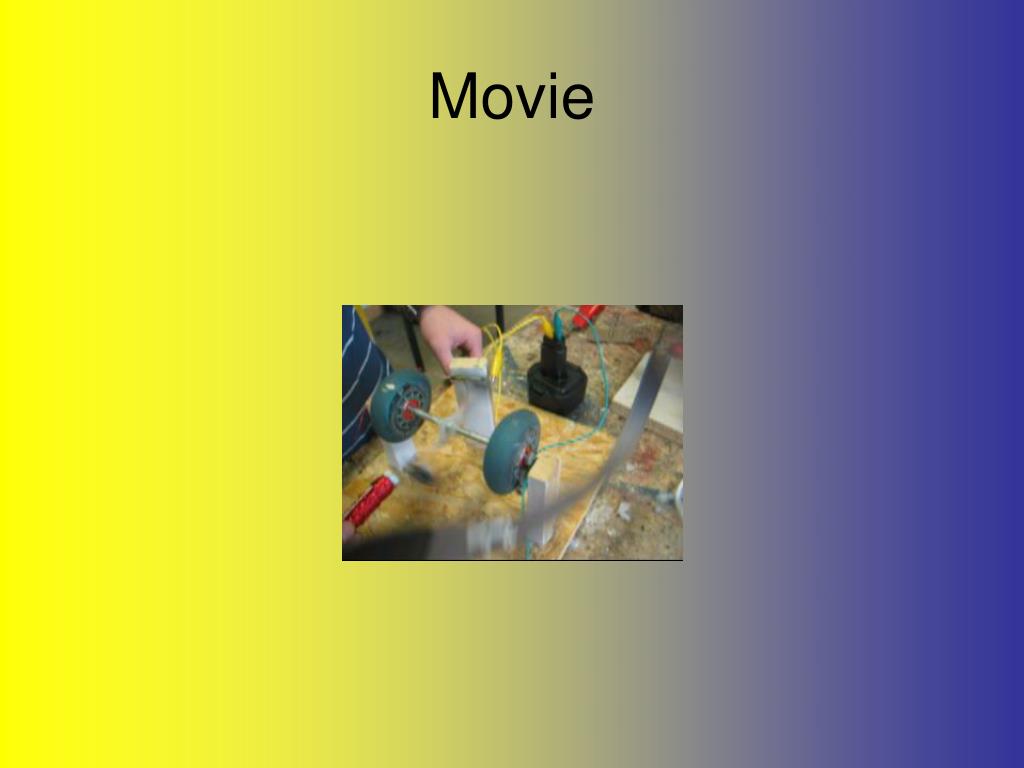

  5. Movie

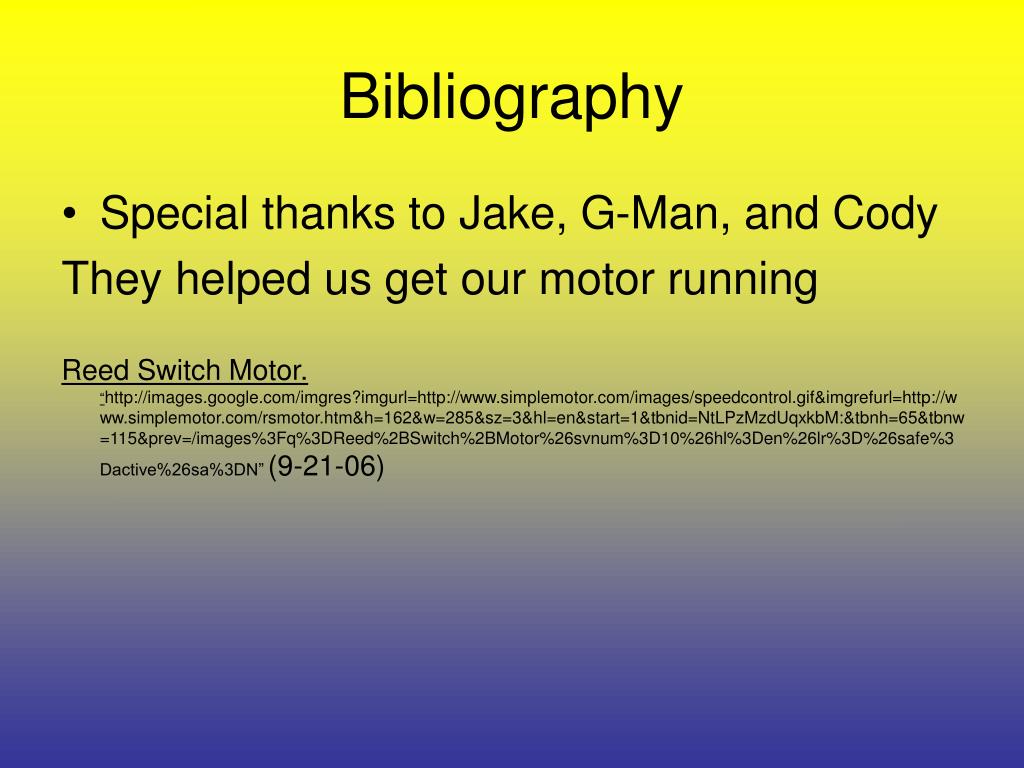

  6. Bibliography • Special thanks to Jake, G-Man, and Cody They helped us get our motor running Reed Switch Motor. “http://images.google.com/imgres?imgurl=http://www.simplemotor.com/images/speedcontrol.gif&imgrefurl=http://www.simplemotor.com/rsmotor.htm&h=162&w=285&sz=3&hl=en&start=1&tbnid=NtLPzMzdUqxkbM:&tbnh=65&tbnw=115&prev=/images%3Fq%3DReed%2BSwitch%2BMotor%26svnum%3D10%26hl%3Den%26lr%3D%26safe%3Dactive%26sa%3DN” (9-21-06)
