Presentation Transcript
Slide1 l.jpg

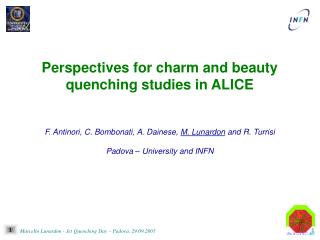

Perspectives for charm and beauty quenching studies in ALICE

F. Antinori, C. Bombonati, A. Dainese, M. Lunardon and R. Turrisi

Padova – University and INFN


Slide2 l.jpg

  • Contents

  • Heavy quarks detection at mid-rapidity with ALICE

  • Main results of performance studies for charm and beauty detection

  • Expected sensitivity with respect to the mass dependence on quenching

  • Conclusions and perspectives


Slide3 l.jpg

Heavy quarks detection at mid-rapidity with ALICE

Different approaches for charm and beauty due to different expected production cross sections (charm is more than 20 times larger than beauty) and decay branching ratios. Taking advantage of the expected good track impact parameter determination, the most promising channels are:

Charm: exclusive reconstruction of D0 K-+

Beauty: inclusive measurement of electrons from semi-electronic decays

  • We explored both possibilities with a detailed performance studies including:

  • likely event generation (PYTHIA 6, HIJING) and cross section estimation (HVQMNR);

  • tracking with complete detector simulation (geant 3.21) for ITS ( good impact parameter reconstruction) and parameterized response of TPC;

  • realistic PID parameterization in TPC, TOF and TRD;

  • full analysis for Pb-Pb collisions @ 5.5 TeV and p-p @ 14 TeV.


Slide4 l.jpg

rf: 50 mm

9.8 Mch

z: 425 mm

PIXEL CELL

Two layers:

r = 4 – 7 cm

Heavy quarks detection at mid-rapidity with ALICE

key factor: good measurement of track impact parameter provided by the ITS (SPD)

Pb-Pb estimate

better than 60 mm (rf)

for pt > 1 GeV/c


Slide5 l.jpg

Charm: exclusive reconstruction of D0 K-+

Exclusive channel that allow direct measurement of pt distribution Ideal tool to study RAA

Weak decay with mean proper length c = 124 m

  • Large combinatorial background (dNch/dy = 6000 in central Pb-Pb!)

  • STRATEGY: invariant-mass analysis of fully-reconstructed topologies originating from (displaced) secondary vertices

    • Measurement of Impact Parameters (ITS+TPC)

    • Measurement of Momenta (ITS+TPC)  pointing angle

    • Particle identification (TOF) to tag the two decay products


Slide6 l.jpg

Charm: exclusive reconstruction of D0 K-+

inner bars: stat. errors

outer bars: stat.  pt-dep. syst.

not shown: 9% (Pb-Pb), 5% (pp, p-Pb)

normalization errors

  • Main systematic contributions:

  • corr. for PID and selection eff. (~10%)

  • subtraction of feed-down from B decays (~8% initially)

Down to pt ~ 0 in pp and p-Pb (1 GeV/c in Pb-Pb)


Slide7 l.jpg

Beauty: inclusive measurement of electrons from semi-electronic decays

  • The semi-electronic decay channels has a good intrinsic B.R.:

h(b) e +  + X ~ 10.2 %

and almost 100% of beauty hadrons decay through a charmed hadron, which can again decay via single electron:

h(b)  h(c) +X e +  + Y ~ 10.9 %

giving a total B.R. for single electron of about 21 %

  • Good detection and identification capabilities for electrons at mid rapidity (TRD, TPC and Vertex detector) with ALICE down to low pt (~1 GeV/c)

 misidentification probability ~ 10-4

heavier particles ~ 0

loss of detected electrons ~ 40%


Slide8 l.jpg

Beauty: inclusive measurement of electrons from semi-electronic decays

  • Detection strategy:

    • - electron ID in TPC+TRD

    • - impact parameter cut (B c ~ 500 m)

  • moreover:large b mass  hard electron spectrum  better selection at high pt

for |d0| > ~ 100 mm beauty gets dominant


Slide9 l.jpg

no vertex reconstruction semi-electronic decays

chosen method

Beauty: inclusive measurement of electrons from semi-electronic decays

Additional topics for p-p study:

- study of the primary vertex reconstruction tuned on electron track impact parameter distributions;

- optimized impact parameter cut for each pt bin.


Slide10 l.jpg

Beauty: inclusive measurement of electrons from semi-electronic decays

  • Main systematic contributions:

  • corr. for PID and selection eff. (~10%)

  • subtraction of electrons from charm decays (<5% using direct D0 meas.)

inner bars: stat. errors

outer bars: stat.  pt-dep. syst. errors

not shown: normalization error 9 (5) %

for Pb-Pb (pp)


Slide11 l.jpg

Beauty: inclusive measurement of electrons from semi-electronic decays

Extraction of a ptmin-differential cross section for B mesons

Using electrons in

2 < pt < 20 GeV/c

obtain B meson

2 < ptmin < 30 GeV/c

MC-based

procedure

à la UA1


Slide12 l.jpg

Pb-Pb semi-electronic decays

pp

Heavy quarks detection at mid-rapidity with ALICE

Sensitivity to mass dependence on quenching

‘High’ pt (10–20 GeV/c)

here energy loss can be studied

(it’s the only expected effect)

Low pt (< 8–10 GeV/c)

Nuclear shadowing,

recombination?

1 year at nominal luminosity

(107 central Pb-Pb events, 109 pp events)

Dainese, EPJC33 (2004) 495

E loss calc: Armesto, Dainese, Salgado Wiedemann,

PRD71 (2005) 054027


Slide13 l.jpg

Pb-Pb semi-electronic decays

pp

Possible sensitivity to mass effects

Heavy quarks detection at mid-rapidity with ALICE

Sensitivity to mass dependence on quenching

Low pt (< 8–10 GeV/c)

Nuclear shadowing,

recombination?

‘High’ pt (10–30 GeV/c)

here energy loss can be studied

PRELIMINARY

1 year at nominal luminosity

(107 central Pb-Pb events, 109 pp events)

E loss calc: Armesto, Dainese, Salgado Wiedemann,

PRD71 (2005) 054027


Slide14 l.jpg

  • Conclusion and perspectives semi-electronic decays

  • We explored the capabilites of ALICE in detecting charm and beauty at mid-rapidity via the exclusive D0 K-+ reconstruction and inclusive single-electron detection;

  • the results for charm show the possibility of having a precise measurement of pt–differential cross section of charmed mesons from 1 up to 20 GeV/c;

  • in the case of beauty, it is possible to extract a ptmin-differential cross section for B mesons from 2 up to 30 GeV/c;

  • the analysis of the RAA for heavy mesons seems to offer a good tool for jet quenching studies at LHC;

  • in particular, the preliminary analysis of the RAA for B mesons seems to be very promising and need further and better investigation.


Slide15 l.jpg

HAVE A NICE DINNER! semi-electronic decays


Slide16 l.jpg

high uncertainty: 1.8 - 7.3 semi-electronic decays

Open Beauty detection in Pb-Pb at LHC with ALICE:

perspectives for the semi-electronic decay channel

Assumption on beauty production at LHC:

X-section from NLO calculations :flavorNqq

in Pb-Pb @ 5.5 TeV (5% tot)charm 115

beauty 4.6

in pp @ 14 TeVcharm 0.16

beauty 0.007

Semi-electronic channel ~ 20 % , ALICE accept. for these electrons ~ 24 %

 in Pb-Pb ~ 0.4 beauty electrons / event

Statistics for 107 central events (~ 1 month Pb-Pb run):~ 4 M beauty electrons


Slide17 l.jpg

Extraction of a minimum-p semi-electronic decaysT-differential cross section for B mesons

Using UA1 MC method (*), also adopted by ALICE m

(thanks to R.Guernane for useful discussions)

The B meson cross section per unit of rapidity at midrapidity with pTB > pTmin is obtained from a scaling of the electron-level cross section measured within a given electron phase space e

The semi-electronic B.R. is included here

The phase space used is where pT are the previously used bins,

 = [-0.9, 0.9] and d0 = [200,600] m

(*) C. Albajar et al., UA1 Coll., Phys Lett B213 (1988) 405 C. Albajar et al., UA1 Coll., Phys Lett B256 (1991) 121


Slide18 l.jpg

Extraction of a minimum-p semi-electronic decaysT-differential cross section for B mesons

Using UA1 MC method, also adopted by ALICE m

Evaluation of and determination of the optimal pTmin

1) we used the B  e + X decays from PYTHIA.

is the ratio of the red area to the blue one.

here pTe = [3,4] GeV/c


Systematic errors pb pb l.jpg

Error on MC corrections for tracking, selection, ID efficiencies

Error on subtraction of charm electrons (curr.tly from D0 measure)

Error on normalization to cross section per NN collision

Systematic errors (Pb-Pb)

Error on e from charm

(propagated from D0 meas.)
