Slide1 l.jpg

K+

The Odditory System

AIR

amplification

FLUID

Harry Hair-Cell: Official Cochlea Mascot


Slide2 l.jpg

Be careful, the frequency tuning isn’t linear!

Inner hair cells.

Each tuned to a ‘best’ frequency.

Outer hair cells.

Provide ‘frequency specific’ amplification.

Basilar Membrane


Slide3 l.jpg

Frequency Spectrogram

4

Flute

3

kHz

2

1

0

Time


Slide4 l.jpg

Frequency Spectrogram

4

Trumpet

3

kHz

2

1

0

Time


Slide5 l.jpg

Frequency Spectrogram

Drum

4

3

kHz

2

1

0

Time


Slide6 l.jpg

To hair cell

From sound wave




Slide9 l.jpg

The Cochlea is amplification.Fluid-Filled

Ever Listened to Someone Talk Underwater?

You Are Right Now!


Place theory of frequency encoding l.jpg

33 mm amplification.

‘Place’ Theory of Frequency Encoding

  • Inner hair cells encode frequencies by Fourier Analysis

    • We’ll deal with Outer Hair Cells in a minute

  • Basilar Membrane dimensions are the key

  • narrowtowide

  • High Freq at base, Low Freq at apex


Slide12 l.jpg

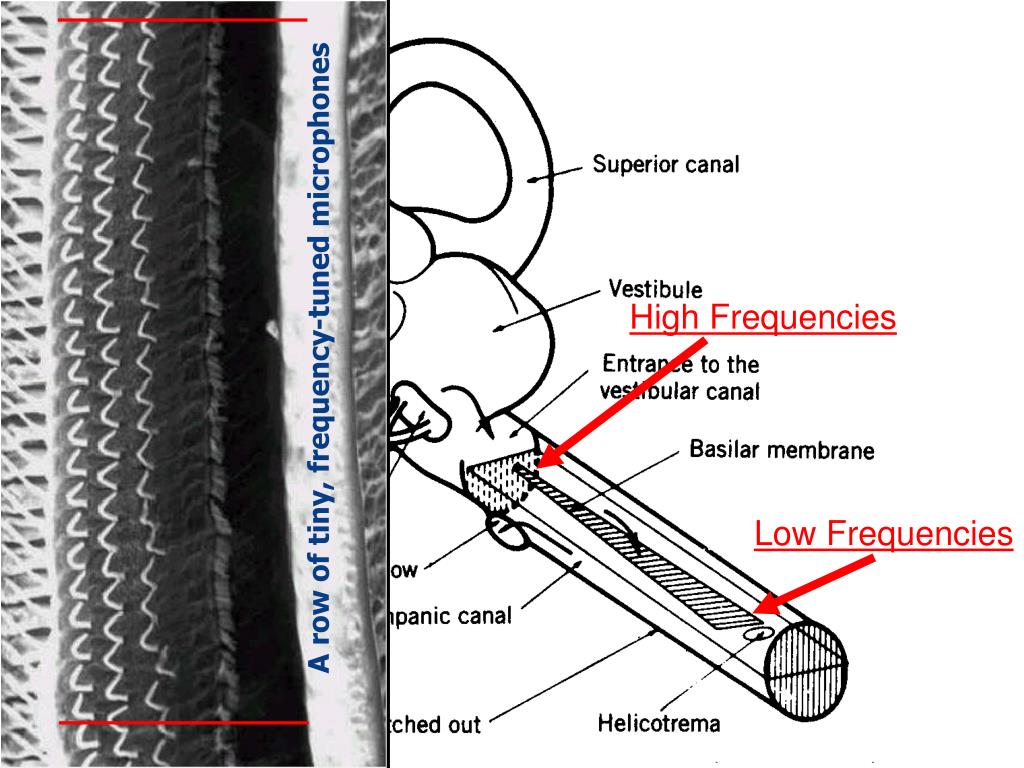

High Frequencies amplification.

A row of tiny, frequency-tuned microphones

Low Frequencies


Slide13 l.jpg

High Frequencies amplification.

Low Frequencies


Slide15 l.jpg

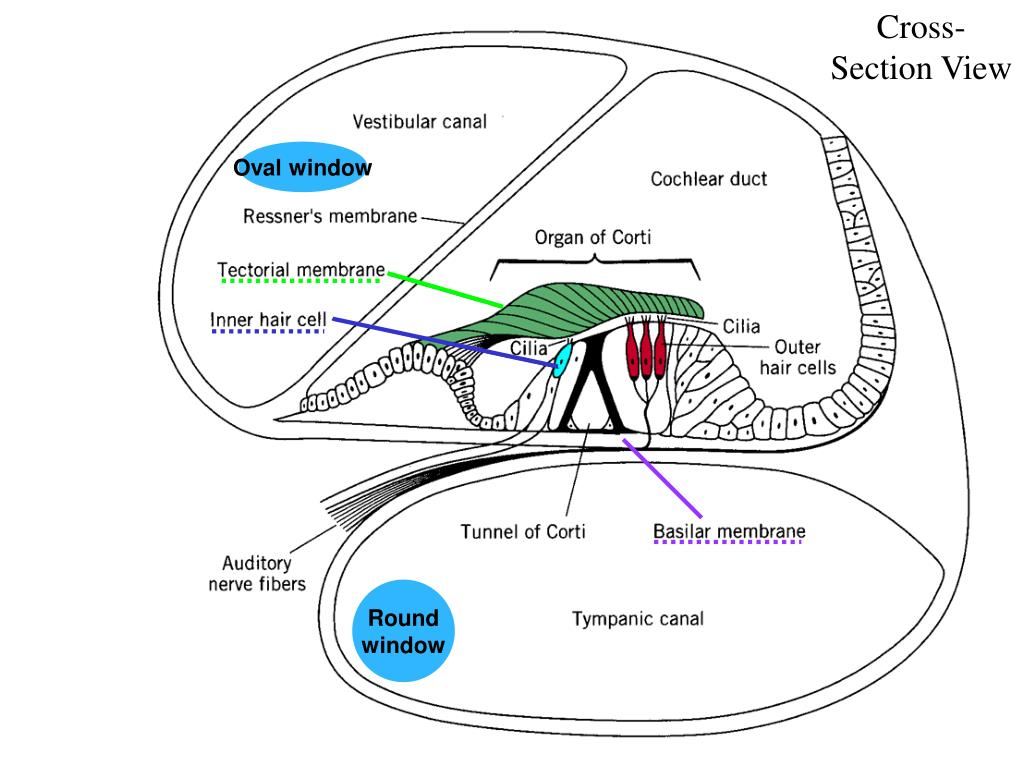

Cross- amplification.

Section View

Oval window

Round

window


Slide17 l.jpg

The amplification.World’s Smallest Microphone


Slide18 l.jpg

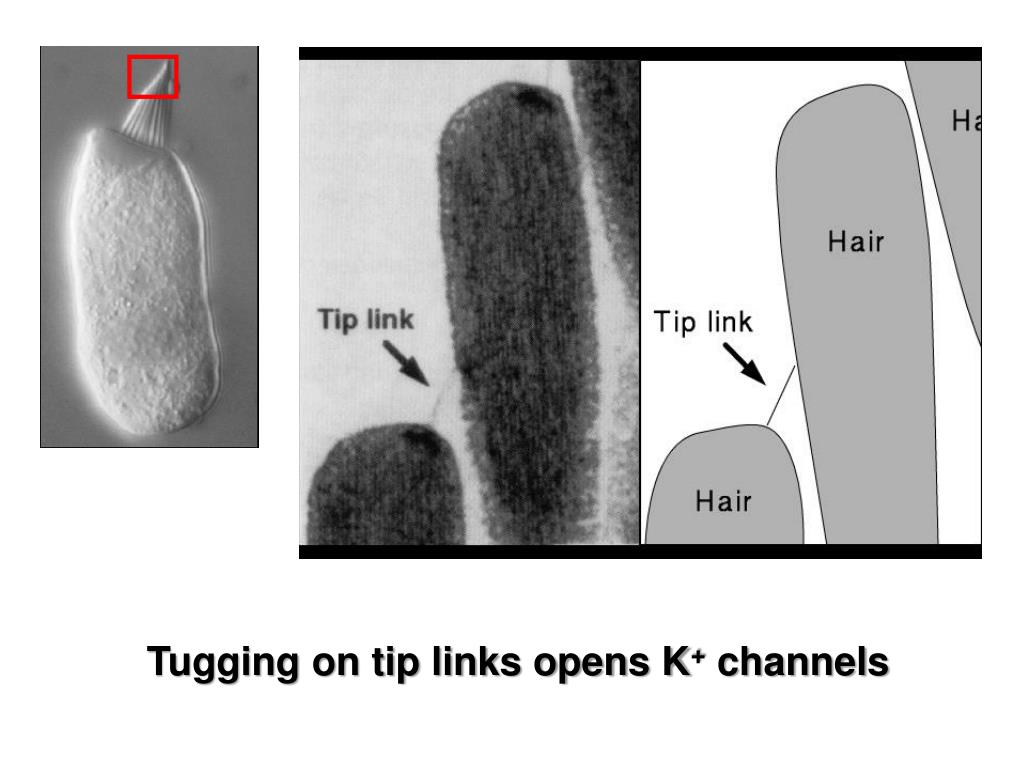

Tugging on tip links opens K amplification.+ channels


Slide21 l.jpg

Cilia Attached to amplification.

Tectorial Membrane

Outer Hair Cells

and the Cochlear Amplifier


Slide22 l.jpg

View from Above amplification.

Cross-

Section View

Outer Hair Cells act as ‘frequency specific’ amplifiers, like an ‘equalizer’ on your stereo


Slide23 l.jpg

K amplification.+

K+

Outer Hair Cells

and the Cochlear Amplifier

Amplifier ‘on’

Amplifier ‘off’


Slide24 l.jpg

How does a ‘Cochlear amplification.

Implant’ work?


Slide26 l.jpg

Right Temporal Cortex amplification.

Primary Auditory Cortex

1

2

3

4

5

6

TONOTOPIC

(it’s a map of the basilar membrane!)

Low

Hi

First we break it down . . .

Left Cochlea

(basilar membrane)


Slide27 l.jpg

“Feature Detectors” amplification.

cells that respond to

complex auditory stimuli!

1

2

3

4

5

6

Right Temporal Cortex

Secondary Auditory Cortex

Then we put it back together!

Note: this is a hypothetical model

1

2

3

4

5

6

Right Temporal Cortex

Primary Auditory Cortex

Low

Hi

TONOTOPIC

(it’s a map of the basilar membrane!)


The mcgurk effect l.jpg
The amplification.McGurk Effect

  • ‘Hearing’ with your eyes. . .

  • Generate ambiguous stimulus, with conflicting auditory and visual information

  • ‘Who’ are you going to believe?


Sound localization l.jpg
Sound Localization amplification.

  • Doppler Shift (monaural)

  • Interaural intensity difference (Hi only)

  • Interaural time delay

  • Interaural phase difference


Slide30 l.jpg

Primary amplification.

Motor Cortex

Primary

Sensory Cortex

Rat

CNS

Motor output

Sensory input

Telencephalon

WHAT?

Thalamus

relay, feedback

Midbrain

WHERE?

Spinal Cord

reflexes, input, output

GENERAL Overview of Sensory System Organization


Slide32 l.jpg

Barn Owl amplification.

crooked ears detect the ‘y’ axis


Slide33 l.jpg

The speed of the neural impulse is a constant value amplification.

E

A

B

C

D

Summation of inputs is key


Slide34 l.jpg

Sound Source amplification.

in Front

L R

E

A

B

C

D

Summation of inputs is key


Slide35 l.jpg

Sound Source amplification.

on

Right side

L R

E

A

B

C

D

Summation of inputs is key
