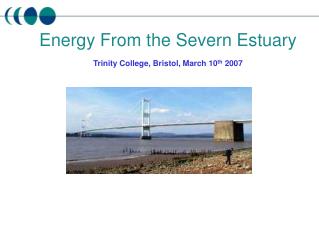

  1. Energy From the Severn EstuaryTrinity College, Bristol, March 10th 2007

  2. Energy Extraction Technologies • Barrages • Tidal Lagoons • Tidal Stream • Tidal Fences

  3. Tidal Power – Lagoons(Pictures: WWF Wales)

  4. Tidal Power – Tidal Streams(Picture: Tidal Generation Ltd)

  5. Tidal Fences

  6. Tidal Power – Lagoons(Pictures: Tidal Electric)

  7. Tidal Power – Lagoons(Picture: WWF Wales) Pictures Courtesy Tidal Electric Ltd

  8. Tidal Power - Lagoons Pictures Courtesy Tidal Electric Ltd

  9. Summary of Lagoons • Energy claimed at 3.4p/kWh • Large volumes of aggregates & transport required • Uncertainties of sealing, sedimentation, seabed preparation & storm integrity • Some environmental issues to be resolved (e.g. area of sea-bed usage, blockage to sea users, & fish entrapment)

  10. Tidal Power – Tidal Streams(Picture: Marine Current Turbines Ltd)

  11. Features of Tidal Stream • Short lead time less capital intensive • Modular income starts on installation of first unit • Low impactavoids main barrage env. issues • Competitive early farmsin the region 7-8p/kWh • BUT: • The Severn resource is ~10-15% of that from a barrage • Although some tidal stream resource may be extractable in addition to a barrage • Foundations could double for offshore wind turbines

  12. Environmental Impact • Controllable extraction - modular units can be sited to minimise effects on shipping or fishing • No blockage - marine life relatively undisturbed, zero to low mortality • Tidal heights not affected - no effect on salinity, inter-tidal or sub-tidal zones • Some issues to be addressed - rotor/mammal interactions, electromagnetic and acoustic noise emissions

  13. Wind and Tidal Stream

  14. Challenges of Tidal Stream • Harsh environment • Pinning large loads to the sea bed • Retrieval for maintenance in water up to 100m • Sub-sea cabling and connections • Grid capacity onshore • Sea mammal interaction – uncertainties

  15. Photo courtesy Seacore Ltd Not an easy environment…..

  16. Specialist Construction Equipment

  17. Flow Turbulence

  18. Energy Flux

  19. Maintenance Windows

  20. How much resource is there? • UK – up to 4GW • 3 of these….

  21. Potential Tidal Stream Sites(Source: DTI UK Atlas of Marine Renewable Energy)

  22. Systems already demonstrated (1) (Picture: Marine Current Turbines Ltd)

  23. Systems already demonstrated (2) (Picture: IT Power Ltd.)

  24. Systems already demonstrated (3)

  25. Larger recent demonstrations Hammerfest Strom, Norway

  26. Larger recent demonstrations ENERMAR 120kW Variable-pitch Darrieus (Italy)

  27. Larger recent demonstrations Engineering Business 150kW Stingray reciprocator (UK)

  28. Larger recent demonstrations Open Hydro Marine Current Turbines

  29. Diversity of solutions…..

  30. And more…

  31. State of Tidal Stream Industry • Being led by the UK • Strong UK Govt support for R&D & capital • Many device concepts – no convergence as yet • A few medium scale prototypes are in the sea: many more to follow • Market entry costs are high – £10m min • Commercial machines a few years off • Some planning, environmental and grid capacity issues to be addressed • An environmentally benign offering to the sustainability mix

  32. Cables coming ashore at Cauldale and the new grid station

  33. Emissions and Materials Consumption • Cradle to grave assessment required • Tidal Stream:shorter construction time, pay back quicker. Steel in construction is energy intensive but less aggregate and concrete • Tidal Lagoons:very high aggregate demand but little ancillary infrastructure • Tidal Barrages:large material requirement, transport and ancillary infrastructure e.g. roads, port facilities; long pay-back time • (Slide by Morgan Parry, WWF Wales)

  34. Species and Habitat Impacts • Tidal Stream Energy devices: environmental appraisals currently being carried out on individual devices. Fish and mammals may avoid them, acoustic deterrence possible • Tidal Fences:greater obstacle to fish and mammals than individual devices, but not complete barrier like barrage • Tidal Lagoons:fish and mammals may avoid the area but risk of fish entrapment during flood generation • Tidal Barrages:reduce tidal range creating a loss of habitats. Water quality reduced if dispersal/dilution inadequate. Barrier to fish movements • (Slide by Morgan Parry, WWF Wales)

  35. Sediment Flow • Tidal Stream Energy devices: current turbines currently being modelled in Strangford Lough and elsewhere • Tidal Fences: considerable reduction in energy of water column but less than barrage • Tidal lagoons:currents and wave patterns altered. Choice of location can reduce sedimentation in shipping channels • Tidal barrage:highly modified sediment regime and nutrient flux upstream and downstream. Navigation impacts • (Slide by Morgan Parry, WWF Wales)
