Presentation Transcript
electrical planning 6

Electrical Planning #6

Electrical Plan

electrical working drawings3

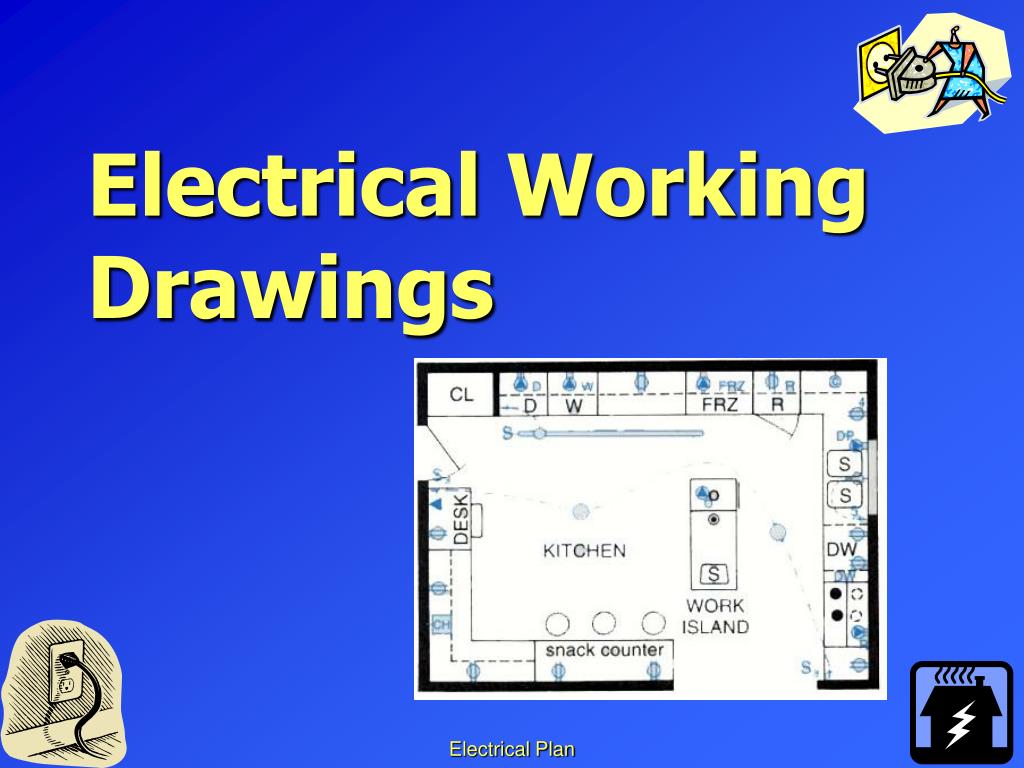

Electrical Working Drawings
  • Complete electrical plans ensure that electrical equipment and wiring are installed exactly as planned
  • If electrical plans are incomplete and sketchy, the installation depends upon the judgment of the electricians

Electrical Plan

electrical working drawings4
Electrical Working Drawings
  • Designers should not rely upon electricians to design the electrical system, only to install it
  • Conversely, designers do not plan the position of every wire,
    • only the position and relationship of all fixtures, devices, switches, and controls

Electrical Plan

electrical working drawings5
Electrical Working Drawings
  • This is done with the use of electrical symbols

Electrical Plan

electrical symbols
Electrical Symbols
  • Hundreds of electrical symbols are used on floor plans
    • to describe what and where electrical elements will be installed
  • About sixty symbols apply to residential or light construction

Electrical Plan

electrical symbols9
Electrical Symbols
  • Although the wiring diagrams detail how a fixture is wired to a switch,
    • these diagrams are abbreviated on architectural plans

Electrical Plan

electrical symbols11
Electrical Symbols
  • Some floor plans are so filled with dimensions, labels, and notes
    • that there is little space for electrical symbols
  • For this reason,
    • only the wall outlines are traced as an outline for preparing electrical plans

Electrical Plan

electrical symbols12

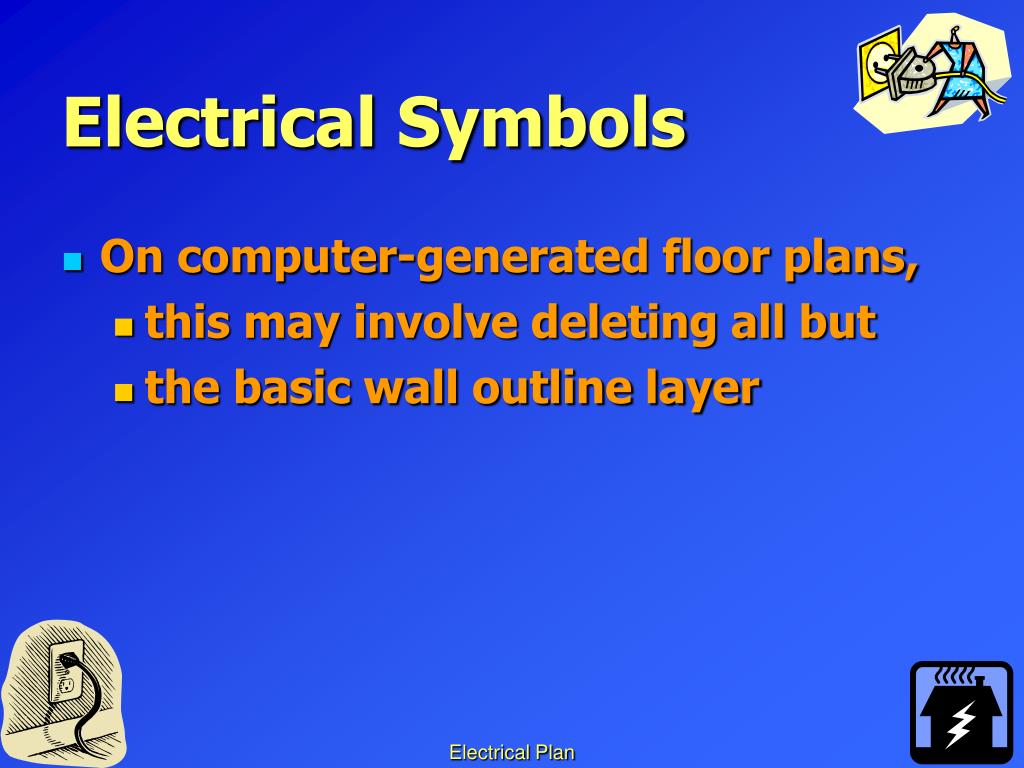

Electrical Symbols
  • On computer-generated floor plans,
    • this may involve deleting all but
    • the basic wall outline layer

Electrical Plan

to draw an electrical plan14
To draw an electrical plan:
  • #1
    • Draw all electrical symbols on an abbreviated floor plan
    • This will prevent interfering with other lines, letters, and numbers on a complete floor plan
    • Electrical symbols are added to the plan in their appropriate location
    • If an exact location is required, this should be dimensioned or shown on a separate elevation or detail

Electrical Plan

to draw an electrical plan15
To draw an electrical plan:
  • #2
    • After all symbols are located on a plan,
      • connect the switches to fixtures
      • or devices by drawing a dashed and curved line
      • from each switch to the outlet, fixture, or device
      • that the switch controls

Electrical Plan

to draw an electrical plan16
To draw an electrical plan:
  • #2 Cont’d
    • This line does not represent the actual wiring, only the control link

Electrical Plan

room wiring drawings

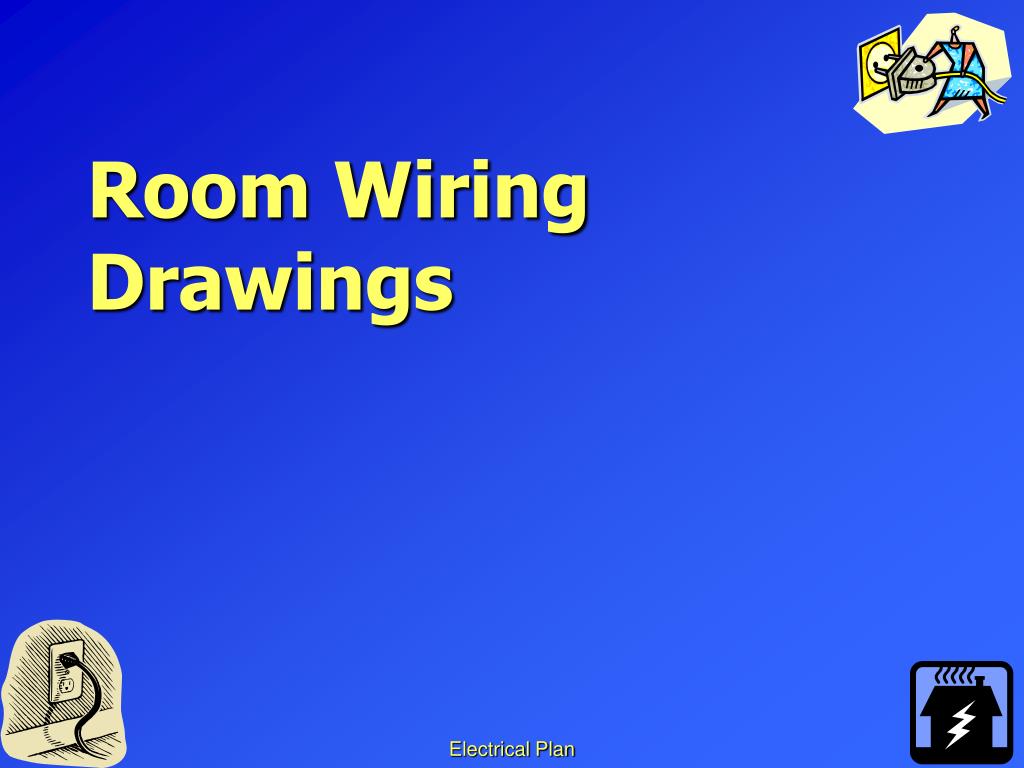

Room Wiring Drawings

Electrical Plan

room wiring drawings18
Room Wiring Drawings
  • Typical architect5ural wiring diagrams identify the various electrical fixtures and devices and trace the control of each fixture to a switch
  • Wiring plans for various rooms and areas in a house are shown in Fig. 31-27 a-j

Electrical Plan

room wiring drawings22

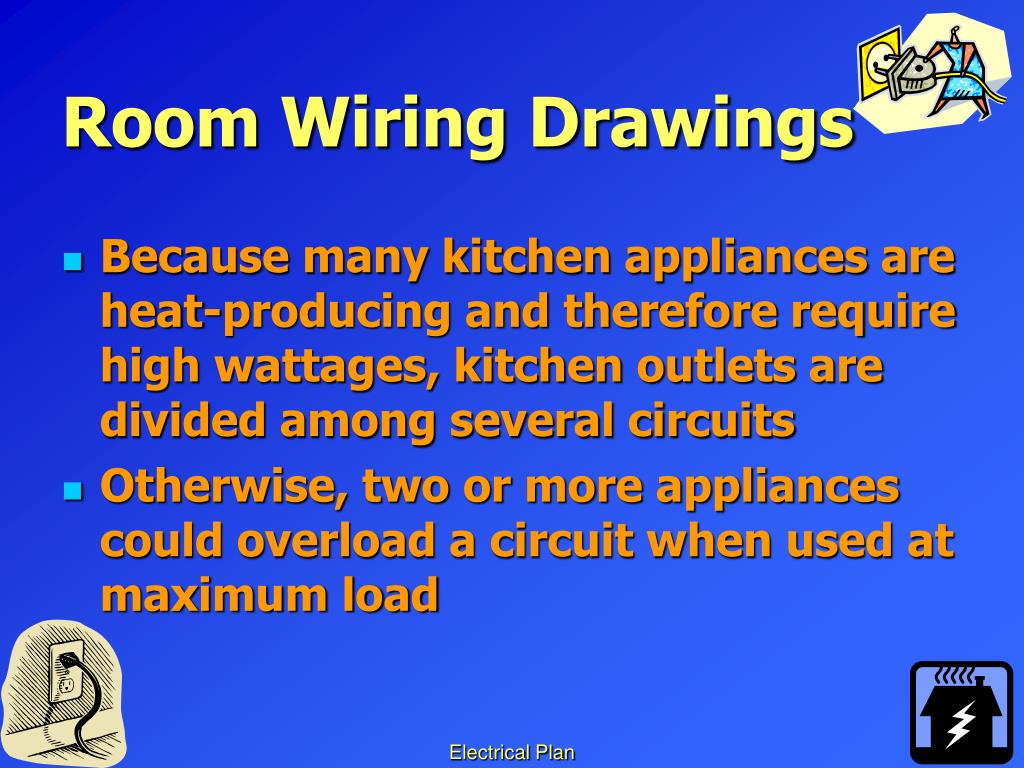

Room Wiring Drawings
  • Because many kitchen appliances are heat-producing and therefore require high wattages, kitchen outlets are divided among several circuits
  • Otherwise, two or more appliances could overload a circuit when used at maximum load

Electrical Plan

room wiring drawings23
Room Wiring Drawings
  • Utility rooms also require heavy-duty outlets for motor-driven and heat-producing appliances
  • Bedrooms, bathrooms, and closets require comparatively low wattage levels

Electrical Plan

room wiring drawings24
Room Wiring Drawings
  • Stairs and halls present special problems in electrical planning
  • Three-way switches must be carefully located
    • to provide control at many locations
    • and thus eliminate unnecessary backtracking

Electrical Plan

room wiring drawings25
Room Wiring Drawings
  • In drawing electrical plans on a CAD system, symbols can be called up from a symbol library and copied into the correct position
  • Electrical symbols are often added by using the layering function
  • This enables the symbols to be plotted in a different color or omitted totally from the floor plan

Electrical Plan
