Elaboration l.jpg

Elaboration

Lecture OO09

Gymnastics System Example Cont’d


References l.jpg
References

  • The Booch Method Guide, for Rose 2.0


Teaching points l.jpg
Teaching Points

  • Validation

  • Architectural Design

  • Planning


Review l.jpg
Review

  • What are the products of architectural design?

  • How would you validate you domain analysis?


Validation l.jpg
Validation

  • Are we building the right product?

  • Use the requirement

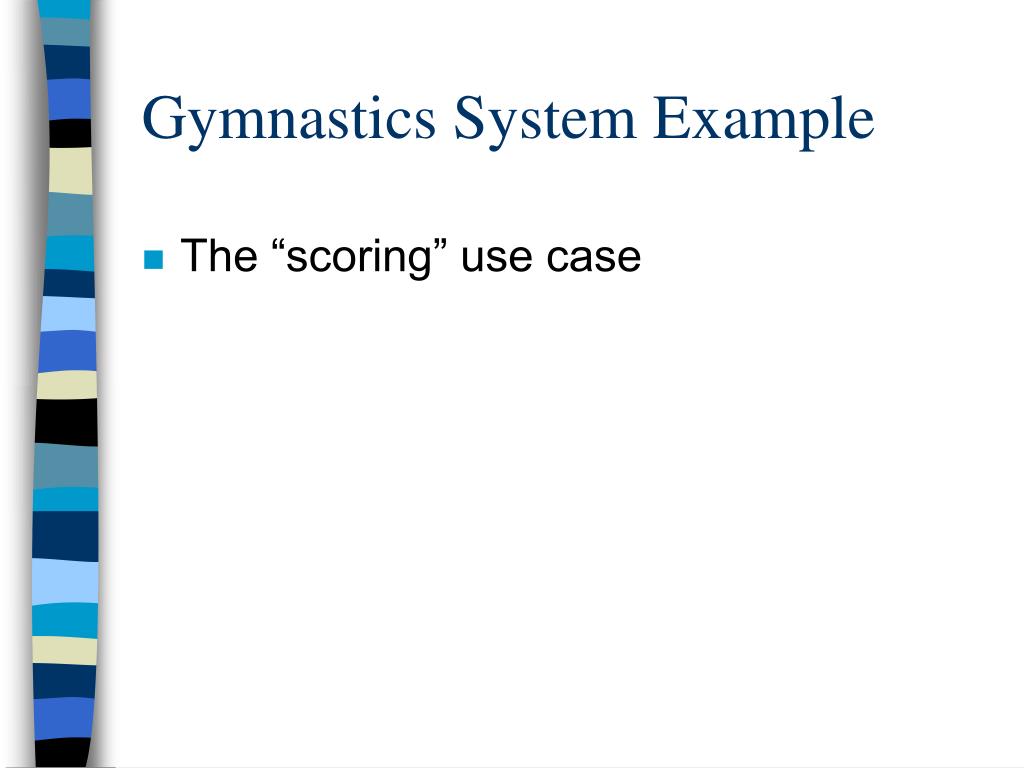

Gymnastics system example l.jpg
Gymnastics System Example

  • The “scoring” use case

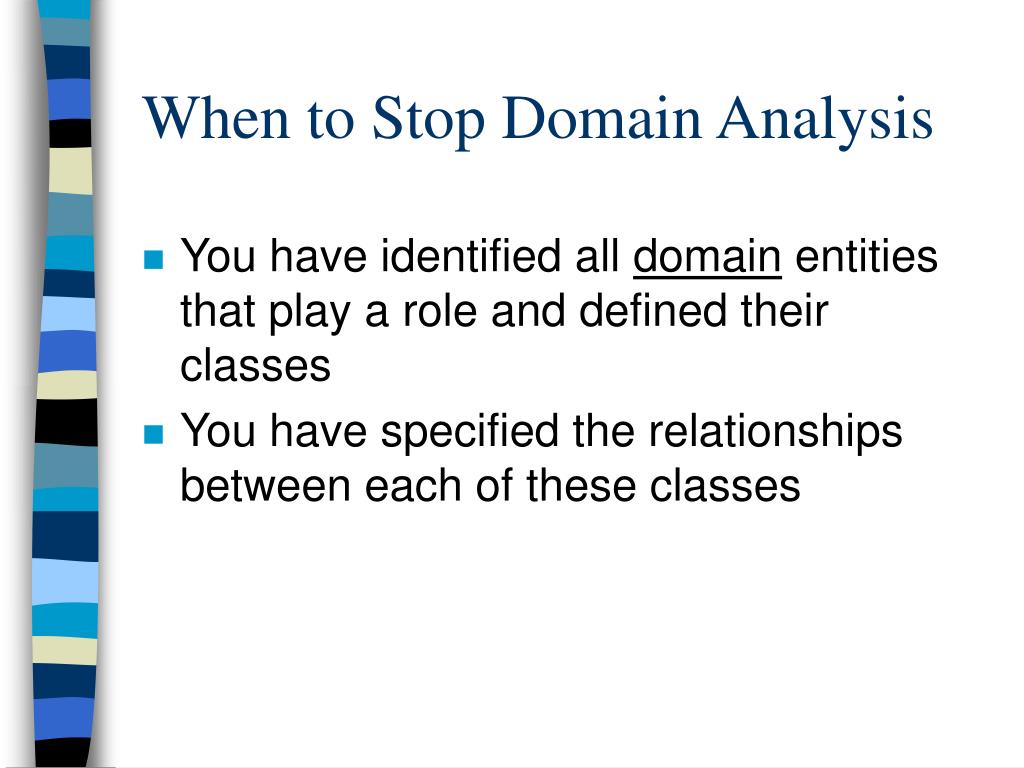

When to stop domain analysis l.jpg
When to Stop Domain Analysis

  • You have identified all domain entities that play a role and defined their classes

  • You have specified the relationships between each of these classes


When to stop domain analysis9 l.jpg
When to Stop Domain Analysis

  • You have associated with each class all operations performed on it (from uses cases)

  • You have analyzed each operation to the point where you understand what it needs to do and what other classes are involved


Layered architecture l.jpg

Packages are organized in a hierarchy of layers where each layer has a well-defined interface

e.g. The OSI model for network services is a layered architecture

Classic three-tier architecture

Presentation (windows, reports, etc.)

Application Logic (tasks and rules that govern the process)

Storage (persistent storage mechanism)

Layered Architecture

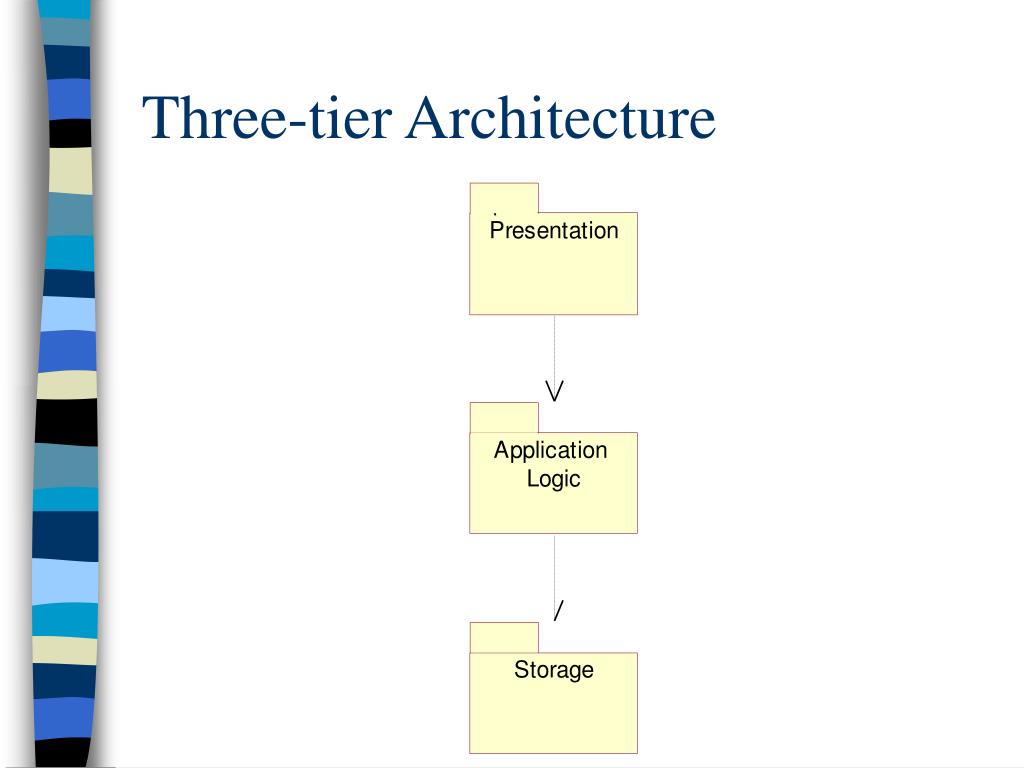

Three tier architecture l.jpg
Three-tier Architecture layer has a well-defined interface


Three tier architecture cont d l.jpg

Identified by the separation of the application logic into a distinct middle layer

Presentation layer is free of application logic and just forwards requests to middle tier

Middle tier communicates with a back end storage layer

Three-tier Architecture (cont’d)


Three tier architecture cont d13 l.jpg

Advantages distinct middle layer

the opportunity for reuse

the possibility of distributing application logic on a network

allocation of developers to construct specific tier (based on interface specs, that is good OO decomposition)

Three-tier Architecture (cont’d)


Multi tiered architectures l.jpg

The logical extension of three-tier architecture distinct middle layer

You can decompose a three-tier into multiple services

Multi-tiered Architectures


Multi tiered architectures15 l.jpg
Multi-tiered Architectures distinct middle layer


The gymnastics system l.jpg
The Gymnastics System distinct middle layer


The gymnastics system17 l.jpg

What if we change user interfaces? distinct middle layer

What if we change DBMS? (how can we make the architecture less vulnerable to change)

The Gymnastics System


Planning l.jpg

The essence of a plan is to set up a series of iterations (executable releases) for construction and to assign use cases to iterations

A plan allocates each use case to an iteration (executable release) and identifies a start date for each iteration

Planning


Executable release plan l.jpg

Allocate Use Cases: (executable releases) for construction and to assign use cases to iterations

By level of user priority

By architectural Risk

address risk early

By level of effort

uses cases with schedule risk early

roughly equal releases

you may split large use cases

Executable Release Plan


Other planning data l.jpg

Classes to be implemented (executable releases) for construction and to assign use cases to iterations

Inputs

you may have to provide drivers

Output

you may have to provide stubs

ASIDE: A good rule of thumb is that you will produce as much test harness as production code

Other planning data


Slide21 l.jpg

Executable release (executable releases) for construction and to assign use cases to iterations: Scoring Report

Goal: Verification and successful use of navigational paths and score derivation logic for the scores of a competition.

Start Date: 26 Aug 98

Effort: 12 developer-weeks

Classes to be implemented: Competition, Event, Trial, RawScore, Team

Use Cases to be Implemented: Scoring

Inputs: Dummy database (validated in advance) with a meet, a competition, all events for that competition, all competing teams and gymnasts for the competition, and all trials and raw scores.

Outputs: The data needed to build the report on Figure 4-3, “Output of the Gymnastics System,” on page 25 of requirement spec. A DB utility dump of the raw input for comparison.
