  1. Audio-Visual Solutions Active AV Twisted Pair Products Analog to Digital, simple to sophisticated, all from one source!

  2. Who is Intelix? Founded in 1986 Based in Middleton, WI USA Engineering heritage Historically Pro-Audio Today 90% Video

  3. Who is Intelix? Market Segments Pro AV Residential CI DataCom Security-CCTV

  4. Who is Intelix? Product Categories HDMI Systems Digital Signage Systems Passive and Active Twisted Pair Extension Solutions Security Distribution Products Audio Matrix Systems Room Combine Systems Paging Systems

  5. AV over Twisted Pair What is A/V over twisted pair? • Transmission and distribution of audio, video and control over wire associated with telephone and data networks. • Special interfacing equipment is required. • Appealing for applications because of cost and implementation advantages. • Delivers performance comparable to systems using RGB coaxial or HDMI cabling.

  6. AV over Twisted Pair What equipment is used? Passive Transmitters and Receivers (Baluns) Best suited for audio, composite and S-video Compromises performance at high resolutions Active Transmitters and Receivers Accommodate HDTV and HD Computer video as well as audio and control Include equalization for signal loss Can be stand alone or integrated in to other equipment

  7. AV over Twisted Pair Important Considerations Must terminate with a 568B crimp down pattern. Twisted pair A/V and data network systems are incompatible. All transmitters, receivers, and distribution equipment must be provided by the same manufacturer. Standard data cabling and termination apply.

  8. AV over Twisted Pair Benefits of AV over Twisted Pair Extend transmission distances. Utilize existing wiring. Ease of installation. Conduit limitations. Eliminate background noise. Future-Proof a facility. Combines multiple signals onto one cable run. Can lower installation cost.

  9. AV over Twisted Pair When to use Baluns? Variables to consider: Cable Cost Existing CAT-5 to use Conduit space Field Termination costs Ease of wire pull

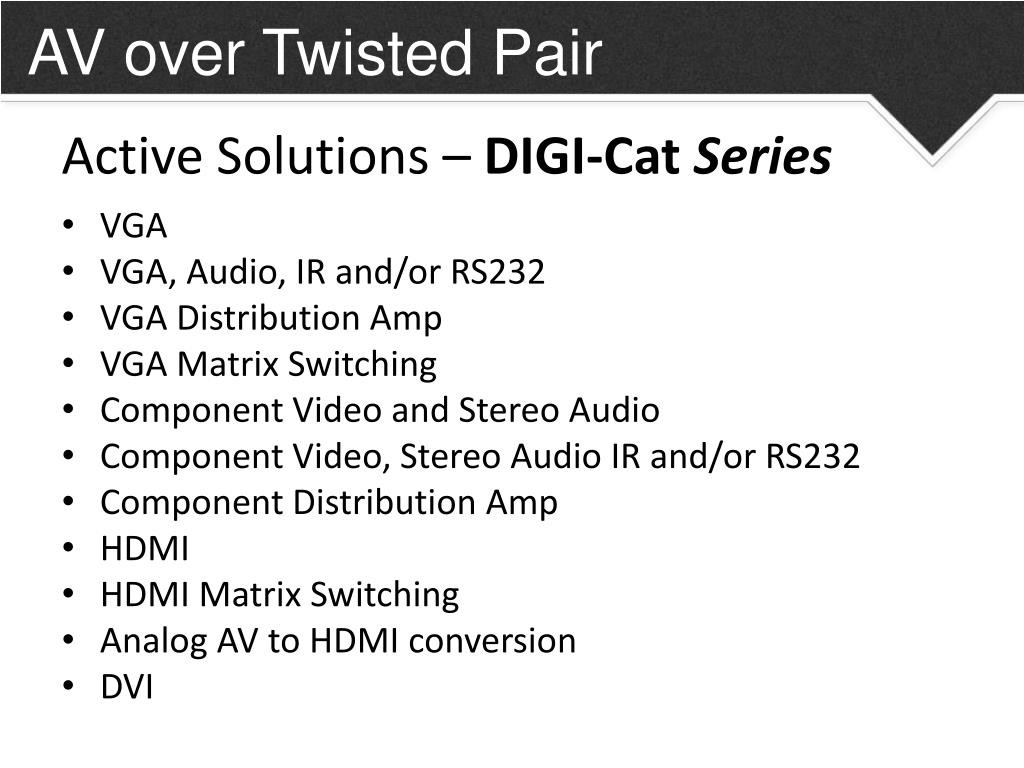

  10. AV over Twisted Pair Active Solutions – DIGI-Cat Series • VGA • VGA, Audio, IR and/or RS232 • VGA Distribution Amp • VGA Matrix Switching • Component Video and Stereo Audio • Component Video, Stereo Audio IR and/or RS232 • Component Distribution Amp • HDMI • HDMI Matrix Switching • Analog AV to HDMI conversion • DVI

  11. AV over Twisted Pair Intelix Naming Convention DIGI – Active twisted pair device A2 – Stereo Audio HR– High Resolution UHR – Ultra High Resolution VGA – VGA SD–Smart Display R – Receive or Receiver S – Send V3 – Component Video T2– 2 Way Distribution Amp T4 – 4 Way Distribution Amp T8 – 8 Way Distribution Amp DVI – DVI HD – High Definition WP – Wall Plate/RJ45 COAX – Coaxial Cable SCAL – Scaler HDMI – HDMI F – ROHS Compliant • DIGI-HD-UHR2 • DIGI-HD-UHR2-R • DIGI-HD-IR2 • DIGI-HD-IR2-R • DIGI-HDMI-HR • DIGI-HD-COAX-R • DIGI-HD-COAX-S • DIGI-SCAL-11x2 • DIGI-HD-4x2 • DIGI-HD-4x4 • DIGI-HD-8x8 • DIGI-DVI-F • DIGI-DVIT2R-F • DIGI-DVIT4R-F • VGA-HR-F • VGA-UHR-F • DIGI-VGA-F • DIGI-VGASD • DIGI-VGASD-WP • DIGI-VGASD-T4 • DIGI-VGASD-T4R • DIGI-VGASD-T8 • DIGI-VGASD-T8R • DIGI-VGASD-8x8e • DIGI-VGASD-16x16 • DIGI-V3A2 • DIGI-V3SD • DIGI-V3SD-T4

  12. AV over Twisted Pair VGA Extenders • VGA-HR-F • VGA-UHR-F

  13. AV over Twisted Pair VGA and Stereo Audio • Max: 1920 x 1200 at 250 ft • Link up to 3 send units • Powered at both ends • Monitor out on send side • Dual out on receive side DIGI-VGA-F

  14. AV over Twisted Pair VGA, Audio and Control DIGI-VGASD DIGI-VGASD-WP • Smart Display (SD) Technology: IR or RS232 Control

  15. AV over Twisted Pair VGA, Audio and Control Distribution DIGI-VGASD-T4 DIGI-VGASD-T4R DIGI-VGASD-T8 DIGI-VGASD-T8R DIGI-VGASD-R DIGI-VGASD-WP-R • Four and Eight way VGA Distribution Amps • Can be linked for additional remote designations

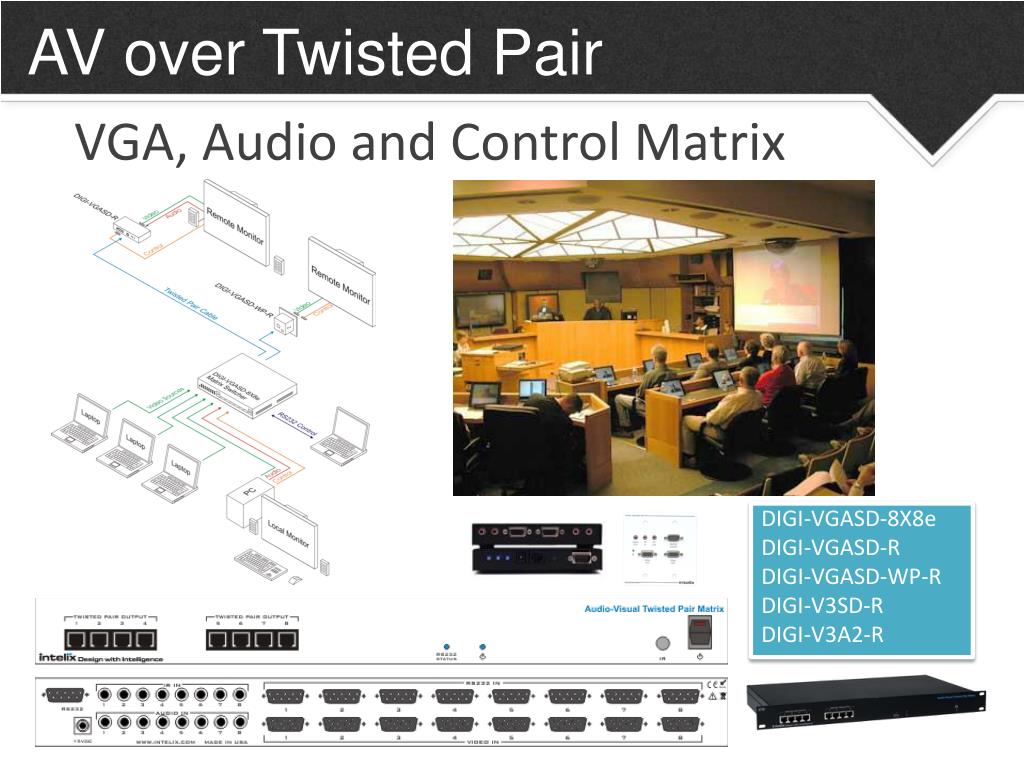

  16. AV over Twisted Pair VGA, Audio and Control Matrix DIGI-VGASD-8X8e DIGI-VGASD-R DIGI-VGASD-WP-R DIGI-V3SD-R DIGI-V3A2-R

  17. AV over Twisted Pair VGA, Audio and Control Matrix DIGI-VGASD-16x16 DIGI-VGASD-R DIGI-VGASD-WP-R DIGI-V3SD-R DIGI-V3A2-R VGA or Component Video

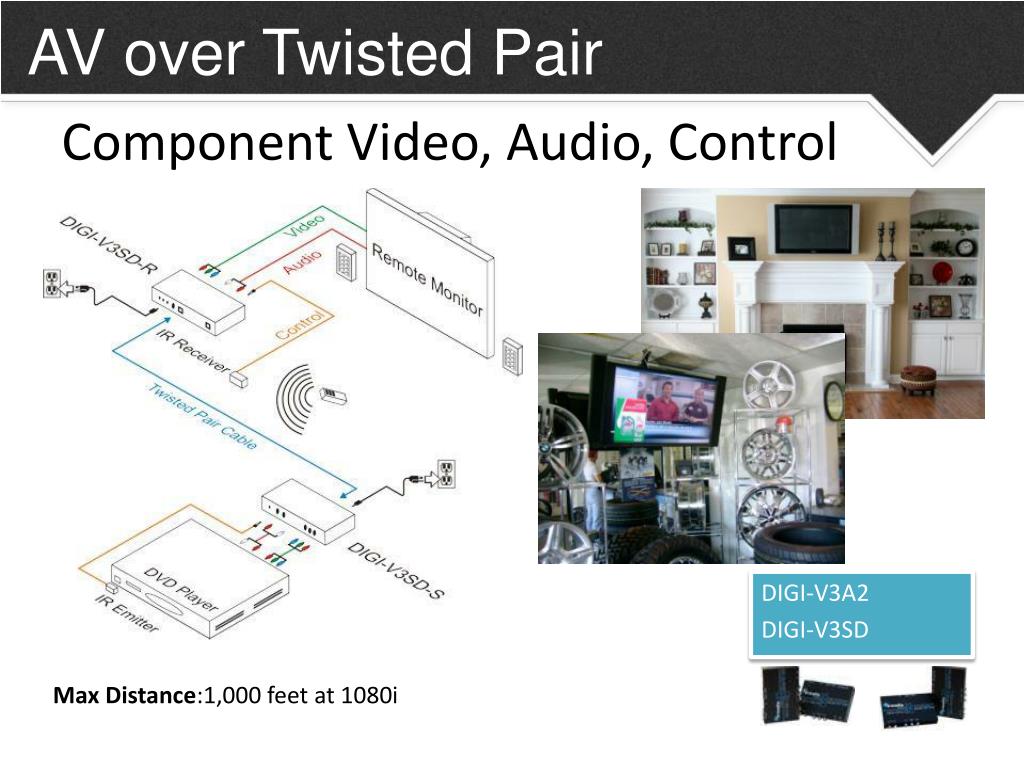

  18. AV over Twisted Pair Component Video, Audio, Control DIGI-V3A2 DIGI-V3SD Max Distance:1,000 feet at 1080i

  19. AV over Twisted Pair Component and Audio Distribution DIGI-V3SD-T4 DIGI-V3SD-R DIGI-V3A2-R • Max Distance: 1000 feet

  20. AV over Twisted Pair HDMI Extension DIGI-HD-UHR2 DIGI-HD-IR2 • Buffering and Amplification • EDID Emulation and EDID Copy • Bandwidth Limiting

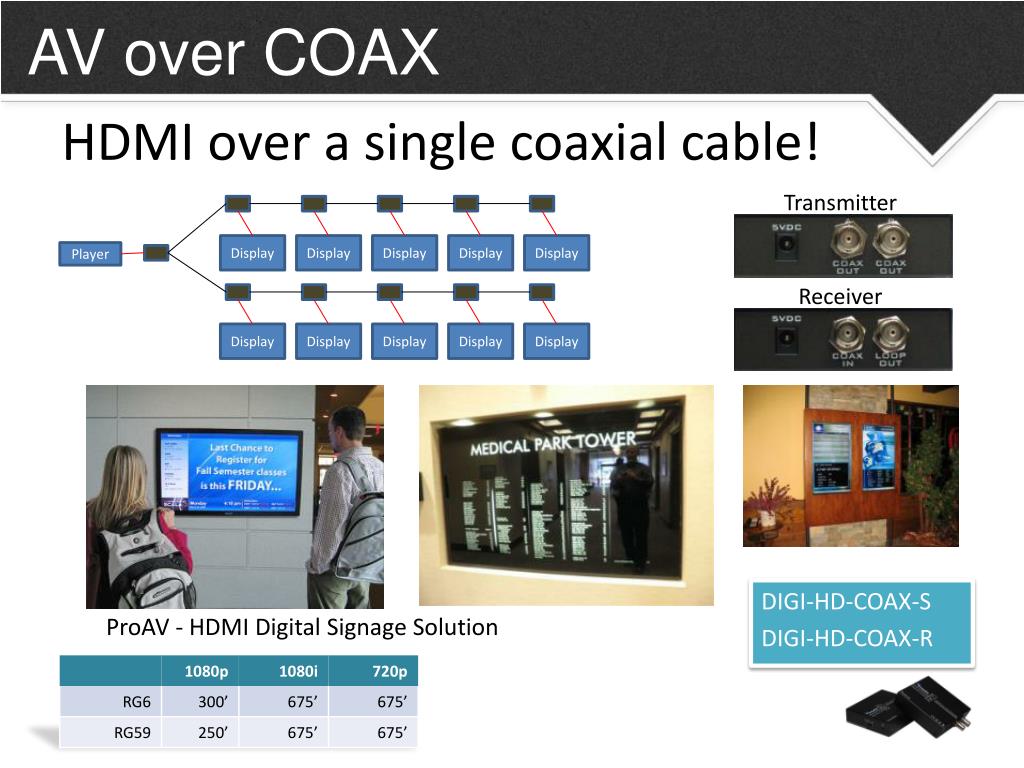

  21. AV over COAX HDMI over a single coaxial cable! DIGI-HD-COAX-S DIGI-HD-COAX-R Ideal for existing COAX installations

  22. AV over COAX HDMI over a single coaxial cable! DIGI-HD-COAX-S DIGI-HD-COAX-R Transmitter Receiver Display Display Display Display Display Player ProAV - HDMI Digital Signage Solution Display Display Display Display Display

  23. DIGI-SCAL-11x2 Switcher/Format Converter/Scaler DIGI-SCAL-11x2

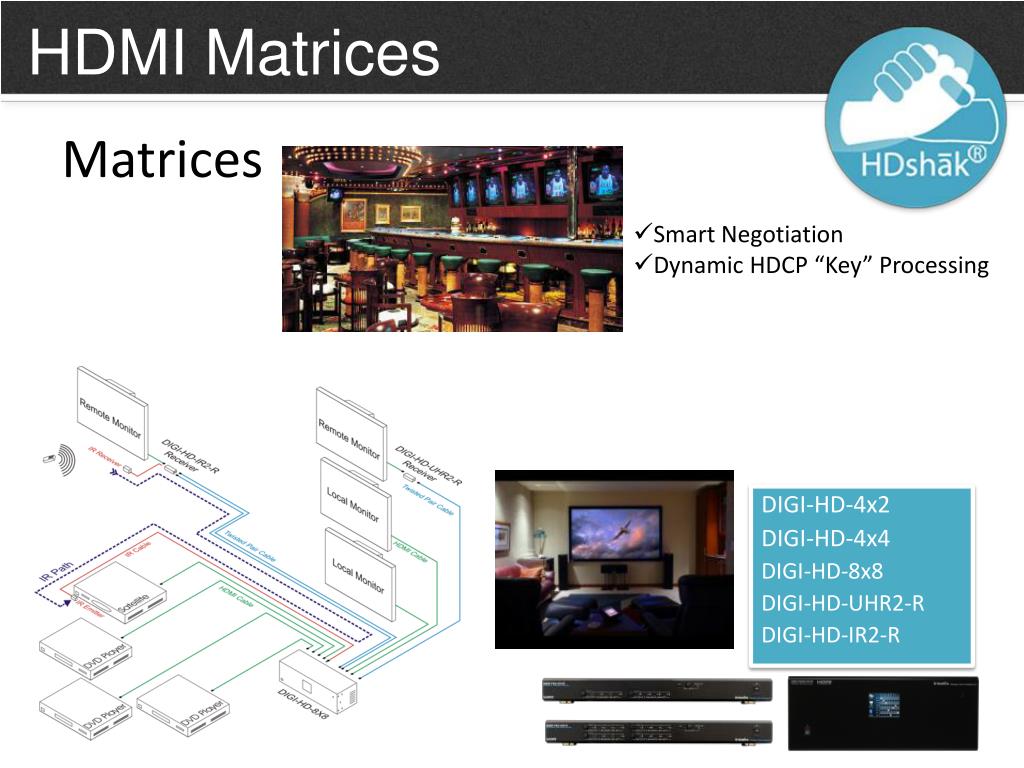

  24. HDMI Matrices Matrices DIGI-HD-4x2 DIGI-HD-4x4 DIGI-HD-8x8 DIGI-HD-UHR2-R DIGI-HD-IR2-R • Smart Negotiation • Dynamic HDCP “Key” Processing

  25. AV over Twisted Pair DVI Extension DIGI-DVI-F • Max Distance: 150 feet

  26. AV over Twisted Pair DVI Extension and Distribution DIGI-DVIT2R-F DIGI-DVIT2R-F DIGI-DVI-R-F • Max Distance: 220 feet

  27. AV over Twisted Pair Mounting Solutions DIN-RACK-KIT AVO-CLIP-F

  28. Intelix Why Intelix? Maximize Performance: Complete integrated solution approach

  29. Intelix Why Intelix? Insured Reliability: Multi Stage Quality Assurance Process Less than a 1% return rate

  30. Intelix Why Intelix? World Class Support: Pre and post sales technical and applications support 90 day advanced replacement 2 year warranty on all products

  31. AV over Twisted Pair Why Intelix? • More solutions than other manufacturers • Exclusive technology and engineering • Experience spanning over 12 years • Aggressive pricing

  32. Intelix Why Intelix? Brutal Expensive Intelix Inexpensive Competitive Product Pricing Cheap

  33. Intelix Why Intelix? Intelix verses…. • Extron: 62% price advantage • FSR: 12% price advantage • Gefen: 11% price advantage • Key Digital: 29% price advantage • SP Controls: 17% price advantage *on direct substitutions **information as of 11/10

  34. Intelix Why Intelix? Smart Sales Model

  35. Intelix Intelix Contacts Technical Sales /Training: Brad Weisbrod | bradw@intelix.com Order Status: Ellen Domine | ellend@intelix.com Pricing Inquiries: Beth Green | bethg@intelix.com Technical Support: Sterling Glass | sterlingg@intelix.com Marketing Inquiries: Eric Lang | ericl@intelix.com Domestic Sales Questions: Cameron Smith | camerons@intelix.com International Sales Questions: Steve Cohan | stevec@intelix.com 608-831-0880 phone | 608-831-1833 fax | www.intelix.com

  36. Intelix Resources 608-831-0880 phone | 608-831-1833 fax | www.intelix.com Literature Library: • http://www.intelix.com/tech_library/marketing_lit.aspx • Product Technical Literature: • http://www.intelix.com/tech_library.htm
