Multivariate Descriptive Research

Multivariate Descriptive Research. In the previous lecture, we discussed ways to quantify the relationship between two variables when those variables are continuous. What do we do when one or more of the variables is categorical?. Categorical Variables.

danelle
Download Presentation

Multivariate Descriptive Research

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Multivariate Descriptive Research • In the previous lecture, we discussed ways to quantify the relationship between two variables when those variables are continuous. • What do we do when one or more of the variables is categorical?

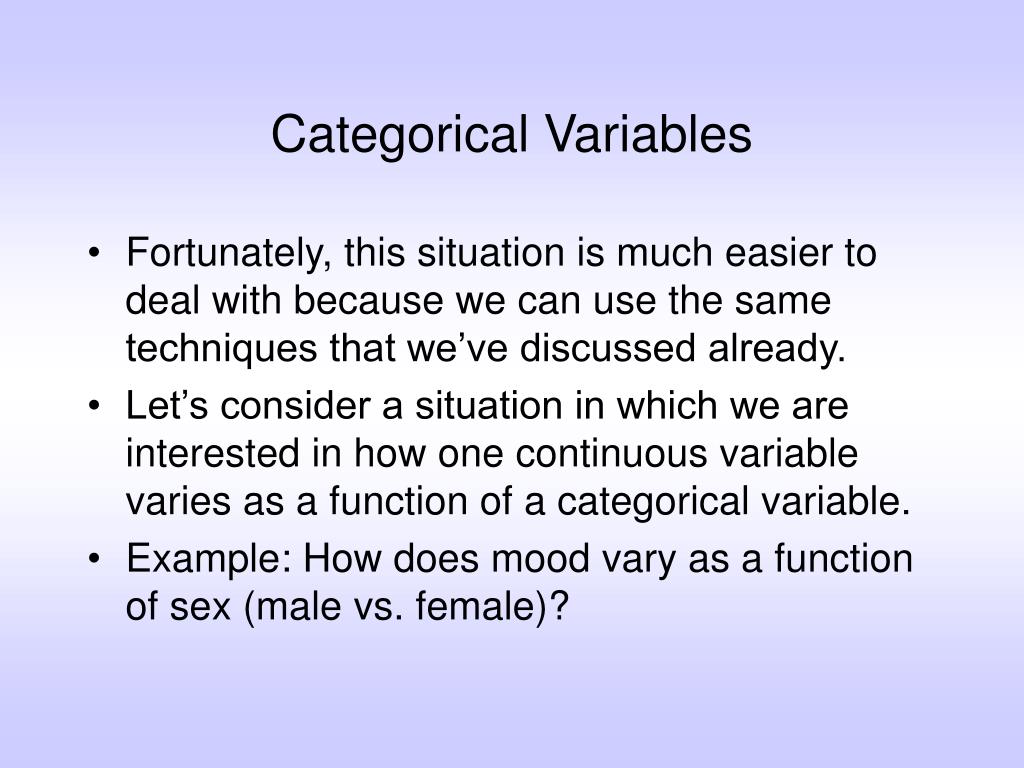

  2. Categorical Variables • Fortunately, this situation is much easier to deal with because we can use the same techniques that we’ve discussed already. • Let’s consider a situation in which we are interested in how one continuous variable varies as a function of a categorical variable. • Example: How does mood vary as a function of sex (male vs. female)?

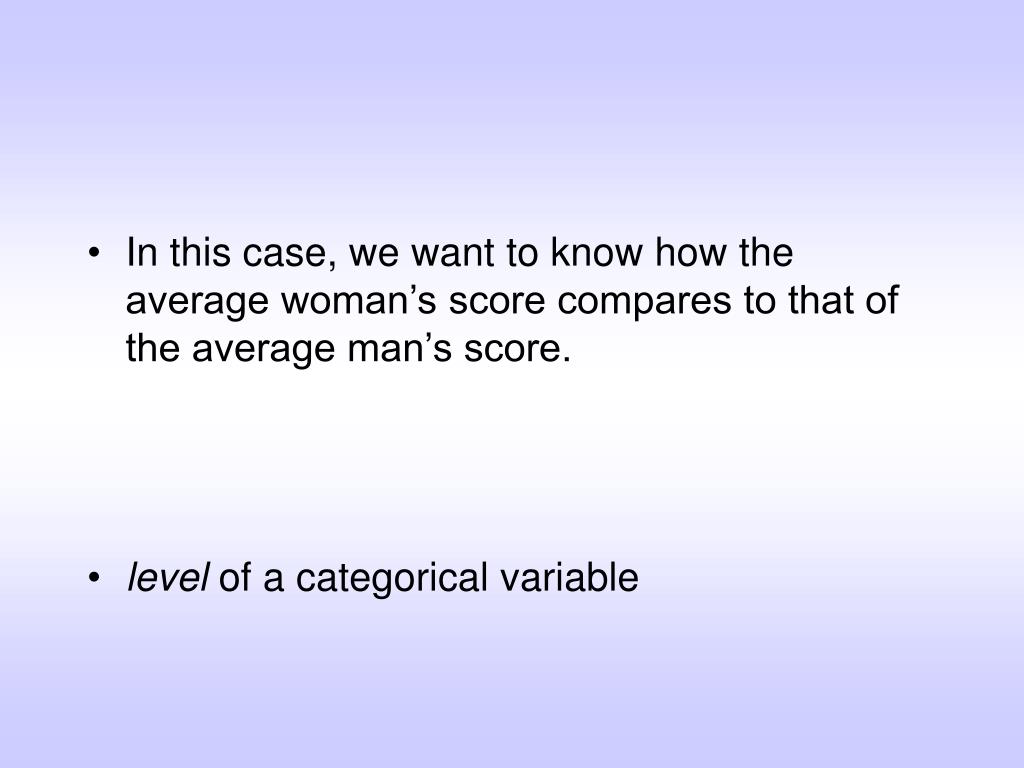

  3. In this case, we want to know how the average woman’s score compares to that of the average man’s score. • level of a categorical variable

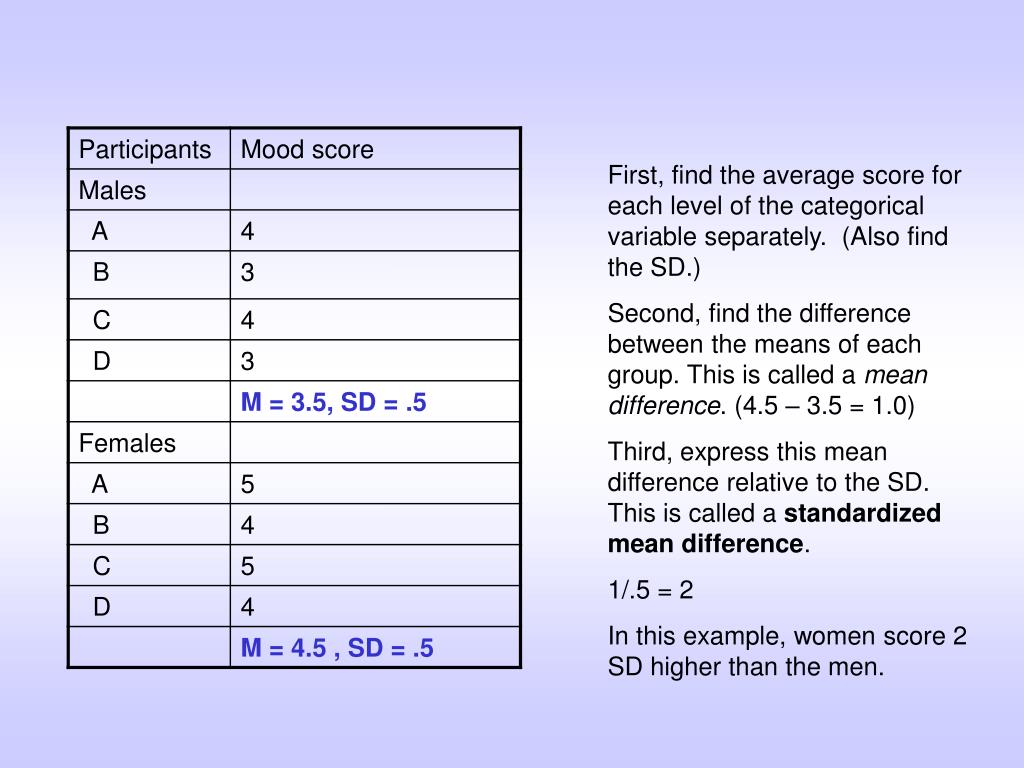

  4. First, find the average score for each level of the categorical variable separately. (Also find the SD.) Second, find the difference between the means of each group. This is called a mean difference. (4.5 – 3.5 = 1.0) Third, express this mean difference relative to the SD. This is called a standardized mean difference. 1/.5 = 2 In this example, women score 2 SD higher than the men.

  5. Note: If the SD’s for the two groups are different, you can simply average the two SD’s. Here, the two SD’s are .5 and .83. Averaged, these are (.5 + .83)/2 = .66. The standardized mean difference is (4.25 – 3.5)/.66 = .75/.66 = 1.13 Thus, on average, women score 1.13 SD’s higher than men on this mood variable.

  6. Bargraph

  7. Bargraph: More than two categorical variables

  8. Both variables are categorical • When two variables are categorical, it is sometimes most useful to express the data as percentages. • Example: Let’s assume that depression is a categorical variable, such that some people are depressed and others are not. • What is the relationship between biological sex and depression?

  9. In this table, we’ve expressed each cell as a proportion of the total.

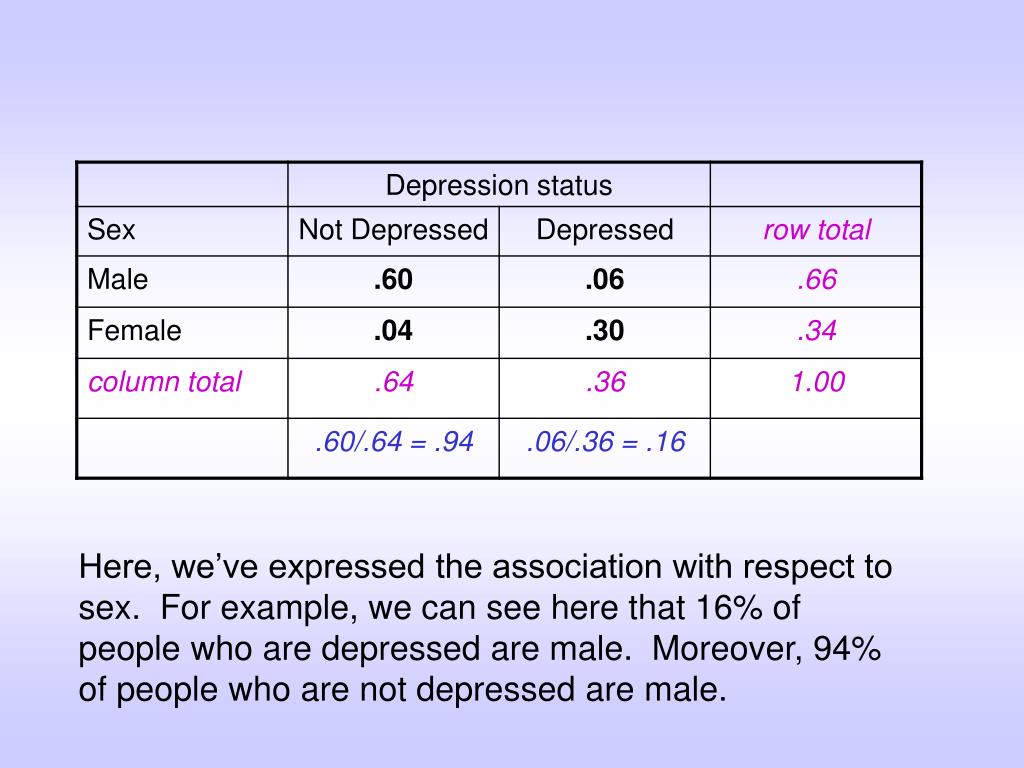

  10. Here, we’ve expressed the association with respect to sex. For example, we can see here that 16% of people who are depressed are male. Moreover, 94% of people who are not depressed are male.

  11. Here, we’ve expressed the association with respect to depression status. For example, we can see here that 9% of men are depressed and 88% of women are depressed.
