Presentation Transcript
outline
Outline
  • Basics of Concurrency
    • Concepts and Terminology
    • Advantages and Disadvantages
    • Amdahl’s Law
  • Synchronization Techniques
  • Concurrent Data Structures
  • Parallel Correctness
  • Treading A.P.I.’s
basics of concurrency

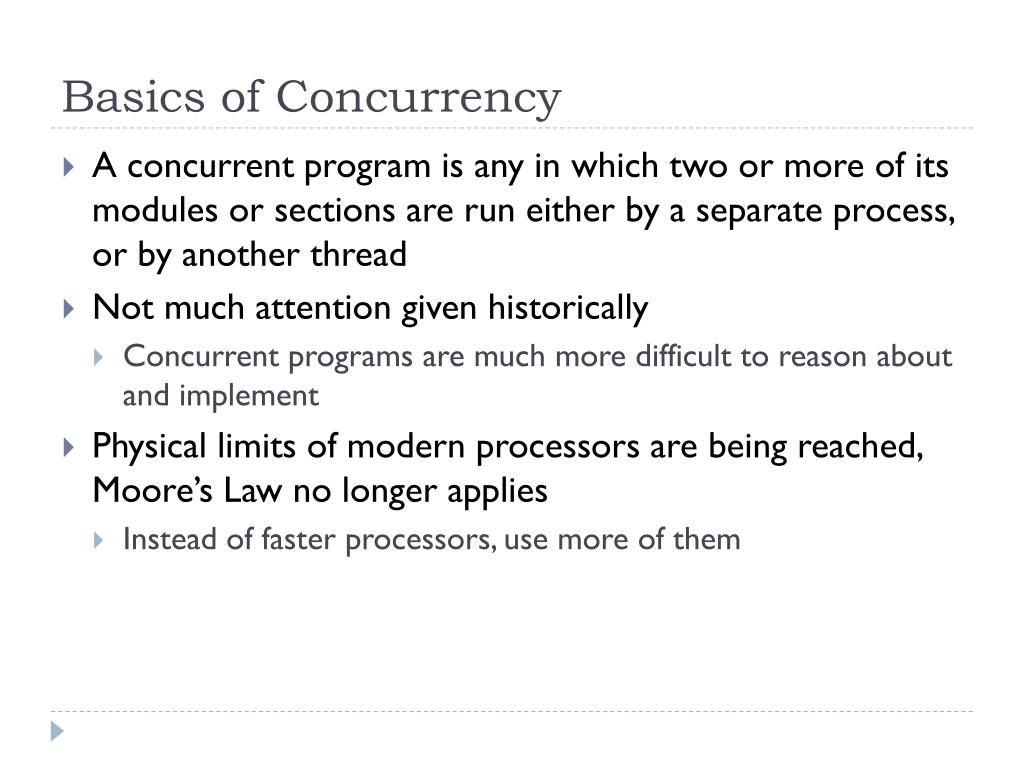

Basics of Concurrency
  • A concurrent program is any in which two or more of its modules or sections are run either by a separate process, or by another thread
  • Not much attention given historically
    • Concurrent programs are much more difficult to reason about and implement
  • Physical limits of modern processors are being reached, Moore’s Law no longer applies
    • Instead of faster processors, use more of them
concepts and terminology

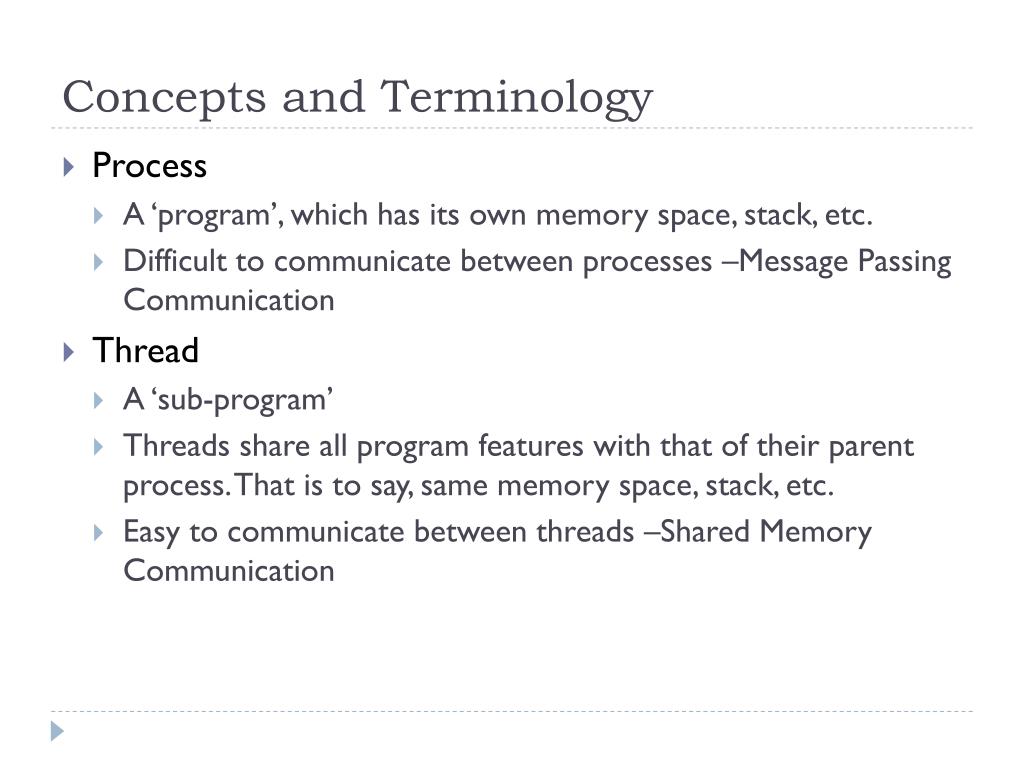

Concepts and Terminology
  • Process
    • A ‘program’, which has its own memory space, stack, etc.
    • Difficult to communicate between processes –Message Passing Communication
  • Thread
    • A ‘sub-program’
    • Threads share all program features with that of their parent process. That is to say, same memory space, stack, etc.
    • Easy to communicate between threads –Shared Memory Communication
concepts and terminology1
Concepts and Terminology
  • Concurrent Program
    • Processes/threads which execute tasks in an ordering relative to each-other that is not defined
    • Essentially covers all multi-process/multi-threaded programs
  • Parallelism
    • Processes/threads that execute completely simultaneously
    • Parallelism is more readily applied to sections of a program
    • Impossible in single-core processors (those still exist?)
    • Increased parallelism = more processors used
  • Atomic action
    • An action (instruction) that either happens, completely without interruption, or not at all
    • For many purposes, the idea that an action ‘looks’ atomic is enough to classify it as such
advantages and disadvantages

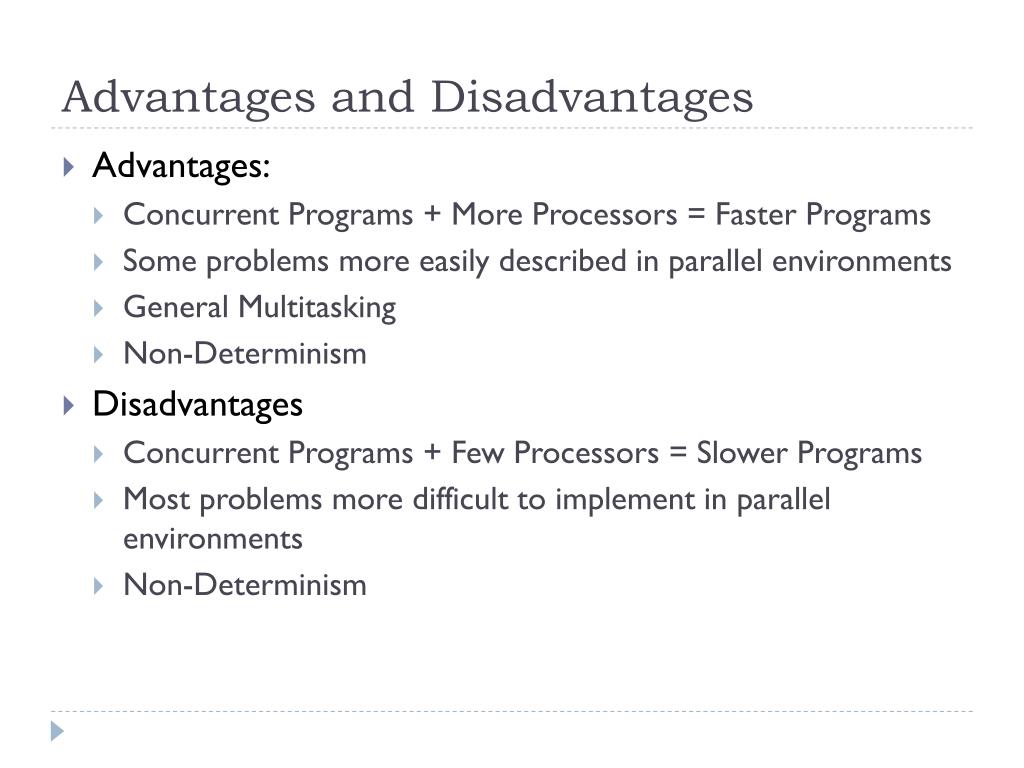

Advantages and Disadvantages
  • Advantages:
    • Concurrent Programs + More Processors = Faster Programs
    • Some problems more easily described in parallel environments
    • General Multitasking
    • Non-Determinism
  • Disadvantages
    • Concurrent Programs + Few Processors = Slower Programs
    • Most problems more difficult to implement in parallel environments
    • Non-Determinism
amdahl s law
Amdahl’s Law
  • Relates the speed-up of a program when more processors are added
    • Has very limiting implications
outline1
Outline
  • Basics of Concurrency
  • Synchronization Techniques
    • Mutual Exclusion and Locks
    • The MightyC.A.S.
    • Lock-free and Wait-free Algorithms
    • Transactional Algorithms
  • Concurrent Data Structures
  • Treading A.P.I.’s

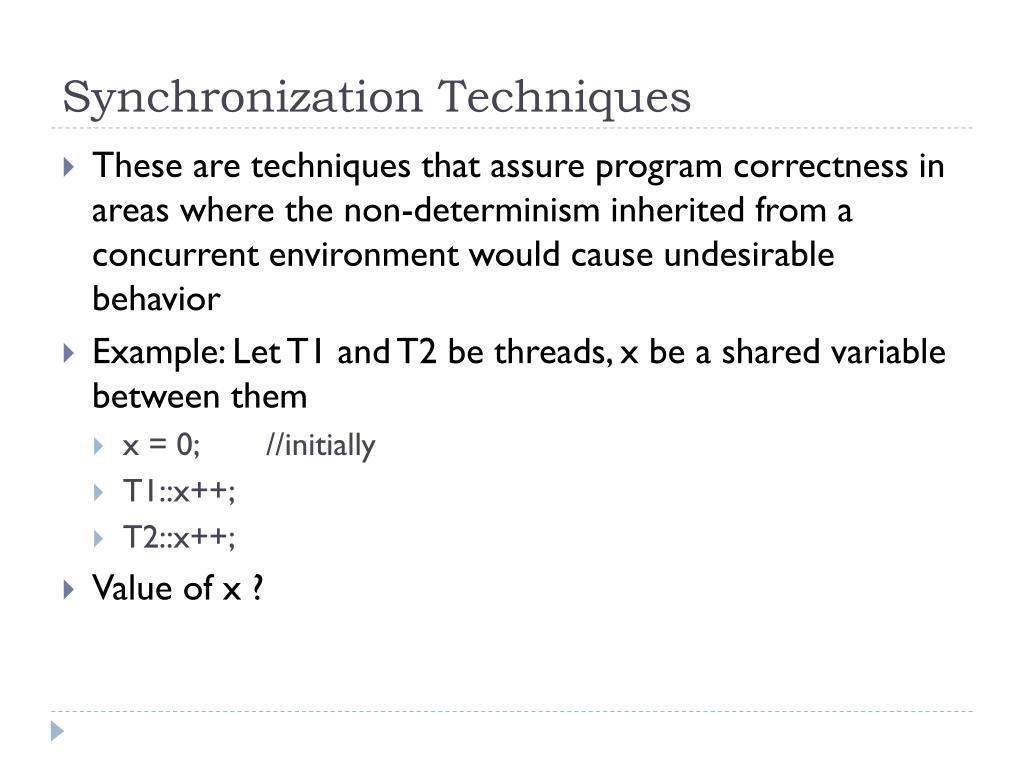

synchronization techniques
Synchronization Techniques
  • These are techniques that assure program correctness in areas where the non-determinism inherited from a concurrent environment would cause undesirable behavior
  • Example: Let T1 and T2 be threads, x be a shared variable between them
    • x = 0; //initially
    • T1::x++;
    • T2::x++;
  • Value of x ?
synchronization techniques1
Synchronization Techniques

x++ becomes

read x;

add 1;

write x;

So T1 and T2’s instructions could occur in the following order:

T1::read x //reading 0

T2::read x //reading 0

T1::add 1 //0+1

T2::add 1 //0+1

T1::write x //writing 1

T2::write x //writing 1

mutual exclusion and locks
Mutual Exclusion and Locks
  • Algorithm that allows only one thread to execute a certain ‘area’ of code at a time
  • It essentially ‘locks out’ all other threads from accessing the area, thus ‘mutex’ and ‘lock’ are typically used synonymously
  • Varying algorithms exist for implementation, differing in robustness and performance
  • Typically easy to reason about their use
  • High overhead compared to other synchronization techniques
  • Can cause problems such as Deadlock, Livelock, and Starvation
the mighty c a s
The Mighty C.A.S.
  • Compare And Swap
    • Native instruction on many modern multiprocessors
    • Widely used in synchronizing threads
    • Cheap, compared to using locking algorithms
    • Expensive, compared to loading-storing as uses a hardware lock
    • ABA > CAS

boolean CAS(memoryLocation, old, new)

{

If(*memoryLocation == old)

{

*memoryLocation = new;

return true;

}

return false;

}

lock free and wait free algorithms

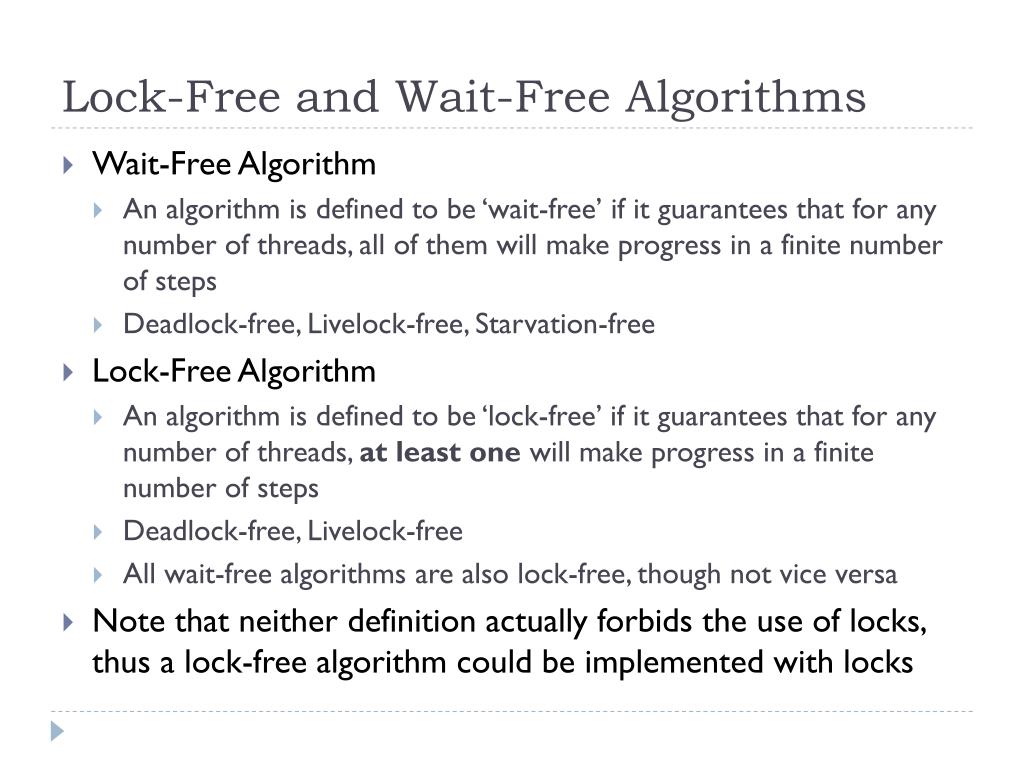

Lock-Free and Wait-Free Algorithms
  • Wait-Free Algorithm
    • An algorithm is defined to be ‘wait-free’ if it guarantees that for any number of threads, all of them will make progress in a finite number of steps
    • Deadlock-free, Livelock-free, Starvation-free
  • Lock-Free Algorithm
    • An algorithm is defined to be ‘lock-free’ if it guarantees that for any number of threads, at least one will make progress in a finite number of steps
    • Deadlock-free, Livelock-free
    • All wait-free algorithms are also lock-free, though not vice versa
  • Note that neither definition actually forbids the use of locks, thus a lock-free algorithm could be implemented with locks

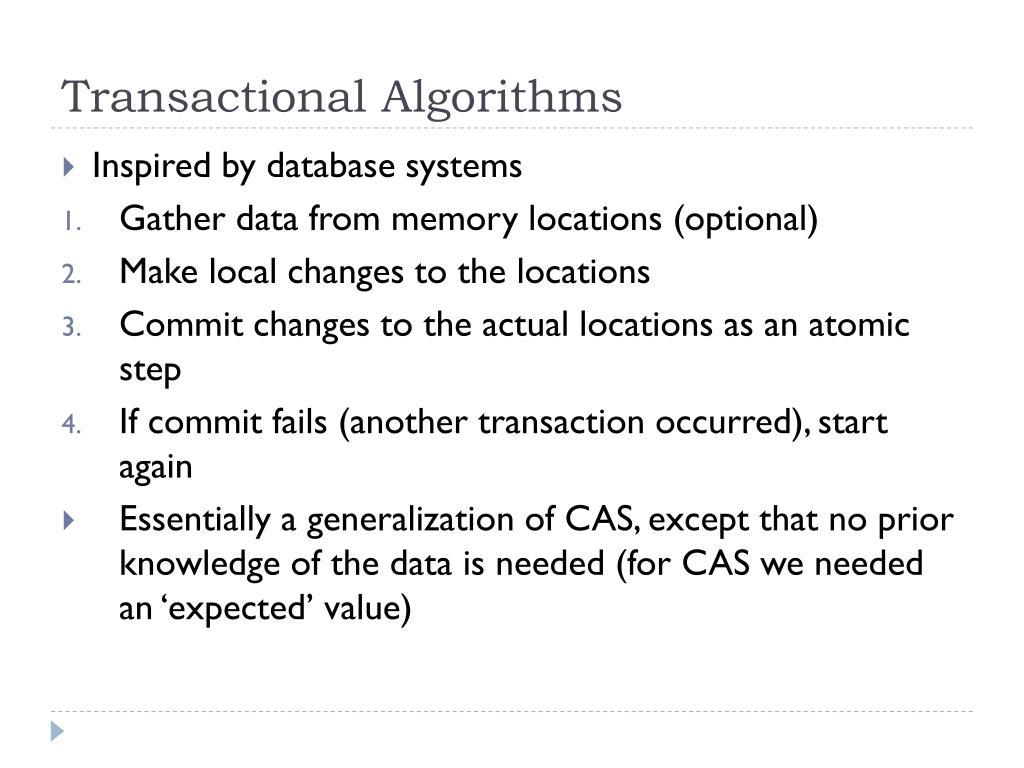

transactional algorithms
Transactional Algorithms
  • Inspired by database systems
  • Gather data from memory locations (optional)
  • Make local changes to the locations
  • Commit changes to the actual locations as an atomic step
  • If commit fails (another transaction occurred), start again
  • Essentially a generalization of CAS, except that no prior knowledge of the data is needed (for CAS we needed an ‘expected’ value)

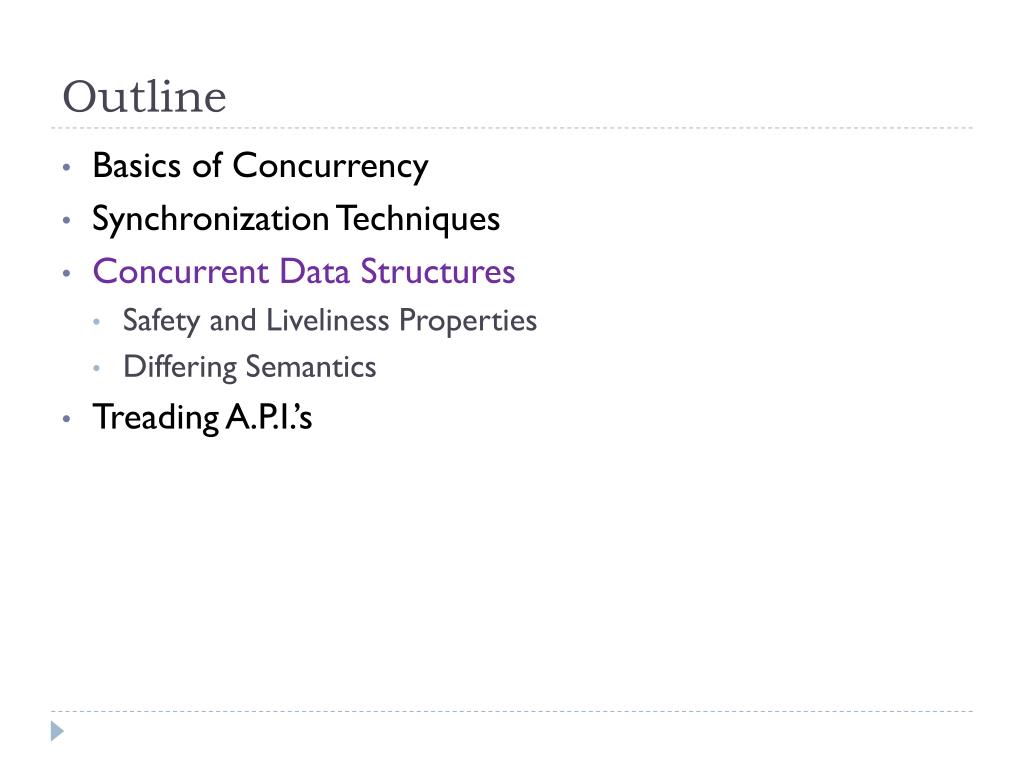

outline2
Outline
  • Basics of Concurrency
  • Synchronization Techniques
  • Concurrent Data Structures
    • Safety and Liveliness Properties
    • Differing Semantics
  • Treading A.P.I.’s
concurrent data structures

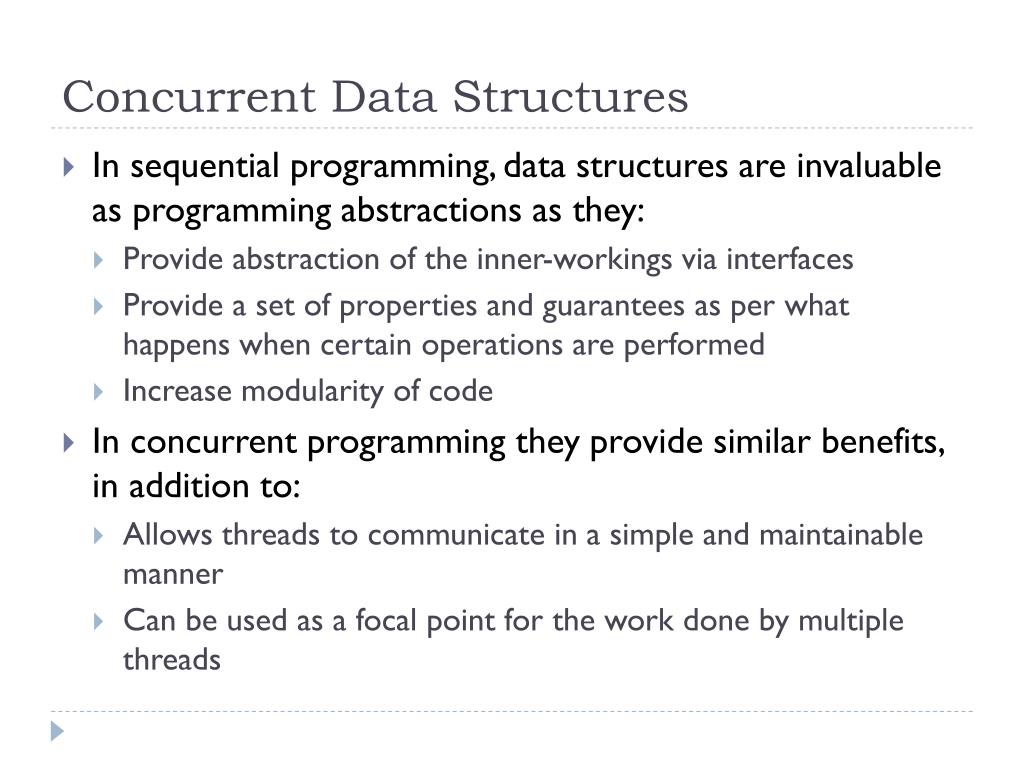

Concurrent Data Structures
  • In sequential programming, data structures are invaluable as programming abstractions as they:
    • Provide abstraction of the inner-workings via interfaces
    • Provide a set of properties and guarantees as per what happens when certain operations are performed
    • Increase modularity of code
  • In concurrent programming they provide similar benefits, in addition to:
    • Allows threads to communicate in a simple and maintainable manner
    • Can be used as a focal point for the work done by multiple threads
safety and liveliness properties
Safety and Liveliness Properties
  • Safety
    • Assures that ‘nothing bad will happen’, for example, two calls to the ‘push’ function of a stack should result in two elements being added to the stack
  • Liveliness
    • Assures that progress continues
    • Deadlock
    • Livelock
    • Starvation
    • All bad!
differing semantics
Differing Semantics
  • Structures must share properties and guarantees with the sequential versions which they mimic, thus their operations must be deterministic (with a few exceptions)
  • Semantics of use and implementation differ greatly purely due to the concurrent environment
  • Example:
  • The result obtained from popping the stack is non-deterministic, even though the implementation of the interfaces themselves are deterministic
differing semantics1

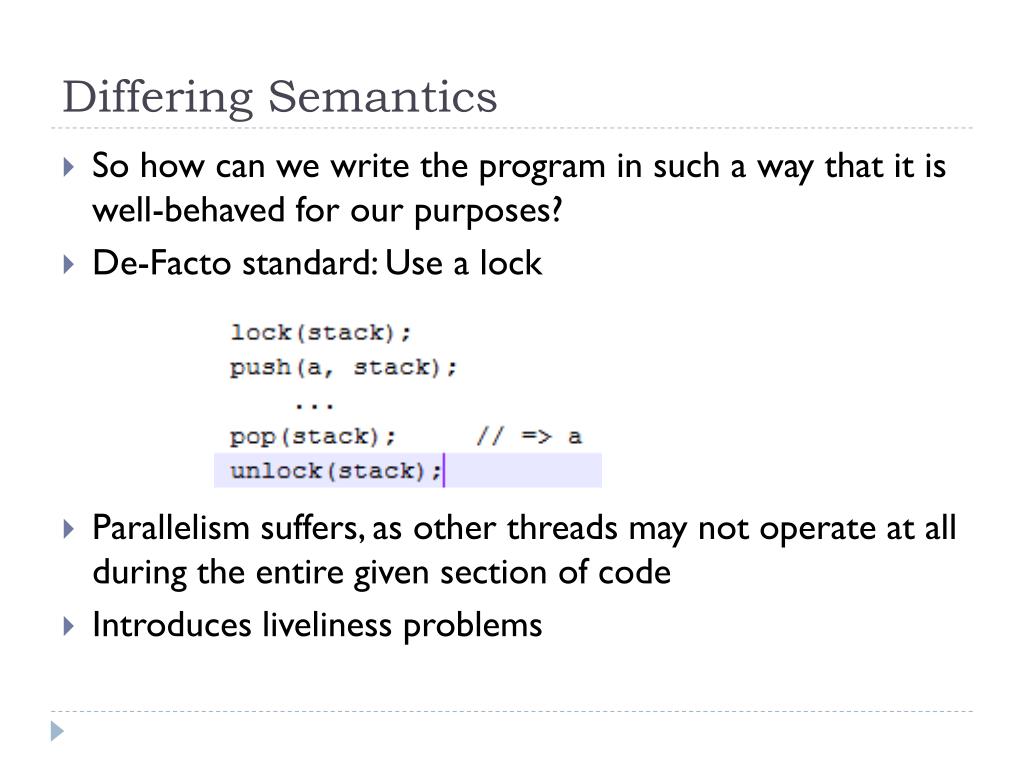

Differing Semantics
  • So how can we write the program in such a way that it is well-behaved for our purposes?
  • De-Facto standard: Use a lock
  • Parallelism suffers, as other threads may not operate at all during the entire given section of code
  • Introduces liveliness problems

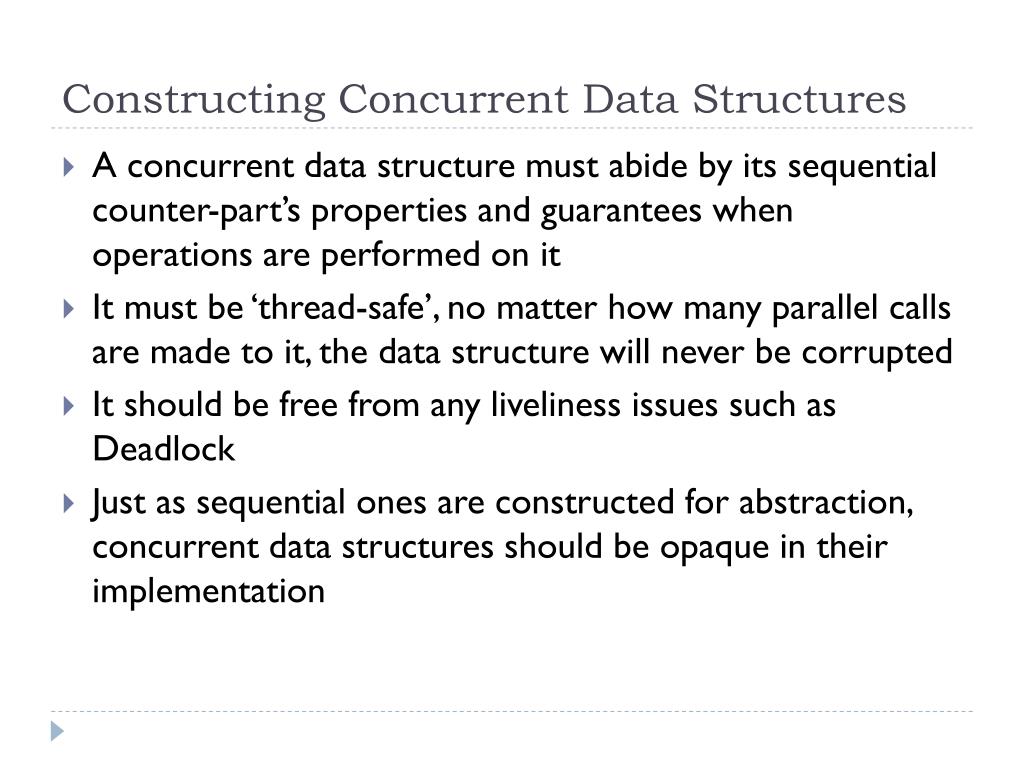

constructing concurrent data structures
Constructing Concurrent Data Structures
  • A concurrent data structure must abide by its sequential counter-part’s properties and guarantees when operations are performed on it
  • It must be ‘thread-safe’, no matter how many parallel calls are made to it, the data structure will never be corrupted
  • It should be free from any liveliness issues such as Deadlock
  • Just as sequential ones are constructed for abstraction, concurrent data structures should be opaque in their implementation

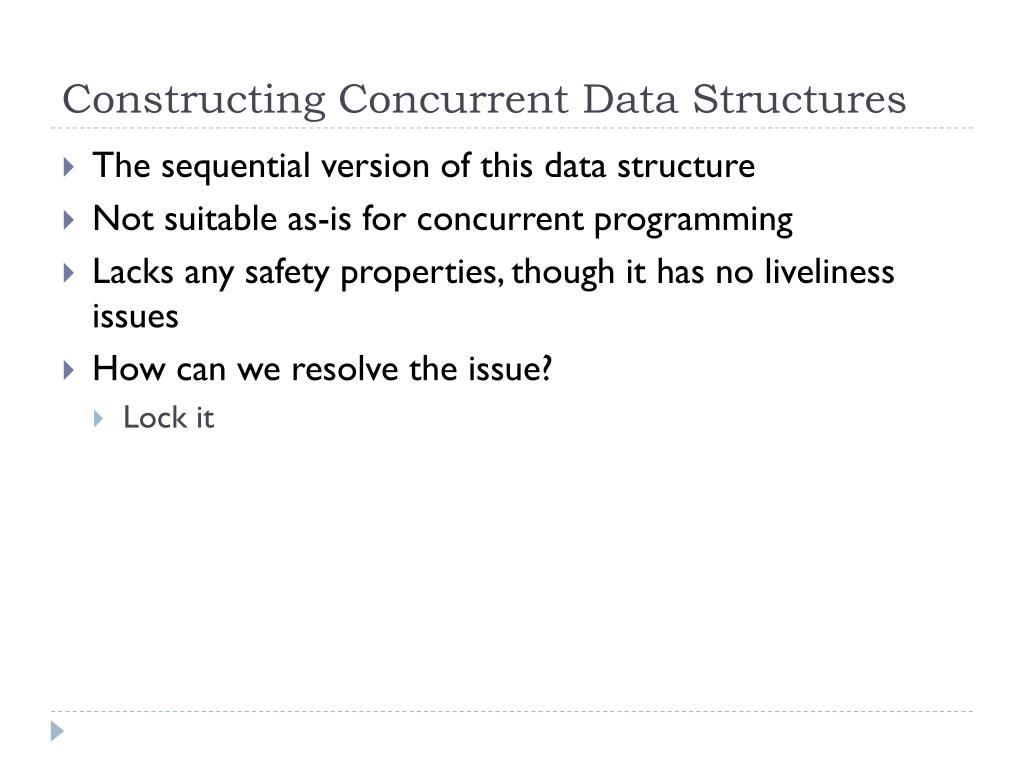

constructing concurrent data structures2
Constructing Concurrent Data Structures
  • The sequential version of this data structure
  • Not suitable as-is for concurrent programming
  • Lacks any safety properties, though it has no liveliness issues

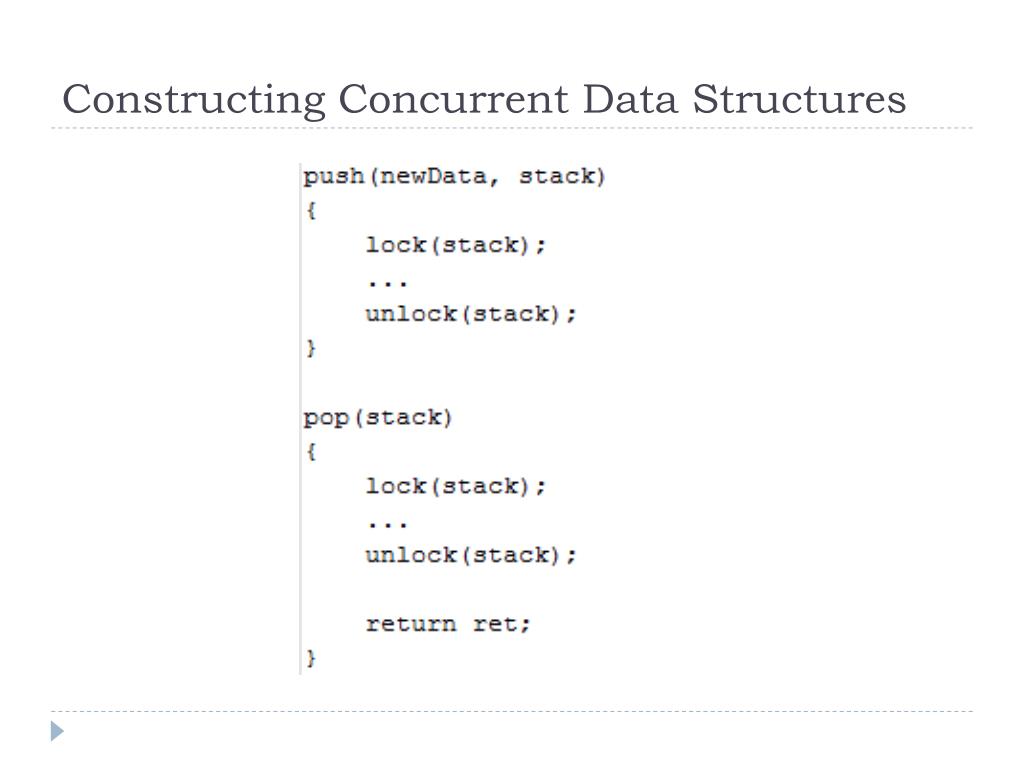

  • How can we resolve the issue?
    • Lock it

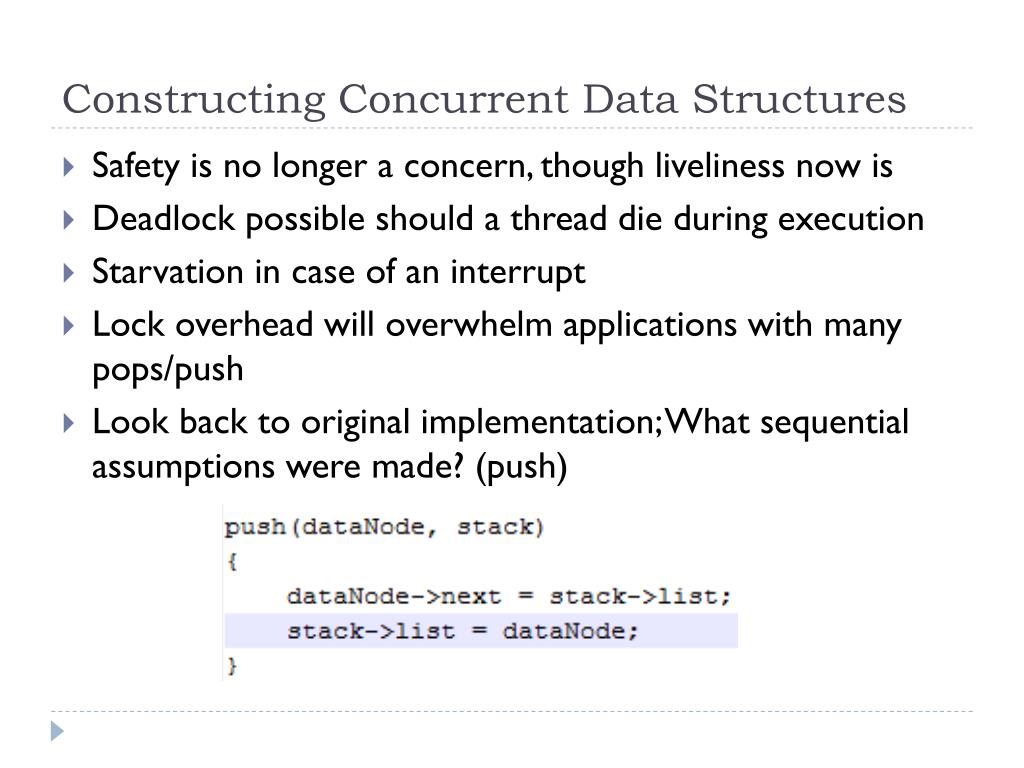

constructing concurrent data structures4
Constructing Concurrent Data Structures
  • Safety is no longer a concern, though liveliness now is
  • Deadlock possible should a thread die during execution
  • Starvation in case of an interrupt
  • Lock overhead will overwhelm applications with many pops/push
  • Look back to original implementation; What sequential assumptions were made? (push)
constructing concurrent data structures5

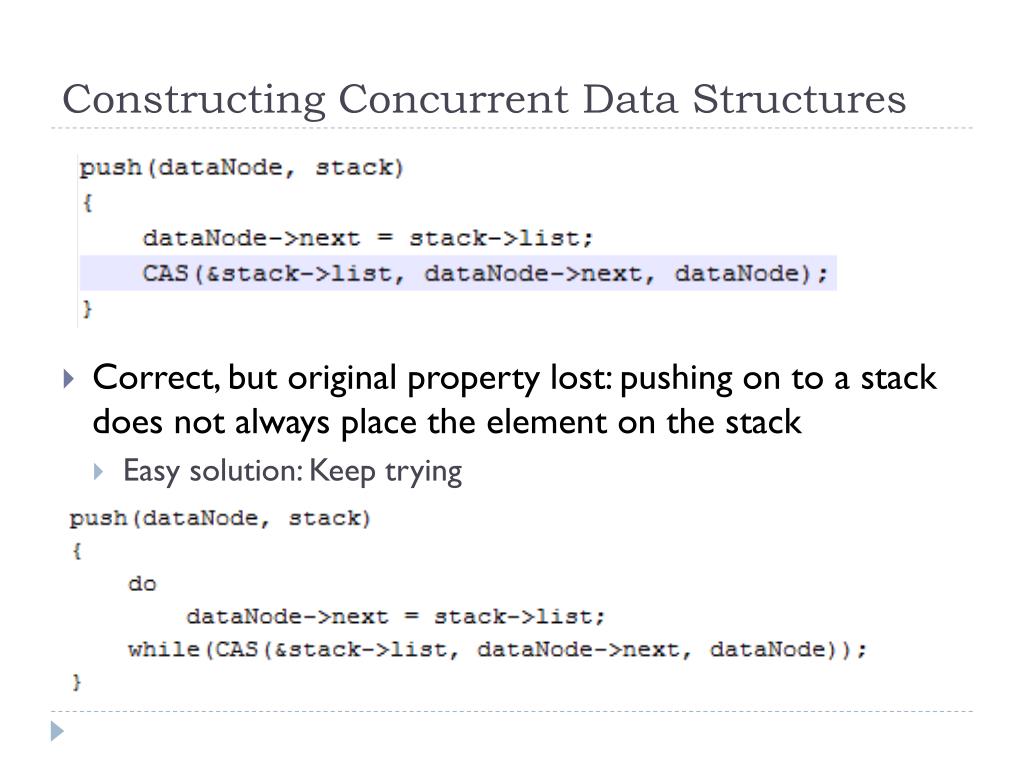

Constructing Concurrent Data Structures
  • Correct, but original property lost: pushing on to a stack does not always place the element on the stack
    • Easy solution: Keep trying

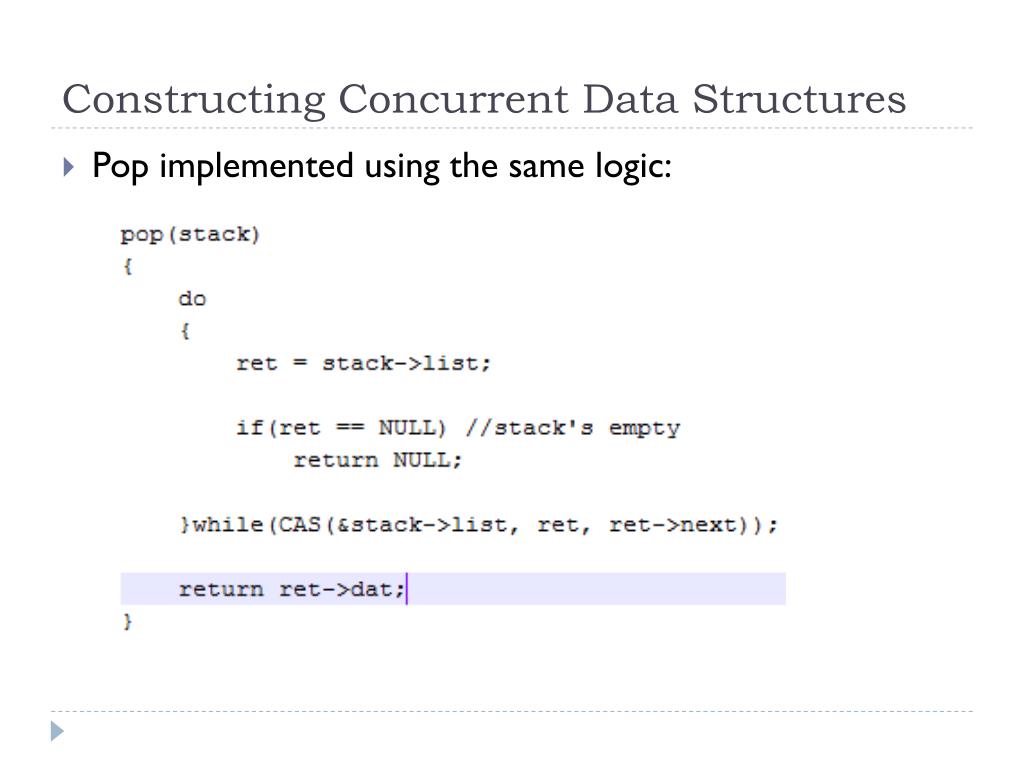

constructing concurrent data structures6
Constructing Concurrent Data Structures
  • Pop implemented using the same logic:
outline3
Outline
  • Basics of Concurrency
  • Synchronization Techniques
  • Concurrent Data Structures
  • Treading A.P.I.’s
    • pthreads
    • M.C.A.S., W.S.T.M., O.S.T.M.

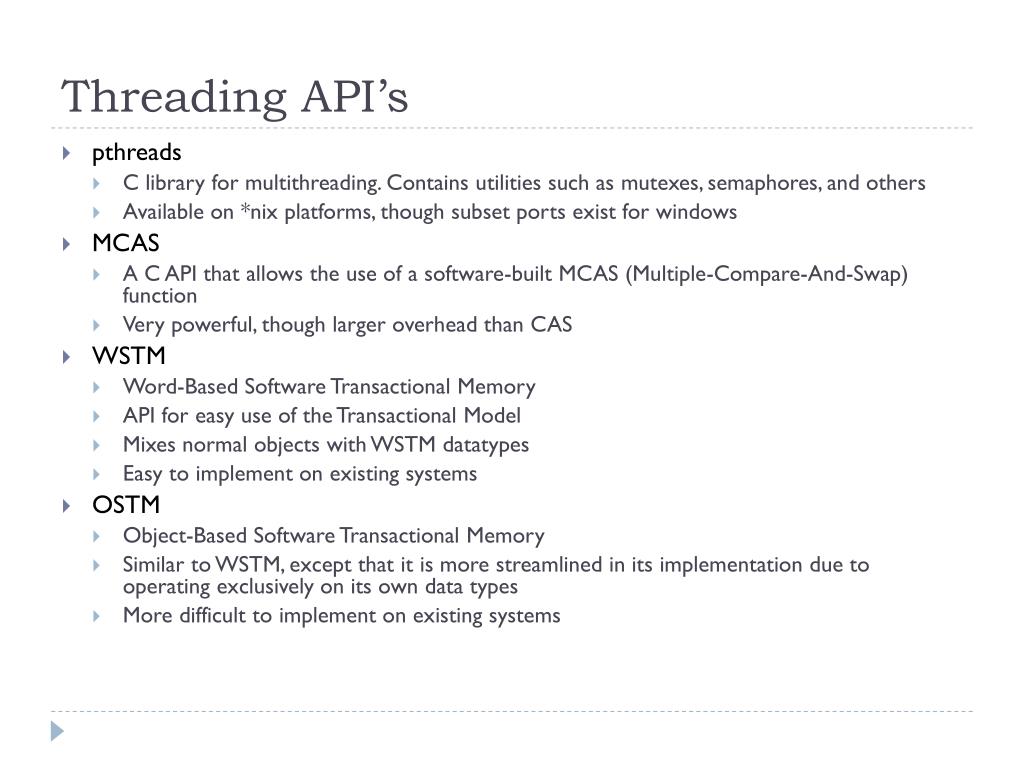

threading api s
Threading API’s
  • pthreads
    • C library for multithreading. Contains utilities such as mutexes, semaphores, and others
    • Available on *nix platforms, though subset ports exist for windows
  • MCAS
    • A C API that allows the use of a software-built MCAS (Multiple-Compare-And-Swap) function
    • Very powerful, though larger overhead than CAS
  • WSTM
    • Word-Based Software Transactional Memory
    • API for easy use of the Transactional Model
    • Mixes normal objects with WSTM datatypes
    • Easy to implement on existing systems
  • OSTM
    • Object-Based Software Transactional Memory
    • Similar to WSTM, except that it is more streamlined in its implementation due to operating exclusively on its own data types
    • More difficult to implement on existing systems
refferences
Refferences
  • Concurrent Programming Without Locks
    • http://research.microsoft.com/en-us/um/people/tharris/papers/2007-tocs.pdf
    • MCAS, WSTM, OSTM implemented in paper
  • The art of Pultiprocessor Programming
    • By Maurice Herlihy, NirShavit
    • http://books.google.com/books?id=pFSwuqtJgxYC&printsec=frontcover#v=onepage&q&f=false
  • DCAS is not a Silver Bullet for Nonblocking Algorithm Design
    • http://labs.oracle.com/scalable/pubs/SPAA04.pdf
