Presentation Transcript
slide1

Industrial Video Surveillance

Prepared by: Scott Fu

Date: 2010-4-27

Confidential

slide2

IP Video

Digital Video

Intelligence

NVR

IP Camera

Video Server

DVR

Analog Video

Digitalization Immigration

CCTV

Networking

Confidential

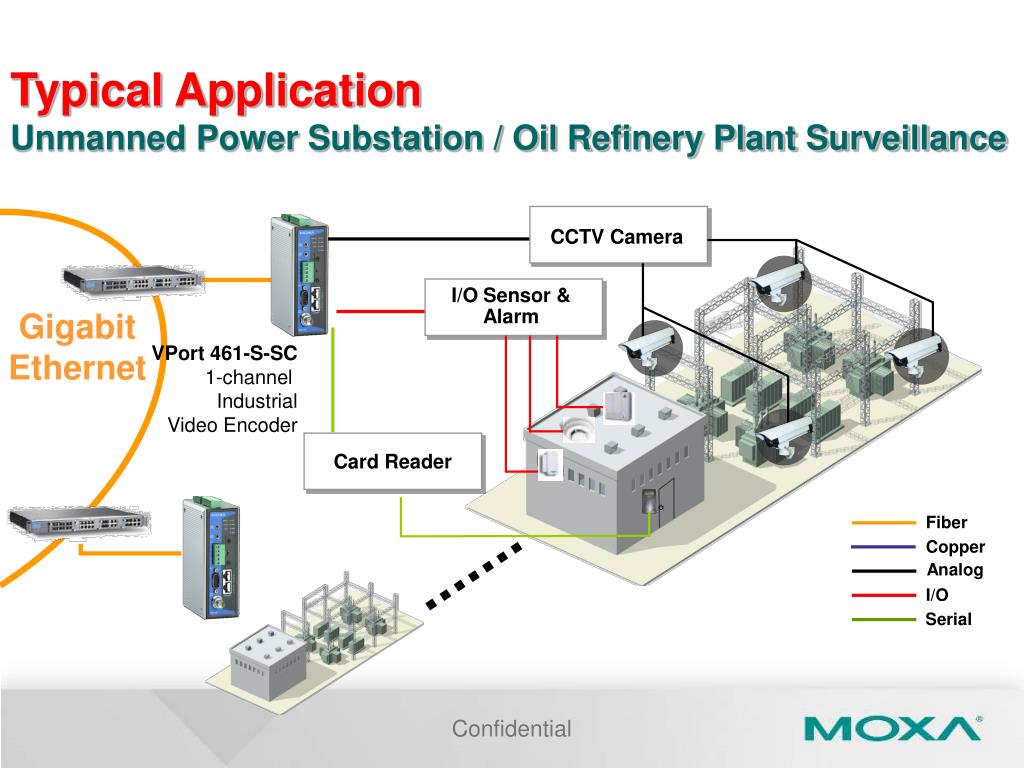

typical application unmanned power substation oil refinery plant surveillance

I/O Sensor &

Alarm

Fiber

Copper

Analog

I/O

Serial

Typical ApplicationUnmanned Power Substation / Oil Refinery Plant Surveillance

CCTV Camera

GigabitEthernet

VPort 461-S-SC

1-channel

Industrial

Video Encoder

Card Reader

Confidential

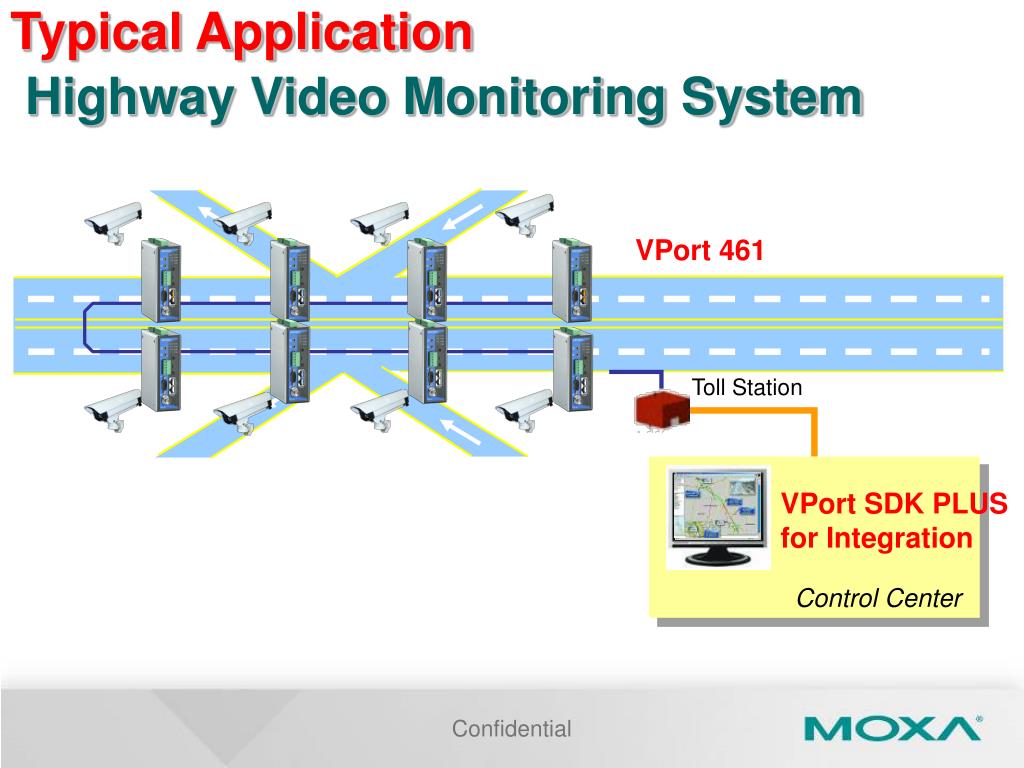

typical application highway video monitoring system
Typical ApplicationHighway Video Monitoring System

VPort 461

Toll Station

VPort SDK PLUS

for Integration

Control Center

Confidential

yokogawa video pop scenario

(6)Popup(IE Browser)

(2)Alarm via OPC

(7)Redirect to Video Server

(3)Call PTZ Preset

Yokogawa video pop scenario

FVSS and OPC Interface PC

HIS Console

YOKOGAWA

CENTUM VP/PROSAFE RS

Ethernet, TCP/IP,

1. ALARM!

Video

Server

2. Smoke/Fire alarm triggered. Alarm system detected.

3. Alarm send to FVSS via OPC interface PC.

4. FVSS commands camera movement via FVS

5. Camera moves to fire location

6. HIS video auto “pop-up” connect to OPC

interface PC

7. OPC interface PC redirect to video server

and show live video

Camera

Confidential

fvss field video streaming server
FVSS (Field Video Streaming Server)

Video pop – Live viewer

Video pop - login

Video pop – PTZ control

Confidential

Confidential

slide8

Field PTZ Camera

Confidential

abb china alarm video solution
ABB China – Alarm Video Solution

Freelance 800F

Video Stream

PTZ Control

OPC AE/DA/HDA Server

Browsing Web Page

via VPort ActiveX SDK

Web

Server

OPC client

to ABB

Freelance

800F

Control Logic:

(1) Get Alarm tag & Check the Camera

(2) Generate Video Alarm Web Page

(3) Allocate the management UI

- OPC /Alarm Tag Table

- Video Server IP & PTZ Preset Table

- Tag & Video Table

Confidential

moxa industrial video networking portfolio

PTZ

VPort 36

Preliminary

Fixed

VPort 26-2MP

Preliminary

VPort 25

IA Version

SoftNVR-IA V2.0

Preliminary

Compact

VPort 16

Preliminary

SoftNVR-IA V1.0

Preliminary

VPort 15

c

IP Camera

c

Software

MOXA Industrial Video Networking Portfolio

Platform

IA

VPort 704

Preliminary

VPort 7304

Preliminary

Multi-Service Gateway

MxNVR-IA8

Preliminary

c

NVR

Advanced

VPort 461

VPort 451

Preliminary

VPort 364

Preliminary

VPort 354

Entry

VPort 351

/D351

VPort D361

Preliminary

VPort 254

Video Server

Confidential

industrial video server
Industrial Video Server

VPort 364 series

Excellent video quality,

4-channel H.264 Industrial Video Encoder

VPort 451 series

Multiple video streams,

1-channel MPEG4/ MJPEG Industrial Video Encoder

VPort D361

1-channel H.264/ MJPEG Industrial Video Encoder

Confidential

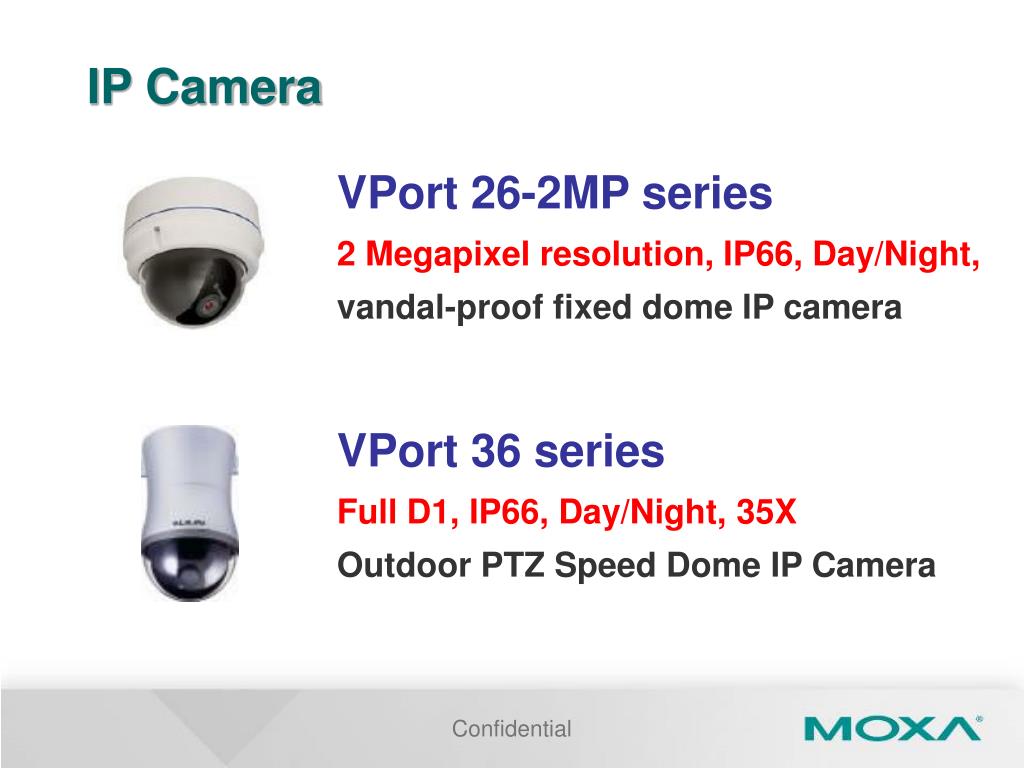

ip camera
IP Camera

VPort 26-2MP series

2 Megapixel resolution, IP66, Day/Night,

vandal-proof fixed dome IP camera

VPort 36 series

Full D1, IP66, Day/Night, 35X

Outdoor PTZ Speed Dome IP Camera

Confidential

industrial multi service gateway vport 704 vpm 7304 7704

Railways

Device

Server

Module

Gigabit Ethernet

Industrial Multi-Service Gateway VPort 704, VPM-7304/ 7704

Video EncoderModule

Oil/ Gas

Available in Q2

Confidential

industrial network video recorder
Industrial Network Video Recorder

MxNVR-IA8

8-ch network video recorder for distributedapplications

  • 8 channels with [email protected] 30FPS
  • Local video recording
  • Remote live view & playback
  • 2x2.5” SATAII Hard Disk interface
  • Modbus TCP supported
  • 2 Gigabit Ethernet ports
  • 2 serial ports , DI/O supported
  • Operating Temperature up to -40 to 75 °C

(EOT model need to install with SSD for storage)

Automation Purpose

Reference Product Graphic

Preliminary

Confidential

ip surveillance software

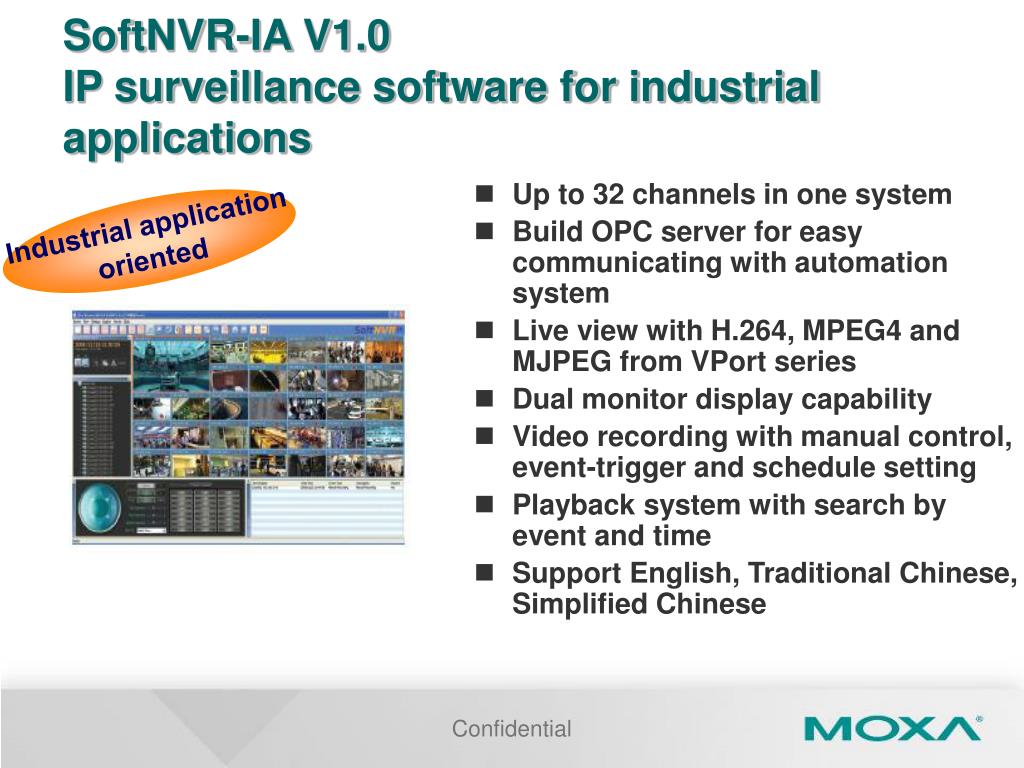

IP Surveillance Software

SoftNVR-IA

32-ch IP surveillance software for automation applications

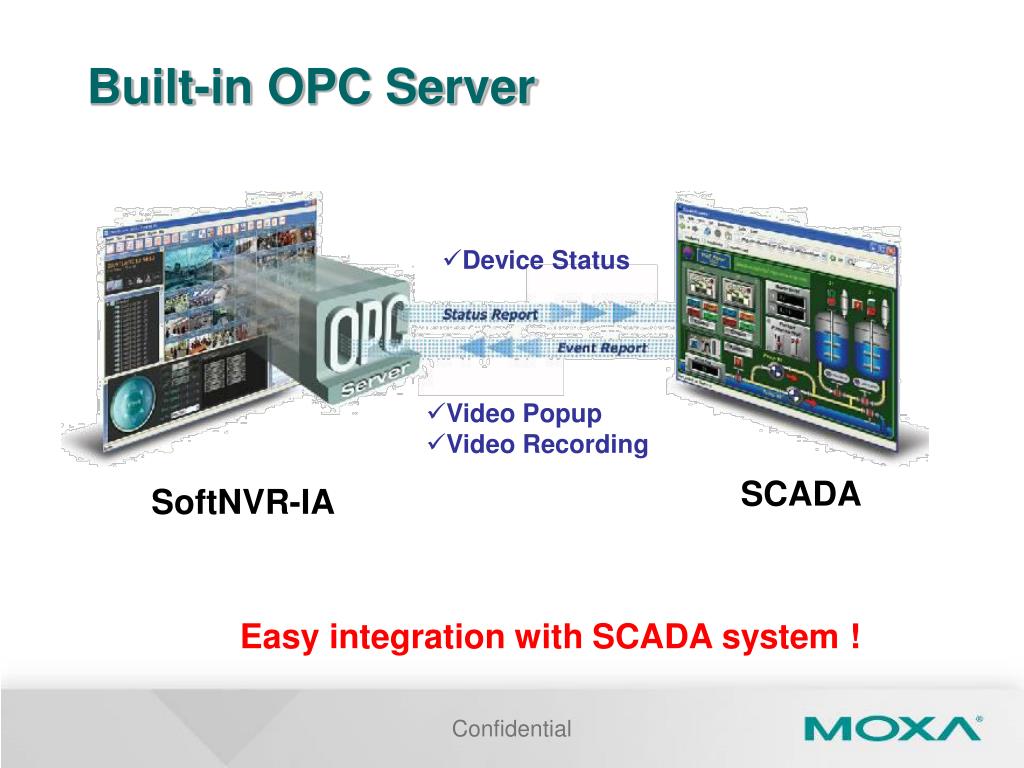

  • Build-in OPC server
  • Up to 32 channels
  • Live view
  • Dual monitor display capability
  • Video recording
  • Playback
  • User privileges

Confidential

vport 364 sata interface

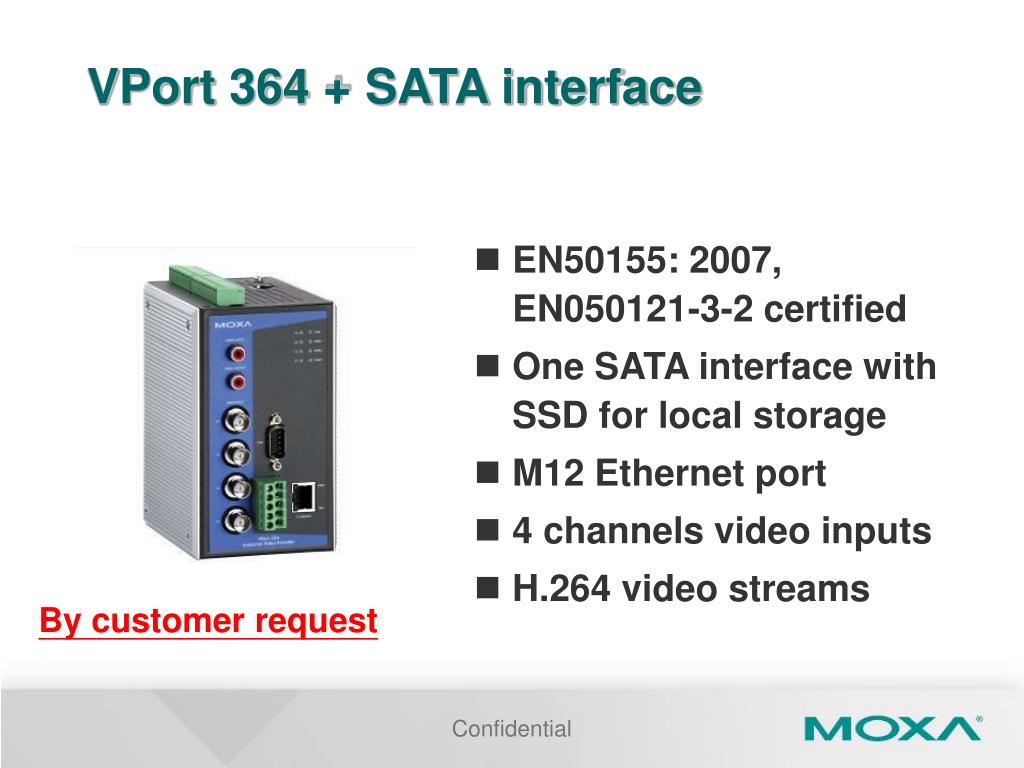

VPort 364 + SATA interface
  • EN50155: 2007, EN050121-3-2 certified
  • One SATA interface with SSD for local storage
  • M12 Ethernet port
  • 4 channels video inputs
  • H.264 video streams

By customer request

Confidential

moxa vport 461 1 channel h 264 industrial video encoder

MOXA VPort 4611-channel H.264 Industrial Video Encoder

The best-fit solution for mission critical video surveillance

Confidential

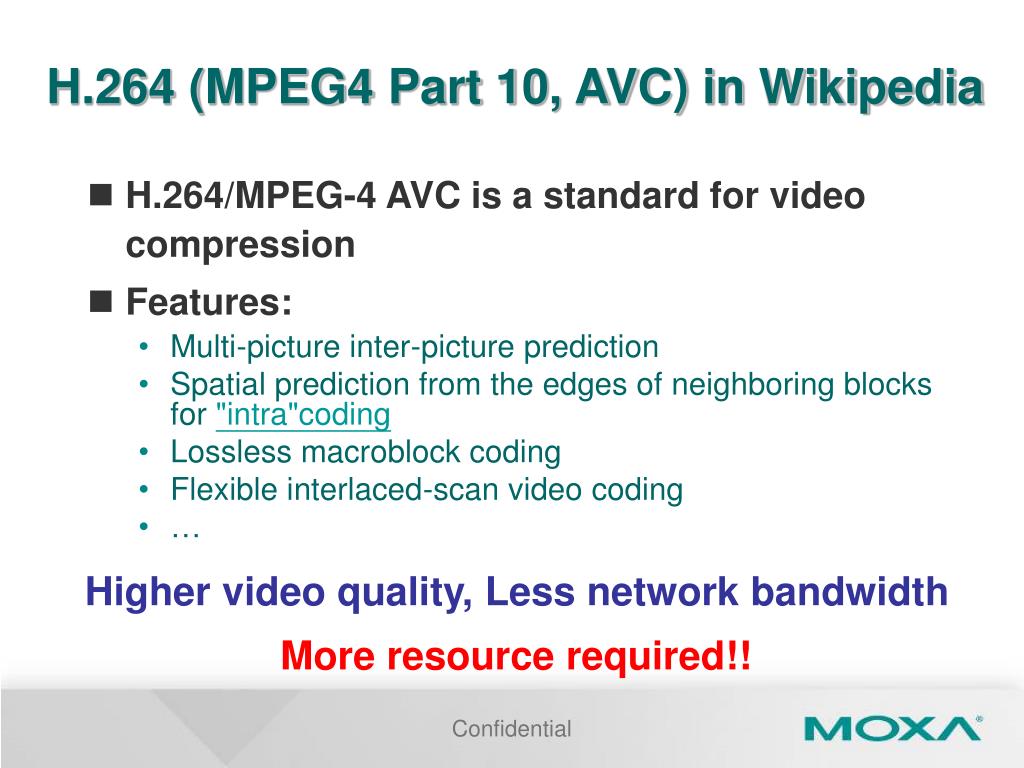

h 264 mpeg4 part 10 avc in wikipedia
H.264 (MPEG4 Part 10, AVC) in Wikipedia
  • H.264/MPEG-4 AVC is a standard for video compression
  • Features:
    • Multi-picture inter-picture prediction
    • Spatial prediction from the edges of neighboring blocks for "intra"coding
    • Lossless macroblock coding
    • Flexible interlaced-scan video coding

Higher video quality, Less network bandwidth

More resource required!!

Confidential

video streams
Video streams

Confidential

popularity
Popularity

Life @ H.264 Video

Confidential

vport 461 series excellent video quality 1 channel h 264 industrial video encoder

H.264

VPort 461 seriesExcellent Video Quality, 1-channel H.264 industrial video encoder
  • Dual codecs with H.264 and MJPEG
  • Provide 3 video streams simultaneously
  • Low latency < 200 ms
  • 2 Ethernet ports for cascade and Ethernet port redundancy
  • Local storage capability (SD) for video recording once network is down
  • Support Modbus/TCP for easy SCADA communication
  • Support 1 COM port for serial-to-Ethernet communication
  • Optional -40 to 75°C (-T) Model
  • CE, FCC, UL508 (Pending)

Industrial

Rugged Design

Confidential

product models
Product Models

2 RJ45

Ethernet ports

  • Current Model
    • VPort 461
    • VPort 461-T
  • Future Model
    • VPort 461-M-SC
    • VPort 461-S-SC
    • VPort 461-M-SC-T
    • VPort 461-S-SC-T

1 Fiber

Ethernet port

Confidential

industrial rugged design for harsh environment
Industrial rugged design for harsh environment

Redundant Power Inputs

SD card slot for local storage

DIN-Rail Mounting

IP30 Protection

2 Ethernet ports for cascade and redundancy

One RS-232/ 422/485 COM port for serial-to-Ethernet connectivity

Confidential

40 to 75 c operating temperature

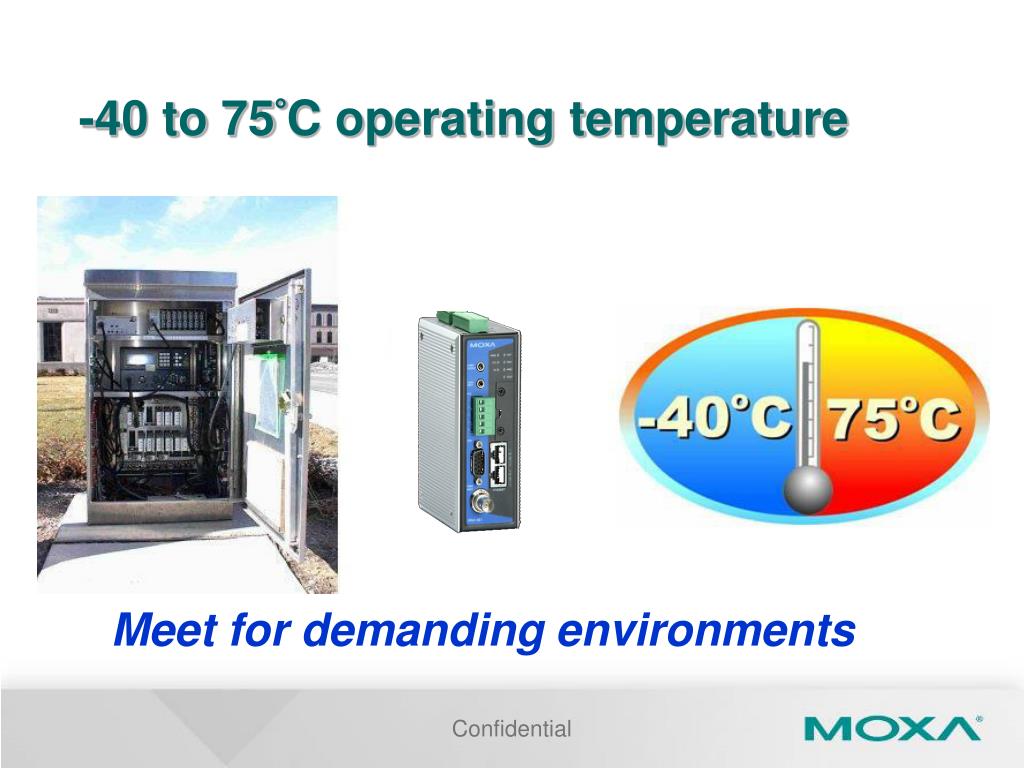

-40 to 75°C operating temperature

Meet for demanding environments

Confidential

industrial safety approvals for mission critical environment
Industrial safety & approvals for mission critical environment
  • Industrial Safety (Pending)
    • UL 508
  • EMI
    • FCC Part 15 Class A, EN55022 Class A
  • EMC
    • EN55024, EN61000-6-1, EN 61000-4-2, EN 61000-4-3
    • EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
    • EN 61000-4-11,
  • Mechanical Stability
    • IEC 60068-2-27 shock, IEC 60068-2-6 vibration
    • IEC 60068-2-32 Free Fall

Confidential

2 way audio for voip like communication

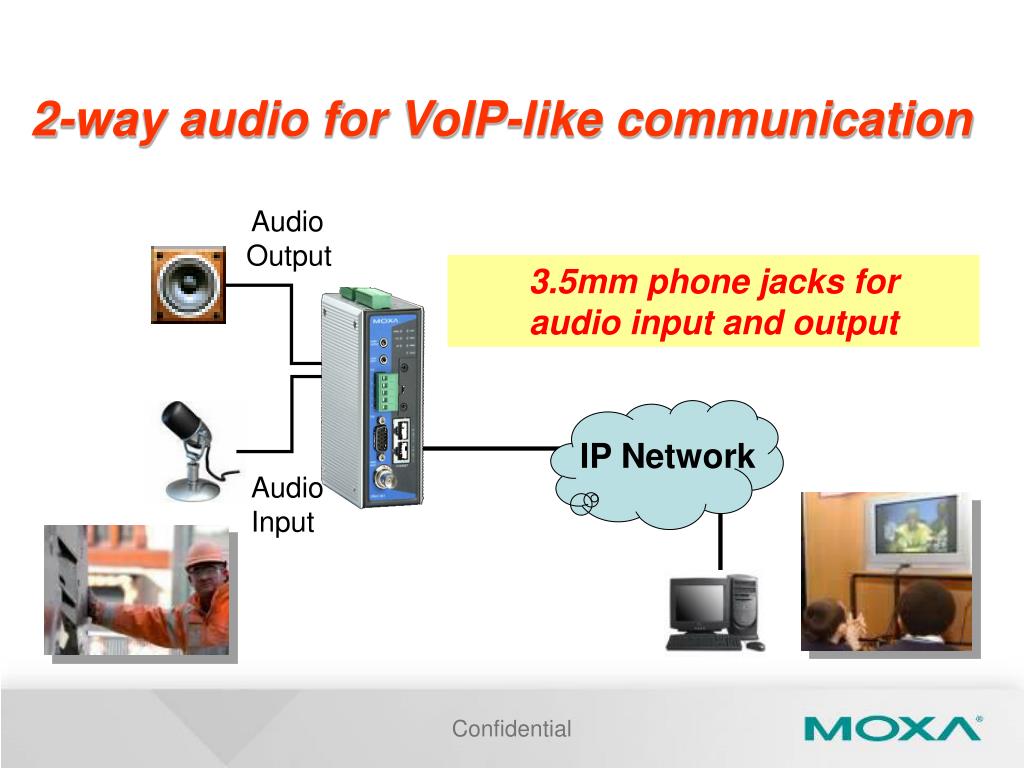

2-way audio for VoIP-like communication

Audio

Output

3.5mm phone jacks for audio input and output

IP Network

Audio

Input

Confidential

3 video streams for different application purposes

720x480 @ 30FPS

H.264

Video

Live

View

Analog

Video

MJPEG

Video

720x480 @ 10FPS

Video

Analysis

[email protected] 10FPS

H.264

Video

Video

Record

3 Video Streams for different application purposes

Engine 1

Engine 2

Confidential

low latency 200 ms

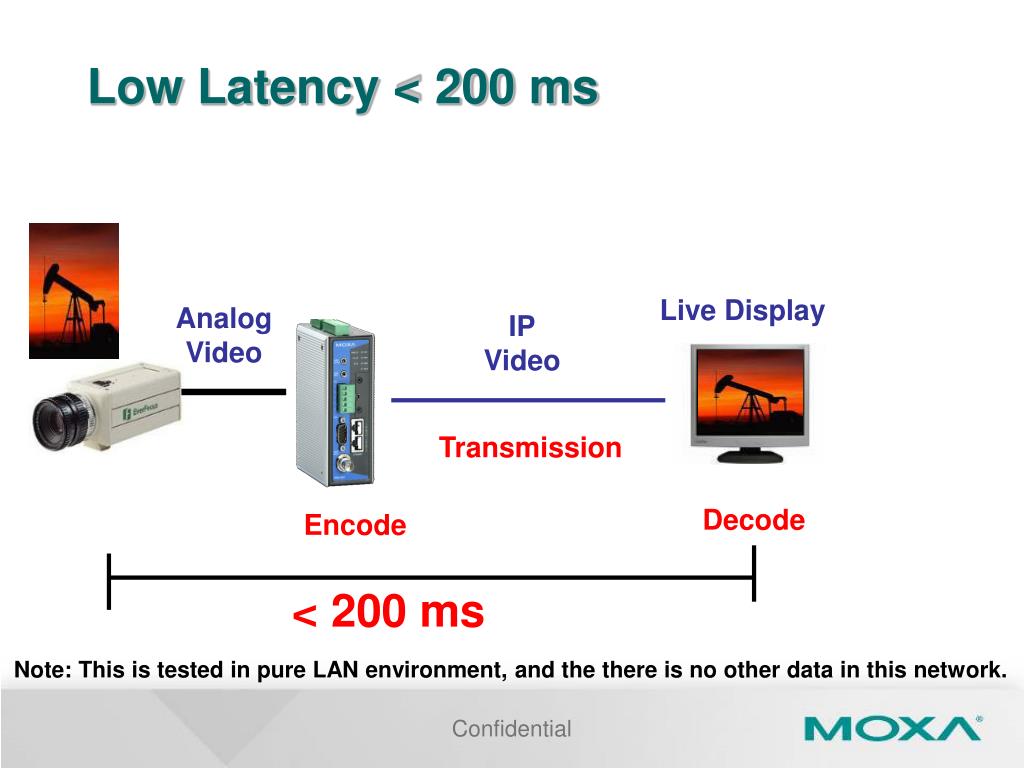

Low Latency < 200 ms

Live Display

Analog

Video

IP

Video

Transmission

Decode

Encode

< 200 ms

Note: This is tested in pure LAN environment, and the there is no other data in this network.

Confidential

2 ethernet ports application cascade link daisy chain
2 Ethernet ports application-- Cascade link (Daisy Chain)

Cascade (daisy) Chain

Cut down switch port requirements

Confidential

2 ethernet ports application port redundancy
2 Ethernet ports application-- Port Redundancy

Backup Path

Primary Path

Increase the transmission safety

Confidential

2 ethernet ports application connect with one ethernet device
2 Ethernet ports application-- Connect with one Ethernet Device

TCP/IP

Network

Ethernet I/O

Save the field switch requirement

Confidential

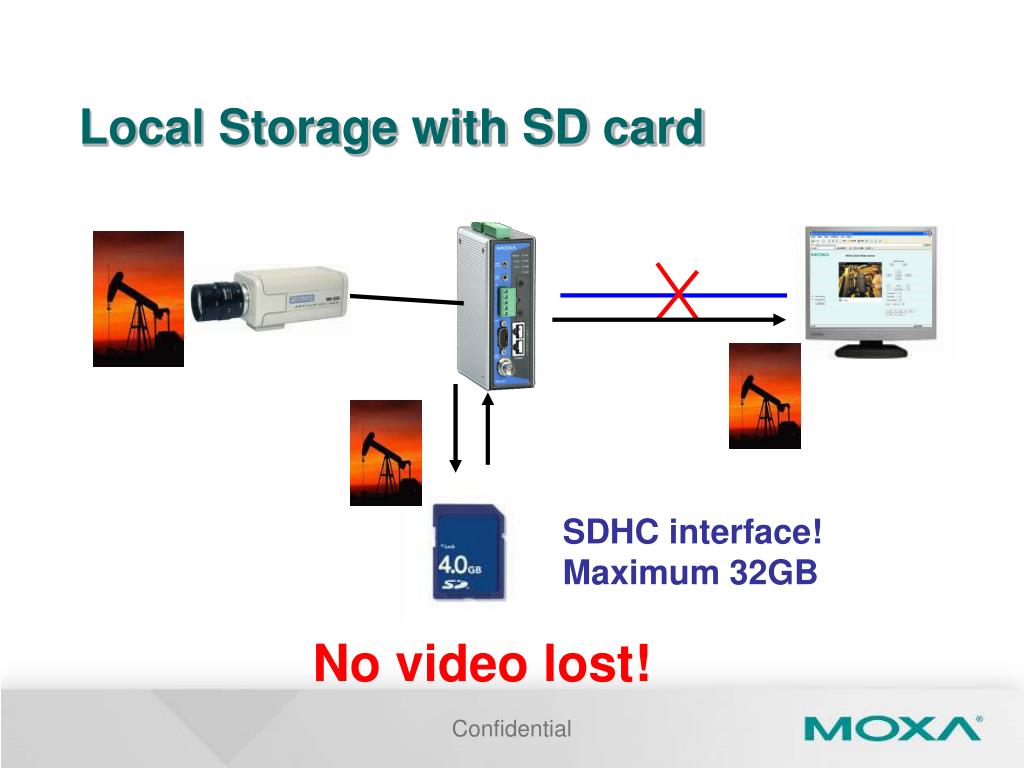

local storage with sd card
Local Storage with SD card

SDHC interface!

Maximum 32GB

No video lost!

Confidential

one com port for serial to ethernet communication
One COM port for Serial-to-Ethernet communication

CCTV

Ethernet

Analog Camera

RS-232/422/485

  • 3-in-1 RS-232/422/485 port
  • Operating mode
    • Real COM
    • TCP Server
    • TCP Client

Serial Device

Confidential

transparent ptz control via ethernet
Transparent PTZ control via Ethernet

VPort D361

Video Decoder

VPort 461

Video Encoder

PTZ camera

Joystick and

control panel

Ethernet

RS-485

PC

RS-232 or RS-485

(Real COM driver required)

Confidential

12 24vdc and 24 vac redundant power inputs
12/24VDC and 24 VAC redundant power inputs
  • Dual 12/24 VDC and 24 VAC power inputs for redundant purpose
  • Power Input
  • Unregulated
  • +12 to +32VDC
  • +18 to +30VAC
  • Power Reverse

Protection

PWR1

DIN-Rail

+24V Power Supply

PWR2

Back-up

Power Supply

Confidential

power failure warning alarm

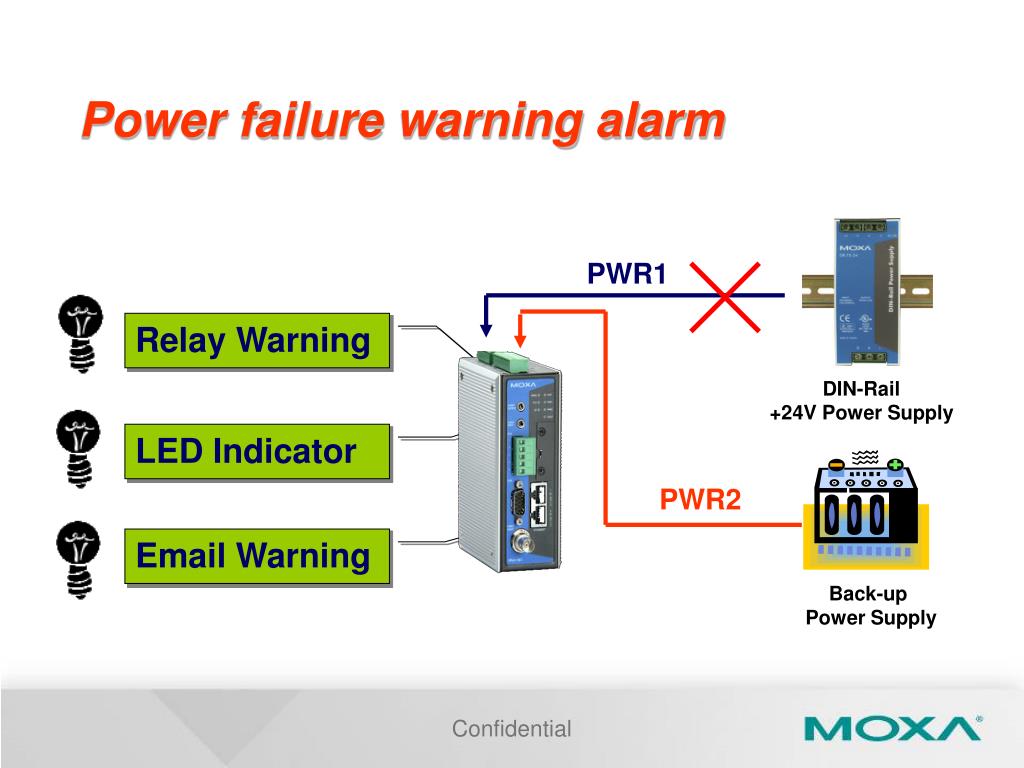

Power failure warning alarm

PWR1

Relay Warning

DIN-Rail

+24V Power Supply

LED Indicator

PWR2

Email Warning

Back-up

Power Supply

Confidential

system event alarms for intelligent video management
System & event alarmsfor intelligent video management

Triggered

Condition

Triggered

Action

System Fault

Event Fault

E-mail

Power

Failure

VMD

(Video Motion Detection)

X

FTP

Video

Lost

Relay

Alarm

DI Sensor

X

X

Comm.

Fail

Confidential

3 area selectable vmd video motion detection
3 area-selectable VMD (Video Motion Detection)

Detect the change of objects in the images to decide triggering alarm or not

HTTP

Event

Server

E-mail

VMD Trigger

FTP

Relay

Alarm

* VMD Alarm will be supported after V2.0 Firmware

Confidential

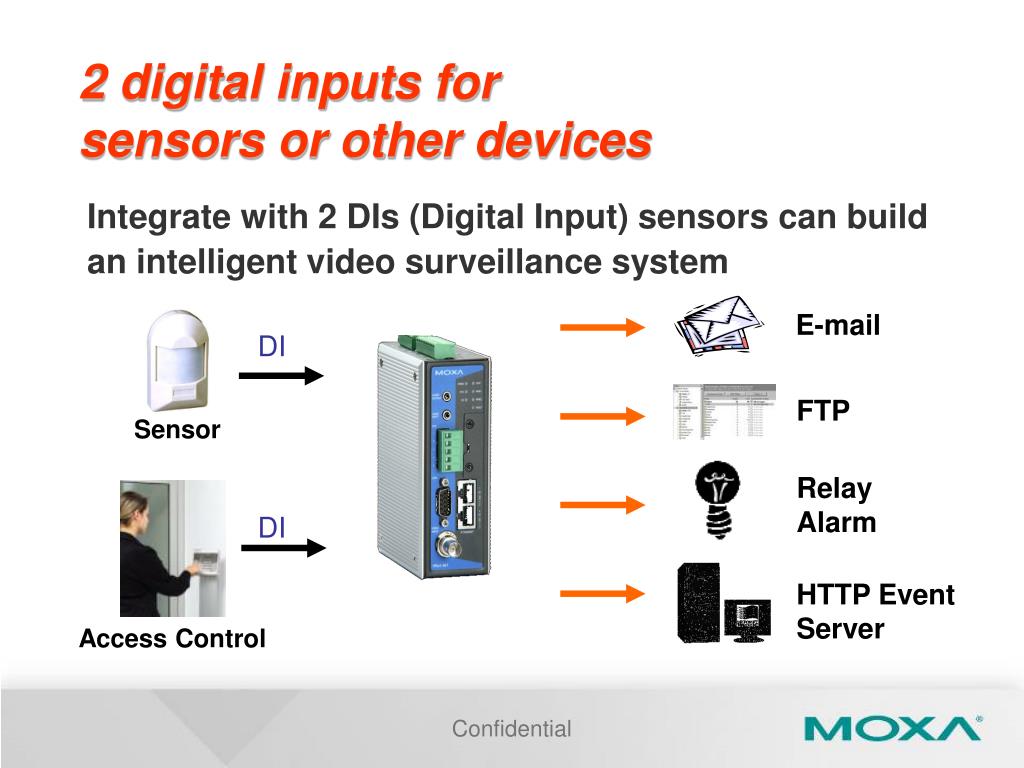

2 digital inputs for sensors or other devices
2 digital inputs for sensors or other devices

Integrate with 2 DIs (Digital Input) sensors can build an intelligent video surveillance system

E-mail

DI

FTP

Sensor

Relay

Alarm

DI

HTTP Event

Server

Access Control

Confidential

triggered actions for alarm warning

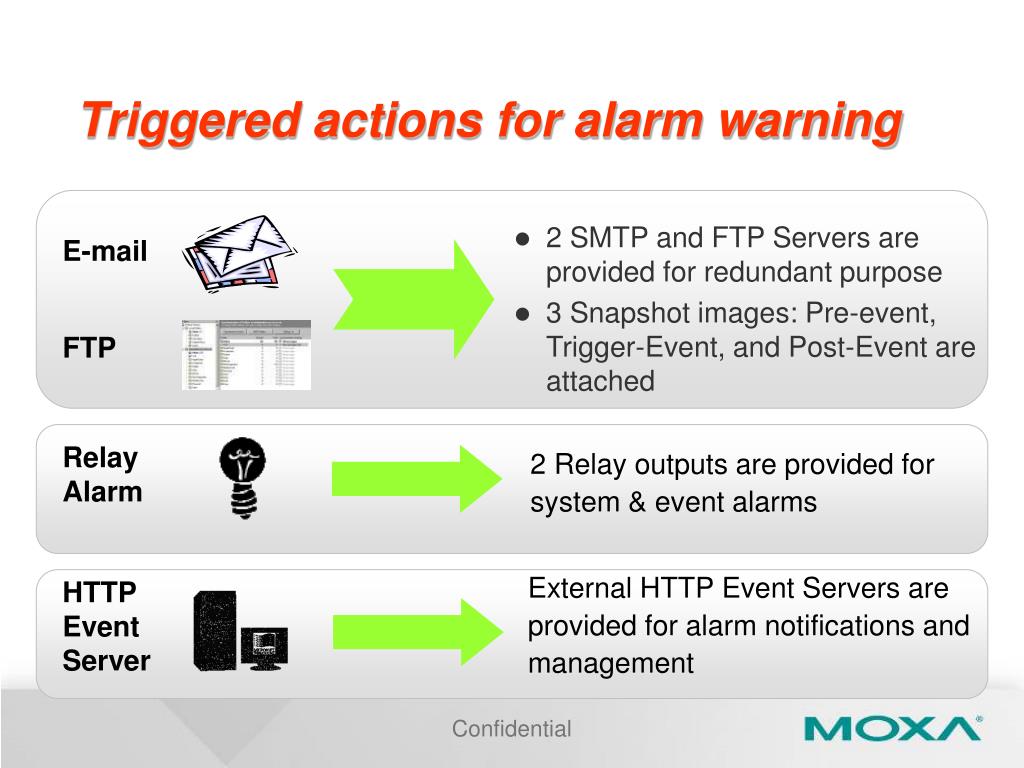

Triggered actions for alarm warning
  • 2 SMTP and FTP Servers are provided for redundant purpose
  • 3 Snapshot images: Pre-event, Trigger-Event, and Post-Event are attached

E-mail

FTP

Relay

Alarm

2 Relay outputs are provided for system & event alarms

External HTTP Event Servers are provided for alarm notifications and management

HTTP Event

Server

Confidential

url cgi commands for customized web attraction

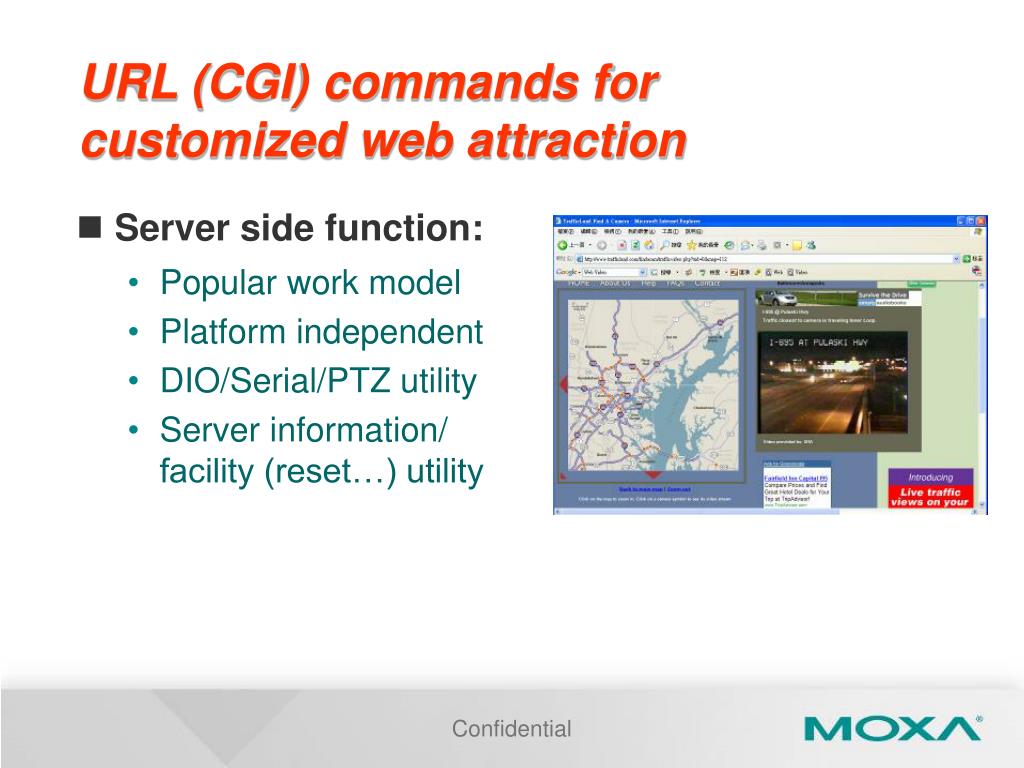

URL (CGI) commands for customized web attraction
  • Server side function:
    • Popular work model
    • Platform independent
    • DIO/Serial/PTZ utility
    • Server information/facility (reset…) utility

Confidential

imagine the active scenario

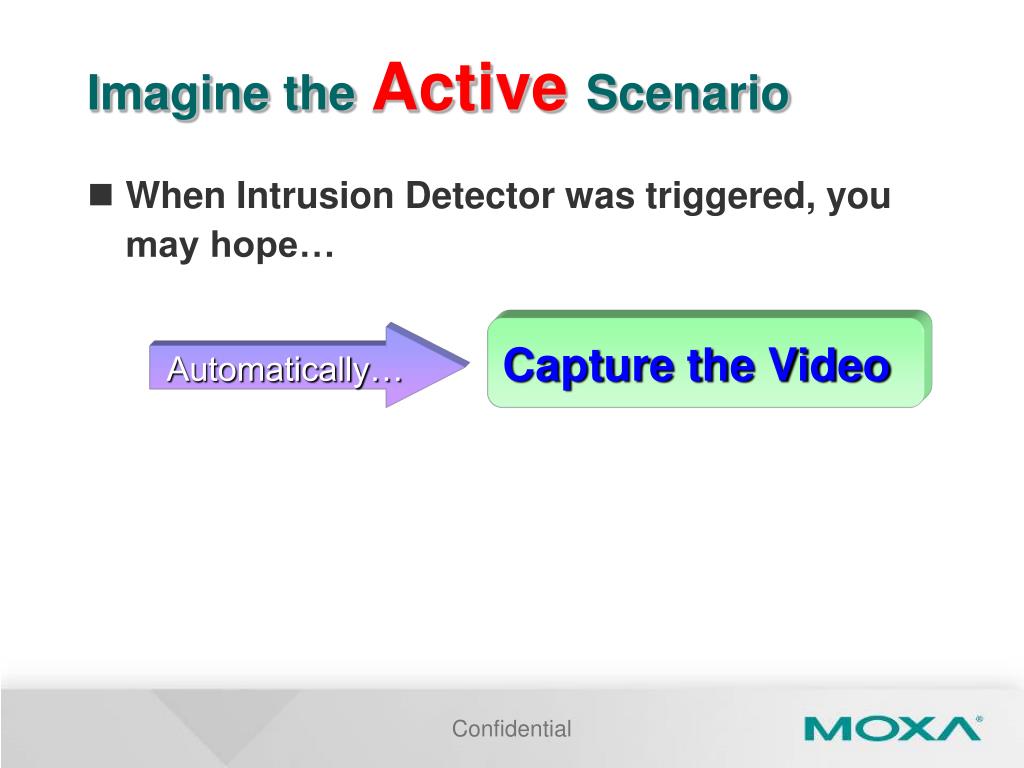

Imagine the Active Scenario
  • When Intrusion Detector was triggered, you may hope…

Capture the Video

Automatically…

Confidential

complete front end intelligence
Complete Front-end Intelligence

Surveillance

Software

SCADA

AI

DI

DO

DO

Confidential

ip surveillance solution

AOUT

AOUT

AOUT

AOU

AOU

AOU

BOUT

BOUT

BOUT

IP Surveillance Solution

MX view

Remote

3

CMS/VMS

(Configuration Server / Alarm Server/ Monitor Matrix/ Playback)

LAN/ WAN

2

NVR

(Live view / recording / playback)

Standalone

NVR

1

Video

Transmission

Confidential

softnvr ia v1 0 ip surveillance software for industrial applications
SoftNVR-IA V1.0IP surveillance software for industrial applications
  • Up to 32 channels in one system
  • Build OPC server for easy communicating with automation system
  • Live view with H.264, MPEG4 and MJPEG from VPort series
  • Dual monitor display capability
  • Video recording with manual control, event-trigger and schedule setting
  • Playback system with search by event and time
  • Support English, Traditional Chinese, Simplified Chinese

Industrial application

oriented

Confidential

built in opc server
Built-in OPC Server
  • Device Status
  • Video Popup
  • Video Recording

SCADA

SoftNVR-IA

Easy integration with SCADA system !

Confidential

multiple video format
Multiple video format

1-screen

4-screen

6-screen

9-screen

10-screen

13-screen

16-screen

25-screen

32-screen

Rotate

Full screen

Confidential

dual monitor display
Dual Monitor Display

One Screen for monitor

Other Screen for operation

Confidential

video record
Video Record
  • Manually Control
  • By Events
  • By Schedule
  • Recoding video
    • AVI format
    • Recycle in FIFO

Confidential

playback and search
Playback and Search
  • Simultaneous playback with 4 recorded videos
  • Timeline selection
  • Search by time, camera and event

Confidential

ad
