  1. Power turbines

  2. Power turbines 26/03/99 009666/01 PPT

  3. Gas generator and power turbine 26/03/99 009666/03 PPT

  4. Basic philosophy of power turbines • Long service life / 100,000 hours average design life • For gas generator servicing, power turbine remains in place - alignment is • not disturbed • “Industrial” type construction • Infinite life hydrodynamic bearings • Overhung rotor design - no hot bearings • Cooper pioneered the aeroderivative gas turbine concept • It is now the standard prime mover concept for oil and gas production and • pipeline power 26/03/99 009666/02 PPT

  5. Active power turbine frames RT48S RT56 RT62 RT61 RT21 RT24 Number of stages 2 2 2 3 2 2 Gas generators All Avon Mks All Avon Mks RB211-24C + G RB211-24G-T + RRA 501-KC5 RRA 501-KC7 thru RB211-26G Normal blade tip diameter (in / mm) 48.2/1224 55.4/1407 62.1/1577 60.6/1539 20.7/526 24.0/610 Current ISO rating (shp / skw) 20400/15200 33600/25000 38000/28600 42600/31800 5500/4100 7200/5370 Rated speed (rpm) 5500 4950 4800 4850 13600 13800 Cooling arrangement Stage 1 Stage 1 Stages 1 & 2 Stages 1, 2 & 3 Stage 1 Stage 1 Front face Front face Faces Faces Front face Front face Support system Single aft Front & aft Front & aft Centre frame Centre frame Centre frame pedestal supports supports and struts and struts and struts Torque transmission T-pins Curvic Curvic Curvic Curvic Curvic and slots couplings couplings couplings couplings couplings Auxiliary pump drive Yes Yes Yes Yes Yes Yes Blade tip sealing Interlocked Interlocked Interlocked Interlocked Stage 1 Interlocked tip shrouds tip shrouds tip shrouds tip shrouds tip shrouds tip shrouds 26/03/99 009666/10 PPT

  6. The COBERRA 6761 • The latest step in a continuous product development • programto meet the needs of customers 26/03/99 009666/09 PPT

  7. RT61 power turbine advancements • Highest efficiency levels • Modular construction to reduce maintenance downtime • Vertically split bearing case design

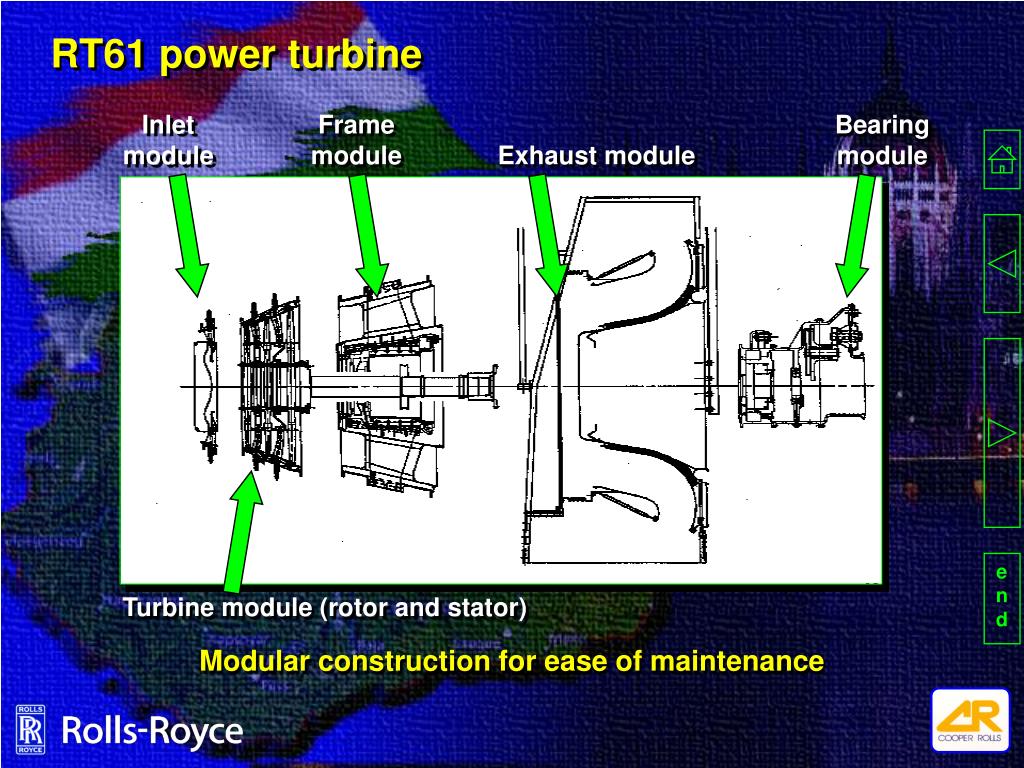

  8. Inlet module Frame module Bearing module Exhaust module Turbine module (rotor and stator) RT61 power turbine Modular construction for ease of maintenance

  9. Current Nominal Active Model Gas Generators Ratings (kW) Rated Speed Introduction Units RT21 CR501-KC5 4100 13600 1998 5 RT24 CR501-KC7 5370 13800 1999 1 RT48 P&W GG3 + Avon 15200 5500 1959 325 RT56 Avon + RB211 26000 4950 1973 175 RT62 RB211 29600 4800 1988 135 RT61 RB211 31800 4850 1999 1 642 Older Power Turbines For The Following Gas Generators: P&W GG4 & 12, CES RCT-30, RR Spey, GE LM2500, Solar Mars, Total 101 Grand Total 743 Power turbine experience

  10. Summary • Cooper-Bessemer pioneered the concept of aeroderivative gas turbines • Unsurpassed experience in mechanical drives for the oil and gas industry • The RT61 power turbine features state-of- the-art aerodynamic and • structural design • Offers highest efficiency and integrity with modular construction for • minimum downtime

  11. End of Power TurbinesPlease press “Esc” to return to main menu
