Implementation

Implementation

By

JD Pack


Implementation1

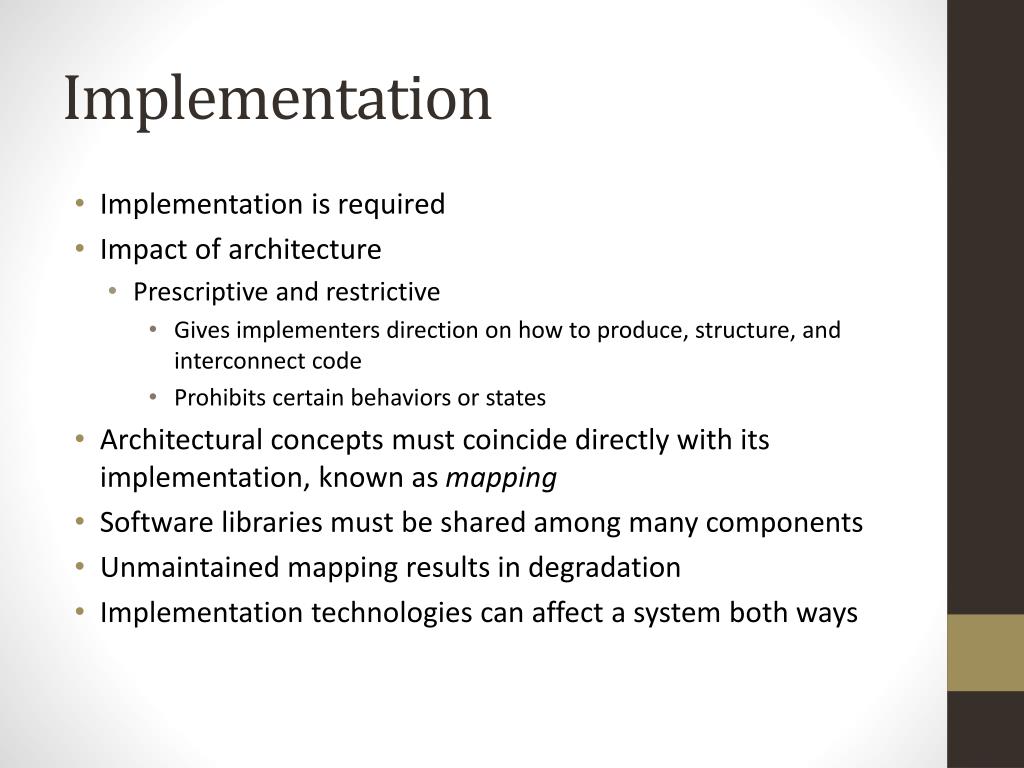

Implementation

  • Implementation is required

  • Impact of architecture

    • Prescriptive and restrictive

      • Gives implementers direction on how to produce, structure, and interconnect code

      • Prohibits certain behaviors or states

  • Architectural concepts must coincide directly with its implementation, known as mapping

  • Software libraries must be shared among many components

  • Unmaintained mapping results in degradation

  • Implementation technologies can affect a system both ways


The mapping problem

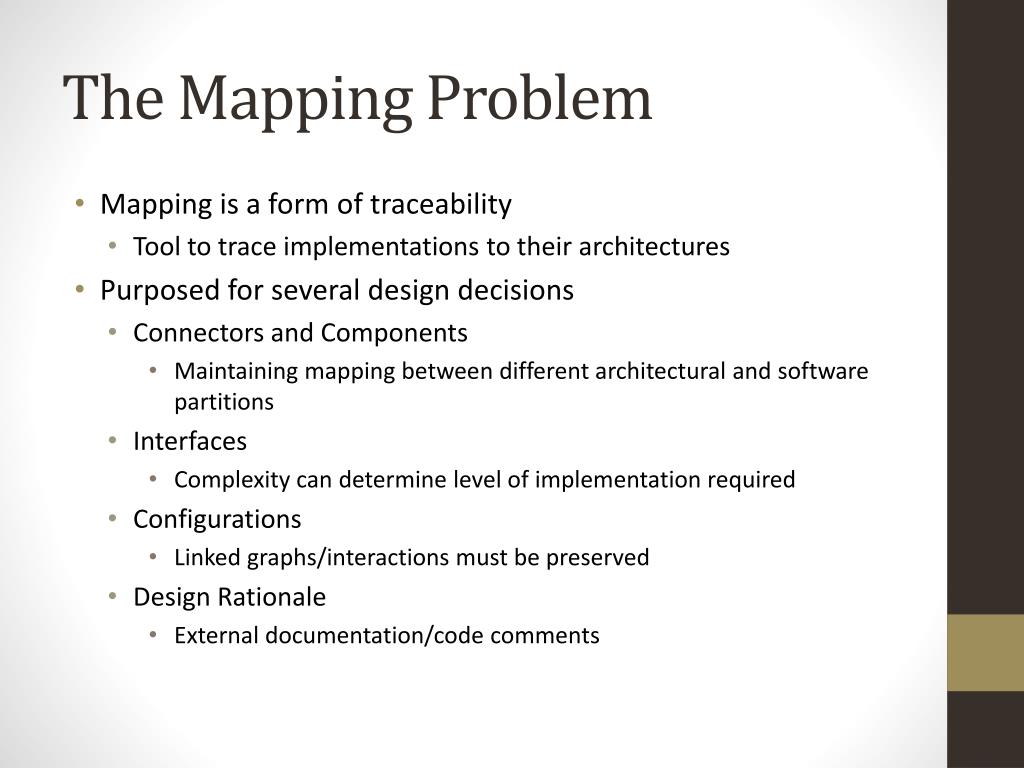

The Mapping Problem

  • Mapping is a form of traceability

    • Tool to trace implementations to their architectures

  • Purposed for several design decisions

    • Connectors and Components

      • Maintaining mapping between different architectural and software partitions

    • Interfaces

      • Complexity can determine level of implementation required

    • Configurations

      • Linked graphs/interactions must be preserved

    • Design Rationale

      • External documentation/code comments


The mapping problem cont

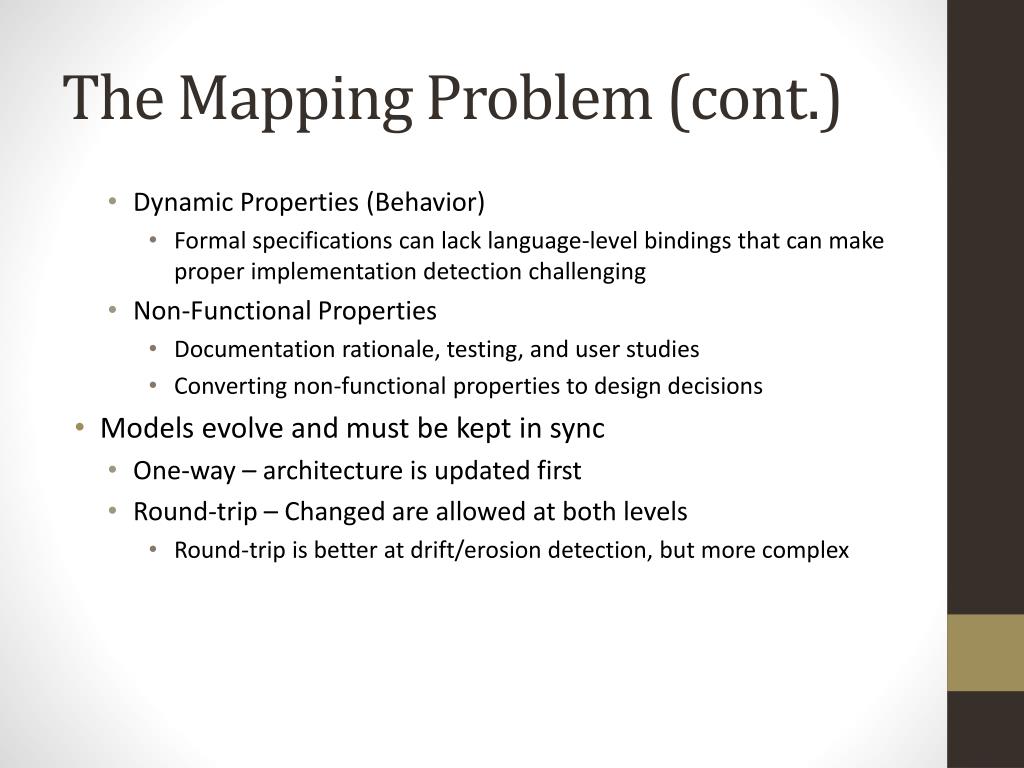

The Mapping Problem (cont.)

  • Dynamic Properties (Behavior)

    • Formal specifications can lack language-level bindings that can make proper implementation detection challenging

  • Non-Functional Properties

    • Documentation rationale, testing, and user studies

    • Converting non-functional properties to design decisions

  • Models evolve and must be kept in sync

    • One-way – architecture is updated first

    • Round-trip – Changed are allowed at both levels

      • Round-trip is better at drift/erosion detection, but more complex


  • Architecture implementation frameworks

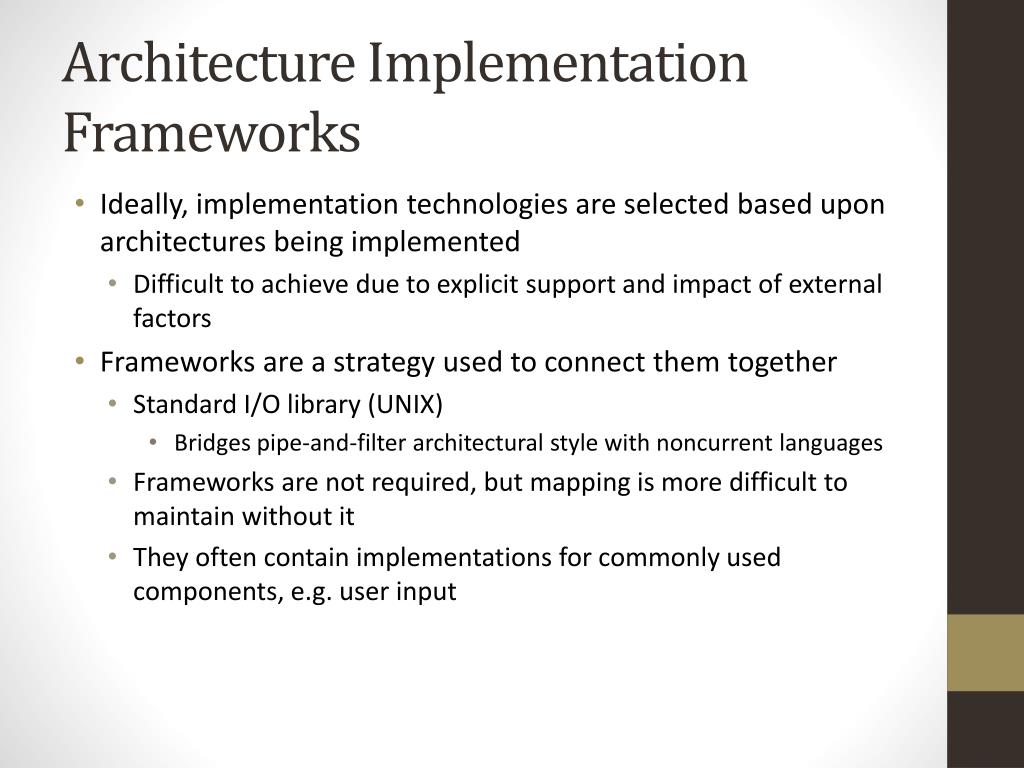

    Architecture Implementation Frameworks

    • Ideally, implementation technologies are selected based upon architectures being implemented

      • Difficult to achieve due to explicit support and impact of external factors

    • Frameworks are a strategy used to connect them together

      • Standard I/O library (UNIX)

        • Bridges pipe-and-filter architectural style with noncurrent languages

      • Frameworks are not required, but mapping is more difficult to maintain without it

      • They often contain implementations for commonly used components, e.g. user input


    Frameworks cont

    Frameworks (cont.)

    • Multiple frameworks can support various languages, styles, and operating systems

      • One arch. style can be supported by many frameworks

        • Java.io and C standard library, C++ iostream and C stdio

      • Multiple frameworks can support the same environment combinations

        • Java.nioand java.io


    Evaluating frameworks

    Evaluating Frameworks

    • Frameworks can vary greatly based on quality type

      • Platform Support

        • Determine what language and OS should be used based on architectural style

      • Fidelity

        • Choose what design decisions should be implemented directly and what should be left at the discretion of the implementers

      • Matching Assumptions

        • Frameworks may assume additional constraints upon the system and its components, e.g. multiple inheritance

      • Efficiency

        • A framework might slow down communications between different components

      • Other Considerations

        • Cost, size, availability, portability, ease of use, etc.


    Middleware

    Middleware

    • Middleware - technologies created to provide services that may not be included natively with the OS or language

      • JavaBeans, .NET, Android libraries, CORBA, etc.

      • Very similar to frameworks

      • Can induce architectural constraints

        • CORBA breaks up applications into objects, which expose their services and methods using IDL

        • Referred to as “distributed objects” style


    Middleware cont

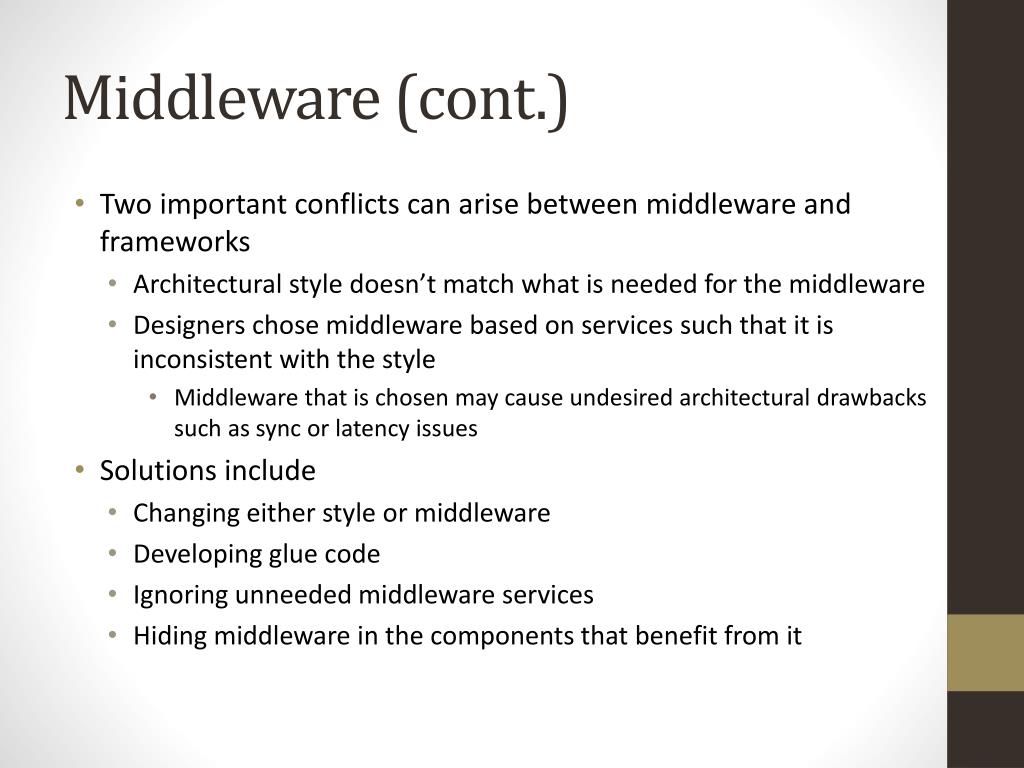

    Middleware (cont.)

    • Two important conflicts can arise between middleware and frameworks

      • Architectural style doesn’t match what is needed for the middleware

      • Designers chose middleware based on services such that it is inconsistent with the style

        • Middleware that is chosen may cause undesired architectural drawbacks such as sync or latency issues

    • Solutions include

      • Changing either style or middleware

      • Developing glue code

      • Ignoring unneeded middleware services

      • Hiding middleware in the components that benefit from it


    Using middleware to implement connectors

    Using Middleware to Implement Connectors

    • Middleware packages provide communication services for components

      • Can be used as the base for implementing connectors instead of the entire app itself

      • Architects should first define the connector capabilities

      • Middleware can be selected based on how well it fits with the project

      • The result allows middleware to be used while ignoring certain assumptions


    Building a new framework

    Building a New Framework

    • Reasons why new frameworks must be made

      • The architecture style is not well-known or is new

      • The style and platform have no current framework

      • Existing frameworks are inadequate

    • Certain guidelines

      • Architectural style must be well-understood

      • Limit framework to address style issues

      • Decide the scope of the framework

      • Avoid over-engineering

      • Limit overhead

      • Develop a strategy for off-the-shelf resources


    Concurrency

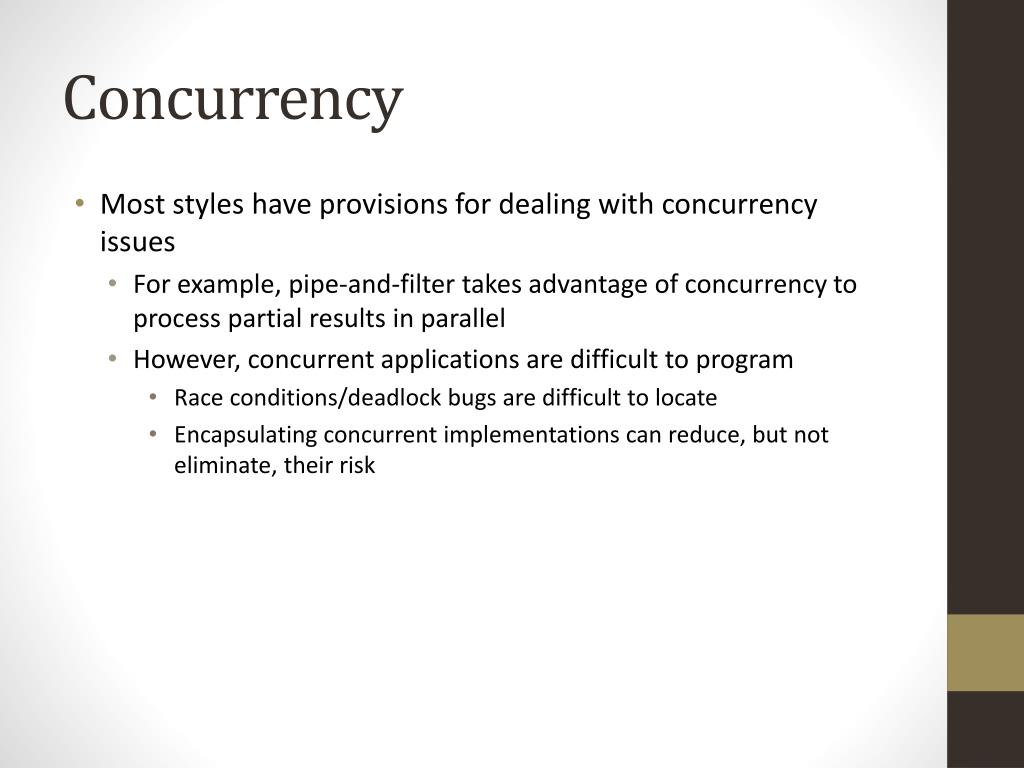

    Concurrency

    • Most styles have provisions for dealing with concurrency issues

      • For example, pipe-and-filter takes advantage of concurrency to process partial results in parallel

      • However, concurrent applications are difficult to program

        • Race conditions/deadlock bugs are difficult to locate

        • Encapsulating concurrent implementations can reduce, but not eliminate, their risk


    Generative technologies

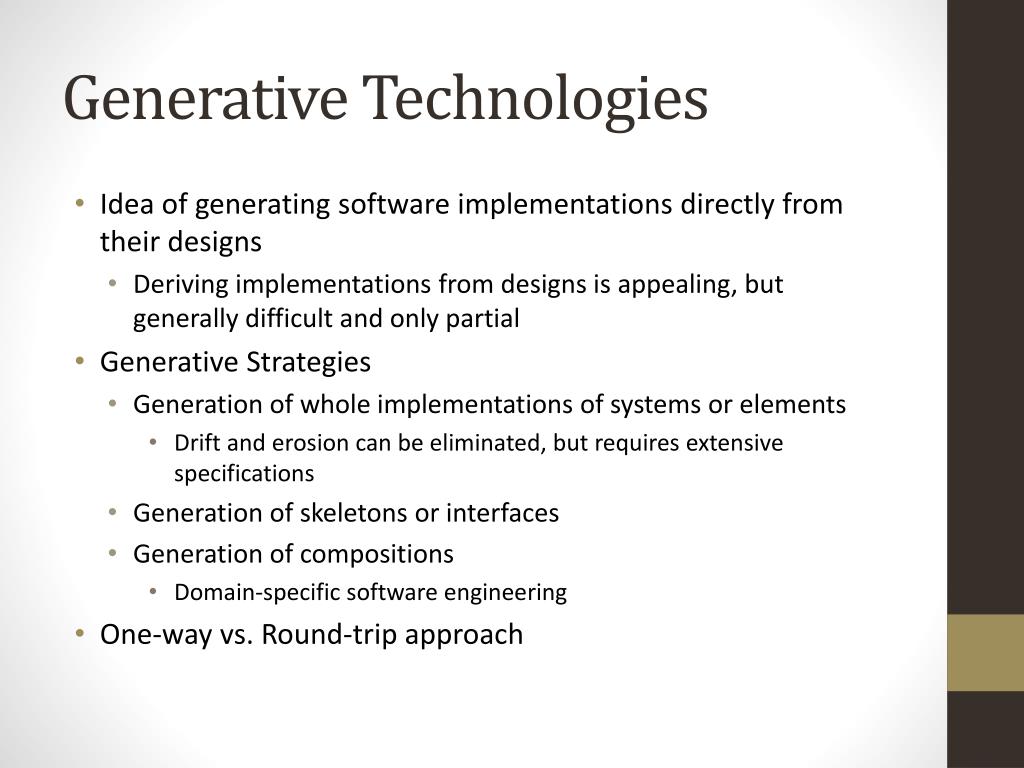

    Generative Technologies

    • Idea of generating software implementations directly from their designs

      • Deriving implementations from designs is appealing, but generally difficult and only partial

    • Generative Strategies

      • Generation of whole implementations of systems or elements

        • Drift and erosion can be eliminated, but requires extensive specifications

      • Generation of skeletons or interfaces

      • Generation of compositions

        • Domain-specific software engineering

    • One-way vs. Round-trip approach


    Ensuring architecture to implementation consistency

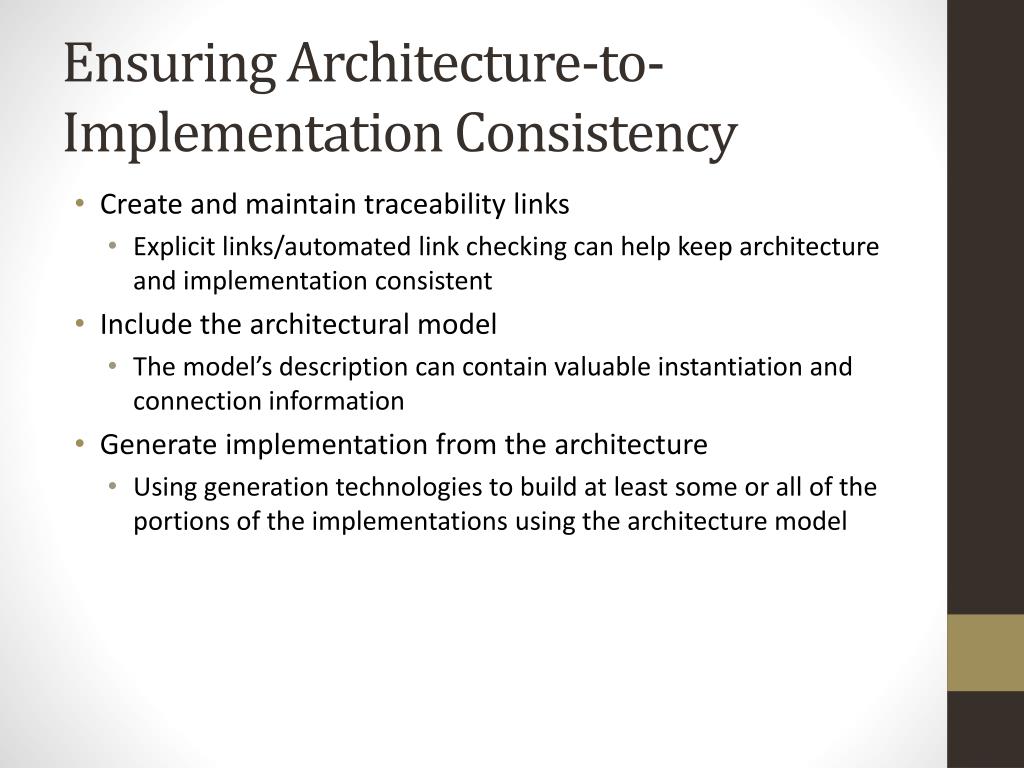

    Ensuring Architecture-to-Implementation Consistency

    • Create and maintain traceability links

      • Explicit links/automated link checking can help keep architecture and implementation consistent

    • Include the architectural model

      • The model’s description can contain valuable instantiation and connection information

    • Generate implementation from the architecture

      • Using generation technologies to build at least some or all of the portions of the implementations using the architecture model


    Existing pipe and filter frameworks

    Existing Pipe-and-Filter Frameworks


    C2 frameworks

    C2 Frameworks

    • Must provide asynchronous messaging to match architecture constraints

      • C2 components and connections are each partitioned as separate modules

    • Developed for many different language/OS combinations


    Implementation

    • Lightweight C2 (Java)

      • 16 classes, 3000 lines

      • Threading is left up to objects themselves

        • Connector/Component classes

        • ConnectorThread/ComponentThread classes

        • Ports

      • Not all constraints are enforced by the framework

        • No support for separate in-process memory spaces

    • Flexible C2 (Java)

      • 73, classes, 8500 lines

      • Interfaces

        • fundamental concepts rather than abstract classes

        • Any base class can be extended by using the proper interface

      • Defined queuing policies

        • Performed using MessageHandlersand ArchitectureEngines

          • One-Queue-Per-Interface

          • One-Queue-Per-App

          • One-Thread-Per-Brick

          • Thread Pool

          • Steppable Engine


    Lightweight and flexible c2

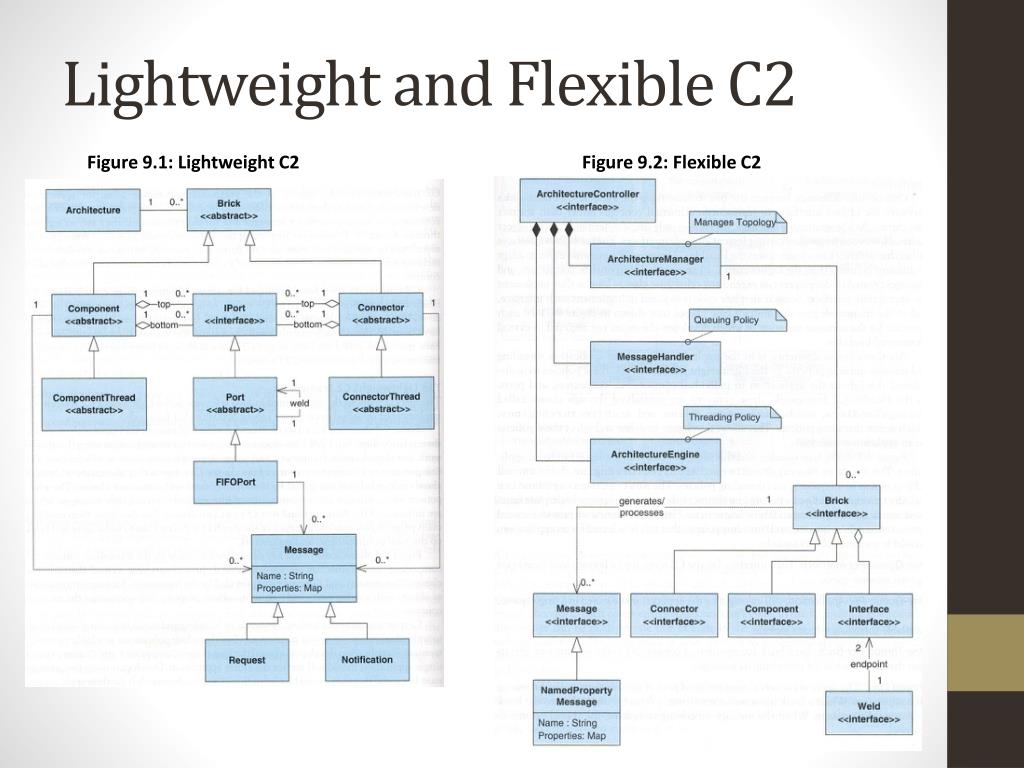

    Lightweight and Flexible C2

    Figure 9.2: Flexible C2

    Figure 9.1: Lightweight C2


    C2 frameworks cont

    C2 Frameworks (cont.)
