Presentation Transcript

Memory management and parallelization

Memory Management and Parallelization

Paul Arthur Navrátil

The University of Texas at Austin



  • Uniprocessor Coherent Ray Tracing

    • Pharr et al., 1997

  • Parallel Ray Tracing Summary

    • Chalmers, et al. 2002

  • Demand-Driven Ray Tracing

    • Wald, et al. 2001

  • Hybrid Scheduling

    • Reinhard, et al. 1999

Background reyes cook et al 87

Background: Reyes [Cook et al. 87]


  • Texture cache, CATs

  • Programmable shader

  • Single primitive type

  • Dicing

  • Memory effects of scan-line architecture

Pharr system

Pharr: System

  • Use both texture and geometry ‘cache’

    • Lazy loading, LRU replacement

  • One internal primitive – triangles

    • Optimize ray intersection calculation

    • Known space requirements to represent

    • Tessellation of other primitives increases space reqs

    • Procedurally generated geometry

Pharr geometry cache

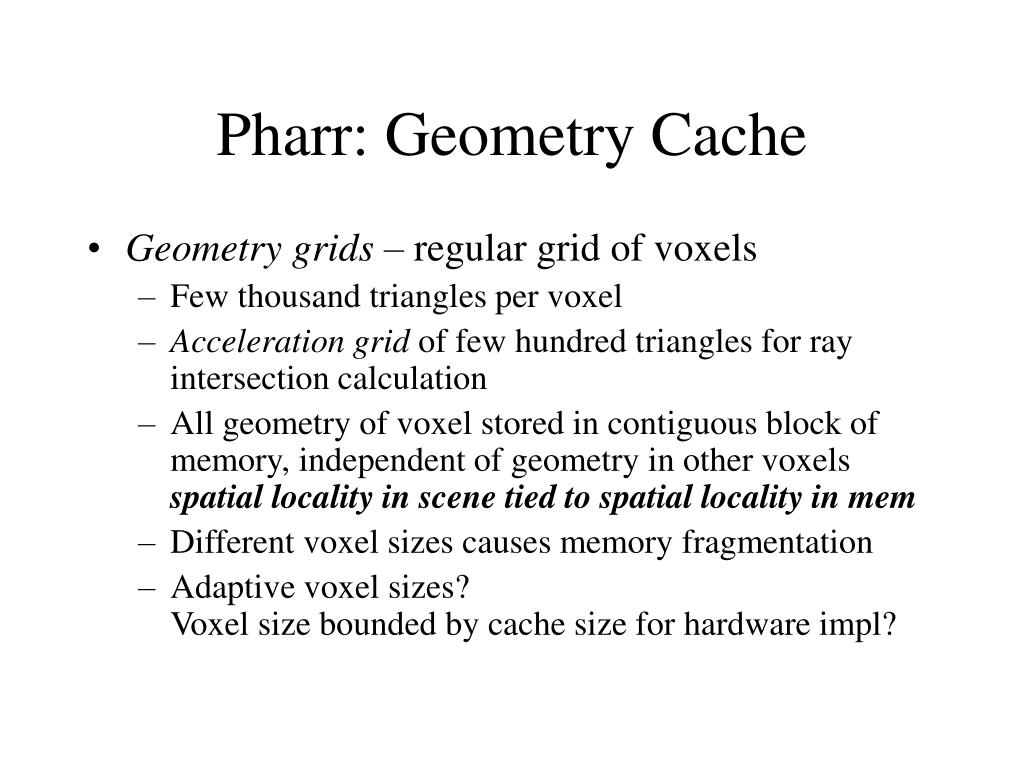

Pharr: Geometry Cache

  • Geometry grids – regular grid of voxels

    • Few thousand triangles per voxel

    • Acceleration grid of few hundred triangles for ray intersection calculation

    • All geometry of voxel stored in contiguous block of memory, independent of geometry in other voxelsspatial locality in scene tied to spatial locality in mem

    • Different voxel sizes causes memory fragmentation

    • Adaptive voxel sizes? Voxel size bounded by cache size for hardware impl?

Pharr ray grouping

Pharr: Ray Grouping

  • Scheduling grid -- Queue all rays inside voxel

    • Dependencies in ray tree prevent perfect scheduling

    • Store all information needed for computation with rayeach ray can be independently calculated (parallelism!)

    • Exploits coherence from beam of rays, disparate rays that move through same space

    • Superior to: fixed-order traversal of ray tree; ray clustering

Pharr radiance calculation

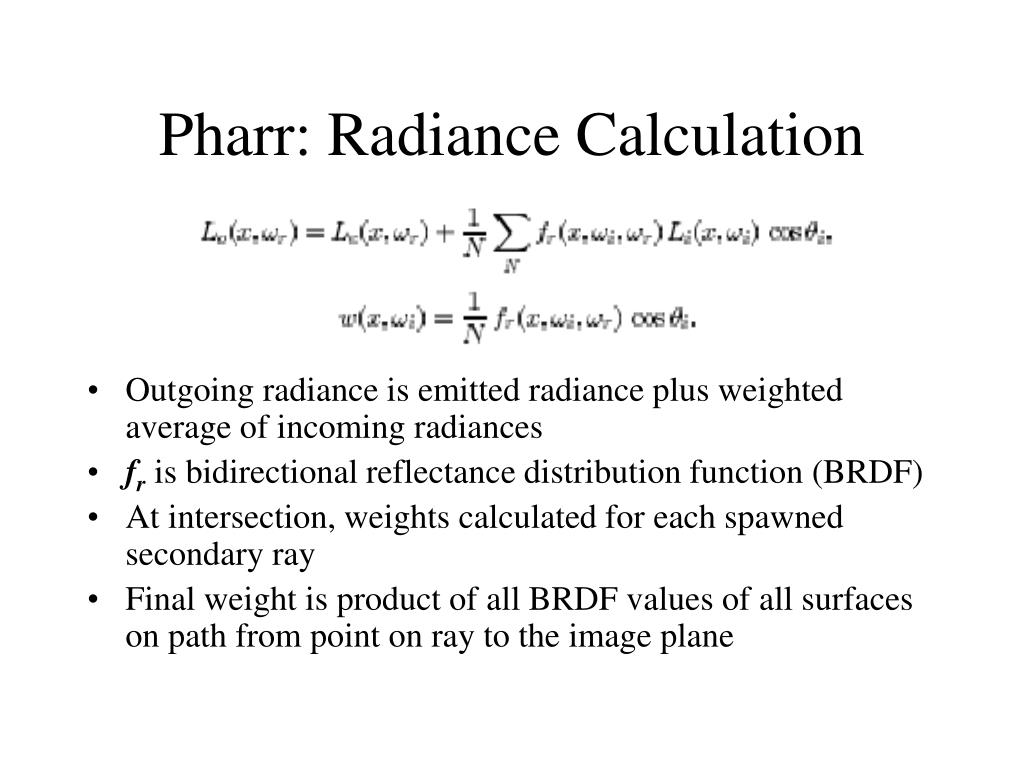

Pharr: Radiance Calculation

  • Outgoing radiance is emitted radiance plus weighted average of incoming radiances

  • fr is bidirectional reflectance distribution function (BRDF)

  • At intersection, weights calculated for each spawned secondary ray

  • Final weight is product of all BRDF values of all surfaces on path from point on ray to the image plane

Pharr voxel scheduling

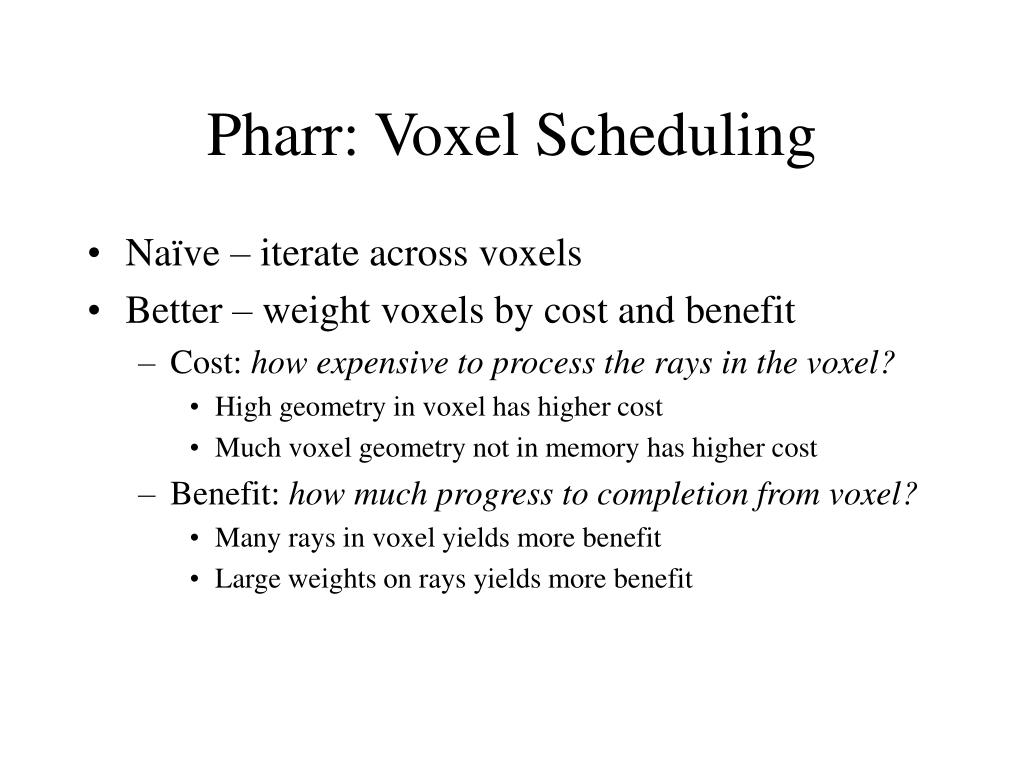

Pharr: Voxel Scheduling

  • Naïve – iterate across voxels

  • Better – weight voxels by cost and benefit

    • Cost: how expensive to process the rays in the voxel?

      • High geometry in voxel has higher cost

      • Much voxel geometry not in memory has higher cost

    • Benefit: how much progress to completion from voxel?

      • Many rays in voxel yields more benefit

      • Large weights on rays yields more benefit

Pharr system summary

Pharr: System Summary

Pharr lazy loading results

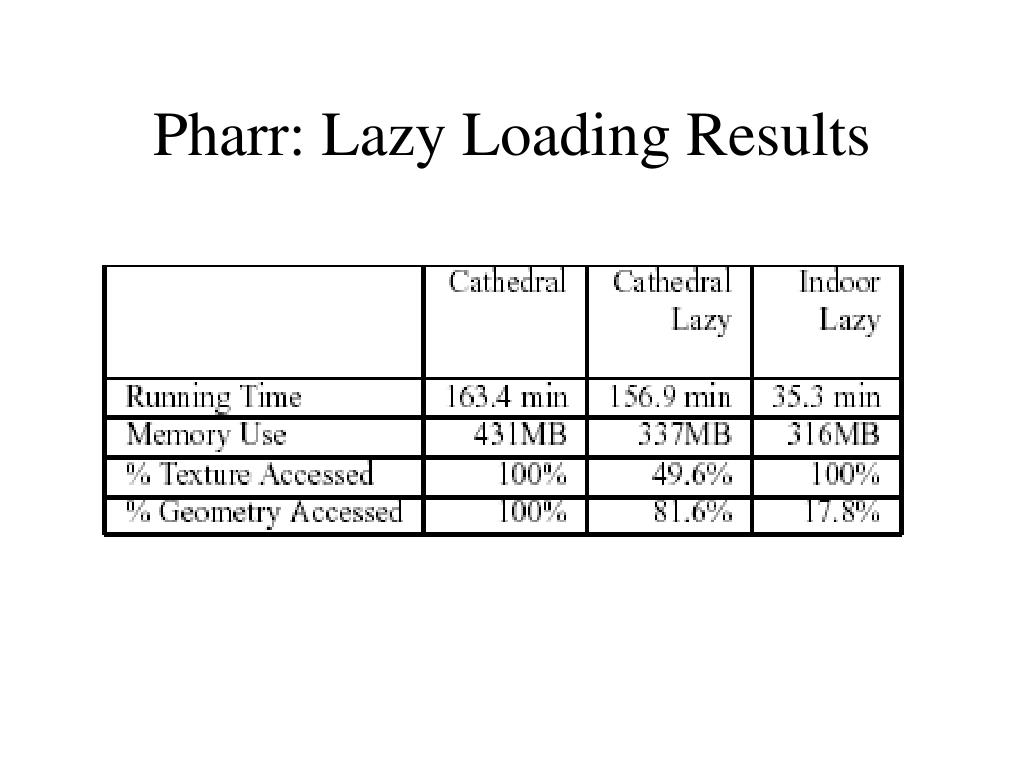

Pharr: Lazy Loading Results

Pharr reordering results

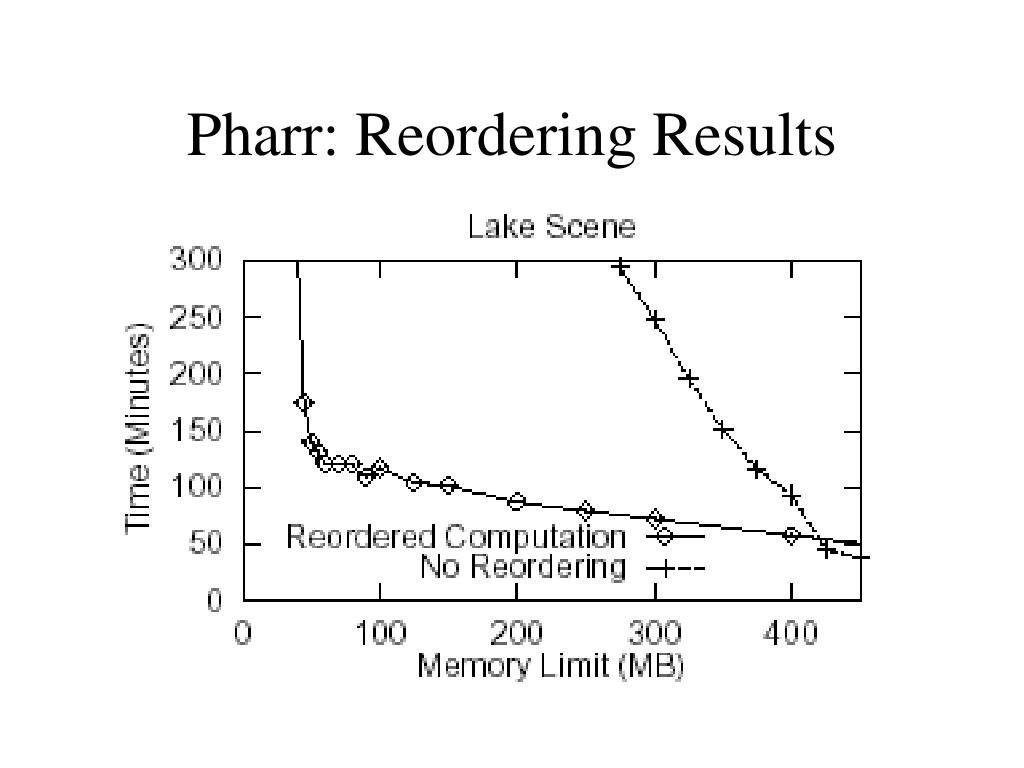

Pharr: Reordering Results

Pharr scheduling results

Pharr: Scheduling Results

Pharr discussion

Pharr: Discussion

  • Parallelization

    • Ray independence, load balanced geometry, lazy geometry loading helps

    • Will cache results hold in distributed model?

  • Modern architecture

    • Testing on 190 MHz MIPS R 10000 w/ 1GB RAM

    • Can modern arch hold scenes in memory (no secondary storage usage)

  • Hardware Acceleration

    • Use memory/cache/GPU rather than disk/memory/CPU

Chalmers parallel ray tracing

Chalmers: Parallel Ray Tracing

  • Demand Driven

    • Scene divided into subregions, or tasks

    • Processors given tasks statically or by a master

    • Balance with task balancing or adaptive regions[Fig 3.4]

  • Data Parallel

    • Object data distributed across processors

    • Distribute objects according to spatial locality; a hierarchical spatial subdivision; or randomly [Fig 3.7]

  • Hybrid Scheduling

    • Run demand-driven and data-parallel tasks on same processors

    • DD ray traversal/DP ray-object intersect [Scherson and Caspary 88]

    • DD intersection/DP ray generation [Jevans 89]

    • Ray coherence [Reinhard and Jansen 99]

Wald demand driven ray tracing wald et al 01

Wald: Demand Driven Ray Tracing[Wald et al. 01]

  • Exploit cache and space coherence with modern processors (Dual Pentium III 800 MHz, 256 MB)

  • Use SIMD instruction set to achieve data-parallelism (e.g., Barycentric coordinate test)

Wald performance wald et al 01

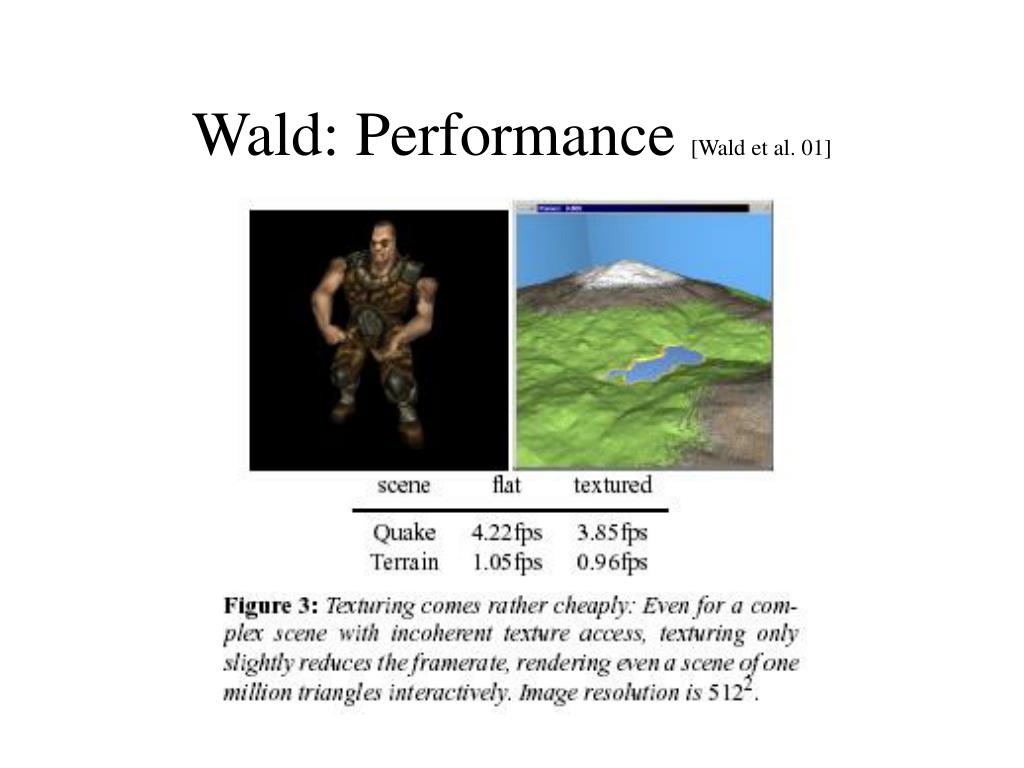

Wald: Performance [Wald et al. 01]

Wald performance wald et al 011

Wald: Performance [Wald et al. 01]

Reinhard hybrid scheduling reinhard et al 99

Reinhard: Hybrid Scheduling [Reinhard et al. 99]

  • Data-parallel approach with demand-driven subtasks to load balance

    • Data-parallel tasks preferred, DD subtasks requested from master when no DP tasks are available

Reinhard hybrid scheduling reinhard et al 991

Reinhard: Hybrid Scheduling [Reinhard et al. 99]

Reinhard performance reinhard et al 99

Reinhard: Performance [Reinhard et al. 99]
