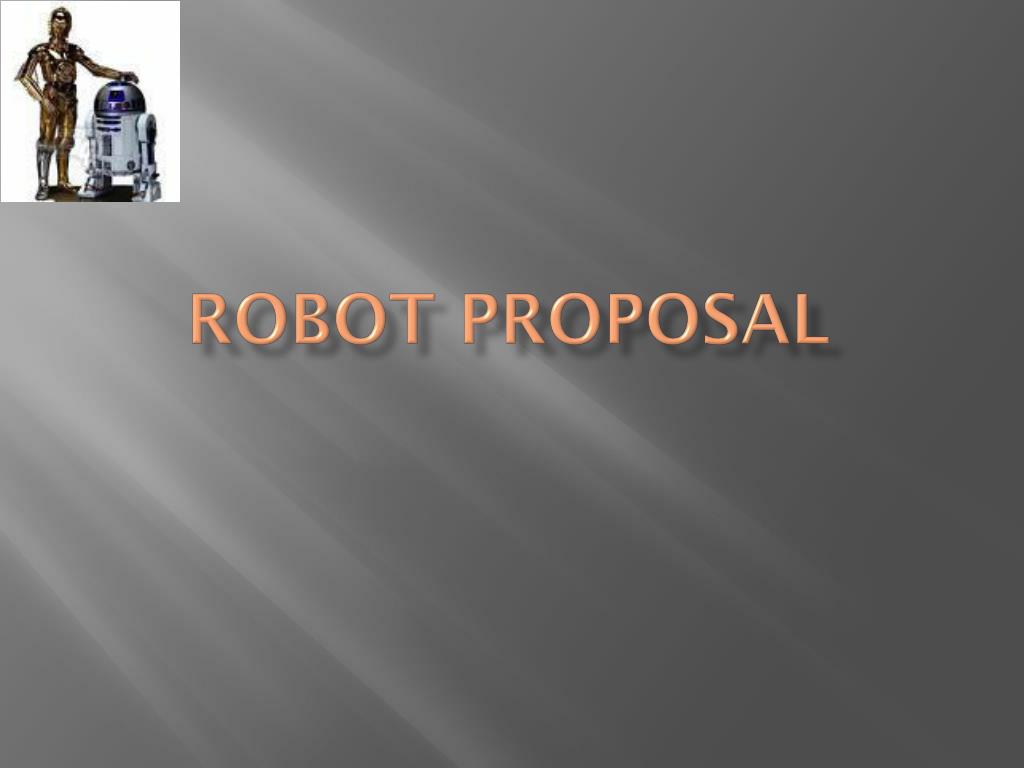

  1. Robot Proposal

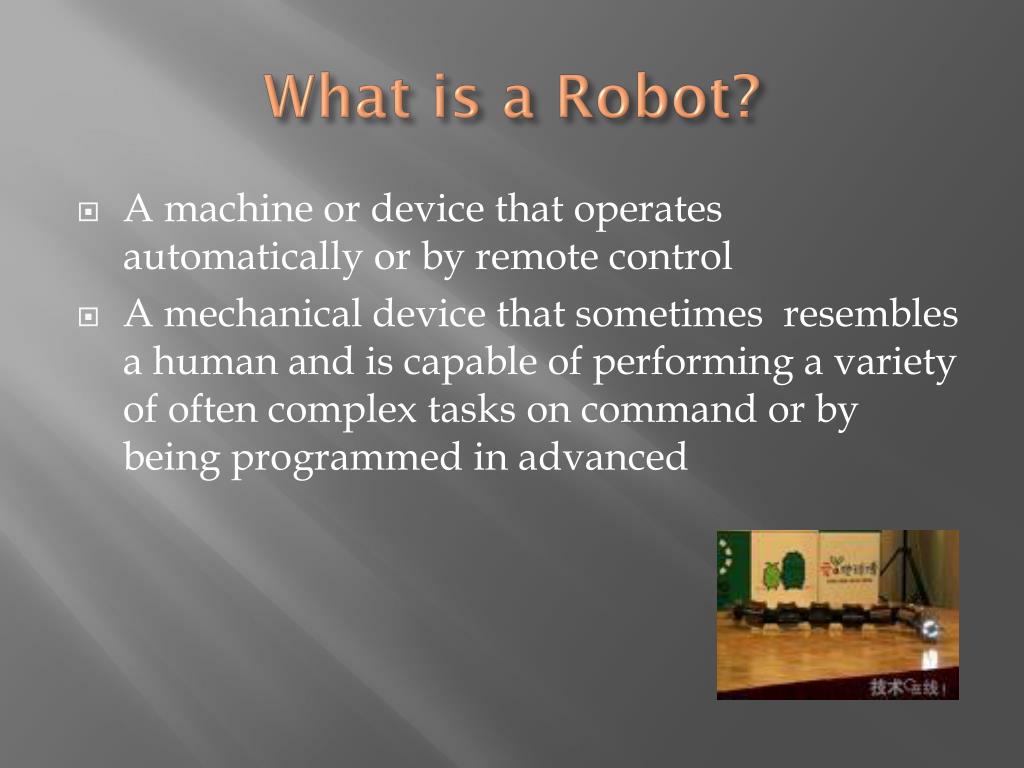

  2. What is a Robot? • A machine or device that operates automatically or by remote control • A mechanical device that sometimes resembles a human and is capable of performing a variety of often complex tasks on command or by being programmed in advanced

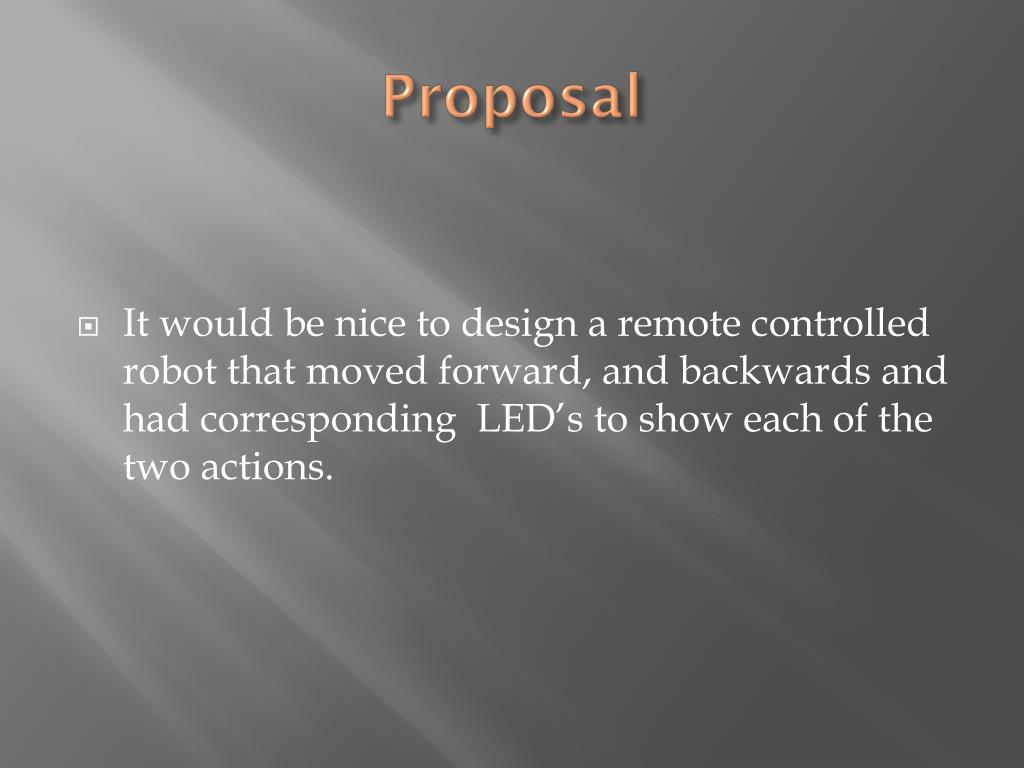

  3. Proposal • It would be nice to design a remote controlled robot that moved forward, and backwards and had corresponding LED’s to show each of the two actions.

  4. LED’s • Three colors would be used for the following: • Power = Green LED • Forward = Yellow LED • Reverse = Red LED

  5. Motor • A small 1.5 volt DC motor would be used physically move the device. It can be found on this website:http://www.patronic.com/motors/motors.html

  6. Wheels, Axle and Drive • The motor will have a pulley and a belt to drive the wheels • The wheels, Axle, Belt and Pulleys can be found on this site: http://www.goldmine-elec-products.com/

  7. Remote control • The remote would be a wired control consisting of a switch for power, and two small buttons: one for forward, and one for reverse.

  8. Power • Robot will be powered by a 9 volt battery, and voltage will be adapted to fit the ratings on each component.

  9. Drawing.
