  1. FOOTBALL AT 60 FPS: The Challenges of Rendering Madden NFL 10

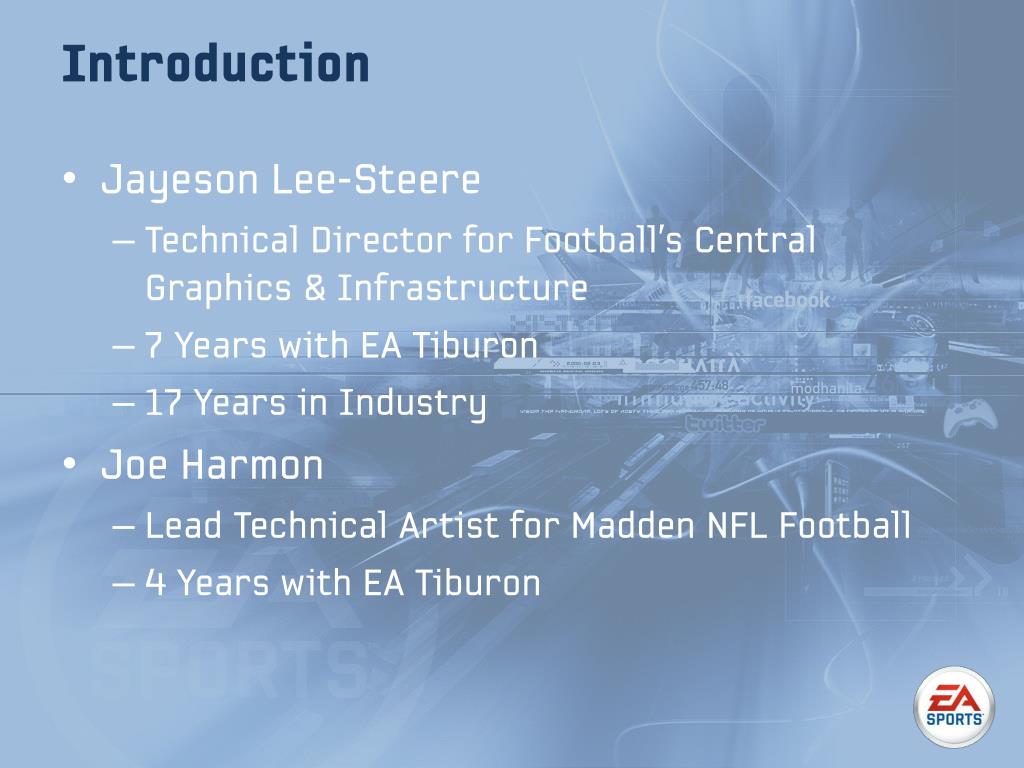

  2. Introduction • Jayeson Lee-Steere • Technical Director for Football’s Central Graphics & Infrastructure • 7 Years with EA Tiburon • 17 Years in Industry • Joe Harmon • Lead Technical Artist for Madden NFL Football • 4 Years with EA Tiburon

  3. Overview • Challenges facing Madden Football • Shader Authoring Workflow • Lighting Workflow • Fields • Faces • Crowd Rendering • Colorization and Texture Compositing

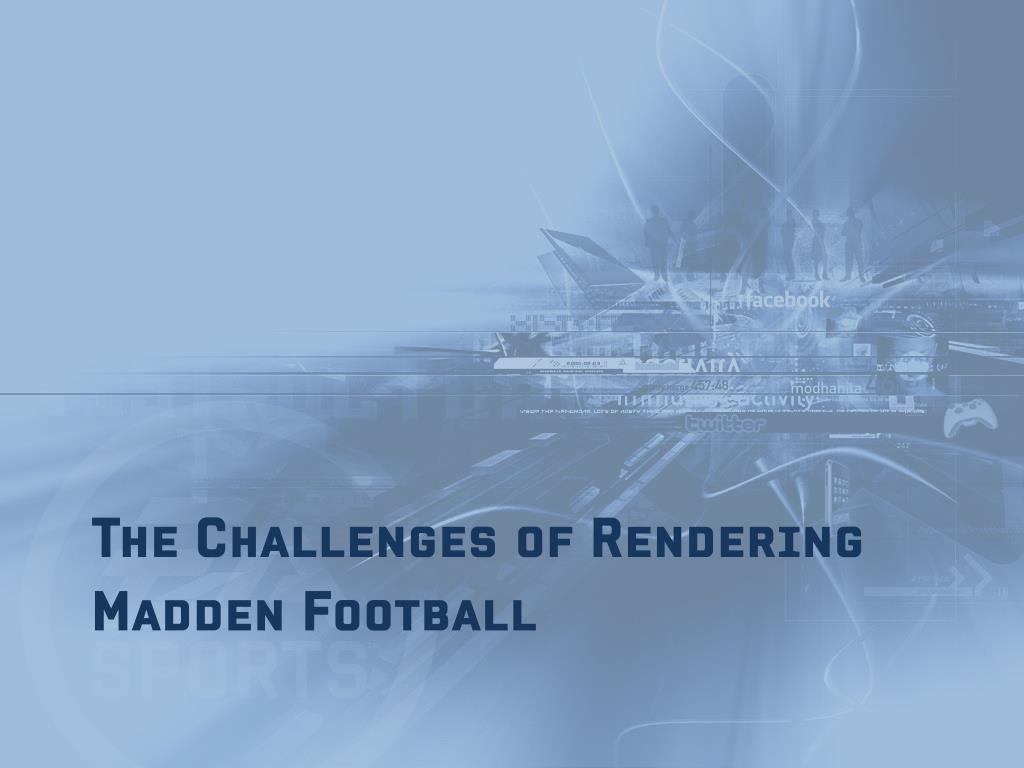

  4. The Challenges of Rendering Madden Football

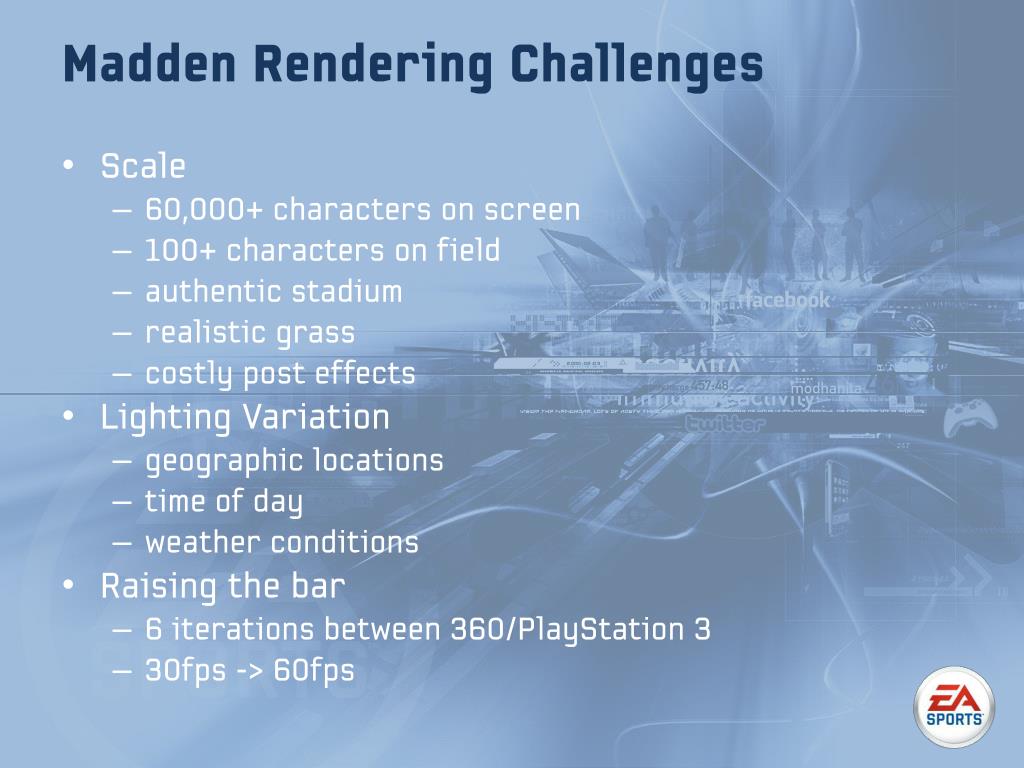

  5. Madden Rendering Challenges • Scale • 60,000+ characters on screen • 100+ characters on field • authentic stadium • realistic grass • costly post effects • Lighting Variation • geographic locations • time of day • weather conditions • Raising the bar • 6 iterations between 360/PlayStation 3 • 30fps -> 60fps

  6. Shader Authoring Workflow

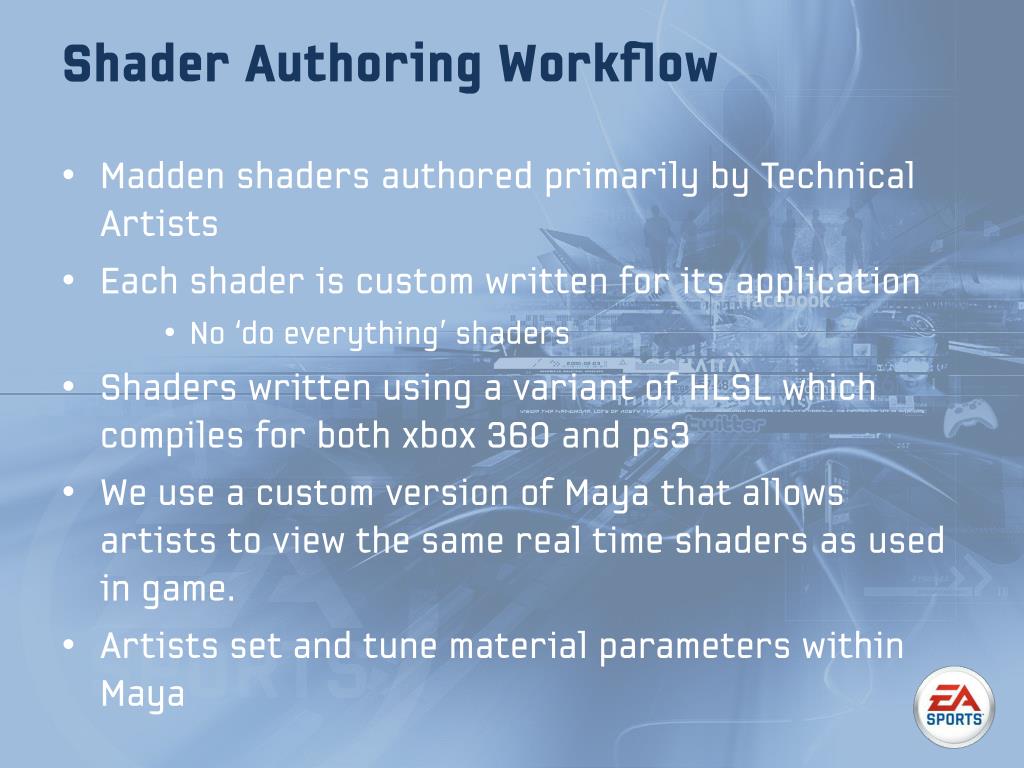

  7. Shader Authoring Workflow • Madden shaders authored primarily by Technical Artists • Each shader is custom written for its application • No ‘do everything’ shaders • Shaders written using a variant of HLSL which compiles for both xbox 360 and ps3 • We use a custom version of Maya that allows artists to view the same real time shaders as used in game. • Artists set and tune material parameters within Maya

  8. Maya rendering with game shaders

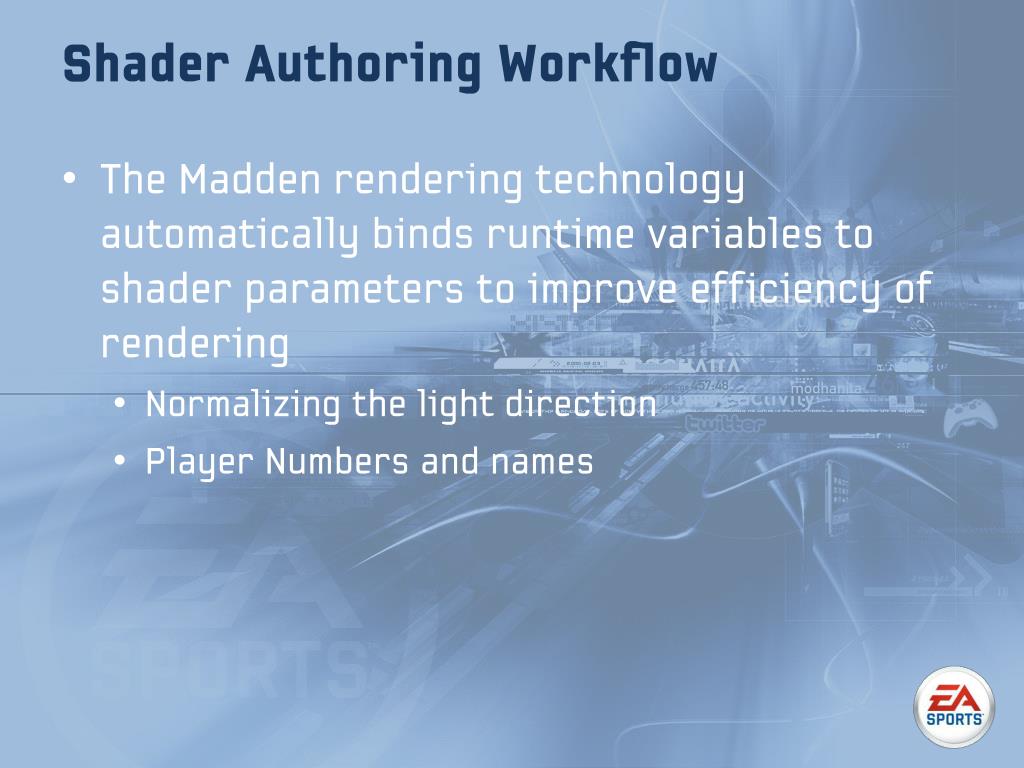

  9. Shader Authoring Workflow • The Madden rendering technology automatically binds runtime variables to shader parameters to improve efficiency of rendering • Normalizing the light direction • Player Numbers and names

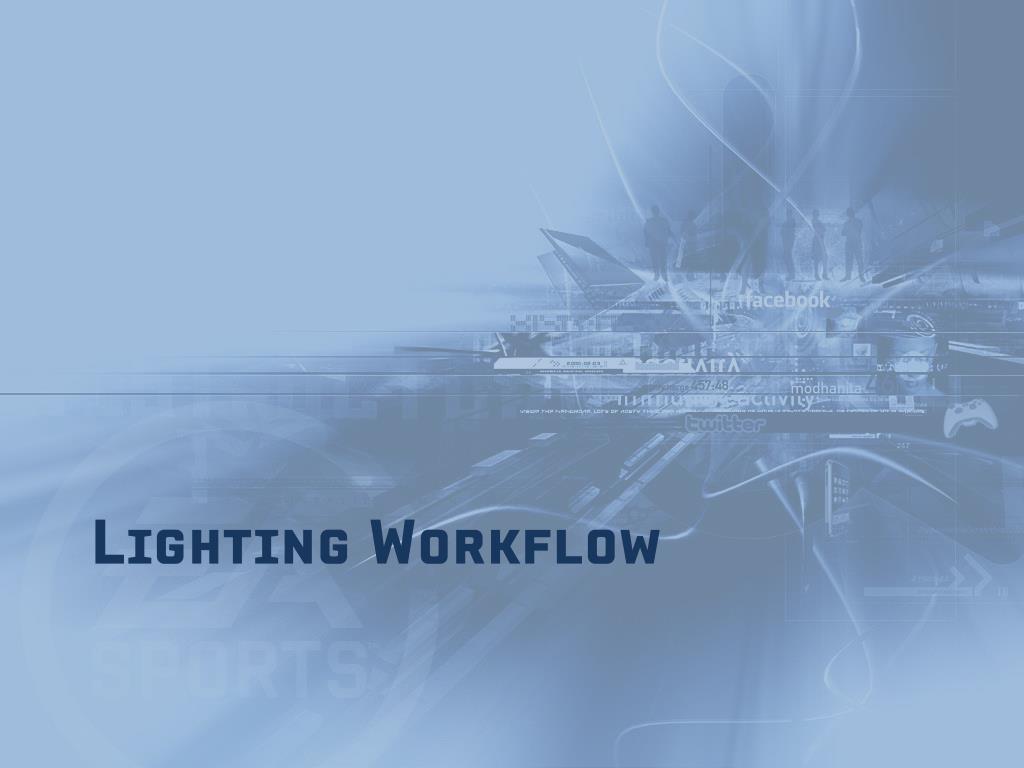

  10. Lighting Workflow

  11. Lighting Workflow • Lighting is key for realistic sports rendering • Realistic lighting can also get expensive • Madden’s lighting solution is a hybrid of baked and real-time lighting • Increases efficiency • Environment objects and characters have separate lighting functions • Allows individual tuning for unique settings • Character lighting is more expensive

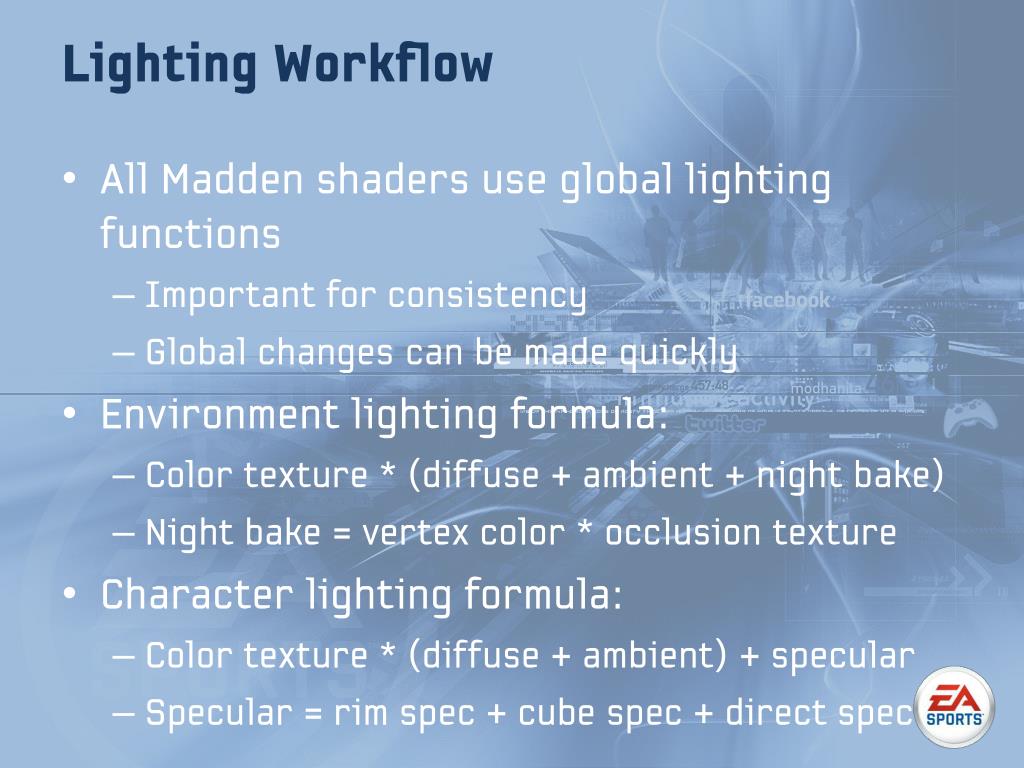

  12. Lighting Workflow • All Madden shaders use global lighting functions • Important for consistency • Global changes can be made quickly • Environment lighting formula: • Color texture * (diffuse + ambient + night bake) • Night bake = vertex color * occlusion texture • Character lighting formula: • Color texture * (diffuse + ambient) + specular • Specular = rim spec + cube spec + direct spec

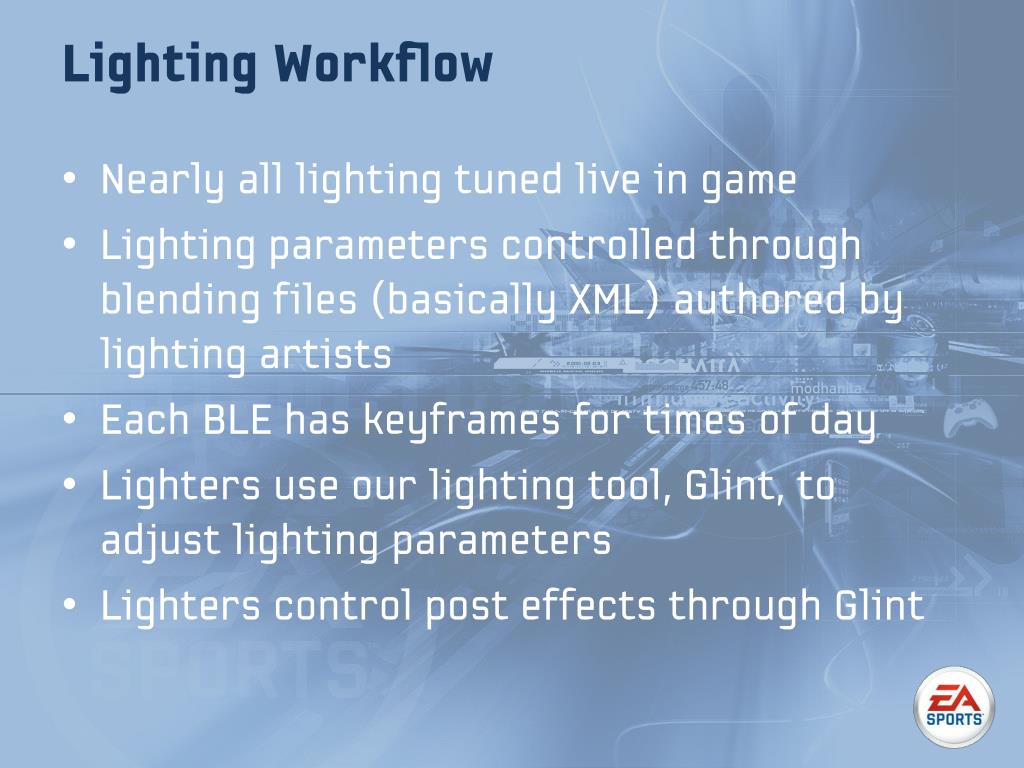

  13. Lighting Workflow • Nearly all lighting tuned live in game • Lighting parameters controlled through blending files (basically XML) authored by lighting artists • Each BLE has keyframes for times of day • Lighters use our lighting tool, Glint, to adjust lighting parameters • Lighters control post effects through Glint

  14. Glint

  15. Time of day

  16. Fields

  17. View of field from game play camera

  18. Fields • Field rendering is challenging due to the size of the field • A small shader change can have a large performance cost • Field rendering Performance and visual quality impact one another and must be balanced • The Field must support dynamic degradation and weather effects • Tunable through glint

  19. Field Texture Components

  20. Field with no degradation

  21. Field with heavy degradation

  22. Field with snow

  23. Faces

  24. Faces • Madden has 29 high res face texture sets loaded at any given moment • 22 Players • 2 Coaches • 5 Referees • Maintaining high visual quality becomes challenging due to memory limitations • Player heads consistently loading and unloading

  25. Hue, Saturation, Value (HSV) • HSV is a color space, like RGB • Hue: A color • Saturation: The amount of a color • Value: The darkness of a color • Storing the color information in HSV format allows each channel to be compressed individually when using separate textures

  26. RGB Hue Saturation Value

  27. Hue, Saturation, Value (HSV) • The Hue texture is the RGB representation of Hue • Storing the Hue as an RGB texture avoids costly shader math when converting HSV to RGB • Once the Hue is stored as RGB into a texture the shader logic becomes simple Float3 Hue = tex2D(hueSampler, texCoords);Float3 Sat = tex2D(satSampler, texCoords);Float3 Val = tex2D(valSampler, texCoords);Float3 finalColor = lerp(1, Hue, Sat) * Val;

  28. Hue, Saturation, Value (HSV) • The Hue and Saturation can be combined into a single texture for optimization • We call the combined texture ‘chroma’ Float3 Chroma = tex2D(chromaSampler, texCoords);Float3 Val = tex2D(valSampler, texCoords);Float3 finalColor = Chroma * Val;

  29. RGB Hue andSaturation combined Value

  30. One DXT5 512x256 texture One 128x128 A8R8G8B8 One 512x512 DXT1

  31. One DXT5 512x256 texture One 128x128 A8R8G8B8 One 512x512 DXT1

  32. Crowd Rendering

  33. Crowd Rendering • Not about card rendering • About 3D characters that: • Support swap parts for variety • Are easy to author • Render super fast • = one shader, one set of shader parameters*, one draw for everyone * We call a shader selection + set of parameters a material

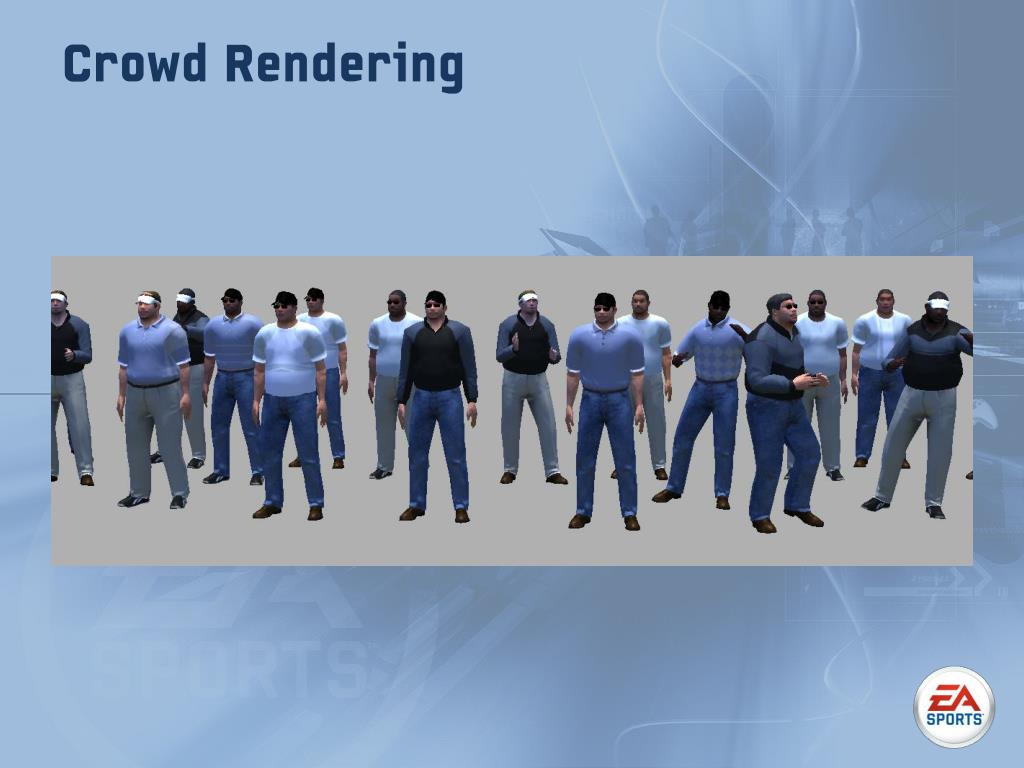

  34. Crowd Rendering

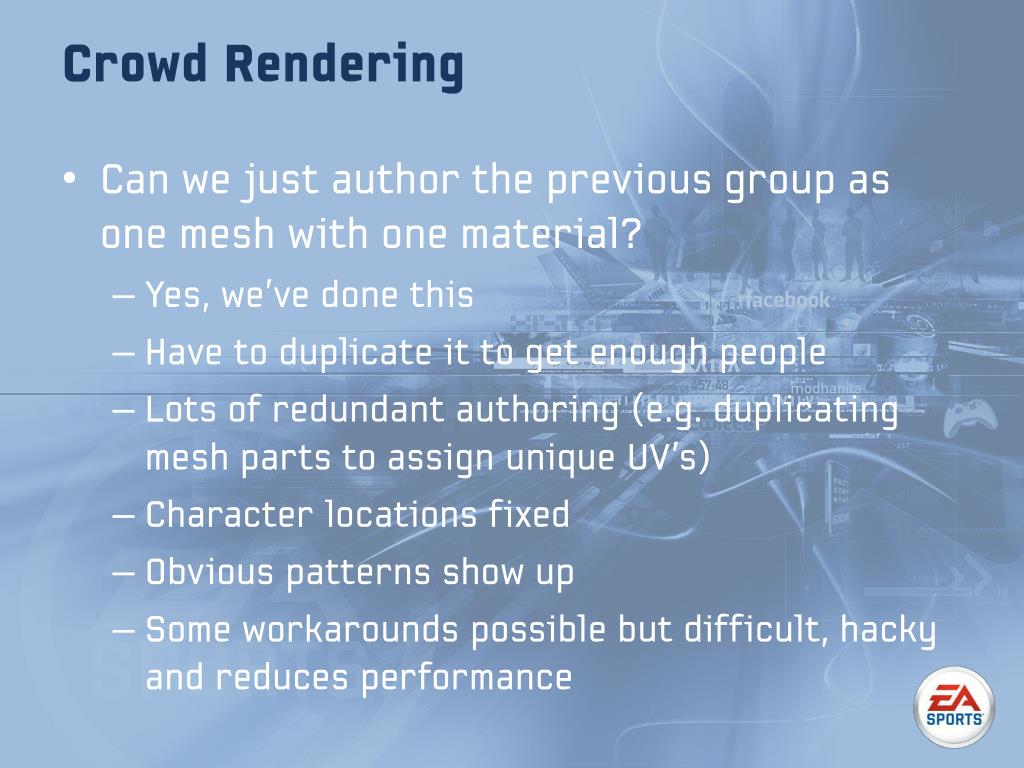

  35. Crowd Rendering • Can we just author the previous group as one mesh with one material? • Yes, we’ve done this • Have to duplicate it to get enough people • Lots of redundant authoring (e.g. duplicating mesh parts to assign unique UV’s) • Character locations fixed • Obvious patterns show up • Some workarounds possible but difficult, hacky and reduces performance

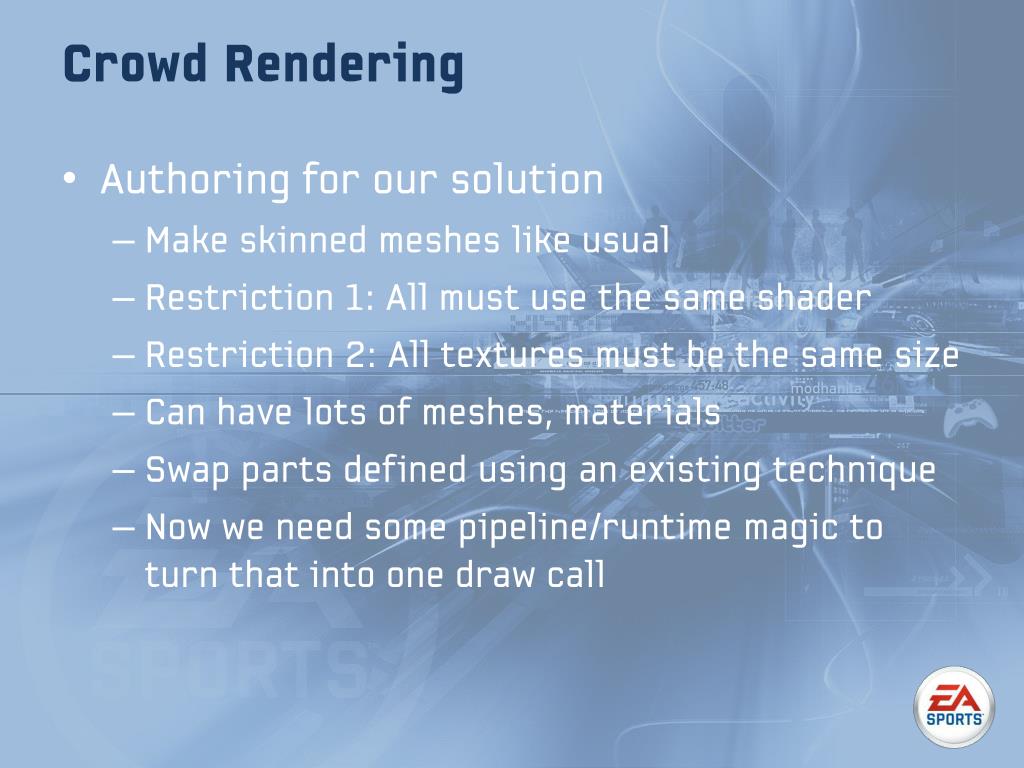

  36. Crowd Rendering • Authoring for our solution • Make skinned meshes like usual • Restriction 1: All must use the same shader • Restriction 2: All textures must be the same size • Can have lots of meshes, materials • Swap parts defined using an existing technique • Now we need some pipeline/runtime magic to turn that into one draw call

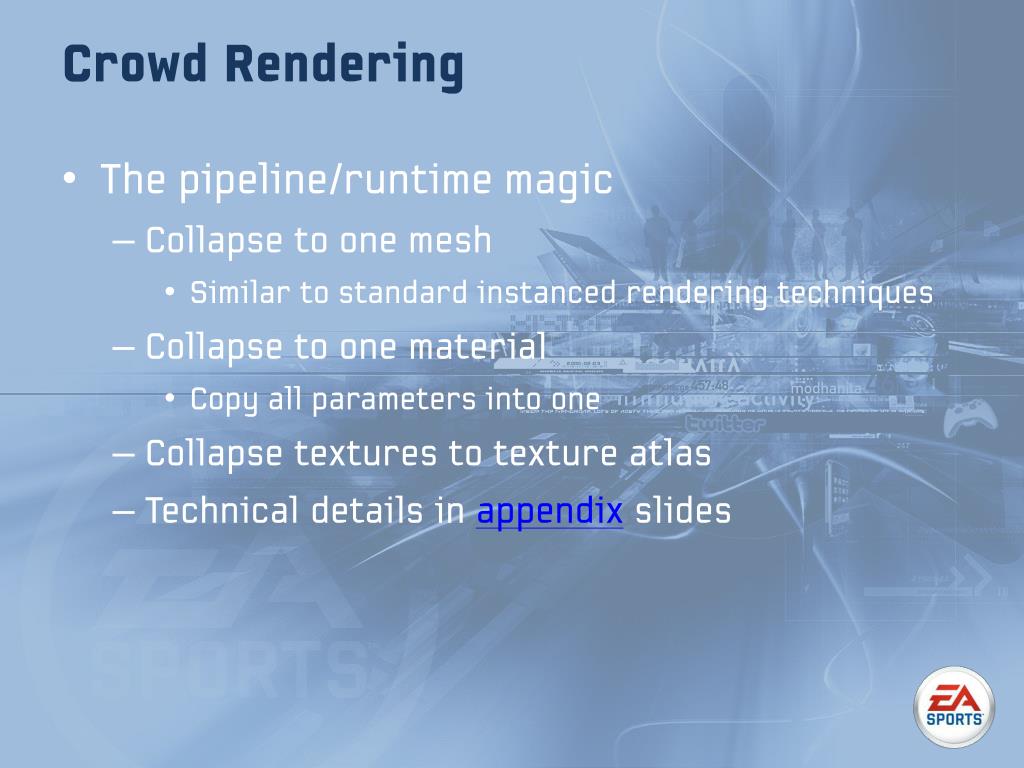

  37. Crowd Rendering • The pipeline/runtime magic • Collapse to one mesh • Similar to standard instanced rendering techniques • Collapse to one material • Copy all parameters into one • Collapse textures to texture atlas • Technical details in appendix slides

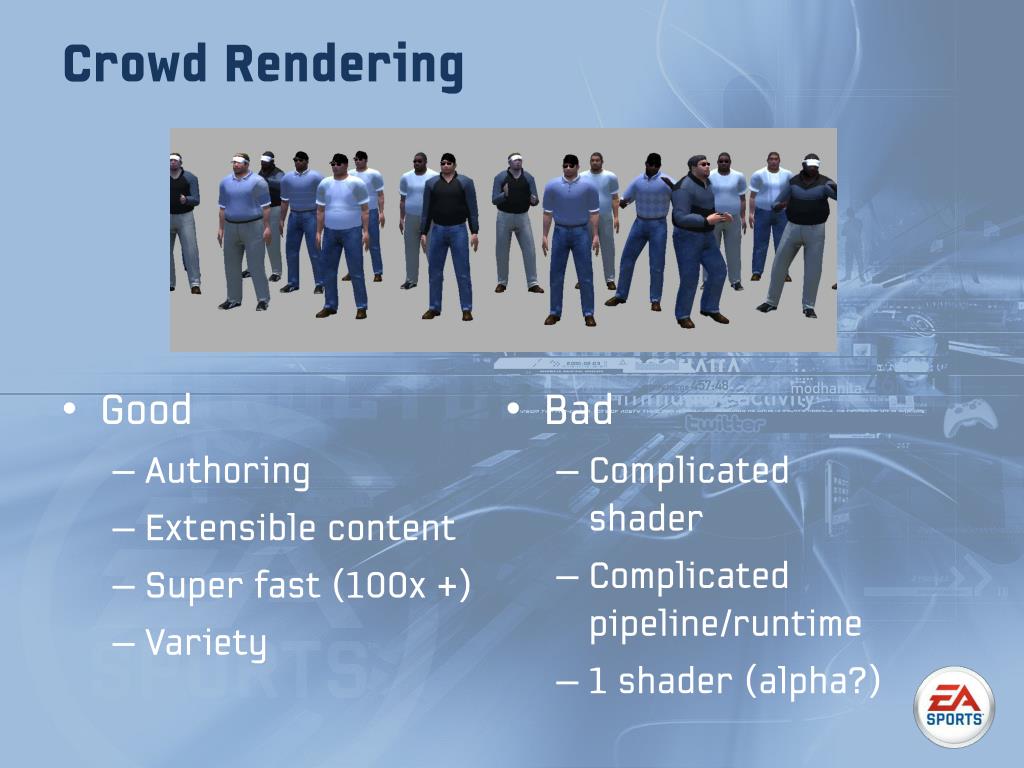

  38. Crowd Rendering • Good • Authoring • Extensible content • Super fast (100x +) • Variety • Bad • Complicated shader • Complicated pipeline/runtime • 1 shader (alpha?)

  39. Colorization and texture compositing

  40. Colorization and Texture Compositing • Common methods of authoring shaders: • Shader language • e.g. HLSL • Visual, node based • Maya layered shader, Houdini, etc. • Converted to shader language for game? • What about a hybrid? • Node based • Each node is a HLSL shader

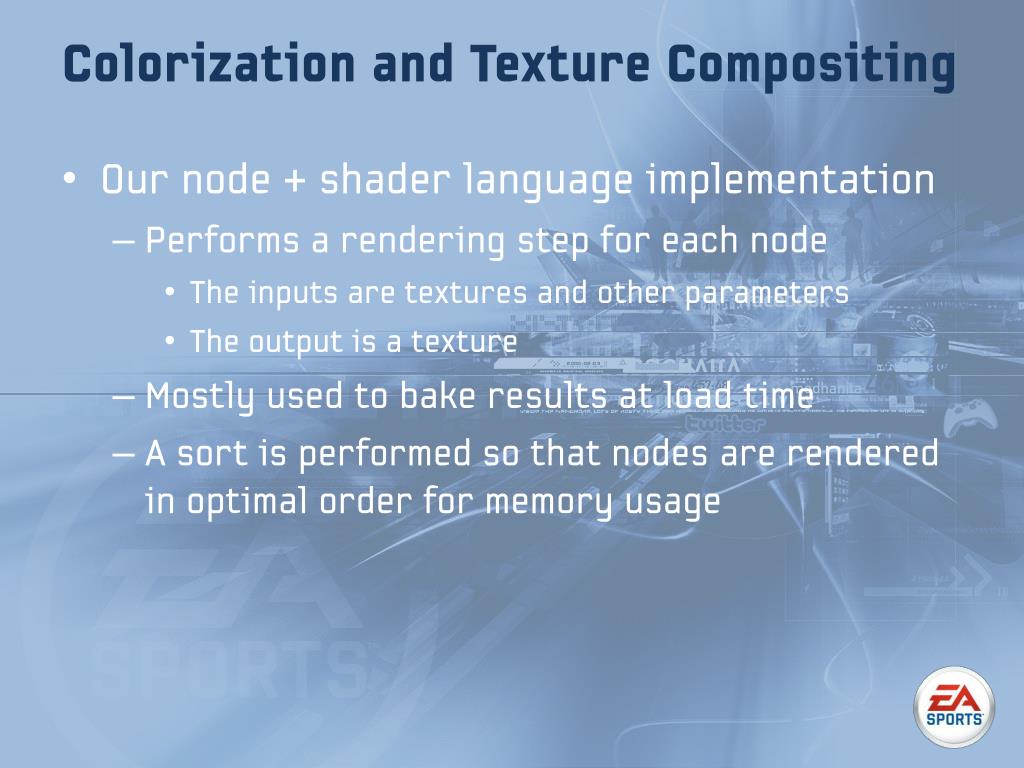

  41. Colorization and Texture Compositing • Our node + shader language implementation • Performs a rendering step for each node • The inputs are textures and other parameters • The output is a texture • Mostly used to bake results at load time • A sort is performed so that nodes are rendered in optimal order for memory usage

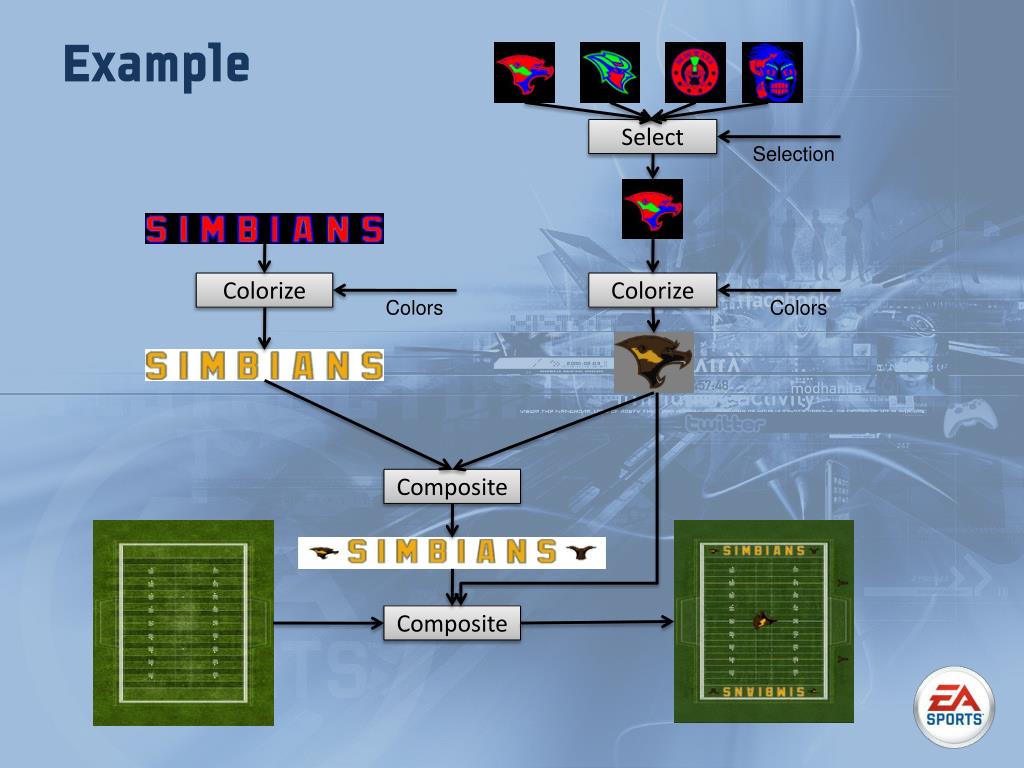

  42. Example Select Selection Colorize Colorize Colors Colors Composite Composite

  43. Colorization and Texture Compositing • Insights • A handful of generic shaders meet majority of needs • Select • Colorize • Composite • More intermediate textures actually reduces memory overhead • No need to create do-all-in-one-step shaders

  44. Questions?

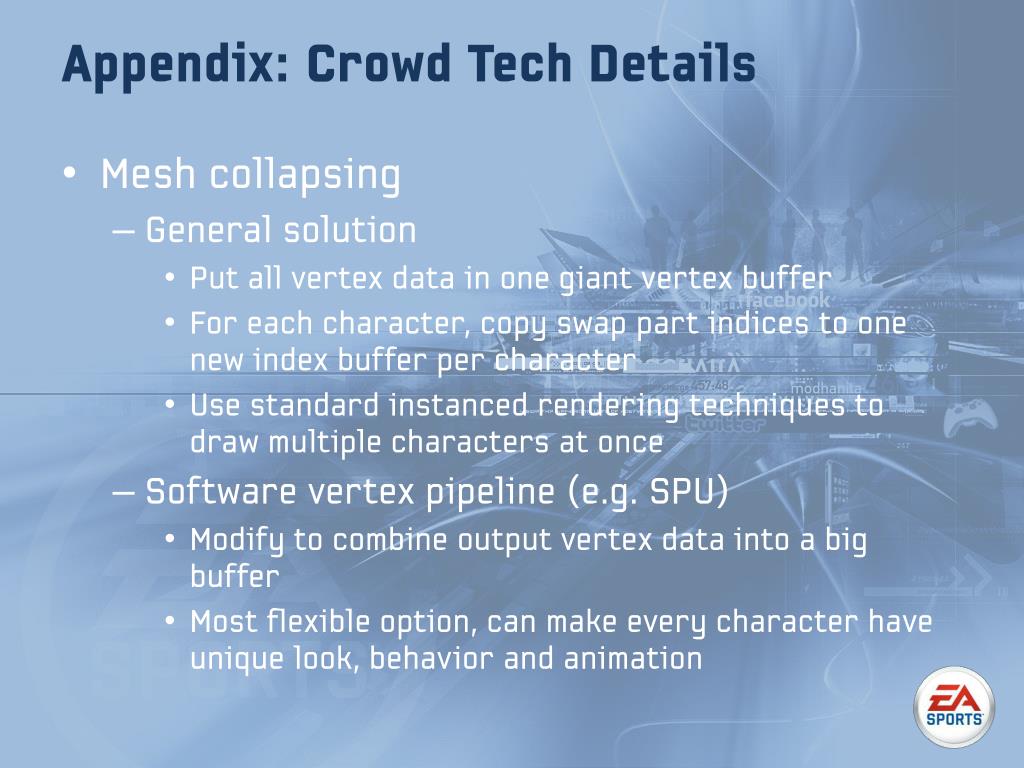

  45. Appendix: Crowd Tech Details • Mesh collapsing • General solution • Put all vertex data in one giant vertex buffer • For each character, copy swap part indices to one new index buffer per character • Use standard instanced rendering techniques to draw multiple characters at once • Software vertex pipeline (e.g. SPU) • Modify to combine output vertex data into a big buffer • Most flexible option, can make every character have unique look, behavior and animation

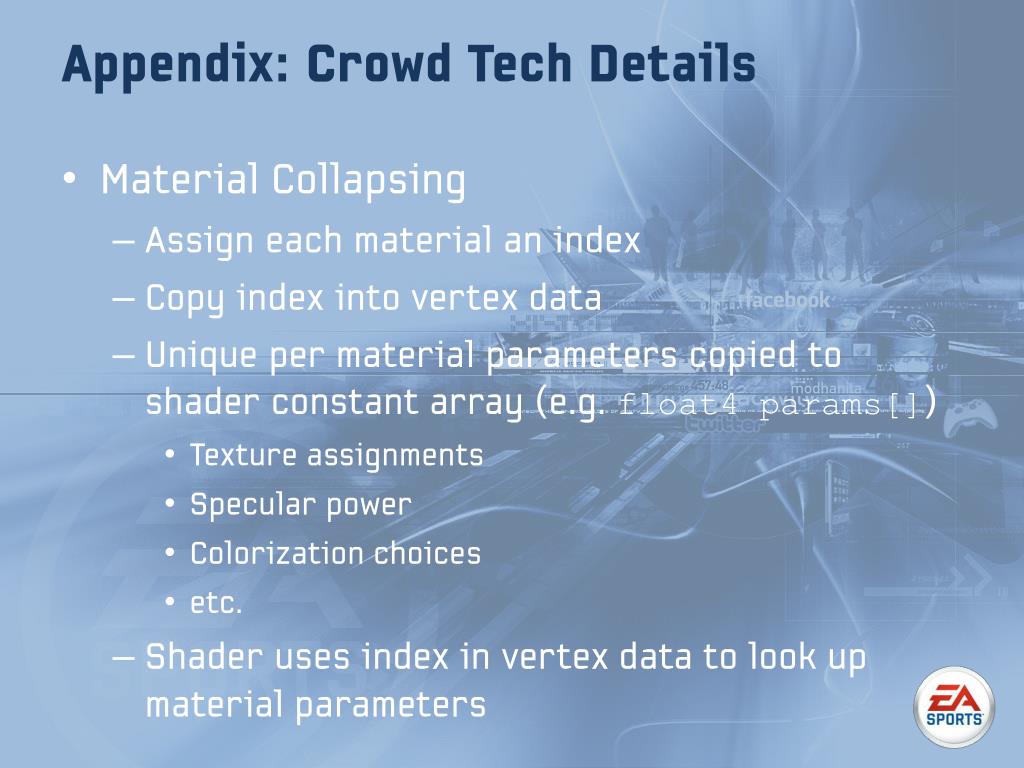

  46. Appendix: Crowd Tech Details • Material Collapsing • Assign each material an index • Copy index into vertex data • Unique per material parameters copied to shader constant array (e.g. float4 params[]) • Texture assignments • Specular power • Colorization choices • etc. • Shader uses index in vertex data to look up material parameters

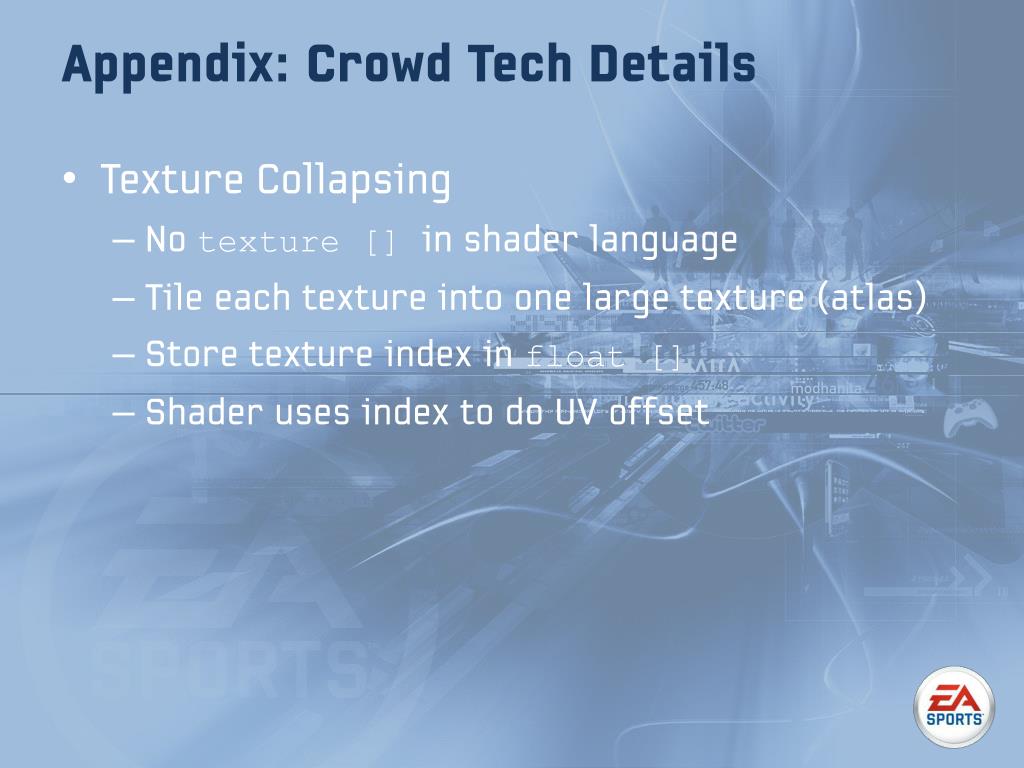

  47. Appendix: Crowd Tech Details • Texture Collapsing • No texture [] in shader language • Tile each texture into one large texture (atlas) • Store texture index in float [] • Shader uses index to do UV offset
