FAWN: A Fast Array of Wimpy Nodes



Large-scale data-intensive applications like high performance key-value storage systems are being used by Facebook, LinkedIn, Amazon with more regularity. Being I/O, Requiring RA over large DB, performing parallel, concurrent and mostly independent operations, requiring large clusters and storing small sized objects are several common features these workloads share.System performance: queries/sec    Energy efficiency: queries/joule CPU performance and I/O bandwidth Gap : For data intensive computing workloads, storage, network and memory bandwidth bottlenecks lead to low CPU utilizationSolution: wimpy processors to reduce I/O induced idle cyclesCPU Power consumption: operating processors at higher freq requires more energy.                     techniques to mask CPU bottleneck cause energy inefficiency                     branch prediction, speculative execution – more processor  die areaSolution:  slower CPUs execute more instructions per joule               1 billion vs. 100 million instructions per Joule

Fawn a fast array of wimpy nodes


Efficient – 1W at heavy load Vs 10W at load        Fast random reads – up to 175 times faster        Slow random writes – updating a single page means erasing an entire block before writing the modified block in its placeCluster of embedded CPUs using flash storage        Efficient – 1W at heavy load Vs 10W at load        Fast random reads – up to 175 times faster        Slow random writes – updating a single page

means erasing an entire block before writing the modified

block in its place FAWN-KeyValue        nodes organized into a ring using consistent Hashing        physical node is a collection of virtual nodeFAWN-DS        Log structured key-value stores        contains values for key range associated with VID

Fawn ds


Uses as in-memory Hash Index to map 160-bit key to a value stored in the data logstores only a fragment of the actual key.         Hash Index bucket = i low order index bits        key fragment = next 15 low order bitsEach bucket -6 bytes - stores frag, valid bit and 4-byte pointer

Fawn ds1

Virtual Node Maintenance:





Basic Functions:




                               Concurrent operations

Fawn kv


FAWN-KV organizes the back-end VIDs into a storage ring-structure using consistent hashingManagement node        assigns each front-end to circular key space Front-end node        manages fraction of key-space        manages the VID membership list        forwards out-of-range request Back-end nodes – VIDs        owns a key range        contacts front-end when joining

Fawn kv1


Chain replication

Fawn kv2



    split key range


    chain insertion

    log flush


    merge key range

    Join into each chain

Individual node performance

Individual Node Performance

  • Lookup speed

  • Bulk store speed: 23.2 MB/s, or 96% of raw speed

Individual node performance1

Individual Node Performance

  • Put speed

  • Compared to BerkeleyDB: 0.07 MB/s – shows necessity of log-based filesystems

Individual node performance2

Individual Node Performance

  • Read- and write-intensive workloads

System benchmarks

System Benchmarks

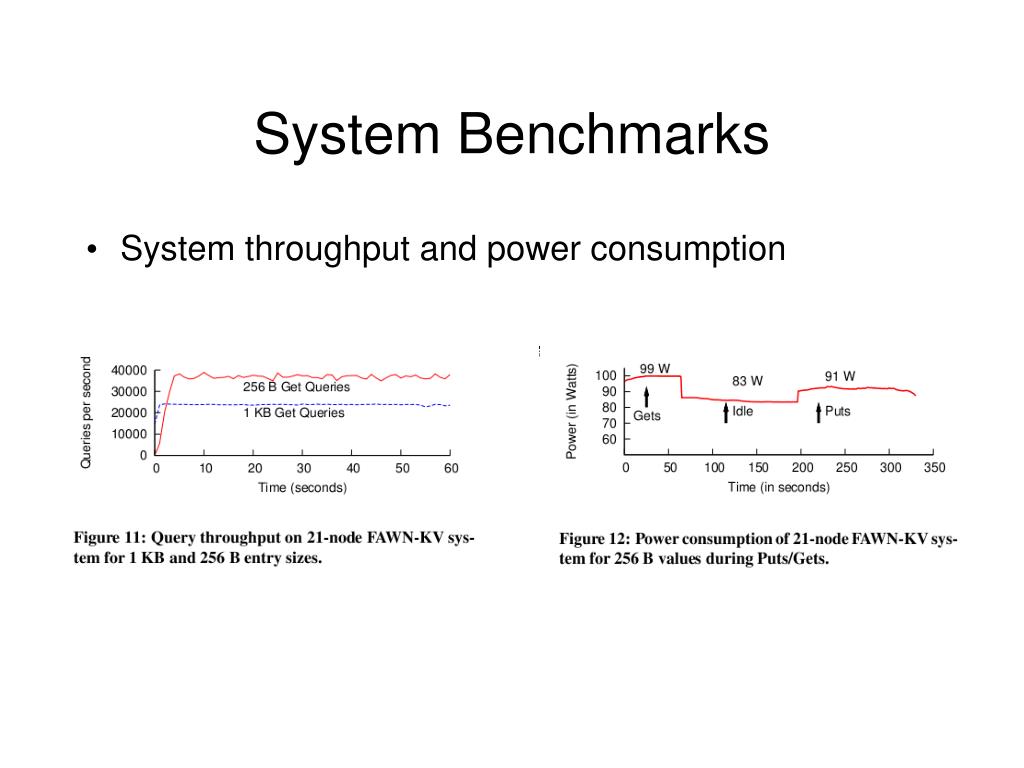

  • System throughput and power consumption

Impact of ring membership changes

Impact of Ring Membership Changes

  • Query throughput during node join and maintenance operations

Alternative architectures

Alternative Architectures

Large Dataset, Low Query → FAWN+Disk                 number of nodes dominated by storage capacity per node                 has the lowest total cost per GBSmall Dataset, High Query → FAWN+DRAM                number of nodes dominated by per node query capacity                has the lowest cost for queries/secMiddle Range → FAWN+SSD               best balance of storage capacity, query rate and total cost



  • Fast and energy efficient processing of random read-intensive workloads

  • Over an order of magnitude more queries per Joule than traditional disk-based systems
