  1. Introduction of the Easy Pic

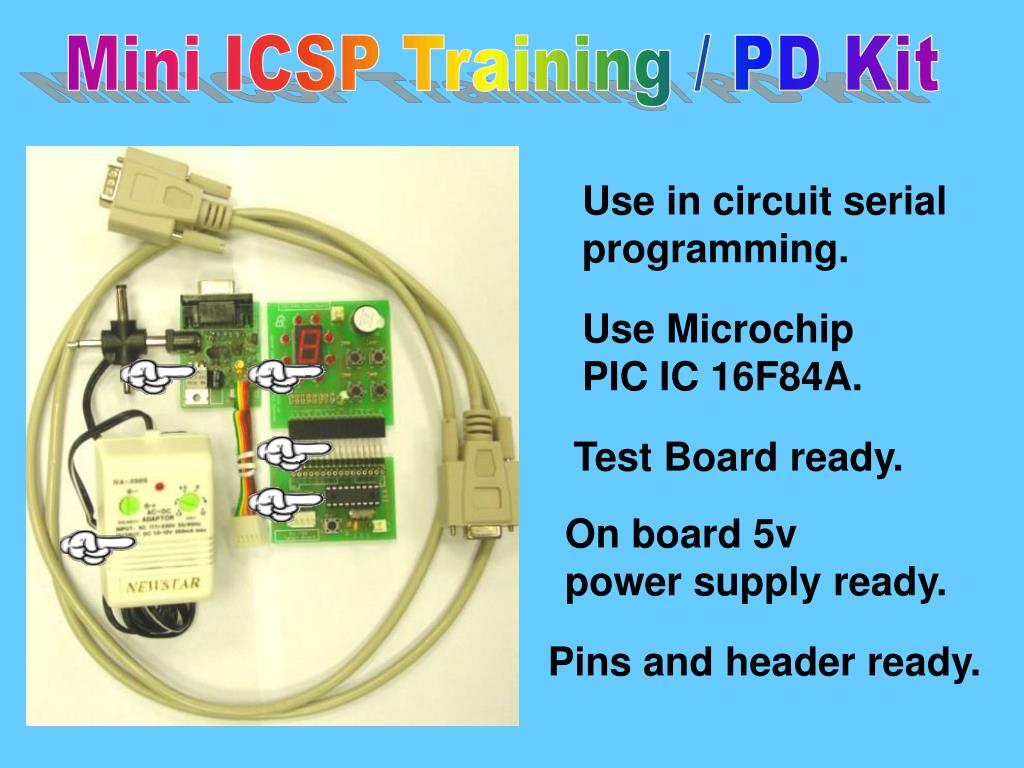

  2. Mini ICSP Training / PD Kit Use in circuit serial programming. Use Microchip PIC IC 16F84A. Test Board ready. On board 5v power supply ready. Pins and header ready.

  3. In circuit programmer Test board Target board Consists of :

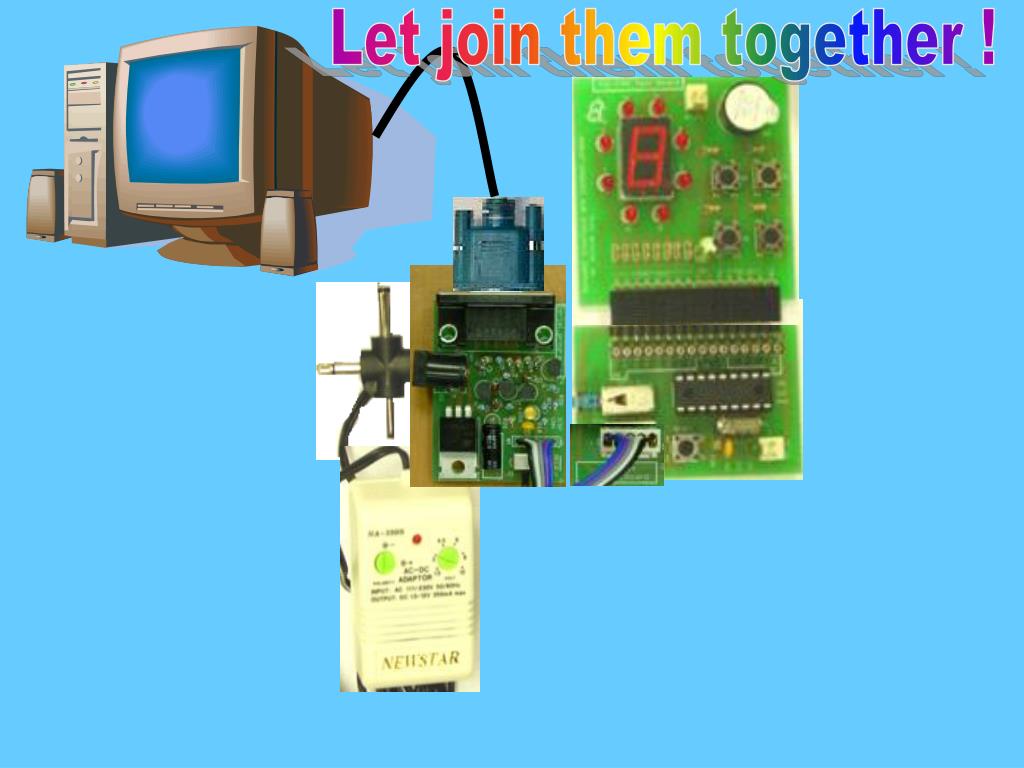

  4. Let join them together !

  5. Let try it ! Flashing C language Assemble language Machine language

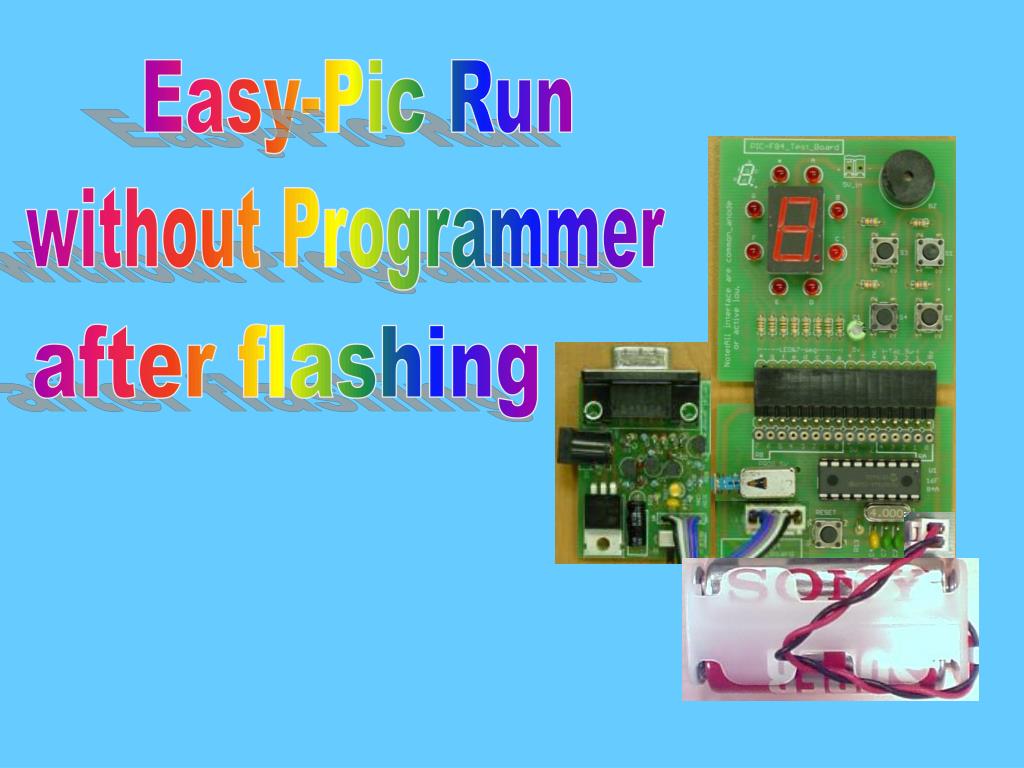

  6. Easy-Pic Run without Programmer after flashing

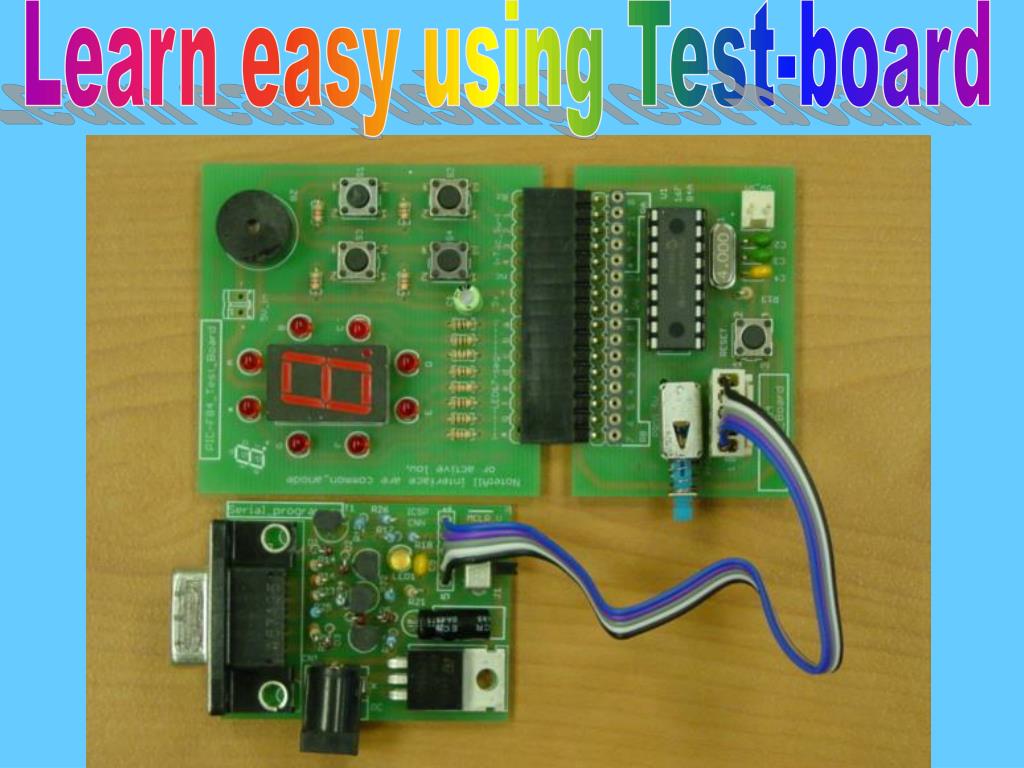

  7. Learn easy using Test-board

  8. Make prototyping easy !

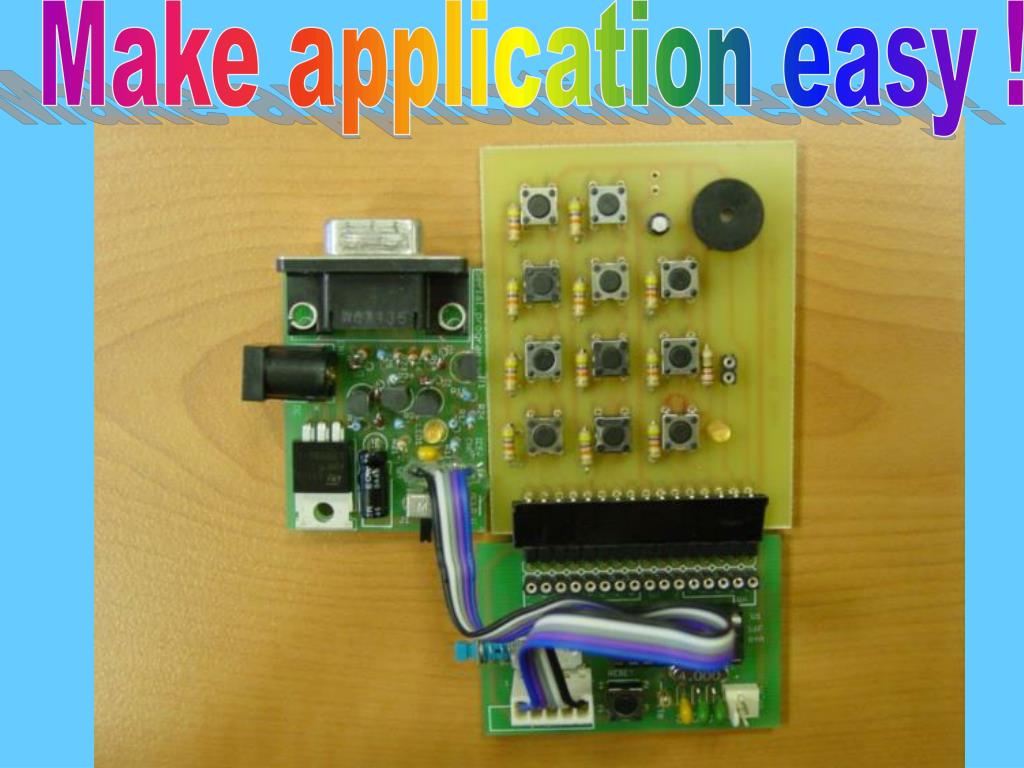

  9. Make application easy !

  10. Change application easy !

  11. Move Robot easy !

  12. Create your own Design ! SCHOOL SCIENCE PROJECT

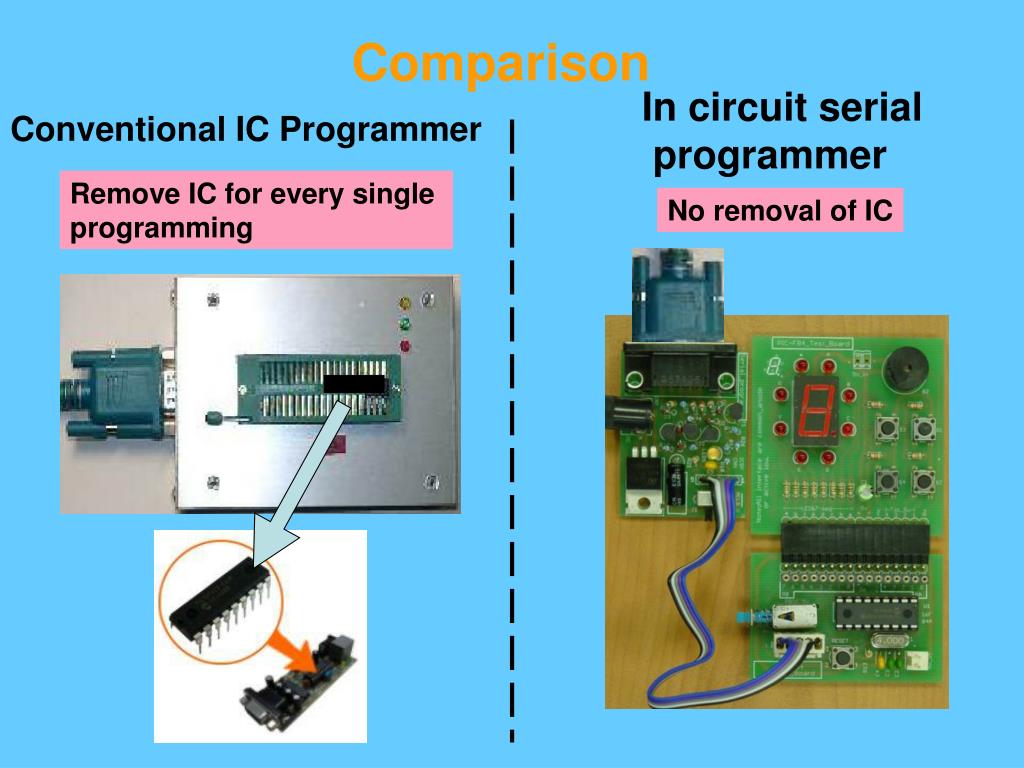

  13. Comparison In circuit serial programmer Conventional IC Programmer Remove IC for every single programming No removal of IC

  14. Pins and header ready for bread-boarding. On board 5v power supply ready.

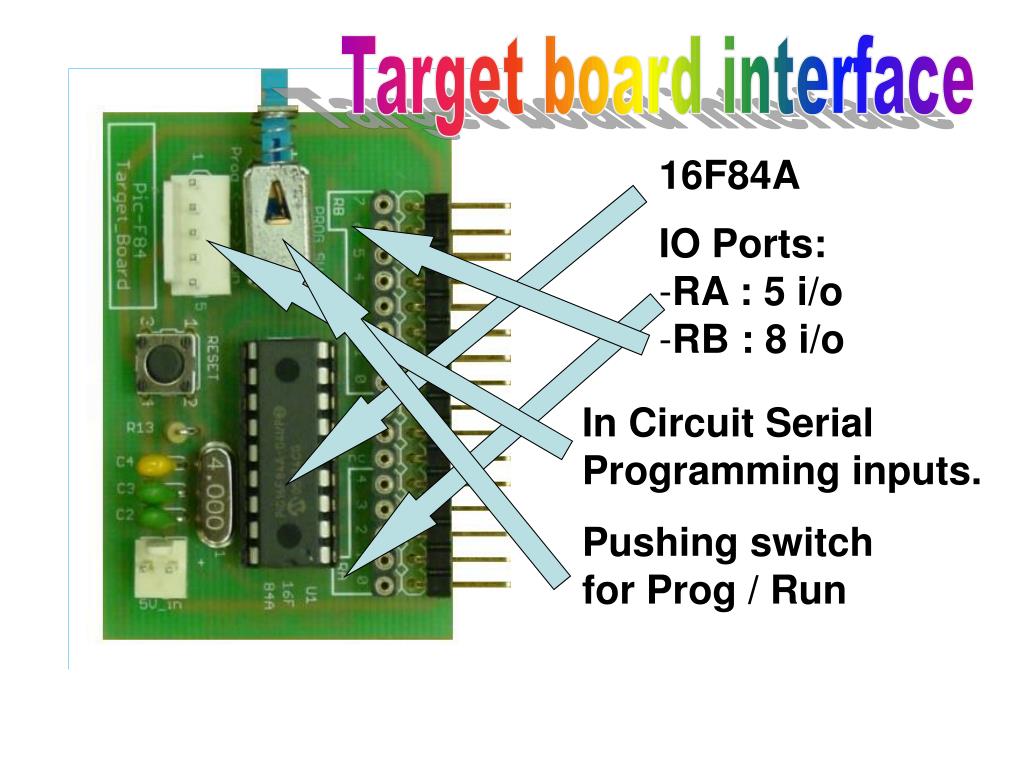

  15. Target board interface 16F84A • IO Ports: • RA : 5 i/o • RB : 8 i/o In Circuit Serial Programming inputs. Pushing switch for Prog / Run

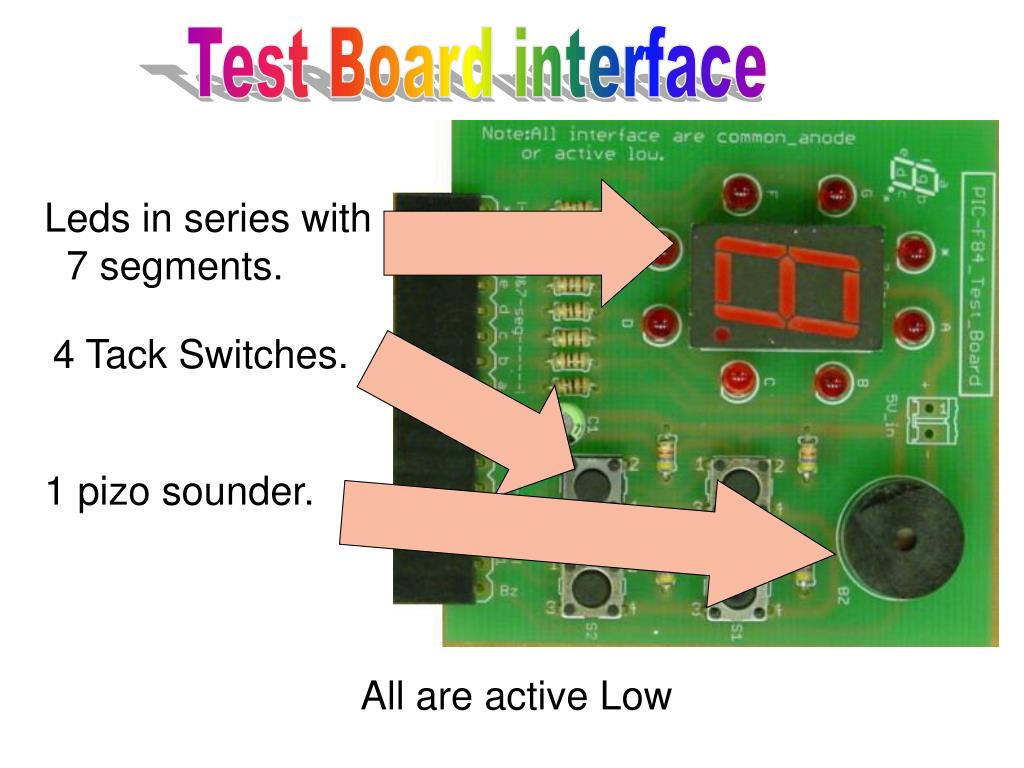

  16. Test Board interface Leds in series with 7 segments. 4 Tack Switches. 1 pizo sounder. All are active Low

  17. The End Note : All interfaces are active low. RB 7 to 0 connected to Led A to * RA 0 connected to Pizo sounder RA 1 to 4 connected to S1 to S4 Let join them !!
