Dondi vigesaa operations engineer microsoft corporation dondiv@microsoft com l.jpg

Dondi Vigesaa

Operations Engineer

Microsoft Corporation

[email protected]

How Microsoft IT Deploys Windows Server 2008 Failover Clusters for File Services


Agenda l.jpg

Microsoft IT File Service Utility group situation

Method for updating Windows Server 2008 failover cluster nodes

Approach for migrating from Windows Server 2003 to Windows Server 2008 cluster nodes

Lessons learned

Best practices

Agenda


What we will cover l.jpg

What We Will Cover

Microsoft IT business drivers

Windows Server 2008 failover clustering technologies

Distributed File System services

Storage Area Network concepts


Prerequisite knowledge l.jpg

Understanding of

General server concepts

High-level failover clustering concepts

Basic networking concepts

Basic Storage Area Network concepts

Prerequisite Knowledge

Level 200


Situation microsoft it l.jpg

SituationMicrosoft IT

File Services Utility (FSU) Group

Provides file services in four primary datacenters

Dublin, Ireland

Kawaguchi, Japan

Redmond, WA, USA

Singapore, Singapore

Provides access to over 200 TB of data

Handles shares from 20 GB to 300 GB in size


Situation migration business drivers l.jpg

SituationMigrationBusiness Drivers

Simplified administration

Support for more users with the same number of administrators

Increased uptime through the use of fewer administrative consoles

Support for more users through Distributed File Services namespace

Support for larger cluster disk volumes


Reasons for using windows server 2008 key benefits l.jpg

Reasons for Using Windows Server 2008 Key Benefits

SCSI-3 persistent reservations used

Domain user account not required by cluster service

Node names, cluster name, and network names are Active Directory Computer Name Objects (CNOs)

Kerberos-only authentication is the default authentication mechanism


Reasons for using windows server 2008 key benefits cont d l.jpg

Reasons for Using Windows Server 2008 Key Benefits (cont’d)

Full support for Volume Shadowcopy Service (VSS) for easier backups

Support for disk volumes larger than 2 TB

Centralized administration interface leverages MMC 3.0


Solution requirements l.jpg

SolutionRequirements

Protection of disk resources during migration

In-place migration that requires no new server hardware or storage hardware

Clearly defined and reliable roll-back plan by keeping one or more Windows Server 2003 cluster nodes in reserve

Simple process that does not require a large team

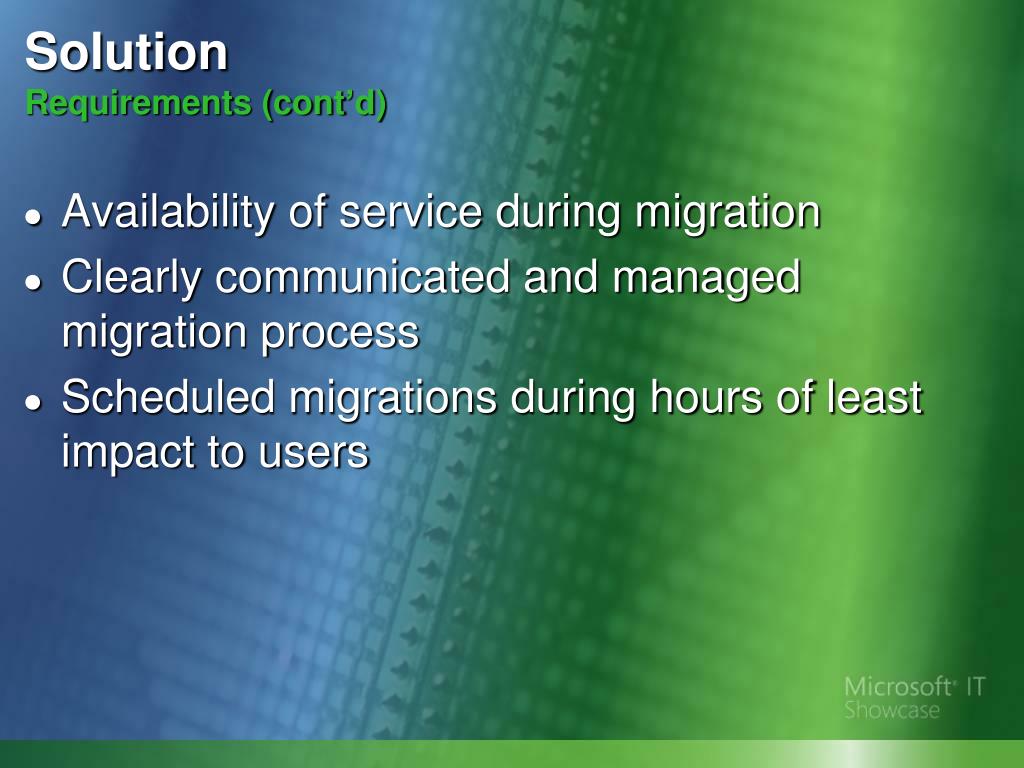

Solution requirements cont d l.jpg

SolutionRequirements (cont’d)

Availability of service during migration

Clearly communicated and managed migration process

Scheduled migrations during hours of least impact to users


Solution overview l.jpg

SolutionOverview

Move cluster resources to a single active node

Install Windows Server 2008 on passive node in a new cluster group

Migrate cluster resources to Windows Server 2008 node

Install Windows Server 2008 on remaining cluster node


Slide12 l.jpg

demonstration

Migration Process

  • Move all cluster resources to a single node

  • Take passive node offline

  • Unmask storage from passive node

  • Format and install Windows Server 2008 on passive node

  • Mask storage


Migrating to windows server 2008 typical configuration l.jpg

Migrating to Windows Server 2008Typical Configuration

  • Active/Passive configuration

  • Shared storage

  • Dedicated cluster heartbeat connection

  • Dedicated public network connection


Migrating to windows server 2008 consolidate resources on single node l.jpg

Migrating to Windows Server 2008Consolidate resources on single node

  • Move all cluster resources to the active node

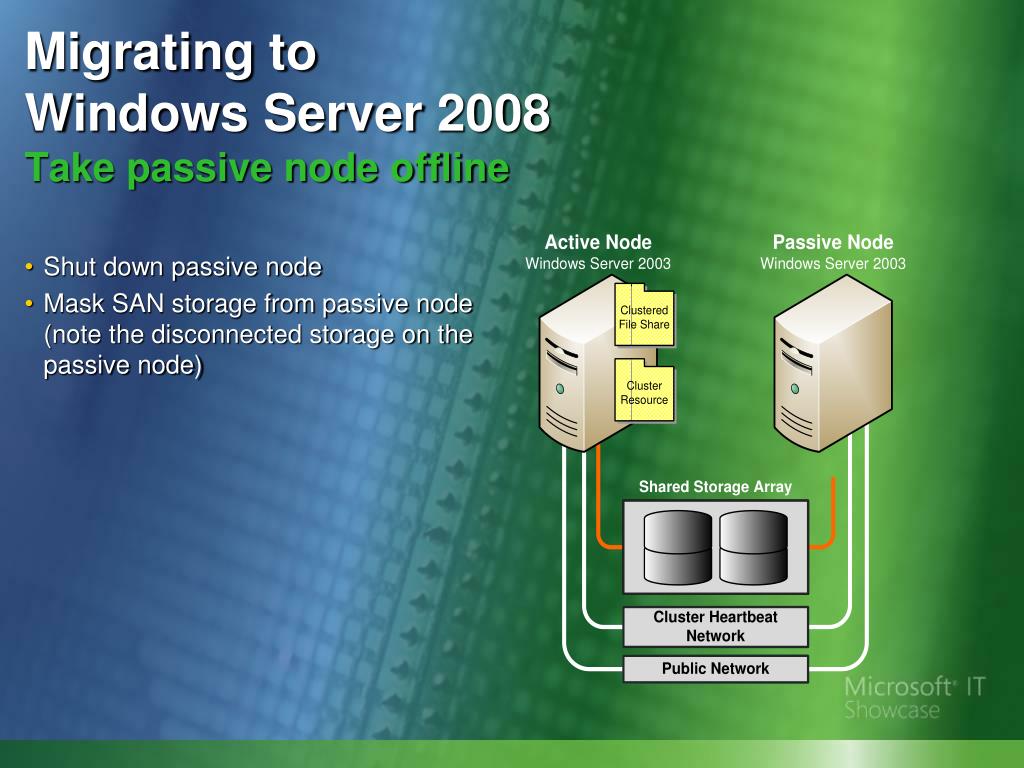

Migrating to windows server 2008 take passive node offline l.jpg

Migrating to Windows Server 2008Take passive node offline

  • Shut down passive node

  • Mask SAN storage from passive node (note the disconnected storage on the passive node)

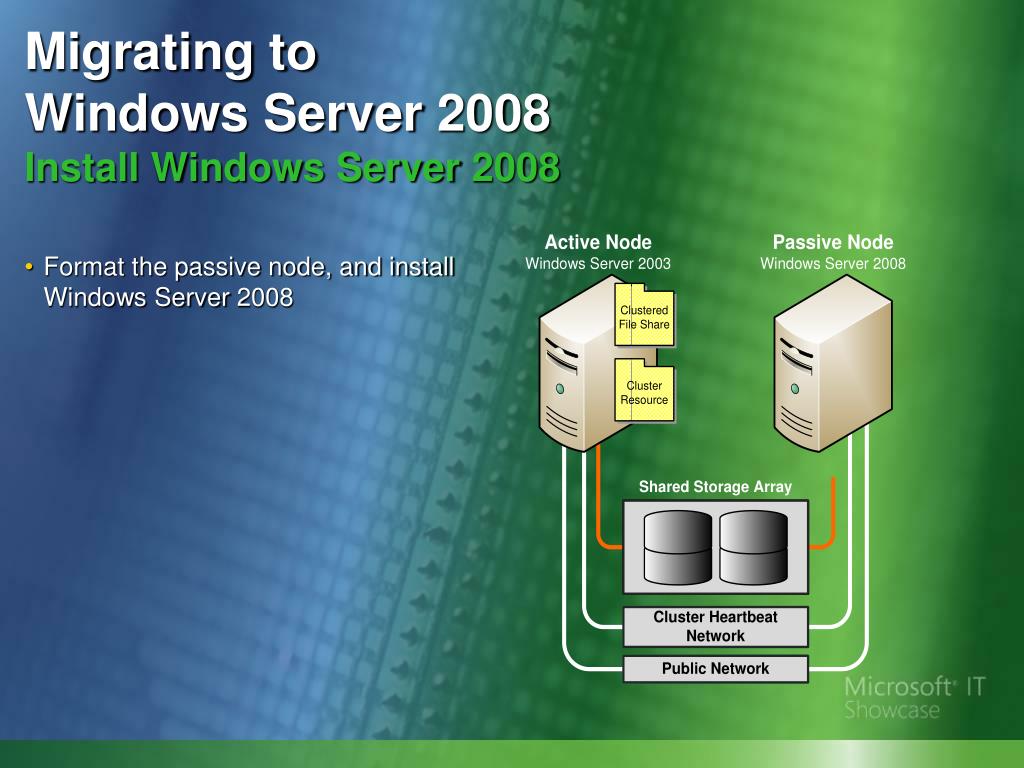

Migrating to windows server 2008 install windows server 2008 l.jpg

Migrating to Windows Server 2008Install Windows Server 2008

  • Format the passive node, and install Windows Server 2008


Migrating to windows server 2008 configure new node unmask storage l.jpg

Migrating to Windows Server 2008Configure new node & unmask storage

  • Unmask SAN storage

  • Configure shared storage in Windows Server 2008

  • Configure a new, distinct cluster group


Migrating to windows server 2008 migrate resources to new node l.jpg

Migrating to Windows Server 2008Migrate resources to new node

  • Check to make sure that no clustered applications or file shares have dependencies set for cluster group resources

  • Use the Cluster Resource Migration wizard to migrate clustered file shares and applications to the Windows Server 2008 failover cluster


Migrating to windows server 2008 take remaining node offline l.jpg

Migrating to Windows Server 2008Take remaining node offline

  • After all applications and file shares are migrated and tested, power down the remaining Windows Server 2003 node

  • Mask storage from the remaining Windows Server 2003 node


Migrating to windows server 2008 install and configure new node l.jpg

Migrating to Windows Server 2008Install and configure new node

  • Install Windows Server 2008 on the new cluster node


Migrating to windows server 2008 move cluster resources back to original locations l.jpg

Migrating to Windows Server 2008Move cluster resources back to original locations

  • Unmask SAN connection

  • Join the new node to the cluster group

  • Move cluster applications and resources back to original locations


Slide22 l.jpg

demonstration

Cluster Failover Process

  • Take active node offline

  • Update or repair offline node

  • Bring passive node online to support cluster resources


Updating windows server 2008 failover clusters typical configuration l.jpg

Updating Windows Server 2008 Failover ClustersTypical Configuration

  • Active/Passive configuration

  • Shared storage

  • Dedicated cluster heartbeat connection

  • Dedicated public network connection


Updating windows server 2008 failover clusters consolidate resources l.jpg

Updating Windows Server 2008 Failover ClustersConsolidate resources

  • Move all cluster resources to the active node

  • Failover process streamlined in Windows Server 2008 failover clusters – faster than ever

  • Install updates on the offline node


Updating windows server 2008 failover clusters move resources to updated node l.jpg

Updating Windows Server 2008 Failover ClustersMove resources to updated node

  • Move all cluster resources to the recently updated node

  • Test and verify application updates


Updating windows server 2008 failover clusters update offline node l.jpg

Updating Windows Server 2008 Failover ClustersUpdate offline node

  • Install updates on the offline node


Updating windows server 2008 failover clusters move resources back to original node l.jpg

Updating Windows Server 2008 Failover ClustersMove resources back to original node

  • Move all cluster resources to the original node


Benefits l.jpg

Benefits

Support for more cluster nodes, now a maximum of 16 per cluster group

Support for larger volumes, now greater than 2 TB with GPT partitions

Centralized management with new MMC 3.0–based console

Migration wizard

Greatly simplifies moving cluster resources from Windows Server 2003 to Windows Server 2008 clusters

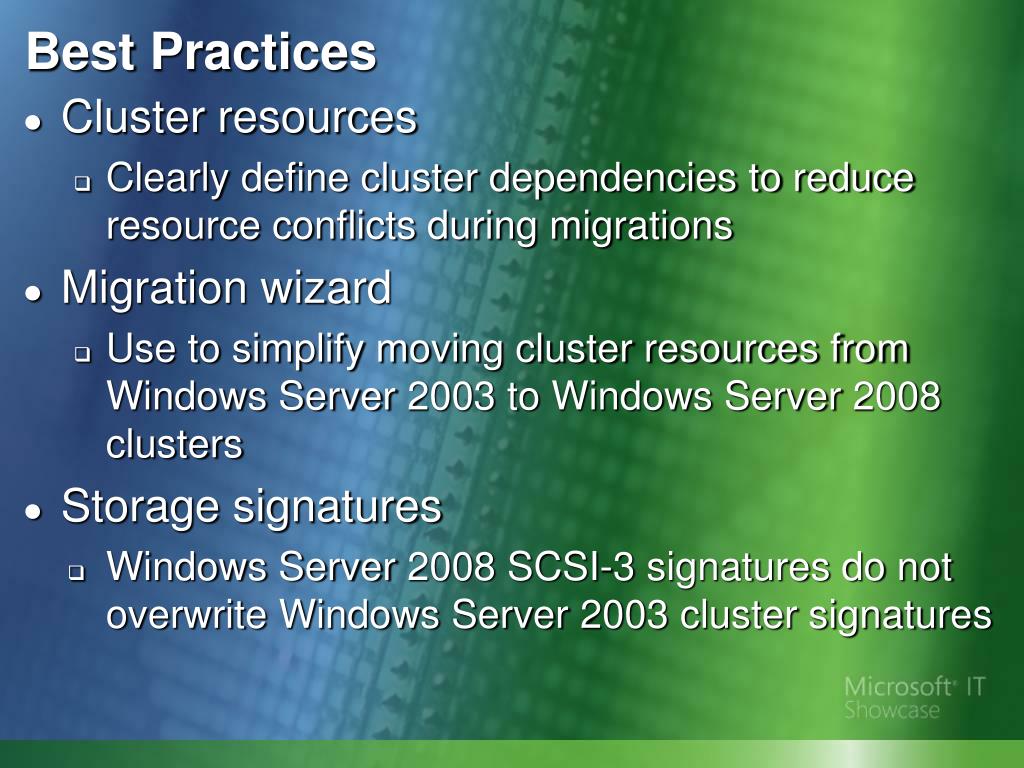

Best practices l.jpg

Best Practices

Cluster resources

Clearly define cluster dependencies to reduce resource conflicts during migrations

Migration wizard

Use to simplify moving cluster resources from Windows Server 2003 to Windows Server 2008 clusters

Storage signatures

Windows Server 2008 SCSI-3 signatures do not overwrite Windows Server 2003 cluster signatures


Best practices cont d l.jpg

Best Practices(cont’d)

Storage masking

Allows for existing hardware to be re-used without risking production data

Allows for simple disconnect and reconnect of production storage during the upgrade process

Phased migration

Provides the ability to apply lessons learned from previous deployments, improving the migration approach


Lessons learned l.jpg

Lessons Learned

Active/Passive node pairs provide a scalable approach to deploying clusters

Distributed File System namespace allows a single cluster to provide DFS services to multiple namespaces, even disjoined namespaces

New management interface provides greater functionality, empowering administrators with greater control and efficiency


Session summary l.jpg

Session Summary

Windows Server 2008 failover clusters bring many new benefits for highly available services and applications

Migration wizard greatly simplifies migrations

Optimized cluster components offer greater performance and manageability

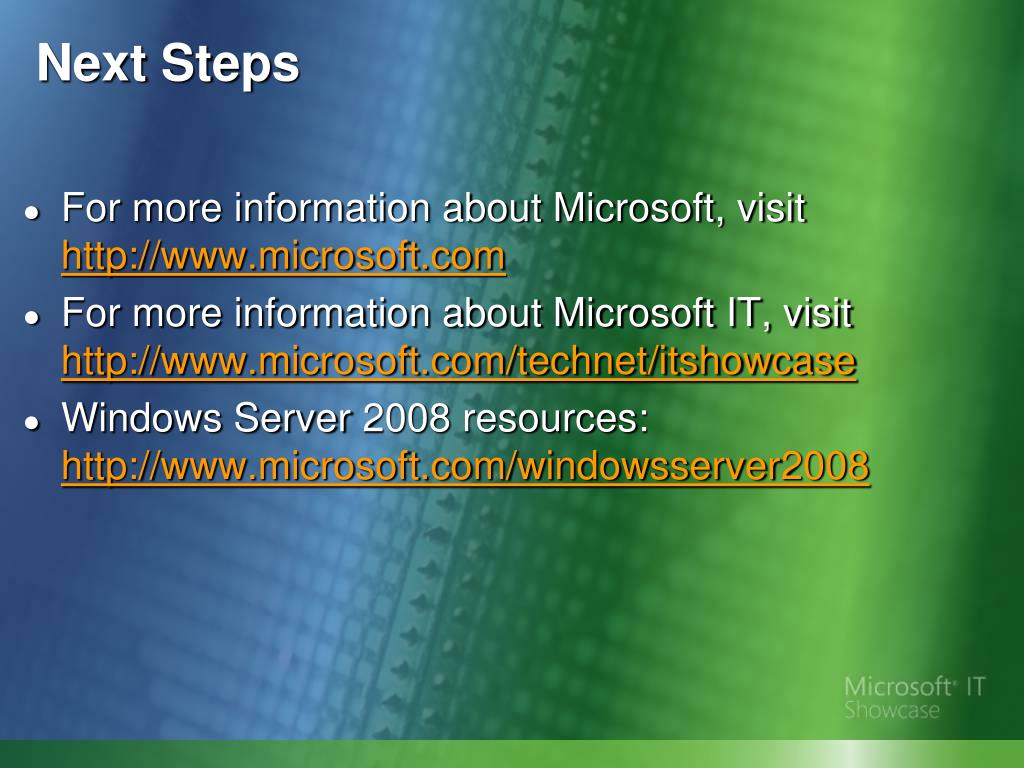

Next steps l.jpg

Next Steps

For more information about Microsoft, visithttp://www.microsoft.com

For more information about Microsoft IT, visithttp://www.microsoft.com/technet/itshowcase

Windows Server 2008 resources:http://www.microsoft.com/windowsserver2008


For more information l.jpg

Visit TechNet at www.microsoft.com/technet

For additional information about books, courses, and other community resources that support this session, visit http://technet2.microsoft.com/windowsserver2008/ and http://www.microsoft.com/learning/windowsserver2008/default.mspx

For More Information…


Questions and answers l.jpg

Questions and Answers

Submit text questions by using the “Ask” button

Don’t forget to fill out the survey

For upcoming and previous live webcasts, visit www.microsoft.com/webcasts

Got webcast content ideas? E-mail us at http://go.microsoft.com/fwlink/?LinkId=41781

Today’s webcast was presented by using Microsoft Office Live Meeting. Get a free 14-day trial at http://www.microsoft.com/presentlive
