Low loss superconducting rutherford cable for discorap

low loss superconducting Rutherford Cable for DiscoRap

v. 1


Low loss superconducting rutherford cable for discorap

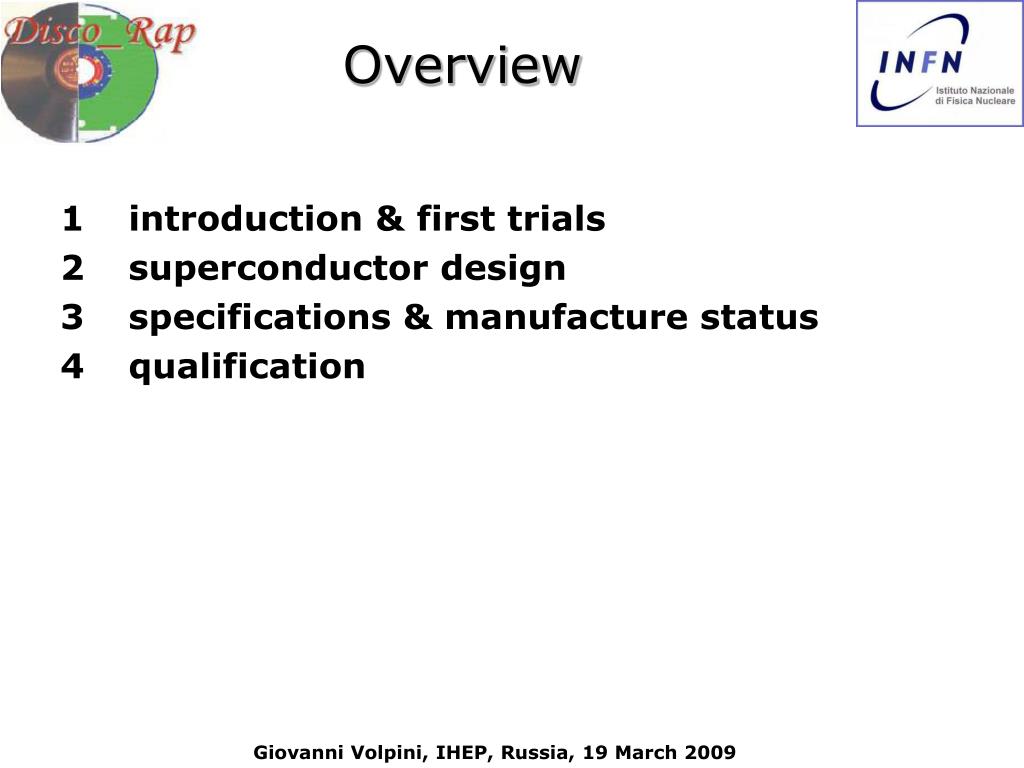

Overview

  • 1introduction & first trials

  • superconductor design

  • specifications & manufacture status

  • qualification


Low loss superconducting rutherford cable for discorap

  • 1introduction & first trials

  • superconductor design

  • specifications & manufacture status

  • qualification


Historical background

Our work started from the first developments, performed in 2002-2004 by GSI, for the Rutherford cable design for the SIS-300 dipoles.

The Rutherford cable layout, its dimensions and the number of strands, were taken from the LHC dipole outer cable, with the insertion of a stainless steel core to increase Rc.

This decision was taken immediately after the change from the SIS 200 to SIS 300 synchrotron design; GSI 001 (SIS200) Rutherford cable design was based on RHIC dipole, with 30 x 0.648 mm strands. To reach a 1 K temperature margin it would have been necessary to have more than 48 0.648 mm strands. Therefore the dimensions of the existing LHC dipole outer layer conductor were chosen.

The preliminary magnetic analyses of the 4.5 T, single layer, INFN design have shown that an analogous margin could be achieved by using the same Rutherford cable, which was therefore adopted.

“historical” background


Frascati ecomag meeting

Frascati ECOMAG meeting

From M. N. Wilson GSIReport no. 29:

...At the Oct 2005 ECOMAG meeting in Frascati, (...) we came to some important conclusions about this wire:

a) Single stacking produces the lowest filament distortion but stacking the enormous numbers of rods required (23 000 for 3.5 mm filaments and 45 000 for 2.5 mm) is not a practical process. So we probably have to accept the distortion of a double stack process and make the filaments proportionately finer.

b) Cu-0.5%Mn is good for suppressing proximity coupling and has a resistivity which is much higher than pure Cu, but not too high (in my view Cu-15%Ni has a too high resistance – and too low thermal conductivity).

c) Cu-0.5%Mn is much better matched to Cu in deformation characteristics than is Cu-15%Ni.

d) Only the minimum amount of CuMn needed to minimize coupling should be used in the wire, elsewhere pure Cu should be used because it improves stability and quench protection.

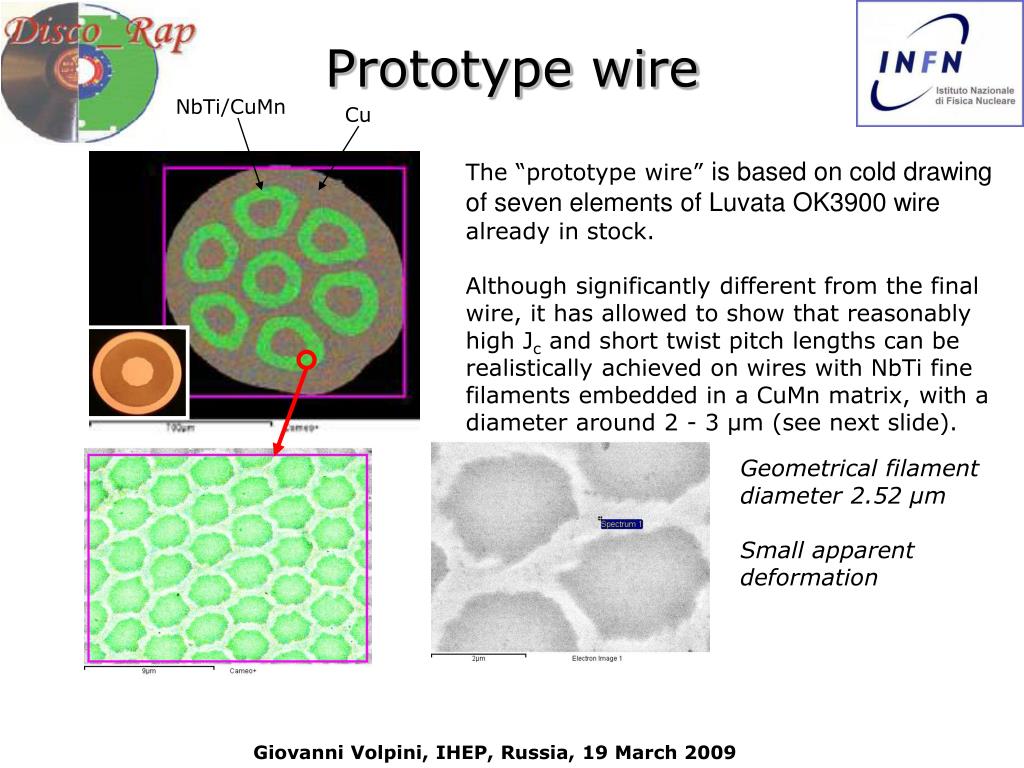

Prototype wire

Prototype wire

NbTi/CuMn

Cu

The “prototype wire” is based on cold drawing of seven elements of Luvata OK3900 wire already in stock.

Although significantly different from the final wire, it has allowed to show that reasonably high Jc and short twist pitch lengths can be realistically achieved on wires with NbTi fine filaments embedded in a CuMn matrix, with a diameter around 2 - 3 μm (see next slide).

Geometrical filament diameter 2.52 μm

Small apparent deformation

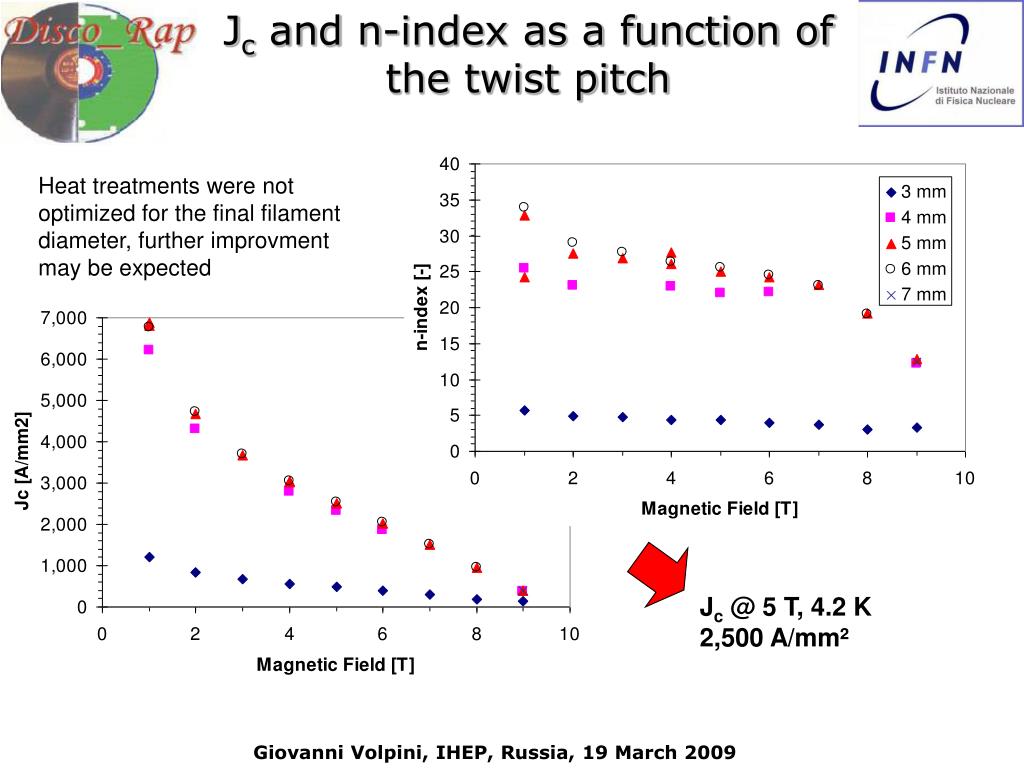

J c and n index as a function of the twist pitch

Jc and n-index as a function of the twist pitch

Heat treatments were not optimized for the final filament diameter, further improvment may be expected

Jc @ 5 T, 4.2 K

2,500 A/mm²


Low loss superconducting rutherford cable for discorap

  • 1introduction & first trials

  • superconductor design

  • specifications & manufacture status

  • qualification


Filament coupling losses problem statement

Eddy currents (z)

Laplace Equation

Boundary

condition

around the

filamentary

areas

y

z

E.C. term

Interfil. term

x

“effective” transverse

resistivity

Interfilamentary

coupling

Therefore we use the term transverse resistivity in a wider meaning; it describes both the transverse current and the EC losses.

The EC’s contribute to 10-15% of the total losses

Filament Coupling LossesProblem statement

dB/dt

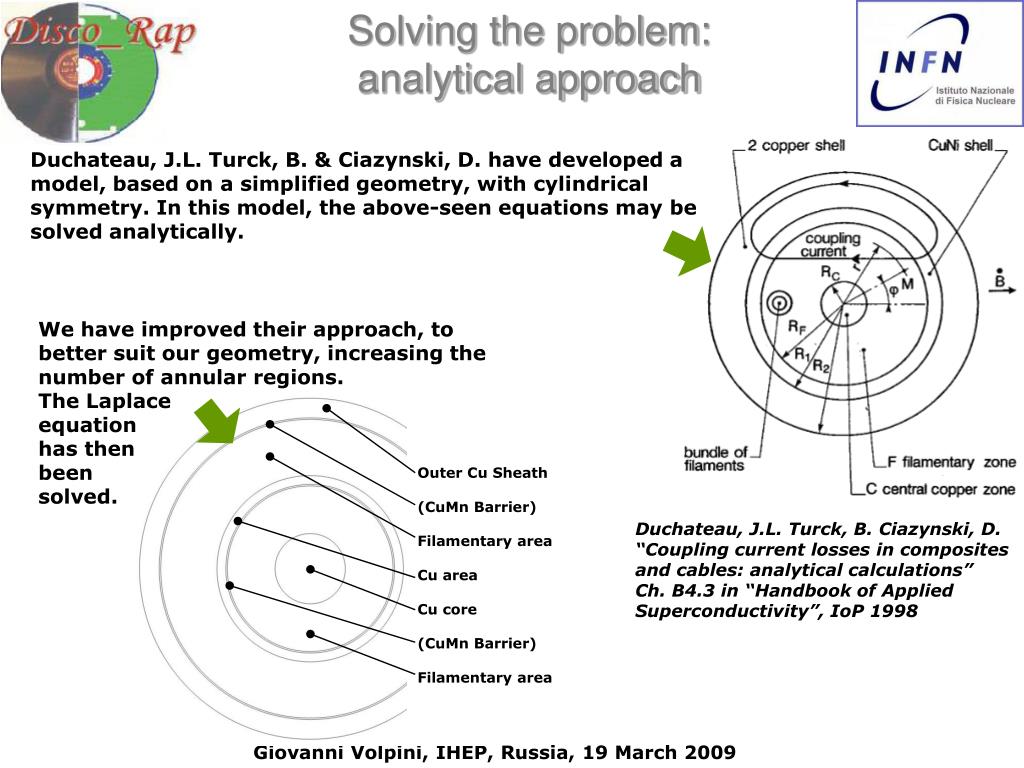

Solving the problem analytical approach

Solving the problem:analytical approach

Duchateau, J.L. Turck, B. & Ciazynski, D. have developed a model, based on a simplified geometry, with cylindrical symmetry. In this model, the above-seen equations may be solved analytically.

We have improved their approach, to better suit our geometry, increasing the number of annular regions.

The Laplace

equation

has then

been

solved.

Outer Cu Sheath

(CuMn Barrier)

Filamentary area

Cu area

Cu core

(CuMn Barrier)

Filamentary area

Duchateau, J.L. Turck, B. Ciazynski, D. “Coupling current losses in composites and cables: analytical calculations” Ch. B4.3 in “Handbook of Applied Superconductivity”, IoP 1998

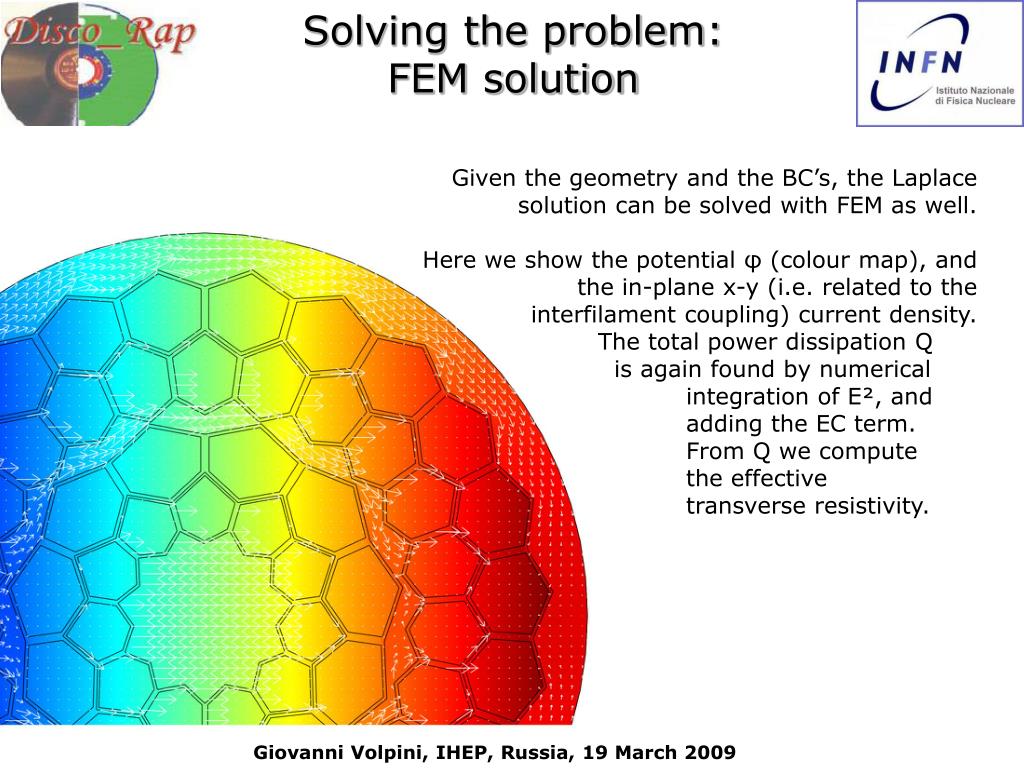

Solving the problem fem solution

Solving the problem:FEM solution

  • Given the geometry and the BC’s, the Laplace solution can be solved with FEM as well.

  • Here we show the potential φ (colour map), and the in-plane x-y (i.e. related to the interfilament coupling) current density.

  • The total power dissipation Q is again found by numerical integration of E², and adding the EC term. From Q we compute the effective transverse resistivity.

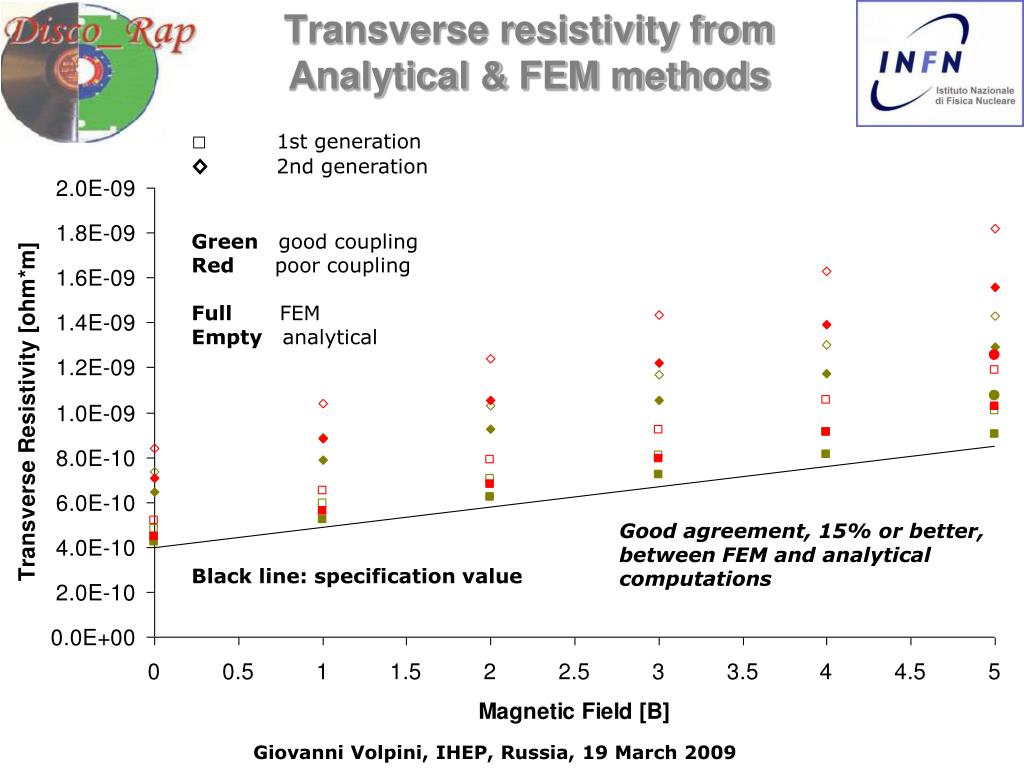

Transverse resistivity from analytical fem methods

Transverse resistivity from Analytical & FEM methods

□ 1st generation

◊ 2nd generation

Green good coupling

Red poor coupling

Full FEM

Empty analytical

Black line: specification value

Good agreement, 15% or better, between FEM and analytical computations

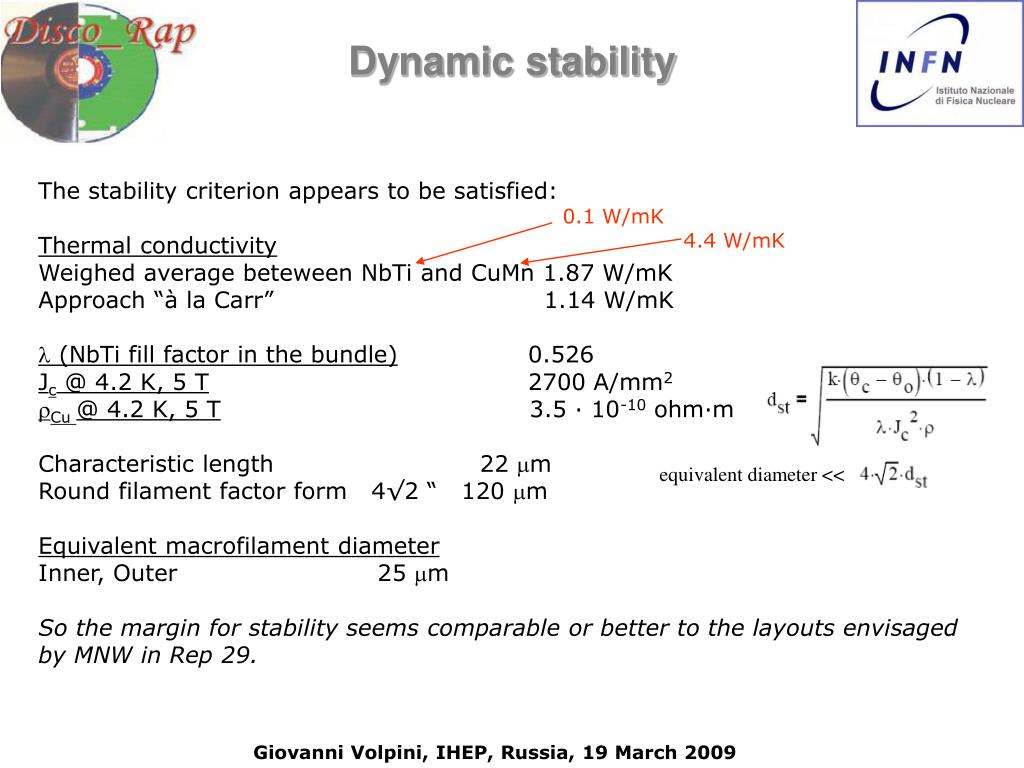

Dynamic stability

equivalent diameter <<

Dynamic stability

The stability criterion appears to be satisfied:

Thermal conductivity

Weighed average beteween NbTi and CuMn 1.87 W/mK

Approach “à la Carr” 1.14 W/mK

l (NbTi fill factor in the bundle) 0.526

Jc @ 4.2 K, 5 T 2700 A/mm2

rCu @ 4.2 K, 5 T 3.5 · 10-10 ohm·m

Characteristic length 22 mm

Round filament factor form 4√2 “ 120 mm

Equivalent macrofilament diameter

Inner, Outer 25 mm

So the margin for stability seems comparable or better to the layouts envisaged by MNW in Rep 29.

0.1 W/mK

4.4 W/mK


Low loss superconducting rutherford cable for discorap

  • 1introduction & first trials

  • superconductor design

  • specifications & manufacture status

  • qualification

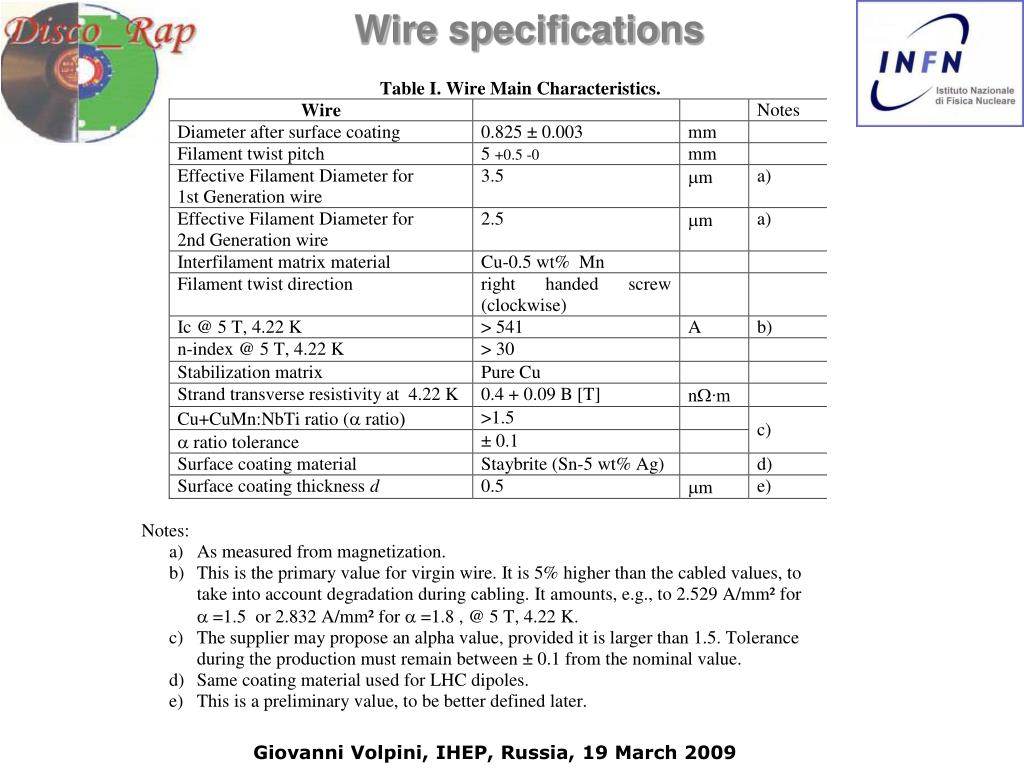

Wire specifications

Wire specifications

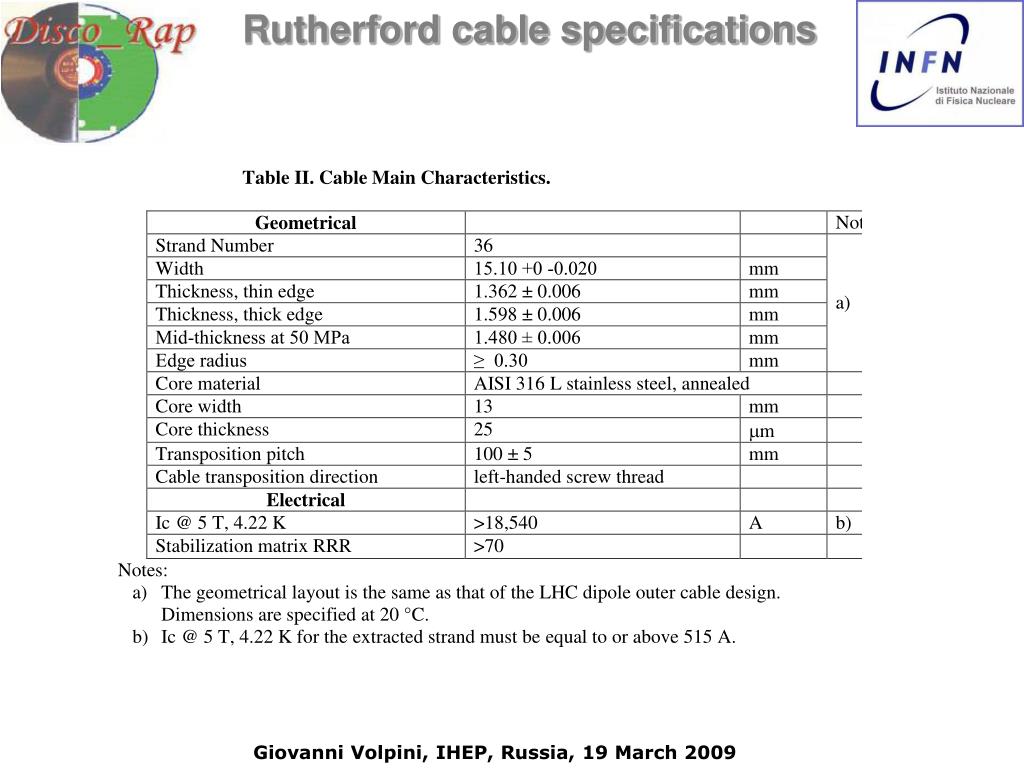

Rutherford cable specifications

Rutherford cable specifications


Sc rutherford cable for magnet winding the contract

SC Rutherford Cable for Magnet Winding:The Contract

A first contract for superconducting Rutherford cable for magnet winding has been awarded to Luvata Superconductors, through its Fornaci di Barga (Italy) Businness Unit. The following material will be supplied:

1080 m (3 unit lenghts) of 1st generation Cable. Two units will be used for winding each of the two poles composing the 4 m long prototype magnet, while the third will serve as a spare.

720 m (2 unit lenghts) of 2nd generation Cable. These units will be used to wind future model magnets.

The same basic geometry will be used for both the first and the second generation, with a filament geometrical diameter 2.65 μm.

The two designs will involve different lay outs to achieve different values of ρt.

Delivery of 1st generation is expected in June 2009


Sc rutherford cable for magnet winding wire design

SC Rutherford Cable for Magnet Winding:Wire Design

The same basic geometry will be used for both the first and the second generation. Design filament geometrical diameter 2.65 μm.

The design involves sub-elements with Cu outer sheath and sub-elements with CuMn outer sheath. Both have CuMn interfilamentary matrix.

The number of Cu-sheath and CuMn-sheath elements differ between 1 st and 2 nd generation, to achieve different values of ρt.

Wire Component Volume Fractions.

Min. Jc @ 5 T , 4.2 K before cabling 2,600 A/mm²

Target Jc “ “ 2,700 A/mm²

Expected cabling degradation ≤ 5%


Sc rutherford cable for magnet winding wire transverse resistivity

SC Rutherford Cable for Magnet Winding:Wire Transverse Resistivity

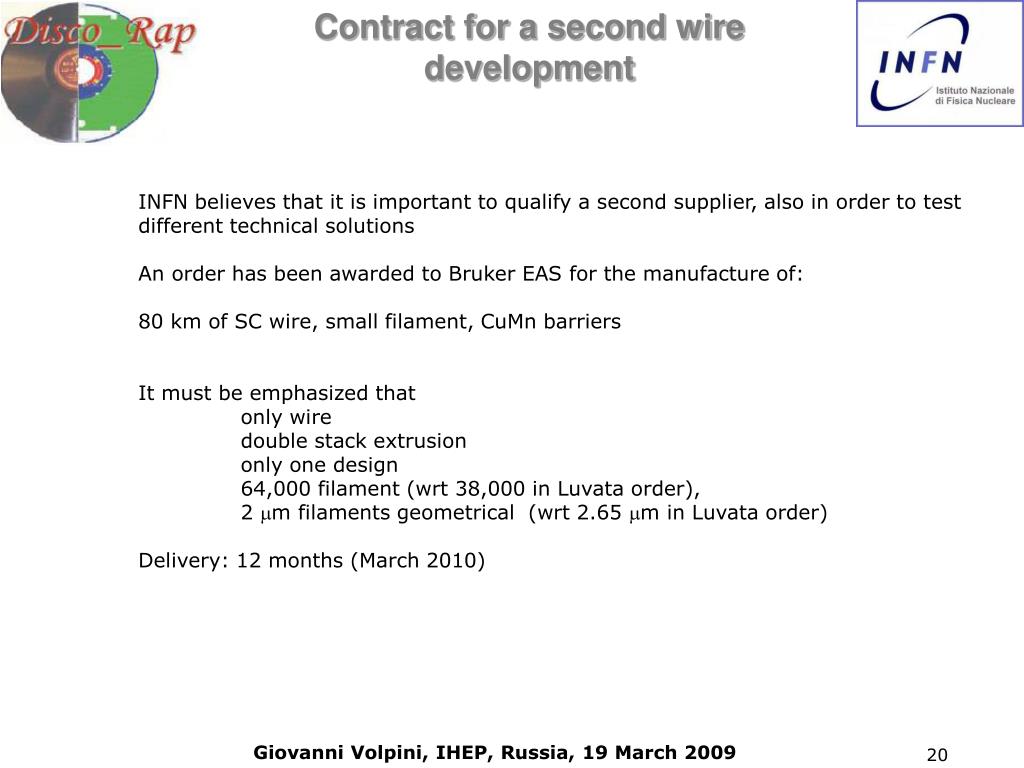

Contract for a second wire development

Contract for a second wire development

INFN believes that it is important to qualify a second supplier, also in order to test

different technical solutions

An order has been awarded to Bruker EAS for the manufacture of:

80 km of SC wire, small filament, CuMn barriers

It must be emphasized that

only wire

double stack extrusion

only one design

64,000 filament (wrt 38,000 in Luvata order),

2 mm filaments geometrical (wrt 2.65 mm in Luvata order)

Delivery: 12 months (March 2010)


Low loss superconducting rutherford cable for discorap

  • 1introduction & first trials

  • superconductor design

  • specifications & manufacture status

  • qualification


Magnetization cumn contribution

Magnetization, CuMn contribution

Δm

10 K

4.2 K

The CuMn paramagnetism has an effect on the harmonic content of the field within the magnet bore.

In our case, the largest effect is < 10-4 for sextupole.


Magnetization effective diameter

Magnetization, effective diameter

@ 5T

Ic = 295 A

Δm = 2.2·10-12 Wb·m

Lsample = 4.7 mm

deff = 3.0 μm

dgeo = 2.5 μm

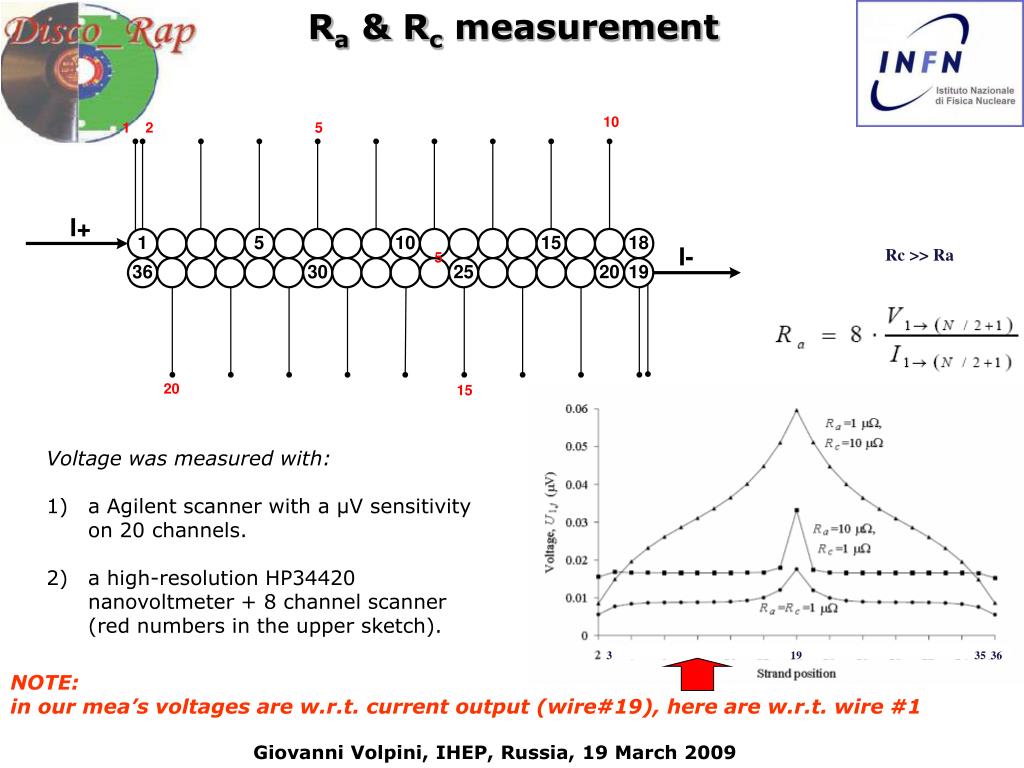

R a r c measurement

3

19

35

36

Ra & Rc measurement

Rc >> Ra

  • Voltage was measured with:

  • a Agilent scanner with a µV sensitivity on 20 channels.

  • a high-resolution HP34420 nanovoltmeter + 8 channel scanner (red numbers in the upper sketch).

NOTE:

in our mea’s voltages are w.r.t. current output (wire#19), here are w.r.t. wire #1

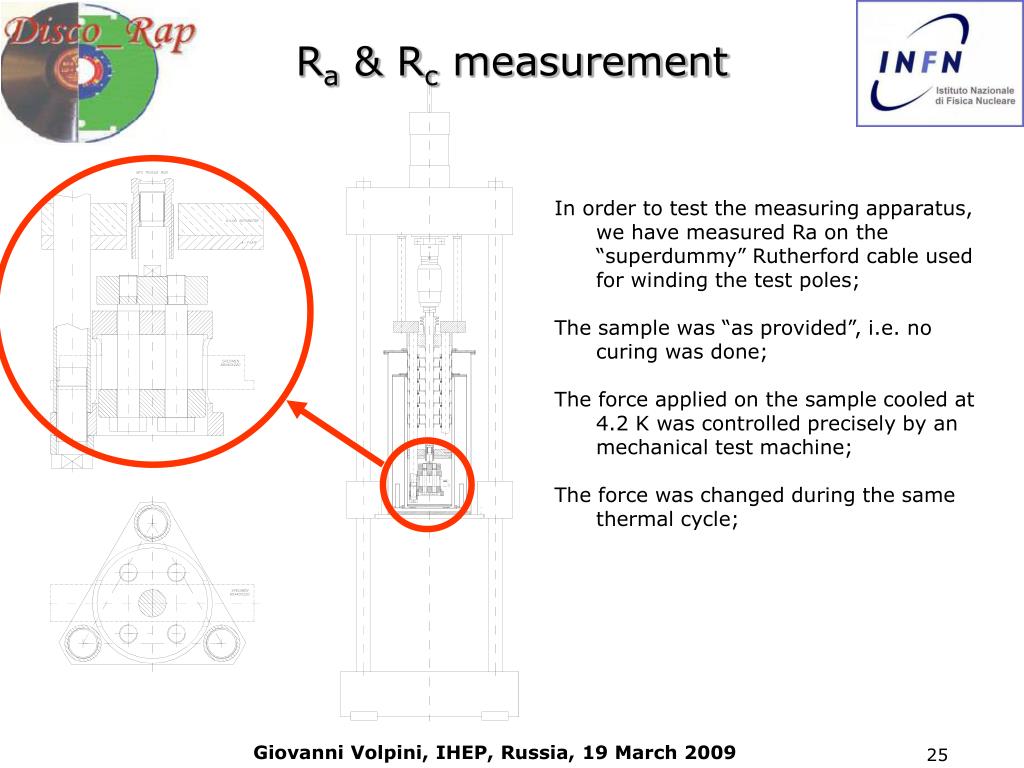

R a r c measurement1

Ra & Rc measurement

In order to test the measuring apparatus, we have measured Ra on the “superdummy” Rutherford cable used for winding the test poles;

The sample was “as provided”, i.e. no curing was done;

The force applied on the sample cooled at 4.2 K was controlled precisely by an mechanical test machine;

The force was changed during the same

thermal cycle;

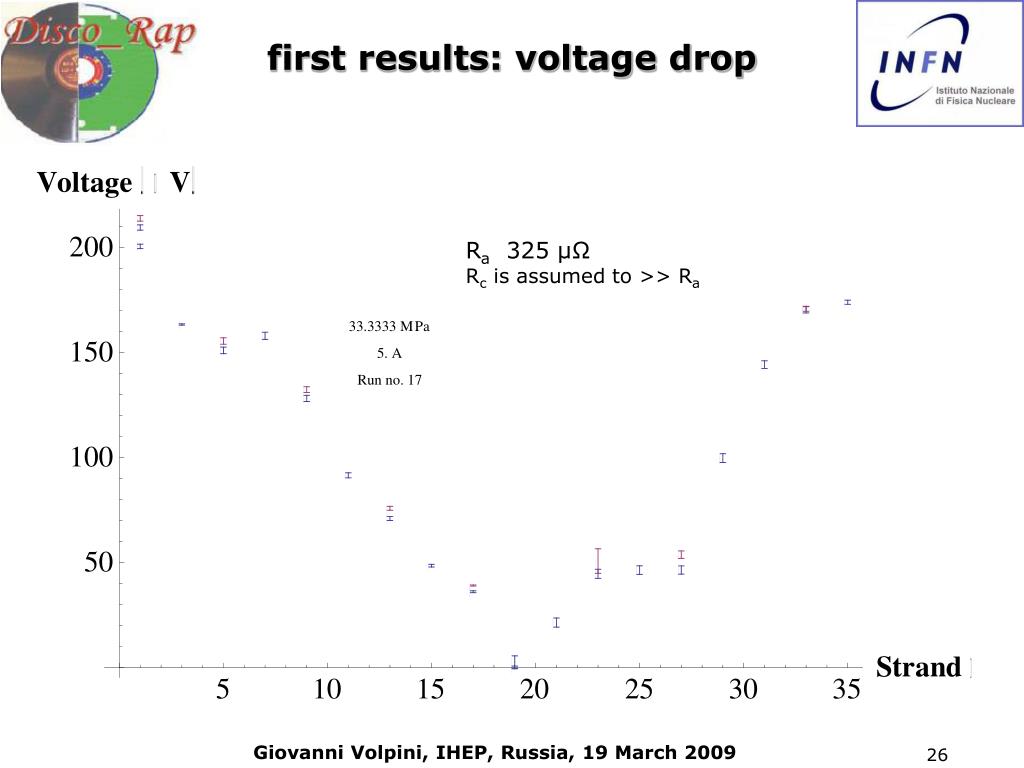

First results voltage drop

first results: voltage drop

Ra 325 µΩ

Rc is assumed to >> Ra

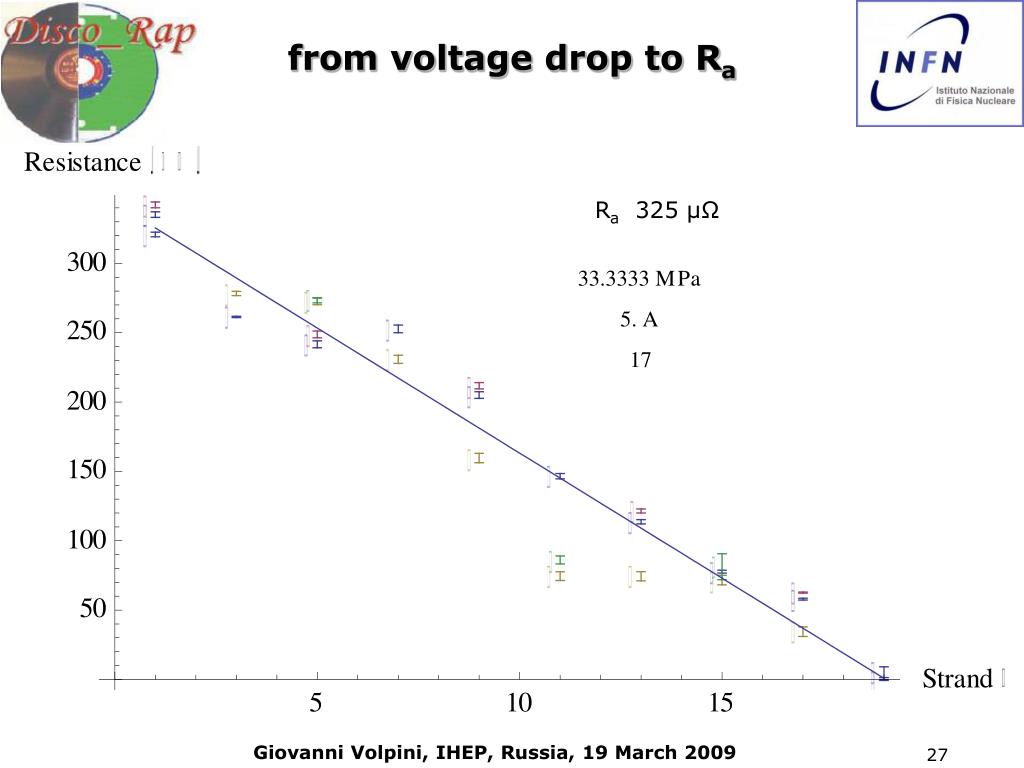

From voltage drop to r a

from voltage drop to Ra

Ra 325 µΩ

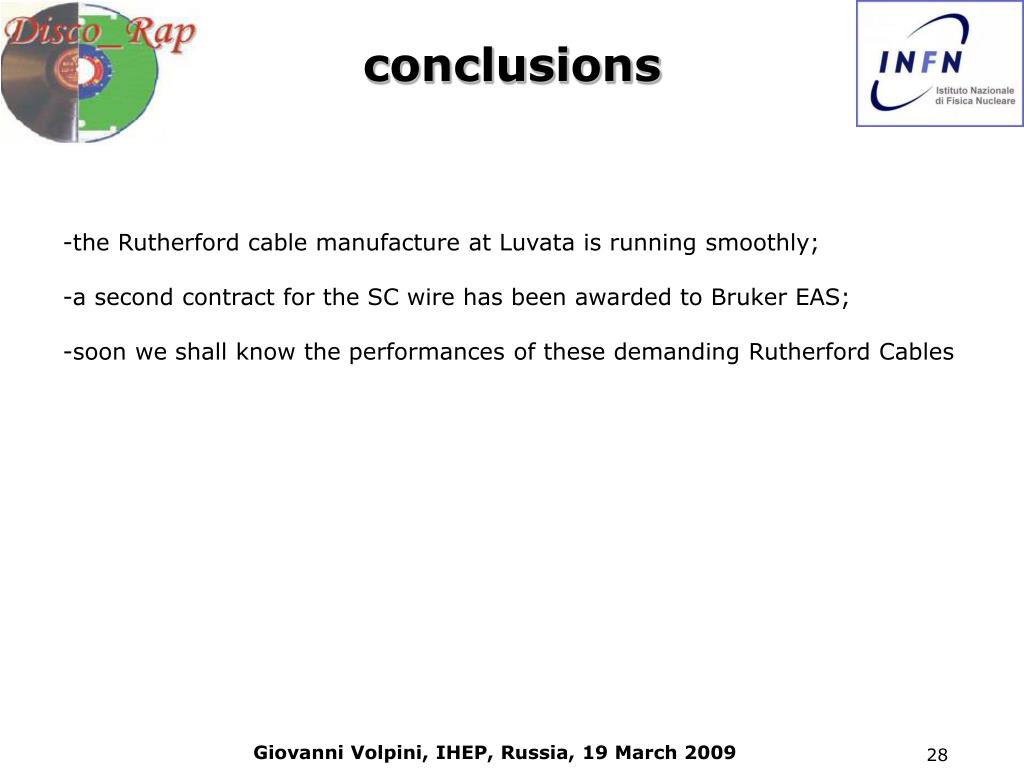

Conclusions

conclusions

-the Rutherford cable manufacture at Luvata is running smoothly;

-a second contract for the SC wire has been awarded to Bruker EAS;

-soon we shall know the performances of these demanding Rutherford Cables
