Yue-Liang Wu Kavli Institute for Theoretical Physics China Key Laboratory of Frontiers in Theoretical Physics Institute

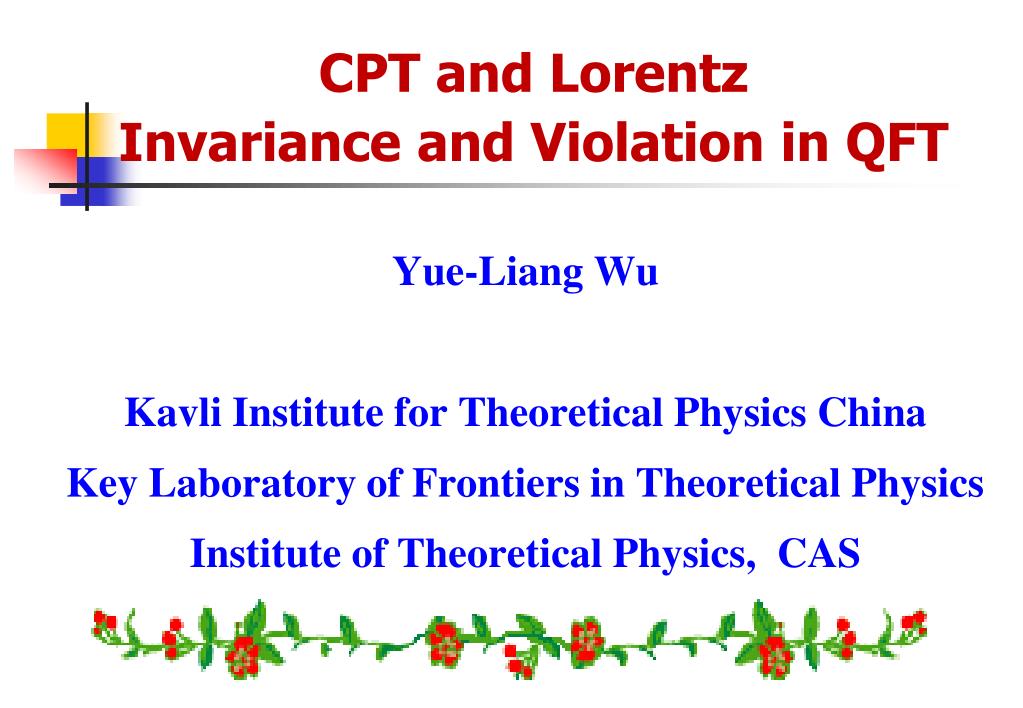

1. CPT and Lorentz Invariance and Violation in QFT Yue-Liang Wu Kavli Institute for Theoretical Physics China Key Laboratory of Frontiers in Theoretical Physics Institute of Theoretical Physics, CAS Chinese Academy of Sciences

2. Symmetry & Quantum Field Theory • Symmetry has played an important role in physics • CPT and Lorentz invariance are regarded as the fundamental symmetries of nature. • CPT invariance is the basic property of relativistic quantum field theory for point particle. • All known basic forces of nature: electromagnetic, weak, strong & gravitational forces, are governed by the local gauge symmetries: U(1)_Y x SU(2)_L x SU(3)_c x SO(1,3)

3. Lorentz and CPT Violation in QFT • QFT may not be an underlying theory but EFT • In String Theory, Lorentz invariance can be broken down spontaneously. • Lorentz non-invariant quantum field theory Explicit、Spontaneous 、Induced • CPT/Lorentz violating Chern-Simons term • constant vector

4. Induced CTP/Lorentz Violation • Real world has been found to be successfully described by quantum field theories • EQED with constant vector  mass • What is the relation ?

5. Diverse Results • Gauge invariance of axial-current S.Coleman and S.L.Glashow, Phys.Rev.D59: 116008 (1999) • Pauli-Villas regularization with D.Colladay and V.A.Kostelecky, Phys. Rev. D58:116002 (1998). • Gauge invariance and conservation of vector Ward identity M.Perez-Victoria, JHEP 0104 032 (2001). • Consistent analysis via dimensional regularization G.Bonneau, Nucl. Phys. B593 398 (2001).

6. Diverse Results • Based on nonperturbative formulation with R.Jackiw and V.A.Kostelecky, Phys.Rev.Lett. 82: 3572 (1999). • Derivative Expansion with dimensional regularization J.M.Chung and P.Oh, Phys.Rev.D60: 067702 (1999). • Keep full dependence with M.Perez-Victoria, Phys.Rev.Lett.83: 2518 (1999). • Keep full dependence with M.Perez-Victoria, Phys.Rev.Lett.83: 2518 (1999).

7. Consistent Result • Statement in Literature:constant vector K can only be determined by experiment • Our Conclusion:constant vector K can consistently be fixed from theoretical calculations • for • for

8. Regularization Scheme Regularization scheme dependence • Ambiguity of Dimensional regularization with problem • Ambiguity with momentum translation for linear divergent term • Ambiguity of reducing triangle diagrams How to reach a consistent regularization scheme ?

9. Regularization Methods • Cut-off regularization Keeping divergent behavior, spoiling gauge symmetry & translational/rotational symmetries • Pauli-Villars regularization Modifying propagators, destroying non-abelian gauge symmetry, introduction of superheavy particles • Dimensional regularization: analytic continuation in dimension Gauge invariance, widely used for practical calculations Gamma_5 problem, losing scaling behavior (incorrect gap eq.), problem to chiral theory and super-symmetric theory All the regularizations have their advantages and shortcomings

10. Criteria of Consistent Regularization (i) The regularization is rigorous that it can maintain the basic symmetry principles in the original theory, such as: gauge invariance, Lorentz invariance and translational invariance (ii)The regularization is general that it can be applied to both underlying renormalizable QFTs (such as QCD) and effective QFTs (like the gauged Nambu-Jona-Lasinio model and chiral perturbation theory).

11. Criteria of Consistent Regularization (iii)The regularization is also essential in the sense that it can lead to the well-defined Feynman diagrams with maintaining the initial divergent behavior of integrals.so that the regularized theory only needs to make an infinity-free renormalization. (iv)The regularization must be simple that it can provide the practical calculations.

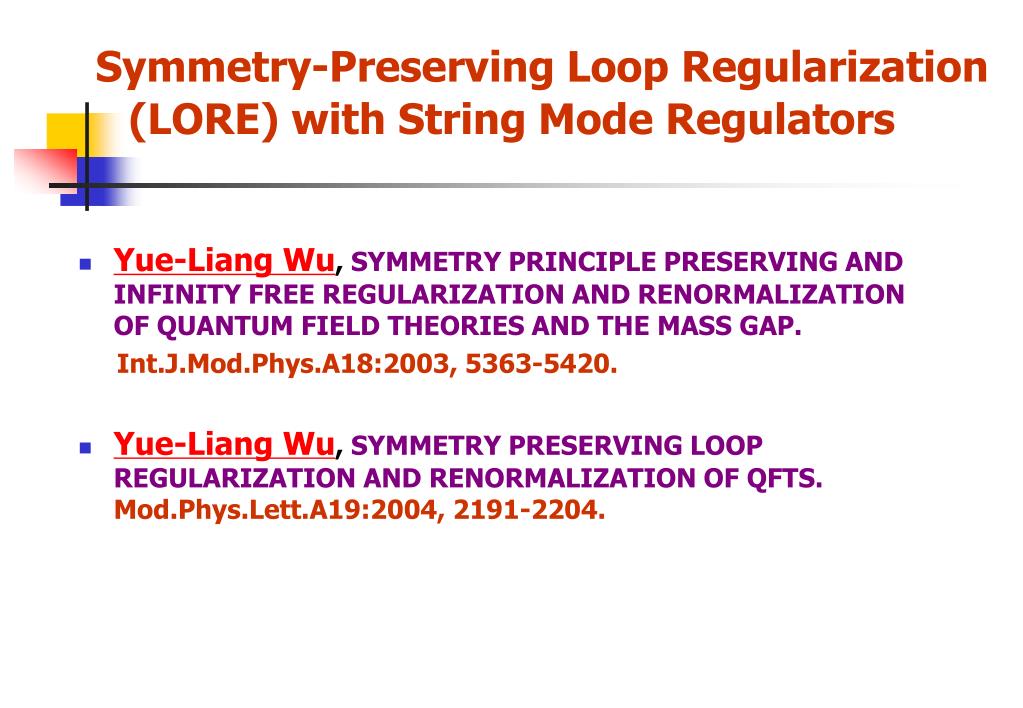

12. Symmetry-Preserving Loop Regularization (LORE) with String Mode Regulators • Yue-Liang Wu, SYMMETRY PRINCIPLE PRESERVING AND INFINITY FREE REGULARIZATION AND RENORMALIZATION OF QUANTUM FIELD THEORIES AND THE MASS GAP. Int.J.Mod.Phys.A18:2003, 5363-5420. • Yue-Liang Wu, SYMMETRY PRESERVING LOOP REGULARIZATION AND RENORMALIZATION OF QFTS.Mod.Phys.Lett.A19:2004, 2191-2204.

13. Why Quantum Field Theory So Successful • Folk’s theorem by Weinberg: Any quantum theory that at sufficiently low energy and large distances looks Lorentz invariant and satisfies the cluster decomposition principle will also at sufficiently low energy look like a quantum field theory. • Indication:existence in any case a characterizing energy scale (CES) M_c • At sufficiently low energy then means: E << M_c  QFTs

14. Why Quantum Field Theory So Successful • Renormalization group by Wilson or Gell-Mann & Low Allow to deal with physical phenomena at any interesting energy scale by integrating out the physics at higher energy scales. To be able to define the renormalized theory at any interesting renormalization scale . • Implication:Existence of sliding energy scale (SES) μ_s which is not related to masses of particles. • The physical effects above the SES μ_s are integrated in the renormalized couplings and fields.

15. Irreducible Loop Integrals (ILIs)

16. Loop Regularization (LORE) Simple Prescription: in ILIs, make the following replacement With the conditions So that

17. Gauge Invariant Consistency Conditions

18. Checking Consistency Condition

19. Checking Consistency Condition

20. Vacuum Polarization • Fermion-Loop Contributions

21. Gluonic Loop Contributions

22. Cut-Off & Dimensional Regularizations • Cut-off violates consistency conditions • DR satisfies consistency conditions • But quadratic behavior is suppressed in DR

23. Symmetry–preserving & Infinity-free Loop Regularization (LORE) With String-mode Regulators • Choosing the regulator masses to have the string-mode Reggie trajectory behavior • Coefficients are completely determined • from the conditions

24. Explicit One Loop Feynman Integrals With Two intrinsic mass scales and play the roles of UV- and IR-cut offas well asCES and SES

25. Interesting Mathematical Identities which lead the functions to the following simple forms

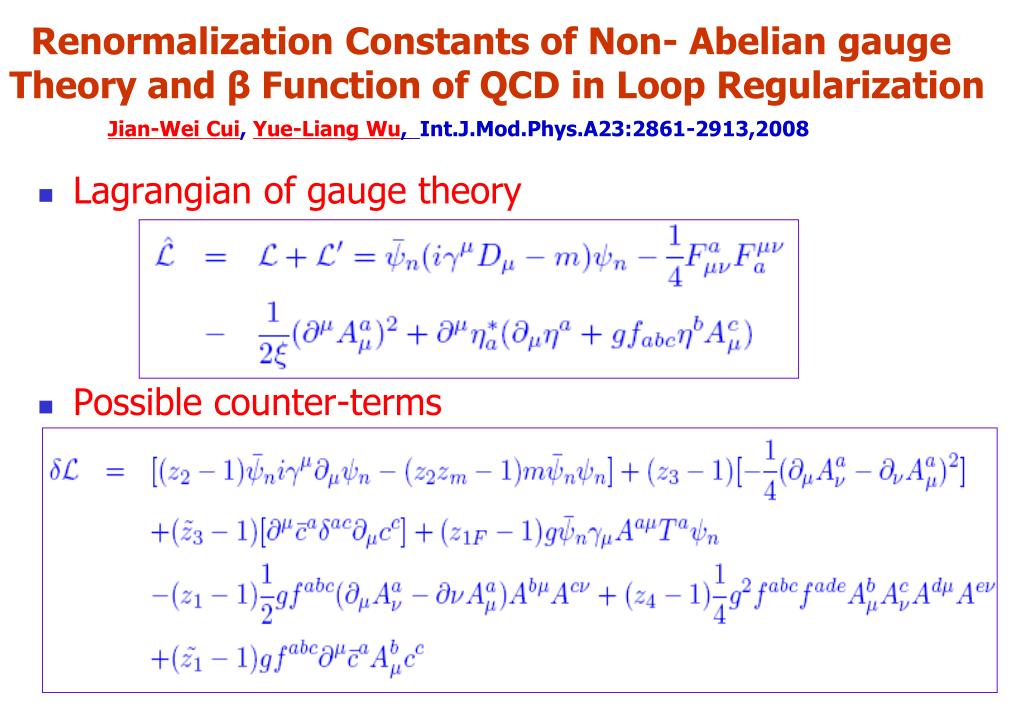

26. Renormalization Constants of Non- Abelian gauge Theory and β Function of QCD in Loop Regularization Jian-Wei Cui, Yue-Liang Wu, Int.J.Mod.Phys.A23:2861-2913,2008 • Lagrangian of gauge theory • Possible counter-terms

27. Ward-Takahaski-Slavnov-Taylor Identities Gauge Invariance Two-point Diagrams

28. Three-point Diagrams

29. Four-point Diagrams

30. Ward-Takahaski-Slavnov-Taylor Identities • Renormalization Constants • All satisfy Ward-Takahaski-Slavnov-Taylor identities

31. Renormalization β Function • Gauge Coupling Renormalization which reproduces the well-known QCD β function (GWP)

32. Supersymmetry in Loop Regularization J.W. Cui,Y.Tang,Y.L. Wu Phys.Rev.D79:125008,2009 Supersymmetry • Supersymmetry is a full symmetry of quantum theory • Supersymmetry should be Regularization-independent • Supersymmetry-preserving regularization

33. Massless Wess-Zumino Model • Lagrangian • Ward identity • In momentum space

34. Check of Ward Identity Gamma matrix algebra in 4-dimension and translational invariance of integral momentum Loop regularization satisfies these conditions

35. Massive Wess-Zumino Model • Lagrangian • Ward identity

36. Check of Ward Identity Gamma matrix algebra in 4-dimension and translational invariance of integral momentum Loop regularization satisfies these conditions

37. Triangle Anomaly • Amplitudes • Using the definition of gamma_5 • The trace of gamma matrices gets the most general and unique structure with symmetric Lorentz indices

38. Anomaly of Axial Current • Explicit calculation based on Loop Regularization with the most general and symmetric Lorentz structure • Restore the original theory in the limit which shows that vector currents are automatically conserved, only the axial-vector Ward identity is violated by quantum corrections

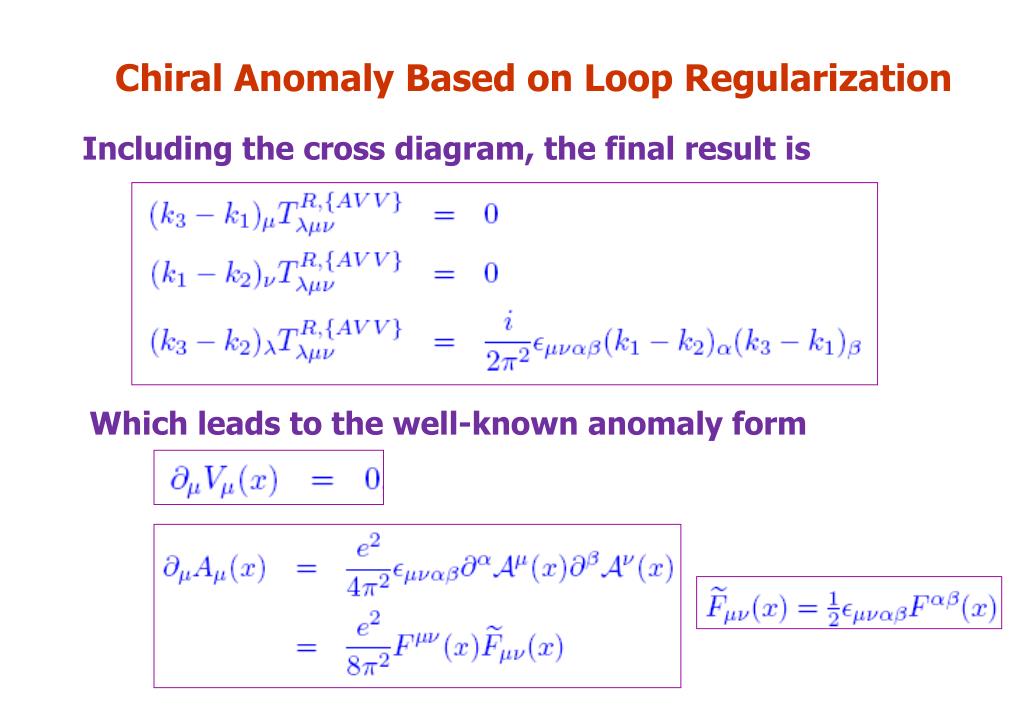

39. Chiral Anomaly Based on Loop Regularization Including the cross diagram, the final result is Which leads to the well-known anomaly form

40. Anomaly Based on Various Regularizations • Using the most general and symmetric trace formula for gamma matrices with gamma_5. • In unit

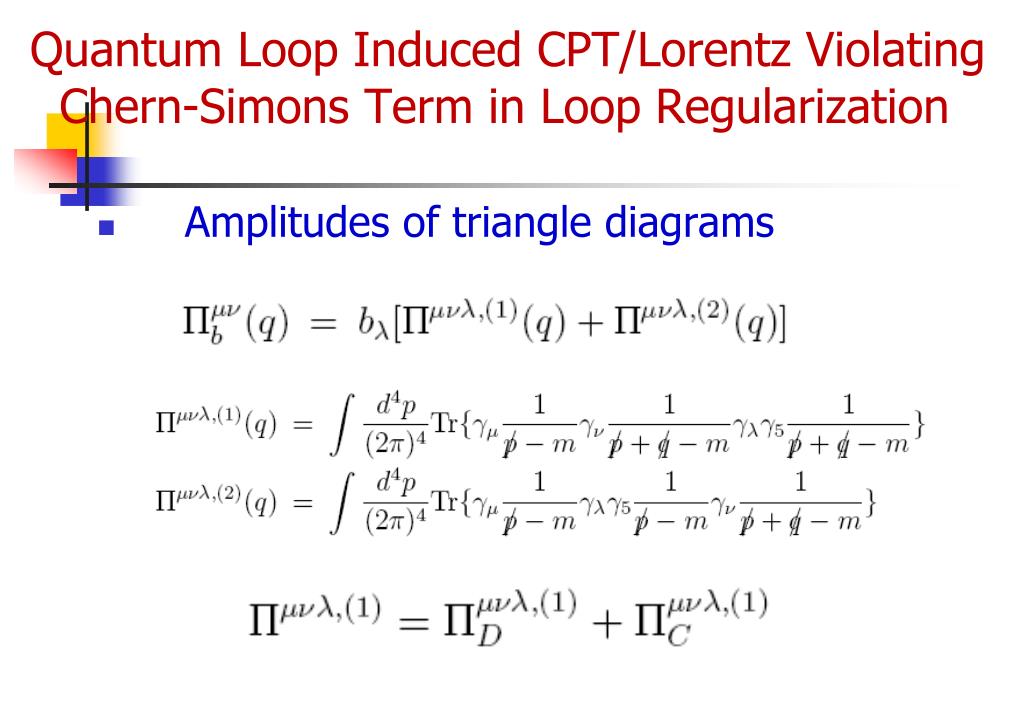

41. Quantum Loop Induced CPT/Lorentz Violating Chern-Simons Term in Loop Regularization • Amplitudes of triangle diagrams

42. Contributions to Amplitudes • Convergent contributions • Divergent contributions •  Logarithmic DV  Linear DV

43. Contributions to Amplitudes • Logarithmic Divergent Contributions • Regularized result with LORE

44. Contributions to Amplitudes • Linear divergent contributions • Regularized result

45. Contributions to Amplitudes • Total contributions arise from convergent part

46. Final Result • Setting • Final result is

47. Comments on Ambiguity • Momentum translation relation of linear divergent • Regularization after using the relation

48. Check on Consistency • Ambiguity of results • Inconsistency with U(1) chiral anomaly of

49. Conclusions • First applying for the regularization before using momentum translation relation of linear divergent integral • Loop regularization is translational invariant • Induced Chern-Simons term is uniqely determined when combining the chiral anomaly • There is no harmful induced Chern-Simons term for massive fermions.

50. THANKS 谢谢！
