Presentation Transcript
overview of module 4

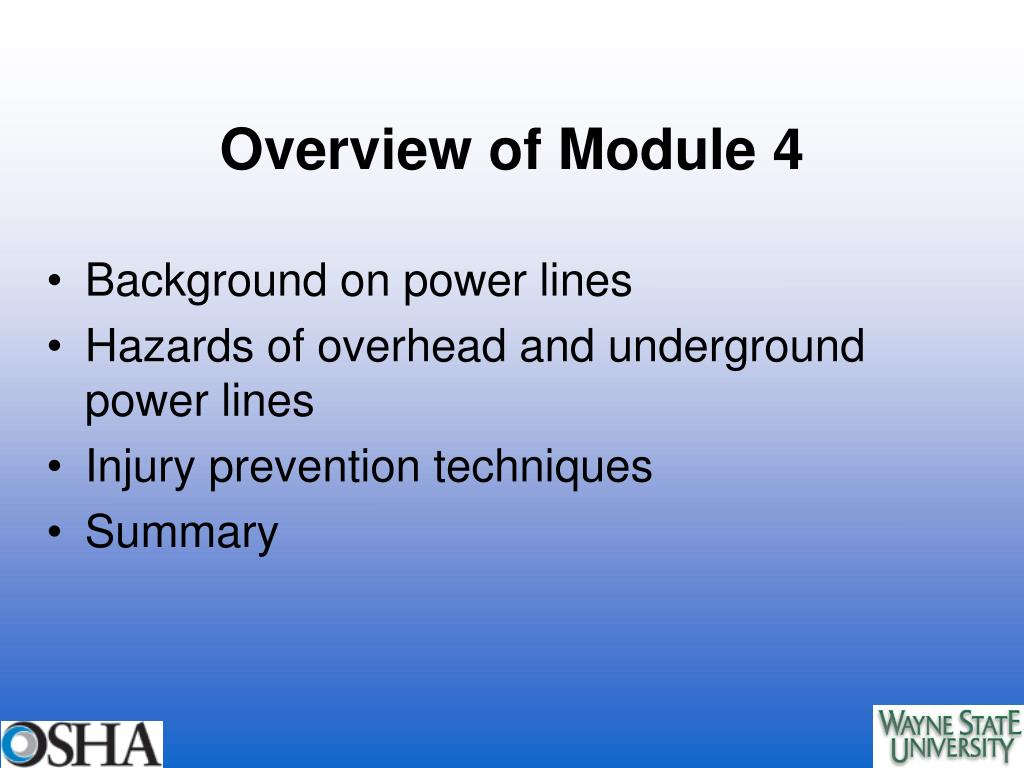

Overview of Module 4
  • Background on power lines
  • Hazards of overhead and underground power lines
  • Injury prevention techniques
  • Summary
background

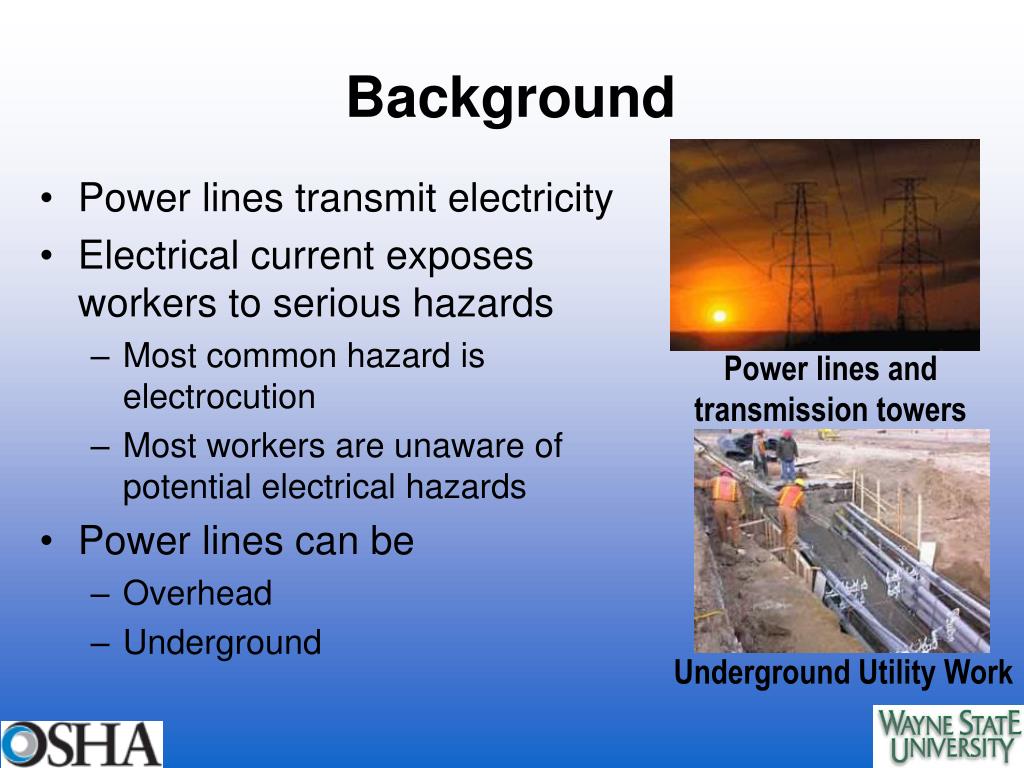

Background
  • Power lines transmit electricity
  • Electrical current exposes workers to serious hazards
    • Most common hazard is electrocution
    • Most workers are unaware of potential electrical hazards
  • Power lines can be
    • Overhead
    • Underground

Power lines and transmission towers

Underground Utility Work

background cont

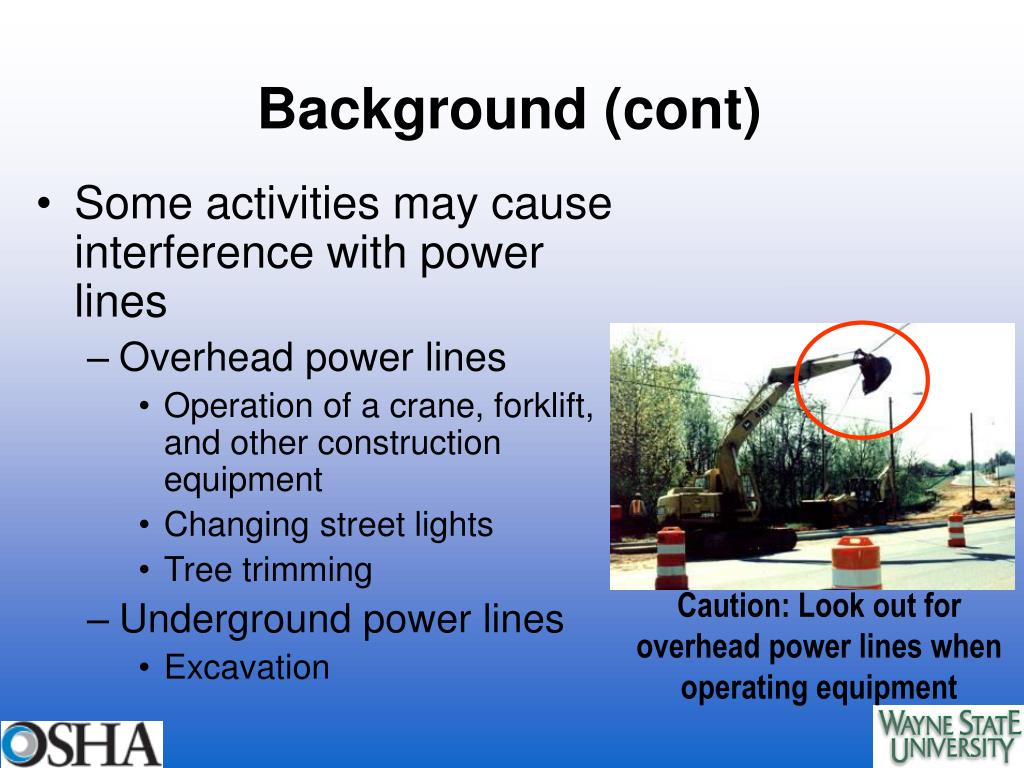

Background (cont)
  • Some activities may cause interference with power lines
    • Overhead power lines
      • Operation of a crane, forklift, and other construction equipment
      • Changing street lights
      • Tree trimming
    • Underground power lines
      • Excavation

Caution: Look out for overhead power lines when operating equipment

types of electrical lines
Types of Electrical Lines
  • Electrical Cables
    • High Voltage, Low Voltage
    • Supervisory and Signaling Cables
    • Cathodic protection (cabinets, cables, earthing conductors, cable shrouds)
  • Communication Cables
    • Phone lines
    • Coaxial cables (e.g. data cables)
    • Broadband cables
    • Tram traction cables and trolley wires
    • Railway supply cables and traction wires
power line hazards

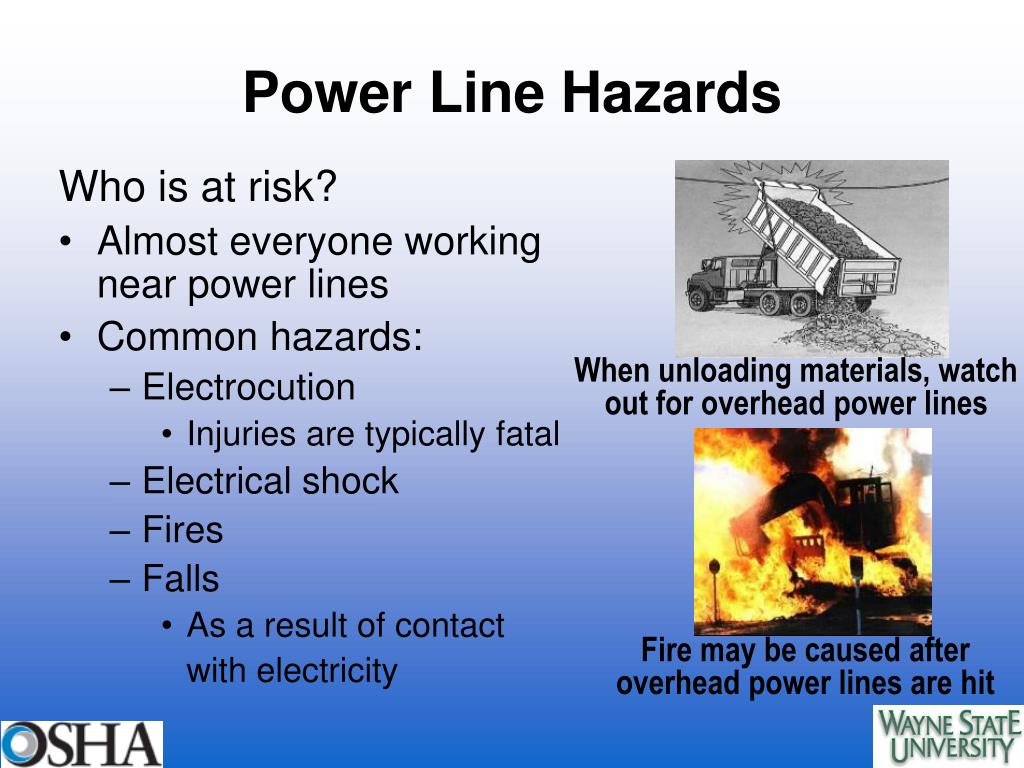

Power Line Hazards

Who is at risk?

  • Almost everyone working near power lines
  • Common hazards:
    • Electrocution
      • Injuries are typically fatal
    • Electrical shock
    • Fires
    • Falls
      • As a result of contact

with electricity

When unloading materials, watch out for overhead power lines

Fire may be caused after overhead power lines are hit

common misconceptions
Common Misconceptions
  • Birds land on power lines, so they must be safe to touch - NO
    • Main objective of electricity is to reach the ground using the most direct route
    • Birds do not get electrocuted when they land on wires because they do not represent a path to the ground

The power lines are safe for perching, but not when struck

common misconceptions8
Common Misconceptions
  • Power lines are insulated, so they are safe to touch - NO
    • They are not always insulated
      • Insulation deals with placing nonconductive material around the wire
      • Insulation is a material that offers high electric resistance making it suitable for covering wires to prevent the possible future contact of adjacent conductors resulting in a short circuit
    • Just because a wire is weather protected does not mean that it is insulated
      • Weather protection prevents water and snow from reaching the wire (and insulation, if used)
common misconceptions cont
Common Misconceptions (Cont)
  • Nonmetallic ladders are safe around power lines - NO
    • Wet ladders can be a conducting medium for electricity
  • If power lines are not touched, they are safe - NO
    • Electricity can jump

Maintain a safe distance from the Danger Zone

(10 foot radius from the power line)

hazard identification
Hazard Identification
  • Conduct site investigation to identify existing conditions of:
    • Voltages of lines and equipment
    • Presence of hazardous, induced voltages
    • Presence and condition of protective grounds and equipment grounding conductors
    • Locations of electrical circuits and equipment
    • Maximum switching transient voltages
slide11

Dump truck operators should use caution when unloading materials near overhead power lines

injury prevention techniques
Injury Prevention Techniques
  • Stay away from power lines while working
  • Maintain a safe distance
    • OSHA’s “10-Foot Circle of Safety” rule
    • Increase safe distance near higher voltage power lines

Maintain a safe distance from the Danger Zone

(10 foot radius from the power line)

slide13

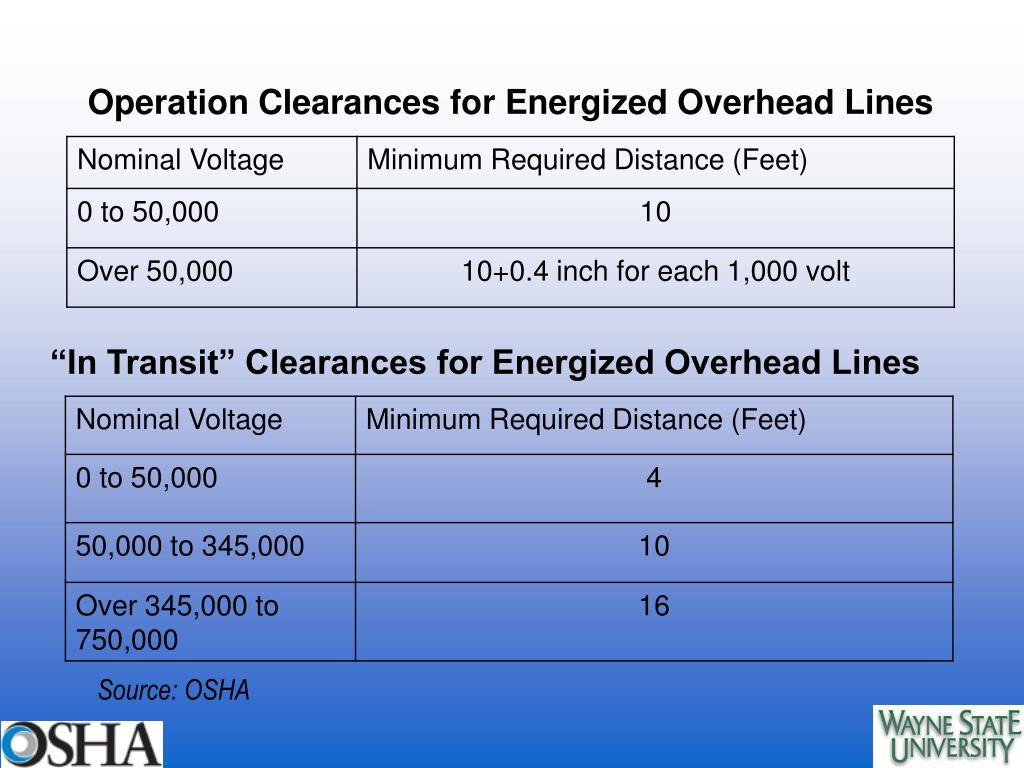

Operation Clearances for Energized Overhead Lines

“In Transit” Clearances for Energized Overhead Lines

Source: OSHA

injury prevention techniques14

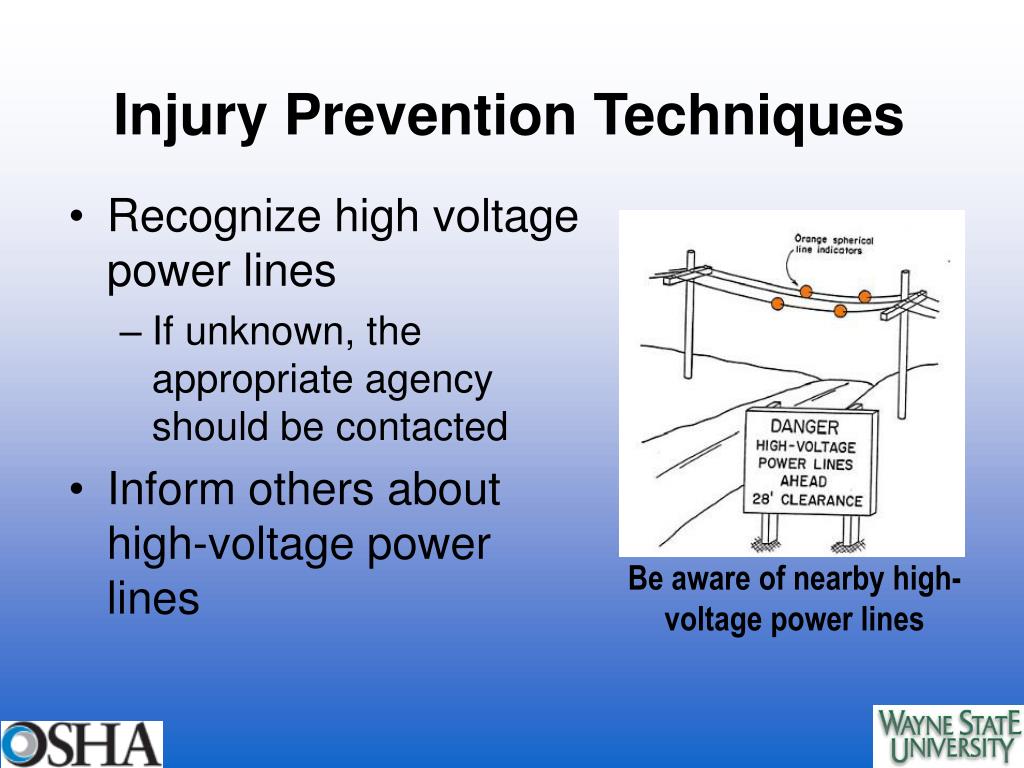

Injury Prevention Techniques
  • Recognize high voltage power lines
    • If unknown, the appropriate agency should be contacted
  • Inform others about high-voltage power lines

Be aware of nearby high-voltage power lines

injury prevention techniques15

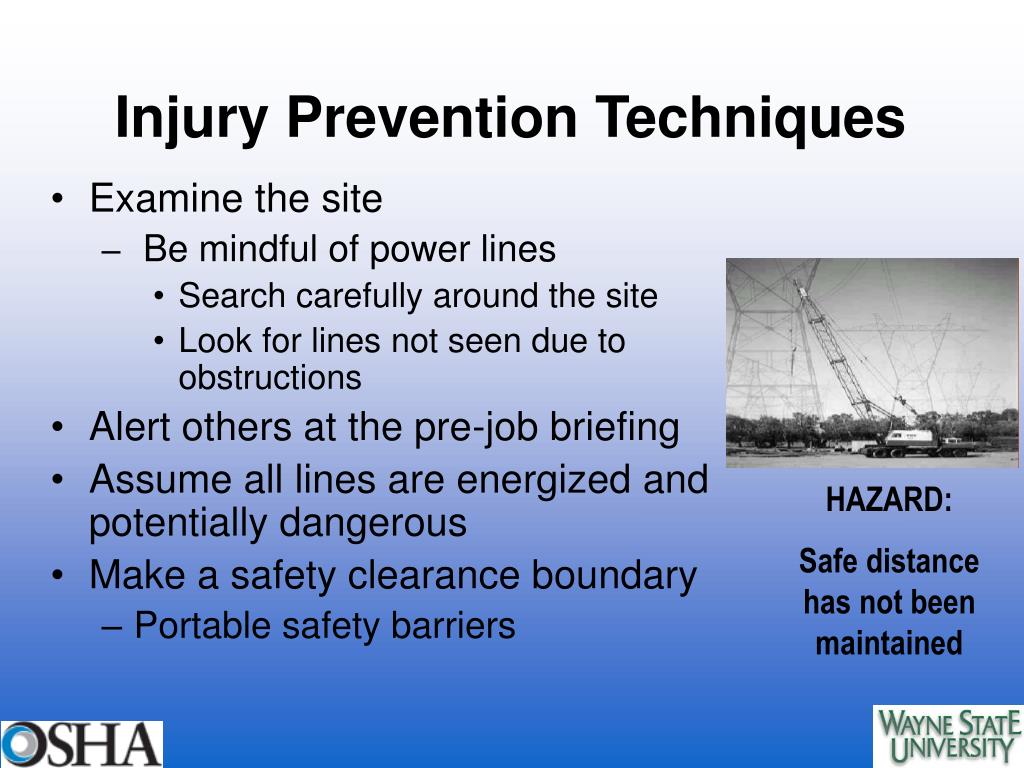

Injury Prevention Techniques
  • Examine the site
    • Be mindful of power lines
      • Search carefully around the site
      • Look for lines not seen due to obstructions
  • Alert others at the pre-job briefing
  • Assume all lines are energized and potentially dangerous
  • Make a safety clearance boundary
    • Portable safety barriers

HAZARD:

Safe distance has not been maintained

injury prevention

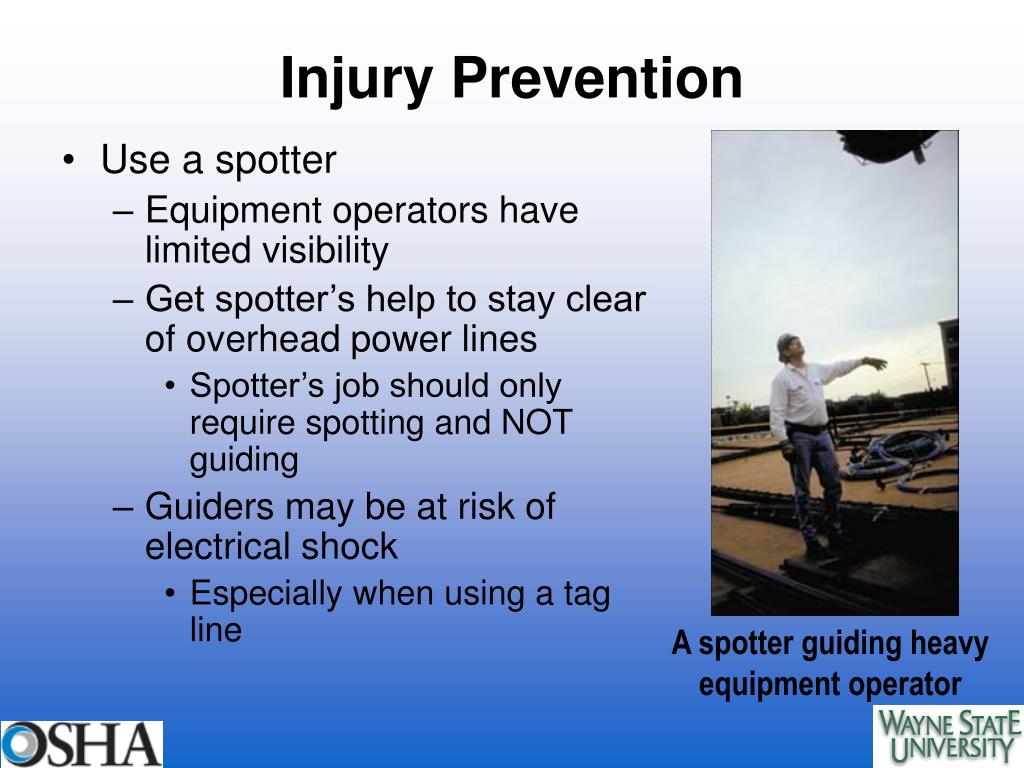

Injury Prevention
  • Use a spotter
    • Equipment operators have limited visibility
    • Get spotter’s help to stay clear of overhead power lines
      • Spotter’s job should only require spotting and NOT guiding
    • Guiders may be at risk of electrical shock
      • Especially when using a tag line

A spotter guiding heavy equipment operator

injury prevention17
Injury Prevention
  • When working with tall and long equipment
    • Carefully plan and organize work with heavy equipment
    • Keep vehicles clear of power lines
    • Watch out for long objects
    • Adjust the position of equipment to maintain a safe distance from power lines

Working with tall equipment

injury prevention18
Injury Prevention
  • In cases of fallen power lines
    • Stay away
    • Call for help
    • Shuffle with your feet together and on the ground to minimize electrical shock
    • Encourage others to do the same

Down power lines are dangerous

injury prevention19

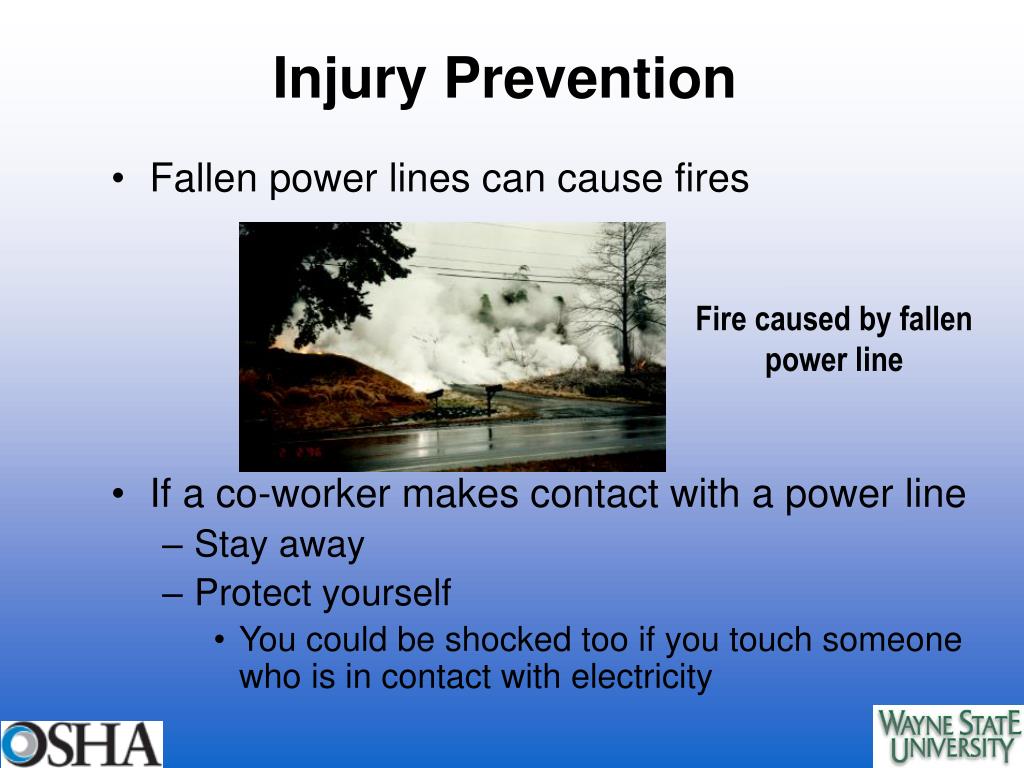

Injury Prevention
  • Fallen power lines can cause fires
  • If a co-worker makes contact with a power line
    • Stay away
    • Protect yourself
      • You could be shocked too if you touch someone who is in contact with electricity

Fire caused by fallen power line

injury prevention20

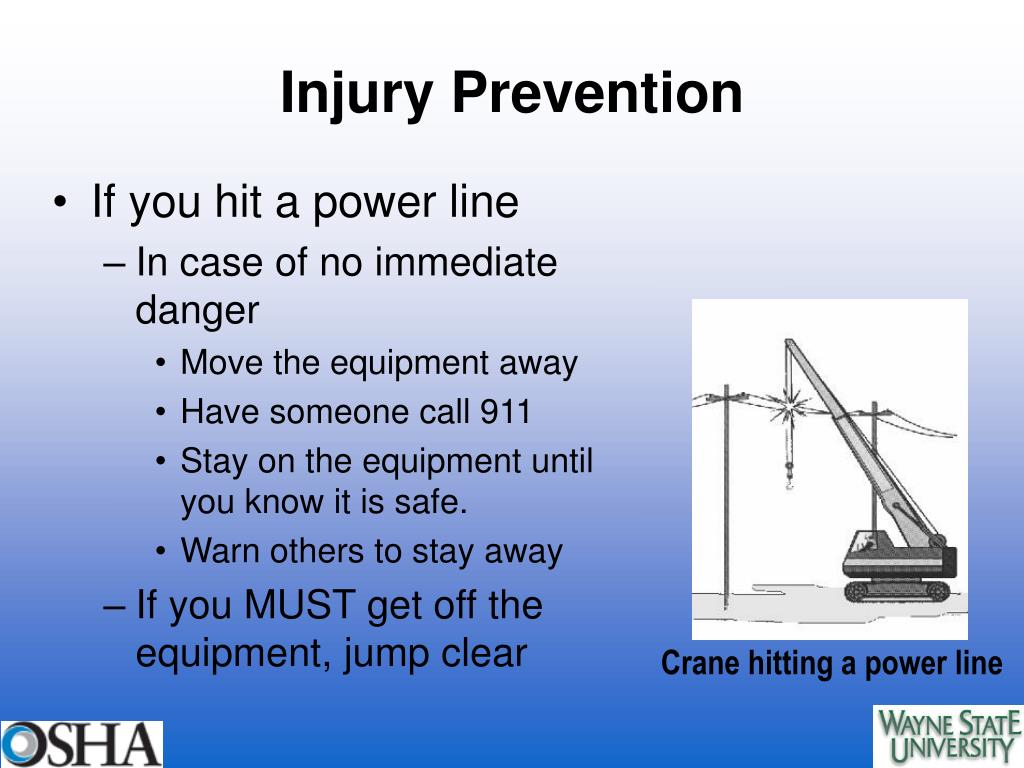

Injury Prevention
  • If you hit a power line
    • In case of no immediate danger
      • Move the equipment away
      • Have someone call 911
      • Stay on the equipment until you know it is safe.
      • Warn others to stay away
    • If you MUST get off the equipment, jump clear

Crane hitting a power line

underground power lines

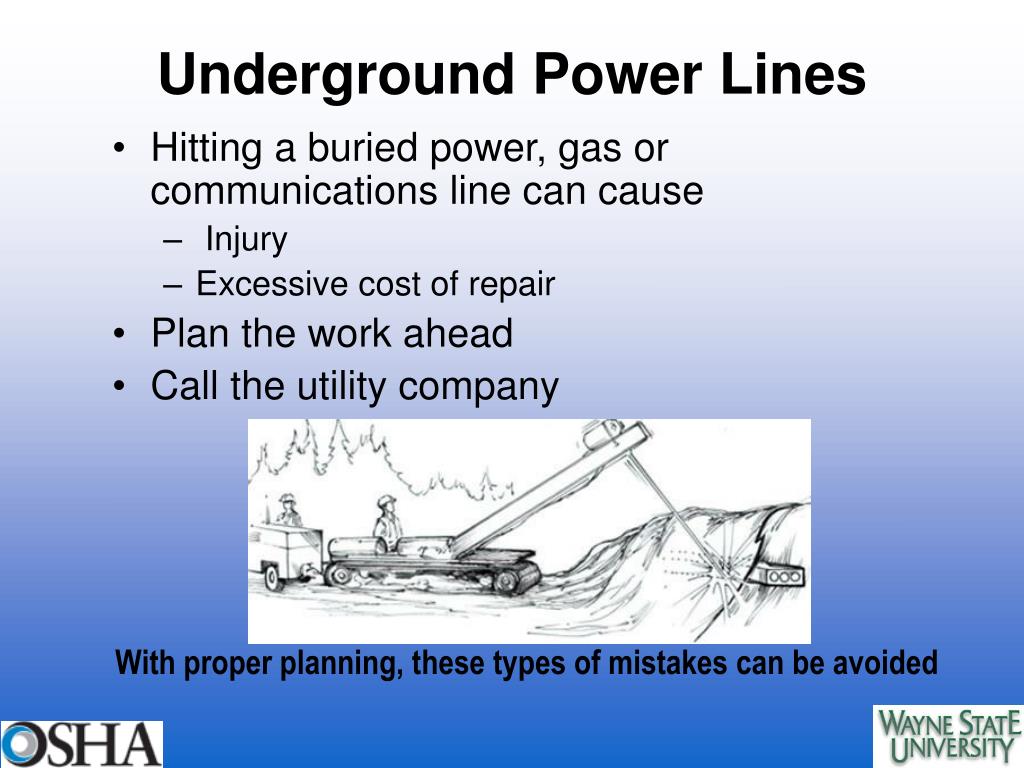

Underground Power Lines
  • Hitting a buried power, gas or communications line can cause
    • Injury
    • Excessive cost of repair
  • Plan the work ahead
  • Call the utility company

With proper planning, these types of mistakes can be avoided

underground power lines22

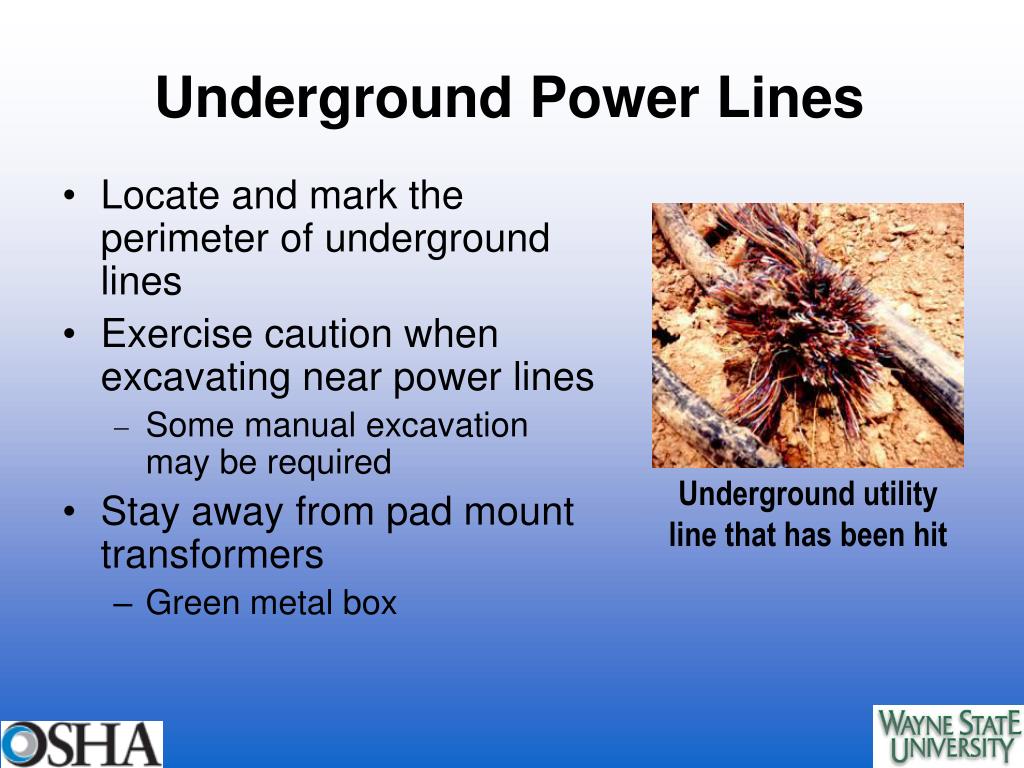

Underground Power Lines
  • Locate and mark the perimeter of underground lines
  • Exercise caution when excavating near power lines
    • Some manual excavation may be required
  • Stay away from pad mount transformers
    • Green metal box

Underground utility line that has been hit

tree trimming

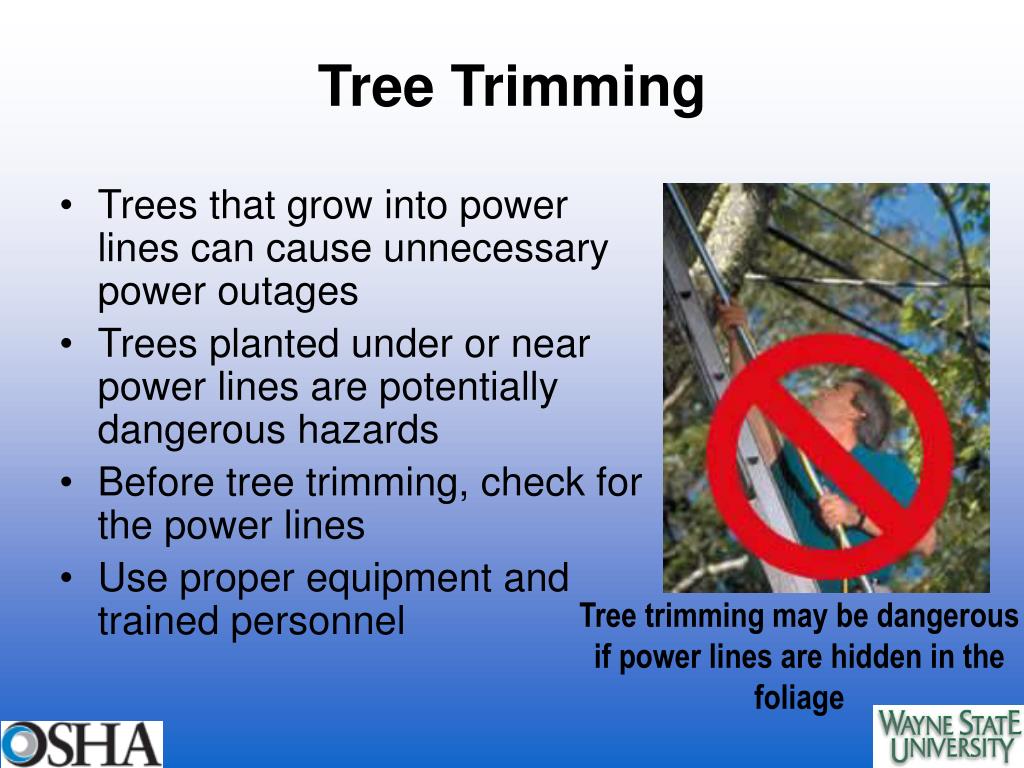

Tree Trimming
  • Trees that grow into power lines can cause unnecessary power outages
  • Trees planted under or near power lines are potentially dangerous hazards
  • Before tree trimming, check for the power lines
  • Use proper equipment and trained personnel

Tree trimming may be dangerous if power lines are hidden in the foliage

applicable standards

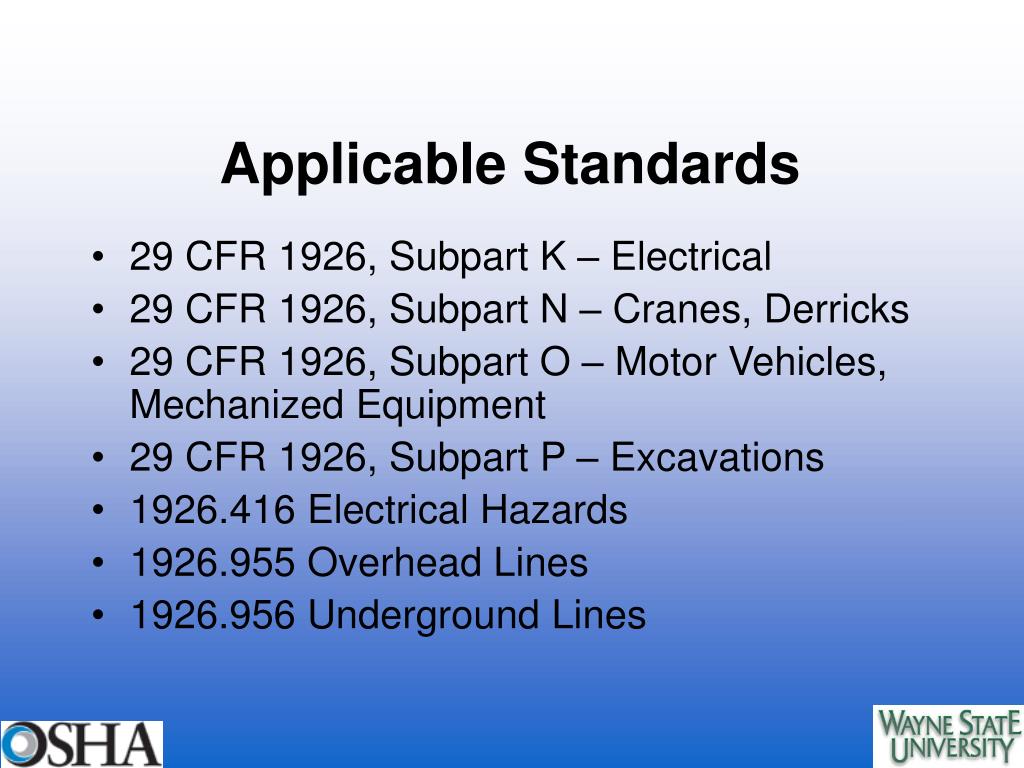

Applicable Standards
  • 29 CFR 1926, Subpart K – Electrical
  • 29 CFR 1926, Subpart N – Cranes, Derricks
  • 29 CFR 1926, Subpart O – Motor Vehicles, Mechanized Equipment
  • 29 CFR 1926, Subpart P – Excavations
  • 1926.416 Electrical Hazards
  • 1926.955 Overhead Lines
  • 1926.956 Underground Lines
summary of the module
Summary of the Module
  • Working in proximity of overhead and underground power lines is hazardous
    • Most common hazard is electrocution
  • Workers should be aware of such hazards
  • Several injury prevention techniques should be exercised to prevent injuries and fatalities
    • Need sufficient training to understand the hazards and practices for injury prevention
    • One of the best ways of hazard elimination is maintain a minimum safe distance
  • Properly locate underground power lines before starting of work
