NOAA/NGS Aeronautical Survey Program

NGS ORIENTATION

Mark Howard

October, 2008


How ngs supports the faa

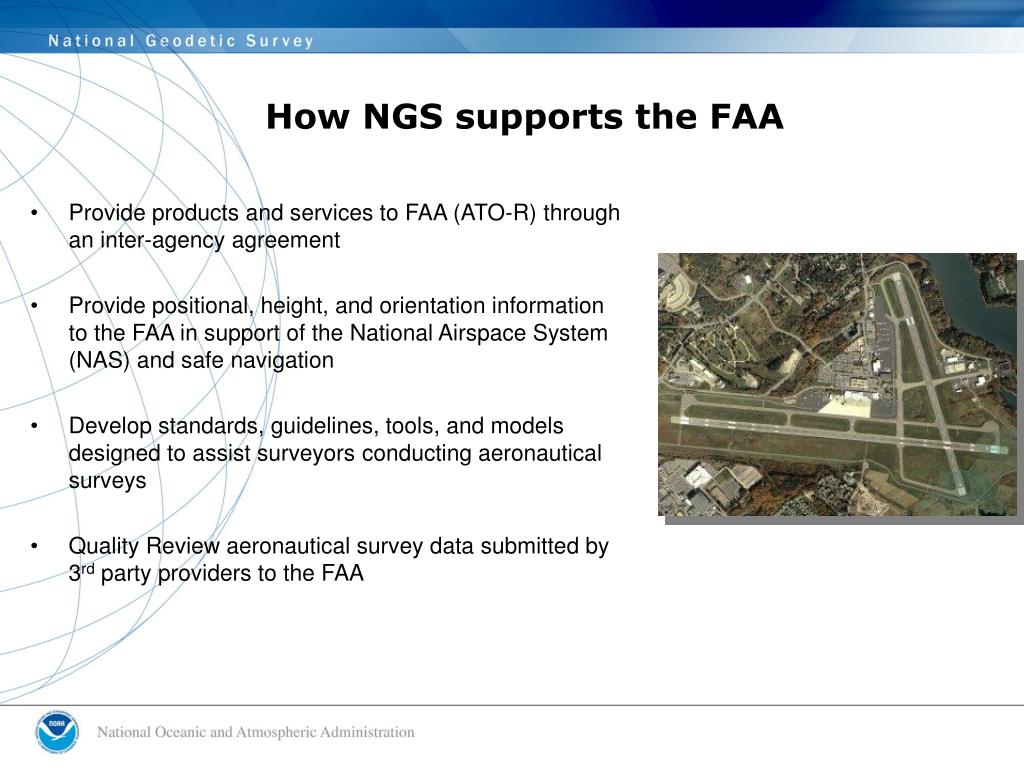

How NGS supports the FAA

  • Provide products and services to FAA (ATO-R) through an inter-agency agreement

  • Provide positional, height, and orientation information to the FAA in support of the National Airspace System (NAS) and safe navigation

  • Develop standards, guidelines, tools, and models designed to assist surveyors conducting aeronautical surveys

  • Quality Review aeronautical survey data submitted by 3rd party providers to the FAA


Mark howard october 2008

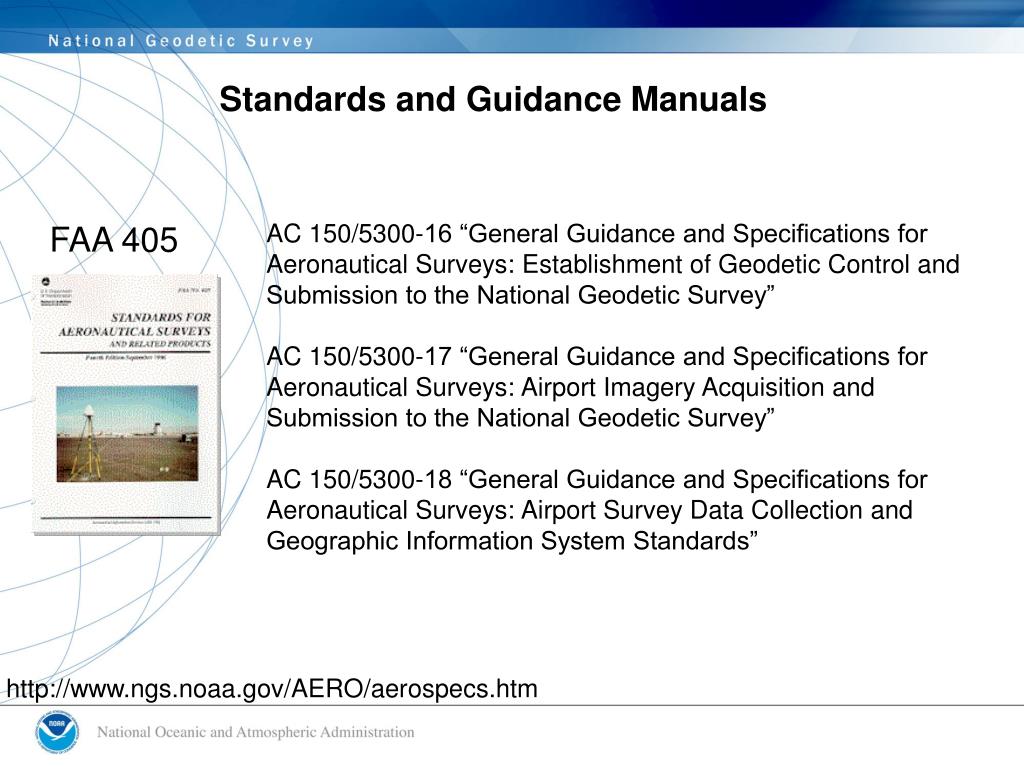

Standards and Guidance Manuals

AC 150/5300-16 “General Guidance and Specifications for Aeronautical Surveys: Establishment of Geodetic Control and Submission to the National Geodetic Survey”

AC 150/5300-17 “General Guidance and Specifications for Aeronautical Surveys: Airport Imagery Acquisition and Submission to the National Geodetic Survey”

AC 150/5300-18 “General Guidance and Specifications for Aeronautical Surveys: Airport Survey Data Collection and Geographic Information System Standards”

FAA 405

http://www.ngs.noaa.gov/AERO/aerospecs.htm


Mark howard october 2008

FAA Part 77 Surfaces

FAA Part 77 Surfaces as depicted in FAA Spec. No. 405


Mark howard october 2008

Geodetic Control

Runway Data

NAVAID Data

Airport Imagery

Obstruction Chart

Obstruction Data


Aeronautical survey process

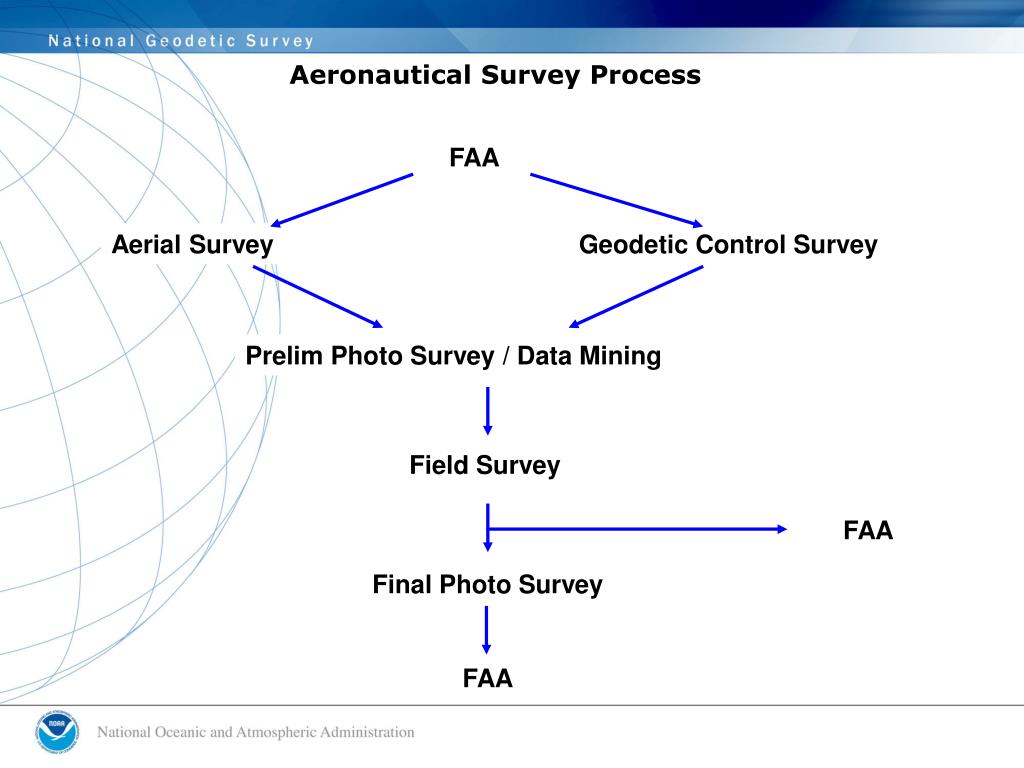

Aeronautical Survey Process

FAA

Aerial Survey

Geodetic Control Survey

Prelim Photo Survey / Data Mining

Field Survey

FAA

Final Photo Survey

FAA


Mark howard october 2008

BM#1

PACS

BM#2

SACS#1

HARN

Airport

SACS#2

Geodetic Control Network

CORS

FBN and BM ties must be observed simultaneously with both PACS

  • PACS and SACS monuments are positioned and tied to the National Spatial Reference System through GPS observations.

Simplified Schematic


Mark howard october 2008

High-Resolution Imagery

  • High-Resolution photography of the Airport is collected for the entire study area being surveyed.

  • Imagery is used in the photogrammetric process for determining the height of obstructions and airport feature compilation.


Mark howard october 2008

Runway Survey


Navaid survey

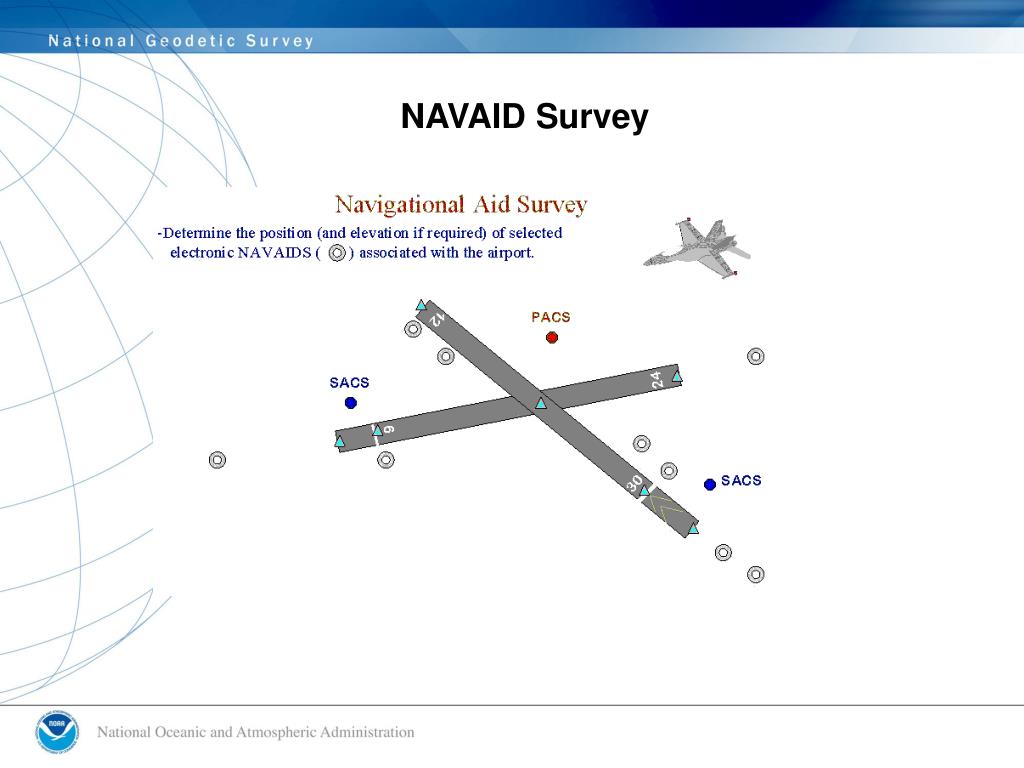

NAVAID Survey


Mark howard october 2008

Obstruction Survey

Numerous types of surveying techniques are used to determine the latitude, longitude, and height of obstructions within the FAA Part 77 and Area Navigation Approach Obstruction Identification Surfaces


Photogrammetric survey

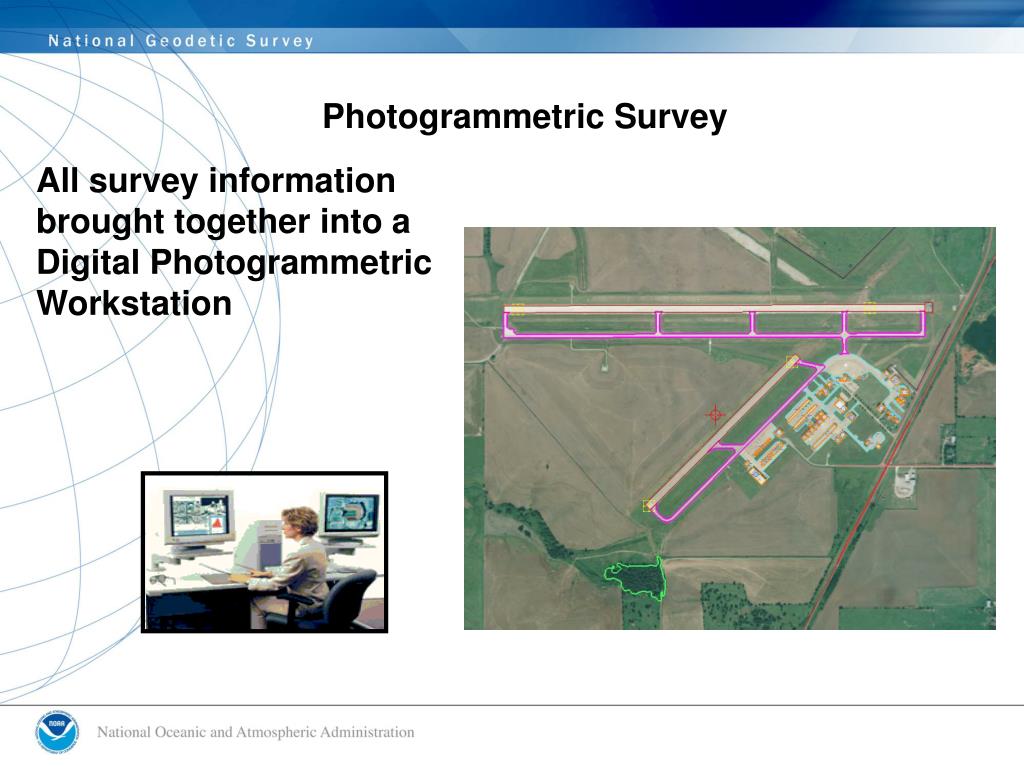

Photogrammetric Survey

All survey information brought together into a Digital Photogrammetric Workstation


Photogrammetric analysis

PhotogrammetricAnalysis

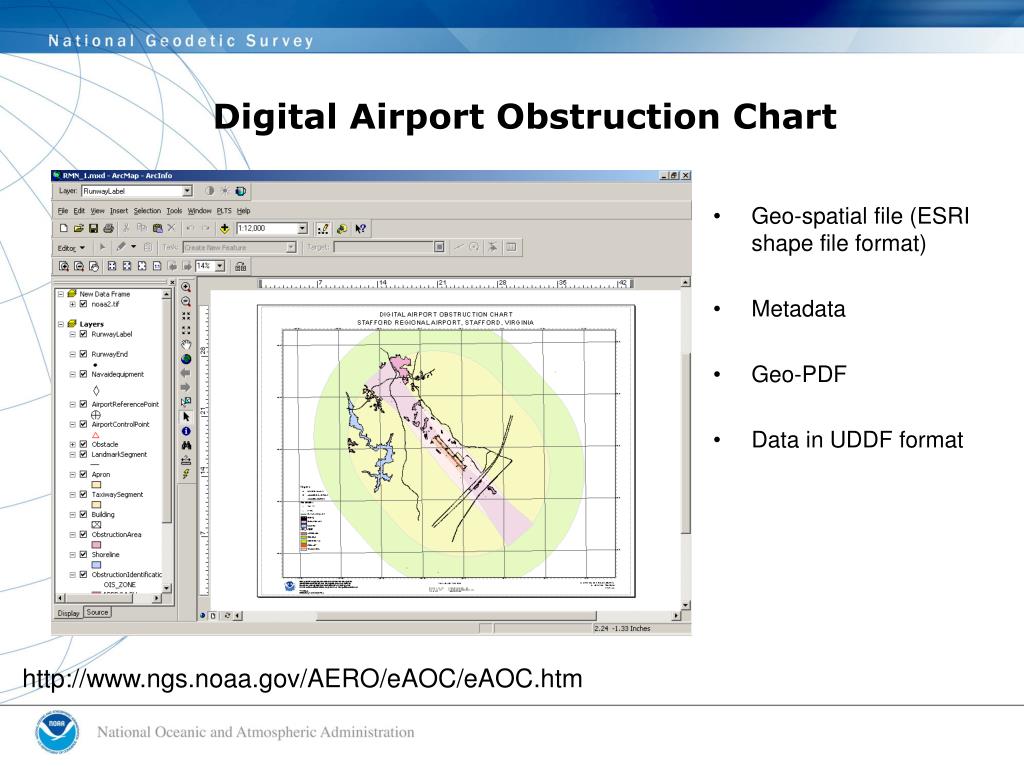

Digital airport obstruction chart

Digital Airport Obstruction Chart

  • Geo-spatial file (ESRI shape file format)

  • Metadata

  • Geo-PDF

  • Data in UDDF format

http://www.ngs.noaa.gov/AERO/eAOC/eAOC.htm

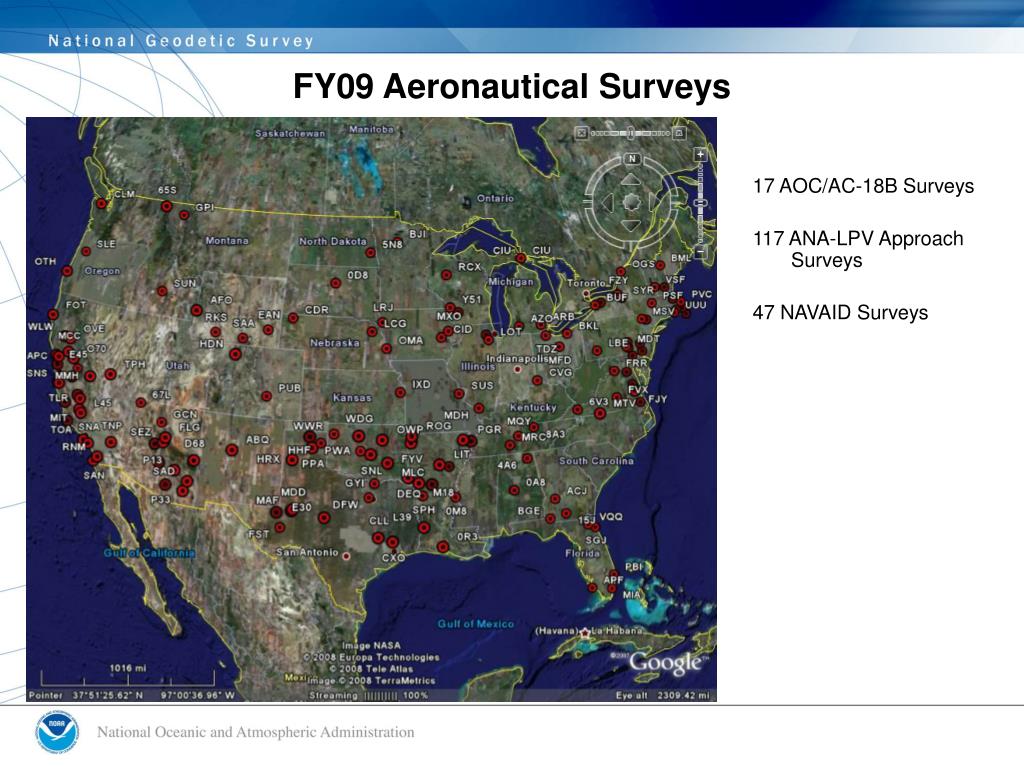

Fy09 aeronautical surveys

FY09 Aeronautical Surveys

17 AOC/AC-18B Surveys

117 ANA-LPV Approach Surveys

47 NAVAID Surveys


Transitioning to a qa role

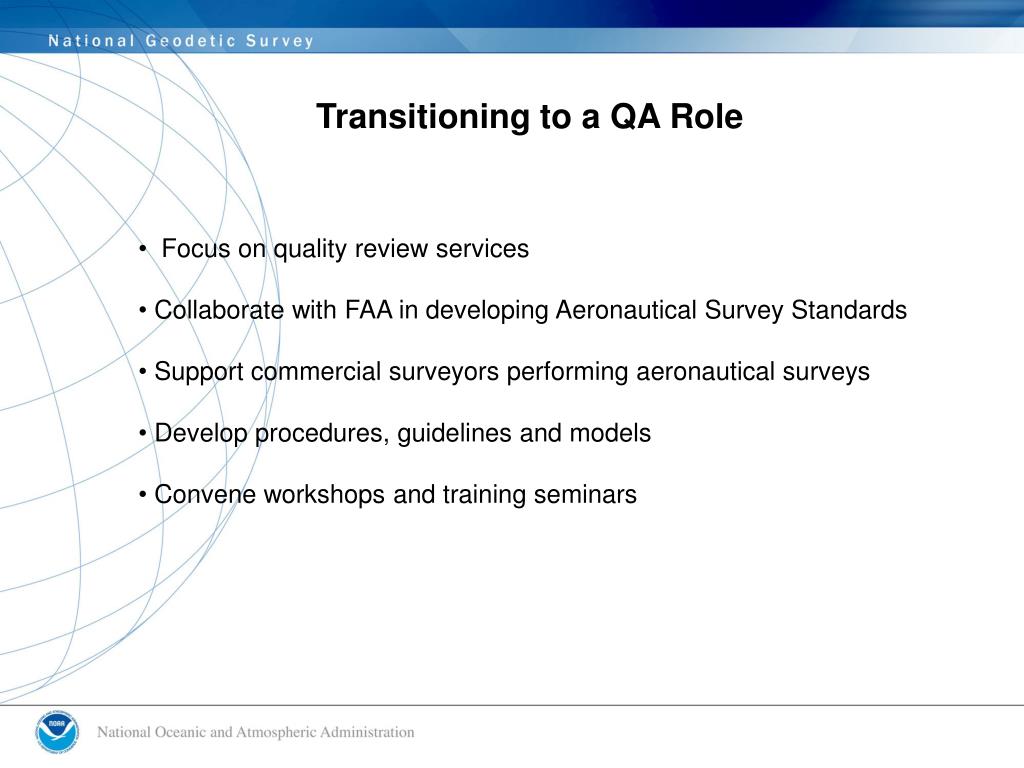

Transitioning to a QA Role

  • Focus on quality review services

  • Collaborate with FAA in developing Aeronautical Survey Standards

  • Support commercial surveyors performing aeronautical surveys

  • Develop procedures, guidelines and models

  • Convene workshops and training seminars


Survey submission upload uddf

Survey Submission – Upload UDDF

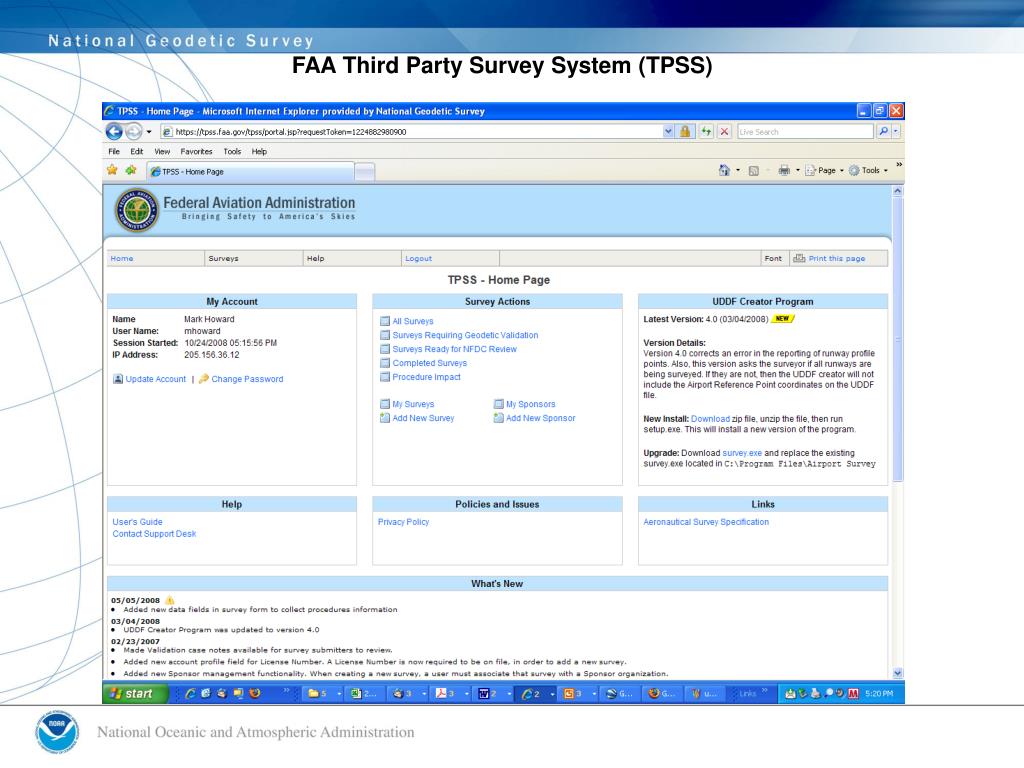

FAA Third Party Survey System (TPSS)


Mark howard october 2008

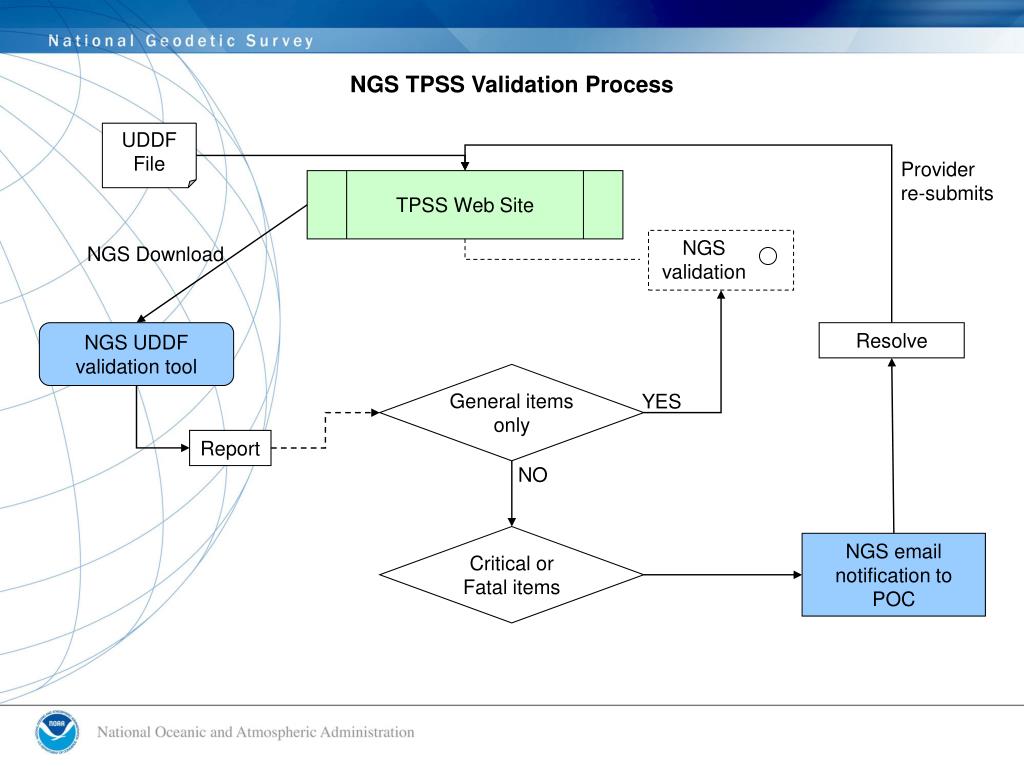

NGS TPSS Validation Process

UDDF File

Provider

re-submits

TPSS Web Site

NGS validation

NGS Download

NGS UDDF validation tool

Resolve

General items only

YES

Report

NO

Critical or Fatal items

NGS email notification to POC


Mark howard october 2008

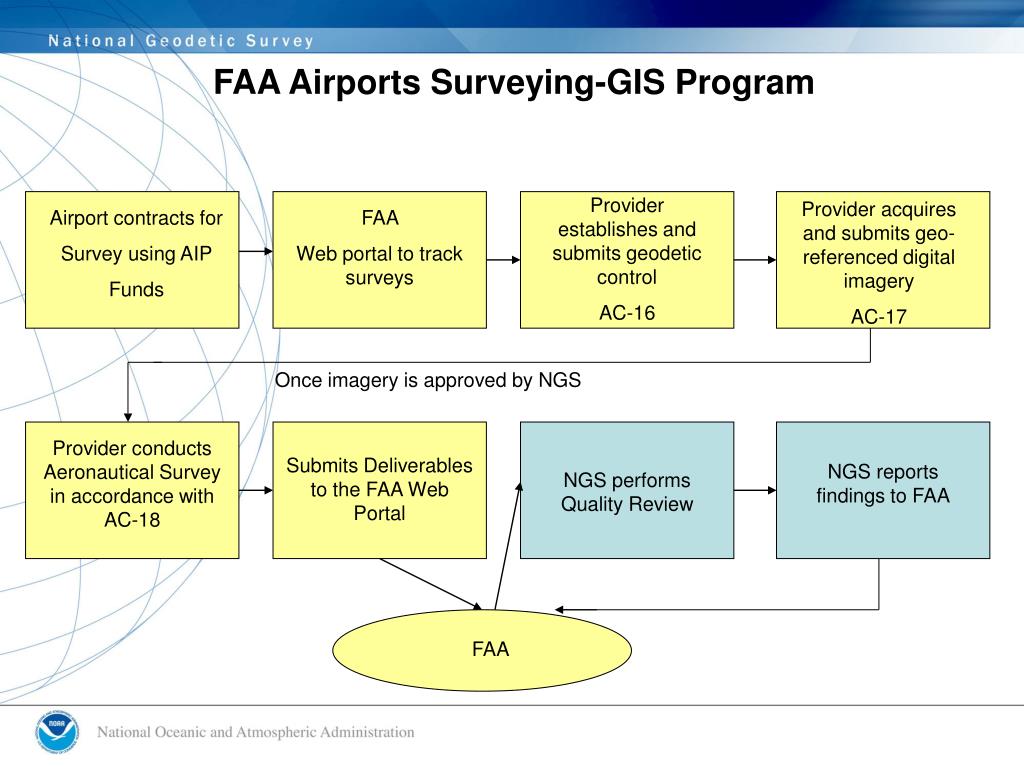

FAA Airports Surveying-GIS Program

Provider establishes and submits geodetic control

AC-16

Provider acquires and submits geo-referenced digital imagery

AC-17

Airport contracts for

Survey using AIP

Funds

FAA

Web portal to track surveys

Once imagery is approved by NGS

Provider conducts Aeronautical Survey in accordance with AC-18

Submits Deliverables to the FAA Web Portal

NGS reports findings to FAA

NGS performs Quality Review

FAA

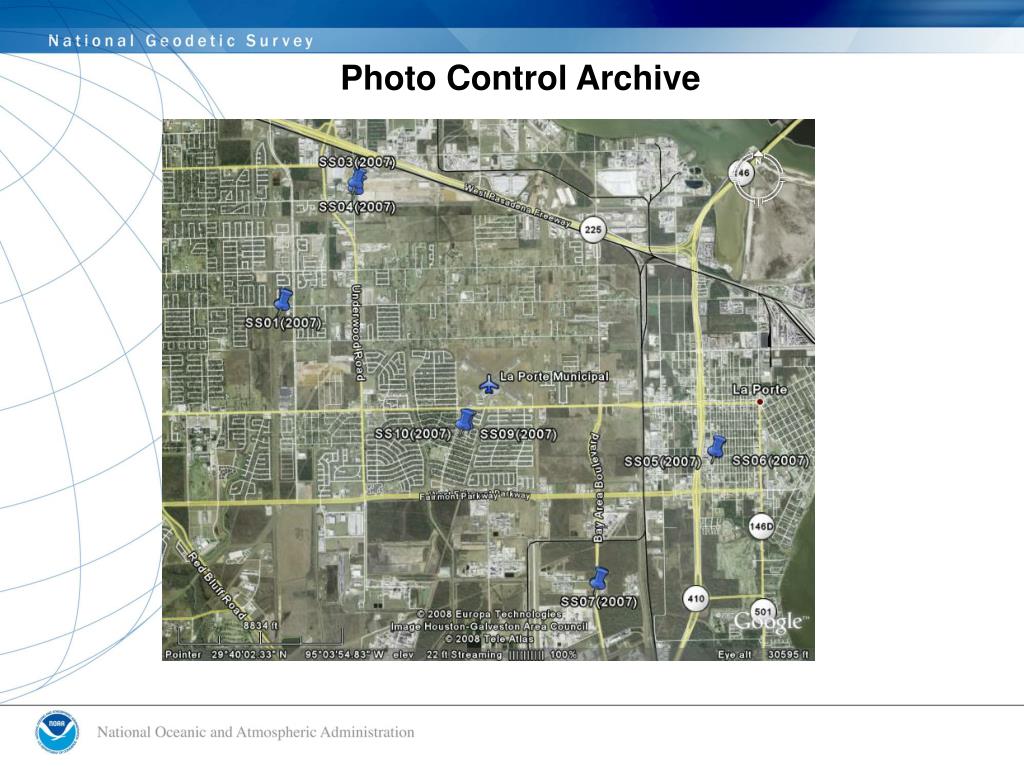

Photo control archive

Photo Control Archive


Mark howard october 2008

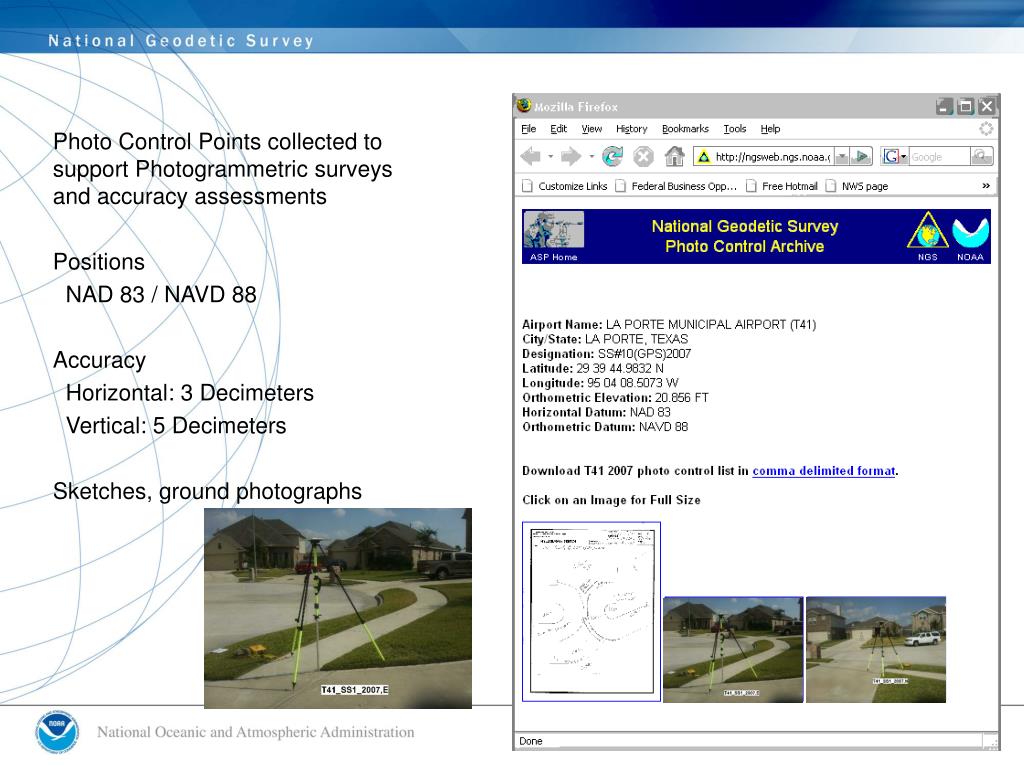

Photo Control Points collected to support Photogrammetric surveys and accuracy assessments

Positions

NAD 83 / NAVD 88

Accuracy

Horizontal: 3 Decimeters

Vertical: 5 Decimeters

Sketches, ground photographs


Summary

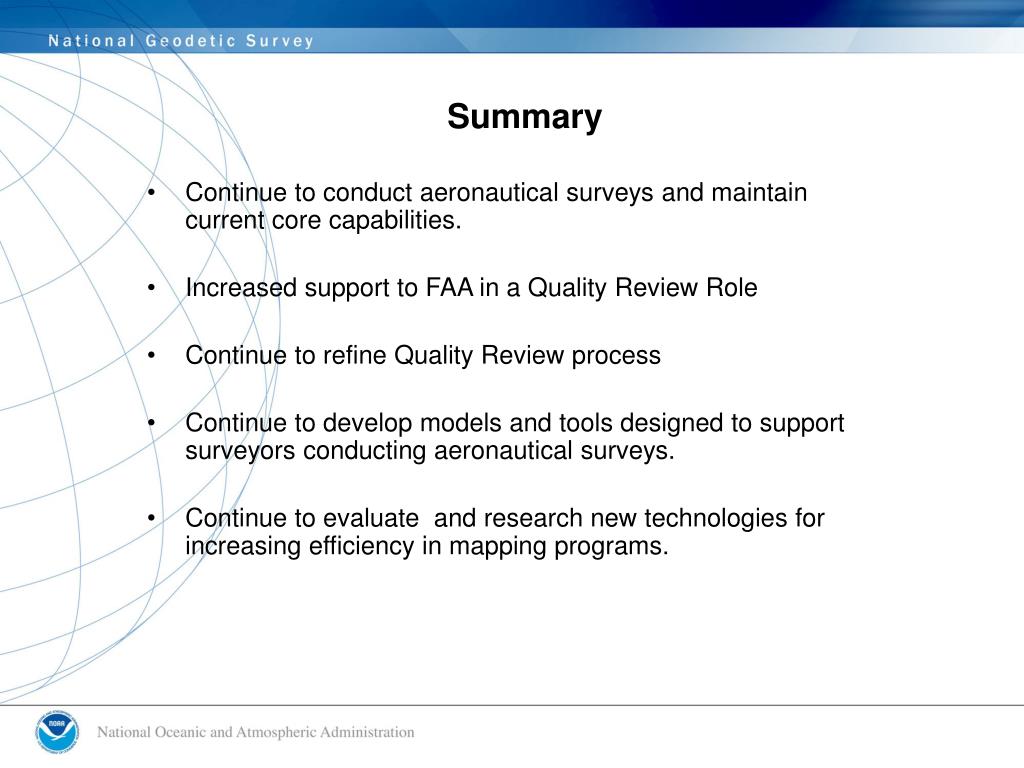

Summary

  • Continue to conduct aeronautical surveys and maintain current core capabilities.

  • Increased support to FAA in a Quality Review Role

  • Continue to refine Quality Review process

  • Continue to develop models and tools designed to support surveyors conducting aeronautical surveys.

  • Continue to evaluate and research new technologies for increasing efficiency in mapping programs.


Questions comments

Questions? Comments?
