Lhcb calorimeter upgrade

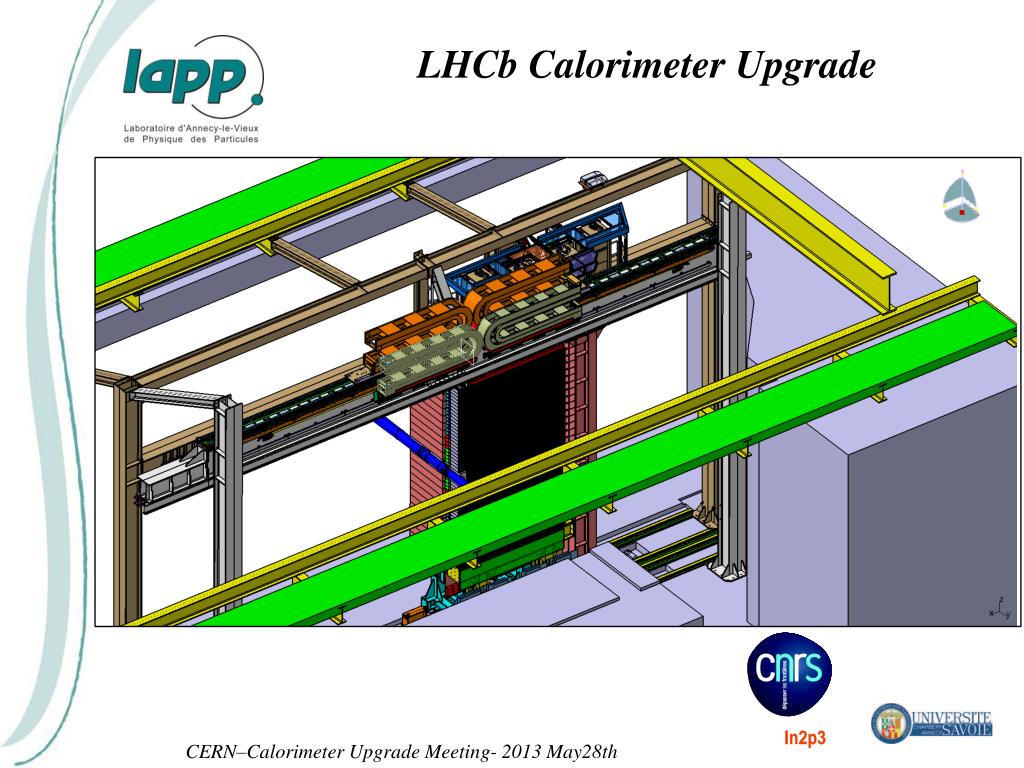

LHCb Calorimeter Upgrade

CERN–CalorimeterUpgrade Meeting- 2013 May28th


Lhcb calorimeter upgrade

LAPP responsabilities in 2006:

Mechanical structure of :

Hcal, Ecal, Ps-Spd


Lhcb calorimeter upgrade

For ECAL:

Base withdisplacement system

(rolls & ballsscrew)

Vertical Beam

Footbridge

Cableschains


Lhcb calorimeter upgrade

Upgrade:

Exchange of the beam plug and 24 modulseachside


Lhcb calorimeter upgrade

Fixing MetallicStripeach 2 ligns of moduls


Lhcb calorimeter upgrade

Zone couldbedismounted ?


Lhcb calorimeter upgrade

Back sideplatform


Lhcb calorimeter upgrade

Long steel plate : 1500 kg


Lhcb calorimeter upgrade

Mechanical jack


Lhcb calorimeter upgrade

Workingaera to removemoduls or beam plug

  • Tools :

  • Cherry picker

  • Specialtool for beam plug


Lhcb calorimeter upgrade

Metallic plate to fixmodulscables


Lhcb calorimeter upgrade

Metallicstripeach 2 moduls


Lhcb calorimeter upgrade

More easy

Lesseasy
