  1. Reiner Kraft Farzin Maghoul Chi Chao Chang Ravi Kumar Yahoo!, Inc., Sunnyvale, CA 94089, USA Searching with Context

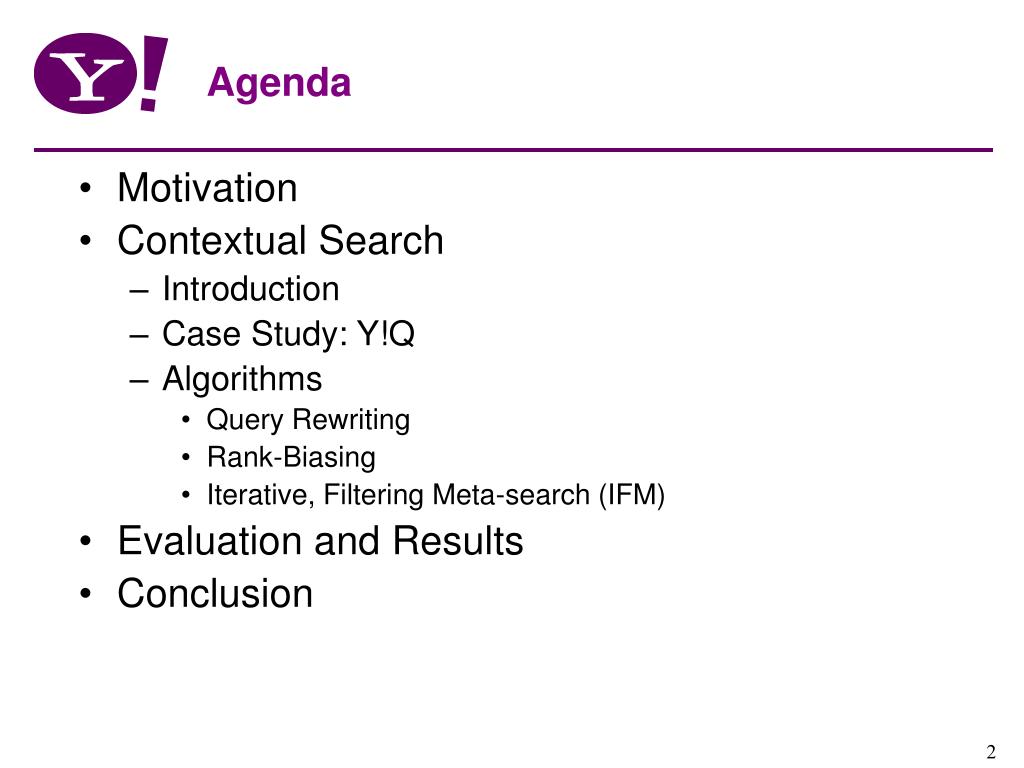

  2. Agenda • Motivation • Contextual Search • Introduction • Case Study: Y!Q • Algorithms • Query Rewriting • Rank-Biasing • Iterative, Filtering Meta-search (IFM) • Evaluation and Results • Conclusion

  3. Motivation • Traditional web search based on keywords as good as it gets? • Not too much qualitative differences between search results of major search engines • Introducing anchor text and link analysis to improve search relevancy last major significant feature (1998) • Search can be vastly improved in the dimension of precision • The more we know about a user’s information need, the more precise our results can be • There exists a lot of evidence (context) beyond the terms in the query box from which we can infer better knowledge of information need • Study of web query logs show that users are already employing a manual form of contextual search by using additional terms to refine and reissue queries when the search results for the initial query turn out to be unsatisfactory • => How can we automatically use context for augmenting, refining, and improving a user’s search query to obtain more relevant results?

  4. Contextual Search - General Problems • Gathering evidence (context) • Representing and inferring user information need from evidence • Using that representation to get more precise results

  5. Contextual Search - Terminology • Context • In general: Any additional information associated with a query • More narrow: A piece of text (e.g., a few words, a sentence, a paragraph, an article) that has been authored by someone • Context Term Vector • Dense representation of a context in the vector space model • Obtained using keyword extraction algorithms (e.g., Wen-tau Yih et al., KEA, Y! Content Analysis) • Search Query Types • Simple: Few keywords, no special or expensive operators • Complex: Keywords/phrases plus special ranking operators, more expensive to evaluate • Contextual: Query + context term vector • Search Engine Types • Standard: Web search engines (e.g., Yahoo, Google, MSN, …) that support simple queries • Modified: A Web search engine that has been modified to support complex search queries

  6. Case Study: Y!Q Contextual Search • Acquiring context: • Y!Q provides a simple API that allows publishers to associate visual information widgets (actuators) to parts of page content (http://yq.search.yahoo.com/publisher/embed.html) • Y!Q lets users manually specify or select context (e.g., within Y! Toolbar, Y! Messenger, included JavaScript library) • Contextual Search Application • Generates a digest (context term vector) of the associated content piece as additional terms of interest for augmenting queries (content analysis) • Knows how to perform contextual searches for different search back-end providers (query rewriting framework) • Knows how to rank results based on query + context (contextual ranking) • Seamless integration by displaying results in overlay or embedded within page without interrupting the user’s workflow

  7. Example

  8. Example Y!Q Actuator

  9. Example Y!Q Overlay showing contextual search results

  10. Example Y!Q: Searching in Context

  11. Example CSRP Terms extracted from context

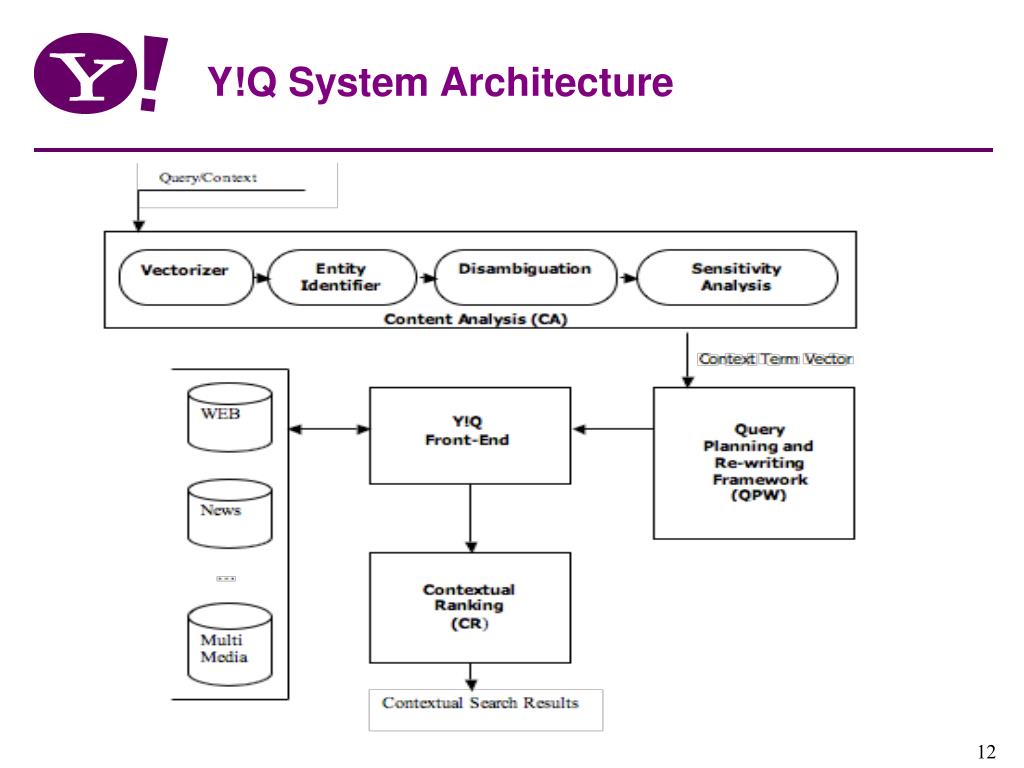

  12. Y!Q System Architecture

  13. Implementing Contextual Search • Assumption: • We have a query plus a context term vector (contextual search query) • Design dimensions: • Number of queries to send to a search engine per contextual search query • Types of queries to send • Simple • Complex • Algorithms: • Query Rewriting (QR) • Rank-Biasing (RB) • Iterative, Filtering, Meta-Search (IFM)

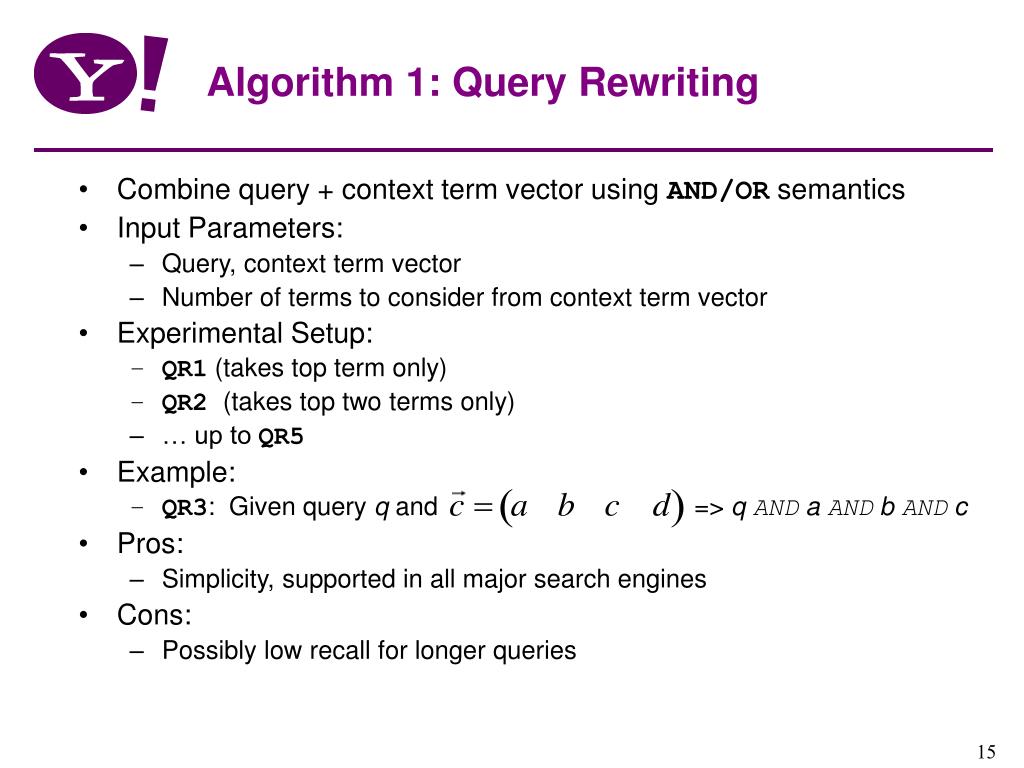

  14. Algorithm 1: Query Rewriting • Combine query + context term vector using AND/OR semantics • Input Parameters: • Query, context term vector • Number of terms to consider from context term vector • Experimental Setup: • QR1 (takes top term only) • QR2 (takes top two terms only) • … up to QR5 • Example: • QR3: Given query q and => q AND a AND b AND c • Pros: • Simplicity, supported in all major search engines • Cons: • Possibly low recall for longer queries

  15. Algorithm 2: Rank-Biasing • Requires modified search engine with support for RANK operator for rank-biasing • Complex query comprises: • Selection part • Optional ranking terms are only impacting score of selected documents • Input Parameters: • Query, context term vector • Number of selection terms to consider (conjunctive semantics) • Number of RANK operators • Weight multiplier for each RANK operator (used for scaling) • Experimental Setup: • RB2 (uses 1 selection term, 2 RANK operators, weight multiplier=0.1) • RB6 (uses 2 selection terms, 6 RANK operators, weight multiplier=0.01) • Example: • RB2: Given q and => q AND a RANK(b, 2.5) RANK(c, 1.2) • Pros: • Ranking terms do not limit recall • Cons: • Requires a modified search engine back-end, more expensive to evaluate

  16. Algorithm 3: IFM • IFM based on concept of Meta-search (e.g., used in Buying Guide Finder [kraft, stata, 2003]) • Sends multiple (simple) queries to possibly multiple search engines • Combines results using rank aggregation methodologies

  17. IFM Query Generation • Uses “query templates” approach: • Query templates specify how sub-queries get constructed from the pool of candidate terms • Allow to explore the problem domain in a systematic way • Implemented primarily sliding window technique using query templates • Example: Given query q and => a sliding window query template of size 2 may construct the following queries: • q a b • q b c • q c d • Parameters: • Size of the sliding window • Experimental Setup: • IFM-SW1, IFM-SW2, IFM-SW3, IFM-SW4

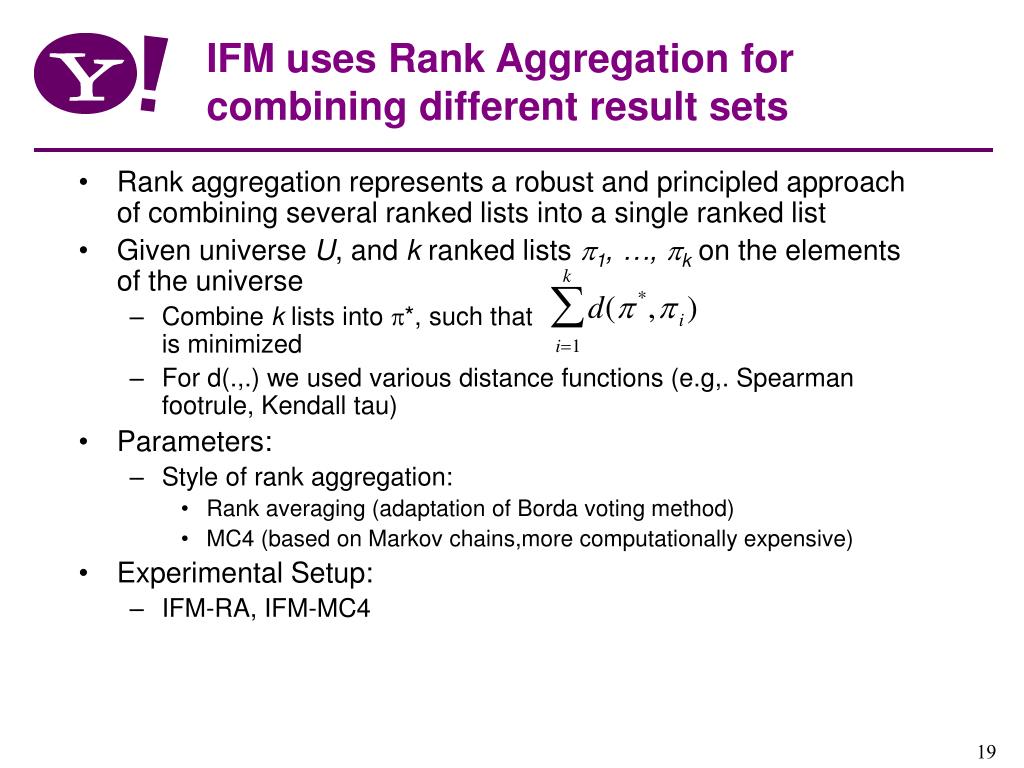

  18. IFM uses Rank Aggregation for combining different result sets • Rank aggregation represents a robust and principled approach of combining several ranked lists into a single ranked list • Given universe U, and k ranked lists 1, …, k on the elements of the universe • Combine k lists into *, such thatis minimized • For d(.,.) we used various distance functions (e.g,. Spearman footrule, Kendall tau) • Parameters: • Style of rank aggregation: • Rank averaging (adaptation of Borda voting method) • MC4 (based on Markov chains,more computationally expensive) • Experimental Setup: • IFM-RA, IFM-MC4

  19. Experimental Setup and Methodology • Benchmark • 200 contexts sampled from Y!Q query logs • Tested 41 configurations • 15 QR (Yahoo, MSN, Google) • 18 RB (1 or 2 selection terms; 2, 4, or 6 RANK operators, 0.01, 0.1, or 0.5 weight multipliers) • 8 IFM (avg and MC4 on Yahoo, SW1 to SW4) • Per item test • Relevancy to the context, perceived relevancy used • Relevancy Judgments: • Yes • Somewhat • No • Can’t Tell • 28 expert judges, look at top 3 results, total of 24,556 judgments

  20. Example • Context: • “Cowboys Cut Carter; Testaverde to Start OXNARD, Calif Quincy Carter was cut by the Dallas Cowboys on Wednesday, leaving 40-year-old Vinny Testaverde as the starting quarterback. The team would’nt say why it released Carter.” • Judgment Examples: • A result directly relating to the “Dallas Coyboys” (football team) or Quincy Carter => Yes • A result repeating the same or similar information => Somewhat • A result about Jimmy Carter, the former U.S. president => No • If result doesn’t provide sufficient information => Can’t tell

  21. Metrics • Strong Precision at 1 (SP@1) and 3 (SP@3) • Number of relevant results divided by the number of retrieved results, but capped at 1 or 3, and expressed as a ratio • A result is considered relevant if and only if it receives a ‘Y’ relevant judgment • Precision at 1 (P@1) and 3 (P@3) • Number of relevant results divided by the number of retrieved results, but capped at 1 or 3, and expressed as a ratio • A result is considered relevant if and only if it receives a ‘Y’ or ‘S’ relevant judgment

  22. Coverage Results • Highlights • Substantial drop in recall as number of vector entries in QR increases (expected), comparable between MSN, Yahoo, roughly one order of magnitude less on Google • For QR4 using MSN, Yahoo, low recall may potentially affect user experience • RB configurations tested same recall as QR2 • IFM works on substantially larger set of candidate results

  23. Relevance Results for QR • Highlights • Use P@1, P@3, SP@1, SP@3 metrics • SP drops sharply for MSN, Yahoo beyond QR4 (recall issues) • Optimal operating point for MSN, Yahoo QR3/QR4, Google QR5 • QR4 uses 7.3 terms avg., QR5 uses 8.51 terms avg.

  24. Relevance Results for RB and IFM • Highlights • RB2/RB6 best configurations within RBs, RB2 has highest SP@1 • IFM-RA-SW3 winner (best P@1)

  25. Discussion of Results • Simple QR can attain high relevancy • However, precision decreases as function of low recall • Optimal setting depends on web search engine • Human reformulations are unlikely to attain the same level of relevancy as that of QR (best QR1 issues 2.25 terms attains P@3 of 0.504) • RB can perform competitively • particularly at SP@1 • Additional experiments showed that some good results are bubbling up from middle-tier of results (ranked between positions 100 and 1000) • Does not do well for SP@3 (problem if the “right” results are not recalled by selection part) • Requires substantial modifications to a web search engine • Contextual search is not solely a ranking problem, but one of recall • IFM • achieves highest recall and overall relevancy • Can be competitive and, in some measures, superior to QR • More costly to execute

  26. Conclusion • Investigated three algorithmsd for implementing contextual search: • QR • RB • IFM • QR • can be easily implemented on top of a commodity search engine • Performs surprisingly well • Likely to be superior to manual query reformulation • Recall problems • RB and IFM break recall limitations of QR • IFM very effective • Outperforms both QR and RB in terms of recall and precision • The three algorithms offer a good design spectrum for contextual search implementers

  27. Future Work • Further tuning of contextual search algorithms • Alterative presentations of context • Improve relevancy of context term vectors • Better word sense disambiguation • Investigate the usage of different context types (e.g., time, location, user profiles) • Improve contextual ranking and blending of different source types • How to leverage semantic web technologies • …

  28. Interested? Email your resume to: thinkbig@yahoo-inc.com

  29. Backup Slides

  30. Example Search Scenarios • User wants to find the nearest movie theater • Context: location • Query: “movie theater” • User reads a press article about the new Mac OS X Tiger and wants to learn more about it • Context: news article • Query: review • User signs in to Yahoo! and wants to plan trip to ‘Java’ • Context: search history, user preferences • Query: java • => Query alone not sufficient! • => Context critical for returning relevant results • => Users often manually append context in form of adding extra query terms
